Panacom SP-5215 User manual

SP-5215SP-5215
Read this manual carefully to get the best performance from 2.1 System
2.1 CHANNEL HOME THEATER SOUNDBAR SYSTEM2.1 CHANNEL HOME THEATER SOUNDBAR SYSTEM
OWNER`S MANUAL

CAUTIONCAUTION
!!
!!
RISK OF ELECTRIC SHOCKRISK OF ELECTRIC SHOCK
DO NOT OPENDO NOT OPEN
SAFETY INFORMATION
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL,
WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED
TO ALERT THE USER TO THE PRESENCE OF
UNINSULATED, DANGEROUS VOLTAGE , WITH IN THE
PRODUCTS ENCLOSURE THAT MAY BE OF SUFFICIENT
MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC
SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL
TRIANGLE IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND MAINTE-
NANCE (SERVICING) INSTRUCTIONS IN THE LITERA-
TURE ACCOMPANYING THE APPLIANCE.
""
Safety Precautions
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK. DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
110
1.Power Supply.................................................................... AC 220V/50Hz
2.Total Power Consumption...............................
3.Input Sensitivity (Subwoofer).................................................200mV 20mV
4.Input Sensitivity (Speaker)........................................... .......750mV 50mV
5.Speaker Impedance (Subwoofer)......................................................... 8 Ohm
6.
S/N (A Weight)........................................................................................80dB
8.Subwoofer Power Output ............................ .. .40W
9.Soundbar Power Output .......................
......
.........................................80W
....
.
Speaker Impedance (Speaker)...............................................................8 Ohm
7.
........................................ .
.............................................2 x 20W
10.THD (1kHz, 1W)...................................................................................0.5%
11.Frequency Response..................................................... 20Hz~20KHz 3dB
12.L/R Separation (1kHz)..........................................................................30dB
13.L/R Balance (Stereo)........................................................................... 2dB
Note: Specifications are subject to change for improvements.
SPECIFICATIONS
ESD WARNING
The normal function of the product may be disturbed by strong Electro-
Magnetic Interference. If so, simply reset the product to resume normal
operation by following the instruction manual. In case the function could not
resume, please use the product in other location

Caution: Please read carefully all the following important safeguards to en-
sure safe operation.
1. Read Instructions - All the safety and operating instructions should be
read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be
retained for future reference.
3. Follow Instructions - All operating instructions should be followed.
4. Heed Warnings - All warnings on the appliance and in the operating
instructions should be adhered to.
5. Power Source - The appliance should be connected to a power supply
only of the type specified in the operating instructions or as marked on
the appliance.
6. Power-cord Protection - Power-supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon or
against them, pay particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the appliance.
7. Water and Moisture - The appliance should not be used near water
(for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a
wet basement, or near a swimming pool, etc.)
8.Ventilation - The appliance should be situated so that its location or
position does not interfere with its proper ventilation. Do not use the
appliance on a bed, sofa, rug or similar surface that may block the
ventilation openings.
IMPORTANT SAFEGUARDS
2
A. Switch On/Off the Product
1. Before turning on the system, please connect it according to
the System Connection Instruction.
2. Connect AC power supply with this product.
(Caution: Power source must be consistent with this product.)(Caution: Power source must be consistent with this product.)
3. Press on the POWER switch button on the Rear Panel of the main
unit to switch on the system, the standby indicator will light up.
Then press the STANDBY button on the remote controller to enter
the normal status. Press the button on the remote controller once
again to keep power in standby status.
B. VOLUME Selection
1.Press the VOL + button on the front of the main unit, or the
VOL + button on the remote control to increase the volume.
2.Press the VOL - button on the front of the main unit, or the
VOL - button on the remote control to decrease the volume.
C. MUTE Selection
1. Press the MUTE button on the remote controller once to
keep the performance silent.
Press the RESET button on the remote controller and it will reset
all settings including SW Speaker output, Front Speaker output to
factory default settings.
D. RESET
OPERATION
9

8
REMOTE CONTROL
9. Heat - Keep the appliance away from heat sources such as radiators, heat
registers, stoves, or other appliances (including amplifiers) that produce heat.
10. Nonuse Periods - The power cord of the appliance should be unplugged
from the outlet when left unused for a long period of time.
11. Damage requiring service - The appliance should be serviced by qualified
service personnel when:
a/ The power-supply cord or the plug has been damaged; or
b/ Objects have fallen or liquid has been spilled into the appliance; or
c/ The appliance has been exposed to rain; or
d/ The appliance does not appear to operate normally or exhibits a marked
change in performance; or
e/ The appliance has been dropped, or the enclosure damaged.
12. Servicing - The user should not attempt to service the appliance beyond
that specified in the operating instructions. All other servicing should be
referred to qualified service personnel.
13. Clean only with dry cloth.
14. Do not defeat the safety purpose of the unpolarized or grounding type
plug. If the provided plug does not fit into your outlet, consult with
electrician for replacement of the obsolete outlet.
15. Unplug this apparatus during lightning storms or when unused for
long periods of time.
IMPORTANT SAFEGUARDS
3
1.Replace the remote control battery when it no longer operates the
unit, or the range is reduced considerably.
2.Use only CR2025 3V lithium batteries
3.Bear in mind that lighting & other room conditions, in addition to
battery age, can affect the operating range of an infrared remote control.
4.Battery disposal:
Batteries and rechargeable batteries are prohibited to dispose into
household waste.

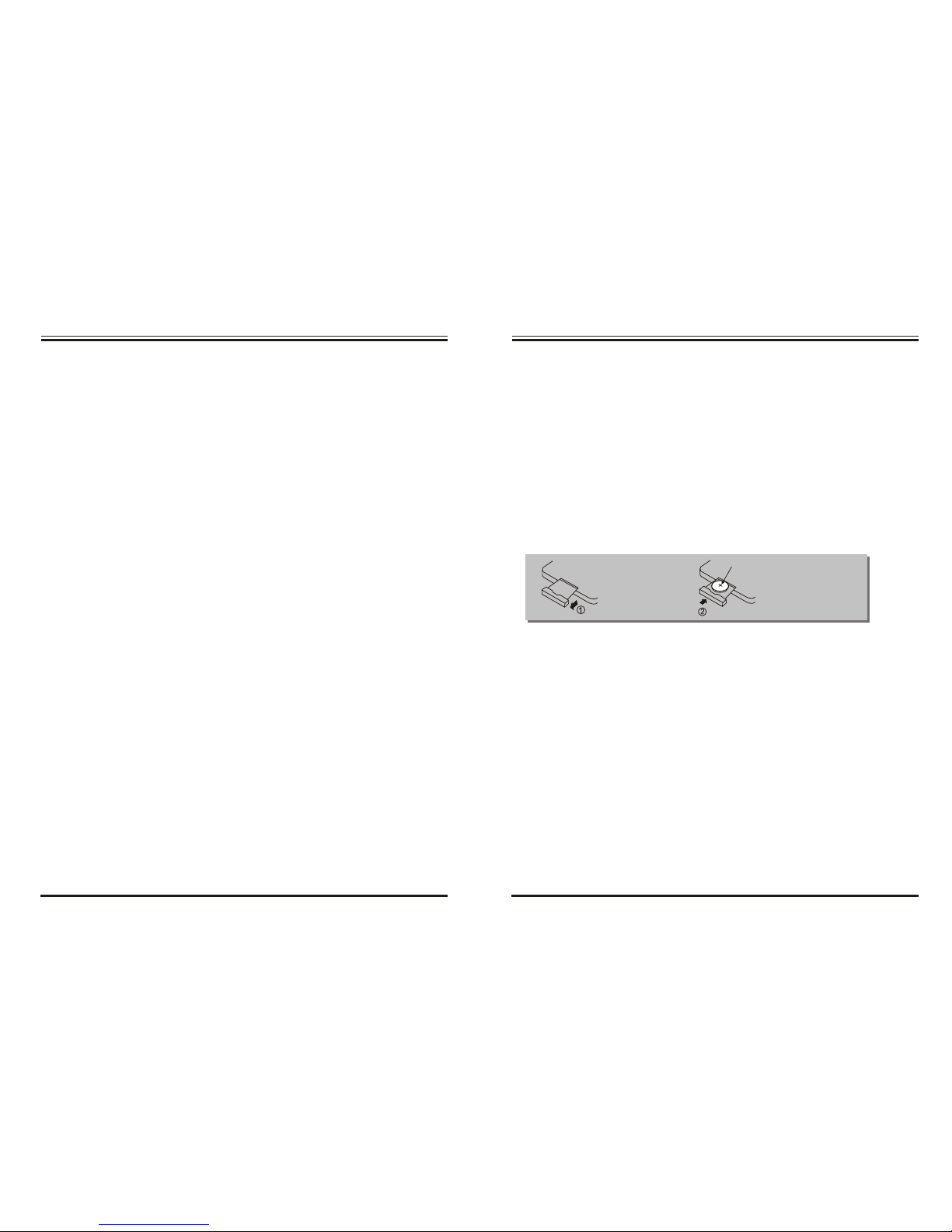

REMOTE CONTROL BATTERY REPLACEMENT
CR2025

REMOTE CONTROL
7
1. : Power Standby.STANDBY
4.VOL-: Volume Downward Adjustment Button.
8.MUTE: Mute Function Button .

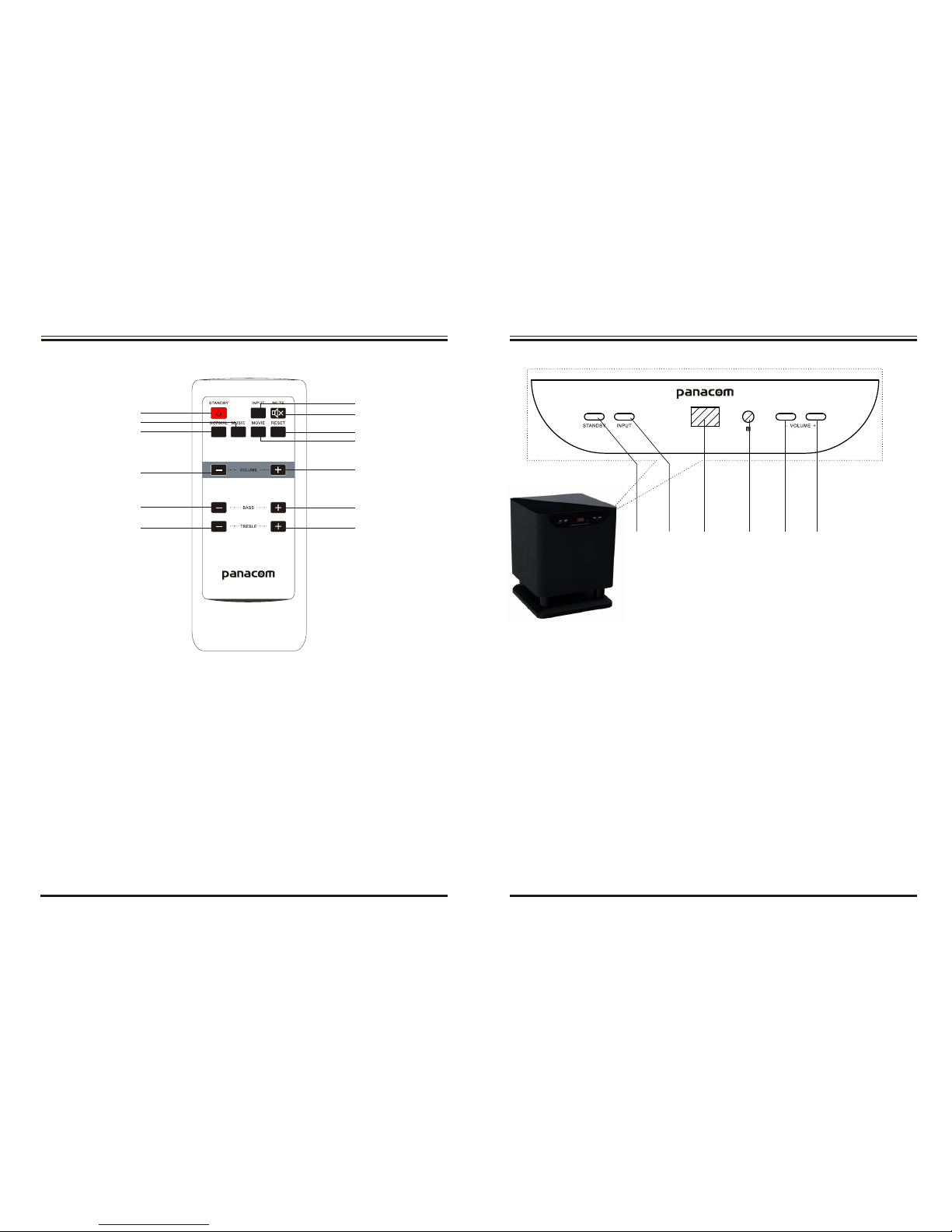

FRONT PANEL - CONTROLS AND FUNCTIONS
4
2.MUSIC: Music Mode .Selection
3.NORMAL: Normal Mode .Selection
5.BASS-: Bass Downward Adjustment Button.
6.TREBLE-: Treble Downward Adjustment Button.
7. INPUT: Input .Selection Button
1. : Power StandbySTANDBY Button.
4. Remote Sensor.
2.INPUT:Input Selection Button.
6.VOL+: Volume Upward Adjustment Button.
5.VOL-: Volume Downward Adjustment Button.
3. LED Display.
11
12
13
2
3
4
5
6
7
8
9
10
1
9.RESET: Location Retrieval Button .
10.MOVIE: Movie Mode .Selection
11.VOL+: Volume Upward Adjustment Button.
12.BASS-: Bass Upward Adjustment Button.
13.TREBLE-: Treble Upward Adjustment Button.
1 2 3456

65
4.CD Stereo Left Audio Input.
5.CD Stereo Right Audio Input.

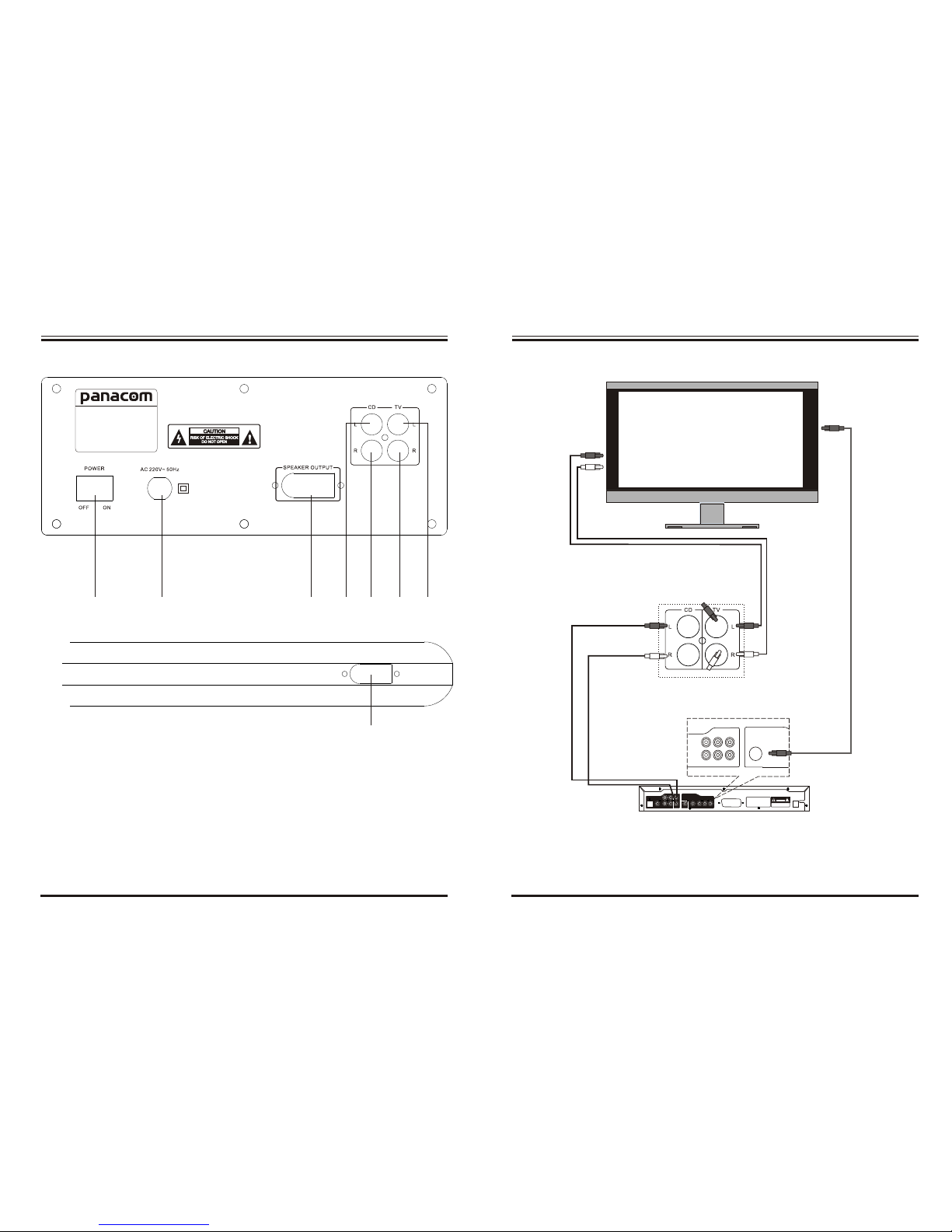

REAR PANEL - CONTROLS AND FUNCTIONS
7.TV Stereo Left Audio Input.
6.TV Stereo Right Audio Input.
2
3
45
16
2.AC Power Cord.
1.Power On/Off Switch.
SYSTEM CONNECTION INSTRUCTIONS
TV
Video In
Video Out
Rear-R
Center
Woofer Rear-L Front-L
Front-R
DVD Player
Optical
Audio Out
Rear-R
Center
Woofer Rear-L Front-L
Coaxial Front-R
Video Out
Scart out
Video S-Video UVY
Manufacturedunder license from Dolby Laboratories.
"Doldy","DolbyDigital", and the double-D symbol are
trademarksof Dolby Laboratories. Confidential
UnpublishedWorks.
@1992-1997Dolby Laboratories, Inc.
Allrights reserved.
ApparatusClaims of U.S. Patent Nos.
4,631,603;4,577,216;4,819,098and 4,907,093
licensed for limited viewing uses only.
RISKOF ELECTRIC SHOCK
DONOT OPEN
WARNING !!
AC100V~240V
50/60Hz
Video
RCA Cable
To Stereo Output
Audio Out
7
SPEAKER INPUTSPEAKER INPUT
8
3.Speaker Output.
8.Speaker Input.
MODEL:SP-5215
POWER SOURCE:AC 220V~ 50HZ
TOTAL POWER CONSUMPTION:80W
MADE IN CHINA
2.1 CH SOUNDBAR SYSTEM
