ORDER NO.CHM0809043CE
Blu-ray Disc Player
Model No. DMP-BD35GN
DMP-BD35GT
Vol. 1
Colour
(K).......................Black Type

DMP-BD35GN-
K

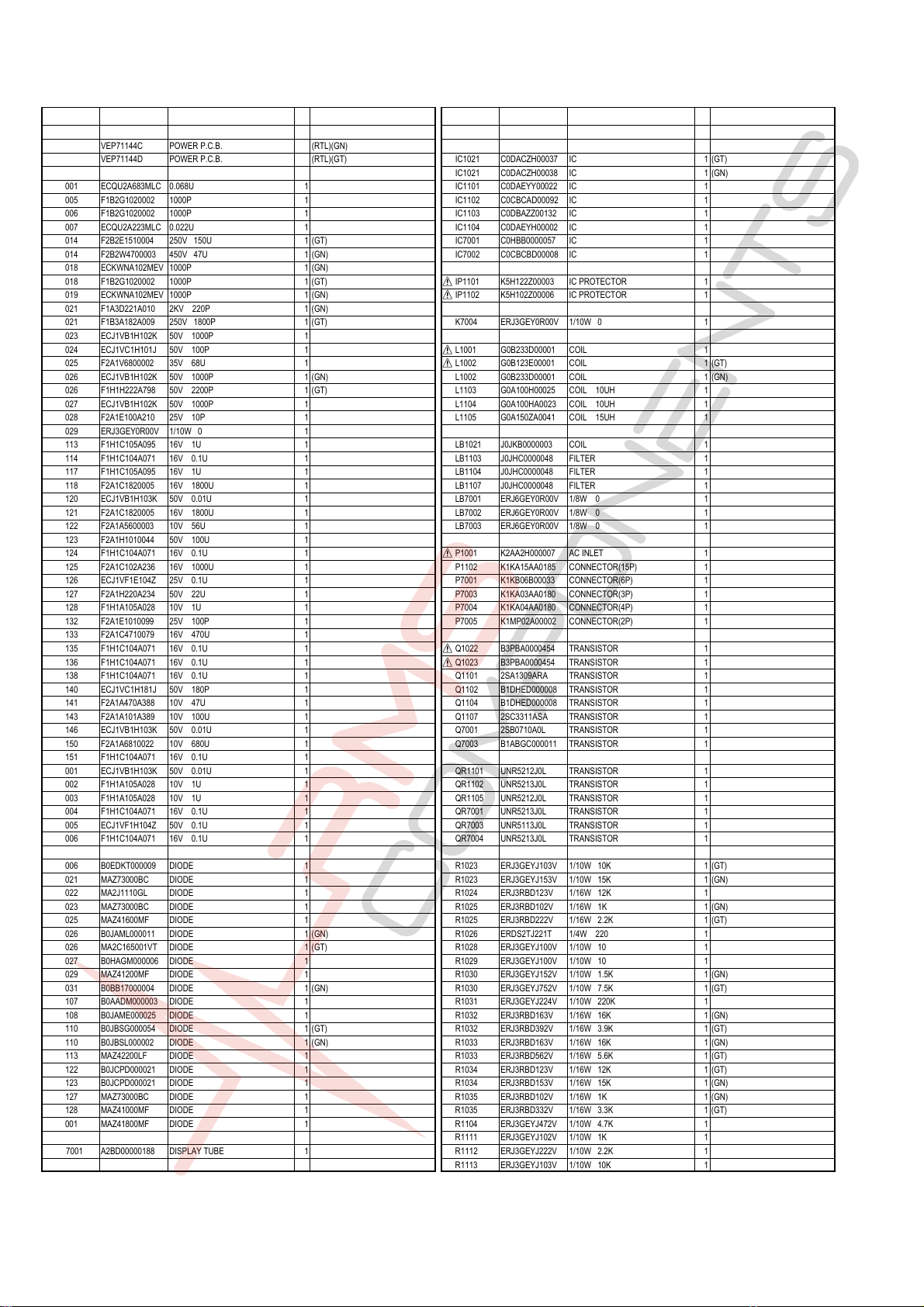

Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
F1001 K5D202BK0005 FUSE 1
## VEP71144C POWER P.C.B. (RTL)(GN)
## VEP71144D POWER P.C.B. (RTL)(GT) IC1021 C0DACZH00037 IC 1 (GT)
IC1021 C0DACZH00038 IC 1 (GN)
C1001 ECQU2A683MLC 0.068U 1 IC1101 C0DAEYY00022 IC 1
C1005 F1B2G1020002 1000P 1 IC1102 C0CBCAD00092 IC 1
C1006 F1B2G1020002 1000P 1 IC1103 C0DBAZZ00132 IC 1
C1007 ECQU2A223MLC 0.022U 1 IC1104 C0DAEYH00002 IC 1
C1014 F2B2E1510004 250V 150U 1 (GT) IC7001 C0HBB0000057 IC 1
C1014 F2B2W4700003 450V 47U 1 (GN) IC7002 C0CBCBD00008 IC 1
C1018 ECKWNA102MEV 1000P 1 (GN)
C1018 F1B2G1020002 1000P 1 (GT) IP1101 K5H122Z00003 IC PROTECTOR 1
C1019 ECKWNA102MEV 1000P 1 (GN) IP1102 K5H102Z00006 IC PROTECTOR 1
C1021 F1A3D221A010 2KV 220P 1 (GN)
C1021 F1B3A182A009 250V 1800P 1 (GT) K7004 ERJ3GEY0R00V 1/10W 0 1
C1023 ECJ1VB1H102K 50V 1000P 1
C1024 ECJ1VC1H101J 50V 100P 1 L1001 G0B233D00001 COIL 1
C1025 F2A1V6800002 35V 68U 1 L1002 G0B123E00001 COIL 1 (GT)
C1026 ECJ1VB1H102K 50V 1000P 1 (GN) L1002 G0B233D00001 COIL 1 (GN)
C1026 F1H1H222A798 50V 2200P 1 (GT) L1103 G0A100H00025 COIL 10UH 1
C1027 ECJ1VB1H102K 50V 1000P 1 L1104 G0A100HA0023 COIL 10UH 1
C1028 F2A1E100A210 25V 10P 1 L1105 G0A150ZA0041 COIL 15UH 1
C1029 ERJ3GEY0R00V 1/10W 0 1
C1113 F1H1C105A095 16V 1U 1 LB1021 J0JKB0000003 COIL 1
C1114 F1H1C104A071 16V 0.1U 1 LB1103 J0JHC0000048 FILTER 1
C1117 F1H1C105A095 16V 1U 1 LB1104 J0JHC0000048 FILTER 1
C1118 F2A1C1820005 16V 1800U 1 LB1107 J0JHC0000048 FILTER 1
C1120 ECJ1VB1H103K 50V 0.01U 1 LB7001 ERJ6GEY0R00V 1/8W 0 1
C1121 F2A1C1820005 16V 1800U 1 LB7002 ERJ6GEY0R00V 1/8W 0 1
C1122 F2A1A5600003 10V 56U 1 LB7003 ERJ6GEY0R00V 1/8W 0 1
C1123 F2A1H1010044 50V 100U 1
C1124 F1H1C104A071 16V 0.1U 1 P1001 K2AA2H000007 AC INLET 1
C1125 F2A1C102A236 16V 1000U 1 P1102 K1KA15AA0185 CONNECTOR(15P) 1
C1126 ECJ1VF1E104Z 25V 0.1U 1 P7001 K1KB06B00033 CONNECTOR(6P) 1
C1127 F2A1H220A234 50V 22U 1 P7003 K1KA03AA0180 CONNECTOR(3P) 1
C1128 F1H1A105A028 10V 1U 1 P7004 K1KA04AA0180 CONNECTOR(4P) 1
C1132 F2A1E1010099 25V 100P 1 P7005 K1MP02A00002 CONNECTOR(2P) 1
C1133 F2A1C4710079 16V 470U 1
C1135 F1H1C104A071 16V 0.1U 1 Q1022 B3PBA0000454 TRANSISTOR 1
C1136 F1H1C104A071 16V 0.1U 1 Q1023 B3PBA0000454 TRANSISTOR 1
C1138 F1H1C104A071 16V 0.1U 1 Q1101 2SA1309ARA TRANSISTOR 1
C1140 ECJ1VC1H181J 50V 180P 1 Q1102 B1DHED000008 TRANSISTOR 1
C1141 F2A1A470A388 10V 47U 1 Q1104 B1DHED000008 TRANSISTOR 1
C1143 F2A1A101A389 10V 100U 1 Q1107 2SC3311ASA TRANSISTOR 1
C1146 ECJ1VB1H103K 50V 0.01U 1 Q7001 2SB0710A0L TRANSISTOR 1
C1150 F2A1A6810022 10V 680U 1 Q7003 B1ABGC000011 TRANSISTOR 1
C1151 F1H1C104A071 16V 0.1U 1
C7001 ECJ1VB1H103K 50V 0.01U 1 QR1101 UNR5212J0L TRANSISTOR 1
C7002 F1H1A105A028 10V 1U 1 QR1102 UNR5213J0L TRANSISTOR 1
C7003 F1H1A105A028 10V 1U 1 QR1105 UNR5212J0L TRANSISTOR 1
C7004 F1H1C104A071 16V 0.1U 1 QR7001 UNR5213J0L TRANSISTOR 1
C7005 ECJ1VF1H104Z 50V 0.1U 1 QR7003 UNR5113J0L TRANSISTOR 1
C7006 F1H1C104A071 16V 0.1U 1 QR7004 UNR5213J0L TRANSISTOR 1
D1006 B0EDKT000009 DIODE 1 R1023 ERJ3GEYJ103V 1/10W 10K 1 (GT)
D1021 MAZ73000BC DIODE 1 R1023 ERJ3GEYJ153V 1/10W 15K 1 (GN)
D1022 MA2J1110GL DIODE 1 R1024 ERJ3RBD123V 1/16W 12K 1
D1023 MAZ73000BC DIODE 1 R1025 ERJ3RBD102V 1/16W 1K 1 (GN)
D1025 MAZ41600MF DIODE 1 R1025 ERJ3RBD222V 1/16W 2.2K 1 (GT)
D1026 B0JAML000011 DIODE 1 (GN) R1026 ERDS2TJ221T 1/4W 220 1
D1026 MA2C165001VT DIODE 1 (GT) R1028 ERJ3GEYJ100V 1/10W 10 1
D1027 B0HAGM000006 DIODE 1 R1029 ERJ3GEYJ100V 1/10W 10 1
D1029 MAZ41200MF DIODE 1 R1030 ERJ3GEYJ152V 1/10W 1.5K 1 (GN)
D1031 B0BB17000004 DIODE 1 (GN) R1030 ERJ3GEYJ752V 1/10W 7.5K 1 (GT)
D1107 B0AADM000003 DIODE 1 R1031 ERJ3GEYJ224V 1/10W 220K 1
D1108 B0JAME000025 DIODE 1 R1032 ERJ3RBD163V 1/16W 16K 1 (GN)
D1110 B0JBSG000054 DIODE 1 (GT) R1032 ERJ3RBD392V 1/16W 3.9K 1 (GT)
D1110 B0JBSL000002 DIODE 1 (GN) R1033 ERJ3RBD163V 1/16W 16K 1 (GN)
D1113 MAZ42200LF DIODE 1 R1033 ERJ3RBD562V 1/16W 5.6K 1 (GT)
D1122 B0JCPD000021 DIODE 1 R1034 ERJ3RBD123V 1/16W 12K 1 (GT)
D1123 B0JCPD000021 DIODE 1 R1034 ERJ3RBD153V 1/16W 15K 1 (GN)
D1127 MAZ73000BC DIODE 1 R1035 ERJ3RBD102V 1/16W 1K 1 (GN)
D1128 MAZ41000MF DIODE 1 R1035 ERJ3RBD332V 1/16W 3.3K 1 (GT)
D7001 MAZ41800MF DIODE 1 R1104 ERJ3GEYJ472V 1/10W 4.7K 1
R1111 ERJ3GEYJ102V 1/10W 1K 1
DP7001 A2BD00000188 DISPLAY TUBE 1 R1112 ERJ3GEYJ222V 1/10W 2.2K 1
R1113 ERJ3GEYJ103V 1/10W 10K 1
S-24

DMP-BD35GN-
K
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
R1115 ERJ3RBD242V 1/16W 2.4K 1
R1116 ERJ3GEYJ222V 1/10W 2.2K 1 S7202 EVQ11A04M SWITCH, 1
R1117 ERDS2TJ101T 1/4W 100 1 S7204 EVQ11A04M SWITCH, 1
R1118 ERJ3RBD301V 1/16W 300 1 S7206 EVQ11A04M SWITCH, 1
R1119 ERJ3RBD912V 1/16W 9.1K 1
R1120 ERJ3GEYJ472V 1/10W 4.7K 1 W51 ERJ3GEY0R00V 1/10W 0 1
R1121 ERJ3GEYJ223V 1/10W 22K 1 W52 ERJ3GEY0R00V 1/10W 0 1
R1123 ERJ3GEYJ223V 1/10W 22K 1 W53 ERJ3GEY0R00V 1/10W 0 1
R1129 ERJ3GEYJ513V 1/10W 51K 1 W55 ERJ3GEY0R00V 1/10W 0 1
R1130 D1BDR027A101 2W 0.027U 1 W56 ERJ6GEY0R00V 1/8W 0 1
R1136 ERJ3RBD152V 1/16W 1.5K 1
R1137 ERJ3RBD393V 1/16W 39K 1
R1138 ERJ3RBD113V 1/16W 11K 1 ## VEP70261A POWER SW P.C.B. (RTL)
R1141 ERJ3RBD222V 1/16W 2.2K 1
R1142 ERJ3RBD822V 1/16W 8.2K 1 PJ7551 REZ1890-1 WIRE 1
R1143 ERJ3RBD272V 1/16W 2.7K 1
R1146 ERJ6GEY0R00V 1/8W 0 1 S7551 EVQ11A04M SWITCH, 1
R1161 ERDS2TJ821T 1/4W 820 1
R1162 ERDS2TJ821T 1/4W 820 1
R1163 ERDS2TJ821T 1/4W 820 1 ## VEP70263A OPEN SW P.C.B. (RTL)
R1164 ERDS2TJ821T 1/4W 820 1
R1165 ERDS2TJ821T 1/4W 820 1 PJ7581 REZ1889-1 WIRE 1
R1166 ERJ3GEYJ821V 1/10W 820 1
R1167 ERJ3GEY0R00V 1/10W 0 1 S7581 EVQ11A04M SWITCH, 1
R1169 ERJ3GEY0R00V 1/10W 0 1
R1170 ERJ3GEY0R00V 1/10W 0 1
R1171 ERJ3GEY0R00V 1/10W 0 1 ## M1
R1172 ERJ3GEY0R00V 1/10W 0 1
R1173 ERJ3GEY0R00V 1/10W 0 1 1 VEP71144C POWER P.C.B. 1 (RTL)(GN)
R1174 ERJ3GEY0R00V 1/10W 0 1 1 VEP71144D POWER P.C.B. 1 (RTL)(GT)
R7001 ERJ3GEY0R00V 1/10W 0 1 3 VEP70261A POWER SW P.C.B. 1 (RTL)
R7002 ERJ3GEY0R00V 1/10W 0 1 4 VEP70263A OPEN SW P.C.B. 1 (RTL)
R7003 ERJ3GEY0R00V 1/10W 0 1 5 VEP76185A FRONT P.C.B. 1 (RTL)
R7004 ERJ3GEY0R00V 1/10W 0 1 8 VWJ2058-1 FFC(18P) 1
R7005 ERJ3GEY0R00V 1/10W 0 1 9 L6FAGC9E0002 FAN MOTOR 1
R7006 ERJ3GEYJ272V 1/10W 2.7K 1 10 RGR0389A-E1 REAR PANEL 1 (GN)
R7007 ERJ3GEYJ562V 1/10W 5.6K 1 10 RGR0389A-F1 REAR PANEL 1 (GT)
R7009 ERJ3GEYJ104V 1/10W 100K 1 11 RJF0044 PCB SUPPORT 1
R7010 ERJ3GEYJ103V 1/10W 10K 1 12 RMA2159A-1 FRONT ANGLE 1
R7011 ERJ3RBD471V 1/16W 470 1 13 RMX0437 INSULATION SHEET 1
14 RMZ0975 INSULATION SHEET 1
T1001 G4D2A0000307 TRANSFORMER 1 (GT) 15 RSC0851 HEAT TRANSFER SHEET 1
T1001 G4D2A0000308 TRANSFORMER 1 (GN) 16 RSC0854 HEAT TRANSFER SHEET 1
17 RKA0206-K FOOT RUBBER 1
VA1001 ERZV05Z471CS VARISTOR 1 18 RKA0206-K FOOT RUBBER 1
19 RKA0206-K FOOT RUBBER 1
W201 ERJ3GEY0R00V 1/10W 0 1 20 RKA0206-K FOOT RUBBER 1
21 VJF1535 WIRE 1
ZA1001 EYF52BCY FUSE HOLDER 1 22 VJF1535 WIRE 1
ZA1002 EYF52BCY FUSE HOLDER 1 23 VJF1535 WIRE 1
ZA1003 K9ZZ00001279 EARTH PLATE 1 24 RYP1447B-K FRONT PANEL ASS'Y1 1
ZA1004 K9ZZ00001279 EARTH PLATE 1 24-1 RGU2605-K OPERATION BUTTON 1
ZA1005 K9ZZ00001279 EARTH PLATE 1 24-2 RGU2606A-K POWER BUTTON 1
ZA1006 K9ZZ00001279 EARTH PLATE 1 24-3 RGU2607-K OPEN/CLOSE BUTTON 1
ZA1021 VSC5603-A HEAT SINK 1 24-4 RKW0882-Q FRONT WINDOW 1
ZA1022 XYN3+J8FJ SCREW 1 24-5 RYF0845-K TRAY DOOR ASS'Y 1
ZA1110 VSC5604-A HEAT SINK 1 24-5-1 RMB0898 TRAY DOOR SPRING 1
ZA1111 XYN3+J8FJ SCREW 1 24-5-2 RMG0735-KJ CUSHION 1
24-5-3 RMG0735-KJ CUSHION 1
ZB7001 RMN0913 FL HOLDER 1 24-6 RYF0846-K DOOR ASS'Y 1
24-7 RYK1548-Q FL WINDOW ASS'Y 1
26 RKM0605-K TOP CASE 1
## VEP76185A FRONT P.C.B. (RTL) 27 RFKNBD35GN BDP/DIGITAL P.C.B. MODULE 1 (RTL)(GN)
27 RFKNBD35GT BDP/DIGITAL P.C.B. MODULE 1 (RTL)(GT)
C7202 ECJ1VF1A105Z 10V 1U 1 28 VEK0N21 WIRE WITH CONNECTOR 1
31 RHD30101-1 SCREW 1
IR7201 B3RAD0000150 REMOTE SENSOR 1 32 RHD30101-1 SCREW 1
33 RHD30101-1 SCREW 1
P7201 K1KA10B00196 CONNECTOR(10P) 1 34 RHD30101-1 SCREW 1
P7202 K1KA06B00150 CONNECTOR(6P) 1 35 RHD30101-1 SCREW 1
36 RHD30101-1 SCREW 1
R7201 ERJ3RBD222V 1/16W 2.2K 1 37 RHD30101-1 SCREW 1
R7202 ERJ3RBD392V 1/16W 3.9K 1 38 RHD30101-1 SCREW 1
R7203 ERJ3RBD222V 1/16W 2.2K 1 39 RHD30101-1 SCREW 1
R7204 ERJ3RBD392V 1/16W 3.9K 1 40 RHD30101-1 SCREW 1
R7205 ERJ3GEYJ330V 1/10W 33 1 41 RHD30101-1 SCREW 1
R7206 ERJ3GEY0R00V 1/10W 0 1 42 RHD30101-1 SCREW 1
S-25

DMP-BD35GN-
K
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
43 RHD30101-1 SCREW 1 PC4 RPN2084B CUSHION(B) 1
44 RHD30101-1 SCREW 1
46 RHD30119-L SCREW 1
47 RHD30119-L SCREW 1
48 RHD30119-L SCREW 1
49 RHD30119-L SCREW 1
50 RHD30119-L SCREW 1
51 RHD30119-L SCREW 1
52 RHD30119-L SCREW 1
53 RHD30119-L SCREW 1
54 RHD30119-L SCREW 1
55 RHD30119-L SCREW 1
56 RHD30119-L SCREW 1
57 XSN3+4FJ SCREW 1
58 RHD26045-J SCREW 1
59 RHD26045-J SCREW 1
60 RHD26045-J SCREW 1
61 RHD26045-J SCREW 1
62 RHD26045-J SCREW 1
63 RHD30113-1K SCREW 1
64 RHD30113-1K SCREW 1
65 RHD30113-1K SCREW 1
66 RHD30113-1K SCREW 1
67 VHD0690-1 SCREW 1
68 VHD0690-1 SCREW 1
69 VHD0690-1 SCREW 1
## M2
101 VQL1J70-J LASER CAUTION LABEL 1
102 VMA0V86 YOKE 1
103 VMD5751 UPPER BASE 1
104 VMD5752 CLAMPER 1
105 VMT1876-J DUST COVER A 1
106 VMZ3737-J CLAMP COVER 1
107 VXA8487 TRAY ASS'Y 1
108 XTV26+10GFJ SCREW 1
109 XTV26+10GFJ SCREW 1
110 XTV26+10GFJ SCREW 1
111 XTV26+10GFJ SCREW 1
112 VMD5753 MID BASE 1
113 VDG1713 PULLEY GEAR 1
114 VDG1714 MID GEAR 1
115 VDG1715 DRIVE GEAR 1
116 VEM0867 LOADING MOTOR U 1
117 VHD1653-1 SCREW 1
118 VMD5748-1 MECHA CHASSIS 1
119 VMD5749 SLIDE CAM 1
120 VMG1809 BELT 1
121 VMT1877-J DUST COVER B 1
122 VHD1518-1 SCREW 1
123 VHD1518-1 SCREW 1
124 VHD1518-1 SCREW 1
125 VHD1518-1 SCREW 1
126 VMG1810 DAMPER 1
127 VMG1810 DAMPER 1
128 VMG1810 DAMPER 1
129 VMG1810 DAMPER 1
## M3
A1 K2CJ2DA00008 AC CORD 1 (GN)
A1 K2CA2CA00027 AC CORD 1 (GT)
A2 K2KA6BA00004 AV CORD 1
A3 N2QAYB000185 REMOTE CONTROL ASS'Y 1
A3-1 100300037800 BATTERY COVER 1
A4 RPQF0220-1 ACCESSORY BOX 1
A5 RPFC0031-B POLYETHYLENE BAG 1
A6 RQT9248-L OPERATING INSTRUCTIONS 1 (GN)
A6 RQT9256-K OPERATING INSTRUCTIONS 1 (GT)
PC1 RPG8636 PACKING CASE 1 (GN)
PC1 RPG8637 PACKING CASE 1 (GT)
PC2 RPF0458 POLYETHYLENE BAG 1
PC3 RPN2084A CUSHION(A) 1
S-26

S8. Exploded View
S8.1. Frame and Casing Section
S-27
26
63
64
3
24-2
62
61
59
58
9
57
52
51
50
49
47
46
48
66
65
69
68
67
27
22
21
28
38
36
37
35
44
40
39
43
42
41
24-5-1 24-6
24-4
24-7
24-3
24-1
32 33 34
11
23
20
19
18
17
15
16
14
12
56
55
54
53
1
31
10
8
5
4
60
13
24-5-2
24-5-3
24-5
24

S8.2. Mechanism Section
S-28
101
106
102
104
110
111
109
108
103
105
107
122
123
125
124
126
127
128
129
112
119
120
113
114115
118
121
116
117

S8.3. Packing Parts and Accessories Section
S-29
A3
BATTERY
(REMOTE CONT.)
A2
A1
A3-1
A4
PC1
PC2
PC3
A6
A5
PC4
