Panasonic AJ-HPX2700MC User manual

Panasonic Broadcast

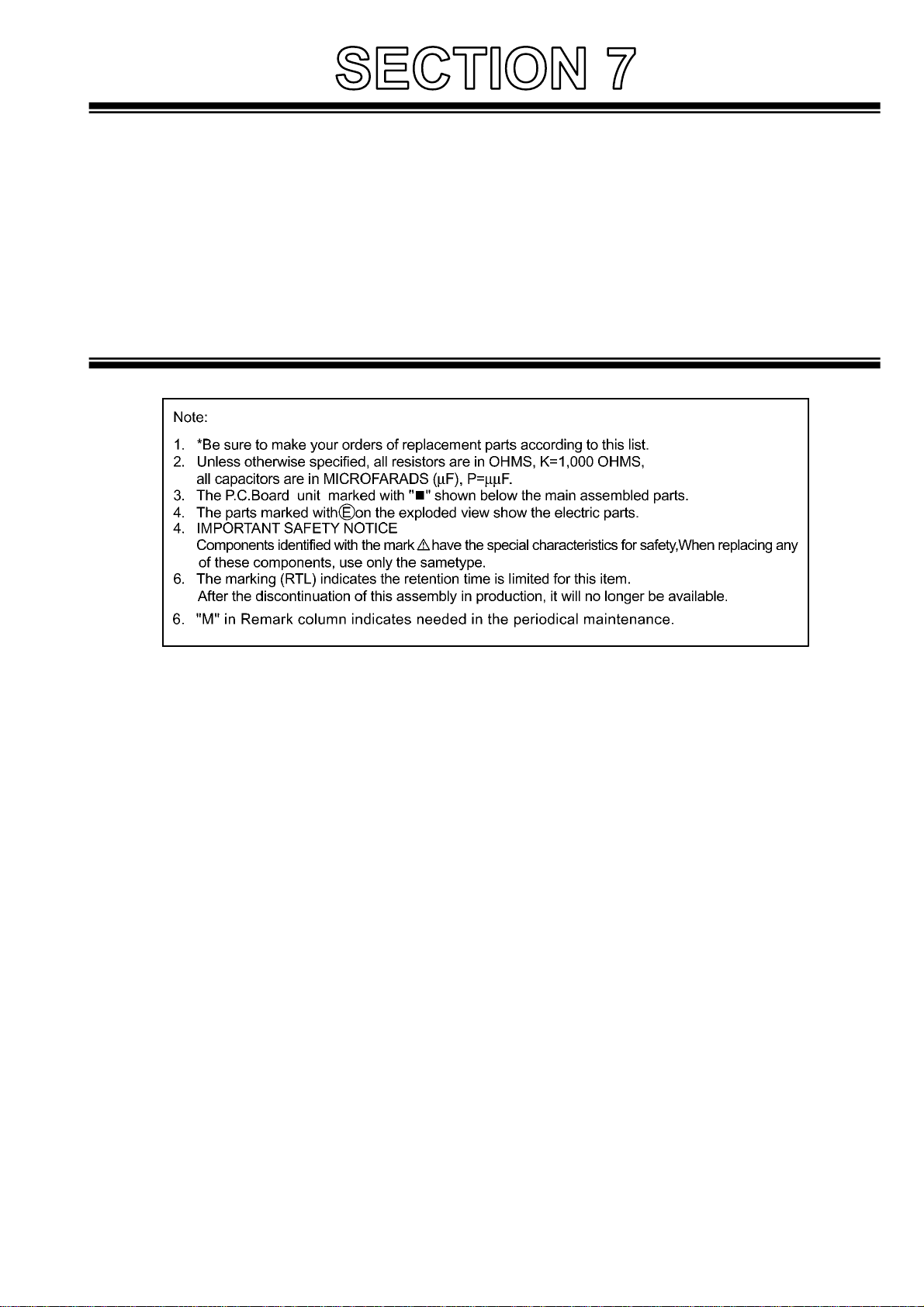

Mechanical Parts List
Model No.: AJ-HPX2700G/MC
CONTENTS
CASING & FRAME PARTS ASSEMBLY OVERALL SECTION (1)................................................ MPL-1
OVERALL SECTION (2) ................................................................................................................. MPL-3
CAMERA PARTS ASSEMBLY(1)................................................................................................... MPL-5
CAMERA PARTS ASSEMBLY(2)................................................................................................... MPL-7
CAMERA PARTS ASSEMBLY(3)................................................................................................... MPL-9
TOP CASE & HANDLE PARTS ASSEMBLY.................................................................................. MPL-11
SIDE CASE (R) PARTS ASSEMBLY.............................................................................................. MPL-13
CARD GUIDE PARTS ASSEMBLY ................................................................................................ MPL-15
REAR JACK PARTS ASSEMBLY................................................................................................... MPL-17
BACK CASE PARTS ASSEMBLY .................................................................................................. MPL-19
LCD PARTS ASSEMBLY................................................................................................................ MPL-21
PACKING PARTS ASSEMBLY....................................................................................................... MPL-23

1
8
9
13
15
14
2
6
7
4
510
20
18
17
19
E16
11
16
12
3
102
102
104
107
105
105
106
105
105
105 105
103
103
E17
107
107
107

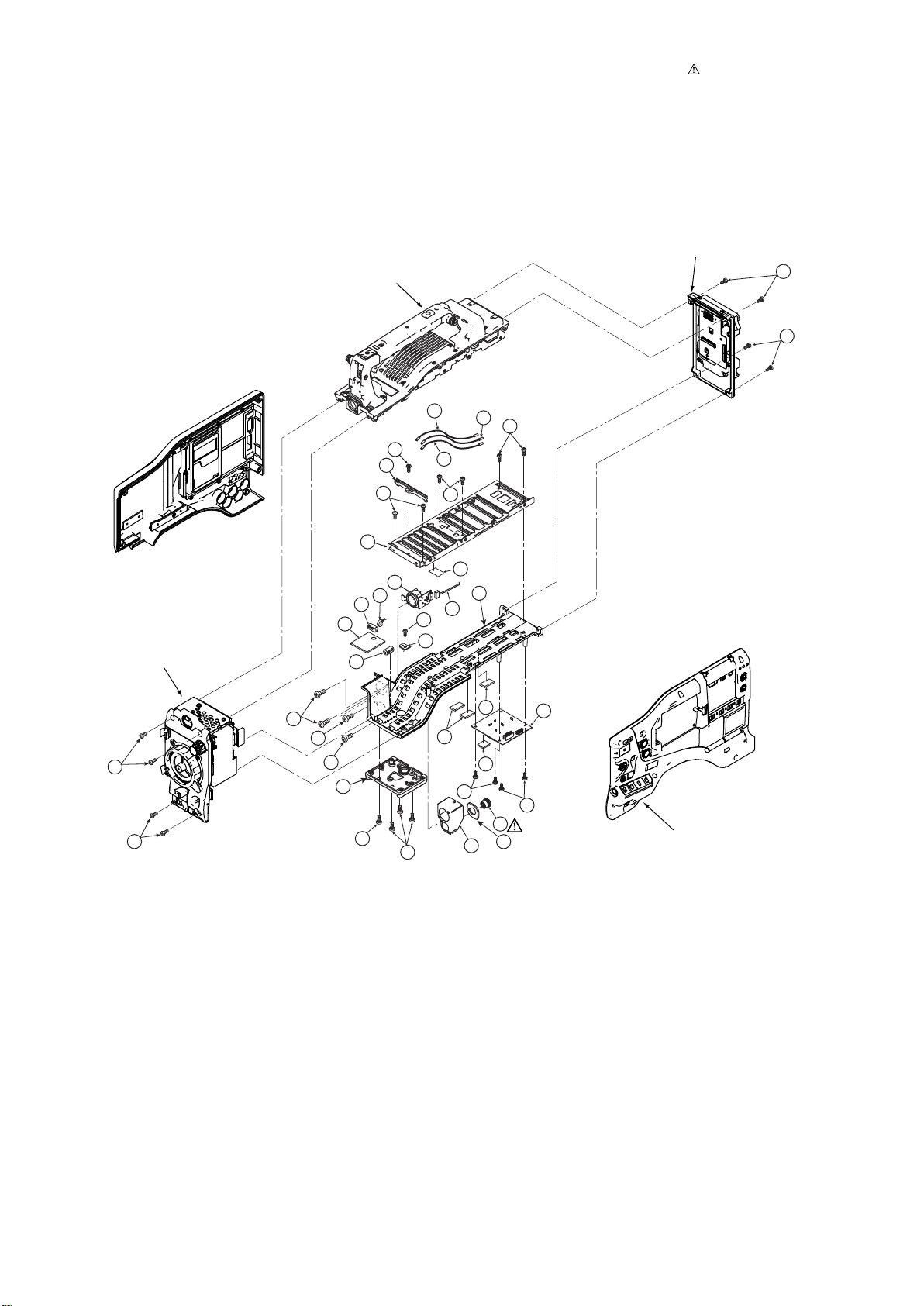

CASING & FRAME PARTS ASSEMBLY
OVERALL SECTION (1)
MPL-1
(Page MPL-11)
TOP CASE & HANDLE ASS'Y (Page MPL-19)
(BACK CASE ASS'Y)
SIDE CASE (R) ASS'Y
(Page MPL-13)
LCD ASS'Y
(Page MPL-21)
(Page MPL-5,7,9)
CAMERAASS'Y
Components identified with the mark have the special characteristics for safety.
When replacing any of these components, use only the same type.
NOTE:
This connector is the connector ASS'y.
Refer to CABLE PARTSASSEMBLY with part number.

Ref.No. Part No. Part Name & Description
P
c
s
Remarks Ref.No. Part No. Part Name & Description
P
c
s
Remarks
1 VYK2B02 BOTTOM CASE U 1
2 VMP4853 LENS CONNECTOR PLATE 1
3 VYQ4196 FOOT BASE U 1
4 VKC0560 HINGE 1
5 VJF1559 CLAMPER 1
6 VEE1E65 JUMPER CABLE 1
7 VSC5875 MIC SHEILD CASE 1
8 VMP8764 PB GUIDE ANGLE BOTTOM 1
9 VGQ8103 PB GUIDE 2 1
10 VEE1E66 JUMPER CABLE 1
11 VMT0779 GASKET 1
12 VLP0123 FERRITE CORE 2
13 K1TZB9A00031 COAXIAL CABLE (BLACK) 1
14 K1TZB9A00052 COAXIAL CABLE (RED) 1
15 K1TZB9A00038 COAXIAL CABLE (BLUE) 1
16 J0KG00000011 FERRITE CORE 1
17 VWB0123 CORD CLAMPER 1
18 VMT1848 GASKET 2
19 VMT1849 GASKET 1
20 VMZ3766 BARRIER 1
102 XYN26+A8FJK SCREW 2
103 XSS3+8FJK SCREW 4
104 XTN3+10JFJK SCREW 2
105 XYN26+J6FJ SCREW 11
106 VHD1774 SCREW 1
107 XSB3+8FJK SCREW 8
E16 VEP84406A REAR AUDIO P.C.BOARD 1
E17 VEP80C55B STEREO MIC P.C.BOARD 1
OVERALL SECTION (1)
MPL-2

E1
E2
E3
E18
7
14
28
26
26
14
13
9
11
12
33 32
29 31
30
E19
E21
19
18
106
101
101
103
102
102
102
107
105
102
102
106
108
106
106
110
106
109
20
21
104
23
27
22
25
34
2
8
1
15
35
5
4
3
106
106
106
E4 E5
E6
6
16
17
E7
E40
E8
E8
E9-1
E9
E10
E11
10
26
26

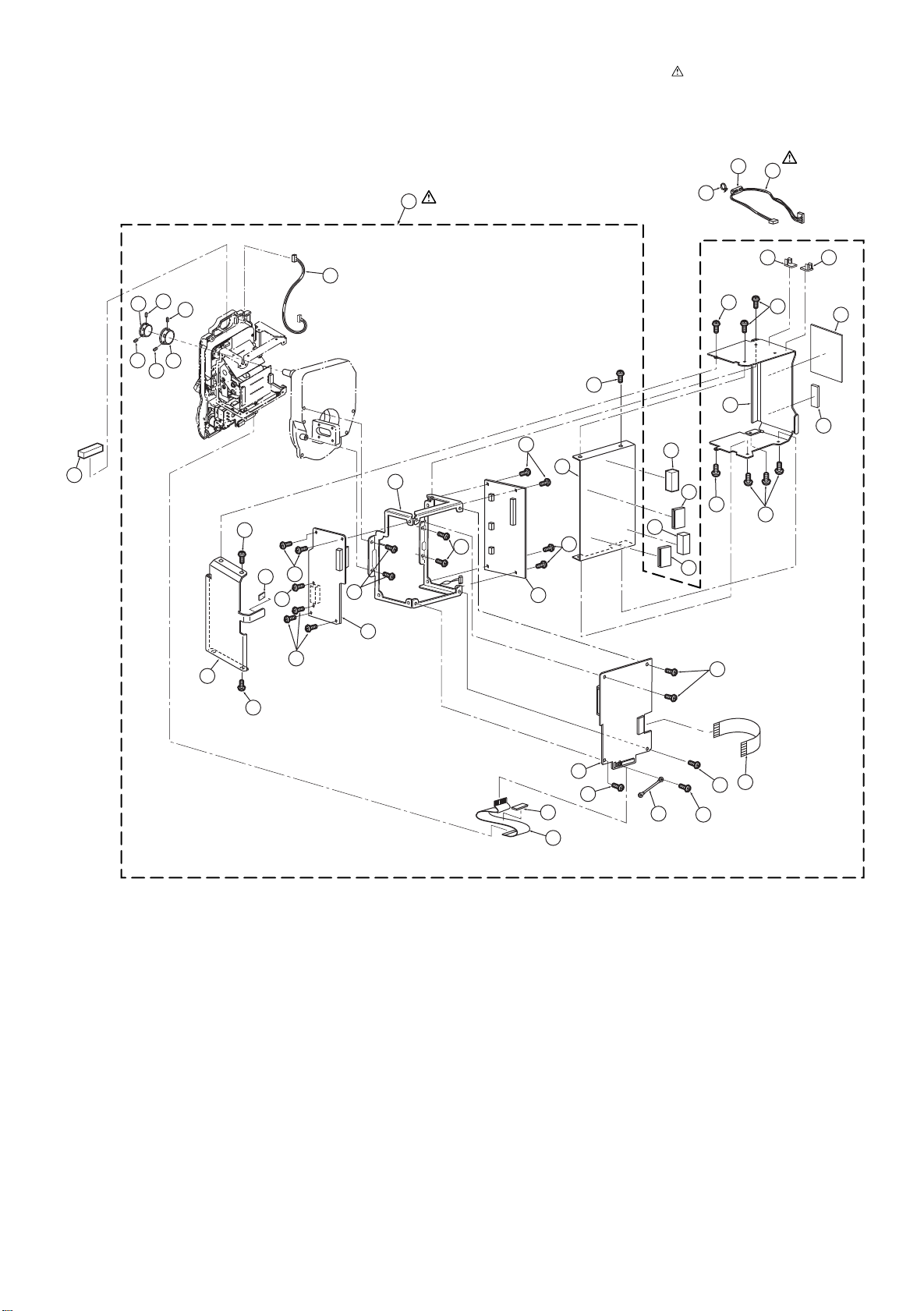

OVERALL SECTION (2)
MPL-3
* The part number of card holder is written in
Electric Parts List of each P.C.Board.
(Page MPL-17)
REAR JACK ASS'Y
24
Components identified with the mark have the special characteristics for safety.
When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & Description
P
c
s
Remarks Ref.No. Part No. Part Name & Description
P
c
s
Remarks
1 VMP8767 RECEIVER BOX 1
2 VYF3042 RECEIVER COVER U 1
3 VEE1E62 JUMPER CABLE 1
4 VWJ16G8100L0 FFC 1
5 VWJ40G7145L0 FFC 1
6 VWJ30G7125L0 FFC 1
7 VEE1E87 JUMPER CABLE 1
8 VWJ40H2210L0 FFC 2
9 VWJ30G6060L0 FFC 1
10 VEE1E61 JUMPER CABLE 1
11 VEE1C61 JUMPER CABLE 1
12 VEE1D52 USB CABLE 1
13 VGK3027 LAN CARD BASE 1
14 VJF1535 COATING CLIP 2
15 VJF1559 CLAMPER 1
16 VWJ50G6060L0 FFC 1
17 VGQ9384 CONDUCTIVE TAPE 1
18 VYP9267 SIDE L U 1
19 VMG1642 GUARD 1
20 VMG1767 USB CAP 1
21 VMG1768 BNC CAP(A) 1
22 VGB0677 P2HD BADGE 1
23 VGB0625 PANA BADGE 1
24 VQL1N04 FCC/DOC LABEL 1 FOR AJ-HPX2700G
25 VYF3041 LAN COVER U TW 1
26 J0KD00000114 FERRITE CORE 4
27 VGB0588 VARICAM BADGE 1
28 VMT1036 DUSTPROOF CUSHION 2
29 VMT1848 GASKET 1
30 VMT1865 GASKET 1
31 VMT1813 GASKET 1
32 VMT1855 GASKET 1
33 VMT1580 GASKET 2
34 VYQ4544 M RAM SHEET U 1
35 VMT1265 CONNECTOR CUSHION 1
101 XYN2+F6FJ SCREW 2
102 XYN2+J6FJ SCREW 9
103 VHD1774 SCREW 1
104 XSB3+4FJKT SCREW 2
105 XSB2+6FJK SCREW 2
106 XYN26+J6FJ SCREW 14
107 XSB3+16FJK SCREW 2
108 XYN3+J6FJ SCREW 1
109 VHD1462 SCREW 2
110 XQN14+A2FJK SCREW 4
E1 VEP81255A CAM POWER P.C.BOARD 1
E2 VEP23680A CAM SYS P.C.BOARD 1
E3 VEP23681A CAM DSP1 P.C.BOARD 1
E4 VEP23682A CAM DSP2 P.C.BOARD 1
E5 VEP23683A CAM DSP2 SUB P.C.BOARD 1
E6 VEP83673C SPDSYS MSC P.C.BOARD 1
E7 VEP86369A SPD CPU P.C.BOARD 1
E8 VEP80E17A SPD CARD1 P.C.BOARD 2
E9 VEP80E18A SPD CARD2 P.C.BOARD 1
E9-1 VEP80C91A SD CARD SUB P.C.BOARD 1 FOR VEP80E18C
E10 VEP84400C SPD AUDIO P.C.BOARD 1
E11 VEP81254C SPD POWER P.C.BOARD 1
E18 VEP80E31A SPD P.C.BOARD 1
E19 VEP80E39A USB A CN P.C.BOARD 1
E21 VEP80E35A L SIDE BNC P.C.BOARD 1
E40 VEP83674A H.264 P.C.BOARD 1
OVERALL SECTION (2)
MPL-4

1
8
15
20
2222
21
11
15
11
12
17
13
14
3
19
107
101
111
109
109
111
111
111
E15
111
111
111
111 111
111
111
111
6
7
5
4
111
113
111
111
9
2
10
16
E13
E14
109
109
18
CAMERA PARTS ASSEMBLY(1)
MPL-5
Components identified with the mark have the special characteristics for safety.
When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & DescriptionPcs Remarks Ref.No. Part No. Part Name & DescriptionPcs Remarks
1 VEQ4557 CAMERA U 1
2 VWJ14G8065L0 FRONT-PULSE FCC 1
3 VMP8967 OPTICAL BLOCK ANGLE 1
4 VWJ10G8037L1 SENSOR FFC 1
5 VSC6018 SHIELD CASE DRIVE 1
6 VSC5865 SHIELD CASE PULSE 1
7 VSC6019 SHIELD CASE PREAMP 1
8 VGU0B21 FILTER KNOB (ND) 1
9 VEE1E85 JUMPER CABLE 1
10 VEE1E86 JUMPER CABLE 1
11 J0KD00000070 FERRITE CORE 2
12 VLP0123 FERRITE CORE 1
13 VEE1E63 JUMPER CABLE 1
14 J0KD00000114 FERRITE CORE 1
15 VMT1815 GASKET 2
16 VMT1821 GASKET 1
17 VJF1559 CLAMPER 1
18 VGU0B22 FILTER KNOB (CC) 1
19 VMT1879 SHIELD CASE CUSHION 1
20 J0ZZZ0000066 ELECTRIC ABSORPTION SHEET 1
21 VMT1897 SOFT HIGH SHIELD GASKET 1
22 VJF1152 CLAMPER 2
101 XQN2+B25FJ SCREW 2
107 XQN2+C4FJ SCREW 2
109 XXE26W3FP HEX SCREW 4
111 XYN26+J5FJ SCREW 24
113 XYN3+J6FJ SCREW 1
E13 VEP23650A DRIVE P.C.BOARD 1
E14 VEP23653C PULSE P.C.BOARD 1
E15 VEP23652C PRE AMP P.C.BOARD 1
CAMERA PARTS ASSEMBLY (1)
MPL-6

1
6
E24
7
8
2
4
5
105
105
106
108
108 106
105
105
104
101
101
3
105
105
E12
MPL-7

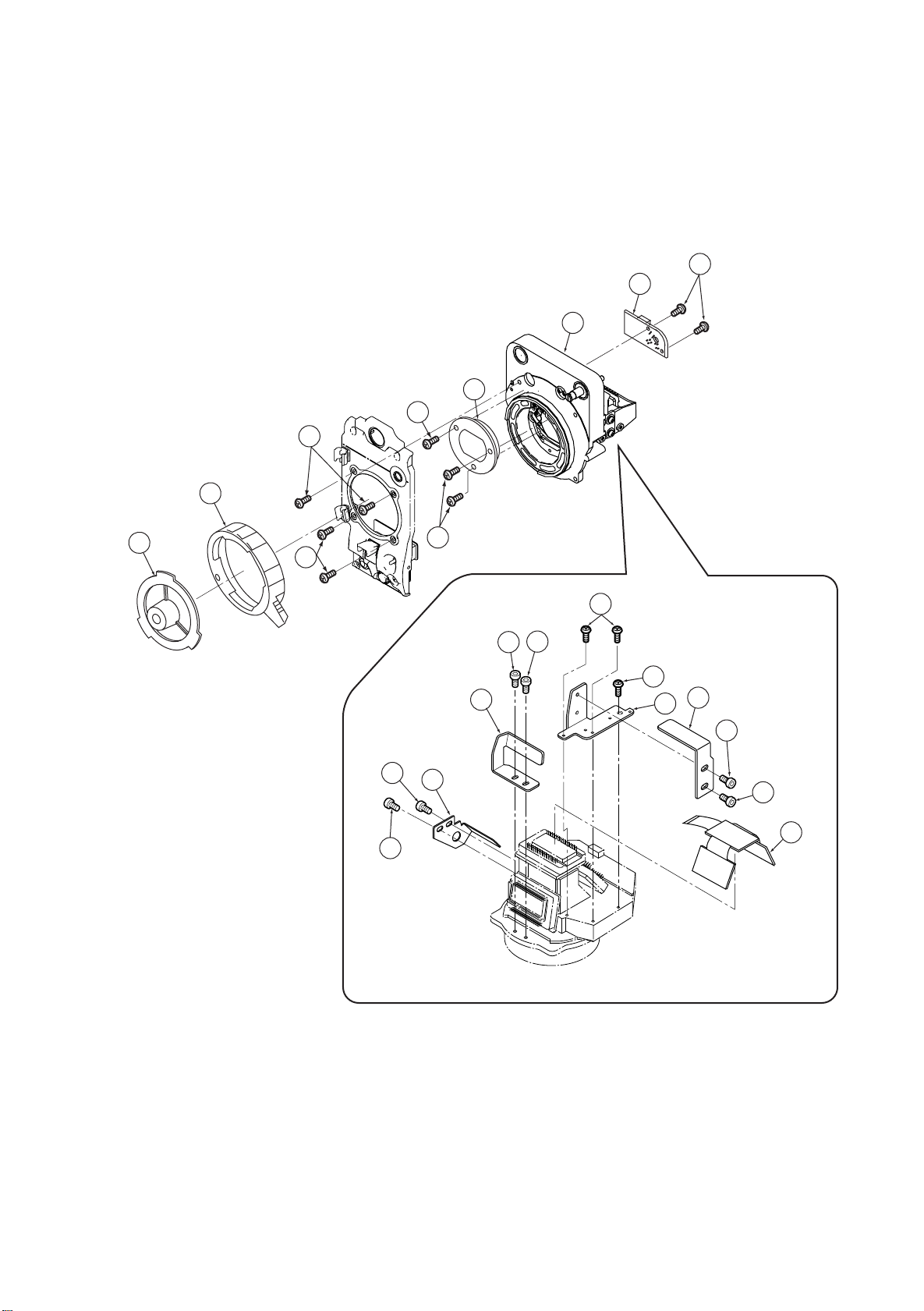

CAMERA PARTS ASSEMBLY(2)

Ref.No. Part No. Part Name & Description
P
c
s
Remarks Ref.No. Part No. Part Name & Description
P
c
s
Remarks
1 VYQ4391 OPTICAL U 1
2 VMA0T71 HEAT SINK (R) 1
3 VMA0T72 HEAT SINK (G) 1
4 VMA0T73 HEAT SINK (B) 1
5 VMA0V41 HEAT SINK BASE 1
6 VXQ1642 O.LPF U 1
7 VDW1228 MOUNT RING 1
8 VKF4294 MOUNT CAP 1
101 XQN2+C4FJ SCREW 3
104 XYN3+C6FJ SCREW 2
105 XYN26+F6FJ SCREW 6
106 XQS2+A4FJK SCREW 3
108 VHD1950 SCREW 4
E12 VEP20B25E CCD SENSOR P.C.BOARD 1
E24 VEP80D28B SENSOR P.C.BOARD 1
CAMERA PARTS ASSEMBLY (2)
MPL-8

8
16
12
12
15
17
17
17
15
11
10 17
14
13
7
6
45
9
1
2
3
105
105
105
103
102
2
102
101
106
E23
E22
107
107
106
MPL-9

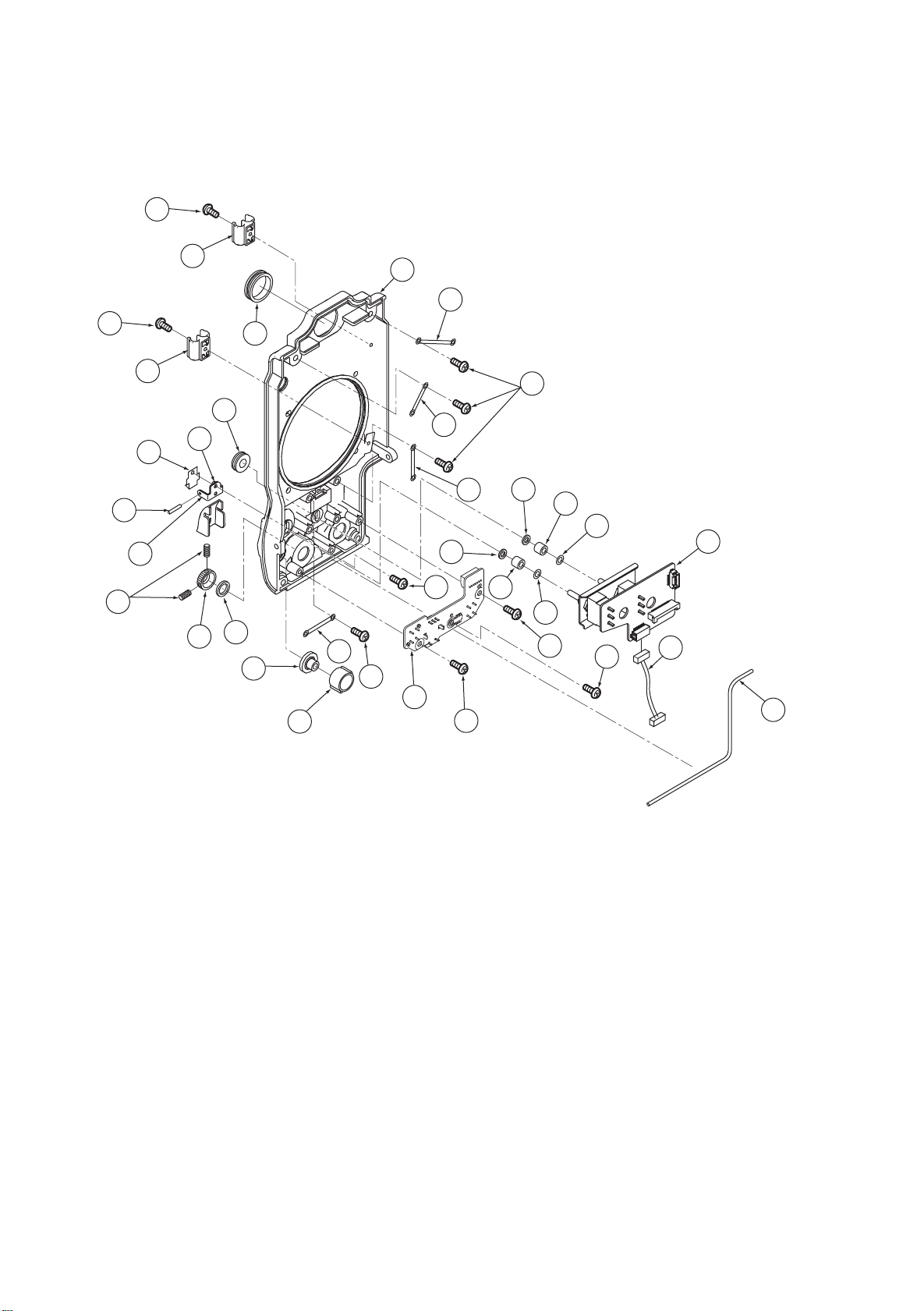

CAMERA PARTS ASSEMBLY(3)

Ref.No. Part No. Part Name & Description
P
c
s
Remarks Ref.No. Part No. Part Name & Description
P
c
s
Remarks
1 VYK2G71 FRONT CASE 1U 1
2 VJF1256 CABLE CLAMPER 2
3 VMG0948 EVF RUBBER SHIELD 1
4 VMC1210 FRONT DOOR SPRING 1
5 VMP4850 FRONT DOOR ANGLE 1
6 VMS4088 FRONT DOOR ANGLE PIN 1
7 VKF2485 FRONT DOOR 1
8 VMG0832 SHIELD TUBE 1
9 VXU1620 RUBBER BUTTON ASS'Y 1
10 VGU9299 MENU BUTTON 1
11 VGQ7131 BUTTON HOLDER PLATE 1
12 VMT1432 WATERPROOF CUSHION 2
13 VGU9861 MENU KNOB 1
14 VMG1317 MENU WATERPROOF RUBBER 1
15 VMG1140 RAIN COVER SPONGE 2
16 VEE1E64 JUMPER CABLE 1
17 VEE1E85 JUMPER CABLE 4
101 XYN2+C4FJ SCREW 1
102 XSB2+4FJK SCREW 2
103 XXEV2W4FP SCREW 2
105 XYN26+J6FJ SCREW 3
106 XYN3+J6FJ SCREW 4
107 VMX1312 POLY WASHER 2
E22 VEP80C57F FRONT SW P.C.BOARD 1
E23 VEP80C58C MENU SW P.C.BOARD 1
CAMERA PARTS ASSEMBLY (3)
MPL-10

4
3
7
7
8
16
40
12 13
19
21
20
39
10
17
23
41
42
41
41
18
22
22
5
6
4
2
1
E27
102
102
104
101
102
102
111
111
111
111
111
111
102
104 105
112
112
103
107
112
112
112
112 112 112 112
112 112
105
37
36 15
15
111
114
110
38 33
26
113 113
11
14
9
25 32
27
E25
24
34
43
35
108
110
110
111
106 106
31
111
111
TOP CASE & HANDLE PARTS ASSEMBLY
MPL-11
Components identified with the mark have the special characteristics for safety.
When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & Description
P
c
s
Remarks Ref.No. Part No. Part Name & Description
P
c
s
Remarks
1 VYK2K04 TOP CASE U 1
2 VGM2190 TOP CASE 1
3 VYQ4345 SLIDER U 1
4 VGH4698 VF LOCK NAME PLATE U 1 1SET
5 VGM2168 VF BASE 1
6 VYQ4071 VF RING U 1
7 VGU9854 SHAFT LOCK KNOB 2
8 VLP0186 FERRITE CORE 1
9 VJF1319 SHOE 1
10 VEE1E67 JUMPER CABLE 1
11 VEE1E68 JUMPER CABLE 1
12 VLP0123 FERRITE CORE 1
13 VEE1E81 JUMPER CABLE 1
14 VEE1E69 JUMPER CABLE 1
15 VSC5660 WL EARTH ANGLE 2
16 VMT1631 VF CORE CUSION 1
17 VYQ4070 FAN MOTOR U 1
18 VMP8762 FAN COVER 1
19 VSC5953 AD HEAT SINK 1
20 VSC5954 TOP HEAT SINK 1
21 VGQ9303 COOLING SHEET 1
22 VJF1531 CABLE CLAMPER 2
23 VYF3137 TOP COVER U 1
24 VYH0378 HANDLE U 1
25 VGL1113 TALLY COVER 1
26 VGH4770 REC LABEL 1
27 VMT1590 HANDLE SPONGE (2) 1
31 VMG0955 P4 O-RING 1
32 VMG0956 P8 O-RING 1
33 VKF4399 HANDLE COVER 1
34 VQL1D81 GPS LABEL 1
35 VMG1710 GPS BLANK CAP 1
36 VGQ8103 PB GUIDE 2 1
37 VMP8763 PB GUIDE ANGLE TOP 1
38 VGM2287 HANDLE BAR 1
39 VGQ9355 COOLING SHEET 1
40 VSC5966 EVF CABLE SHIELD ANGLE 1
41 VMX3614 FAN SHEET 4
42 VMG1846 HANDLE RUBBER 1
43 VMS7120 HOOK PIN 1
101 XVE4A25VW HEX SCREW 2
102 XXEV26W4FP HEX SCREW 6
103 XSS2+4FJK SCREW 2
104 VHD1793 HEX SCREW 3
105 XWA3BFJK SCREW 3
106 XSN2+6FJK SCREW 4
107 XYN26+F6FJ SCREW 2
108 XYN2+F6FN SCREW 2
110 XSB4+8FJK SCREW 5
111 XSB3+8FJK SCREW 14
112 XYN26+J6FJ SCREW 16
113 XSB2+6FJK SCREW 2
114 XSB4+6FJK SCREW 2
E25 VEP80D07B HANDLE TALLY P.C.BOARD 1
E27 VEP80E06A FAN CONNECT P.C.BOARD 1
TOP CASE & HANDLE PARTS ASSEMBLY
MPL-12

39
34
41
16
15
22
37
47 42
43
2
2
38
49
8
18
14
17
17
26
25 52
35
38
31
44
44
46
28
24
29
9
10
45
36 3
1
6
4
21
11
20
12 19
E28
40
E32
E29
E33 E31
32
32
5
7
7
7
E35
E34
E34
E30
109 107
105
108
108
108
104
108
108
114
114
114
113
113
108
108
108
110
112
106
30 27
110
102
102
114
114
111
40
33
108
23
101
101
103
13
103
103
50
51
48
SIDE CASE (R) PARTS ASSEMBLY
MPL-13
Components identified with the mark have the special characteristics for safety.
When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & Description
P
c
s
Remarks Ref.No. Part No. Part Name & Description
P
c
s
Remarks
E32 VEP80D09A TOGGLE P.C.BOARD 1
1 VYP9265 SIDE CASE R 2U 1 E33 VEP80D03A V MEM SW P.C.BOARD 1
2 VGU8130 SLIDE SW COVER 4 E34 VEP80C64A HEADPHONE P.C.BOARD 2
3 VGH5067 FILTER NAME PLATE 1 E35 VEP80D04A SHOT M SW P.C.BOARD 1
4 VGL1039 LED PANEL LIGHT 1
5 VGK3031 TOGGLE SW PLATE 1
6 VMP5578 SLIDE SW ANGLE 1
7 VMG1096 VR RAIN COVER PACKING 3
8 VMG1195 SLIDE SW RUBBER 4
9 VZT0624 TAPE A 1
10 VZT0625 TAPE B 1
11 VMS7187 LCD LOCK SHAFT 1
12 VMB3938 MONITOR LOCK SPRING 1
13 VYF2895 OPERATION PANEL (B)U 1
14 VGU9675 MONITOR LOCK KNOB 1
15 VMC1837 SLIDE PLATE SPRING 1
16 VMP8366 GUIDE PLATE 1
17 VMG1286 CUSHION RUBBER 2
18 VMG1506 DOOR CUSHION 1
19 VGQ8202 MONITOR POP UP 1
20 VMP8171 POP UP PLATE 1
21 VMB3996 POP UP SPRING 1
22 VMP8059 SPEAKER SET ANGLE 1
23 VGU9301 VR KNOB FRONT 1
24 VGU9303 VR KNOB 2
25 VGU9304 OPERATION RUBBER BUTTON 1
26 VGU8993 OPERATION BUTTON 1
27 VMG0646 WATERPROOF SW INSULATION S
H
4
28 VGH4680 VR NAME PLATE 2
29 VGH4948 VF LABEL 1
30 VMT1494 WATERPROOF CUSHION 4
31 VEE1E76 JUMPER CABLE 1
32 VEE1E77 JUMPER CABLE 1
33 VWJ30H2070L0 LCD IF FFC 1
34 VEE1E78 JUMPER CABLE 1
35 VEE1E79 JUMPER CABLE 2
36 VEK0M98 SPEAKER U 1
37 VMT1622 SPEAKER CUSHION 1
38 VMX0531 CLATCH SPACER 2
39 VMX3355 SPACER 1
40 VJF1535 CLAMPER 2
41 VEE1E82 JUMPER CABLE 1
42 VYF3135 OPERATION DOOR U 1
43 VGU0A79 OPERATION BUTTON 1
44 VLP0123 FERRITE CORE 2
45 VGQ1712 ANP BASE 1
46 VJF1559 CLAMPER 1
47 VGL1228 LED PANEL LIGHT 3
48 VMZ3692 LCD FFC SHEET 1
49 VMT1801 FACE PAD 1
50 VGQ9385 CONDUCTIVE TAPE 1
51 VMZ3806 LCD BARRIER A 1
52 VGU9695 RUBBER BUTTON 1
101 XTN3+6GFJ SCREW 2
102 XYN2+J6FJ SCREW 2
103 XYN2+F5FJ SCREW 3
104 XQN2+BJ4FJK SCREW 1
105 XYN2+C4FJ SCREW 2
106 VMX1312 POLY WASHER 4
107 XYN2+C5FJ SCREW 2
108 XYN2+J6FJ SCREW 16
109 XQN2+A3FJ SCREW 2
110 VHN0382 NYLON NUT 2
111 XQN2+A2FJK SCREW 1
112 XQN2+BJ4FJK SCREW 2
113 XTB26+6GFJK SCREW 8
114 XYN2+J6FJ SCREW 5
E28 VEP80E01C SPD LCD P.C.BOARD 1
E29 VEP80E32A SPD SSW P.C.BOARD 1
E30 VEP80D11A POWER SW P.C.BOARD 1
E31 VEP80E38A LCD OPEN SW P.C.BOARD 1

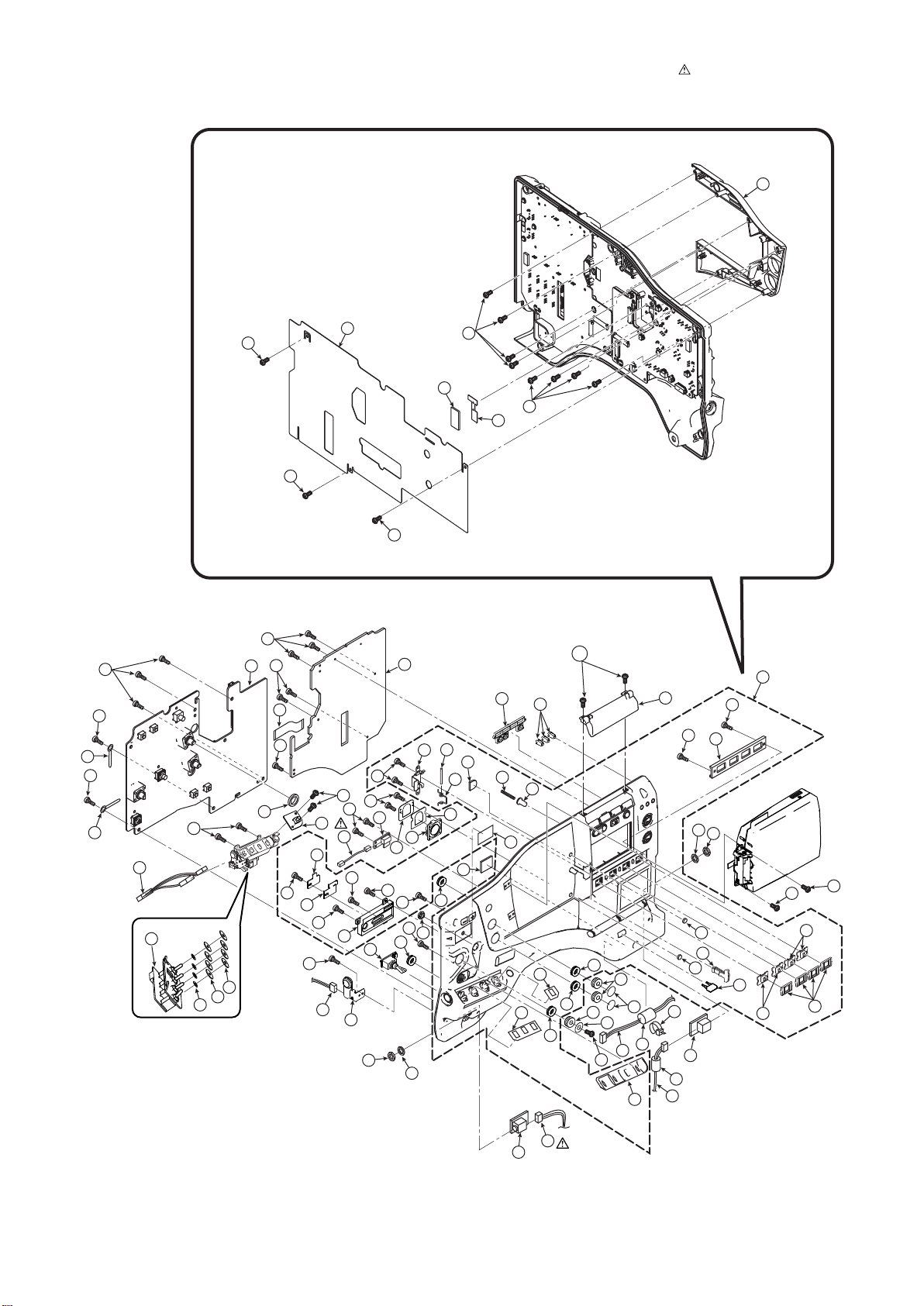

SIDE CASE (R) PARTS ASSEMBLY
MPL-14

101
102
102
101
101
102
102
101
101
102
7
3
3
10
12
14
13
9
1
3
5
8
2
4
6
E20
101
101
11
MPL-15
CARD GUIDE PARTS ASSEMBLY
* The part number of card holder is written in
Electric Parts List of each P.C.Board.

Ref.No. Part No. Part Name & Description
P
c
s
Remarks Ref.No. Part No. Part Name & Description
P
c
s
Remarks
1 VGQ9664 CARD GUIDE 1
2 VGH4773 CARD PLATE 1 1
3 VMT1581 PB HOLD CUSHION (4) 4
4 VJF1535 COATING CLIP 1
5 VSC5674 CARD GUIDE HEAT SINK 1 1
6 VSC5675 CARD GUIDE HEAT SINK 2 1
7 VMT1882 CARD BRAKE PAD 1
8 VGH4802 CAD PLATE 2 1
9 VSC5946 CCD SHIELD PLATE 1
10 VJF1559 CLAMPER 1
11 VSC6026 CARD EARTH A 1
12 VSC6027 CARD EARTH B 1
13 VMP8962 CARD EARTH ANGLE A 1
14 VMP8963 CARD EARTH ANGLE B 1
101 XYN2+F6FJ SCREW 12
102 XYN26+J6FJ SCREW 8
E20 VEP80D10A L SIDE LED P.C.BOARD 1

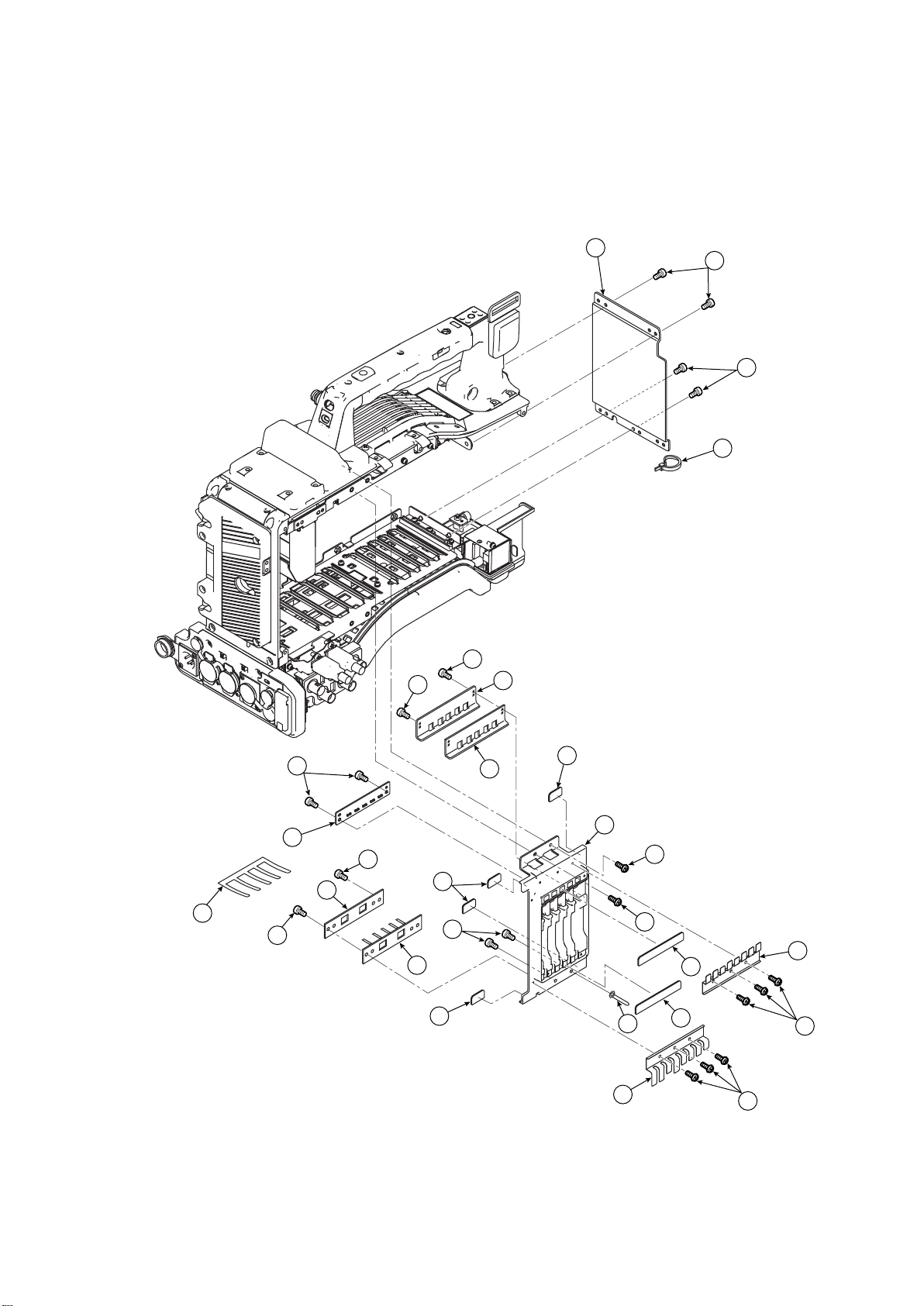

CARD GUIDE PARTS ASSEMBLY
MPL-16

101
1
10
15
16
13
19
14
11
E37 E39
E38
2
4
4
5
6
7
912
8
17
102
102
101
101
103
104
104
104
104
103
102
102
18
3
2
REAR JACK PARTS ASSEMBLY
MPL-17
Components identified with the mark have the special characteristics for safety.
When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & Description
P
c
s
Remarks Ref.No. Part No. Part Name & Description
P
c
s
Remarks
1 VEJ2297 REAR JACK 1U 1
2 VGU9300 SLIDE SW BUTTON 2
3 VMG1511 RUBBER CAP C 1
4 VMG1085 RAIN COVER RUBBER 2
5 VGL1038 BOTTOM TALLY COVER 1
6 VEE1E70 JUMPER CABLE 1
7 VEE1E71 ECU CABLE 1
8 VEE1E72 JUMPER CABLE 1
9 K1SYYYYA0002 BNC CONNECTOR 1
10 VEE1E84 JUMPER CABLE 1
11 VJF1559 CLAMPER 1
12 VMG1792 1394 CONNECTOR CAP 1
13 VYK2B07 BOTTOM COVER U 1
14 VMP8676 BACK LOCK ANGLE 1
15 VMT1591 SHOULDER PAD 1
16 VMG1508 RUBBER CAP 1
17 VMG1636 XLR CONNECTOR CAP 1
18 VMG1769 AODIO OUT CONNECTER CAP 1
19 VMT1849 GASKET 1
101 XYN26+A6FJK SCREW 4
102 XSN26+6FC SCREW 4
103 XSB2+6FJK SCREW 2
104 XSB3+6FJK SCREW 8
E37 VEP80C99D REAR JACK P.C.BOARD 1
E38 VEP01993B DC INPUT P.C.BOARD 1
E39 VEP80D12H 1394 CN P.C.BOARD 1
REAR JACK PARTS ASSEMBLY
MPL-18

1
4
5
5
7
15
16
10
10
E26
3
12
11
20
18
6
2
8
9
13
14
17
9
101
104
104
105
103
102
102
101
21
BACK CASE PARTS ASSEMBLY
MPL-19
.
Components identified with the mark have the special characteristics for safety.
When replacing any of these components, use only the same type.
