Additional Feature table
Thefollowingfeaturesareaddedtothissoftware.ReadbothOperatingInstructions
manuals before starting to use the product.
Additional Features Contents Page
Menu items are added. [Alarm/Sensor Recording] on the
[Record] menu bar is added. page 4
[To Next Selected Image] and [To
Previous Selected Image] on the
[Playback] menu bar are added.
page 4
[Select All] on the [Recorded Images]
menu bar is added. page 4
[Open Operating Instructions
(Additional Features)] on the [Help]
menu bar is added.
page 4
The toolbar button is added. (Start Alarm Recording button)
on the toolbar is added.
page 5
The indicator is added. The indicator of Alarm Recording is
added. page 5
Operating Instructions (Additional Features)
Model No. BB-HNP11A
Network Camera Recorder

Operating Instructions (Additional Features)
2
The functions are added on the
Recorded Image screen. and are added on the
Recorded Image screen
page 6
[Select All] is added on the menu
displayed by right-clicking on the
recorded image list.
page 6
[Alarm/Sensor Recording] tab is
added. page 6
The function to play back is added. page 6
The items are added on Camera
Registration Information
window.
[Alarm1/Sensor] and [Alarm2] tabs
are added. page 7
The items are added on Timer
Registration Information
window.
[Alarm1/Sensor] and [Alarm2] are
added on the Recording Method of
Timer Registration Information
window.
page 8
Search items are added. [Select Folder] is added in the
Searched Target of Search window. page 9
[Alarm Recording] is added in the
Recorded Status of Search window. page 9
The function to cancel searching is
added. page 9
Specifying the network drive. A network drive can be specified to
browse a folder. page 10
Not to start this software when
booting up the PC Itispossibletostartornottostartthis
software when booting up the PC. page 10
Convertingtherecordedimages
to MPEG files. This software can convert the
recorded images to MPEG files. page 11
The error messages are added. Theerrormessagesareaddedonthe
Error Message List. page 13 —
page 14
Additional Features Contents Page

Operating Instructions (Additional Features)
3
Trademarks
• Windows and Windows Media are either registered trademarks or trademarks
of Microsoft Corporation in the United States and/or other countries.
• Screen shots reprinted with permission from Microsoft Corporation.
• All other trademarks identified herein are the property of their respective
owners.
•This software is based in part on the work of the Independent JPEG Group.

Operating Instructions (Additional Features)
4
Menu items are added

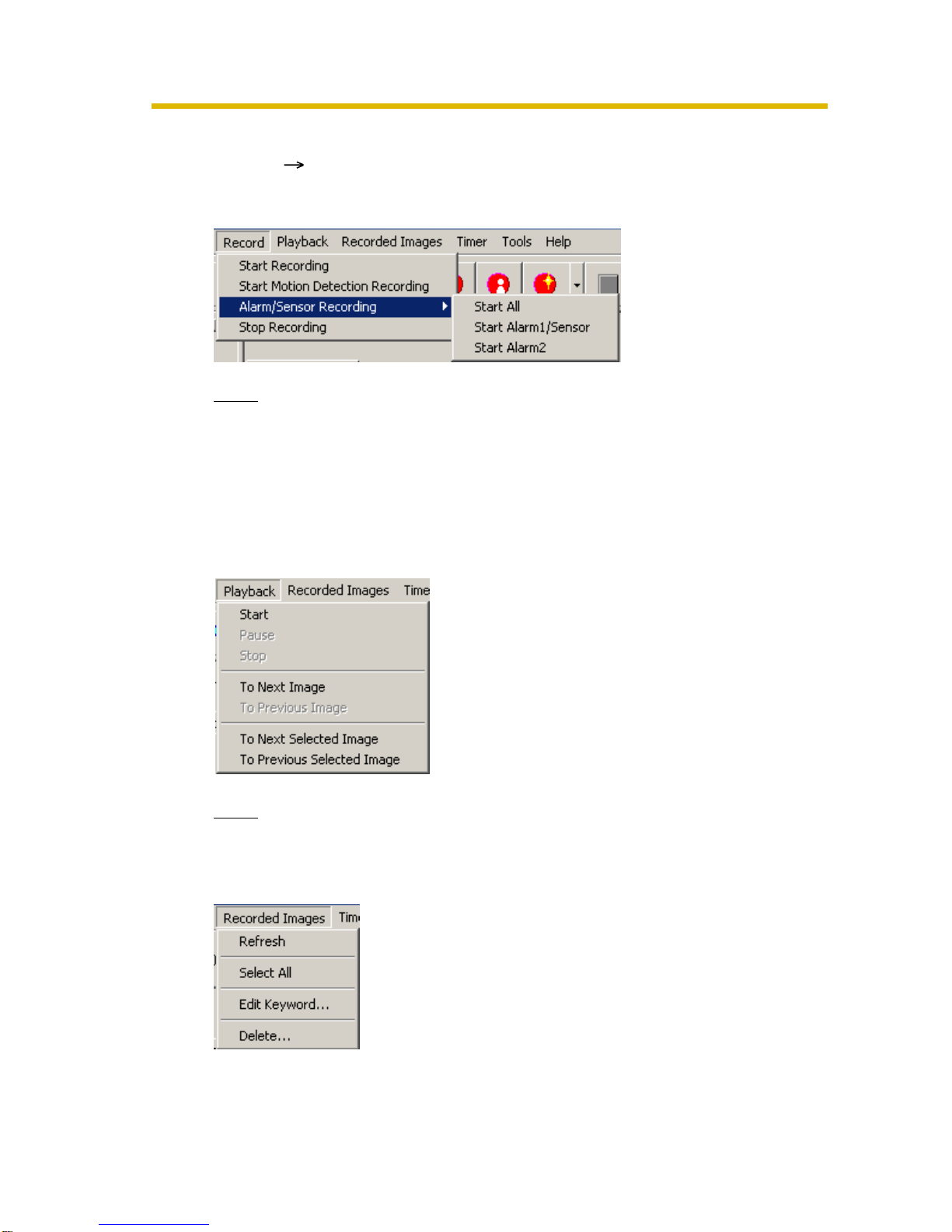

• [Record] [Alarm/Sensor Recording] on the menu bar is added.
Start the Alarm/Sensor Recording selected on the Camera Registration
Information window.
Note
This [Alarm/Sensor Recording] function is available when [Set the Alarm1
(Sensor, Alarm2) recording condition.] is checked on the [Alarm1/Sensor]
tab and [Alarm2] tab of Camera Registration Information window.
• [To Next Selected Image] and [To Previous Selected Image] on the [Playback]
menu bar are added.
This function is used when multiple images are selected on the recorded
image list.
Note
[To Next Selected Image] and [To Previous Selected Image] are available
when multiple images are selected on the recorded image list.
• [Select All] on the [Recorded Images] menu bar is added.

Operating Instructions (Additional Features)
5
• [Open Additional Operating Instructions] on the [Help] menu bar is added.
This Operating Instructions (Additional Features) will be opened.
The toolbar button is added
•on the toolbar button is added.
Start the Alarm/Sensor Recording selected on the Camera Registration
Information window.
Note
This [Alarm/Sensor Recording] function is available when [Set the Alarm1
(Sensor, Alarm2) recording condition.] is checked on the [Alarm1/Sensor]
tab and [Alarm2] tab of Camera Registration Information window.
The indicator is added
• The indicator of Alarm Recording is added.
Green
Red Red
: Alarm/Sensor Recording

Operating Instructions (Additional Features)
6
The functions are added on the Recorded Image screen
•and are added on the Recorded Image screen.

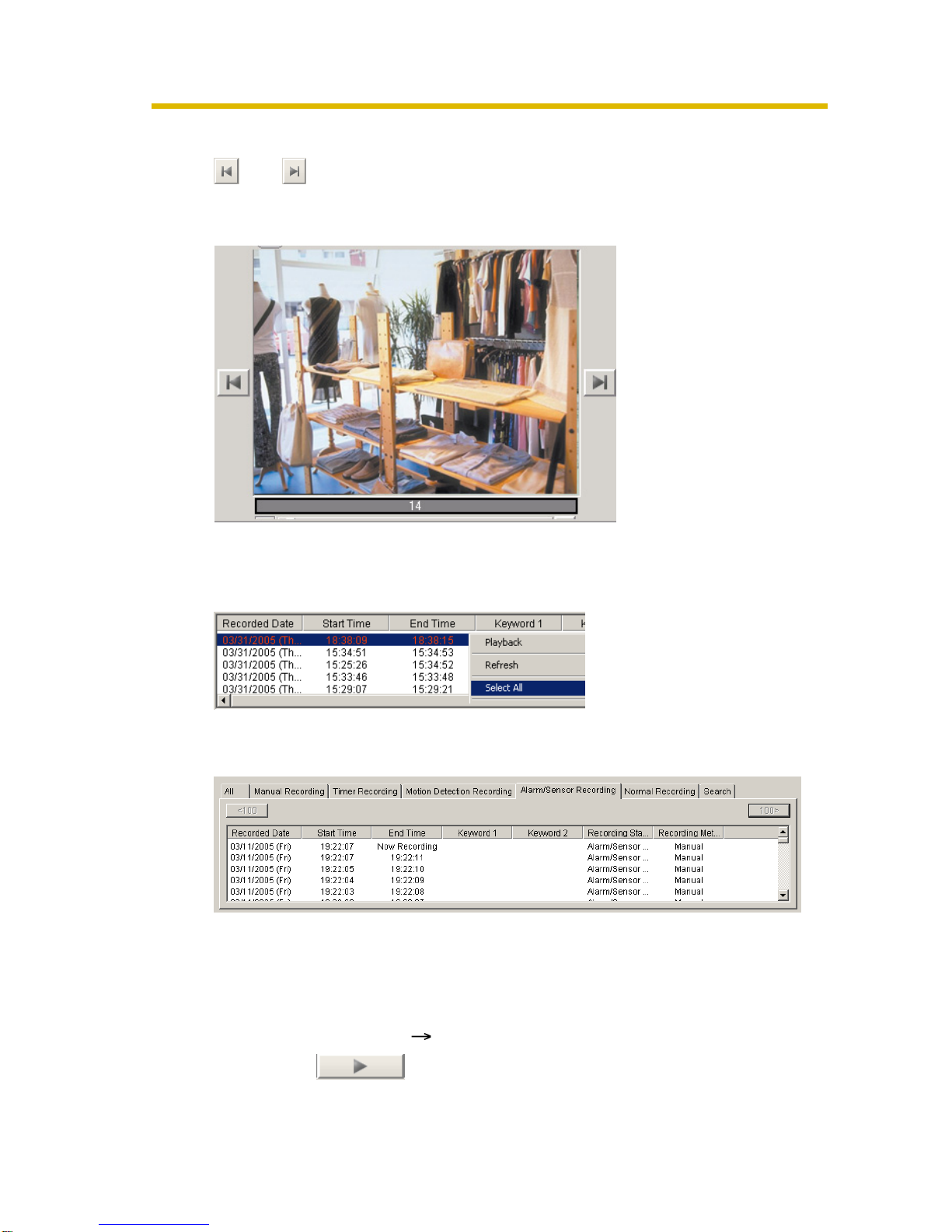

Previous Selected Image and Next Selected Image are displayed when
multiple recorded images are selected.
• [Select All] is added on the menu displayed by right-clicking on the recorded
image list.
All images are selected on the recorded image list.
• [Alarm/Sensor Recording] tab is added.
The images recorded by Alarm/Sensor Recording are displayed.
The function to play back is added
There are two methods for playing back recorded images on the recorded image
list.
The selected images are played chronologically.
• Selecting [Playback] [Start] on the menu bar
• Clicking

Operating Instructions (Additional Features)
7
Alarm/Sensor Recording is added

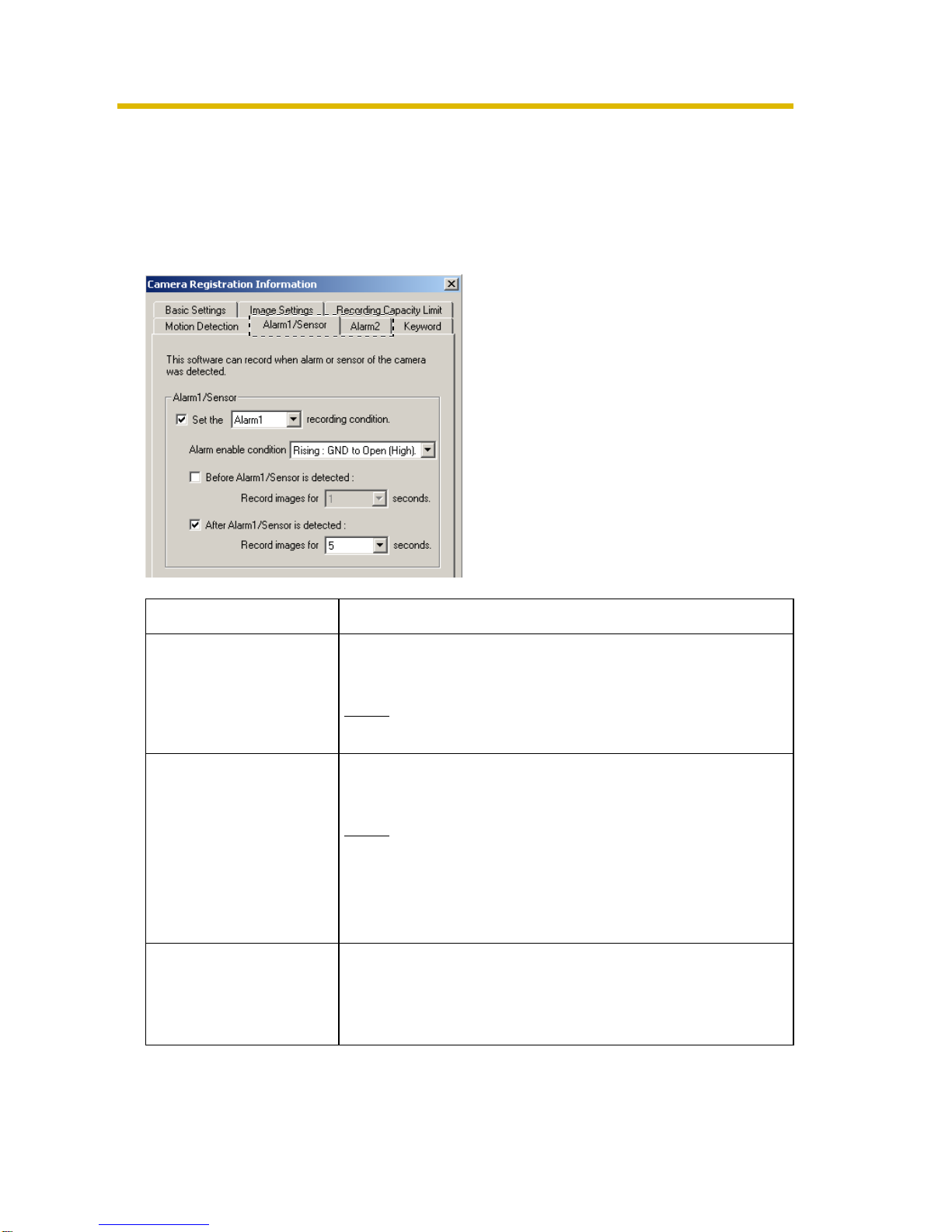

[Alarm1/Sensor] and [Alarm2] are added on the Camera Registration Information
window.
Alarm/Sensor Recording is available with using the alarm/sensor function on the
cameras.
(Only alarm/sensor-supported cameras can perform Alarm/Sensor Recording.)
Setting Description
Set the [Alarm1/
Sensor/Alarm2]
recording condition
Check the box to record images while detecting the
alarm signal of camera.
Note
Select [Sensor] for sensor-supported cameras.
Alarm enable condition Specify Alarm enable condition ([Rising : GND to Open
(High).] or [Falling : Open (High) to GND.])
Note
• Specify the alarm enable condition after
checking the alarm’s specification.
• [Rising : GND to Open (High).] is selected
automatically when select [Sensor].
Before Alarm1/Sensor/
Alarm2 is detected :
After Alarm1/Sensor/
Alarm2 is detected :
Specify the time before Alarm1/Sensor/Alarm2 is
detected or after Alarm1/Sensor/Alarm2 is detected.

Operating Instructions (Additional Features)
8
Note
Alarm/Sensor Recording is started by clicking [Record] [Alarm/Sensor
Recording] on the menu bar or [Start Alarm Recording] on the toolbar button.
The items are added on Timer Registration Information window

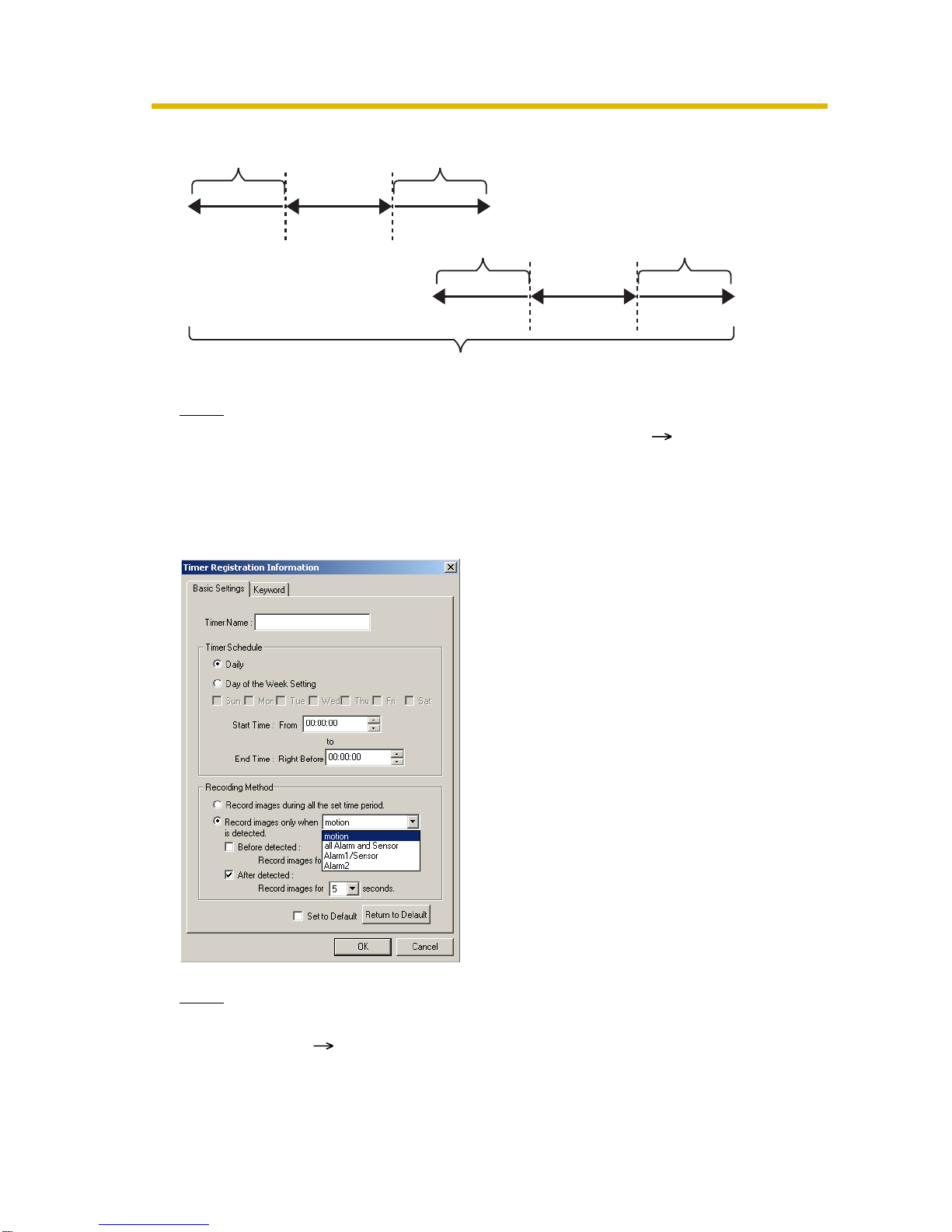

[Alarm1/Sensor] and [Alarm2] are added on the Recording Method of Timer
Registration Information window.
Note
This [Alarm/Sensor Recording] function is available when [Alarm1/Sensor]
[Alarm2] tab [Set the Alarm1/Sensor/Alarm2] is checked on Camera
Registration Information window.
(See page 7)
Detecting
Alarm/Sensor
The time before Alarm/
Sensor is detected
If the recording time is overlapped with other, their images will be saved as one image.
The time after Alarm/
Sensor is detected
Detecting
Alarm/Sensor
The time before Alarm/
Sensor is detected The time after Alarm/
Sensor is detected

Operating Instructions (Additional Features)
9
Search items are added
[Select Folder] is added in the Searched Target, and [Alarm Recording] is added in
the Recorded Status.
It is possible to specify any backup folders.
The next message is displayed during searching.
Click to stop searching.
[Browse] is available to select
[Select Folder]. Click the
[Browse] button to browse the
folder.

Operating Instructions (Additional Features)
10
Specifying the network drive
Whenassigningthedrivelettertothefolderon the network,youcanspecifyitwhen
selecting the following folders.
• The destination folder of the recorded images
• The automatic backup folder
• The folder to save when recorded images are converted
• The folder to save the import/export file of setting information
• The folder to select in the Searched Target of Search window
See Windows®Help to map the network drive.
Note
• The next message is displayed if the folder is selected on the network
without mapping the network drive.
• If the network drive is asigned as the destination folder or backup folder,
the operation, such as previewing camera images, recording images, or
playing recorded images will be inferior or errors will occur.
We recommend to specify the folders on the local drive.
Not to start this software when booting up the PC
When right-clicking on the system tray, the menu is displayed.
Uncheck [Start on bootup] not to start this software.

Operating Instructions (Additional Features)
11
Converting the Recorded Images to MPEG files

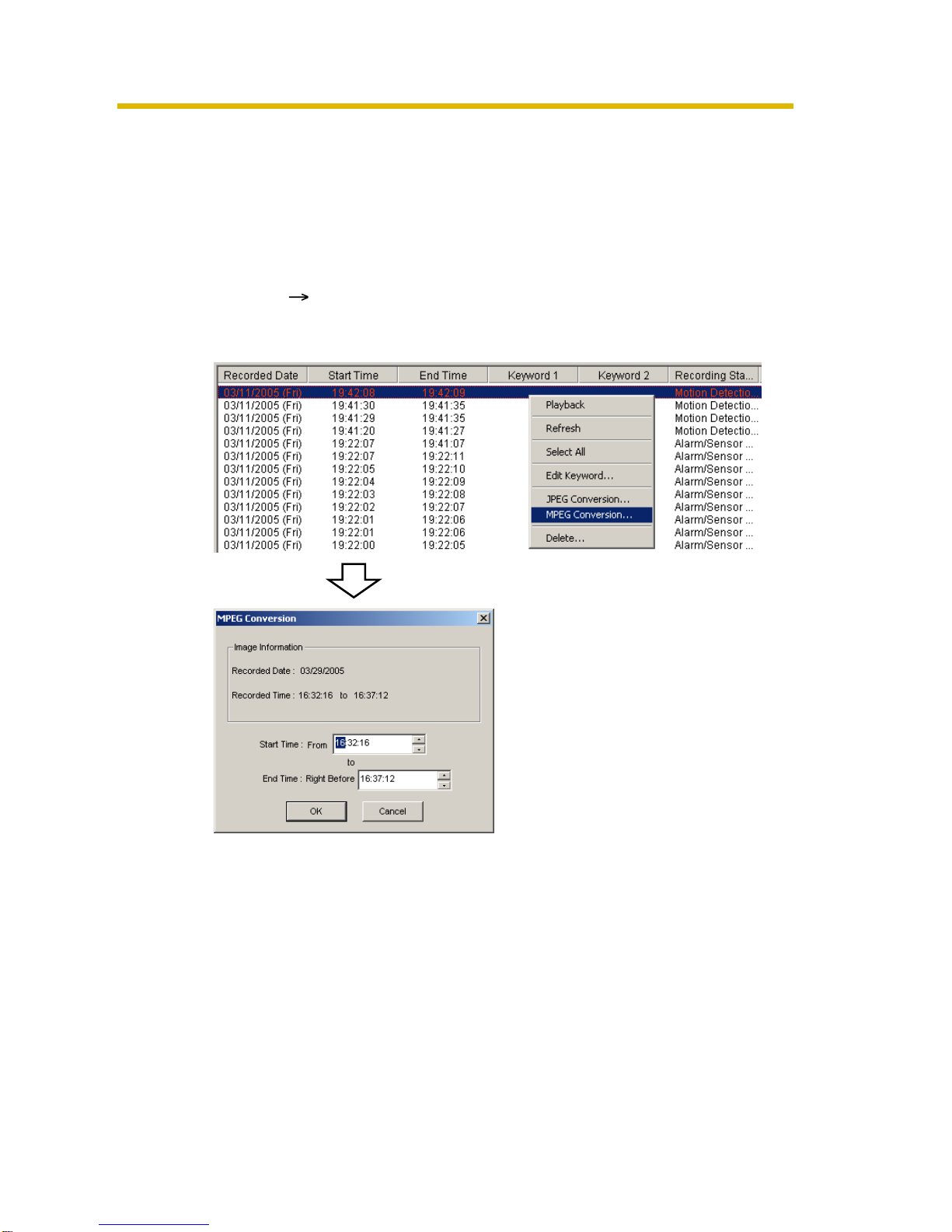

1. Select a camera preview on the camera list.
• The selected camera is displayed in a blue frame.
2. Select the recorded images to convert to MPEG files on the recorded image
page.
• The selected recorded images are displayed on the screen.
3. Select [Tools] [MPEG Conversion] on the menu bar.
• You can select [MPEG Conversion] from the menu displayed by right-
clicking the recorded image list.

Operating Instructions (Additional Features)
12
4. If you specify the time, set the start time and end time, and then click [OK].
• The Save as ... window is displayed.
5. Select the folder, enter the file name, and then click [Save].
• The MPEG conversion is started.
• If the MPEG conversion is complete, the following window is displayed.
Notes
• If you do not specify the time, all selected images are converted to MPEG
files.
• The audio is not saved.
• The converted MPEG file can be played back in Windows Media®Player
(Version 9.0 or later).
• If the convertion is cancelled, the file is not saved.

Operating Instructions (Additional Features)
13
Error message list
Message Cause and Remedy
There is insufficient free space on
the Save Destination Disk or Save
Destination Folder cannot be
accessed. Delete unnecessary
recorded images or confirm the
Save Destination Folder to be
accessed.
•The destination free disk space is
insufficient. Can not access to the
destination drive
Follow the instruction message.
Specify a local drive. Although
mapping this folder to a network
drive allows you to specify this
folder, the program may not be
performed normally due to your
network environment, specifying a
network drive is not
recommended.
•Folders on the network could not be
specified as the folder.
Follow the instruction message.
Select folder. •The [Select Folder] was checked in the
Searched Target of Search window, and a
folder is not selected.
Select a folder on the Browse for Folder
window to click [Browse].
Setthe alarm or sensorat Camera
Registration Information Window
or change the Recording Method
before you enable the Timer with
Alarm and Sensor.
•Though Alarm/Sensor Recording is not
selectedonCameraRegistrationInformation
window, tried to enable the Timer with Alarm
and Sensor.
Follow the instruction message.
Recording Method is not correct.
Change the Recording Method
before you enable the Timer.
•Invalid information has been set in the
Recording Method.
Follow the instruction message.
This software disabled the timer
which has Alarm or Sensor that
has been replaced. Set the alarm
or sensor at Camera Registration
Information Window or change the
Recording Method before you
enable the Timer with Alarm and
Sensor.
•Though the Timer with Alarm and Sonsor is
selected on Timer Registration Information
window, tried to disable Alarm/Sensor
Recording on Camera Registration
Information window.
Follow the instruction message.

Operating Instructions (Additional Features)
14
This software disabled the timer
which Recording Method is not
correct. Change the Recording
Method before you enable the
Timer.
•Invalid information has been set in the
Recording Method.
Follow the instruction message.
Message Cause and Remedy

Operating Instructions (Additional Features)
15
MEMO

Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
PSQX3779YA KK0305YT3010
Panasonic System Networks Co., Ltd.2005
The information in this document is subject to change without notice.
Copyright:
This material is copyrighted by Panasonic System Networks Co., Ltd., and may be reproduced
for internal use only.All other reproduction, in whole or in part, is prohibited without the written
consent of Panasonic System Networks Co., Ltd.
