P2 Line-uP CataLog
aPriL. 2012
Ultra-advanced ImagIng StartS Here

Ready for Next Generation
1
The Next Stage for P2HD.
Meet the Advanced AVC-ULTRA Codec Family
and New P2 Card.
The Panasonic P2HD Series continues to lead the way toward file-based broadcasting and image production applications using the P2 card. In addition
to offering levels of reliability, speed and rewrite performance that could only be possible with solid-state memory, P2HD Series models achieve superb
images and extended recording with the advanced AVC-Intra codec.*2Using P2 files in a variety of IT devices allows a consistent, file-based workflow —
from high-speed transfer to editing, searching and archiving. The P2HD Series also helps to conserve the environment in ways that a memory-card
recorder can do, because it requires no transport mechanism, has low power consumption, and enables repeated reuse of P2 card.
In these and many other ways, the versatility and advanced design of the P2HD Series open the door to the next stage of P2 progress. The new
AVC-ULTRA Codec family starts with the AVC-Intra100 and AVC-Intra50, and welcomes the new AVC-Intra444,*3with its remarkable Full-HD 4:4:4
images and next-generation 4K x 2K resolution, and the AVC-LongG,*4for highly efficient, Full-HD image production with excellent cost-performance.
The AVC-Proxy also joins the family with advanced image quality made possible by H.264 compression, while operating at a low bit rate for Internet use,
browsing, and newsflash applications. In short, the P2HD Series meets all the needs of professional users, in terms of both image quality and efficiency.
*1: Upgrade scheduled for the future. Not all formats of AVC-ULTRA will be supported. AVC-ULTRA upgrade is not free and the cost will be charged to the customers. *2: Available as an option for the AJ-HPX2000 and
AJ-HPX2100. *3: Under development. Release date undecided. *4: Models with AVC-LongG expandability scheduled for future release.
AVC-ULTRA (AVC-Intra444)
Camera Recorder
(Concept Model,* Under Development)
Micro P2 Card (Left) and
Micro P2 Card Adaptor (Right)
(Under Development/Scheduled
for Spring 2013 Release)

Ready for Next Generation
2
Meets detailed professional needs in image production,
from 4K x 2K mastering to streaming distribution.
AVC-Intra Class4:4:4 (Under Development)
This new codec features 4K x 2K resolution. Rich 4:4:4 and 12bit color is extremely good for high-end editing.
Ideal for DI mastering and other high-end uses.
AVC-Intra Class200 (Scheduled for Future Release)
This new codec has twice the bit rate of the present AVC-Intra Class100.
Image quality is comparable with uncompressed data.
AVC-Intra Class100
Since its introduction in 2007, this codec has become a standard for
image production by combining excellent image quality with nimble mobility.
It newly support 1080/60p and 1080/50p formats.
AVC-Intra Class50
This highly efficient broadcast-use HD codec has been widely used since its 2007 introduction.
It produces DVCPRO HD-level images with a bit rate equivalent to SD (DVCPRO 50).
AVC-LongG (Scheduled for Future Release)
This new codec uses Long GOP compression. Achieving 4:2:2 10 bit image quality with
high compression efficiency, it brings high cost-performance to professional image production.
AVC-Proxy
This codec produces high-quality H.264-based proxy images while maintaining a low bit rate for
network data transfer, web streaming, and offline editing.
AVC-ULTRA Upgradable*1
Camera Recorder
(Under Development/
Scheduled for Autumn 2012 Release)
AVC-ULTRA Family
4K x 2K 1080p 1080i
720p
Mastering
DI Mastering
Sports Mastering
Market Needs
Emphasis on
Image Quality
Sports, Dramas,
News, Post Production
Low Bit Rate
High-Speed Transfer
Small Capacity
Emphasis on Cost
Professional Use
Educational, Bridal
Speed
Newsflashes
Offline Editing
Web Browsing
Efficient Image Quality Efficient Operation
Class4:4:4
12 bit 4:4:4
Class200
10 bit 4:2:2
200 Mbps
Class100
10 bit 4:2:2
100 Mbps
Class50
10 bit 4:2:0
50 Mbps
8 bit 4:2:0, 6 Mbps — 21 Mbps
800 kbps — 3.5 Mbps
10 bit, 4:2:2
25 Mbps — 50 Mbps
*3
*1
*2 *2
*2
*2
*2
Class4:4:4
12 bit 4:4:4
Class200
10 bit 4:2:2
200 Mbps
Class100
10 bit 4:2:2
100 Mbps
Class50
10 bit 4:2:0
50 Mbps
8 bit 4:2:0, 6 Mbps — 21 Mbps
800 kbps — 3.5 Mbps
10 bit, 4:2:2
25 Mbps — 50 Mbps
*1: The bit rate is under consideration. *2: The bit rate is approximate at 1080/60i. *3: AVCHD is not included in the AVC-ULTRA family.

3
Shooting Recording
Shooting Recording
(Data Transfer)
Direct
Editing
Flash News
On-Air
Proxy
Editing
Proxy
IP
Transfer
Data Injest
(Digitizing) Editing Exporting On-Air
Archive
Exporting
Archive
On-Air
(P2 deck
Writing)
The Conventional Work Flow
High Speed P2HD Work Flow
High Reliability Supports Creativity
Image disturbances can be caused by vibration and
impact, while recording/playback heads can be
clogged by dust and other particles. These problems,
which often occur under harsh video production
conditions, are eliminated by recording onto the
solid-state P2 card. The P2 card withstands impacts
up to 1,500 G and vibrations up to 15 G, operates in
temperatures from -20°C to 60°C (-4°F to 140°F),
and can be stored in temperatures from -40°C to
80°C (-40°F to 176°F). The P2 card's rugged
specifications ensure reliable recordings under harsh
conditions and enhance newsgathering mobility.
The absence of a transport mechanism and the
ability to achieve file-based image acquisition —
made possible by solid-state memory — speed up
both mobility and media access. Mistakenly writing
over valuable data and A/B-roll errors are also
prevented. This makes it easier to concentrate on
shooting.
Large 64 GB Capacity with a P2 card
The P2 card offers up to 64 GB of storage capacity,
and up to 64 minutes of recording time with the
AVC-Intra100 codec. This large capacity provides
sufficient recording time even for a two-slot-
recorder. With semiconductor memory capacity
increasing yearly, you can expect even larger-
capacity P2 cards with even greater economy in
the future.
* Total card capacity includes space for data management, such as
system data; therefore, actual usable area is less than the capacity
indicated on the card.
P2HD 5 Year Warranty Repair Program
The P2HD 5 year warranty repair program further
enhances selecting P2 camera recorder's and
recorder's outstanding reliability and durability, and
helps to reduce running costs. Once you purchase an
applicable model (indicated by a mark on the
catalog's product introduction pages), simply register
it at Panasonic's Website to be eligible for maximum
five year warranty repair service.
High-Speed Transfer, Access to IT Media
P2 content can be directly input to a file-based
(Windows® PC/Mac) image system* through a variety
of interfaces, including SuperSpeed USB 3.0, e-SATA,
and IEEE 1394. Data can also be input to a
P2-compatible nonlinear editor via a P2 drive, and
copied to a commercially available HDD or SSD.
The data can then be transferred over a network and
shared for smooth on-air broadcasting or archiving.
P2 files are based on the MXF (OP-ATOM) format, for
fast and direct editing access. And editing work
starts much faster than it does with a conventional
VTR or even with another file-based device (MXF
OP1a), because there is no digitizing or ingesting
time required. Simultaneous background archiving
and other functions also save time and lower costs.
*The PC must be installed with the P2 driver (downloadable for free) in
order to mount P2 cards. Refer to "Service and Support" on the
Panasonic Website (http://pro-av.panasonic.net/).
High Reliability and
Fast Transfer
Speedy, Low-Cost
Newsgathering
with Excellent Mobility
Advanced,
File-Based Workflow
Speeding Up the Workflow
5 Years of Warranty Repairs
Extended warranty repair
*Please note that this program is not available in some countries and regions.
The basic warranty period may vary depending on the country or region. Not all
repair work is covered by this extended warranty. The maximum warranty
period may be adjusted depending on the number of hours the devices have
been used. Details about user registration and the program: For US Customers;
www.panasonic.com/broadcast, For Outside US; http://panasonic.biz/sav/pass_e
P2 files are based on the MXF (OP-ATOM) format, so the files on P2 cards can be
directly edited without the need for digitizing or ingesting. This greatly reduces the
time required for editing, which in itself is generally the most time-consuming part of
the workflow. Low-rate proxy data, which is recorded simultaneously, can be
previewed on-site with a tablet PC or smartphone, and transferred over the Internet
for newsflash use. Editing can then begin with the proxy data even before the actual
data arrives for extra convenience and speed.

4
Metadata Management
with Wireless Connectivity
P2 files can be provided with metadata containing
the recording time, GPS position (when mounted
with the option), text information (such as content
name and staff information) and text memos tagged
to selected frames. The AJ-HPX3100G P2 Camera
Recorder uses a new wireless connection function* to
input metadata from a tablet terminal or
smartphone. Metadata-based searching and
managing make it easy to integrate editing,
broadcasting and archiving operations.
* The optional AJ-WM30 Wireless Module and AJ-SFU3100G Upgrade
Software Key are required for wireless connection.
More Functional Proxy Data for
Flash News Reports and Offline Editing
P2 cam (compatible models) can generate low-rate
proxy data (video and audio) for breaking news
transferred by public network or Webcasts. And the
proxy data can be efficiently handled in advance
with offline editing. The AJ-HPX3100G P2 cam can
also generate*higher quality "AVC Proxy" data and
allows proxy previews on a wireless terminal.
*The optional AJ-YDX30G Video Encoder Board is required for using
proxy data.
P2HD Effectively Reduces CO2Emissions
From a management standpoint, environmental
efforts are being increasingly reflected in the image
and value of today's corporations. P2HD products
meet the stringent Panasonic "Green Product"
certification standards, which testifies for their
excellent environmental performance. P2HD is
closely linked with environmental conservation in
routine broadcasting and production operations,
making it a true with next-generation technology.
Reusing: Because abrasion-free, dropout-free P2
cards can be rewritten, TV stations don't generate
large amounts of used tape like they do with VTRs.
Also, because P2HD systems use solid-state memory,
there are fewer parts to replace — such as recording
heads and transport mechanism — which again cuts
down on waste.
Reducing: P2 memory card recorders are lighter and
require less power than VTRs. In actual use, a variety
of other processes combine to reduce power
consumption even more, such as the fact that a
compact, lightweight design and fast start-up let you
stand-by on location with the power turned off.
New Devices Further Cut Power Consumption
Reducing power consumption is one of the highest
priorities in the development of P2HD products.
The AJ-HPX3100G Camera Recorder achieves this
with integrated circuitry such as a newly developed
digital signal processer and AVC-Intra codec LSI.
Compared with the previous AJ-HPX3000G, which
was marketed from 2007 to 2010, it cuts power
consumption by about 23%. The AG-HPG24 Portable
Recorder incorporates an image-processing LSI to
bring greater compactness, lighter weight, and lower
power consumption to AVC-Intra recording and
playback. In fact, it reduces power consumption by
about 92% compared to the AJ-HD3700B HD D5
VTR, which as marketed from 2003 to 2010.
Helping to Conserve
the Environment
The new systems cut CO2emissions
under the dual themes of
“Reuse” and “Reduce.”
Metadata, Proxy, Wireless and Other
Functions Enhance IT Integration to
Revolutionize the Workflow
When recording, a variety of information is
registered as metadata in P2HD files and proxy
files. Recordings can then be transmitted to a
station by a Field Pick-up Unit (FPU) from a
broadcast van equipped with the AJ-HPM200 or
delivered on a P2 card, HDD or SSD. Prior to the
data's arrival, low-rate proxy or AVCHD*
3
files
can be transferred by FTP over the Internet for
on-air broadcasting of breaking news, review to
get up a program, or off-line editing.*
4
All recordings are archived so network terminals
inside the station can search for and preview
them based on metadata.*
5
*1: The optional AJ-WM30 Wireless Module and AJ-SFU3100G
Upgrade Software Key are required for wireless connection. A
device is connected in ad-hoc mode only. *2: Proxy data can be
saved only in PCs/Macs. *3: Conversion to AVCHD files requires
an AJ-HPM200 Memory Card Recorder equipped with an optional
AJ-YCX250G AVCHD Codec Board. *4: See page 22 in this
catalog for information on P2 alliance partners. *5: You may
need to update its firmware. Please refer to the “service and
support” on the Panasonic Website (http://pro-av.panasonic.net/).
News Workflows with P2HD
Acquisition Station Equipment
AJ-HPM200*3
AJ-SF110G AJ-SF100G
AJ-HPX3100
AG-HPX250*5
FOCUS FS-P250
AJ-WM30
Wireless Module*1
P2 card P2 card
P2 card
P2 Drive
P2 Drive
AJ-HPD2500
AJ-HPD2500
LAN
(GB Ethernet)
PC/NLE*4
Reporting Support Terminal
VTR Source
Proxy File
/Meta Data
P2 Content
Files
P2 Contents
File
AVCHD File
Server
AJ-YDX30G
Video Encoder Board
PC/Mac
Smartphone/
Tablet Terminal*2
VTR Recorder
Coming soon
Meta Data, Wireless IN
HD Image File
IP Transfer
Proxy File
IP Transfer*2
Archive
Editing
On-Air
Proxy, Wireless Preview
FPU/CS Transmitter
Site Editing, On-Air
News Flash,
Organization
Studio. Line Acquisition

Mobility and
Advanced Functions
Exclusive to the P2 Cam
* Register as a owner for this device to receive a special service warranty up to five years of free warranty repairs.
5
CAMERA RECORDERS
The reliability, compact size, light weight and high-speed startup
that come only with memory card recording give the P2 HD
Memory Card Camera Recorders their remarkable mobility.
And the lineup is wide enough to meet virtually all news
gathering and image acquisition needs — with the
moviemaking abilities of the P2 Varicam, the
broadcasting and professional functions and specs of
the P2 cam, and the advanced, shoulder-type
level of performance of the P2 handheld.

6
• 2.2megapixel2/3typeCCDforfull1920x1080HDimages.
• Recordingformat:AVC-Intra100/50andDVCPROHD.AVC-Intra100usesthe
10bit4:2:2sampling.
• HDSDIoutputof23.98PsF/24PsFvideosignals.
• Dual-linkHDSDIoutputforcamerathroughRGB4:4:4/10bitloggamma
signals. Compatible with uncompressed, high-end workflows.
• Dual-linkRGB4:4:4outputwithsimultaneous4:2:2recordin-camera.
• Variableframeratefunctionrangingfrom1fpsto30fps.
• Selectablegammamodes,includingFilm-Rec.
• Scan-reversefunctionforfilmlensuse.
• Griphandlehasfivethreadedholestomountfilmaccessories.
• TheChromaticAberrationCompensation(CAC)functioncompensatesfor
slight chromatic aberration at frame edges that cannot be compensated for
bythelens(thisfunctionrequirestheuseofaCAC-compatiblelens).
• HighF10sensitivityat2,000lx.Minimumilluminationof0.042lx
(at1fpsVFRand+30dBgain-up).
• 14bitA/Dprocessing,12polelinearmatrixcolorcorrectionfunction.
• DRS(DynamicRangeStretch)providesawiderdynamicrangewithminimal
blown highlights and blocked shadows.
• Scenefile,userbuttons,usermenuandfocusassistfunctions.
• 2wheel(NDandCC)opticalfilters.
• 48kHz/16bit,4channeldigitalaudiorecording.
• Switchablebetween59.94Hzand50Hzrecording.
• FiveP2cardslotsallowcontinuousrecording,cardselection,hotswapping,
loop rec, pre-rec, interval rec and one-shot recording.
• Textmemosandshotmarkerscanbeadded.
• Proxydatarecordingpossible(withtheoptionalAJ-YAX800G).
• USB2.0(HostandDevice)interface.
• Genlockinput,switchabletoreturnvideo(HD-Y).
• Camerastudiosystem(option)issupported.
AJ-HPX3700G
High-Quality P2HD VariCam for High-End Production,
with RGB 4:4:4 Output in Full 1920 x 1080 Pixel Resolution
and P-10 Log Gamma
• VariableFrameRateof1fpsto60fpsin720p,forcreativeovercrankedor
under cranked shooting.
• Recordingformat:AVC-Intra100/50andDVCPROHD.AVC-Intra100usesthe
10bit4:2:2sampling.
• HDSDIOutputat23.98PsF/24PsFVideoSignals.
• Selectablegammamodes,includingFilm-Rec.
• Scan-reversefunctionforfilmlensuse.
• TwoindependentHDSDIoutputswithparallelusecapability.
• Griphandlehasfivethreadedholestomountfilmaccessories.
• HDprogressive2/3type3CCDsystem.
• TheChromaticAberrationCompensation(CAC)functioncompensatesfor
slight chromatic aberration at frame edges that cannot be compensated for
bythelens(thisfunctionrequirestheuseofaCAC-compatiblelens).
• HighF10sensitivityat2,000lx.Minimumilluminationof0.021lx
(at1fpsVFRand+30dBgain-up).
• 14bitA/Dprocessing,12polelinearmatrixcolorcorrectionfunction.
• DRS(DynamicRangeStretch)providesawiderdynamicrangewithminimal
blown highlights and blocked shadows.
• Scenefile,userbuttons,usermenuandfocusassistfunctions.
• 2wheel(NDandCC)opticalfilters.
• 48kHz/16bit,4channeldigitalaudiorecording.
• Switchablebetween59.94Hzand50Hzrecording.
• FiveP2cardslotsallowcontinuousrecording,cardselection,hotswapping,
loop rec, pre-rec, interval rec and one-shot recording.
• Textmemosandshotmarkerscanbeadded.
• Proxydatarecordingpossible(withtheoptionalAJ-YAX800G).
• DVCPRO(IEEE1394)outputterminal*forback-upuse.
• USB2.0(HostandDevice)interface.
• Camerastudiosystem(option)issupported.
*OutputsDVCPROHDcodecrecordingonly.
Memory Card Camera Recorder “P2 Varicam”
AJ-HPX2700G
Multifunctional P2HD VariCam with a Variable Frame Rate from
1 to 60 fps: Superior Creativity and Outstanding Cost-Performance
AJ-HPX3700 Specification
Power Source :
DC 12 V (11 V to 17 V)
Power Consumption :
42 W, main unit only
Weight:
approx. 4.9 kg(10.8 lb), main unit only
Dimensions (W x H x D):
137 mm x 209 mm x 318 mm
(5-7/16 inches x 8-1/4 inches x 12-9/16
inches) without handle and option cover
(exclude projection)
AJ-HPX2700 Specification
Power Source : DC 12 V (11 V to 17 V)
Power Consumption : 38 W, main unit only, LCD monitor ON
Weight: approx. 4.9 kg(10.8 lb), main unit only
Dimensions (W x H x D): 137 mm x 209 mm x 318 mm
(5-7/16 inches x 8-1/4 inches x 12-9/16 inches)
without handle and option cover (exclude projection)

7
AJ-HPX3100G
Featuring a 2.2 Megapixel CCD. High-End Performance in a
Compact, Lightweight Design with Low Power Consumption.
AJ-HPX2000/2100
Broadcasting 2/3 type P2HD Camera Recorder,
Equipped with Five P2 card Slots and IEEE 1394a*2Interface
• 2.2megapixel2/3typeCCDforfull-HD(1920x1080)images.
• TheAVC-Intra100codecrecords10bit/4:2:2samplingimages.
• AhighsensitivityofF11/F12,*1andanexcellentS/Nratioof59dB.*2
• Supportshigh-quality24bitaudiorecording(AVC-Intra100/50).*3
• Switchablebetween59.94Hzand50Hzrecordingforworldwideuse.
• SD(480i/576i)recordinginDVCPRO50,DVCPROorDVcodec.
• ChromaticAberrationCompensation(CAC)functionworkswitha
CAC-compatible lens.
• DRS(DynamicRangeStretch)providesawiderdynamicrange.
• F-RECmodeandscan-reversefunction.
• DigitalSuperGainenables0.005lxofminimumillumination.
• DigitalZoomby2x,3xor4x.
• 2wheel(NDandCC)opticalfilters.
• Awirelessnetworkconnection*4letsyouuseasmartphone,*5tabletdevice*5
orPC/Mactoconfirmthecamerastatus,toinputmetadataandalsotoview
proxyvideo(streamingorplayback)*6aswellassaveit.*7
• Alowcenterofgravitybodyoffersunobstructedviewsandlightweight.
• Powerconsumptionisapprox.34Wforthecamerarecorderonly.
• Theone-cliprecordingfunctionrecordsmultiplecutsinasingleclip.
• Textmemos,shotmarkersandmetadatasuchasGPS*8can be added.
• Scenefile,userbuttonandfocusassistfunctions.
• OutputforHD/SDSDIandcompositemonitorout,withbuilt-in
downconverter,andHD/SDSDIinputareequipped.
• USB2.0(HOST/DEVICE),TCIN,TCOUTandGENLOCKINwhichcanbeused
for return video in, are equipped.
• UniSlotwirelessreceiver(option)andcamerastudiosystem(option)are
supported.
*1:F11sensitivityisattainablein1080/59.94imode,andF12isattainablein1080/50imode.
*2:TheS/Nratiois59dBwhenDNRisturnedON.
*3:OnlyintheAVC-Intra100/50mode.Forplayback,equipmentorsoftwarecompatiblewith
24bitaudioisrequired.Fordetails,referto“NoteRegarding24bitAudio”onthebackcover.
*4:TheoptionalAJ-WM30WirelessModuleandAJ-SFU3100GUpgradeSoftwareKeyarerequiredfor
wireless connection.
*5:PlaybackofproxydatarecordedinHQorSHQmodeispossible.Panasonicdoesn’tguaranteeall
types of smart phone or tablet device working properly. .
*6:TheoptionalAJ-YDX30GVideoEncoderBoardisrequiredforuseofproxydata.Toviewstreaming
proxyvideo,AG-HPX3100Gmayneedtobeupdated.Pleaserefertothefollowingwebsitefor
details.http://pro-av.panasonic.net/
*7:ProxydatacanbesavedonlyinPCs/Macs.
*8:TheoptionalAJ-GPS910GGPSUnitisrequired.
• HDProgressive2/3type3CCDSystem.
• HighsensitivityofF10(at2000lx).Minimumilluminationof0.007lx
(at+74dBgain).
• DRS(DynamicRangeStretch)providesawiderdynamicrangewithminimal
blown highlights and blocked shadows.
• 14bitA/Dprocessingandimproveddigitalimageprocessingtechnology.
• 12polelinearmatrixcolorcorrectionfunction.
• SupportsAVC-Intra100/50codec(withtheoptionalAJ-YBX200G).
• DVCPROHD(1080iand720p)recordingandplayback.59.94Hz/50Hz
switchable for recording and playback in any HD system worldwide.
• SD(standarddefinition)codec(480/59.94iand576/50i)supportsDVCPRO
50,DVCPRO,andDV.
• 48kHz/16bit,4channeldigitalaudiorecording.
• LinerecordingviaHD/SDSDIinput(withtheoptionalAJ-YA350AG).
• FiveP2cardslotsallowcontinuousrecording,cardselection,hot-swaprec,
loop rec and pre-rec.
• TheOne-ClipRecordfunctionenablesmultipleclipsthatwererecorded
separatelybystart/stopoperationstobehandledasasingleclip.*1
• Immediateplaybackusingaclipthumbnaildisplay.
• Textmemosandshotmarkerscanbeadded.
• Scenefile,userbuttons,usermenu,autowhitebalancewithATW.
• AJ-HPX2000:4PositionOpticalFilter.
• AJ-HPX2100:2wheel(NDandCC)OpticalFilters.
• Proxydatarecordingpossible(withtheoptionalAJ-YAX800G).
• IEEE1394a*2(AVC),USB2.0(HostandDevice)interface.
• UniSlotwirelessreceiverslot.
• Camerastudiosystem(option)issupported.
*1:Thecamerarecordersoftwaremustbeupgradedtothelatestversion.
Fordetails,visithttp://pro-av.panasonic.net/en/index.html
*2:IEEE1394ainput/outputarenotavailableforAVC-Intracodecfiles.
AJ-HPX2000/2100 Specification
Power Source : DC 12 V (11 V to 17 V)
Power Consumption : 36 W, main unit only, LCD monitor off
Weight: approx. 4.5 kg(9.9 lb), main unit only
Dimensions (W x H x D): 137 mm x 209 mm x 317 mm
(5-7/16 inches x 8-1/4 inches x 12-1/2 inches)
without handle and wireless option cover (exclude projection)
Memory Card Camera Recorder “P2 cam”
A-HPX3100G Specification
Power Source : DC 12 V (11 V to 17 V)
Power Consumption : 34W, main unit only
Weight: approx. 3.9 kg(8.6 lb), main unit only
Dimensions (W x H x D):
140 mm x 270.5 mm x 335.8 mm
(5-1/2 inches x 10-5/8 inches x 13-1/4 inches)
without handle and option cover
(exclude projection)

8
AG-HPX500 series
(AG-HPX500/502)
Outstanding Cost-to-Performance and Superb 2/3 type Quality —
the P2HD Camera Recorder for Video Professionals
• Standard2/3typeinterchangeablelensmountsystem.
• TheChromaticAberrationCompensation(CAC)functioncompensatesfor
slight chromatic aberration at frame edges that cannot be compensated for
bythelens(thisfunctionrequirestheuseofaCAC-compatiblelens).
• APT(AdvancedProgressiveTechnology)produceshigherimagequalitywith
HDProgressive3CCDand19bitdigitalsignalprocessor.
• 1080iand720pHDrecordingusingtheDVCPROHDcodecforbroadcastuse
assures both superior images and top reliability.
• 50Hz/60Hzselectorfunctionallows1080/50iand720/50pHDrecording
forPALareas.
• SD(480i/576i)recordinginDVCPRO50,DVCPROorDVmulti-codec.
• FourP2cardslotsallowcontinuousrecording,cardselection,hotswapping,
loop rec, pre-rec, interval rec and one-shot recording.
• Textmemosandshotmarkerscanbeadded.
• 48kHz/16bit,4channeldigitalaudiorecording.
• Variableframeratefeature(in720p,11steps)allowsfilm-like
slow-speed or quick-speed shooting.
• 720pnativemodeachievesaspeedeffectwithoutrequiringadditional
equipment.AVariCam-compatible720pover60pmodeisalsoprovided.
• Seven-modegamma,includestwoCine-Likemodes.
• Slow,synchroandhigh-speedshutter.
• Scenefile,userbuttons,usermenuandfocusassistfunctions.
• OutputforHD/SDSDI(BNC),Video(BNC)andComponent(D4),withbuilt-in
downconverter.
• TCinput/outputprovidesmulti-camerasynchroshooting.
• IEEE1394a(AVC,HostandDevice),USB2.0(Device)interface.
• RCUterminalforoptionalAJ-RC10GorAG-EC4Gremotecontrolunit.
• Camerastudiosystem(option)issupported.
AG-HPX500 series Specification
Power Source : DC 12 V (11 V to 17 V)
Power Consumption : approx. 23W with Viewfinder and LCD monitor on
Weight: approx. 3.8 kg(8.4 lb), without viewfinder
Dimensions (W x H x D): 140 mm x 261 mm x 318 mm
(5-9/16 inches x 10-5/16 inches x 12-9/16 inches)
without handle (exclude projection)
AG-HPX370 series
(AG-HPX370/371/372/373/374)
Full F10*1Sensitivity from a Newly Developed MOS Image Sensor.
High-Quality Images in a Lightweight, Mobile, Compact Body.
• Featuringanew1/3typeMOSsensorforfull-HD(1920x1080)resolution
andF10*1sensitivity.
• ComesmountedwithaFujinon1/3type17xzoomlens(included)
• ChromaticAberrationCompensation(CAC)function.
• DRS(DynamicRangeStretch)providesawiderdynamicrange.
• Recordingformat:AVC-Intra100,AVC-Intra50andDVCPROHD.
• HDmulti-formatrecording:1080iand720p.
• SDmulti-codecrecordinginDVCPRO50/DVCPRO/DV.
• 59.94Hz/50Hzselectorfunction.
• Variableframeratefeature(in720p,20steps)allowsfilm-like
slow-speed or quick-speed shooting.
• Seven-modegamma,includestwoCine-Likemodes.
• Thisredesignedshoulder-mountcamerahasalowcenterofgravity.
• TwoP2cardslotsareprovidedontheoperationpanelside.
• TheOne-ClipRecordfunctionenablesmultipleclipsthatarerecorded
separatelybystart/stopoperationstobehandledasasingleclip.
• Scenefile,userbuttons,andfocusassistfunctions
• Waveformandvectorscopedisplay.
• AcolorviewfinderfeaturingtheLiquidCrystalOnSilicon(LCOS)display
panel for bright, high-resolution images.
• Ahighresolution,16:9aspectratio,81.28mm(3.2inches)LCDmonitor.
• OutputforHD/SDSDIandVideo,withbuilt-indownconverter.
• USB2.0(Host/Device)andIEEE1394a(AVC)*2interfaces.TCIN,TCOUTand
GENLOCKINterminals.
• RCUterminalforoptionalAJ-RC10GorAG-EC4Gremotecontrolunit.
• Proxydatarecordingpossible(withtheoptionalAJ-YAX800G).
• Camerastudiosystem(option)issupported.
*1:ItssensitivityisF10in1080/59.94iandF11in1080/50i.
*2:IEEE1394ainput/outputarenotavailableAVC-Intracodecfiles.
AG-HPX370 series Specification
Power Source : DC 12 V (11 V to 17 V)
Power Consumption : approx. 19 W, with VF, lens and LCD monitor ON
Weight:
approx. 3.6 kg(7.9 lb), without Lens, approx. battery and accessories
Dimensions (W x H x D): 246 mm x 251 mm x 441 mm
(9-11/16 inches × 9-7/8 inches × 17-3/8 inches )
excluding prominent parts
246 mm x 251 mm x 549 mm
(9-11/16 inches × 9-7/8 inches × 21-5/8 inches )
with Fujinon lens, excluding prominent parts
Memory Card Camera Recorder “P2 cam”

9
AG-HPX250
High-Powered Lens, High-Sensitivity Sensor and High-Quality
Full-HD 10 bit 4:2:2 Recording — Shoulder-Type Performance in a
Handheld Camera for Broadcasting and Production Work
AG-HPX170 series
(AG-HPX170/171/172/173/174)
Compact, Lightweight HD/SD Camera Recorder Brings High Image
Quality and Easy Handheld Mobility
• 22x(f=28mmto616mm,35mmequivalent)zoomlenswiththree
manual operation rings – zoom, focus and iris.
• FeaturinganewU.L.T.(UltraLuminanceTechnology)imagesensor
(1/3type2.2megapixelMOSsensor).
• TwomodeofFocusassist(ExpandandFocus-in-red)*1
• DRS(DynamicRangeStretch)providesawiderdynamicrange.
• HDmulti-formatrecording:1080/24p,1080/25p,1080/30p,1080/50i,
1080/60i,720/24p,720/25p,720/30p,720/50p,720/60p*2and
SD(480/24p,480/30p,480/60i,576/25p,576/50i)*2
• 59.94Hz/50Hzselectorfunction.
• VFR(variableframerate):Enablesfilm-camera-likespeedeffects.1080
setting:17stepsof1fpsto30fps,720setting:25stepsof1fpsto60fps
(bothat59.94Hz).
• Recordingformat:AVC-Intra100,AVC-Intra50andDVCPROHD/DVCPRO50/
DVCPRO/DV.
•
Seven-modeselectablegamma,suchascine-likemode,forrichgradation.
• 4-position(OFF,1/4ND,1/16ND,1/64ND)opticalneutraldensityfilterwheel.
• ItnewlysupportsFOCUSFS-P250portableH.264proxyrecorder*1(coming
soon/soldseparately)forproxyrecordingandwirelessnetworkconnection.*3
• Scenefile,userbuttons,andfocusassistfunctions.
• TwoP2cardslotsenableconsecutiverecordingandhot-swapping.
• Theone-cliprecordingfunctionrecordsmultiplecutsinasingleclip.
• Pre-rec,looprec,one-shotrecandintervalreccapability.
• 48kHz/16bit,4channeldigitalaudiorecording.XLR2channelaudioinput
terminalssupporting48Vphantompowersupply.
• GenlockinputandTCinput/outputprovidesmulti-camerasynchroshooting.
• EquippedwithHDSDIoutputandHDMIoutputforeasyconnectionto
broadcasting and professional systems.
• USB2.0(Host/Device)andIEEE1394a(AVC)*4interface.
*1:AG-HPX250mayneedtobeupdated.Pleaserefertothefollowingwebsitefordetails.
http://pro-av.panasonic.net/
*2:60i,24pand30p,areactuallyrecordedin59.94Hz,23.98Hzand29.97Hz,respectively.
*3:FOCUSFS-P250(comingsoon/soldseparately)andAJ-WM30(option)arerequiredforwireless
connection.
*4:IEEE1394ainput/outputarenotavailableforAVC-Intracodecfiles.AG-HPX250EJdoesnot
supportinputviaUSBandIEEE1394a.
• A13xzoomlenswith28mm(35mmequivalent)wide-anglesetting,
72mmdiameterandcam-drivenmanualzoom.
• 1/3type16:9progressiveCCDforhighimagequalityandsensitivity.
• High-performanceDSPwith14bitA/Dconversionand19bitinner
processing capability.
• 20stepframerateselectorforcreativevariable-speedshooting.Features
720pnativemodeandover60p/50pmode.
• SelectablegammaincludingCinelikemode.
• HDrecordingin1080/24p,1080/60iand720/60pin59.94Hzmodel.
(1080/25p1080/50iand720/50pin50Hzmodel.)*
• SDmulti-codecrecordinginDVCPRO50/DVCPRO/DV.
59.94Hz:AG-HPX170/171, 50Hz:AG-HPX171/172/173/174.
• TwoP2cardslotsallowupto128minutesofcontinuousHDrecordingwhen
usingtwo64GBP2cardsinfullframerateDVCPROHD.
• MultifunctionP2capabilities.Hotswapping(changingcardswhile
recording),looprec,pre-rec,one-shotrecandintervalreccapability.
• Textmemosandshotmarkerscanbeadded.
• 48kHz/16bit,4channeldigitalaudiorecording.XLR2channelaudioinput
terminalssupporting48Vphantompowersupply.
• Compacthand-heldsizeweighsonly1.9kg(4.2lb).
• Autoormanualoperationoffocusandaperture.
• Focusassistfunctionsofcenterzoom,histogramandfocusbardisplay.
• Waveformandvectorscopedisplay.Scenefiles,userbuttons.
• IEEE1394andUSB2.0terminalsforPCinterface.
• HD/SDSDIoutput,componentoutput(mini-D),time-codesettingviaIEEE
1394,andcameraremotefunction.
*60i,24p,30p,areactuallyrecordedin59.94Hz,23.98Hz,29.97Hz,respectively.
1080/24pistoberecordedin1080/60i(59.94i)pull-down.1080/25pistoberecordedin1080/50i
pull-down.
AG-HPX250 Specification
Power Source : DC7.2 V with battery, DC7.9 V with DC input
Power Consumption : 15.0 W (LCD ON)
Weight: approx. 2.5 kg(5.5 lb), without battery and accessories
Dimensions (W x H x D): 180 mm x 195 mm x 438 mm
(7 inches x 7-11/16 inches x 17-1/4 inches)
without prominent parts
AG-HPX170 series Specification
Power Source : DC7.2 V with battery, DC7.9 V with DC input
Power Consumption : 10.9 W, 11.7 W (LCD ON), 13.8 W (Max)
Weight: approx. 1.9 kg(4.2 lb), without battery and accessories
Dimensions (W x H x D): 154 mm x 179.5 mm x 397 mm
(6-1/8 inches x 7-1/8 inches x 15-11/16 inches)
without prominent parts
Memory Card Camera Recorder “P2 handheld”

AG-3DP1G
High-Quality Images, High Sensitivity, Powerful Zooming and
Multi-Camera Versatility. The Integrated Twin-lens Camera
Recorder for Broadcast-Level 3D.
• High-powered17xHDtwin-lenssystemcoversawideshootingrange.
• Remotecontrolsupportedforfocus,zoom,irisandconvergence.
• 3Dmodeselectionformaximumzoomingeffect:Near/Normal/Extra.
• New3Dassistfunctions(ALERT/CONV./Z-WFM)forreliableand
convenient3Dshooting.
• MonitorimageselectionofLeft,Right,MixorSideBySidemodes.
• High-sensitivity,high-quality,dual3MOSU.L.T.(UltraLuminance
Technology)imagesensors.
• TheAVC-Intra100codecrecords1920x1080full-pixelHD3Dwith10bit
4:2:2fullsamplingtodeliverstunningimagequality.
• HDmulti-formatrecording:108060i/50i/30pN/25pN/24pN,72060p/50p/
30pN/25pN/24pN.*
• 59.94Hz/50Hzselectorfunctionforglobaluse.
• 3Dor2DrecordingmodeselectionontodoubleP2cardslots.
• Variableframeratefeature(in720pmodeonly)allowsfilm-likeslow-speed
or quick-speed shooting.
• Six-modeselectablegamma,includingcine-likemode,forrichgradation.
• Focusassistbuttonand3-positiongainseletor.
• Simplifiedwaveformandvectorscopedisplay.
• Scenefile,userfile,userbuttons.
• 4-position(CLEAR,1/4ND,1/16ND,1/64ND)opticalneutraldensityfilters.
•
81.3mm(3.2inches)16:9LCDcolormonitorwithapproximately921,000dots.
• EquippedwithGENLOCKINandTCIN/OUTformulti-camerashooting.
• UniSlotwirelessreceiverandcamerastudiosystemaresupported(option).
• EquippedwithtwoHDSDIoutputswithsync-recfunction,RETinputand3D
compatibleHDMIoutput.
• AnXLR5pinmicrophoneterminalandtwochannelsofXLR3pinaudio
inputwith+48Vphantompowersupply.
• OptionalcolorAJ-CVF100GorB/WAJ-HVF21Kviewfindercanbeused.
*60i,24p,and30p,areactuallyrecordedin59.94Hz,23.98Hz,and29.97Hz,respectively.
10
AG-3DP1G Specification
Power Source : DC 12 V (11 V to 17 V)
Power Consumption : 38 W (Camera only)
Weight: approx. 6.1 kg(13.4 lb) with camera unit only
approx. 7.9 kg(17.4 lb) with an AJ-HVF21KG, a DIONIC battery,
two P2 cards, and an AJ-MC900G microphone
Dimensions (W x H x D): 235 mm × 270.5 mm × 667.5 mm
(9-1/4 inches × 10-5/8 inches × 26-1/4 inches)
with camera unit only, excluding protrusions
Integrated Twin-Lens 3D Camera Recorder
Panasonic 3D Production System
BT-3DL2550
647.7 mm (25.5 inches)
3D LCD Video Monitor
This broadcast monitor displays3D
images with lifelike depth.
BT-LH910G
228.6 mm (9 inches)
HD/SD LCD Monitor
Thiscompactmonitorfeaturesa3Dshooting
assist function.
*Themonitordisplaysin2D.Imagescannotbeviewedin3D.
AG-HMX100
Digital AV Mixer
Low-costHD/SDDigitalAVMixerwith
easy operation and versatile functions
AV-HS450
Multi-Format Live Switcher
This live switcher supports a variety of
3Doutputformatsandallowswipe,
dissolveandothereffects.Itcan
switchuptoeightpairsof3Dvideo
sources as standard.
*OptionBoards:AnAV-HS04M7D3DSDIOutput
Boardisrequiredfor3Doutput.
AG-3DA1
Twin-Lens FULL HD 3D Camera Recorder
FULLHD3DimagesarerecordedintheAVCHD
codec PH mode. This compact, lightweight
approx.2.4kg(5.3lb)all-in-oneunitis
unlikeaconventionalrig-type3D
camera system.
AG-HPD24
Memory Card Portable
Recorder “P2 portable deck”
AVC-IntraRecording,HDMI*1Output
andUSB3.0*2Interface.FULLHD3D
Recording and Transmission with
TwoUnitsSyncOperation.
*1:Supports3D*2:USB3.0hostinterface

* Register as a owner for this device to receive a special service warranty up to five years of free warranty repairs.
11
MEMORY CARD RECORDER
Literally Filled with Quality
and System Functions
The P2 HD Memory Card Recorder features high image quality and
versatile functions in a compact body with low power consumption.
Itoffersbroadcast-industrystandarddigital/analoginputandoutput,
andawiderangeofITinterfaces.Anditfullysupportsavarietyof
image producing and broadcast work, such as backing up camera
recorder data, playing and transmitting P2 card data, uploading to
nonlineareditorsandservers,andcopyingfilestoanexternalHDD.

12
AG-HPG20
Featuring HD SDI Input for High-Quality AVC-Intra Recording.
Ideal for HD Field Recording or for Video Playback at Events.
AG-HPD24
HD Recording, HDMI*1Output and USB 3.0*2Interface. FULL HD 3D
Recording and Playback with Two Units in Sync Operation
• ThreeHDrecordingandplaybackcodecssupported:AVC-Intra100forhigh-
quality10bit4:2:2images,AVC-Intra50,andDVCPROHD
• 1080i(60i/50i),720p(60p/50p)multi-formatandDVCPRO50/DVCPRO/
DV multi-codec capabilities.
• HD/SDSDIinput/outputprovidedtoallowlinerecording.EnablesRECStart/
Stopinsyncwithcamerarecorder.*1
• Allowsup-/down-conversionbetweenHDandSDaswellascrossconversion
between720and1080duringplayback.
• EquippedwithtwoP2cardslotstoenablecontinuousrecording,hot-swap
REC,loopRECandUMIDrecording.
• ClipthumbnaildisplayontheLCDmonitorcanbeusedforplayback,
deletion,clipcopy,metadataediting,andtextmemo/shotmarkeraddition.
• Diverse playback functions ideal for video demos and presentations, such as
FormatAuto,VariableSpeedforslow-motion/double-speedplayback,
Resume,Single-clipandRepeat.
• Supportssimplifiedwaveformmonitorandvectorscopedisplay.
• USB2.0(HOST):ForcopyingfilesbetweenanexternalHDDandaP2card.
HDDPreviewfunctionallowsplayback*2of HDD files.
• USB2.0(DEVICE):Fortransferringfilesto/fromanonlineareditor
• IEEE1394a(AVC)interfaceenablesDVCPROHD/SDstreaminput/output.
• Atabout1.1kg(approx.2.4lb),easytocarrywithonehand.
• Batteryoperationboostsconvenience.
• ACpowercanbesuppliedviatheACadaptor(included).
• Highly reliable, durable memory card recording has no moving parts,
eliminating the concerns of a tape transport.
*1:Forinterlinkedrecording,thecamerarecordermustsupportthisfunction.
*2:InsimplifiedHDDplayback,theframerateforrefreshingthedisplayisreduced.
• ThreeHDrecordingandplaybackcodecssupported:AVC-Intra100forhigh-
quality10bit4:2:2images,AVC-Intra50,andDVCPROHD.
• 1080i(60i/50i),720p(60p/50p)multi-formatandDVCPRO50/DVCPRO/DV
multi-codec capabilities.
• 1080/24PsFinput/output*
3
,native1080/23.98precording(AVC-Intra).
• SupportsVARICAMandothervariableframe-ratevideos.*4
• Allowsup-/down-conversionbetweenHDandSDaswellascross-
conversionbetween720and1080duringplayback.
• 24bit4channel*5or16bit8channel48kHzhigh-quality digital audio.
• RS-422Aremoteterminal(9pin)tocontrolasanplayer.
• PlaybackfunctionpreviewsP2filesfromanexternalstoragedevice.*6
• USB3.0(HOST):Transfersfilestoanexternalstorageataboutfourtimes
AVC-Intra100normalspeed.*7
• USB2.0(DEVICE):UploadsfilestoaPCornonlineareditor.
• HDMI(3Dcompatible)out,HD/SDSDIin/out,videomonitorout,audio
monitorout,headphoneout,REFinput,TCin/outandXLRaudioin.
• Hot-swap,looprecandVANCrecording.*9
• AUSBkeyboard*8(USB2.0)canbeconnected.
• Two-UnitSyncOperationfor3DRecording/Playback.*10
• Compactsizewith2Uheightandhalf-rackwidth,2kg(4.4lb)weight.
• Built-infrontspeakerforaudiomonitoring.
• Batteryoperationboostsconvenience.
• ACpowercanbesuppliedviatheACadaptor(included).
*1:Supports3D.*2:USB3.0hostinterface.*3:OnlyinAVC-Intra100/50mode.
*4:Onlyin720pmode.*5:OnlyinAVC-Intra100/50mode.Forplayback,equipmentorsoftware
compatiblewith24bitaudioisrequired.*6:Playbackisbasedondiskdriveperformance,including
spindlespeed.Panasoniccannotguaranteesmoothplaybackwithoutdroppedframes.*7:TheUSB3.0
standardhasamaximumtransferrateof5Gbps.However,theactualtransferspeeddependsonthe
systemconfiguration.*8:Keyboardswitharatingofupto100mAcanbeused.Panasoniccannot
guaranteethatallUSBkeyboardswillworkproperly.
*9:VANCrecordingisonlypossibleat59.94Hzand50Hz.*10:3Drecordingandplaybackare
possibleonlyintheAVC-Intra100/50codec.
AG-HPG20 Specification
Power Source : DC7.2 V with battery, DC7.9 V with DC input
Power Consumption : approx. 12 W
Weight: approx. 1.1 kg(2.4 lb)
Dimensions (W x H x D): 104 mm x 83 mm x 227 mm
(4-1/8 inches x 3-5/16 inches x 8-15/16 inches)
without rubber shoes
AG-HPD24 Specification
Power Source : DC 7.2 V with battery, DC 7.9 V with AC adaptor
Power Consumption : Approx. 19.8 W
Weight: Approx. 2.0 kg(4.4 lb), main unit only
Dimensions (W x H x D): 214 mm x 88 mm x 200 mm, without support legs
(8-7/16 inches x 3-1/2 inches x 7-7/8 inches)
Memory Card Portable Recorder “P2 portable”Memory Card Portable Recorder “P2 portable deck”

13
• ThreeHDcodecssupported:AVC-Intra100forhigh-quality10bit4:2:2
images,AVC-Intra50,andDVCPROHD.
• 1080iand720precordingandplayback.59.94Hz/50Hzswitchable.
• 1080/24PsFin/out,native24precordingwiththeAVC-Intracodec.
• SD(480/59.94iand576/50i)codecsupportsDVCPRO50,DVCPRO,andDV.
• Allowsup-/down-conversionbetweenHDandSDaswellascross-
conversionbetween720and1080duringplayback,andup-conversion
during recording.
• Hot-swap,looprecandVANCrecording.*1Itsupportshigh-quality24bit
audio(AVC-Intra100/50).*2
• EquippedwithsixP2cardslotsandoneSDcardslot.
• Easymanualon-airtransmissionwithone-clipplaybackandGUIhold.
• NewplaylistfunctionincludesadvancedGUIandnewfunctionssuchas
independentAVtracks,insert/overwritemodes.
• ItnewlysupportsVDCPcommandviaRS422forsupplyingcliplisttothe
controller.*2
• RecognizenewlyinsertedP2cardduringplaybackmodeforemergency
programchange.*2
• DirectcapturefromanexternalVTRsourceontotheeditingtime-lineviaan
RS-422Ainterface.
• Supportsasimplifiedwaveformandvectorscopedisplay.
• Gigabit-Ethernet-compatibleserver/clientfunctionenablesdirectfile
transferviainternet.ItsupportsreadingandwritingonP2cardsfroman
externalserverandPC.*2
• eSATAandUSB2.0interfacesenablemax.4X(AVC-Intra100orDVCPROHD)
high-speedcopyingtoanexternalHDDandplayback.*3
• AVCHDcompatibility:playback,recordingandcross-conversionbetween
P2HD/AVCHD(withtheoptionalAJ-YCX250Gboard).
• HD/SDSDIIn/OutandAES/EBUdigitalaudioIn/Out.
• AnalogI/Oandversatileremote(RS-422A,RS-232Candparallel).
• 4U-sizeheightformountingintoa19typerack(withoptionaladaptor).
*1:VANCrecordingisonlypossibleat59.94Hzand50Hz.
*2:Youmayneedtoupdateitsfirmware.Pleaserefertothe“serviceandsupport”onthePanasonic
Website(http://pro-av.panasonic.net/).
*3:Playbackisbasedondiskdriveperformance,includingspindlespeed.Panasoniccannotguarantee
smooth playback without dropped frames.
AJ-HPD2500
A P2 Deck Enhances File-Based Broadcasting Workflows with
Versatile Editing, Transmission and Networking Functions.
It Supports 24 bit Audio.
AJ-HPD2500 Specification
Power Source : AC 100 V to 240 V, 50 Hz/60 Hz
Power Consumption : Max. 65 W (full option)
Weight: approx. 13 kg(28.7 lb)
Dimensions (W x H x D): 424.0 mm x 175.2 mm x 414.7 mm
(16-3/4 inches x 6-15/16 inches x 16-3/8 inches)
without support legs, connector and jog dial
AJ-HPM200
Advanced P2 Mobile with Versatile Functions Such as Networking,
AVCHD Compatibility (Optional) and eSATA Interface.
It Supports 24 bit Audio.
• ThreeHDcodecssupported:AVC-Intra100forhigh-quality10bit4:2:2
images,AVC-Intra50,andDVCPROHD.
• 1080iand720precordingandplayback.59.94Hz/50Hzswitchableforany
HD system worldwide.
• 1080/24PsFinput/output,native1080/24precording(AVC-Intra).
• SD(480/59.94iand576/50i)codecsupportsDVCPRO50,DVCPRO,andDV.
• Allowsup-/down-conversionbetweenHDandSDaswellascross-
conversionbetween720and1080duringplayback,andup-conversion
during recording.
• Hot-swap,looprecandVANCrecording.*1Itsupportshigh-quality24bit
audio(AVC-Intra100/50).*2
• EquippedwithsixP2cardslotsandoneSDcardslot.
• Play-listfunctionincludesadvancedGUIandnewfunctionssuchas
independentAVtracks,insert/overwritemodes.
• ItnewlysupportsVDCPcommandviaRS422forsupplyingcliplisttothe
controller.*2
• RecognizenewlyinsertedP2cardduringplaybackmodeforemergency
programchange.*2
• DirectcapturefromanexternalVTRsourceontotheeditingtime-lineviaan
RS-422Ainterface.
• Supportssimplifiedwaveformmonitorandvectorscopedisplay.
• Gigabit-Ethernet-compatibleserver/clientfunctionenablesdirectfile
transferviainternet.ItsupportsreadingandwritingonP2cardsfroman
externalserverandPC.*2
• eSATAandUSB2.0interfacesenablemax.4x(AVC-Intra100orDVCPROHD)
high-speedcopyingtoanexternalHDDandplayback.*3
• AVCHDcompatibility:playback,recordingandcross-conversionbetween
P2HD/AVCHD(withtheoptionalAJ-YCX250Gboard).
• HD/SDSDIinput/outputprovidedtoallowlinerecording.
EnablesRECStart/Stopinsyncwithcamerarecorder.
• IEEE1394a(AVC)interfaceenablesDVCPROHD/SDstreamin/out.
*1:VANCrecordingisonlypossibleat59.94Hzand50Hz.
*2:Youmayneedtoupdateitsfirmware.Pleaserefertothe“serviceandsupport”onthePanasonic
Website(http://pro-av.panasonic.net/).
*3:Playbackisbasedondiskdriveperformance,includingspindlespeed.Panasoniccannotguarantee
smooth playback without dropped frames.
AJ-HPM200 Specification
Power Source : AC 100 V to 240 V, 50 Hz/60 Hz / DC 12 V
Power Consumption : AC: 60 W, DC: 12 V/4.8 A (full-option)
Weight: approx. 6.6 kg(14.6 lb)
Dimensions (W x H x D): 301 mm x 120 mm x 412 mm
(11-7/8 inches x 4-3/4 inches x 16-1/4 inches)
without rubber shoes
Memory Card Recorder/Player “P2 deck” Memory Card Recorder /Player “P2 mobile”

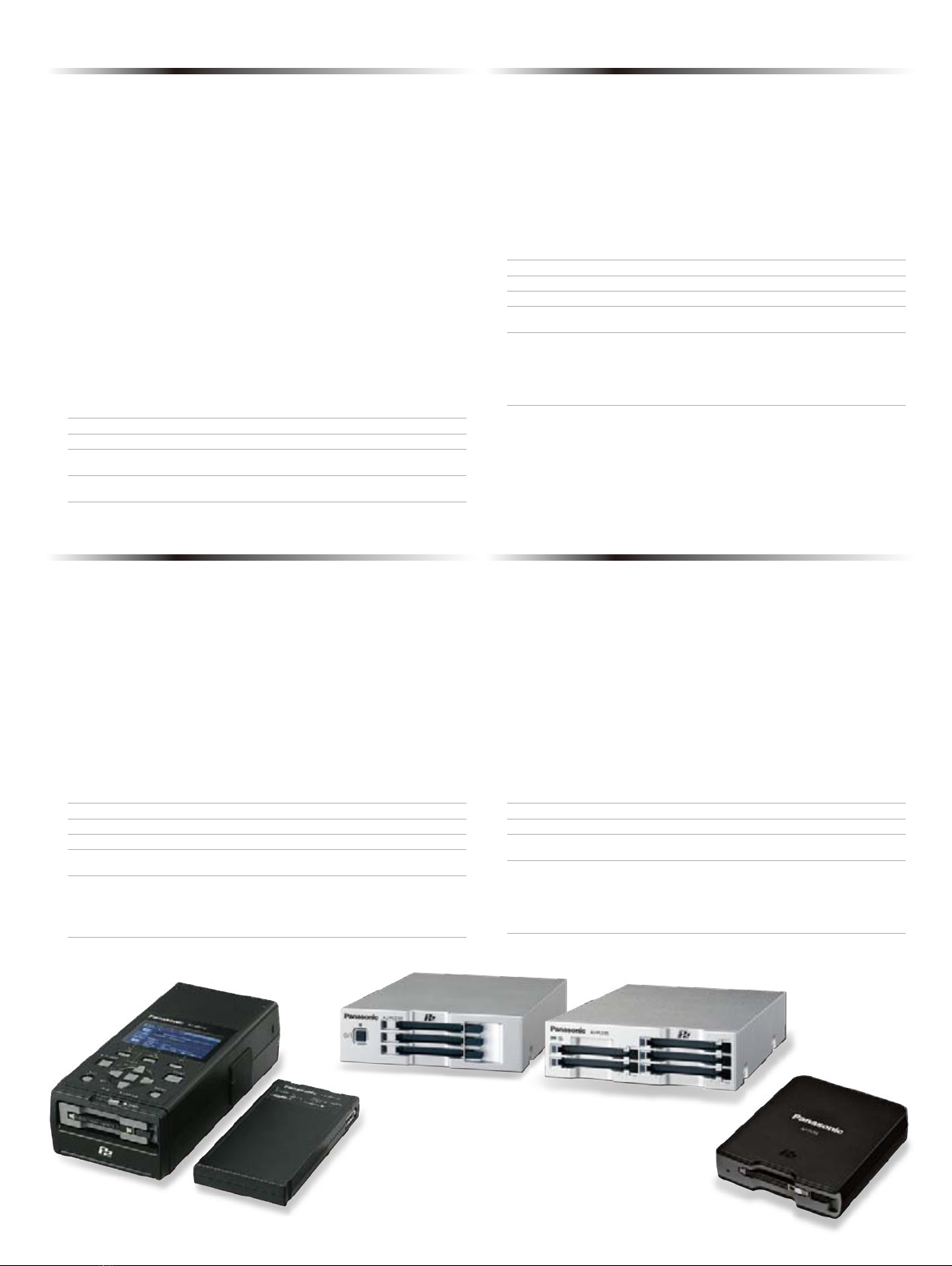

AG-MSU10
AJ-PCD30
AJ-PCD35
AJ-PCD2G
14
AG-MSU10 Specification
Power Source : DC 7.2 V, with battery / DC 7.9 V, with AC adaptor
Current Consumption : 1.1 A
Weight: AG-MSU10: approx. 770 g(1.69 lb) without SSD and Battery
AG-MBX10G: approx. 135 g(0.3 lb) without SSD
Dimensions (W x H x D): 99 mm x 58 mm x 212 mm, excluding protrusions
(3-15/16 inches x 2-5/16 inches x 8-3/8 inches)
AG-MSU10
Fast Copying from P2 Cards to a Removable Solid-State Drive*1
• DatacanbecopiedfromaP2cardtoanSSD(upto2TBcapacity)
atabout4xnormalspeedinAVC-Intra100.*2
• EquippedwithaeSATA/USB2.0host/deviceinterface.Datacanbetransferred
fromaP2cardtoanexternalHDD,andfromanSSDtoaPC.*
3
*
4
• eSATA/USB2.0terminalsarealsofeaturedontheremovableinterfacebox,
allowingdirectPCconnection.*3
• Batterydrivenwithacompact,lightweightanddurabledesign.
*1:TheremovableSSDisnotincludedwiththeproduct.UseacommerciallyavailableremovableSSDthatis
recommendedbyPanasonic.InadditiontotheremovableSSDinterfaceboxthatcomeswiththe
AG-MSU10asastandardaccessory,anadditionalAG-MBX10Gcanbepurchasedasanoption.Donotuse
HardDiskDriveinsteadofanSSD.ForcompatibleSSDinformation,pleaserefertothefollowingWEBsite.
http://pro-av.panasonic.net/en/sales_o/p2/ag-msu10/
*2:Withoutverification.FiletransferspeedvariesdependingontheSSDandexternalHDDwritingspeed,
transferred files, P2 card version, and other conditions.
*3:
ADevicemodeeSATAterminalisprovidedontheincludedremovableSSDinterfacebox.InHostmode,files
canbetransferredonlybetweenaP2cardandanexternalHDD.Filescannotbetransferredbetweenan
internalSSDandanexternalHDD.TheP2card/SSDcanbeusedinDevicemode,butreadingandwriting
withtheP2cardisonlypossiblewiththeUSB2.0interface.
*4:WhenusingaP2CMS(describedonpage17),besuretousethenewestversion.
AJ-PCD30 Specification
Power Source:
DC 16 V 0.6 A with AC adaptor, DC 12 V 0.8 A when PC built-in
AC Adaptor: AC 100 V to 240 V (1.20 A), 50 Hz/60 Hz
Weight: approx. 1.2 kg(2.6 lb)
Dimensions (W x H x D): 148.4 mm x 42.5 mm x 199.5 mm, excluding protruding parts
(5-7/8 inches x 1-11/16 inches x 7-7/8 inches)
PC System Requirement:
Microsoft Windows 7 Professional (SP1), Ultimate (SP1) 32 bit/64 bit
Microsoft Windows Vista Business (SP2), Ultimate (SP2) 32 bit/64 bit
Microsoft Windows XP Professional (SP3) 32 bit
Mac OS X 10.5, 10.6, 10.7 (Intel®based Mac)
1 GB or more memory
AJ-PCD30 USB3.0 Interface
Super Speed USB 3.0 Interface Boosts Workflows
for News and Other Productions
• TheUSB3.0interfaceletsyoutransferP2filesat1.5Gbpsorhigher*when
connectedtoaUSB3.0-compatiblePC.
• InstalltheP2driveintoa5typebayonadesktopPC.
• WiththeACadaptor,youcanuseitasastand-aloneexternaldrive.
*WhenusingmultipleESeriesP2cards.Theactualtransferratevariesdependingonthefilebeing
transferred,thesystem,theapplicationsoftware,theP2cardversionandotherconditions.IfthePCdoes
nothaveaUSB3.0interface,dataistransferredviaUSB2.0.TheP2carddriversoftware(providedwith
theproductordownloadableforfree)mustbeinstalledtoreaddatafromorwritedatatoP2cards.
Pleaseread“NotesRegardingtheHandlingofP2FilesUsingaPC”onthebackpage.
Mobile Storage Unit “P2 MSU” Memory Card Drive “P2 drive”
Memory Card Drive “P2 drive”Memory Card Drive “P2 drive”
AJ-PCD35 Specification
Power Source:
DC 16 V 0.6 A with AC adaptor, DC 12 V 0.8 A when PC built-in
AC Adaptor: AC 100 V to 240 V (1.20 A), 50 Hz/60 Hz
Weight: approx. 1.2 kg(2.6 lb)
Dimensions (W x H x D): 148.4 mm x 42.5 mm x 199.5 mm, excluding protruding parts
(5-7/8 inches x 1-11/16 inches x 7-7/8 inches)
PC System Requirement: Microsoft®Windows 7 Professional (SP1), Ultimate (SP1) 32bit/64bit
Microsoft Windows Vista®Business (SP1, SP2),
Ultimate (SP1, SP2) 32bit/64bit
Microsoft Windows XP Professional (SP2, SP3) 32 bit
Mac OS X 10.4, 10.5, 10.6, 10.7 (Intel®based Mac)
1 GB or more memory
AJ-PCD35 PCI Express Interface
Five P2 card Slots and High Speed PCI Express Interface
AJ-PCD2G Specification
Power Source: DC5 V 0.5 A
Weight: approx. 200 g(0.44 lb) main unit only
Dimensions (W x H x D): 97 mm x 25.5 mm x 113 mm, excluding protruding parts
(3-7/8 inches x 1-1/16 inches x 4-1/2 inches)
PC System Requirement: Microsoft Windows 7 Professional (SP1), Ultimate (SP1) 32 bit/64 bit
Microsoft Windows Vista Business (SP2), Ultimate (SP2) 32 bit/64 bit
Microsoft Windows XP Professional (SP3) 32 bit
Mac OS X 10.5, 10.6, 10.7 (Intel®based Mac)
512MB or more memory (Windows Vista, Windows 7,
Mac OS X 10.6, 10.7 1GB or more memory)
AJ-PCD2G USB2.0 Interface
Compact, Lightweight, Low-Cost — USB-Bus-Powered
1-Slot P2 drive Ideal for Mobile Applications
• USBbuspoweredoperation,connectingtoaPCoraMac
withUSBcables(2cables*1).
• Compactof25.5mm(1-1/16inches)thick,lightweightof200g
(0.44lb)andlow-cost.
• ComeswithdriversoftwareforbothWindowsandMacOSX.
*1:Onecablefordatatransmissionandpowersupply,andtheothercableexclusivelyforpowersupply.
*TheincludedP2drivermustbeinstalledintheWindowsPCorMac.Pleaseread“NotesRegardingthe
HandlingofP2FilesUsingaPC”onthebackpage.
• HighspeeddatatransfertoWindowsPC/MacbasedNonlinearEditor.
• InstalltheP2driveintoa5typebayonadesktopPC.
• WiththeACadaptor,youcanuseitasastand-aloneexternaldrive.
*TheincludedP2drivermustbeinstalledintheWindowsPCorMac.Pleaseread“NotesRegardingthe
HandlingofP2FilesUsingaPC”onthebackpage.

LAN
RS-422
VTR IEEE 1394
or SDI
AJ-PCD35
P2Card
Ingest PC
LTO Archive PC
15
AJ-SF100G/AJ-SF110G
Archives P2, AVCHD*1and VTR Footage*2onto LTO, and Enables Meta
Searches, Direct Playback and Partial Retrieve from Archived Files
AJ-SF100G LTO/BD Archive Software
• AJ-SF100GsoftwareisinstalledontoaPCconnectedtoanLTOdrive,BD
driveandremovableHDD.Itletsyouarchive,search,retrieveandplayallP2
filesandAVCHDfiles.*1
• Proxydatacanbegeneratedandmetadatacanbeeditedwhilearchiving.
Contentcanbesearchedeasilybyusingmetadataandproxyvideo.
• VideoclipsarchivedonLTOmediacanbedirectlyplayedback.
• Anydesiredvideosegmentcanbeselectedandcopiedtoanotherfile.The
videosegmentcanbespecifiedwithIN/OUTmarksaddedduringplayback.
• VTRcontrol:IN/OUTpointsarespecifiedviaRS-422remoteforloading.
• VTRerrorratemonitoringrecord(viaRS-422Remote)
*1:Futurecompatibilityplanned.
*2:RequiresingestingbyAJ-SF110G.
AJ-SF110G Video Ingest Software
• ThissoftwareconvertsVTRfootage(HD/SD)toMXFfilesforAJ-SF100G
archiving.
• VTRmaterialsrecordedwithDVCPRO,DVCPRO50orDVCPROHDsystems
canbeconvertedtofiles,withoutencoding,viatheIEEE1394*interface.
• VideoinputviaSDIterminalcanbeconvertedtoaP2file.SDvideois
convertedtoDVCPROorDVCPRO50,andHDvideocanbeconvertedto
DVCPROHDorAVC-Intra(50or100canbeselected).
• Metadatacanbeadded.VTRconversionfootagecanalsobeinputwithnew
metadata.
• BylinkingwiththeAJ-SF100GLTO/BDArchivingSoftware,thevideoingest
software ensures smooth previewing, metadata editing and archiving.
*SupportsonlyHD:DVCPROHD,SD:DVCPRO50/DVCPRO.
HDVinputandMPEG-TSinputarenotsupported.
LTO Archive Software/Video Ingest Software
AJ-SF110G ScreenshotAJ-SF100G Screenshot
An Example of LTO/BD Archiving System Configuration
•LTO Archiving Software x 1, •PC (Work Station) x 1, •BD Drive x 1 or 2, •LTO5 Drive/SAS
HBA x 1 or 2, •RAID Drive 1 (with RAID card), •Bar Code/BD-R Label Printer x 1
(using printable media), •Media Management Bar Code Reader x 1 (USB I/F, keyboard
connecting type), •HD/SD SDI board 1 x 1
Example of Video Ingest System Configuration
•Video Ingest Software x 1, •HD/SD SDI board x 1, •RAID Drive x 1 (with RAID card),
•PC (Work Station) x 1 (with IEEE 1394 board)

• Upto64GBP2cardisavailableanditachievesalongrecordingtime.
• ComplieswiththeType-IIPCCardStandard(CardBus)fordirectplug-into
thePCcardslotofalaptopPC.*1
• Highlyreliable,solid-statememoryresistsshock,vibration,
and temperature changes.
• Ensuresalongservicelifewithrepeatedrecordingandinitialization.*2
• Anindividualserialnumber,barcode,andwrite-protectswitchensure
strict security.
•TheP2cardtransfersdataatahighspeedupto1.2Gbps.*3
*1:TheincludedP2drivermustbeinstalledinaWindowsPCorMac.TousetheP2card,thedrivermust
beupdatedinsomeP2products.Read“NotesRegardingtheHandlingofP2FilesUsingaPC”onthe
back page.
*2:Cardreplacementintervalisaboutfiveyearswhenentire(100%)dataisrewrittenonceaday.
*3:1.2GbpsismaximumtransferspeedwhenusingP2cardEseries.Transferspeedissubjecttobechanged
depended on system configuration.
P2 card Specification
Weight: approx. 45 g (approx. 1.6 oz)
Dimensions (W x H x D): 54 mm x 5 mm x 85.6 mm
(2.13 inches x 0.2 inches x 3.37 inches)
Capacity AJ-P2E016XG AJ-P2E032XG AJ-P2E064XG
Recording Capacity:* approx. 16 GB approx. 32 GB approx. 64 GB
Rec/Play Time AJ-P2E016XG AJ-P2E032XG AJ-P2E064XG
AVC-Intra100
1080/23.98pN, 24pN: approx. 20 min. approx. 40 min. approx. 80 min.
720/23.98pN: approx. 40 min. approx. 80 min. approx. 160 min.
1080/59.94i, 50i, 720/59.94p,50p: approx. 16 min. approx. 32 min. approx. 64 min.
AVC-Intra50: approx. 32 min. approx. 64 min. approx. 128 min.
DVCPRO HD: approx. 16 min. approx. 32 min. approx. 64 min.
DVCPRO 50: approx. 32 min. approx. 64 min. approx. 128 min.
DVCPRO/DV: approx. 64 min. approx. 128 min. approx. 256 min.
*Totalcardcapacityincludesspacefordatamanagementsuchassystemdata,therefore,actualusablearea
is less than capacity indicated on the card.
16
AJ-SF100G LTO Archive Software
Hardware Required for System Configuration:
PC, P2 drive, Storage device such as LTO drive, BD drive,
P2 drive or HDD
Software Required for System Configuration:
SQL Server®2008 R2 Workgroup
Operating System:
Microsoft Windows 7 Professional 64 bit SP1
(English/Spanish/French/German)
Connection Verification Environment:
CPU: Xeon X5670 2.93 GHz or faster
Memory: 8 GB DDR-3 SDRAM
(1333 MHz,ECC, 2GB x 4) - For single processor
Graphics card: NVIDIA NVS 300/NVIDIA Quadro NVS 295
HDD: 1 TB hard disk drive
(SATA, 7200 rpm) x 2 (RAID-1 configuration)
Databese: SQL Server
®
2008 R2 Workgroup
Card Reader: Panasonic AJ-PCD35
LTO drive: HP StorageWorks Ultrium 3000 SAS External Tape Drive
SAS card: HP Smart Array P411/256 Controller (BBWC)
RAID: Caldigit HDElement-CRC-4B-4TB
BIOS AP SAJ308G6
SDI board: Blackmagic Design DeckLink SDI
BD drive: LG Electronics BE12LU30
Printer: Canon PIXMA iP4950
A PC operation confirmed by Panasonic:
Hewlett-Packard HP Z800 Workstation
AJ-SF110G Video Ingest Software
Hardware Required for System Configuration:
PC, HD/SD SDI board, HDD drive
Operating System:
Microsoft Windows 7 Professional 64 bit SP1
(English/Spanish/French/German)
Connection Verification Environment:
Graphics card: NVIDIA NVS 300/NVIDIA Quadro NVS 295
HCPU: Xeon X5670 2.93 GHz or faster
Memory: 8 GB DDR-3 SDRAM
(1333 MHz,ECC, 2GB x 4) - For single processor
DD: 1 TB hard disk drive
(SATA, 7200rpm) x 2 (RAID-1 configuration)
RAID: Caldigit HDElement-CRC-4B-4TB
BIOS AP SAJ308G6
SDI board: Blackmagic Design DeckLink SDI
A PC operation confirmed by Panasonic:
Hewlett-Packard HP Z800 Workstation
*SDI board Blackmagic Design DeckLink SDI
*VTR: AJ-HD3700B/AJ-SD93/AJ-HD1400
*NotethatthecompatibilityoftheperipheralshasbeencheckedbyPanasonic.However,notallfunctions
areguaranteed.*Theconnectionverificationdataisbasicallytheverificationresultatthetimeofpurchase
of the peripherals. Panasonic does not guarantee connections set up independently by the customer.
*Panasonicdoesnotguaranteefunctioningwithalltypesofhardwareandsoftwareversions.
*Forinquiriesregardingthecheckedperipherals,pleasecontacttheappropriatemanufacturer.
AJ-P2E064XG
AJ-P2E032XG
AJ-P2E016XG
Large Data Storage Capacity, High Transfer Speed and Superb
Reliability for Professional Use.
Memory Card “P2 card E Series”
Specifications Reference Data
*Approx.180hoursperLTO(1.5TB)tapeorapprox.6hoursperBD(50GB)disccanbearchivedinthecase
ofAVCHD(compatibilityplanned,inHGmode:approx.13Mbps).
Codec Rec. Time
SD DVCPRO Approx. 96 hours
DVCPRO 50 Approx. 48 hours
HD
DVCPRO HD Approx. 24 hours
AVC-Intra50 Approx. 48 hours
AVC-Intra100 Approx. 24 hours
Codec Rec. Time
SD DVCPRO Approx. 3 hour 20 min.
DVCPRO 50 Approx. 1 hour 40 min.
HD
DVCPRO HD Approx. 50 min.
AVC-Intra50 Approx. 1 hour 40 min.
AVC-Intra100 Approx. 50 min.
Recording Time per LTO (1.5 TB) Tape Recording Time per BD (50 GB) Disc
LTO5 BD-R
Capacity 1.5 TB 50 GB
Transfer Speed
(Maximum value) 140 MB/s = 1,120 Mbps 216 Mbps (half to write)
Comparison of LTO and BD data storage media

▲Mac Version▲Windows Vista Version
17
Driver Software for P2 Products
The firmware inside each product is the newest version available.
UpdatingispossiblewiththeuseofanSDmemorycard.
P2 Driver Win Mac
Thedriversoftwareisrequiredfor WindowsPCorMactorecognizethe
P2 Card.
*IncludeUSBDriver,PCIExpress(PCIe)Driver,CardBusDriver,IEEE1394Driver,P2StoreManager,andP2
CardFormatterforMac(onlyforCardBusDriver).
AVC-Intra Software Decoder for Mac Mac
(AVC-Intra to QuickTime Transcoder software for Apple FinalCutPro)
ThisPanasonicAVC-IntraSoftwareDecoderenablesusers topreviewand
importAVC-IntraformatclipsrecordedbyPanasonicrecordersonFinalCutPro,
byinstallingonMacOSinstalledFinalCutProsoftware.
Please select version of AVC-Intra Decoder for version of FinalCutPro.
Ver1.5 for FinalCutPro6.0.3-6.0.5
*FinalCutPro7nativelysupportsdecodingofAVC-Intraformat.
*Notice:WhenpreviewingAVC-IntraonMacBookPro,”LimitedPreview”isdisplayedonLogand Transfer
windowofFinalCutProandaudioisnotabletobemonitored.
AVC-Intra Encoder for Compressor Mac
(QuickTime file to AVC-Intra encoder plug-in for Compressor)
AVC-Intra Encoder for Compressor is a plug-in software that can encode an
editedmaterial on Apple FinalCutPro to AVC-Intra100, 50 and export it with
QuickTimefileorPanasonicP2onAppleCompressor.
This plug-in has a capability that enables the user to input P2 metadata on
PanasonicP2exportmode.
*Notice:ThisAVC-IntraEncoderplug-insoftwaredoesnotinputstandard-definitionTVformat
(NTSC/PAL)totranscode.AlsoitdoesnotconvertHDTVformatbetween1080i,1080pand720p.
ThisAVC-IntraEncoderplug-insoftwareinputsonlyQuickTimefileformat.InthecaseofP2export,
4GBspannedclipinaP2cardissupported,butspannedclipwithmultiplecardsisnotsupported.
One Clip Ingest Software Win
OneClipIngestSoftwareisforcombiningthemultipleclipsonaP2cardorin
a folder.
P2 Card Format Station Win
P2CardFormatStationenablesuserstoperformformat,updatefirmware,and
errorchecktheP2CardthroughPCMCIAcarddriveonthePCorP2Drive.
PC operating condition
OS: Microsoft Windows 7, Windows Vista or Windows XP
Latest P2 driver for Windows must be installed. Log in with Administrator status
Drive Mount Converter Win
TheDriveMountConverterisaWindowsapplicationformanagingType-Shard
disks on which P2 card data is copied.
*AType-Sharddiskreferstoonethatisconnected,viaUSB2.0orIEEE1394,toaP2devicethatisequipped
withaUSBHostor1394Hostfunction.TheType-SharddiskisusedforcopyingP2carddata.Pleasecheck
theOperatingManualforyourP2devicetodeterminewhetherornotitsupportstheconfiguringofa
Type-Sharddisk.Also,besuretouseaType-SharddiskthatallowsconnectionviaUSB2.0orIEEE1394.
CAC File for P2 Camera Recorder
(for AJ-HPX3700G/HPX2700G/HPX3100G/HPX3000G/
AG-HPX500 series/ HPX300 series/HPX370 series)
The CAC function of the camera corrects the registration error caused by the
slight chromatic aberration that the lens cannot compensate for.
This minimizes color bleeding into the surrounding image areas.
LensescompatiblewiththeCACfunctionwhoseCACdataisregisteredinthe
camera will automatically start CAC operation.
Support Desk
Mandatory tool for the all P2 users.
Visit http://pro-av.panasonic.net/ and click “P2 Support and Download”
Website for Downloading P2 Software
P2 Viewer Win
ThisviewingapplicationletsyouplayP2filesonaWindowsPC.
Please note that the newest P2 driver must be installed on your PC to use this
application.
*ThisapplicationdoesnotsupportMac.ForMacintoshcomputers,pleaseusetheP2ContentManagement
Software.
P2 Contents Management Software Win Mac
InadditiontolettingyouviewP2content,thisapplicationallowsyoutoingest
data into the HDDs of ordinary PCs or Macs, and also manage data within the
PC/Mac.PleasenotethatthenewestWindowsorMacP2drivermustbe
installedonyourPC/Mactousethisapplication.
Applicable Functions
Windows XP Version: Supports AVC-Intra files and proxy files.
Mac OS X Version: Supports AVC-Intra files and proxy file
DPX conversion function (which runs only on Intel®Mac)
*DPX(DigitalPictureExchange)isanimagefileformatforuseindigitalfilmwork.Plug-insoftwaremustbe
separatelyinstalledforconvertingfromAVC-Intra100toDPXfiles.Fordetails,pleaseseetheP2CMS
explanationonpage20.

P2HD Camera Recorder
AG-YA500G
VF interface Box*
Headset
(produced by
another manufacturer)
max. 328 feet /100 m
Bound Cable made by Canare Electric
V2PCS25-5CFWCE-SF-SC (82 feet /25 m)
V2PCS50-5CFWCE-SF-SC (164 feet /50 m)
V2PCS100-5CFWCE-SF-SC (328 feet /100 m)
Return Video, Tally
Remote Cable
(bundled with AG-CA300G)
G/L Return
Video/
Tally
AG-BS300
Base Station AJ-RC10G
Remote Control Unit
or
AG-EC4G
Extension Control Unit
Headset
(produced by
another manufacturer)
G/L G/L, Return Video, Tally
HD/SD
Power supply
HD/SD
AG-CA300G
Camera Adaptor
*The AG-YA500G VF interface Box cannot be
used with the AG-HPX370 series.
AJ-RC10G*
RCU (Remote Control
Unit)
with 32 feet (10 meters)
remote control cable
AJ-C10050G
Remote Control Cable
(164 feet /50 meters)
*Not available in some areas.
Only functions that are supported by
the camera can be controlled by the
AJ-RC10G.
AG-YA500G
VF Interface Box
For Viewfinder Display of
Return Image and Tally
* The AG-YA500G VF Interface Box
cannot be used with the AG-HPX370
series. The applicable viewfinder
varies depending on the camera.
AG-EC4G
Extension Control Unit
For a Studio Camera System
or Standalone Camera
Recorder
AG-BS300
Base Station
Two SDI (HD/SD) Outputs and
Composite Video Output
AG-CA300G
Camera Adaptor
Compact and Lightweight
OPTIONAL ACCESSORIES
Camera Studio System
[Applicable products: AJ-HPX3700G, AJ-HPX2700G, AJ-HPX3100G, AJ-HPX2000, AJ-HPX2100, AG-HPX500 series, AG-HPX370 series]
This new camera studio system boosts the level of cost-performance for a wide range of P2HD and DVCPRO HD camera recorders.
BNC cables transmit degradation-free HD digital images up to 328 feet (100 meters) in addition to giving you full remote control
AJ-CVF100G
25.4 mm (1 inch) HD Color EVF
Utilizing a 25.4 mm (1 inch) LCOS (Liquid Crystal On Silicon)
display panel, the AJ-CVF100G provides cinematographers with
accurate colors, fast motion response, excellent resolution, and
smooth pixel edges for a natural look and feel, which minimizes
the possibility of misdirected shots.
•ApplicableCameraRecorder:
AJ-HPX3700G, AJ-HPX2700G, AJ-HPX3100G, AJ-HPX2000,
AJ-HPX2100, AJ-HDC27H, AJ-HDX900, AG-3DP1G
•Weight:approx.750g(1.7 lb)
•Dimensions(WxHxD):240mmx80mmx206mm
(9-1/2 inches x 3-3/16 inches x 8-1/8 inches)
•PowerConsumption:5.0W
SHAN-TM700
Tripod Adaptor
AJ-MC700
Microphone Kit
AJ-MC900G
Stereo Microphone
AG-MC200G
XLR Microphone
AJ-YAX800G
Video Encoder Card
*Camera Recorder software
upgrade is required.
AJ-HVF21G
50.8 mm (2 inches) HD EVF
59.94 Hz/50 Hz switchable
AJ-HVF21KG
50.8 mm (2 inches) HD EVF
59.94 Hz/50 Hz switchable
AJ-GPS910G
GPS Unit
AJ-VF20WB
50.8 mm (2 inches) EVF
16:9/4:3switchable
AJ-VF15B
38.1 mm (1.5 inches) EVF
for4:3
AJ-YA350AG
HD/SD Input Board
for AJ-HPX2000/HPX2100
P2 cam options
18

AJ-WM30
WirelessModulefor
AJ-HPX3100G
AJ-SFU3100G
Upgrade Software Key
for AJ-HPX3100G
AJ-YDX30
Video Encoder Board
for AJ-HPX3100G
SHAN-RC700
Rain Cover
* Not available in some area
AJ-SC900
Soft Carrying Case
*Not available in some area
AJ-YBX200G
AVC-Intra Codec Board
for AJ-HPX2000/ HPX2100
P2 handheld options
CGA-D54/CGA-D54s
Battery Pack (5,400 mAh)
AG-B25
AC Adaptor Kit
for AG-HPX170 series
* This kit cannot be used with the
AG-HPX250.
AG-MC200G
XLR Microphone
AG-MBX10G
Removable Interface Box
for AG-MSU10
AG-B25
AC Adaptor Kit
for AG-HPG20
* This kit cannot be used with the
AG-HPD24.
AJ-MA75P
Rack Mount Adaptor
for AJ-HPD2500
AJ-YCX250G
AVCHD Codec Board
for AJ-HPM200 and
AJ-HPD2500
P2 portable, P2 portable deck, P2 mobile, P2 deck and P2 MSU options
CGA-D54/CGA-D54s
Battery Pack (5,400 mAh)
for AG-HPG20, AG-MSU10
and AG-HPD24
P2 cam options
BT-LH910G
228.6 mm (9 inches)
HD/SD LCD monitor
P2 general options
SD/SDHC Memory CardAJ-P2E064XG
AJ-P2E032XG
AJ-P2E016XG
P2 Card (E series)
19
