Panasonic Digital Palmcorder PV-DV101 User manual

ORDERNO. VMD0102006C3
Digital Video Camcorder
PV-DV101 / PV-DV401
SPECIFICATIONS
1

2001 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
1. SAFETY PRECAUTIONS
GENERALGUIDELINES
1. IMPORTANTSAFETY NOTICE
There are special components used inthisequipment which are
important for safety. These parts are marked by inthe Schematic
Diagrams, CircuitBoard Layout, Exploded Viewsand
2

Replacement Parts List. Itisessential that these criticalparts
shouldbe replaced with manufacturer’sspecified parts to prevent
X-RADIATION, shock, fire, or other hazards. Donot modifythe
original design without permission of manufacturer.
2. AnIsolation Transformer shouldalwaysbe used during the
servicing of AC Adaptor whose chassisisnot isolated from the
AC power line. Use atransformer of adequate power rating as this
protects the technician from accidents resulting inpersonalinjury
from electrical shocks. Itwill also protect AC Adaptor from being
damaged byaccidental shorting that mayoccur during servicing.
3. When servicing, observe the original lead dress. Ifashort circuit
isfound, replace all parts which have been overheated or
damaged bythe short circuit.
4. After servicing, see to itthat all the protective devices such as
insulation barriers, insulation papers shields are properly
installed.
5. After servicing, make the following leakage current checks to
prevent the customer from being exposed to shock hazards.
LEAKAGE CURRENTCOLD CHECK
1. Unplug the AC cord and connect ajumper between the two
prongs on the plug.
2. Measure the resistance value, with an ohmmeter, between the
jumpered AC plug and each exposed metalliccabinet part on the
equipment such as screwheads, connectors, control shafts, etc.
When the exposed metallicpart has areturn path to thechassis,
the reading shouldbe between 1M and 5.2M . When the
exposed metal does not have areturn path to the chassis, the
reading must be infinity.
LEAKAGE CURRENTHOTCHECK
(See Figure 1.)
1. Plug the AC cord directlyinto the AC outlet. Donot use an
isolation transformer for thischeck.
2. Connect a1.5k , 10 Wresistor, inparallel with a0.15 F
capacitor, between each exposed metallicpart on the set and a
good earth ground, as showninFigure 1.
3

3. Use an AC voltmeter, with 1k /Vor more sensitivity, to measure
the potential across the resistor.
4. Check each exposed metallicpart, and measure the voltage at
each point.
5. Reverse the AC plug inthe AC outlet and repeat each of the above
measurements.
6. The potential at anypoint shouldnot exceed 0.75 VRMS. A
leakage current tester (Simpson Model 229 or equivalent) maybe
used to make the hot checks, leakage current must not exceed 1/2
mA. Incase ameasurement isoutside of thelimits specified, there
isapossibilityof ashock hazard, and the equipment shouldbe
repaired and rechecked before itisreturned to the customer.
Figure. 1
2. PREVENTION OF ELECTRO STATIC DISCHARGE
(ESD) TO ELECTROSTATICALLY SENSITIVE (ES)
DEVICES
Some semiconductor(solidstate) devices canbe damagedeasilybystatic electricity. Such
components commonlyare calledElectrostaticallySensitive (ES) Devices. Examples of typical
ES devices are integratedcircuits and some field-effect transistorsand semiconductor"chip"
components. The following techniques shouldbe usedtohelpreduce the incidence of
component damage causedbyelectrostatic discharge (ESD).
1. Immediatelybefore handling anysemiconductor component or
semiconductor-equipped assembly, drainoff anyESDon your
bodybytouching aknownearth ground. Alternatively, obtainand
wear acommerciallyavailabledischarging ESDwrist strap,which
shouldbe removed for potential shock reasons prior to applying
power to the unitunder test.
2. After removing an electrical assemblyequipped with ES devices,
place the assemblyon aconductive surface such as aluminum
4

foil, to prevent electrostaticcharge buildup or exposure of the
assembly.
3. Use onlyagrounded-tipsoldering iron to solder or unsolder ES
devices.
4. Use onlyan antistaticsolder removal device. Some solder
removal devices not classified as "antistatic(ESDprotected)" can
generate electrical charge sufficient to damage ES devices.
5. Donot use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Donot remove areplacement ES device from its protective
package until immediatelybefore you are readyto install it. (Most
replacement ES devices are packaged with leads electrically
shorted together byconductive foam, aluminum foil or
comparableconductive material).
7. Immediatelybefore removing the protective material from the
leads of areplacement ES device, touch the protective material to
the chassisor circuitassemblyinto which the device will be
installed.
CAUTION :
Besure no power isapplied to the chassisor circuit, and observe
all other safetyprecautions.
8. Minimize bodilymotions when handling unpackaged replacement
ES devices. (Otherwise harmless motion such as the brushing
together of your clothes fabricor the lifting of your foot from a
carpeted floor can generate staticelectricity(ESD)sufficient to
damage an ES device).
3. X-RADIATION
(Formodel withMonochrome EVF)
WARNING :
1. The potential source of X-Radiation inEVF sets isthe High
Voltage section and the picture tube.
2. When using apicture tube test jigfor service, ensure that jigis
capableof handling 10 kV without causing X-Radiation.
NOTE :
5

Itisimportant to use an accurate periodicallycalibrated high
voltage meter.
3. Measure the High Voltage. The meter (electrostatictype) reading
shouldindicate 2.2kV±0.1kV. Ifthe meter indication isout of
tolerance, immediate service and correction isrequired to prevent
the possibilityof premature componentfailure. To prevent an X-
Radiation possibility, itisessential to use the specified picture
tube.
4. OPERATION GUIDE
5. SERVICE NOTES (PLEASE READ)
5.1. SERVICENOTES

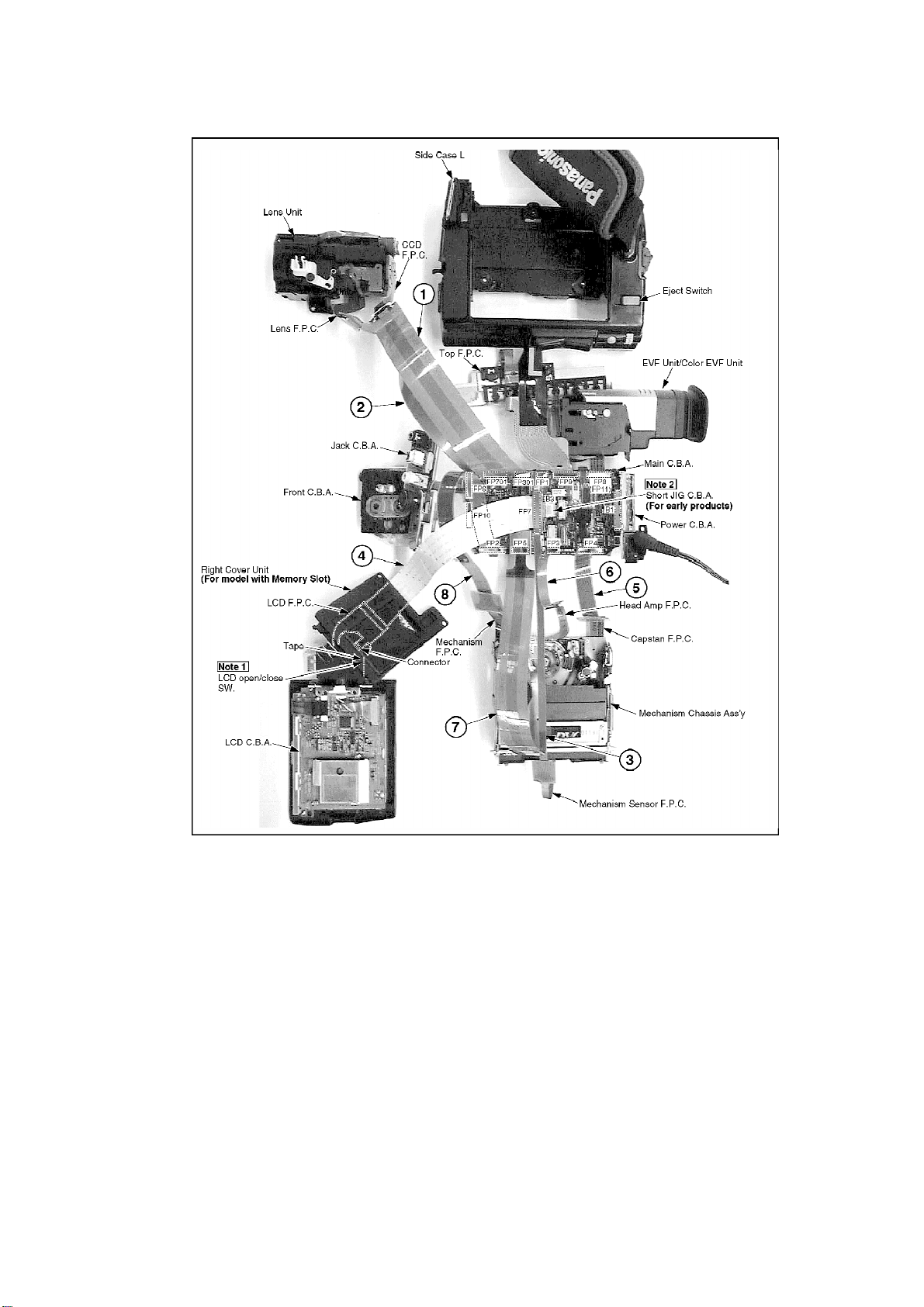

5.1.1. EXTENSION CABLES FOR SERVICE POSITION
Using the following Extension Cables, place the unit as shownforcheck and service.
Extension Cables (No.5 ~ No.8) are usedforimproving serviceability. (Theyare not necessarily
used.)
Note :
1. The LCD open/close SW. isfor changing between LCD Displayor
EVF Display. When turning on LCD Display, place some paper or
tape, etc. on LCD open/close SW. so that thisSW. staysON.
2. (For earlyproducts)
Besure to attach the Short JIG C.B.A. on Connector B3. Refer to "
SHORT JIG C.B.A."
3. Use agrounded ESDwrist strap whiledisassembling the Lens
portion.
4. Use extreme care when unplugging or plugging inconnectors.
Fig. 1-1
6

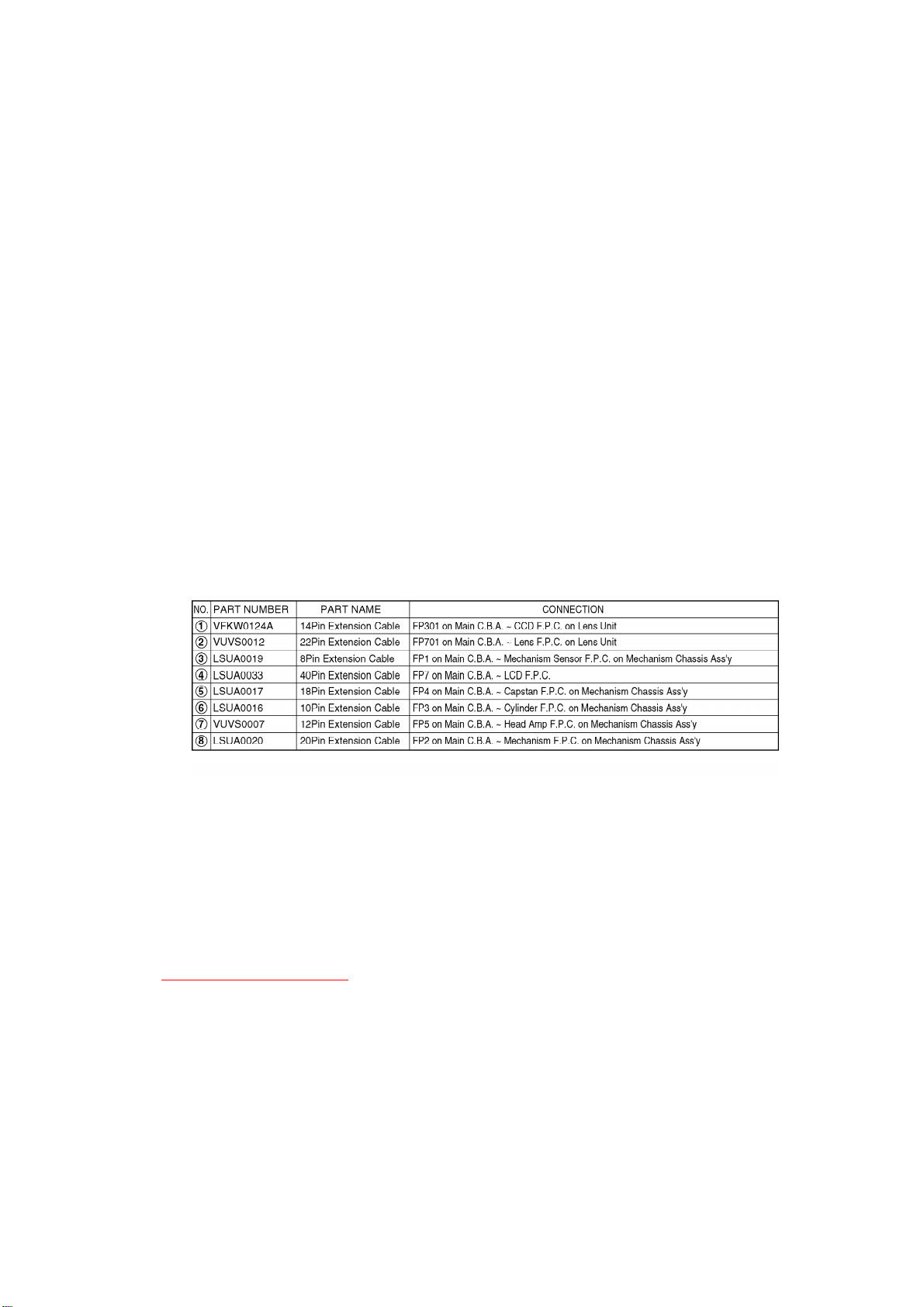

5.1.2. INTERCONNECTION OFEXTENSION CABLES
Fig. 1-2
7

5.1.3. SIMPLIFIED FAULT FINDING DATA (SELF-DIAGNOSTIC SYSTEM)
When following conditions occur, the Power LEDwill flash
according to the condition. Fig. 2-1
8

Ifanyof the following numbers appear on-screen, the palmcorder
mayneed service. Donot remove the battery(ifattached) and write
downthe displayed number. Fig. 2-2
Note:
Whilebatteryremains, the Error No. will be displayed againwhen
the power isswitched off and on again. (Once the Batteryis
9

removed or dead, Error No. will not remaininthe memory.)
5.1.4. SHORTJIG C.B.A.
(Forearlyproducts)
Purpose of the Short JIG C.B.A.
Inordertoprevent the breaking of the FlashROM due toESD
(ElectroStatic Discharge), the Short JIG C.B.A. is installedtothe connectorB3 on the Main
C.B.A.
Forearlyproducts, the FlashROM has beenusedforDSC microcontroller(IC401) and System
Control microcontroller(IC6001).
Whenthe FlashROM is usedforeitherorbothmicrocontroller(s), be sure toattachthe Short
JIG C.B.A. tothe connectorB3 on the MainC.B.A. (Otherwise, the comcordercannot be turned
on.)
Fordistinction, check whetherthe connectorB3 is usedon the MainC.B.A. ornot.
Whenthe B3 connectoris on the MainC.B.A., the FlashROM is usedforeitherorbothIC401 and
/orIC6001.
1. Open the LCD Unit.
2. Remove 2Screws(A). Then open the Right Cover Unit.
3. Install the Short JIG C.B.A. to the Connector B3.
Fig. 3
5.1.5. REMOVAL/INSTALLATION OFF.P.C. FROM NON ZIF(ZeroInsertion
Force) CONNECTOR
Removal/Installation of F.P.C. fromthe Non ZIF(ZeroInsertion Force) connector:
1. To remove the F.P.C. from the Non ZIFconnector, use the Plier for
Non ZIFConnector (LSVQ0028) to pull out the F.P.C. as shown.
The same Plier for Non ZIFConnector (LSVQ0028) shouldalso be
10

used to install the F.P.C. to the Non ZIFConnector.
Fig. 4
5.1.6. METHOD FOR LOADING/UNLOADING OFMECHANISM
CAUTION:
Ifloading does not start after DC Power Supplyisapplied, DO NOT
continue to applying DC Power Supply.
Apply+3 VDC PowerSupplytothe Loading Motorterminals.
Loading:
DC - toPortion "a," DC+ toPortion "b"
Unloading:
DC+ toPortion "a," DC - toPortion "b"
Fig. 5

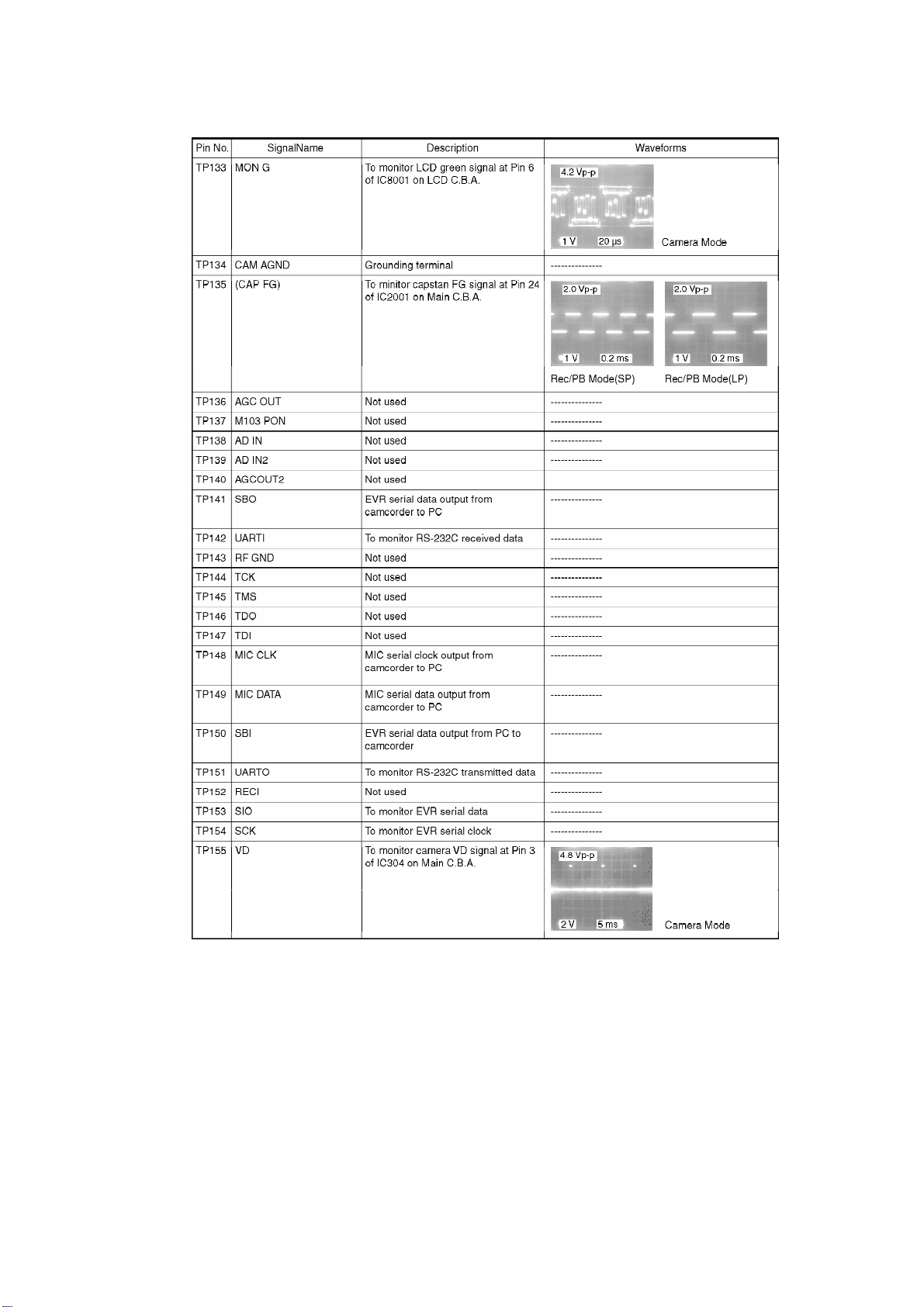

5.1.7. SIGNALDESCRIPTION ON INTERFACE BOARD FOR ELECTRICAL
11

ADJUSTMENT(LSUP0007)
A signal check canbe performedusing the Interface Board.
12

13

14

5.1.8. HOW TO REMOVE A JAMMED TAPE

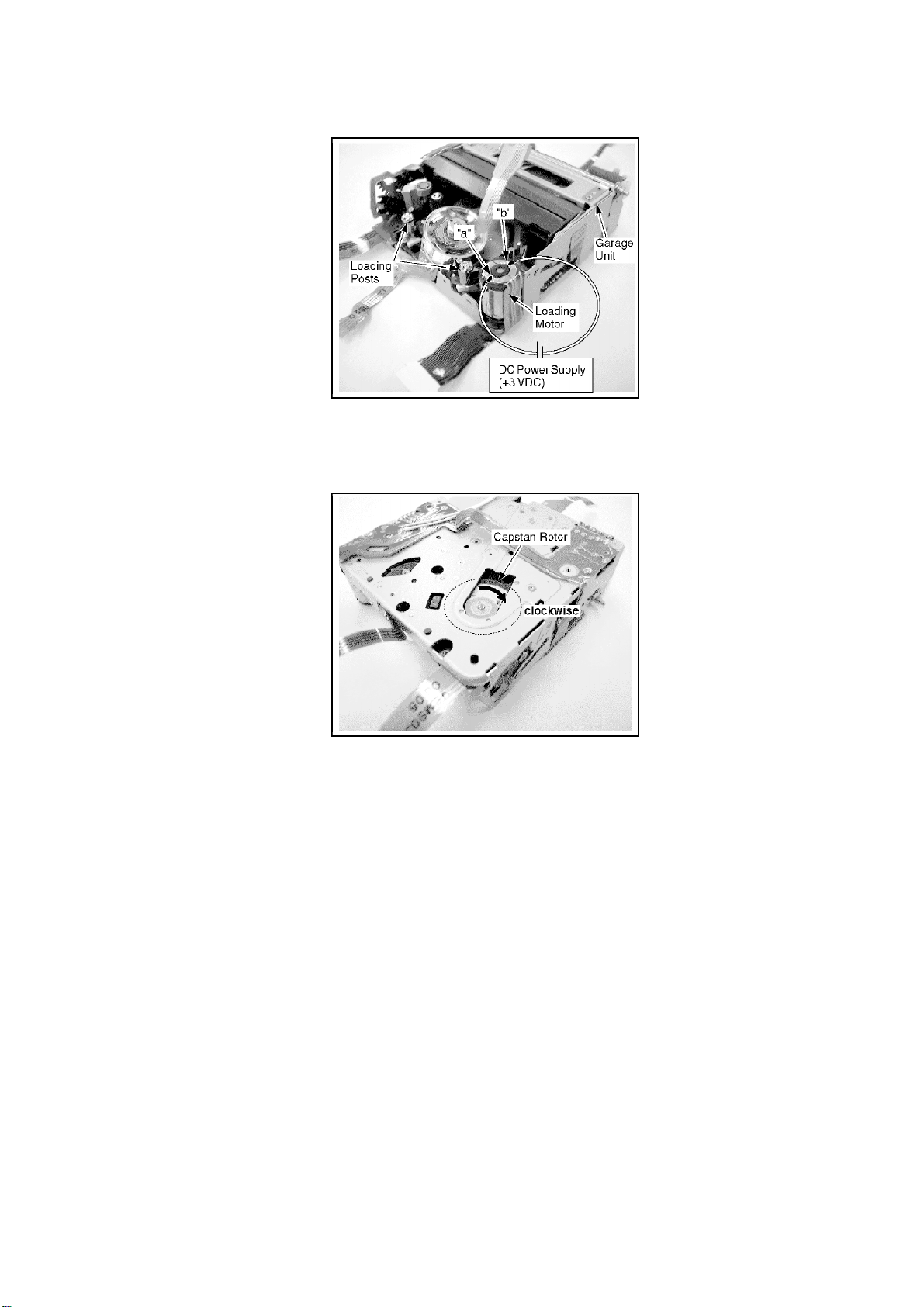

5.1.8.1. Electrical Method
CAUTION:
Ifloading does not start after DC Power Supplyisapplied, DO NOT
continue to applying DC Power Supply. Inthiscase, perform in
Manual Method.
Remove a jammedtape as follows:
1. Remove the Cabinet Parts. Refer to "CABINET SECTION"in
DISASSEMBLY/ASSEMBLY PROCEDURES.
2. Apply+3VDC Power Supplyto the Loading Motor terminals.
3. When the Loading Posts reach the fullyunloaded position,
remove the Power Supplyimmediately.
Note:
DO NOTlet eject the Garage Unit. Ifthe Garage Unitisinthe up
position, the DVCassette Tape maybe damaged.
Fig. 6-1
15

4. Rewind the tape into the DVCassette Tape byturning the Capstan
Rotor clockwise. Fig. 6-2
5. Eject the DVCassette Tape byapplying+3VDC Power Supply
again.
6. Take out the DVCassette Tape from the Garage Unit.

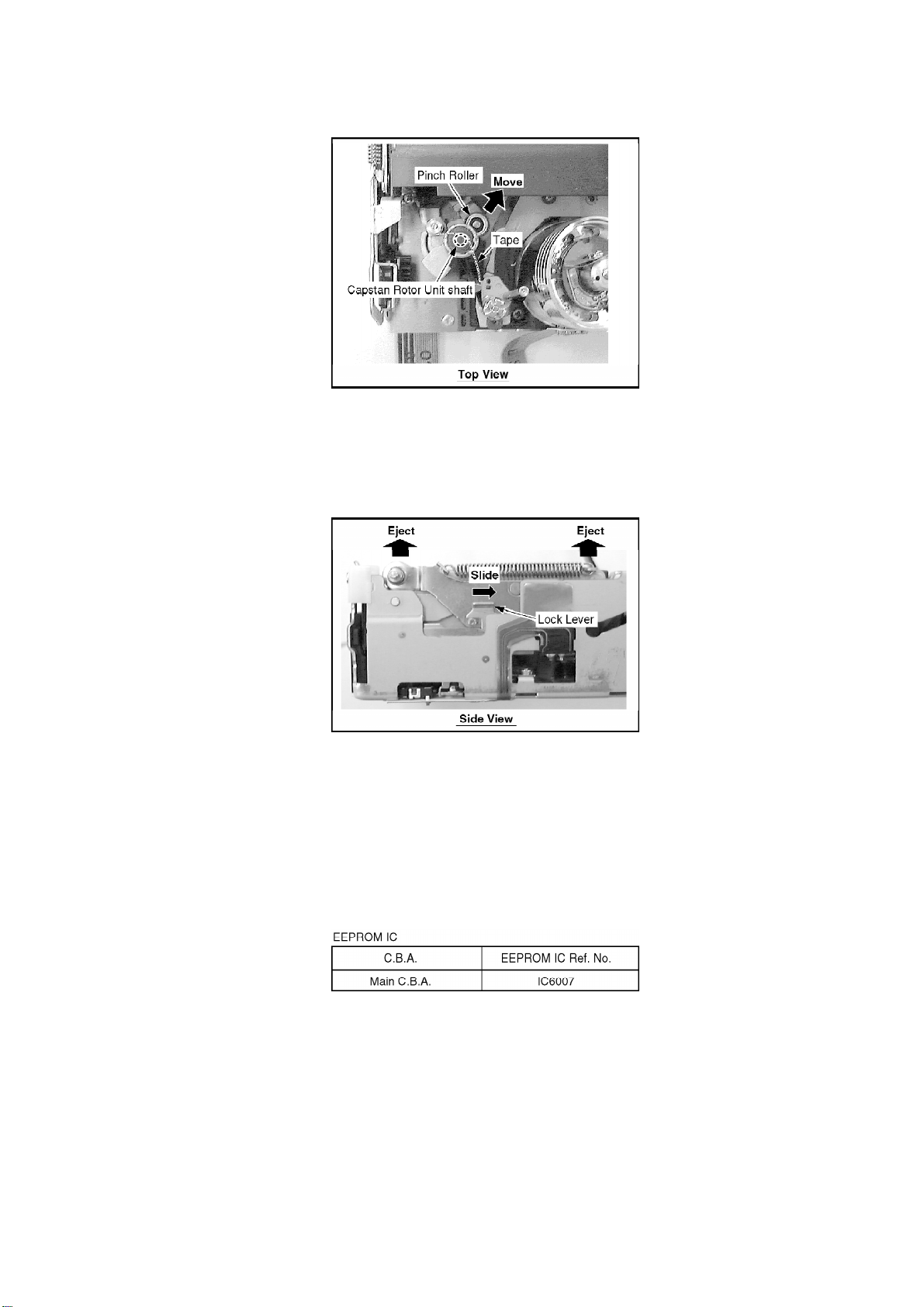

5.1.8.2. Manual Method
1. Remove the Cabinet Parts. Refer to "CABINET SECTION"in
DISASSEMBLY/ASSEMBLY PROCEDURES.
2. Move the Pinch Roller Unitout so that the Pinch Roller is
separated from the Capstan Rotor Unitshaft. Then, remove the
tape from the tape path and all posts.
Fig. 6-3
16

3. Rewind the tape into the DVCassette Tape byturning the Capstan
Rotor clockwise.
4. Eject the DVCassette Tape bysliding the Lock Lever.
Fig. 6-4
5. Take out the DVCassette Tape from the Garage Unit.
5.1.9. EEPROM DATA
CAUTION:
Besure to save the EEPROMdata using PC-EVRAdjustment
Program before service and adjustment inorder to make sure to
avoidan accidental data loss, etc. as follows.
1.Howtosave the EEPROM data toyourPC
1. Start up the PC-EVRAdjustment Program.
2. Select "3. Read (Save)/Write All EEPROMdata."inMainmenu,
and then press "Enter" key.
3. Select "5. Save all EEPROMdata."inRead (Save)/Write All
17

EEPROMdata menu, and then press "Enter" key.
4. Input the filename, and then press the "Enter" key. The data of
EEPROMICwill be stored to your PC.
2.Howtowrite the EEPROM data whichwas storedinyourPC toEEPROM IC
1. Start up the PC-EVRAdjustment Program.
2. Select "3. Read (Save)/Write All EEPROMdata."inMainmenu,
and then press "Enter" key.
3. Select "6. Writing from stored data files."inRead (Save)/Write All
EEPROMdata menu, and then press "Enter" key.
4. Input the saved filename, and then press "Enter" key. The data of
EEPROMICwill be written inEEPROMIC.
3.Howtoinitialize the EEPROM IC
Whenthe MainC.B.A. is replaced, be sure towrite the initial data toEEPROM IC. And adjust the
camcorder.
1. Start up the PC-EVRAdjustment Program.
2. Select "3. Read (Save)/Write All EEPROMdata."inMainmenu,
and then press "Enter" key.
3. Select "6. Writing from stored data files."inRead (Save)/Write All
EEPROMdata menu, and then press "Enter" key.
4. Input the saved filename, and then press "Enter" key. The data of
EEPROMICwill be written inEEPROMIC.
OR;
Select "7. Writing of Initial data."and then press "Enter" key. And
press "Enter" keyonce again.
4.Howtoinput ID Number
The ID numberis inthe EEPROM.
There are twoways towrite the data of EEPROM IC afterreplacing MainC.B.A. as follows:
-Selecting "6. Writing from stored data files,"IDNumber with stored
data filewill be written automatically.
-Selecting "7. Writing of initial data,"IDNumber needs to be input.
There are twomethods, "a" or "b,"to input IDNumber as follows.
a Whenwriting ID Numberfromthe saveddata:
1. Select "3. Read (Save)/Write All EEPROMdata."inMainmenu,
and then press "Enter" key.
18

2. Input the saved filename, and then press "Enter" key. IDNumber
will be written automatically.
bWhenthe original ID information cannot be readbecause of destruction of EEPROM etc.:
1. Select "3. Read (Save)/Write All EEPROMdata."inMainmenu,
and then press "Enter" key.
2. Select "8. Write IDfrom stored file."and then press "Enter" key.
IDNumber will be written automatically.

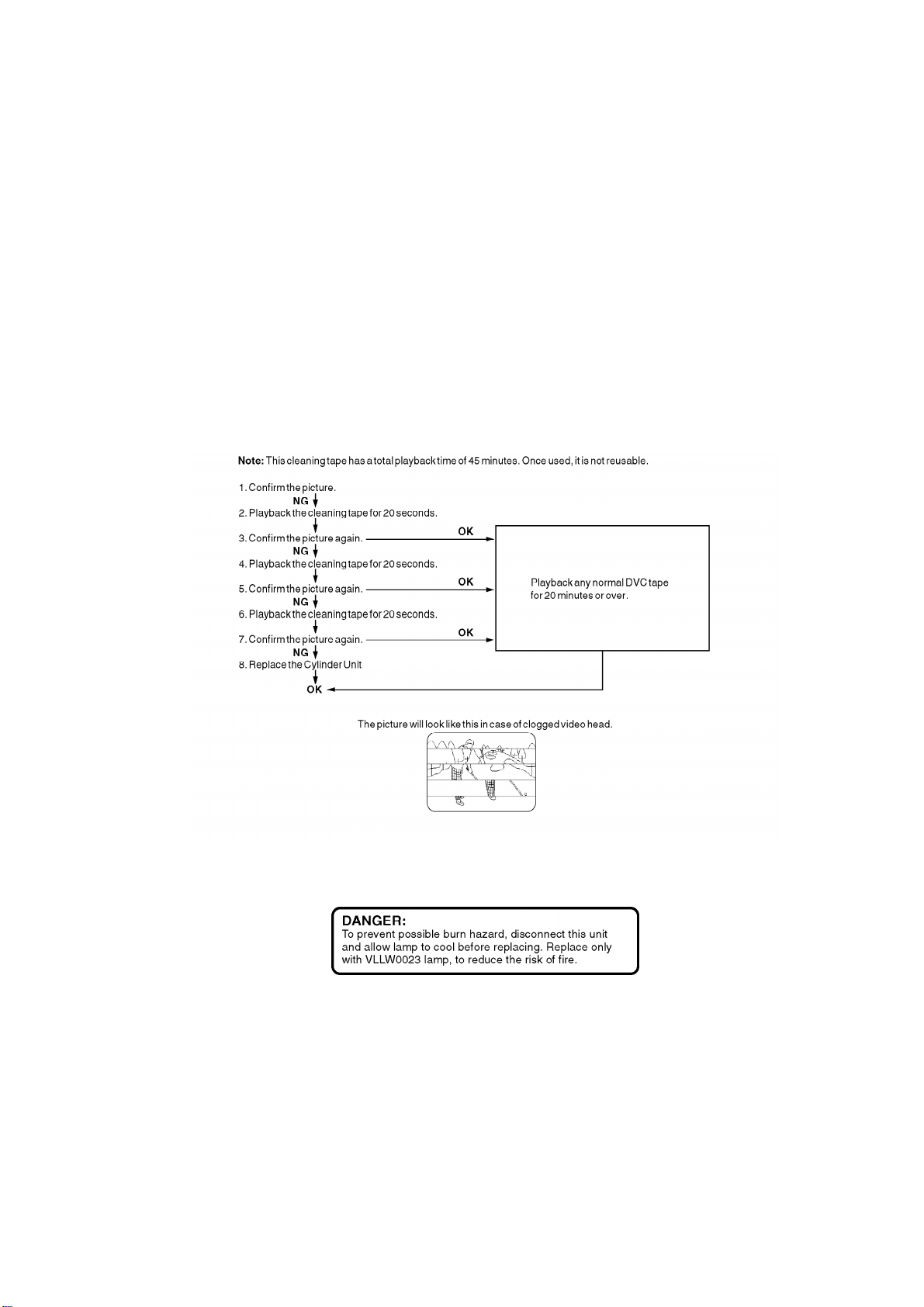

5.1.10. HOW TO USE THE DVC HEAD CLEANING TAPE/ VFK1451
Please use the cleaning tape as describedbelow.
Fig. 7
5.1.11. HOW TO REPLACE THE LAMP (VLLW0023) OFENHANCEMENTLIGHT
UNIT
Fig. 8
19

5.1.12. REPLACEMENTPROCEDURES FOR CSP (CHIP SIZE PACKAGE) IC
5.1.12.1. EQUIPMENT
1. Pre-Heater
2. Spot Heater
3. Vacuum Pick-up
4. P.C.B. Holder
Fig. 9-1
20
