Owner’s Manual
Dual Camera
Model No. HX-WA30
HX-WA3
HX-WA03
Please read these instructions carefully before using this product, and
save this manual for future use.
VQT4X24
until
2013/2/25
Register online at www.panasonic.com/register (U.S. customers only)

- 2 -
∫About recording formats and compatibility of the unit
≥The unit is an MP4 format (MPEG-4 AVC file standard) Dual Camera
for recording high-definition motion pictures.
≥AVCHD and MPEG2 motion pictures are different formats, and are not
therefore supported by the unit.
∫Indemnity about recorded content
Panasonic does not accept any responsibility for damages directly or
indirectly due to any type of problems that result in loss of recording or
edited content, and does not guarantee any content if recording or editing
does not work properly. Likewise, the above also applies in a case where
any type of repair is made to the unit (including any other non-built-in
memory related component).
∫Handling of built-in memory
This unit is equipped with the built-in memory. When using this
component, pay attention to the following points.
Back up data periodically.
The built-in memory is temporary storage. In order to avoid erasing data
due to static electricity, electromagnetic waves, breakage, and failures,
back up the data to a PC or disc. (l191)
≥The status indicator (l19) illuminates in red while the SD card or built-
in memory is being accessed (initialization, recording, playback,
deleting etc.). Do not perform the following operations when the
indicator illuminates. It may damage the built-in memory or cause a
malfunction in the unit.
jTurn the unit off (remove the battery)
jInsert and remove the SD Card
jInsert and remove the USB cable
jExpose the unit to vibrations or shock
≥About disposing of or giving away this unit. (l227)
Read this first

- 3 -
∫Cards that you can use with this unit
SD Memory Card, SDHC Memory Card and SDXC Memory Card
≥4 GB or more Memory Cards that do not have the SDHC logo or 48 GB
or more Memory Cards that do not have the SDXC logo are not based
on SD Memory Card Specifications.
≥Refer to page 30 for more details on SD cards.
∫For the purposes of this owner’s manual
≥SD Memory Card, SDHC Memory Card and SDXC Memory Card are
referred to as the “SD card”.
≥Functions that can be used for motion picture recording/motion picture
playback are indicated by in this owner’s manual.
≥Functions that can be used for still picture recording/still picture
playback are indicated by in this owner’s manual.
≥Functions that can be used for audio recording/audio playback are
indicated by in this owner’s manual.
≥Pages for reference are indicated by an arrow, for example: l00
≥“File” is used to mean “scene”, “still picture” and “audio file”.
This owner’s manual is designed for use with models ,
and . Pictures may be slightly different from the
original.
≥The illustrations used in this owner’s manual show model ,
however, parts of the explanation refer to different models.
≥Depending on the model, some functions are not available.
≥Features may vary, so please read carefully.
≥Not all models may be available depending on the region of
purchase.
HX-WA30
HX-WA3
HX-WA03
HX-WA30

- 4 -
Read this first..................................................................................... 2
Preparation
(Important)
About the Waterproof/Dustproof and Anti-shock Performance
of this unit........................................................................................... 8
Check before using underwater.................................................. 12
Using this unit underwater........................................................... 14
Caring for this unit after using it underwater ............................... 14
When using in a cold climate or at low temperatures.................. 18
Names and Functions of Main Parts.............................................. 19
Power supply.................................................................................... 22
Inserting/removing the battery..................................................... 22
Charging the battery ................................................................... 25
Charging and recording time....................................................... 27
Recording to a card......................................................................... 30
Cards that you can use with this unit .......................................... 30
Inserting/removing an SD card.................................................... 32
Turning the unit on/off..................................................................... 35
About Standby Mode................................................................... 36
About the high temperature warning icon ................................... 37
Selecting a mode ............................................................................. 38
Setting date and time....................................................................... 39
Contents

- 5 -
Basic
Before recording.............................................................................. 42
Recording motion pictures............................................................. 44
Recording still pictures................................................................... 47
About recording still pictures during motion picture recording
and audio recording .................................................................... 50
Recording audio............................................................................... 51
Intelligent Auto Mode ...................................................................... 53
Motion picture/Still picture/Audio playback.................................. 56
Using the menu screen ................................................................... 60
Using the Simple Menu............................................................... 62
Using the Option Menu.................................................................... 63
OPTION MENU 1........................................................................ 63
OPTION MENU 2........................................................................ 67
OPTION MENU 3........................................................................ 69
Advanced (Recording)
Using the zoom................................................................................ 73
Double range zoom [HX-WA3] / [HX-WA03]............................... 75
Zoom Mode................................................................................. 76
Image Stabilizer................................................................................ 78
Recording in Slow Motion Mode [HX-WA30]................................. 80
Recording with a filter effect........................................................... 83
Burst recording................................................................................ 87
Recording panorama still pictures................................................. 89
Recording underwater..................................................................... 93
Record with color balance and audio that are suitable for
recording underwater.................................................................. 93
Recording functions of menus....................................................... 94
RECORDING MENU 1................................................................ 94
RECORDING MENU 2.............................................................. 102
RECORDING MENU 3.............................................................. 105
RECORDING MENU 4.............................................................. 108

- 6 -
Manual recording........................................................................... 115
White Balance........................................................................... 115
Manual shutter speed/iris adjustment [HX-WA30] .................... 117
Setting the focus and recording ................................................ 120
Advanced (Playback)
Playback Operations ..................................................................... 121
Playback using operation icon .................................................. 121
Creating still picture from motion picture................................... 123
Cutting out a section of a panorama still picture....................... 124
Zooming in on a still picture during playback
(Playback zoom) ....................................................................... 125
Various playback functions .......................................................... 127
Changing the playback settings and playing back the
slide show ................................................................................. 127
Playing back with a filter effect.................................................. 130
Displaying file information......................................................... 131
Using the playback menu.............................................................. 133
PLAYBACK MENU 1................................................................. 133
PLAYBACK MENU 2................................................................. 134
Deleting scenes/still pictures/audio files..................................... 140
Protecting a file ......................................................................... 143
Watching Video/Pictures on your TV........................................... 144
Connecting with an HDMI micro cable...................................... 148
TV format setting....................................................................... 148
Playback using VIERA Link™....................................................... 149
Copy/Dubbing
Copying from Built-in Memory to SD card .................................. 151
Dubbing images onto other video devices.................................. 153
Using the Eye-Fi™ card................................................................. 155

- 7 -
Wi-Fi
Wi-Fi®function [HX-WA30] ........................................................... 160
What you can do with the Wi-Fi function and the
preparations [HX-WA30]................................................................ 162
Connecting to Wi-Fi [HX-WA30].................................................... 165
Connecting to a wireless access point...................................... 166
Connecting to the smartphone.................................................. 176
Recording/playing back with remote operations
[HX-WA30]....................................................................................... 181
DLNA playback [HX-WA30]........................................................... 185
How to Use the [Wi-Fi SETUP] Menu [HX-WA30]........................ 187
With a PC
What you can do with a PC........................................................... 191
End User License Agreement................................................... 194
Operating environment ................................................................. 196
Installation...................................................................................... 200
Connecting to a PC........................................................................ 201
Use as a card reader ................................................................ 202
Using the unit as a web camera................................................ 205
Starting HD Writer VE 3.0.............................................................. 207
Reading the operating instructions of the software
applications............................................................................... 207
If using Mac.................................................................................... 208
Others
LCD Display Indications................................................................ 210
Messages........................................................................................ 214
Troubleshooting............................................................................. 215
Cautions for use............................................................................. 225
About copyright............................................................................. 232
Recording Modes/approximate recordable time......................... 234
Approximate number of recordable pictures.............................. 236

- 8 -
This does not guarantee no destruction, no malfunction, or
waterproofing in all conditions.
*1 This means that this unit can be used underwater for specified time
in specified pressure in accordance with the handling method
established by Panasonic.
*2 “MIL-STD 810F Method 516.5-Shock” is the test method standard of
the U.S. Defense Department, which specifies performing drop tests
from a height of 122 cm (4.0 feet), at 26 orientations (8 corners,
Preparation
(Important)
About the Waterproof/Dustproof
and Anti-shock Performance of
this unit
Waterproof/Dustproof Performance
This unit’s waterproof/dustproof rating complies with the
“IP68” rating. Provided the care and maintenance guidelines
described in this document are strictly followed, this unit can
operate underwater, to a depth not exceeding 10 m (33 feet) for
a time not exceeding 60 minutes. *1
Anti-shock Performance
This unit has cleared a test conducted by Panasonic, which
complies with MIL-STD 810F Method 516.5-Shock (a drop test
performed from a height of 1.5 m (5.0 feet) onto 3 cm (0.10 feet)
thick plywood when the LCD monitor was closed with the
screen facing inwards). *2
/
Waterproof/Dustproof Performance
This unit’s waterproof rating complies with the “IP68” rating.
Provided the care and maintenance guidelines described in
this document are strictly followed, this unit can operate
underwater, to a depth not exceeding 5 m (16 feet) for a time
not exceeding 60 minutes. *1
HX-WA30
HX-WA3 HX-WA03

- 9 -
12 ridges, 6 faces) using 5 sets of devices, and passing the
26 orientation drops within 5 devices. (If failure occurs during the
test, a new set is used to pass the drop orientation test within a total
of 5 devices.)
Panasonic’s test method is based on the above “MIL-STD 810F
Method 516.5-Shock”. However, the drop height was changed from
122 cm (4.0 feet) to 150 cm (5.0 feet) dropping onto 3 cm (0.10 feet)
thick plyboard. This drop test was passed.
(Disregarding appearance change such as loss of paint or distortion
of the part where drop impact is applied.)
∫Handling this unit
≥The waterproof performance may be degraded due to the strong water
pressure when this unit is used deeper than 10 m (33 feet) underwater.
/
The waterproof performance may be degraded due to the strong water
pressure when this unit is used deeper than 5 m (16 feet) underwater.
≥When this unit is splashed with detergent, soap, hot spring, bath
additive, sun oil, sun screen, chemical, etc., wipe it off immediately.
≥Waterproof function of this unit is for sea water and fresh water only.
≥Any malfunction caused by customer misuse, or mishandling will not
be covered by the warranty.
≥The inside of this unit is not waterproof. Water leakage will cause
malfunction.
≥Supplied accessories such as battery pack etc. are not waterproof.
(excluding handstrap)
≥Supplied accessories such as battery, etc., are not dustproof or
anti-shock performance.
Waterproofing is not guaranteed if the unit is subject to an
impact as a result of being hit or dropped etc. If an impact to this
unit occurs, it should be inspected (subject to a fee) by a
Panasonic’s Service Center to verify that the waterproofing is
still effective.
HX-WA30HX-WA30
HX-WA3
HX-WA03

- 10 -
≥Cards are not waterproof. Do not handle with a wet hand. Also, do not
insert wet card into this unit.
≥Do not leave this unit for a long period of time in places where
temperature is very low (at ski resorts or at high altitude etc.) or very
high [above 35 oC (95 oF)], inside a car under strong sunlight, close to a
heater, on the beach, etc. Waterproof performance may be degraded.
≥Wipe off any sand grains or dust on the speaker (l21) or
microphones (l21). Do not use a needle or other sharp object.
(Waterproofing performance may be adversely affected)
≥Foreign objects may adhere to the inner side of the rear door
(around the rubber seal or connecting terminals) when the rear
door is opened or closed in places with sand or dust etc. This
may result in the impairment of the waterproof performance if the
rear door is closed with foreign objects adhered. Be extremely
careful since it may result in malfunction etc.
≥If foreign objects are present on the inner side of the rear door,
wipe them off with a lint-free cloth.
≥If any liquid such as water droplets has adhered to this unit or
inner side of the rear door, wipe off with a soft dry cloth. Do not
open or close the rear door near the water, when underwater,
using wet hands, or when this unit is wet. It may cause water
leakage.

- 11 -
∫When inner side of the lens is fogged (condensation)
It is not a malfunction or failure of this unit. It may be caused by the
environment in which this unit is used.
≥Be careful of condensation since it causes lens stains, fungus and unit
malfunction.
What to do when inner side of the lens is fogged
≥Turn off the unit and open the rear door in a place with constant
ambient temperature, away from high temperatures, humidity, sand
and dust. The fog will disappear naturally in about 2 hours with the rear
door open when the temperature of this unit gets close to the ambient
temperature.
≥Contact Panasonic’s Service Center if the fogging does not disappear.
Conditions in which inner side of the lens may be fogged
Condensation may occur and the inner side of the lens may be fogged
when this unit is used in areas that undergo a significant change in
temperature or in high humidity, such as the following:
≥When this unit is used underwater suddenly after being on a hot
beach etc.
≥When this unit is moved to a warm area from a cold area, such as
at a ski resort or at high altitude
≥When the rear door is opened in a high-humidity environment

- 12 -
1Open the rear door.
2Check that there are no foreign objects on the inner
side of the rear door.
≥If there are any foreign objects, such as lint, hair, sand, etc., on the
surrounding area, water will leak within a few seconds causing
malfunction.
Check before using underwater
Do not open or close the rear door in places with sand and dust,
close to water, or with wet hands. Sand or dust adhering may
cause water leaks.
1Unlock the LOCK lever.
2Slide the open/close lever.
3Open the rear door.

LOCK
SD CARD/
BATTERY



- 13 -
3If foreign objects are present, wipe them off with a
lint-free cloth.
≥Be extremely careful to remove any sand etc.
that may adhere to the sides and corners of
the rubber seal.
≥Wipe it off with a dry soft cloth if there is any
liquid. It may cause water leaks and
malfunction if you use this unit with liquid
adhered.
4Check for cracks and deformation
of the rubber seal on the rear door.
≥The integrity of the rubber seals may decrease
after about 1 year, with use and age. To avoid
permanently damaging this unit, the seals should be replaced once
each year. Please contact Panasonic’s Service Center for related costs
and other information.
5Close the rear door securely.
1Close the rear door.
2Slide the open/close lever.
3Lock the LOCK lever.
≥Lock securely to the points where the red portion of the open/close
lever and LOCK lever are no longer visible.
≥To prevent water seeping into this unit, be careful not to trap foreign
objects such as liquids, sand, hair or dust etc.
LOCK
SD CARD/
BATTERY




- 14 -
≥Use this unit underwater at a depth of down to 10 m (33 feet) with the
water temperature between 0 oC and 35 oC (32 oF and 95 oF).
Do not use this unit at a depth of over 10 m (33 feet).
/
Use this unit underwater at a depth of down to 5 m (16 feet) with the
water temperature between 0 oC and 35 oC. (32 oF and 95 oF)
Do not use this unit at a depth of over 5 m (16 feet).
≥Do not use it in hot water over 35 oC (95 oF) (in a bath or hot spring).
≥
Do not use this unit underwater not longer than 60 minutes continuously.
≥Do not open or close the rear door underwater.
≥Do not apply shock to this unit underwater. (Waterproof performance
may not be maintained, and there is a chance of water leak.)
≥
Do not dive into the water holding this unit. Do not use this unitin a location
where the water will splash strongly, such as rapid flow or waterfall. (Strong
water pressure may be applied, and it may cause malfunction.)
≥This unit will sink in the water. Take care not to drop this unit and lose it
underwater by securely placing the strap around your wrist or similar
measure.
Using this unit underwater
Caring for this unit after using it underwater
Do not open or close the rear door until the sand and dust is
removed by rinsing this unit with water.
Make sure to clean this unit after using it.
≥Thoroughly wipe off any water droplets, sand, and saline matter on
your hands, body, hair, etc.
≥It is recommended to clean this unit indoors, avoiding places where
water spray or sand may fall.
Do not leave this unit uncared for longer than 60 minutes after
using it underwater.
≥Leaving this unit with foreign objects or saline matter on it may
cause damage, discoloration, corrosion, unusual odour, or
deterioration of the waterproof performance.
HX-WA30
HX-WA3
HX-WA03

- 15 -

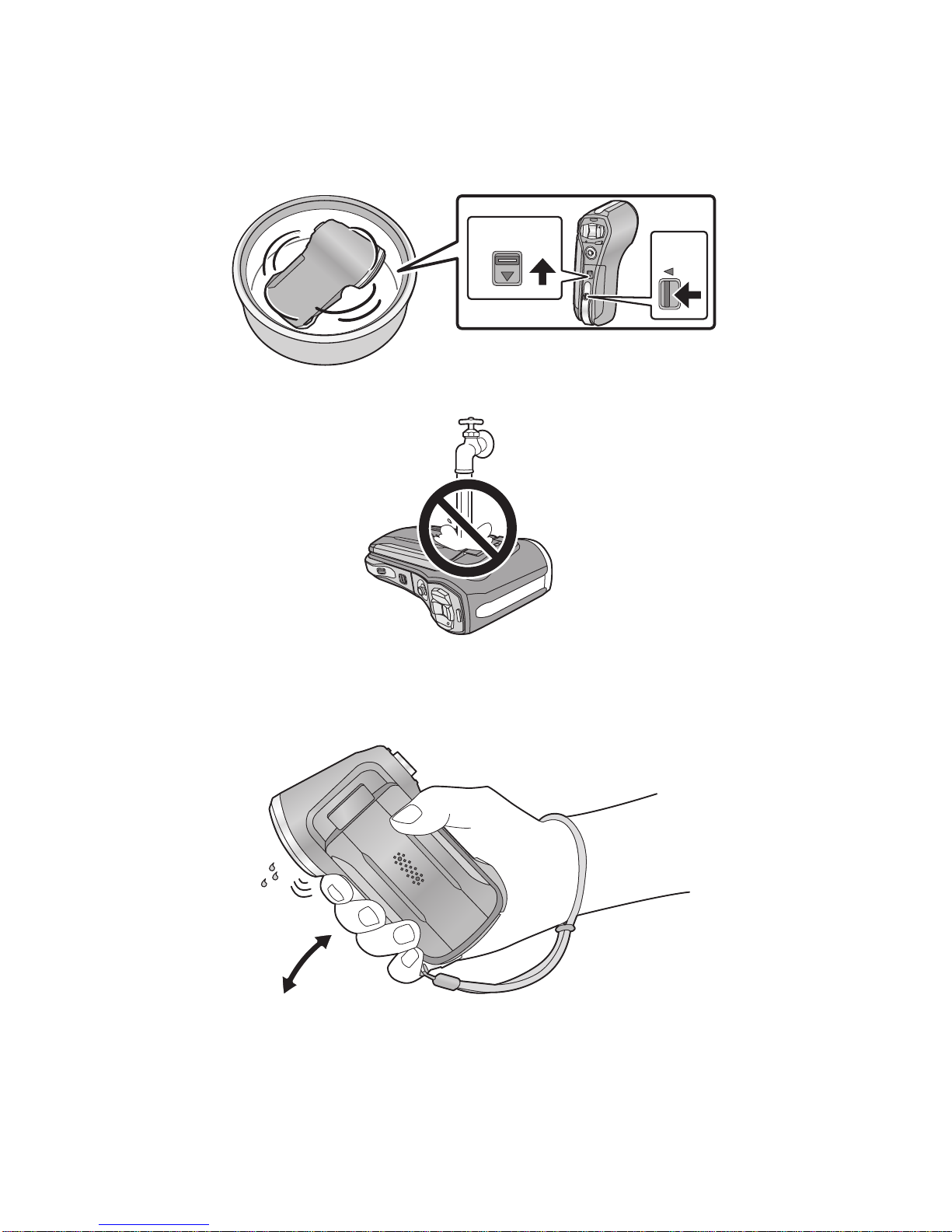

1Rinse with water with the rear door closed.
≥After use at the seaside or underwater, soak the unit in fresh water
pooled in a shallow container for 10 minutes or less.
≥Do not directly rinse this unit with tap water.
2Hold this unit as shown in the illustration, and shake
it gently several times to drain the water.
≥Fasten the strap firmly to prevent this unit from dropping.
SD CARD/
BATTERY
LOCK

- 16 -
3Wipe off water drops on this unit with a dry soft cloth
and dry this unit in a shaded area which is well
ventilated.

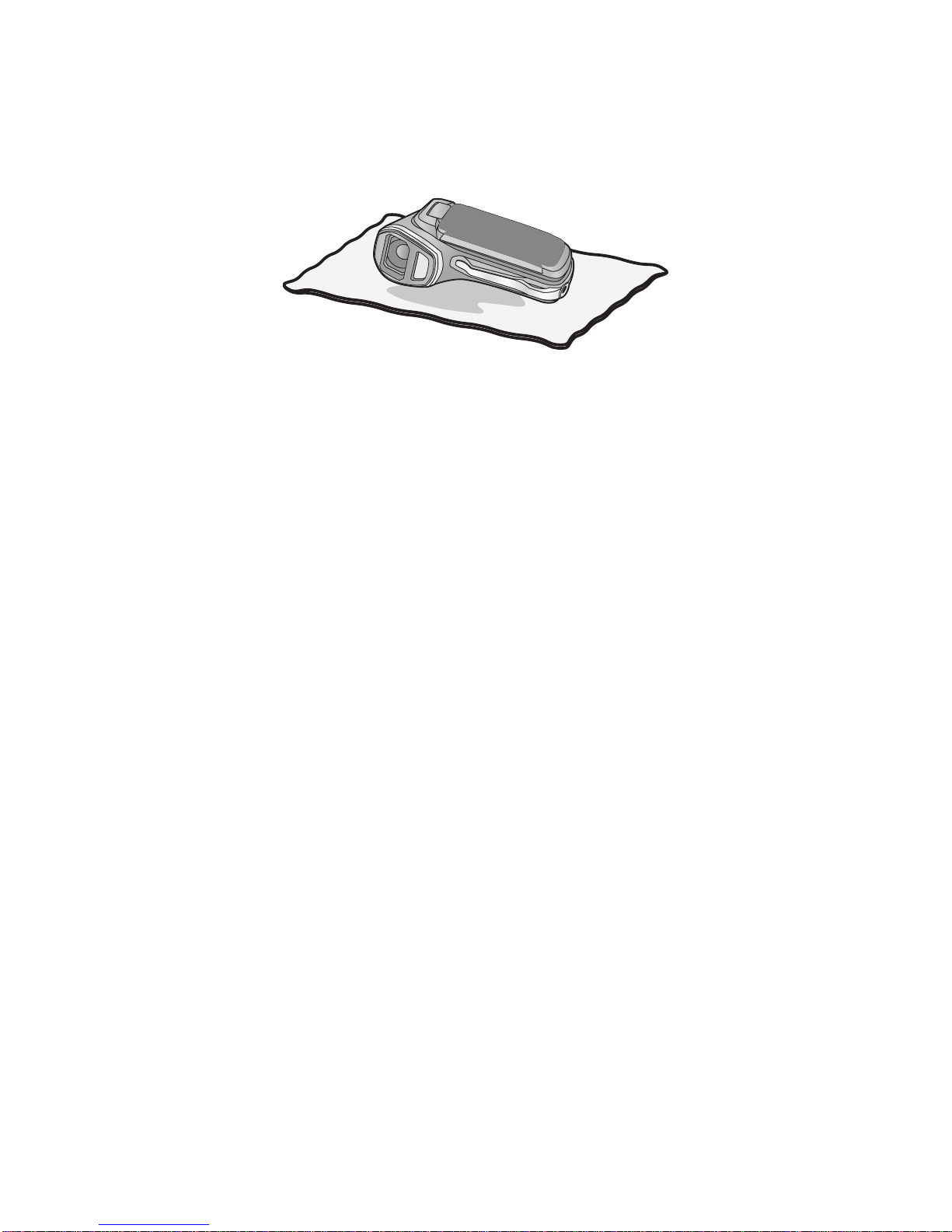

≥Dry this unit by standing it on a dry cloth.
≥If water collects on the microphones or speaker of this unit, it may
cause lower sound or distorted sound. Dry for approximately 1 hour.
≥Do not dry this unit with hot air from dryer or similar. It will deteriorate
the waterproof performance or cause failure due to deformation.
≥Do not use chemicals such as benzine, thinner, alcohol, or cleanser, or
soap or detergents.
4Confirm that there are no water droplets, open the
rear door, and wipe off any water droplets or sand left
inside using a soft dry cloth.
≥Water droplets may adhere to the card when the rear door is opened
without thoroughly drying. Also, water may accumulate in the gap
around the card compartment, the battery compartment or the terminal
connector. Be sure to wipe any water off with a soft dry cloth.
≥The water droplets may seep into this unit when the rear door is closed
while it is still wet, causing condensation or failure.

- 17 -
∫Wiping moisture from the unit
If there is moisture inside the rear door, wipe every crevice completely
clear of moisture.
(This moisture is not due to exposure to water)
AMoisture here
∫About the water draining design
This unit is designed so that water that entered the gaps around the
zoom button etc. drains out. For this reason, bubbles may appear when
the unit is immersed in water, but this is not a malfunction.
Draining water from the unit
Drainage holes are found on the bottom of the unit. Hold the unit
vertically, as shown, to drain off the water.
When draining, attach the hand strap to the unit and secure the hand
strap to your wrist to prevent the unit from dropping. (l15)
BDrainage holes



- 18 -
≥It may cause injury to the skin if you directly touch the metal parts
of the unit in places where temperature is very low [environments
under 0 oC (32 oF), such as ski resorts or places at high altitude]
for a long period of time.
Use gloves or similar when using it for long periods.
≥The performance of the battery (recording time/operating time) may
decrease temporarily when using in a temperature between j10 oC
and 0 oC (14 oF and 32 oF) (cold places such as ski resorts or places at
high altitude). Charge the battery sufficiently in a place where the
ambient temperature is between 10 oC and 30 oC (50 oF and 86 oF).
≥
The battery cannot be recharged in a temperature less than 0 o C (32 o F).
(The Status indicator blinks when the battery cannot be recharged.)
≥Power cannot be supplied to the device via an electric wall socket
using the AC adaptor when the temperature is under 0 oC (32 oF).
≥If the unit gets very cold in cold places such as ski resorts or places at
high altitude, performance of the LCD monitor may temporarily drop
immediately after turning the power on, e.g. the picture on the LCD
monitor being slightly darker than usual or ghost images appearing. In
cold environments, keep the unit warm during use by keeping it inside
your cold-weather gear or clothes. The performance will resume as
normal when the internal temperature rises.
≥If the unit is used in cold places such as ski resorts or places at high
altitude with snow or water droplets adhered to the unit, some parts of
the unit may become hard to move or the sound may become dim with
snow or water droplets freezing in the gap of the zoom button, the
power button, speakers, and microphone. This is not a malfunction.
≥If the Wi-Fi®function is used in cold places such as ski resorts or
places at high altitude, playback may not be performed correctly.
Preparation
When using in a cold climate or at
low temperatures
HX-WA30

- 19 -
1LCD monitor (l43)
≥It can open up to 90o A, rotate up to 180oBtowards the lens or 105o
C towards the opposite direction.
2Power button [ ] (l35)
3REC/ button [REC/ ] (l38)
4Intelligent auto button [ ] (l53)
5Wi-Fi button [Wi-Fi] (l166,176,182,185,187)
/
Creative Control button [ ] (l83,130)
6Status indicator (l2,25,32,165,230)
7Open/close lever [SD CARD/BATTERY] (l22,32)
8Lock lever [LOCK] (l22,32)
Preparation
Names and Functions of Main Parts
Due to limitations in LCD production technology, there may be some
tiny bright or dark spots on the LCD monitor screen. However, this is
not a malfunction and does not affect the recorded picture.
12
5
6
4
3
7
8

HX-WA30
HX-WA3
HX-WA03

- 20 -
9Slow Motion Mode button [ ] (l80)
/
Zoom range button [ ] (l75)
10 Photoshot button [ ] (l47)
11 SET button [SET] (l56, 60, 111, 121)
≥Use the SET button to select the recording functions and playback
operations, and to operate the menu screen.
≥In this owner’s manual, the operation of the SET button is denoted as
shown below.
Example:
12 In Recording Mode: Zoom button [W/T] (l73)
In Playback Mode: Volume button (l58, 129)
Zoom button [W/T] (l125)
Thumbnail display switch [ / ] (l58)
13 Recording start/stop button [ ] (l44)
14 Menu button [MENU] (l60)
15 Rear door (l22, 32)
16 Card slot
17 Battery holder
18 HDMI micro connector (l144)
19 USB/AV connector (l25, 144, 153, 201)
≥Use the USB cable/AV cable (only the supplied cable).
or Select using the SET button
MENU
14
9
10
11
12
19
18
17
16
15
13
HX-WA30
HX-WA3
HX-WA03
