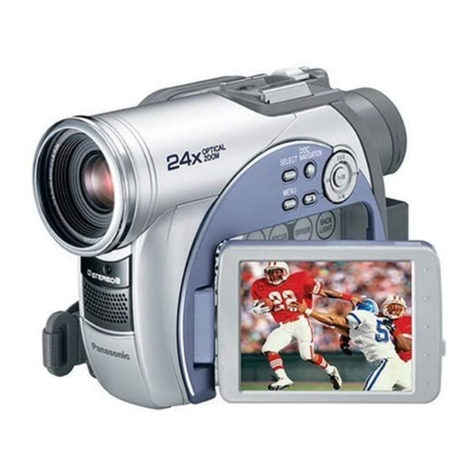

Panasonic NV-GS200EG User manual

ORDERNO.VM0403012C8
Digital VideoCamera/ Recorder
NV-GS200EG / NV-GS200EB/ NV-GS200EGM/ NV-GS200GC
/ NV-GS200GN/ NV-GS200GCT
NV-GS120EG / NV-GS120EB/ NV-GS120EGM/ NV-GS120GC/ NV-
GS120GN/ NV-GS120GCT
VOL.1
A-MECHANISM
Colour
(S)....................SilverType
SPECIFICATIONS
1

1. INTRODUCTION
1.1. INTRODUCTION
Thisservice manual containstechnical information whichwill allowservice personnel's to
understand and service thismodel.Please place ordersusing thepartslistand notthedrawing
reference numbers.
Ifthecircuitischangedor modified, thisinformation will befollowedbysupplementservice
manual tobefiledwithoriginal service manual.
2

Note1:
These moviecamerauses ACAdaptor VSK0651.
Note2:
1)Thisservice manual does notcontainthefollowing information, because oftheimpossibilityof
sevicing atcomponentlevel.
1. SchematicDiagram, Block Diagramand C.B.A. layoutofMain
C.B.A./ Sub C.B.A.
2. Parts List forindividual parts ofMainC.B.A./ Sub C.B.A.
2)Thefollowing categoryis/arerecyclemodulepart. Please send it/them toCentral Repair
Center.
*MainC.B.A. (VEP03G57B: NV-GS200 SERIES, VEP03G57F:NV-GS120EG/EB/EGM, VEP03G57G:
NV-GS120GC/GN/
GCT)
*Sub C.B.A. (VEP23599B: NV-GS200 SERIES, VEP23602B: NV-GS120 SERIES)
Whenapartreplacementisrequiredfor repairing eachMainC.B.A., replace theassemblyparts.
(MainC.B.A. and Sub C.B.A.)
Thefollowing circuitsarecontainedinMainC.B.A.
1. MainConnection Circuit
2. AVIO Circuit
3. EX InputCircuit
4. LCD Circuit
5. DriveCircuit
6. VideoCircuit
7. PowerCircuit
8. Control Circuit
Thefollowing circuitsarecontainedinSub C.B.A.
1. Sub Connection Circuit
2. Sub PowerCircuit
3. MPEG Circuit
4. LensDriveCircuit
5. CameraCircuit
1.2. FEATURECOMPARISONCHART
3

1.3. ABOUTLEADFREE SOLDER(PbF)
2. CAUTIONFORACCORD (VJA0940 TYPE)
2.1. INFORMATIONFORYOUR SAFETY
IMPORTANT
Your attention isdrawntothefactthatrecording ofpre-recordedtapes or discs or other
publishedor broadcastmaterial may infringecopyrightlaws.
WARNING
To reduce therisk offireorshock hazard, do notexpose this
equipmenttorainormoisture.
CAUTION
To reduce therisk offireorshock hazardand annoying
interference, use therecommendedaccessories only.
FORYOUR SAFETY
DONOTREMOVE THE OUTERCOVER
Topreventelectricshock, do notremove thecover. Nouserserviceablepartsinside. Refer
servicing toqualifiedservice personnel.
4

2.2. CAUTIONFORACMAINSLEAD
For your safety, please readthefollowing textcarefully.
Thisappliance issuppliedwithamouldedthree-pinmainsplug for your safetyand convenience.
A5-amperefuse isfittedinthisplug.
Shouldthefuse needtobereplacedplease ensurethatthereplacementfuse has arating of5
amperes and itisapprovedbyASTAor BSItoBS1362
Check for theASRAmarkor theBSImarkon thebodyofthefuse.
Iftheplug containsaremovablefuse coveryou mustensurethatitisrefittedwhenthefuse is
replaced.
Ifyou lose thefuse cover, theplug mustnotbeuseduntil areplacementcoverisobtained.
Areplacementfuse covercanbepurchasedfrom your local PanasonicDealer.
Ifthefittedmouldedplug isunsuitablefor thesocketoutletinyour homethenthefuse shouldbe
removedand theplug cutoff and disposedofsafety.
Thereisadangerofsevereelectrical shock ifthecutoff plug isinsertedintoany13-ampere
socket.
Ifanewplug istobefittedplease observe thewiring codeas shownbelow.
Ifinanydoubt, please consultaqualifiedelectrician.
2.2.1. Important
Thewires inthismainsleadarecolouredinaccordance withthefollowing code:
Blue Neutral
Brown Live
Asthecoloursofthewires inthemainsleadofthisappliance may notcorrespond withthe
colouredmarkingsidentifying theterminalsinyour plug, proceedas follows:
ThewirewhichiscolouredBLUE mustbeconnectedtotheterminal intheplug whichismarked
withtheletterNor colouredBLACK.
ThewirewhichiscolouredBROWNmustbeconnectedtotheterminal intheplug whichis
markedwiththeletterLor colouredRED.
Underno circumstances shouldeitherofthese wires beconnectedtotheearthterminal ofthe
three pinplug, markedwiththeletterE or theEarthSymbol.
2.2.2. Beforeuse
remove theConnector Coveras follows.
5

2.2.3. Howtoreplace theFuse
1. RemovetheFuse Coverwithascrewdriver.
2. Replace thefuse and attachtheFuse cover.
3. HOWTO REPLACE THE LITHIUMBATTERY
(PROCEDURE)
1. RemovetheSideCase (L)C.B.A.. (RefertoDisassembly
Procedures.)
2. UnsoldertheLithiumBattery“ML-621S/F9D”and thenreplace the
new one. (See Fig. B1.)
3. Dangerofexplosion ifbatteryisincorrectlyreplaced. Replace only
withthesameorequivalenttype.
Fig. B1
Note:
Thelithium batteryisacritical component. (TypeNo.:ML-621S/F9DManufacturedbyPanasonic.)
Itmustneverbesubjectedtoexcessive heator discharge.
Itmustthereforeonlybefittedinequipmentdesignedspecificallyfor itsuse.
Replacementbatteries mustbeofthesametypeand manufacture.
They mustbefittedinthesamemannerand location as theoriginal battery, withthecorrect
polaritycontactsobserved.
Donotattempttore-chargetheoldbatteryor re-use itfor anyotherpurpose.
Itshouldbedisposedofinwasteproductsdestinedfor burial ratherthanincineration.
6

4. ADJUSTMENTPROCEDURES
4.1. DISASSEMBLEFLOWCHART
Thisflowchartindicates thedisassemblystepsthecabinetparts, C.B.A. and Mecha. Unitinorder
toaccess tobeserviced. Whenreinstalling, perform thestepsinthereverse order.
Fig. F1
7

4.2. DISASSEMBLYPROCEDURES
Flow-Chartfor DisassemblyProcedure
8

No. Item / Part Fig. Removal
(Screw,Connector,Flex. &
Other)
1 FrontUnit Fig.
D2 2-Screws(A), 1-Screw(B)
Remove GripBeltPiece.
Fig.
D3 1-Screw(C), 1-Screw(D), 1- Screw(E)
Fig.
D4 1-Connector FP4801
FrontUnit
2 SideCase
(R) Unit Fig. D5 1-Screw(F), 2-Screws(G)
Fig.
D6 1-Screw(H)
3-ConnectorsFP601,
FP3401, FP6503
SideCase (R) Unit
3Camera
LensUnit Fig. D7 1-Screw(I)
2-Connectors
FP701,PS201
CameraLensUnit
4 EVFUnit Fig.
D8 1-Screw(J)
Fig.
D9 1-Screw(K)
2-ConnectorsFP603,FP3402
EVFUnit
5 Sub C.B.A. Fig.
D10 2-Connectors FP4002,PS3001
Sub C.B.A.
6RearCase
Unit Fig. D11 1-Screw(L), 1-Screw(M), 1- Screw(N)
2-ConnectorsFP1001,FP6502
RearCase Unit
7Main
C.B.A. Fig. D12 8-Connectors
FP2201,FP2202,FP2203,FP2204,
FP5001,
FP6501,FP6504,FP6505
1-Screw(O)
Remove <b>
MainC.B.A.
8Mecha.
Unit Fig. D13 3-Screws(P)
Mecha. Unit
9Jack
C.B.A. Fig. D14 2-Screws(Q), 1-Screw(R)
Jack C.B.A.
9

No. Item / Part Fig. Removal
(Screw,Connector,Flex. &
Other)
10 Front
C.B.A. Fig. D15 <GS200>
2-Screws(S), 1-Screw(T), 1-
Screw(U)
2-ConnectorsFP7001,FP7002
FrontC.B.A./FlashSWC.B.A.
<GS120>
3-Screws(S)
FrontC.B.A.
11 LCD Unit Fig.
D16 1-Screw(V)
Fig.
D17 3-Screws(W)
RearCover
Fig.
D18 2-Screws(X)
LCD Unit
12 Monitor
C.B.A. Fig. D19 2-Screws(Y)
6-Tabs
1-Connector FP904
LCD Case (Upper)
Fig.
D20 1-Connector FP901
Monitor C.B.A.
13 SDHolder
C.B.A. Fig. D21 1-Screw(Z), 1-Screw(a)
1-Connector FP6601
4-Tabs
SDHolderUnit
*Paying attention toSD
opening SWinthecase of,
assembling the
SDholderunitisinstalled, in
thecondition whereopened
theSDdoor.
Fig.
D22 1-Screw(b)
SDDoor Unit
Fig.
D23 SDSlideLink/SDHolder
Fig.
D24 SDSupportPlateUnit/SD Door Spring/SDSlideCover
Fig.
D25 SDHolderC.B.A.
10

No. Item / Part Fig. Removal
(Screw,Connector,Flex. &
Other)
14 EVFC.B.A. Fig.
D26 Tape
Fig.
D27 4-Screws(c)
EVFUNIT(1)
Fig.
D28 2-Screws(d)
EVFHinge
Fig.
D29 Pushing AdepartmentI remove theViewADJ. Unit.
Fig.
D30 Remove a,b,c,ddepartment( remove a, bdepartment
previously)
EVFCase (Upper)
Remove e,fdepartment
EVFLCD Unit
Fig.
D31 2-ConnectorsFP801,FP802
Remove g,hdepartment
EVFC.B.A.
Fig. D1
Fig. D2
11

Fig. D3
Fig. D4
12

Fig. D5
Fig. D6
13

Fig. D7
Fig. D8
14

Fig. D9
Fig. D10
15

Fig. D11
Fig. D12
16

Fig. D13
Fig. D14
17

Fig. D15
18

Fig. D16
19

Fig. D17
Fig. D18
20
