Panasonic OmniMovie PV-S445 User manual

MoviE SYSTEM
Accessories for
whatever
you would like to do!
TO REMOTE
CONTROL
POWER SUPPLY
----______,
TO MONITOR
AUDIO
AC Adaptor
8f?
~~~g-In
AC Adaptor
(optional)
Battery Pack
c~
Car Battery
Cord
(optional)
FOR VIDEO DUBBING/ ----______,
RE-RECORDING
(VIDEO/AUDIO DUBBING)
~ +
OR
~
AC Adaptor Ll ----,.~--~~
+
+
OR
( ~I
VCR
WARNING:
(not supplied) \
I
FOR AUDIO DUBBING -----,
+
~ OR
Super Directional
Microphone
(optional) Tape Recorder
or
Component Audio System
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
CAUTION: •
TO PREVENT FIRE OR SHOCK HAZARD AND ANNOYING INTERFERENCE, USE THE RECOMMENDED
ACCESSORIES ONLY.
Your Movie is designed to record
and play back in SP mode only. Your Movie will not perform normal playback
for programs pre-recorded
in LP or SLP mode.
Only use
those tapes with the lVI-lSI or ::::0015] mark. It is recommended that only cassette tapes that
have been tested and inspected
for use in VCR machines with the rm5l and/or ~ mark be used.
This S-VHS Movie is equipped with recording
functions for both conventional :vi-lS I and $IW5l systems
to enable users to select either mode. An $[VHSJ cassette recorded in the $MI5l mode cannot be played
back with
rm5] VCRs.
- 1-
-

PV-S445
TO MONITOR VIDEO/AUDIO -------------.
AC Adaptor
---
Choice of Power
Supply +
~-
TO TRANSPORT ----.,
System Carrying Case
~ (optional)
~
~h~uJder
Strap·
CAl!TlON: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
+ .JB + ~-[CJ
+
+
+
5-VHS Monitor/
Receiver TV
b-CJ
TV with no
video/audio in
terminals
-
OR-CJ
~_j
TV with
video/audio in
terminals
Tuner Adaptor {optional)
OR
TV with
VCR
OR
''\
video/audio out terminals
This symbol warns the user that uninsulated voltage
within the unit may have sufficient magnitude to cause
electric shock. Therefore, it is dangerous to make any
kind of contact with any inside part of this unit.
This symbol alerts the user that important literature
concerning the operation and maintenance of this unit
has been included. Therefore, it should be read
carefully
in order to avoid any problems.
-2-

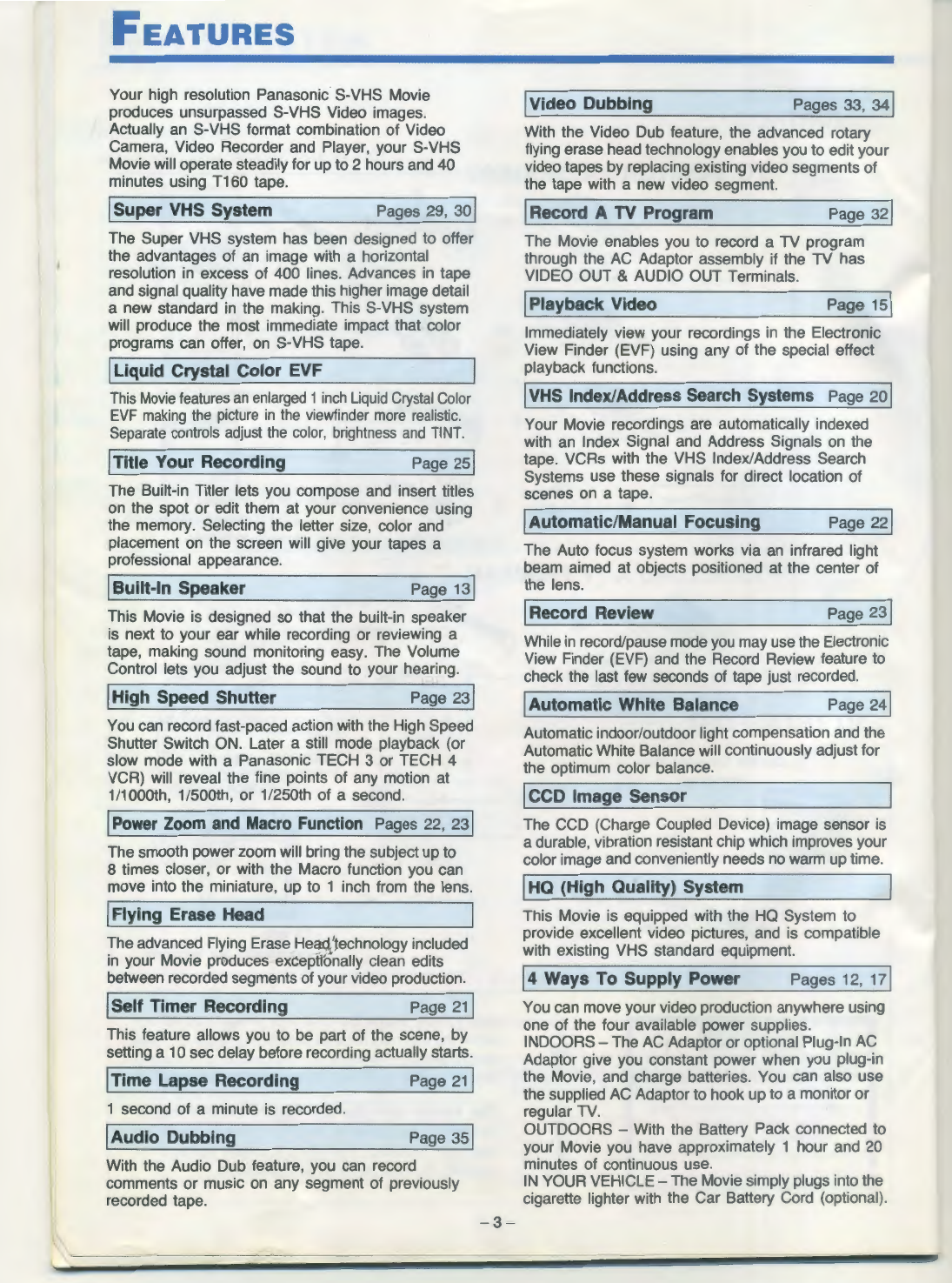

FEATURES
Your high resolution Panasonic S-VHS Movie
produces unsurpassed S-VHS Video images.
Actually
an S-VHS format combination of Video
Camera, Video Recorder and Player, your S-VHS
Movie will operate steadily for up to 2 hours and 40
minutes using T160 tape.
ISuper VHS System Pages 29, 30I
The Super VHS system has been designed to offer
the advantages of
an image with a horizontal
resolution
in excess of 400 lines. Advances in tape
and signal quality have made this higher image detail
a new standard
in the making. This S-VHS system
will produce the most immediate impact that color
programs can offer,
on S-VHS tape.
ILiquid Crystal Color EVF
This Movie features an enlarged 1 inch Liquid Crystal Color
EVF making the picture in the viewfinder more realistic.
Separate controls adjust the color, brightness and TINT.
ITitle Your Recording Page 251
The Built-in Tiller lets you compose and insert titles
on the spot or edit them at your convenience using
the memory. Selecting the letter size, color and
placement
on the screen will give your tapes a
professional appearance.
IBuilt-In Speaker Page 131
This Movie is designed so that the built-in speaker
is next to your ear while recording or reviewing a
tape, making sound monitoring easy. The Volume
Control lets you adjust the sound to your hearing.
IHigh Speed Shutter Page 231
You can record fast-paced action with the High Speed
Shutter Switch ON. Later a still mode playback (or
slow mode with a Panasonic TECH 3 or TECH 4
VCR) will reveal the fine points of any motion at
1/1000th, 1/500th, or 1/250th of a second.
I Power Zoom and Macro Function Pages 22, 231
The smooth power zoom will bring the subject up to
8 times closer, or with the Macro function you can
move into the miniature, up to 1 inch from the lens.
IFlying Erase Head
The advanced Flying Erase He~technology included
in your Movie produces exceptionally clean edits
between recorded segments
of your video production.
ISelf Timer Recording Page 21l
This feature allows you to be part of the scene, by
setting a 10 sec delay before recording actually starts.
ITime Lapse Recording Page 21l
1 second of a minute is recorded.
IAudio Dubbing Page
351
With the Audio Dub feature, you can record
comments or music
on any segment of previously
recorded tape.
-3-
IVideo Dubbing Pages 33,
341
With the Video Dub feature, the advanced rotary
flying erase head technology enables you to edit your
video tapes by replacing existing video segments of
the tape with a new video segment.
IRecord A TV Program Page 321
The Movie enables you to record a TV program
through the AC Adaptor assembly if the
TV has
VIDEO OUT & AUDIO OUT Terminals.
IPlayback Video Page 1sl
Immediately view your recordings in the Electronic
View Finder (EVF) using any of the special effect
playback functions.
I VHS Index/Address Search Systems Page 20I
Your Movie recordings are automatically indexed
with
an Index Signal and Address Signals on the
tape. VCRs with the VHS Index/Address Search
Systems use these signals for direct location of
scenes on a tape.
IAutomatic/Manual Focusing Page 22l
The Auto focus system works via
an infrared light
beam aimed at objects positioned at the center of
the lens.
IRecord Review Page 231
While in record/pause mode you may use the Electronic
View Finder
(EVF) and the Record Review feature to
check
the last few seconds of tape just recorded.
IAutomatic White Balance Page 241
Automatic indoor/outdoor light compensation and the
Automatic White Balance will continuously adjust for
the optimum color balance.
Iceo Image Sensor
The CCD (Charge Coupled Device) image sensor is
a durable, vibration resistant chip which improves your
color image
and conveniently needs no warm up time.
IHQ (High Quality) System
This Movie is equipped with the HQ System to
provide excellent video pictures,
and is compatible
with existing VHS standard equipment.
14 Ways To Supply Power Pages 12, 171
You can move your video production anywhere using
one of the four available power supplies.
INDOORS- The AC Adaptor or optional Plug-In AC
Adaptor give you constant power when you plug-in
the Movie, and charge batteries. You can also use
the supplied
AC Adaptor to hook up to a monitor or
regular TV.
OUTDOORS -With the Battery Pack connected to
your Movie you have approximately 1 hour and
20
minutes of continuous use.
IN YOUR VEHICLE- The Movie simply plugs into the
cigarette lighter with the Car Battery Cord (optional).

TABLE OF CONTENTS
INTRODUCTION
Your Movie is designed to help you make video
recordings even if you have never used a movie
camera before. This means that, except for making
a selection or two, all of the recording conditions will
be taken care of automatically. With this manual you
will find it easy to become familiar with your Movie
and enjoy it under a wide range of recording
conditions.
-4-
PV-S445
TABLE OF CONTENTS
MOVIE SYSTEM ..... . ... ...... ....... . . .
FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . 4
DESCRIPTION
OF CONTROLS . . . . . . . . . . . . . 5
ADJUSTMENTS FOR EASY HANDLING . . . . . .
11
PREPARATIONS .... . .. . . . ..... . .. . .... . . 12
CAMERA RECORDING . .. . .. . .. . ... ....... 13
PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
POWER SUPPLY . . . . . . . . . . . . . . . . . . . . . . . . 17
HELPFUL HINTS . . . . . . . . . . . . . . . . . . . . . . . . .
18 -
USEFUL FEATURES . . . . .. . . .. ...... . . .. . . 19
TITLE YOUR RECORDINGS . . . . . . . . . . . . . . . 25
SUPER VHS SYSTEM .
........... ... . . ... 29
TO MONITOR YOUR RECORDINGS . . . . . . . .
31
TO RECORD A TV PROGRAM .... . . . . . ·. . . . 32
VIDEO DUBBING 33 -
AUDIO DUBBING . . . . . . . . . . . . . . . . . . . . . . . . 35
RE-RECORDING
(VIDEO/AUDIO DUBBING)
..... . . ...... . . . . 36
NOTES ON OPERATIONS
... . . .. .. . .. . .... 37 ..
CLEANING CARE FOR VIDEO HEADS . . . . . . 38
BEFORE REQUESTING SERVICE . . . . . . . . . . 39
SPECIFICATIONS .
.. . .. . . . . . ... . . ........ 40
WARRANTY . .
.... . .... ... .. . ... ..... .. . . 41
ACCESSORIES .... ....... . ... . .. . Back Cover

DESCRIPTION OF CONTROLS
FRONT VIEW
• BACKLIGHT BUTTON
• TALLY
LIGHT---,.
• FADE BUTTON-- ....
• ZOOM LEVER----.
• MACRO BUTTON
(ON ZOOM LEVER)
• LENS FOCUS RING
• LENS HOOD
--------.
• DISTANCE DETECTION
WINDOW
• FOCUS
SWITCH--------/
(WITH PUSH-TO-
FOCUS BUTTON)
• DISPLAY
BUTTON---------...
• COLOR BUTTON-------,
I
" ):;1.i
• S-VHS INDICATOR---- +- ---......_
,------ .... COLOR CONTROL
~-----TINT CONTROL
r--- - -- BRIGHT CONTROL
~ --- FUNCTION CONTROL
PANEL (P.8)
BUlLT-IN SPEAKER
BUlLT-IN SPEAKER
VOLUME CONTROL
ELECTRONIC
VIEWFINDER (EVF)
TITLE KEYBOARD
EVF CONNECTOR
~~ ----l: :........e HIGH SPEED SHUTTER
SWITCH
~-fF"="""'--71- -- .... WHITE BALANCE SWITCH
....._ ___ _.SELF TIMER SWITCH
'--------RECORD REVIEW
BUTTON
'------- RESET BUTTON
'-------COUNTER DISPLAY/
MEMORY/LAP TIME (D/M/L)
BUTTON
SET BUTTON
SELECT BUTTON
DATE/TIME BUTTON
• S-VHS SELECTOR
---- ~==============::::::; -r---- -_J
SWITCH
-5-

FRONT VIEW
• BACKLIGHT BUTTON
Press this button while recording your subject and
the lens opening will automatically compensate for
high contrast lighting conditions.
• TALLY LIGHT
The red tally light alerts those being recorded that
recording is
in progress.
• FADE BUTTON
When this button is pressed, the picture
in the
viewfinder and
on the tape will fade out. When the
button
is released, the picture will automatically
fade
in .
• ZOOM LEVER
Use this lever to zoom
in and out on your subject.
• MACRO BUTTON (ON ZOOM LEVER)
Used to unlock the Zoom Lever
so it moves into
the far left Macro position to get close-up images.
• LENS FOCUS RING
Rotate this ring to focus the picture manually.
• LENS HOOD
Shields camera lens and accepts lens cap.
Remove this hood to attach optic filters.
• DISTANCE DETECTION WINDOW
This window
is used to detect subject-to-camera
distance for Auto Focus.
• FOCUS SWITCH (WITH PUSH-TO-FOCUS
BUTTON)
Use the "AUTO" position for constant auto focus.
In the "MANUAL" position the focus remains fixed
until
you manually adjust the Focus Ring , or use
the Push-To-Focus Button.
• DISPLAY BUTTON
When
ON, titles can be displayed and recorded.
The page number
is displayed in the upper right
corner. While recording the page number indication
will disappear. Press this button to obtain the
DISPLAY mode. To release from the DISPLAY
mode, press this button again.
• COLOR BUTTON
Press this button to select one of 8 colors
(White- Yellow- Cyan- Green- Magenta-
Red -Blue -Black) for the title when it is displayed.
• PAGE UP/DOWN BUTTONS
Press this button to select the/,pages either up or
down when the titles are displayed. Pages without
titles will
be skipped automatically.
• S-VHS INDICATOR
The S-VHS INDICATOR will light up:
1) During S-VHS tape playback.
2) To indicate the S-VHS Selector Switch is "ON",
when the power comes
on.
3) To indicate a S-VHS Standard recording is being
made with S-VHS tape, while the S-VHS
Selector Switch is "ON".
• S-VHS SELECTOR SWITCH
Normally set to "ON".
Set to "OFF" for conventional VHS recording
on
S-VHS tape.
-6-
PV-S445
• COLOR CONTROL
This control lets you adjust the intensity of the
colors
in the EVF.
• TINT CONTROL
This control lets you adjust for the most natural
fleshtones
in the EVF.
• BRIGHT CONTROL
This control lets you adjust the brightness of the
picture.
•
BUll T-IN SPEAKER
To monitor sound during playback or record place
your ear up to the speaker. Check the volume level
and adjust to a comfortable level.
•
BUll T-IN SPEAKER VOLUME CONTROL
To increase or decrease the level of sound from
the speaker. This control will not affect the audio
level recorded on the tape.
• ELECTRONIC VIEWFINDER (EVF)
• TITLE KEYBOARD
To compose and insert titles onto a recording use
this keyboard as described on pages 25-28.
• EVF CONNECTOR
For connecting the Electronic Viewfinder.
• HIGH SPEED SHUTTER SWITCH
Used for a clear image replay of high speed moti
on
in Still or Slow mode.
• WHITE BALANCE SWITCH
The White Balance Switch
in "AUTO" will
automatically maintain the optimum color balance
in either the indoor or outdoor range of lighting
conditions.
• SELF TIMER SWITCH
Selects a time delay before recording or selects a
time lapse recording. See page
21 for details.
• RECORD REVIEW BUTTON
Press this button to review the last few seconds of
your recording.
• RESET BUTTON
Resets the Tape or Lap Time Counter.
• COUNTER DISPLAY/MEMORY/LAP TIME (D/M/L)
BUTTON
Used to display the battery charge status, Tape
Counter, Lap Time Counter and clear these
displays
on the EVF.
• SET BUTTON
Used to set the date or time
in clock mode.
• SELECT BUTTON
Used to select the date or time
in clock mode.
• DATE/TIME BUTTON
Used to select the date/time display or date display.

DescRIPTION OF CONTROLS (CONTINUED}
REAR VIEW
,-----------STRAP ATTACHMENT RINGS
.-----------.ACCESSORY MOUNT
Convenient mounting for the optional Super
Directional Microphone or lights.
.--- - - -- --. EXTERNAL MICROPHONE JACK
To connect
an external microphone. The built-in
microphone
is automatically disconnected when an
external microphone is plugged in.
1-- ----• BUll T-IN MICROPHONE
r----e POWER ZOOM SWITCH
Used to "zoom-in" with Telephoto ("T") or "zoom-
out" with Wide Angle ("W").
~~~~~ ---• RECORD/PAUSE BUTTON
Used to start or pause camera recording.
"'--------. CASSETTE COMPARTMENT
"'-------e TRACKING CONTROL
If visual interference appears in the playback
picture, use this control to obtain the clearest
picture.
'------e REMOTE JACK
Connect the Wired Remote Control here.
'-------e EARPHONE JACK
An optional earphone plugs in here to monitor the
sound being recorded or played back.
'-------e BATTERY EJECT BUTTON
To eject the Battery Pack.
'------ S-VIDEO INPUT CONNECTOR
(DIN CONNECTOR)
For S-VIDEO input connection from another S-VHS
VCR or a S-VHS Movie.
'-----e S-VIDEO OUTPUT CONNECTOR
(DIN CONNECTOR)
For S-VIDEO output connection to a TV with
S-VIDEO input connector or another S-VHS VCR.
~----e BATTERY COMPARTMENT
-7-
Insert a Battery Pack, the optional Plug-In AC
Adaptor or the optional Car Battery Cord to use as
the power supply.

PV-S445
..................................................................... _
FUNCTION CONTROL PANEL
r---- ..... EJECT BUTTON
Press this button to insert or to remove a cassette.
,----- ..... PAUSE/STILL BUTTON
Use this button to pause
in Play or VCR Recording mode.
'----- RECORD BUTTON AND INDICATOR
Use to record TV programs through the
AC Adaptor
Video-in and Audio-in terminals. Press the RECORD and
PLAY buttons simultaneously
on your Movie. See page 32
for details.
'---- ..... DUB BUTTON AND INDICATOR
Use this button when doing either Audio or Video Dubbing
with the Movie. (See pages
33 and 35.)
'----- VCR/CAMERA SELECTOR SLIDE
VCR MODE: Place this slide completely
in the "VCR"
position (towards the lens) to select VCR
functions.
CAMERA MODE: Place this slide completely
in the
"CAMERA" position (away from the
lens) to select Camera functions.
-8-

DESCRIPTION OF CONTROLS (CONTINUED)
UNDERSIDE
..--------------- EVF VISION ADJUSTMENT LEVER
Adjust to your eyesight to assure good focus.
Be sure
to adjust when shooting for the first time or after
another person has used your Movie.
ri=Fnff~~'-- --------. CLOCK/TITLER BATIERY COMPARTMENT
Insert two batteries into this holder. The batteries must
be inserted in order for the date/time and title to be
kept in memory.
,-----e HAND STRAP
This strap can
be adjusted to the size of your hand.
~-LENS CAP
Can
be attached to hand grip with built-in clip.
-9-

PV-S445
....................................................................
AC ADAPTOR
.--------e CHANNEL 3/4 SWITCH
Set
to channel 3 or 4, whichever is not used for TV broadcast in your area,
or provides the best picture during playback.
.---------e VIDEO OUTPUT CONNECTOR
For connection to a video input connector
on a monitor TV or VCR.
~ ~-- ::::::.,.. o:-----e AUDIO OUTPUT CONNECTOR
For connection to
an audio input connector on a monitor TV, VCR, or an
audio tape recorder.
INPUT SIGNAL SELECTOR
IN VCR MODE: Position-
Video signal-
Audio signal-
CAMERA LINE
No display Video-In
Microphone Audio-In
IN CAMERA MODE: Your Movie normally operates with video from the
camera and audio from the microphone, regardless of
selector position.
'-----e CHARGING INDICATOR LAMP
Lights while the Battery Pack
is charging. After charging, this light will go off.
.____ ... POWER INDICATOR LAMP
This indicator lights up when the
AC Power Plug of the AC Adaptor is
connected to an AC outlet.
.___ ____ BATTERY CHARGING COMPARTMENT
For charging a Battery Pack.
'--------e AUDIO INPUT CONNECTOR
For connection from
an audio output connector on another VCR, TV, or
other Audio Source.
'---------e VIDEO INPUT CONNECTOR
For connection from a video output connector
on another VCR, or TV, to
record a TV program.
....-----e VHF ANTENNA INPUT TERMINAL
Connect the
VHF antenna or cable TV cable to this terminal.
....---- VHF ANTENNA OUTPUT TERMINAL
i '
Connect this terminal to the VHF antenna terminal on the TV using the
supplied VHF Connecting Cable.
.___ _ _. AC POWER CORD
CAUTION: Operating at a voltage setting of
11 0/120/220/240V AC may require the use of a different AC plug.
Please contact either a local or foreign electrical parts distributor for assistance
in selecting an
alternate AC plug. We recommend using the accessory Power Plug Adaptor (VJSS0070) in an area
which has special
AC outlets.
-10-

ADJUSTMENTS FOR EASY HANDLING
HOW TO ADJUST THE ELECTRONIC VIEWFINDER
1. The Electronic Viewfinder will
slide forward
on its mount and
swing to the left to lock into a
right-angled viewing position.
You can remove the EVF by sliding it
completely forward. Then press the
recessed spring plate
on the underside of
the EVF and pull it completely off the
mount.
VISION ADJUSTMENT LEVER
-
2. In the locked position you may
extend or contract the EVF for
comfortable left or right eye
viewing.
To store
3. The eyepiece may be tilted 180 o
up or down.
•
In the locked viewing position extend the EVF out to clear the Microphone
Mount. Then swing the EVF forward
in line with the handle.
• Then, fully contract the EVF back to its compact position.
'---t tF- - --- Vision
Adjustment
Lever
1. When Power is ON, make contact with the EVF
eyepiece.
2. Locate the lever on the underside of eyepiece and
slide it back and forth to get a clear, focused EVF
screen display.
TO USE THE SHOULDER STRAP
1. Pinch the tabs
together
on either
side of clasp while
raising it up to expose
the buckle's catch.
Buckle
Catch
2. Unhook strap from
buckle catch.
3. Thread the shoulder
strap through the
Strap Attachment
Ring
on the Movie.
Then re-hook it onto
the buckle catch.
4. Press the clasp down
on buckle to lock.
HOW
TO ADJUST THE LENGTH OF SHOULDER STRAP
Pull a loop of the strap loose from its buckle, and then pull the strap
firmly through the buckle to adjust its length.
-11-

PREPARATIONS
TO INSERT OR REMOVE A BA TIERY
Be sure to fully charge the Battery Pack before operation.
Insert Battery Pack
• Insert the Battery Pack into the Battery
Compartment.
TO INSERT OR REMOVE A CASSETIE
Battery
Compartment
PV-S445
Remove Battery Pack
Battery Eject
Button
• Press in and down to release the
safety, then press
in further to eject
the Battery Pack.
•
Be sure that the POWER Switch
is set
to "OFF" before ejecting
Battery Pack.
The Movie may
be ON or OFF when you insert or remove a cassette.
Insert Cassette
Video Cassettes can only be used
with the window side of cassette
facing cassette door, and the arrow
pointing down.
Do not attempt to
insert a cassette which
is upside
down or backwards.
1. Press EJECT Button to
open door.
2. Insert cassette
and close
cassette door.
-12-
Remove Cassette
1. Press EJECT Button.
2. Remove a cassette and
close cassette door.
Eject
Button

CAMERA RECORDING
Try the simple trial here to become familiar with the operation of your Movie.
MAKE SURE THAT
...
• Your Movie is connected to a power source (Battery Pack, AC Adaptor, or Car Battery Cord).
• The Power is
ON.
• A cassette with record tab is inserted.
2
4
1 Set S-VHS SELECTOR to 2 Place the VCR/CAMERA
ON. ~
Selector Slide in the
' . ' "CAMERA" position.
When conventional
VHS recording
is made with S-VHS tape, set
S-VHS SELECTOR to OFF
(page
29) .
-13-
BUILT-IN SPEAKER and VOLUME
CONTROL
To monitor the sound, put your ear
against the speaker while
recording, adjust the sound with
the Volume Control.
When your Movie is
turned
on, the image
from
the lens
appears.
3 Set the WHITE BALANCE
Switch to "AUTO" for
normal lighting.
"INDOOR" or "OUTDOOR" are for
special color conditions (page
24) .

PV-S445
AUTOMATIC EASY EDIT STANDBY
If you stop recording, but plan to resume within 24 hours, you can leave the cassette
in the Movie. Simply shut
the Movie off at the Movie's power switch after your recording is completed. This allows the Easy Edit feature
to make a smooth transition between one scene and the next. After 24 hours, the tape will retract into the cassette,
making automatic editing impossible. For manual editing, see page 24 under "EASY EDITING".
4 Set the FOCUS Switch to
I
"AUTO".
-,' L'
~
With the power ON ,the Auto Focus
system will function continuously
whenever Camera mode
is
selected.
EARPHONE Jack- Connect the earphone
(not supplied) to the
earphone jack for
monitoring the sound
track as it is being
recorded or played
back.
5 Press the RECORD/PAUSE 6 Press the RECORD/PAUSE
Button to start recording. Button again to pause.
The
REG Indicator will appear and After 5 minutes, pause mode will
the Tally Light will flash while automatically go into standby mode,
recording is
in progress. to conserve battery power.
Index/Address marks will be placed
In Record/Pause, press the EJECT
on the tape automatically (page 20). Button to remove the cassette.
-14-
-

PLAYBACK
You can play back your Movie recordings immediately on the Viewfinder by following the steps given below.
You may also play back your Movie recordings directly to a monitor or TV.
MAKE SURE THAT ...
• Your Movie is connected to a power source (Battery Pack, AC Adaptor, or Car Battery Cord).
• The Power
is ON.
• A cassette is inserted.
BUILT-IN SPEAKER and VOLUME CONTROL
FF/SEARCH
PAUSE/STILL
1 Place the VCR/
~ Press the REWIND 3 Press the PLAY 4 Press the STOP
CAMERA Selector ,,, Button Button Button
Slide
in the VCR . '
to rewind the tape to to view the recorded to stop playback.
position. the desired location. picture.
-If viewing playback
on
the EVF, adjust the
sound with the built-in
Speaker Volume
Control.
-15-

PV-S445
If noise appears in the picture when playing back a
pre-recorded tape or taped sections recorded
on other
machines, adjust this control to move the noise out of
the picture. The normal position is automatically reset
when both controls are pressed together or a cassette
tape is inserted.
SPECIAL EFFECTS IN PLAYBACK MODE (SOUND IS MUTED)
TO RAPIDLY LOCATE A PARTICULAR SEGMENT TO VIEW A STILL PICTURE
• Hold down the SEARCH Button. • Press the PAUSE/STILL Button.
A rapid forward or reverse visual search picture appears A freeze frame picture of the playback image appears.
while holding·down the button. • Press the button once more.
SEARCH SPEED
I SP Search is about 3 times normal speed I This releases the still and playback continues.
-16-
•
I
I

PowER suPPL v
A. AC ADAPTOR (SUPPLIED)
Adaptor
Connector
Power Indicator Lamp
1. Turn Power OFF to connect.
2. Attach the Adaptor Cable of the AC Adaptor to the
Adaptor Connector of your Movie.
3. Connect the AC Power Plug to an AC outlet.
Power Indicator lights up.
HOW
TO CHARGE A BATTERY PACK
B. CAR BATTERY CORD (OPTIONAL)
Battery
Compartment
Cigarette Lighter Plug
1. Turn Power OFF to connect.
2. Insert the Car Battery Cord into the Battery
Compartment
on your Movie.
3. Take the lighter out of its socket.
4. Start the car engine and insert the cigarette lighter
plug of the Car Battery Cord into the socket. For
fuse
(in plug) replacement, use the exact current
rating (Amps).
Your
AC Adaptor can be used to charge one Battery Pack in either of the two ways shown below, or both methods
can
be used together to charge two Battery Packs at the same time.
CHARGING DIRECTLY
ON THE AC ADAPTOR
Power Indicator Lamp
Charging Indicator Lamp
1. Connect the AC Power Plug of the AC Adaptor to
an AC outlet. Power Indicator lights up.
2. Place the Battery Pack in the AC Adaptor as
illustrated here.
J
~'
·'
CHARGING DIRECTLY IN THE MOVIE
1. Be sure to turn your Movie OFF.
Battery Charging will not take place if your Movie
is
ON.
2. Attach the Adaptor Cable of the AC Adaptor to
Adaptor Connector of your Movie.
3. Connect the
AC Power Plug of the AC Adaptor to
an AC outlet. Power Indicator lights up.
4. Insert the Battery Pack as illustrated above.
• The Charging Indicator will light during charging. When charging is finished, the Charging Indicator light will
go out.
• A Battery Pack should charge
in about 1 hour and 50 minutes.
•
If you charge two Battery Packs at the same time, they should charge together in about 3 hours and 40 minutes.
-17-

HELPFUL HINTS
PV-S445
A WORD ABOUT CASSETTES
A TYPES OF VIDEO CASSETTE -Use types with the MI5J or SIVUSI mark in this unit.
Tape Speed Maximum Record/Playback Time
T160 I T120 I T60
SP (Standard Play) 2 Hours 40 Minutes I 2 Hours I 1 Hour
•1 B. ERASE PROTECTION -Cassettes have a record tab to ensure that recordings are not accidentally erased.
• To prevent accidental erasure
~ . ~
~
Break off the tab with a screwdriver
• To record again
~ · ;~
Cover the hole with cellophane tape
EVF INDICATIONS- These indications will not be recorded on the tape.
OPERATION MODE INDICATION
_'l_
\ ,
~
'----
'-
•
FF
REW
l 1
1 1
•These indications will
appear
in Camera/VCR
mode.
recording in progress
record/pause mode
/Camera recording
In progress
• These indications will
appear
in the VCR mode.
v. oua ----+- VIdeo Dub mode
TAPE WARNING INDICATION
' I ~
- TAPE -
, I '
S-VHS INDICATION
•
If the record tab is
missing, this indicator will
flash
and no recording will
start.•
• This indicator will appear
to indicate the S-VHS
Selector Switch
is "ON"
when the power comes
on, or to indicate the
S-VHS Standard recording
is being made with S-VHS
tape, while the S-VHS
Selector Switch
is "ON".
BATTERY REMAINING INDICATION
E----F
E--- F
E-- F
E- F
..., ' I ~
-E- F-
.,/ I '....,
...., ' I / -
-BATTERY -
-/ I '....,
DEW INDICATION
-18-
' I ~
- DEW -
, I '
• When the Battery Pack is
fully charged,
"E---- F" appears.
•
As battery charge is
consumed, the indicator
changes:
"E--- F ",
"E--
F"'
"E- F ".
• "E-
F" will flash for
several minutes and then
"BATTERY" will flash for
several seconds prior to
automatic power shut off.
When this happens, a
battery recharge
is
necessary.
•
If excessive moisture
condenses
in the unit, it
will not operate. This
indicator will flash for
several seconds and the
Movie will automatically
turn OFF.
In this case,
wait until the indicator
no
longer flashes when your
Movie
is turned on again.

UsEFUL FEATURES
DATE/TIME DISPLAY AND TITLER
'
I
I
I
I
® BR1225 Battery for
Character Generator.
Insert ® side
up.
[] _-_ - _-_
-
OFF
ON
-
Bottom
® LR1130 Battery for
DATE/TIME Display.
Insert ® side
up .
DATEITlME _,----,
COUNTER
0 SEL SET
I 0 0
DJM !L A
MM
When the battery is not installed
or installed improperly or the
battery is discharged, "PLEASE
CHECK BATTERY" appears.
'
_,
The DATE/TIME display and the TITLER require different types of batteries.
Follow the instructions below to install each type
in its place. Once the DATE/
TIME display battery is installed, the auto date function will calculate the date
and time (including leap year) up to Dec 31 , 1999. This function is powered
by the battery even when the power is off.
INSTALLING THE BATTERIES
1. Unscrew the panel lock screw by turning it counterclockwise and slide the
battery cover off the Movie.
2. Install one small, thick LR1130 type battery for the DATE/TIME displays
and one wider, thinner BR1225 type battery for the Character Generator
as shown at left.
3. Fit the battery cover onto the battery compartment and slide it closed.
Insert the panel lock screw turning it clockwise.
NOTE:
• Make sure that your Movie power is off before replaci
ng the batteries.
• Keep the batteries out of the reach of little children since swallowing a battery
may be harmful. When replacing the battery,
be sure to use the same type
of battery (LR1130, BR1225 or the equivalent.)
TO DISPLAY THE DATE AND TIME
Turn your Movie
on and look into the EVF. By pressing the DATE/TIME Button,
the date & time or date
can be displayed as follows:
DPress
DATE/
TIME
Button
Press D Press
DATE/ DATE/
TIME "' · 1
1117
TIME
'-------___./ Button Button
All12 : 00
JAM . 1 1117
The selected DATE and TIME mode will be saved when the power is turned OFF.
TO SET THE DATE AND TIME
The Date
and Time display may be set in Record/Pause or Stop mode and
then recorded as
an overlay in a recording when the display is on .
1. Press the DATE/TIME Button. "AM 12:00 JAN. 1 1987" appears.
2. Press the SELECT Button. "AM12" flashes.
3. When the SELECT Button is pressed, the flashing portion displayed will
change
in the following sequence shown below.
4. When the SET Button is pressed, the flashing portion will change in the
following sequence:
SET CLOCK
--------------------,
@ PRESS SELECT
BUTTON
@ PRESS SET BUTTON
HOUR : AM12 -+ AM1 .... AM11 -+ PM12 1
t PM11 PM1 .___.J
MINUTE: op -+ 01 -+ 02 . 58 -+ 59 "]
MONTH: Jt N -+FEB ...... NOV -+ OEC "]
DAY: l -+ 2 . . . . . . . . . . . . . 30 -+ 31 ~
YEAR: 1987 -+ 1988
t
....... 2086 ~
@ PRESS SELECT
BUTTON
AFTER SETTING
5. When all changes have been made, press the SELECT Button again to
lock in the new Date and Time_
NOTE:
•
If the SET Button is held down the displays will advance rapidly.
• When adjusting the date
and time for the first time, " AM 12:00 JAN. 1 1987"
appears indicating the clock needs adjustment. Battery li
fe is around 1 year_
-19-
