Panasonic CQDF402U - AUTO RADIO/CD DECK User manual

Panasonic.
Removable Full Frant GD Player/Recever wih CD Changer Control
Lecteur CO/recepteur avec panneau avant
amovible el contrôle de changeur CO
Hapreductor de CD'Receptor con Controlador de
Cambiador de CD y Frente Complete Desmontable
CO-DF402U
Removable: Full Front CD Player Rovcelver
(CQ-DF402U)
Lecteur CD'récepteur avec panneau avant amóvible
Reoroductór de CO'Receptar y Frente Complete Desmontable
CQ-DFX302U
Operating Instructions
Manuel d'instructions
Manual de instrucciones
è Please read Mese inaltuctions caretilly before isi ts product and save thie manual for futura use
æ Prière de lire tes instructions attantivament event Œutilser le produit et garder ce manual pour Putllsaton ultérieurs
è Les con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en et future,

Safety Information
Radio Frequency Interference Statement (Part 15 of the FCC Rules): |
Applies only in U.S.A.
This equipment has been tested and found to comply with the limits for a Class B digital, pursuant to
Part 15 of the FCC Rules.
o These limits are designed to provide reasonable protection against harmful interference in an automo-
bile installation. This equipment generates, uses, and can radiate radio frequency energy and, if not in-
stalled and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installa-
tion. If this equipment does cause harmful interference to radio reception, which can be determined by
turning the equipment off and on, the user is encouraged to consult the dealer or an experience radio
technician for help.
FCC Warning:
Any unauthorized changes or modifications to this equipment would void the user's authority to operate
this device.
This device complies with Part 15 of the FCC Rules:
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
xFor Canada:
This Class B digital apparatus complies with Canadian ICES-003.
WARNING:
a
TO
REDUCE
THE
RISK
OF
FIRE
OR
ELECTRIC
Label
Indication
and
Location
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
Panasonic
Model No.
N° De Modèle CO-DF402U
= en | cy ¥
4) 12v | 4-82 FM75Q
Pano a
Ez AA | Manutactured by Dalian Matsushita
i Communication Industrial Co., Ltd.
CAUTION:
“(CO-DF402U)
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, AND ANNOYING INTERFERENCE, USE
ONLY THE INCLUDED COMPONENTS.
Dalan Cha Made in China
Sera No Te
THIS PRODUCT IS A CLASS I LASER PROD- N De Série
UCT. RS
USE OF CONTROLS OR ADJUSTMENTS OR ees ere) o
PERFORMANCE OF PROCEDURES OTHER x E
THAN THOSE SPECIFIED HEREIN MAY RESULT E ———— ee ee
IN HAZARDOUS RADIATION EXPOSURE. Find the model number and serial number on either
DO NOT OPEN COVERS AND DO NOT REPAIR the back or bottom of the unit. Please record them
YOURSELF. REFER SERVICING TO QUALIFIED in the space below and retain this bookiet as a per-
PERSONNEL. manent record of your purchase to help with identi-
fication in case of theft.
Laser products: MODEL NUMBER CO-DF402U/CQ-DFX302U
Wave length: 780 nm ¡E
Laser power: No hazardous radiation is emitted SERIAL NUMBER
with safety protection. DATE PURCHASED
FROM
Cc05D5402/DFX302U

Consignes de sécurité
MISE EN GARDE:
POUR RÉDUIRE LES RISQUES D'INCENDIE OU D'ÉLEC-
TROCUTION, N'EXPOSEZ PAS CET APPAREIL À LA
PLUIE OÙ À L'HUMIDITÉ.
AFIN DE PRÉVENIR TOUT RISQUE D'INCENDIE OU
D'INTERFÉRENCES, UTILISER UNIQUEMENT LES
COMPOSANTS FOURNIS.
ATTENTION :
CET APPAREIL EST UN PRODUIT LASER DE LA CLASSE
L
L'UTILISATION DE COMMANDES OU RÉGLAGES OU
L'EXÉCUTION D'OPÉRATIONS AUTRES QUE CELLES
QUI SONT INDIQUÉES DANS CE DOCUMENT PEUVENT
RÉSULTER EN UNE EXPOSITION À UN RAYONNEMENT
DANGEREUX.
N'OUVREZ PAS LES COUVERCLES ET N'ESSAYEZ PAS
D'EFFECTUER VOUS-MÊME DES REPARATIONS.
ADRESSEZ-VOUS À UN PERSONNEL QUALIFIÉ POUR
TOUTE RÉPARATION.
Produits laser:
Longueur d'onde: 780 nm
Puissance du laser: Aucune radiation dangereuse
n'est émise avec la protection de
sécurité.
xDéclaration d'interférence de fréquences radio
(Partie 15 des Règlements FCC):
Cet appareil numérique de Classe B est conforme au
règlement NMB-003 canadien.
Informaciôn para su seguridad
ADVERTENCIA:
PARA REDUCIR EL RIESGO DE INCENDIOS O
SACUDIDAS ELÉCTRICAS, NO EXPONGA ESTE
PRODUCTO A LA LLUVIA Ni A LA HUMEDAD.
PARA REDUCIR EL RIESGO DE INCENDIOS O SACUDI-
DAS ELÉCTRICAS, Y PARA EVITAR LAS
INTERFERENCIAS MOLESTAS, UTILICE
SOLAMENTE LOS COMPONENTES INCLUIDOS.
PRECAUCIÓN:
ÉSTE ES UN PRODUCTO LÁSER DE LA CLASE 1.
LA UTILIZACIÓN DE CONTROLES, EL HACER
AJUSTES 0 EL SEGUIR PROCEDIMIENTOS DISTINTOS
DE LOS ESPECIFICADOS EN ESTE MANUAL PODRÍA
CAUSAR UNA EXPOSICIÓN PELIGROSA A LA RA-
DIACIÓN.
NO ABRA LAS CUBIERTAS NI HAGA REPARACIONES
USTED MISMO. SOLICITE LOS TRABAJOS DE SERVI-
CIO AL PERSONAL CALIFICADO.
Productos láser:
Longitud de onda: 780 nm
Potencia láser: Con protección de seguridad no se
emite radiación peligrosa.
DRE)
PO250D0)
Busque el número del modelo y el número de serie ya
sea en la parte trasera o en el fondo de la unidad. Sirvase
anotar dichos números en el espacio siguiente, y man-
tenga este librete como una anotación permanente de su
compra para ayudar en la identificación en el caso de
Il est recommandé de noter, dans l'espace prévu ci-
dessous, les numéros de modèle et de série inscrits soit
à l'arrière soit sous le fond de l'appareil, et de conserver
ce manuel comme mémorandum de l'achat afin de per-
mettre l'identification de l'appareil en cas de vol.
robo.
NUMÉRO DE MODÈLE CQ-DF402U/CQ-DFX302U NÚMERO DEL MODELO CO-DF402U/CO-DFX302U
NUMÉRO DE SÉRIE NÚMERO DE SERIE
DATE DE L'ACHAT FACHA DE COMPRA
VENDEUR NOMBRE DE LA TIENDA
605D402/DFHX302U

Panasonic welcomes you to our ever growing family of electronic product owners. We know that this prod-
uct will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical
engineering, manufactured with carefully selected components and assembled by people who take pride in
their work. Once you discover the quality, reliability, and value we have built into this product, you too will
be proud to be a member of our family.
O Use this Product Safely
When Driving
Keep the volume level low enough to be aware of
road and traffic conditions.
When Car Washing
Do not expose the product, including the speakers
and CDs, to water or excessive moisture. This
could cause electrical shorts, fire, or other damage.
When Parked
Parking in direct sunlight can produce very high
temperatures inside your car. Give the interior a
chance to cool down before switching the unit on.
Use the Proper Power Supply
This product is designed to operate with a 12 V DC,
negative ground battery system (the normal system
in a North American car).
(1 Components
o Operating instructions ….............................. 1
o Installation hardware................ 1 set (= page 19)
© Power CONNECTION sse e 1
Note:
oThis operating instruction manual is for 2 models CQ-DF402U and CQ-DFX302U. All illustrations through-
Dise Mechanism
Do not insert coins or any small objects. Keep
screwdrivers and other metallic objects away from
the disc mechanism and disc.
Use Authorized Servicenters
Do not attempt to disassemble or adjust this preci-
sion product. Please refer to the Servicenter list in-
cluding with this product for service assistance.
For Installation
This product should be installed in a horizonta! po-
sition with the front end up at a convenient angle,
but not more than 30°.
o Remote control Un... eee 1
© Lithium battery (CR2025)............................. 1
o Warranty Card... sees eee 1
out this manual represent model CQ-DF402U unless otherwise specified. The following table describes the
differences between 2 models.
Ca-DF402U
CD
changer
control
|
|
Pre-Amp
output
connector
Lead
type
NOTICE:
A Language for Manuals of Products Using LCD
This product has a fluorescent lamp that contains a small amount of mercury. It also contains lead in some
components. Disposal of these materials may be regulated in your community due to environmental con-
siderations. For disposal or recycling information please contact your local authorities, or the Electronics
Industries Alliance: <http:/Avww.eiae.org.>
CO:DF402/DEX302Û

Panasonic est heureuse de vous compter parmi les utilisateurs de ses appareils électroniques. Nous pouvons vous as-
surer que cet appareil vous procurera de longues heures d'agrément. Notre réputation est fondée sur une ingénierie
électronique et mécanique de haute précision, laquelle préside à la fabrication d'appareils ne comportant que des com-
posants de choix assemblés par un personnel soucieux de la bonne réputation acquise par la qualité de son travail.
Après avoir découvert la qualité, la valeur et la fiabilité de cet appareil, vous aussi serez fier d'être un client Panasonic.
71 Précautions à prendre
Au volant
Réglez le volume à un niveau qui ne risque pas de mas-
quer les bruits ambiants.
Lavage de la voiture
Afin de prévenir tout risque de court-circuit ou d'in-
cendie, n’exposez pas l'équipement, y compris les haut-
parleurs et les disques, à l’eau ou à une humidité
excessive.
Voiture stationnée
L'habitacle d'une voiture immobile exposée au soleil
toutes vitres fermées devient rapidement très chaud.
Laisser rafraîchir l'intérieur du véhicule avant d'utiliser
l'appareil.
Source d'alimentation
Cet appareil est conçu pour fonctionner sur un système
d'alimentation avec batterie de 12 V c.c. à masse
négative (système standard sur les voitures de construc-
tion nord-américaine).
71 Éléments constitutifs
o Manuel d'instructions... f
© Quincaillerie pour l'installation
cnrs | ENSEMDIE (> page 41}
o Connecteur d'alimentation sees 1
Remarque:
o Ce manuel a été conçu pour les 2 modèles CQ-DF402U et CO-DFX302U. Toutes les illustrations du présent manuel
Mécanisme de disque
N'insérez pas de pièces de monnaie ou de petits objets.
Gardez les tournevis et autres objets métalliques à l'écart
du mécanisme de disque et du disque.
Réparation
Ne tentez pas de démonter ou d'ajuster l'appareil vous-
même. Veuillez vous référer à la liste des centres de ser-
vice fournie avec cet appareil pour contacter le service
d'assistance.
Installation
L'appareil doit être installé en position horizontale avec
son extrémité avant inclinée vers le haut à un angle com-
mode, mais ne dépassant pas 30°.
o Télécommande ns ns: 1
o Pile au lithium (CR2025) ss eee een 1
© Carte de garantie 1
mettent en présence le modèle CQ-DF402U à moins d'indication contraire. Le tableau ci-dessous décrit les
différences entre les 2 modèles.
Caractéristiques
Modèles
Commande
de
changeur
de
CD
Connecteur de sortie préampli Type ligne Type fixe
C0:D5402/DEX302Ù
MEDDW

Panasonic le da la bienvenida a la familia constantemente en aumento de poseedores de productos electrónicos. Nos
esforzamos en proporcionarle las ventajas de la ingeniería mecánica y electrónica de precisión, de una fabricación con
componentes cuidadosamente seleccionados, y de un montaje realizado por personas orgullosas de la reputación que
su trabajo ha cimentado para nuestra empresa. Estamos seguros de que este producto le proporcionará muchas horas
de distracción y, una vez comprobada la calidad, el valor y la fiabilidad incorporados, usted también se sentirá orgul-
loso de pertenecer a nuestra familia.
O Uso de este equipo con seguridad
Cuando conduzca Mecanismo de disco
Mantenga el nivel del volumen suficientemente bajo para No inserte monedas ni ningún objeto pequeño. Mantenga
estar atento a la carretera y a las condiciones del tráfico. los destorniiladores u otros objetos metálicos apartados
del mecanismo de disco y del disco.
Cuando lave el automóvil
No exponga el equipo, incluyendo los altavoces y los Uso de los centros de servicio autoriza-
CDs, al agua o a una humedad excesiva. Esto puede dos
S causar cortocircuitos eléctricos, incendios u otros daños. No intente desmontar ni ajustar este equipo de precisión.
: l Consulte la lista de centros de servicio incluidos con este
A | Cuando esté estacionado producto para acudir a ellos cuando sea necesario.
N El estacionamiento a la luz solar directa puede producir
temperaturas muy altas en el interior de su vehículo. Instalación
Procure enfriar el interior antes de encender la unidad. La unidad deberá instalarse en posición horizontal, con el
| s : extremo delantero hacia arriba formando un angulo con-
Uso de la alimentación apropiada veniente, pero con no más de 30°.
Este equipo ha sido diseñado para funcionar con un sis-
tema de batería de 12 V CC con negativo a masa (el sis-
tema normal en un vehículo norteamericano).
O Componentes
© Manual de instrucciones.…..…............................. 1 o Unidad del controlador remoto... 1
o Accesorios suministrados ........ 1 juego (= página 63) © Pila de litio (CR2025} arica 1
o Conector de alimentación sees ee ee een seene | © Tarjeta de garantia sees eee ee eenn d
Nota:
o Este manual de instrucciones de operación serve para 2 modelos CQ-DF402U y CQ-DFX302U. Todas las ilustraciones
de este manual representan el modelo CQ-DF402U, a menos que se especifique lo contrario. La tabla siguiente mues-
tra las diferencias entre los 2 modelos.
Modelo
Características
ON
CQ-DF402U
|
coop
O
Conector de salida del preamplificador Tipo cable conector Tipo fijo

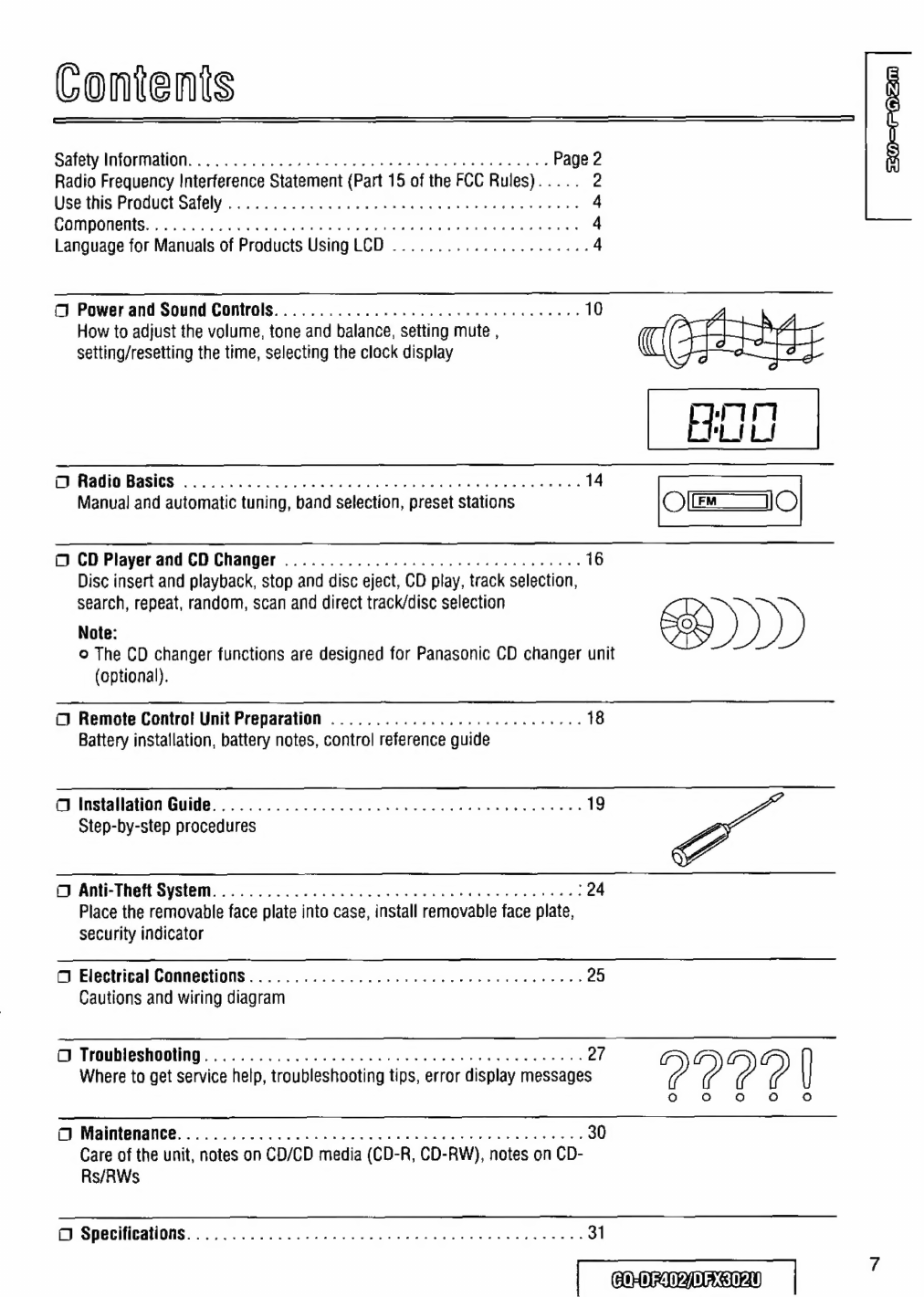

Contents
Safety Information. 32e meer etats Page 2
Radio Frequency Interference Statement (Part 15 of the FCC Rules)... .. 2
Use this Product Safely ..............................,,,...... 4
Components as pean RE Dm AO et 8 URES ORNS 4
Language for Manuals of Products Using LCD ...................... 4
O Power and Sound Controls...........................,...... 10
How to adjust the volume, tone and balance, setting mute ,
setting/resetting the time, selecting the clock display
A Radió BASIES cie ai ee ds ENS Nue à 14

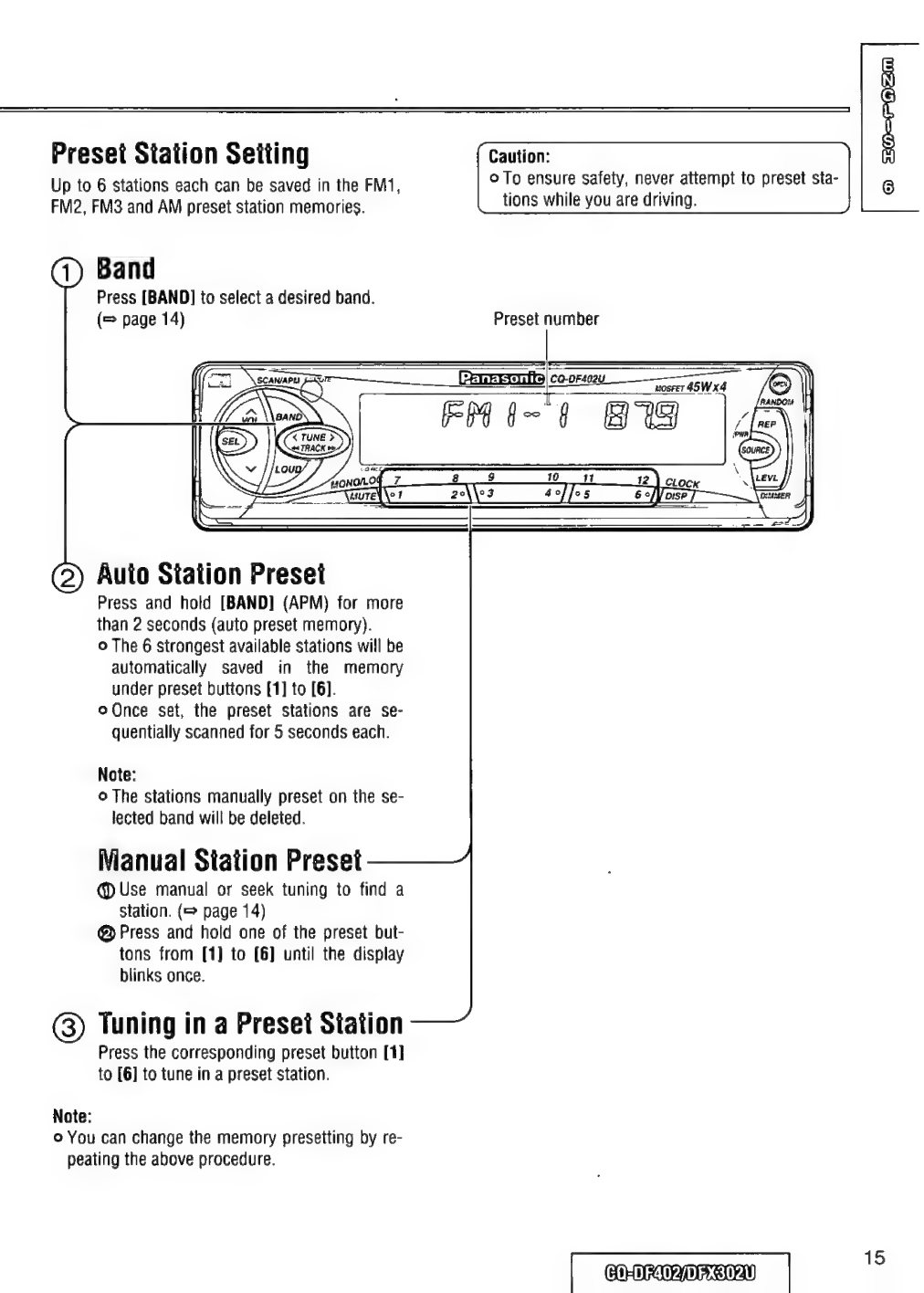

Manual and automatic tuning, band selection, preset stations

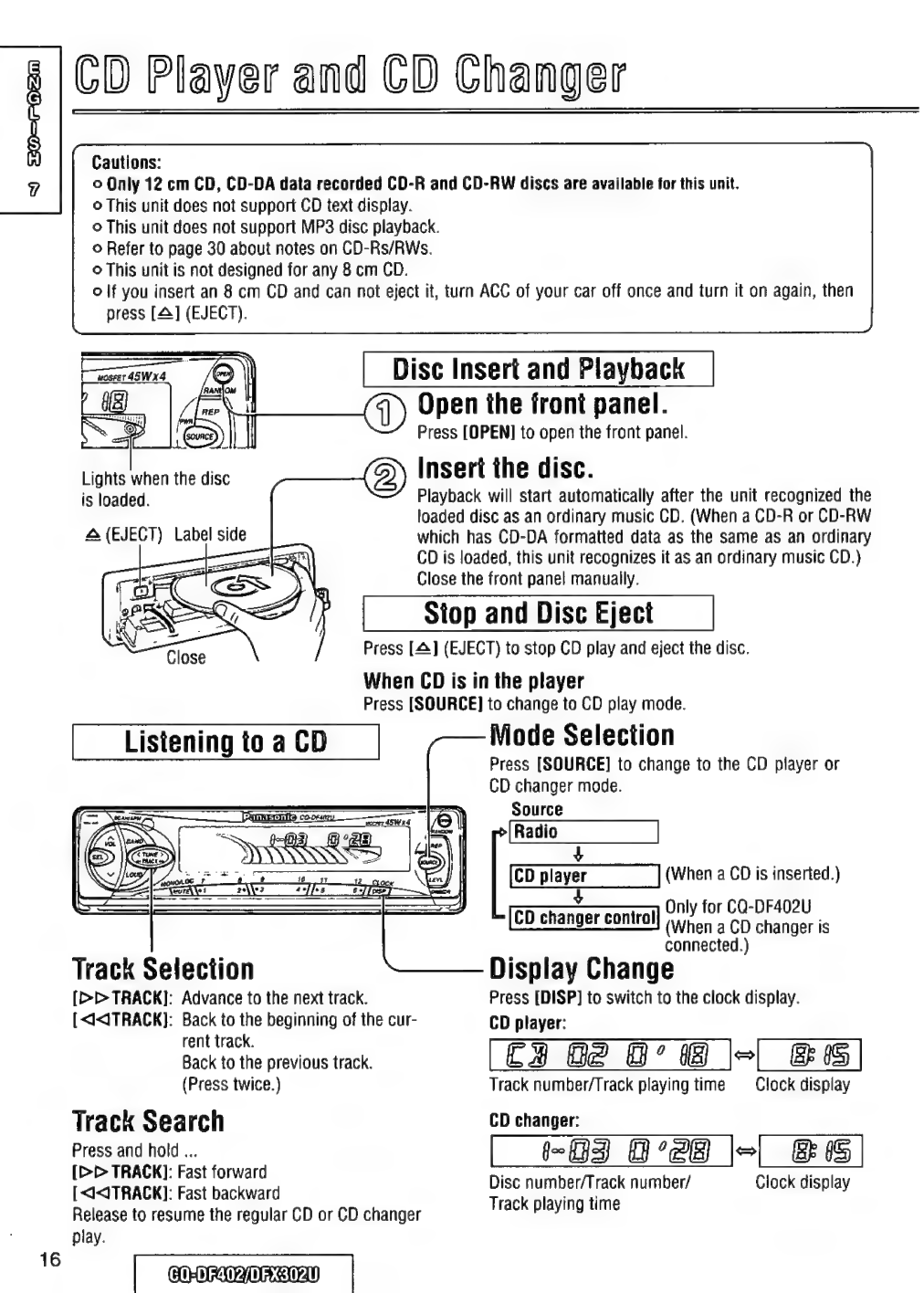

O CD Player and CD Changer ................................. 16
Disc insert and playback, stop and disc eject, CD play, track selection,
search, repeat, random, scan and direct track/disc selection
Note:

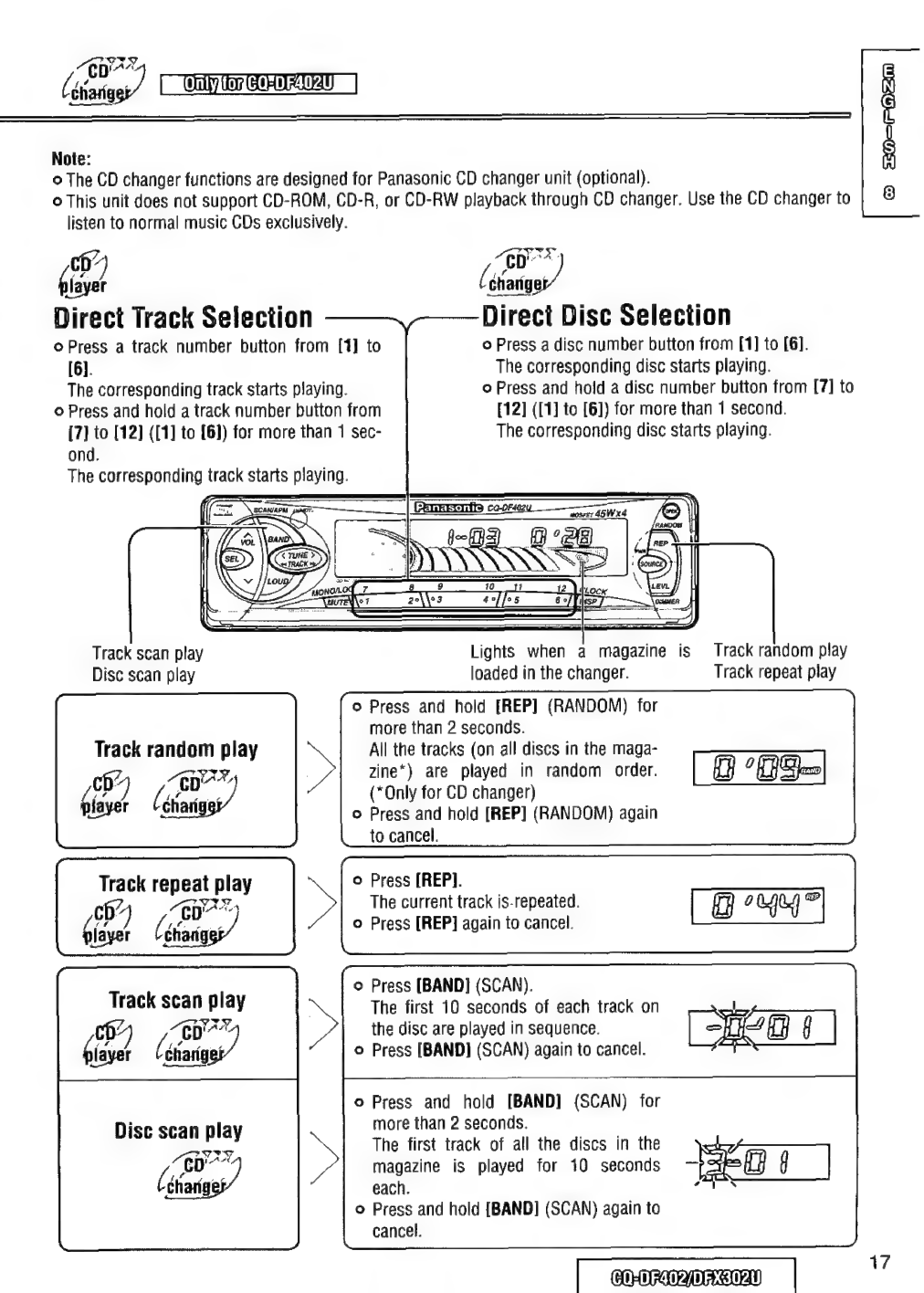

o The CD changer functions are designed for Panasonic CD changer unit
(optional).
O Remote Control Unit Preparation ............................ 18
Battery installation, battery notes, control reference guide

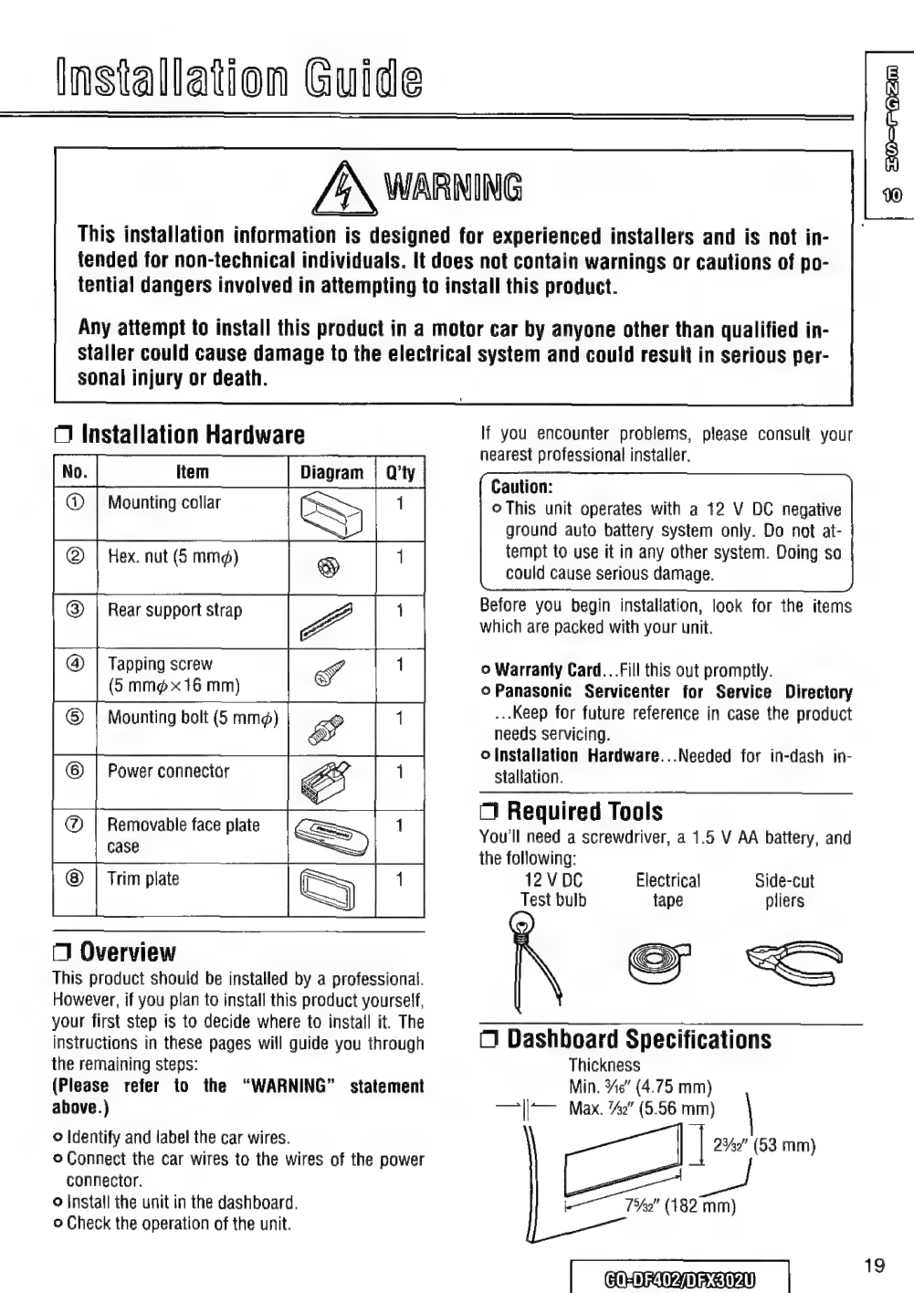

O Installation Guide. ...............................,,....... 19
Step-by-step procedures
O Anti-Theft System. erica ds ia 20
Place the removable face plate into case, install removable face plate,
security indicator
O Electrical Connections ..................................... 25
Cautions and wiring diagram
O Troubleshooting... sis sers ia sel Rte ees 27
Where to get Service help, troubleshooting tips, error display messages
O Maintenance. to con TN news eae 30
Care of the unit, notes on CD/CD media (CD-R, CD-RW), notes on CD-
Rs/RWs
El Specifications. A eran eo ean eee oes 31
DDD
27001
GO:DF402/DEX302U

Dee
Table des matières
Consignes de sécurité. ............,..,.,,...,.4,, secure Page 3
Précautions à PLAN GLE secu ios a Sig dere ia een Tel 5
Eléments constitutifs. adoos in A Seales 5
O Commandes d'alimentation et de son ............................... 32
Comment ajuster le volume, la tonalité et l'équilibre, réglage de la coupure du son
et de , réglage de l'heure, remise à l'heure, sélection de l'affichage de l'horloge
O Fonctionnement de base de la radio ................................ 36
Syntonisation manuelle et automatique, sélection de la bande et stations en
mémoire OE TO
O Fonctionnement de base du lecteur CD et du changeur CD............... 38
Chargement/éjection du disque, lecture de CD, sélection des plages, repérage,
lecture en reprise, lecture aléatoire, balayage et sélection directe de plage/disque ¿Dv
Remarque: ES) ) ) ))
o Les fonctions du changeur de CD sont conçues pour l'unité de changeur de CD AD
Panasonic (en option).
O Préparation de la télécommande... .......u nunana aaa 40
Installation de la pile, remarques sur la pile, guide de référence des commandes
O Guide d'installation ............................................. 41
Marche à suivre
O Système antivol En E hits NS vated ahead Sat 46
Mettre la plaque de façade amovible dans etu, installer la plaque de façade
amovible, voyant du système de sécurité
O Branchements électriques ........................................ 47
Précautions et schéma de câblage
O En cas de difficulté... das enorme date e 49
Service après-vente, guide de dépannage, affichage des messages d'erreur D D P D |
© o © o o
EI AAA A HERE dG Reet ore E 52
Entretien de l'appareil, remarques relatives aux CD et supports de type CD (CD-R,
CD-RW), remarques relatives aux CD-R/RW
Cl Données techniques ...................................,......... 53

g7
Indice
Información para su seguridad..........................,,....... Página 3
Uso de este equipo con Seguridad .....................,............... 6
COMPONEN ct ars atari Gate aia 6
© Controles de alimentación y sonido................................. 54
o
Dónde obtener ayuda técnica, consejos sobre solución de problemas, mensajes de D D A » |
error
O o O O O
Q
S)
Cómo ajustar el volumen, tono y equilibrio, configuración de silenciamiento,
puesta inicial de la hora, reposición de la hora, selección de pantalla del reloj
ALL
Om JO
Radio: Conceptos generales....................................... 58
Sintoniá manual y automática, selección de banda y preajuste de emisoras
Reproductor de CD y Cambiador de CD: Conceptos generales............ 60
Carga/expulsión de un disco, reproducción de CD, selección de pista, búsqueda,
repetición, selección aleatoria, exploración y selección directa de pista/disco
Nota: Ko )))
o Las funciones del cambiador de CD han sido diseñadas para el aparato cambi- YTS
ador de CD de Panasonic (opcional).
Preparación del controlador remoto ................................ 62
Instalación de la pila, notas sobre la pila, guía de referencia de los controles
Guía de instalaciôn............................,,..............., 63
Procedimientos paso a paso
Sistema IMITODO..... ci nmu des ees 68
Coloque la placa frontai removible en la caja, instale la placa frontal removible, el
indicador de seguridad
Conexiones eléctricas. ........................................... 69
Medidas de precaución y diagrama del cableado
Solución de problemas a A ae 71
Mantenimiento .............................................,... 74
Cuidado del aparato, notas sobre soportes CD/CD (CD-R, CD-RW), notas sobre
discos CD-R/RW
ESPOCITCACIONES: «¿cir A AAA e 9 75
| 6050£802/DEX302U |
FO Van

o Orom
10

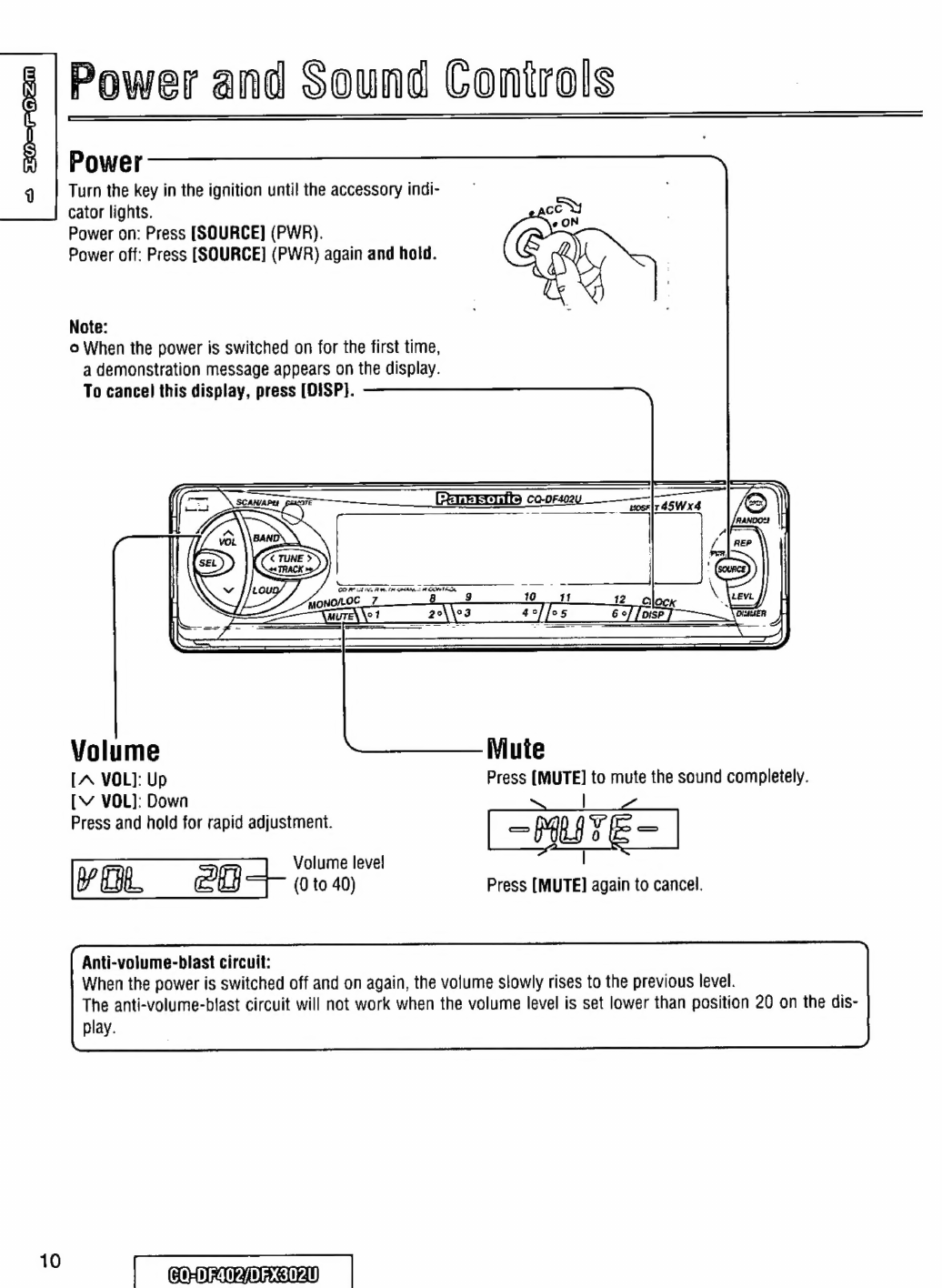

Power and Sound Controls
Power
Turn the key in the ignition until the accessory indi-
cator
lights.
cow
Power
on:
Press
[SOURCE]
(PWR).
En
Power off: Press [SOURCE] (PWR) again and hold.
Note:
o When the power is switched on for the first time,
a demonstration message appears on the display.
To cancel this display, press [DISP}.
Ar 2A ea of]
| | See,
D
Ww EA Senra a e ES- l
i |Z MONOLOC _7 A] 10 Es +7 =
[ESE
Volume Mute
[A
VOL]:
Up
Press
[MUTE]
to
mute
the
sound
completely.
[V
VOL]:
Down
|
Press and hold for rapid adjustment.
|
= Volume level
igi Rin
Y
CRE.
20
(0
to
40)
Press
[MUTE]
again
to
cancel.
Anti-volume-blast circuit:
When
the
power
is
switched
off
and
on
again,
the
volume
slowly
rises
to
the
previous
level.
The
anti-volume-blast
circuit
will
not
work
when
the
volume
level
is
set
lower
than
position
20
on
the
dis-
play.
G05DF402/DFX302U

D O
CQ-DF402u
uosser 45WX4
Loudness Level Meter
Press
[LOUD}
to
enhance
bass
and
treble
tones
When
the
power
is
on, the
level
of
sound
sources,
at
low
or
medium
volume.
such
as
radio
and
CD,
is
displayed.
Press [LEVL] to change the level meter display.
LD
(Default)
Press [LOUD] again to cancel. [earem 1) sé [ Pattern 2 | > [Pattern 3 |
Cra) (Fate) ai
Dimmer
Press and hold [LEVL] (DIMMER) for more than
2 seconds to change the dimmer level.
(Default)
(Bimmer + [Dimmer 2 ]->[_Dimmer3 |
(Bright) (Medium) (Dark)
11

© OPM
12
Power and Sound Controls (continues)
Audio Mode (Bass/Treble/Balance/Fader/Subwoofer)
2
Press [SEL] to select the audio mode.
>
me Te Chess Je Cri |
Press [A VOL] or [Y VOL] to change each
level.
Bass:
Adjustable range: — 12 dB to +12 dB
Treble:
VRE IAN
Adjustable range: —12 dB to +12 dB
Balance:
R (right speaker) or L (left speaker)
DAL CMT
Adjustable range: 1 to 15 Balance center
Fader:
F (front speaker) or R {rear speaker)
FAS À 3 [FRS CNY
Adjustable range: 1 to 15 Fader center
Subwoofer volume:
SUN MUTE
Subwoofer volume level: Default
From MUTE (0) to 8
CO-DF402/DEX302U
Note:
olf no operation takes place for more than
5 seconds in audio mode (2 seconds in vol-
ume mode), the display returns to the regu-
lar mode.

Clock Basics
The 12-hour system is used for the clock.
EN
Initial Time
@ Press [DISP] (CLOCK).
FIBRES Y
Hours
@ Press and hold [DISP] (CLOCK).
ED
|
(Hours
blink)
Ja
AO
|
(Hours
set.)
Minutes
@ Press [DISP] (CLOCK).
RAT = | (Minutes blink.)
O Press [< TUNE] or [> TUNE].
DES (Minutes set.)
@ Press [DISP] (CLOCK).
§& | (End.
Note:
o Press and hold [< TUNE] or [> TUNE] to change
numbers rapidly.
G ona
SCAN/APH
A.
à
CO-DF402
on
uosrer
d5WXx4
AAA AanDos |||
—= 1
7
Pra
qm a,
K N
12 CL
pas,
Clock Display
Press [DISP] (CLOCK) to switch to the clock dis-
play.
In tuner mode:
ENT SIS lol BS |
Broadcast station Clock display
In CD player (changer) mode:
De
6°
@
lol
BS
|
Playing time Clock display
When the power is off:
Les jel
Clock display
Note:
o The [DISP] (CLOCK) button will not work while
the CD player or CD changer is set to the scan
play mode. Cancel the scan play mode before
pressing [DISP] (CLOCK).
No display
Time Reset
Press and hold [DISP] (CLOCK) for more than
2 seconds to activate the time setting mode to reset
the time.
Then, repeat steps © to ©.
13

Mode Selection
Press [SOURCE] to change to the radio mode.
Source
y
CD player (When a CD is inserted.)
$
Only for CQ-DF402U
CD
changer
control
(When
a
CD
changer
is
connected.)
| Radio Basics
( ET ABG page CO-DF402
5 SS
ES.
NUEZ
a
EE
Band
FM
stereo
indicator
Press
[BAND]
to
change
the
band.
FRS
y
FMS)
y
©)
(Z)
Manual
Tuning
Seek
Tuning
[> TUNE]: Higher frequency Press and hold ...
[< TUNE]: Lower frequency [> TUNE]: Higher frequency
[< TUNE]: Lower frequency
Tuning will automatically stop when the signals
of the next broadcast station are received.
Mono/Local Selection FM broadcast:
MONO:
Noise
is
significantly
decreased
when
aak
g
AW
TEAR
Oe
weak signals are received from an FM
broadcast
station.
ail
8
E
MONO
ON/
LOCAL:
Onty
strong
signals
of
stations
are
LOCAL
OFF
searched in seek tuning, while at the
LOCAL OFF setting, relatively weak sig- ER 0 FT MONO ON
nals are also searched. ra CAL ON
FM broadcast: SN 8 ETS) | MONO OFF;
Press and hold [MUTE] (MONO/LOC) to change = FAT oe] LOCAL ON
the
mode.
AM
broadcast:
Release
at
the
desired
mode.
|
AM
SM]
F
AM
broadcast:
X
SAND
| LOCAL
OF
Press
and
hotd
[MUTE]
(MONO/LOC)
to
switch
LOCAL mode on and off.
ist ous
14

Preset Station Setting Caution:
Up to 6 stations each can be saved in the FM1, o To ensure safety, never attempt to preset sta-
FM2, FM3 and AM preset station memories. tions while you are driving.
Band
Press [BAND] to select a desired band.
(=
page
14)
Preset
number
CANADA FAR au PR
a
SS
Panasonic]
cs
—
ewa
O)
LELEERIIS
CO-OF
402
a
baar
45Wx4
FM 1-1 BIg)
HONOILOS 12 | clock
wae Us eds Yos L
LIA.
Auto Station Preset
Press and hold [BAND] (APM) for more
than 2 seconds (auto preset memory).
o The 6 strongest available stations will be
automatically saved in the memory
under preset buttons [1] to [6].
o Once set, the preset stations are se-
quentially scanned for 5 seconds each.
Note:
o The stations manually preset on the se-
lected band will be deleted.
Manual Station Preset
@ Use manual or seek tuning to find a
station. (> page 14)
@ Press and hold one of the preset but-
tons from [1] to [6] until the display
blinks once.
(3) Tuning in a Preset Station
Press the corresponding preset button [1]
to [6] to tune in a preset station.
Note:
o You can change the memory presetting by re-
peating the above procedure.
15
605D5402/DFX302U

D eu)
CD Player and CD Changer
Cautions:
o Only 12 cm CD, CD-DA data recorded CD-R and CD-RW discs are available for this unit.
o This unit does not support CD text display.
o This unit does not support MP3 disc playback.
o Refer to page 30 about notes on CD-Rs/RWs.
o This unit is not designed for any 8 cm CD.
o If you insert an 8 cm CD and can not eject it, turn ACC of your car off once and turn it on again, then
press [4] (EJECT).
Disc Insert and Playback
al) Open the front panel.
Press [OPEN] to open the front panel.
Insert the disc.
Playback will start automatically after the unit recognized the
loaded disc as an ordinary music CD. (When a CD-R or CD-RW
which has CD-DA formatted data as the same as an ordinary
CD is loaded, this unit recognizes it as an ordinary music CD.)
Close the front panel manually.
Stop and Disc Eject
Press [4] (EJECT) to stop CD play and eject the disc.
When CD is in the player
Press [SOURCE] to change to CD play mode.
Listening
to
a
CD
Mode
Selection
Press [SOURCE] to change to the CD player or
CD changer mode.
Source
y
CD player (When a CD is inserted.)
Only for CQ-DF402U
(When a CD changer is
connected.)
Lights when the disc
is loaded.
4 (EJECT) Label side
CD changer control
16
Track Selection
[>>> TRACK]: Advance to the next track.
[<1<ITRACK]: Back to the beginning of the cur-
rent track.
Back to the previous track.
(Press twice.)
Track Search
Press and hold ...
(>t TRACK]: Fast forward
[<< TRACK]: Fast backward
Release to resume the regular CD or CD changer
play.
Display Change
Press [DISP] to switch to the clock display.
CD player:
EX 02 0’ @ ll 645]
Track number/Track playing time Clock display
CD changer:
BS 0-2 [e BS |
Disc number/Track number/ Clock display
Track playing time

“el DA"
Note:
o The CD changer functions are designed for Panasonic CD changer unit (optional).
o This unit does not support CD-ROM, CD-R, or CD-RW playback through CD changer. Use the CD changer to
listen to normal music CDs exclusively.
Cd” T
A
fo
ae
(sverige
CU
|
8
Direct Track Selection Direct Disc Selection
o Press a track number button from [1] to o Press a disc number button from [1] to [6].
[6]. The corresponding disc starts playing.
The
corresponding
track
starts
playing.
o
Press
and
hold
a
disc
number
button
from
[7]
to
o
Press
and
hold
a
track
number
button
from
[12]
([1]
to
[6])
for
more
than
1
second.
[7] to [12] ([1] to 16]) for more than 1 sec- The corresponding disc starts playing.
ond.
The corresponding track starts playing.
E Ea: {a he
|
ee
ee
Track
scan
play
Lights
when
a
magazine
is
Track
random
play
Disc
scan
play
loaded
in
the
changer.
Track
repeat
play
o Press and hold [REP] (RANDOM) for
more than 2 seconds.
All the tracks (on all discs in the maga-
zine*) are played in random order. D “Bao
(*Only for CD changer)
o Press and hold [REP] (RANDOM) again
to cancel.
Track random play
ch) , En”
w topea] play
(or
(ee (diarias
o
Press
[BAND]
(SCAN).
Track scan play > The first 10 seconds of each track on
o Press [REP].
The current track is-repeated.
o Press [REP] again to cancel.
ADA the disc are played in sequence.
o Press [BAND] (SCAN) again to cancel.
ping: (ias
o Press and hold [BAND] (SCAN) for
Disc scan pla more than 2 seconds.
p le The first track of all the discs in the
(as "CD magazine is played for 10 seconds
charges each.
o Press and hold [BAND] (SCAN) again to
cancel.

O ura
18
Remote Control Unit Preparation
Battery
Installation
Lithium
battery
© Remove the battery holder. (included)
Pull the holder by the position B while pushing posi- Back sida
tion A in the direction indicated by the arrow.
@ Install the battery on the battery holder. En
Set a new battery properly with its (+) side facing up
as shown in the figure.
© Insert the battery holder.
Push in the battery holder back into its original posi-
tion.
Position B
Battery Notes Battery holder Position A
Remove and dispose of an old battery immediately.
Battery Information:
© Battery type: Panasonic lithium battery (CR2025) (included)
o Battery life: Approximately 6 months with normal use (at room temperature)
Caution:
o Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire.
Battery leakage may damage the unit.
o Do not disassemble or short the battery. Do not throw a battery into a fire.
o Keep batteries away from children to avoid the risk of accidents.
o Be careful to the local disposal rules when you dispose of batteries.
Control Reference Guide
Buttons of the remote control function in the same way as the controls on the main unit of the reference page.
Point the remote control unit at the main unit's sensor (REMOTE).
Power button (PWR)
(> page 10)
Mode button (MODE)
(=> pages 14, 16)
Mute button (MUTE)
( page 10)
Volume control buttons
(VOL, A V)
(= page 10)
— oy) BAND/DISCIUP)
=
/ co
<< HE,
Band/Disc up* button
(BAND/DISC UP*)
(=> pages 14, 17)
Esad
pac
da
Tune/Track
buttons
(When
the
CD
changer
(TUNE/TRACK,
<<
DD/<
>)
(=> pages 14, 16)
is connected.)

Installation Guide
PA WARNING
This
installation
information
is
designed
for
experienced
installers
and
is
not
in-
tended for non-technical individuals. It does not contain warnings or cautions of po-
tential dangers involved in attempting to install this product.
Any
attempt
to
install
this
product
in
a
motor
car
by
anyone
other
than
qualified
in-
staller
could
cause
damage
to the
electrical
system
and
could
result
in
serious per-
sonal injury or death.
O Installation Hardware
CE
Mounting collar SI
+ Rear support strap PAN
Tapping screw
(5 mm@ x16 mm)
hi Mounting bolt (5 mm) rau
@ | Removable face plate
case
Fée Gr
R A Overview |
This product should be instailed by a professional.
However, if you plan to install this product yourself,
your first step is to decide where to install it. The
instructions in these pages will guide you through
the remaining steps:
(Please refer to the “WARNING” statement
above.)
o Identify and label the car wires.
o Connect the car wires to the wires of the power
connector.
o install the unit in the dashboard.
o Check the operation of the unit.
Hex. nut (5 mme)
If you encounter problems, please consult your
nearest professional installer.
Caution:
oThis unit operates with a 12 V DC negative
ground auto battery system only. Do not at-
tempt to use it in any other system. Doing so
could cause serious damage.
Before you begin installation, look for the items
which are packed with your unit.
o Warranty Card...Fill this out promptly.
© Panasonic Servicenter for Service Directory
...Keep for future reference in case the product
needs servicing.
o Installation Hardware...Needed for in-dash in-
Stallation.
A Required Tools
You'll need a screwdriver, a 1.5 V AA battery, and
the following:
12V DC Electrical Side-cut
Test bulb tape pliers
Les
O Dashboard Specifications
Thickness
Min. 346” (4.75 mm)
—||— Max. 2” (5.56 mm)
| 2257 (53 mm)
7322” (182 mm)
CO-DE402/DEX302U
S 20-r02m
19

S 20-020
Installation Guide (continued)
A Identify All Leads
The first step in installation is to identify all the car
wires you'll use when hooking up your sound sys-
tem.
20
As you identify each wire, we suggest that you label
it using masking tape and a permanent marker.
This will help avoid confusion when making con-
nections later.
Note:
o Do not connect the power connector to the stereo
unit until you have made all connections. If there
are no plastic caps on the stereo hooking wires,
insulate all exposed leads with electrical tape until
you are ready to use them. identify the leads in
the following order.
Power Lead
If your car has a radio or is pre-wired for one:
Cut the connector wires one at a time from the plug
(leaving the leads as long as possible) so that you
can work with individual leads.
i =
Turn the ignition on to the accessory position, and
ground one lead of the test bulb to the chassis.
Touch the other lead of the test bulb to each of the
exposed wires from the cut radio connector plug.
Touch one wire at a time until you find the outlet
that causes the test bulb to tight.
Now turn the ignition off and then on. If the bulb
also turns off and on, that outlet is the car power
lead.
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for radio
(RADIO), accessory (ACC), or ignition (IGN).
Battery Lead
if your stereo unit has a yellow lead, you will need
to locate the car's battery lead. Otherwise you may
ignore this procedure. (The yellow battery lead pro-
vides continuous power to maintain a clock, memo-
ry storage, or other function.)
If your car has a radio or is pre-wired for one:
With the ignition and headlights off, identify the car
battery lead by grounding one lead of the test bulb
to the chassis and checking the remaining exposed
wires from the cut radio connector plug.
GQ;:DF402/DEX302U
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for the
battery, usually marked BAT.
Speakers
Identify the car speaker leads. There are two leads
for each speaker which are usually color coded.
A handy way to identify the speaker leads and the
speaker they are connected with is to test the leads
using a 1.5 V AA battery as follows.
Hold one lead against one pole of the battery and
stroke the other lead across the other pole. You will
hear a scraping sound in one of the speakers if you
are holding a speaker lead.
If not, keep testing different lead combinations until
you have located all the speaker leads. When you
label them, include the speaker location for each.
Antenna Motor
If your car is equipped with an automatic power an-
tenna, identify the car motor antenna lead by con-
necting one bulb tester lead to the car battery lead
and touching the remaining exposed wires from the
cut radio connector plug one at a time. You will
hear the antenna motor activate when you touch
the correct wire.
Antenna
The antenna lead is a thick, black wire with a metal
plug at the end.
A Connect All Leads
Now that you have identified all the wires in the car,
you are ready to begin connecting them to the
stereo unit wires. The wiring diagram (= pages 25,
26) shows the proper connections and color coding
of the leads.
We strongly recommend that you test the unit be-
fore making a final installation.
You can set the unit on the floor and make tempo-
rary connections to test the unit. Use electrical tape
to cover all exposed wires.
Important:
o Connect the red power lead last, after you
have made and insulated all other connec-
tions.
Ground
Connect the black ground lead of the power con-
nector to the metal car chassis.
