Panasonic CQDP940EUC - AUTO RADIO/CD DECK User manual

Panasonic.
Removable Face High-Power CD Player/Receiver
Récepteur/lecteur CD à puissance élevée avec panneau avant amovible
CQ-DP940/DP930EUC
Operating Instructions
Manuel d’utilisation
Please read these instructions completely before operating this unit.
ll ast recommandé de lire attentivement ce manuel avant d'utiliser l'appareil.

Panasonic welcomes you to our ever growing family of electronic product owners. We know that this
product will bring you many hours of enjoyment. Our reputation is built on precise electronic and
mechanical engineering , manufactured with carefully selected components and assembled by people
who take pride in their work. Once you discover the quality, reliability, and value we have built into this
product, you too will be proud to be a member of our family.
O Use This Equipment Safely
When Driving
Keep the volume level low enough to be aware of road and traffic conditions.
When Car Washing
Do not expose the equipment, including the speakers and CDs, to water or excessive moisture. This
could cause electrical shorts, fire, or other damage.
When Parked
Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the interior a
chance to cool down before switching the unit on.
Use the Proper Power Supply
This equipment is designed to operate off a 12 volt, negative ground battery system (the normal system in
a North American car.}
Protect the Compact Disc Mechanism
Avoid insertion any foreign matters to the slot of the compact disc.
Failure to observe this may cause malfunction due to precise mechanism of this unit.
Use Authorized Servicenters
Do not attempt to disassemble or adjust this precision equipment. Please refer to the Servicenter list
included with this product for service assistance.
Note:
This operating instruction manual is for 2 models CQ-DP940EUC and CQ-DP930EUC. All illustrations
throughout this manual represent model CQ-DP940EUC unless otherwise specified. The following table
describes the differences between 2 models.
Operating
Controls
:
CQ-DP940EUC
|
CQ-DP930EUC
HDB | SuperHDB [None
LOUD | Non | Ys |
EAUX Vs | None
Programmed Sound Memory| Yes | None |
Tevel Meter [Yes | None |
Yes | nme
Yes | noe
Security Indicator
Remote Control Unit
LCD Color
Find the model number and serial number on either the back or bottom of the unit. Please record them in
the space below and retain this booklet as a permanent record of your purchase to aid in identification in
case of theft.
MODEL NUMBER CQ-DP940/930EUC SERIAL NUMBER
DATE PURCHASED________. — FROM
ca-DPoan/osoeuc |

Contents
Use This Equipment Safely RER TTL TOR A SES ERNEST) DORE PEU dcudiesvss<s Page 2
Laser ProduUCtS.--...sssssesrersessssesoseasossnsusanenassasanseasoassassnanenenapsovrearserosesseresassaveissss 6
O Power and Sound Controls sise 7
How to adjust the volume, Tone Enhancement, Attenator, balance,
and tone for best listening
O Radio Basics 5. ne Heceteaebindncuasenaevemsblinteortuadecacctioorts 10
Manual and automatic tuning, band selection, preset stations
I Compact Disc Player Basics... 12
Mode selection, play repeat, random and scan
EV Clock Baio E ea gain ck oe Aenean epatn T Fisiese 14
Initial time setting, resetting the time, selecting the clock display
I Programmed Sound Memory (Only for CQ-DP940EUC)................. 15
D Remote Control Unit Basics (Only for CQ-DP940EUC) -----+-.ceeecee 16
Battery replacement, notes and Operating procedures.
O Installation Guidée een Siw nce Rees setinncendentexecoeads 18
Step-by-step procedures, anti-theft system, electrical connections
g Troubleshooting-..................................................... 25
Error messages, troubleshooting tips,where to get service help
a Special Notes oeren sie AN ie et env se Eee nds seras 27
Notes on compact discs, a caution on new discs
Specifications Saks bee dduuneiduestcasdacstesgedes sven D less die dei doutes io drone dns oscre eee ER 28
27001
CQ-DP940/930EUC

Panasonic est heureuse de vous compter parmi les utilisateurs de ses appareils électroniques.
Nous pouvons vous assurer que cet appareil vous procurera de longues heures d'agrément. Notre
réputation est fondée sur une ingénierie électronique et mécanique de haute précision laquelle préside à
la fabrication d'appareils ne comportant que des composants de choix assemblés par un personnel
soucieux de la bonne réputation acquise par la qualité de son travail. Après avoir découvert la qualité, la
valeur et la fiabilité de cet appareil, vous aussi serez fier d'être un client Panasonic.
© Précautions a prendre
Au volant
Régier le volume à un niveau qui ne risque pas de masquer les bruits ambiants.
Lavage de la voiture
Afin de prévenir tout risque de court-circuit ou d'incendie, ne pas exposer l'équipement, y compris les
haut-parleurs et les disques, à l’eau ni à une humidité excessive. `
Voiture stationnée
L’habitacle d’une voiture immobile exposée au soleil toutes vitres fermées devient rapidement très chaud.
Laisser rafraîchir l'intérieur du véhicule avant d'utiliser l'appareil.
Source d'alimentation
Cet appareil est conçu pour fonctionner sur un système d'alimentation avec batterie de 12V avec négatif à
la masse (système standard sur les voitures de construction nord-américaine).
Mécanisme du lecteur audionumérique
Ne pas insérer d'objet dans le logement du disque. Autrement, le mécanisme ultra-précis du lecteur
pourrait être irrémédiablement endommagé.
Réparation
Ne pas tenter de démonter ou d'ajuster l'appareil soi-même. Confier toute réparation à un centre de
service agréé.
Remarque:
Ce manuel a été conçu pour les modèles CQ-DP940EUC et CQ-DP930EUC. Toutes les illustrations du
présent manuel mettent en présence le modèle CQ-DP940EUC à moins d'indication contraire. Le tableau
ci-dessous décrit les différences entre les 2 modèles.
CQ-DP940EUC CQ-DP930EUC
Sortie préampli 2 (type ligne) 1 (fixe)
Accentuateur HDB Super HDB
Compensateur physiologique | = Non
Entrée auxiliaire =. Ob O
Mémoire des réglages sonores | Outs
Déciblemetre
Voyant du système de sécurité | Oui |
Télécommande
Afficheur couleur LCD
Modèle
Commande
i
li est recommandé de noter, dans l’espace prévu ci-dessous, les numéros de modèle et de série inscrits
soit à l'arrière soit sous le fond de l'appareil, et de conserver ce manuel comme mémorandum de l'achat
afin de permettre l'identification de l'appareil en cas de vol.
Numéro de modèle: CQ-DP940/930EUC Numéro de série:
Date de lachat: Vendeur:
CQ-DP940/930EUC

Table des matières
Précautions a prendre... 4
O Interrupteur et commandes de réglage de la sonorité -.----..----.----.- 29
Comment régler le volume sonore, la fonction d'enrichissement tonal,
l'atténuateur et la commande d'équilibre pour une meilleure écoute
O Fonctionnement de la radio... 32
Syntonisation manuelle et automatique, sélection de la bande et stations OO
en mémoire
O Fonctionnement du lecteur audionumérique -:.----------.----:--- eee 34 Cle
Sélection de mode, lecture, lecture en reprise, lecture aléatoire et So)
| Yes
balayage
D—bOZLTIN
O Fonctionnement de l'horloge REDDIT LEE DEEE PES SERRE EE AT ERP ECTS 36
Réglage de l'heure, remise à l'heure, sélection de l'affichage de l'horloge
© Mémoire des réglages SONOS ri leurre ts scies sat 37
(Modèle CQ-DP940EUC seulement)
O Instructions concernant la télécommande ----------------------eee etree 38
(Modéle CQ-DP940EUC seulement)
Remplacement de la pile, remarques et fonctionnement
O Guide d'installation: in aa sites ececten nepedndeneeats 40
Marche à suivre, système antivol, raccordements électriques
O En cas de difficulté seins 47 D D D |
Messages d'erreurs, guide de dépannage, service après-vente CRE T:
EV Généralités ina er en ee ee dat enter Et 49
Remarques sur les disques audionumériques, précautions a prendre
Données techniques seen 50
5
CQ-DP940/930EUC

E
N
G
L
|
S
H
O Laser Products (The standard described on this page is for U.S.A. only.)
Caution:
This product utilizes a laser.
Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
Laser products:
Wave length 780 nm
Laser Power No hazardous radiation is emitted with safety protection.
` e Label indications and their locations
Certification Label
Identification Label
DP940 40W x 4 CD PLAYER/RECEIVER
ped THACK et 7 g 9 0
Certification Label! identification Label
Product complies with DHHS Rules 21
CFR, Subchapter J in effect as of date dis No.
of manufacture. pe Moda
Dalian Matsushita Communication Industrial Co., Ltd.
Dalian, China
MANUFACTURED ae fo | 42] ©
Manufactured by Dalian Matsushita Communication
Industrial Co., Ltd. Dalian China
Made in China
CQ-DP940/930EUC

Power and Sound Controls
ork €) DP940 40WK4 CD PLAYER/RECEIVER
If the car is not already running, turn the key in the ignition until the
accessory indicator lights.
Press PWR to switch on the power.
Note: When power is switched on for the first time, greeting words
display. To cancel this display, press PWR to switch power off then
power on again (Only for CQ-DP940EUC).
When a CD is inserted with all power connected, the unit power will
automatically turn on and CD loading begins and plays.
Volume
Press “VOL" or “VOLV” to increase or decrease volume.
Volume Level
0 to 40
Press “VOL” or “VOLV” for more than a half second to change
numeric tevels on the display rapidly.
Attenuator
e Press ATT. Volume will decrease to about 1/10 of its previous level.
e Press ATT again to deactivate when listening at normal volume.
SeHDB (Super High Definition Bass)
(Only for CQ-DP940EUC)
Especially for rock music, the bass-sound will be more powerful.
« Press HDB to be able to listen to high-definition bass.
+ Press HDB again to return to the normal tone.
Note: This unit is equipped with an anti-volume-blast circuit which serves as an automatic volume
level adjuster so that you will not be deafened sudden toud volume.
This system operates as follows. When PWR is switched on, the volume tevel is low. After that, the
volume level gradually returns to its previous level prior to switching off the unit.
7
CQ-DP940/930EUC |

Power and Sound Controls continued
Note: When a control mode (BAS/TRE/BAL/FAD) is selected but no operation is made within 5
seconds(2 seconds at volume mode), the display will return to the normal operation (Radio, CD, etc)
Tone Enhancement (Only for CO-DP930EUC)
Press LOUD ( © ) to enhance bass and treble tones when listening at
low or medium volume. Press LOUD ( © ) again to deactivate.
Changing Audio Modes
Press SEL to switch the audio mode in the following order.
VOLUMS » BASS =» PAERPE
FADER = BALANCE
Bass and Treble
+ Press SEL to select the BASS (TREBLE) mode. Press “VOL~” or
“VOLV” to increase or decrease the bass/treble response.
-12 to 12 . 412% 12
. Press “VOLA” or “VOLV” for more than a half second to change
numeric levels on the display rapidly.
Balance
e Press SEL to select the BALANCE mode. Press “VOL” or
‘VOLV” to shift the sound volume to right or left speakers.
or L 1to 15 Balance Center
+ Press VOLA” or “VOLY” for more than a half second to change
numeric levels on the display rapidly.
Fader
e Press SEL to select the FADER mode. Press “VOL” or VOLV”
to shift the sound volume to the front or rear speakers.
oR 1015 Balance Center
« Press “VOLA” or “VOLV” for more than a half second to change
numeric levels on the display rapidly.
mode. In such a case, press SEL again to select the control mode.
CQ-DP940/930EUC

Selecting Auxiliary Source
* Press AUX to select AUX Input mode. (Only for CQ-DP940EUC)
* Connect the auxiliary equipment (an optional DCC player deck or
any other appropriate equipment) to the AUX Jack.
ress AUX or MODE again while the AUX mode is operated, the
mode will return to the previous mode. Or insert a CD and the mode
will change to CD mode.
Note: The AUX mode enables setting of VOL,BAS,and
FAD,independently of other modes. (Only for CQ-DP940EUC)
Caution:
In order to insert the plug into the “AUX” Jack properly, make
sure to use the correct size of the stereo piug shown on the left.
A-MIN 1/2" LONG (12mm)
B-MAX 2/5” DIA. (10mm)
C-MIN 1/8" DIA. (3.5mm)
9
| CQ-DP940/930EUC |

10
Radio Basics
CQ-DP940/930EUC
To change Tuner Mode
<For CQ-DP940EUC>
Tuner mode is selected if the MODE button is pressed while in CD
Player.
<For CQ-DP930EUC>
You can select FM or AM directly.
Selecting a Band
<For CQ-DP940EUC> <For CQ-DP930EUC>
e Press BAND to select the + Press FM to select the bands
bands in the following order. in the following order.
FM1—> FM2 — FM3 — AM FM1 —> FM2 —> FM3
° Press AM to select the bands.
“STEREO” indicator lights if the station is broadcasting in stereo.
Manual Tuning
Press “TUNE” or ““ TUNE” to move to a higher or lower frequency.
Seek Tuning
Press and hold “TUNE” or ““ TUNE” for more than a half second,
then release. The radio automatically stops on the next station.
MONO/LOCAL Selection
+ Much interference is reduced during a weak FM stereo broadcasts
when MONO is ON. (Only for FM mode)
+ Searching stops automatically at a strong wave station only when
LOC is ON
Press MONO to switch on or off the
MONO mode as follows.
MONO OFF ~<¢—2 MONO ON
Press LOC to switch on or off the
LOC mode as follows.
LOC OFF~=t-— LOC ON LOCAL

Preset Station Setting
Up to 24 stations can be preset in the station memory as follows;
oy
Manual Station Preset
@ Press BAND to select adesired band. <For CQ-DP940EUC>
You can select FM or AM directly. <For CQ-DP930EUC>
@ Use manual or seek tuning to find a station that you want to
program into memory.
@ Press and hold one of the station selector buttons 1 through 6 until
the display blinks.
Repeat the process to set other stations for the FM1 to AM bands.
Note: You can change the memory setting by repeating the
above procedure.
Tuning in a Preset Station
Press any of the buttons 1 through 6 to tune in the station preset by
the above steps © to ©.
Auto Station Preset
Select a band and press and hold APM (AUTO PRESET) for more
than 2 seconds. (Only for CQ-DP940EUC)
Select a band and press APM. (Only for CQ-DP930EUC)
+ The 6 strongest available stations will be automatically set in
memory preset buttons 1 through 6.
e Once set, the preset stations are sequentially scanned for 5
seconds.
+ Press the appropriate preset button for the station you want to
hear.
wo Iu—r0czm
Press and Hold :
Caution: For safety reasons, do not attempt to program while driving.
11
CQ-DP940/930EUC

Compact Disc Player Basics
YER/RECEIVER
Mode Selection
While the disc is inserted, press MODE to switch the operation mode
in the following order.
<For CQ-DP940EUC>
Tuner «<——~> CD Player
<For CQ-DP930EUC>
You can select CD play (press CD) directly.
To start the CD Player
Insert the disc (label side up) and playback starts automatically.
ON FIL
bf LEP fit
“CD LOAD” will be displayed until the disc is loaded. Play starts from
first track.
Note: While the disc is inserted, “ @a ” (DP940EUC) or “DISC”
(DP930EUC) indicator will light. If you press “MODE” after the disc is
ejected, the disc will be re-inserted.
Stopping and Ejecting a Disc
Press “ 4 ” to stop CD play, and the disc will quietly eject from the CD
slot. (During disc ejection, “CD EJECT” will be displayed.)
Selecting a Track
Press “TRACK ®™” once to go to the next track. Press repeatedly to
step forward through all the tracks.
Press “ea TRACK” once to play from the beginning of the track you
are listening to. Press twice to play the previous track. Press
repeatedly to step backward through all the tracks.
12

Press and Hold
tAm sara?
vou :
i
$
H
t i
3 f
H ! ay Nee,
CNP ae
Searching a Track
Press and hold “TRACK »»:” or “#4TRACK" for more than a half
second to activate fast forward or reverse through a track.
Release “TRACK p>” or “ea TRACK” to resume the normal CD play
from that position.
Repeating a Track
Press R/R» to repeat the current selection. “REP” indicator will light.
The current selection will continue to repeat until you press R/R
again.
Random Selection
Press and hold R/R for more than 2 seconds. “RAND” (DP
940EUC), “Re” (DP930EUC) indicator will light. A random selection
of music is played from all available tracks.
To turn off the random play feature, press and hold R/R® again for
more than 2 seconds.
Scanning Tracks
Press SCAN. The display will blink and the first 10 seconds of each
track on the disc play in order.
To stop scanning and continue with the current track, press SCAN
again.
Selecting by Track Number
(Direct access)
e Press a number from “1” to “6” then the corresponding track will
Start.
* Press and hold a number from “7” to “12” (“1” to “6”) for more than
one second and the corresponding track will start.
CQ-DP940/930EUC
13

E
N
G
L
|
S
H
8
14

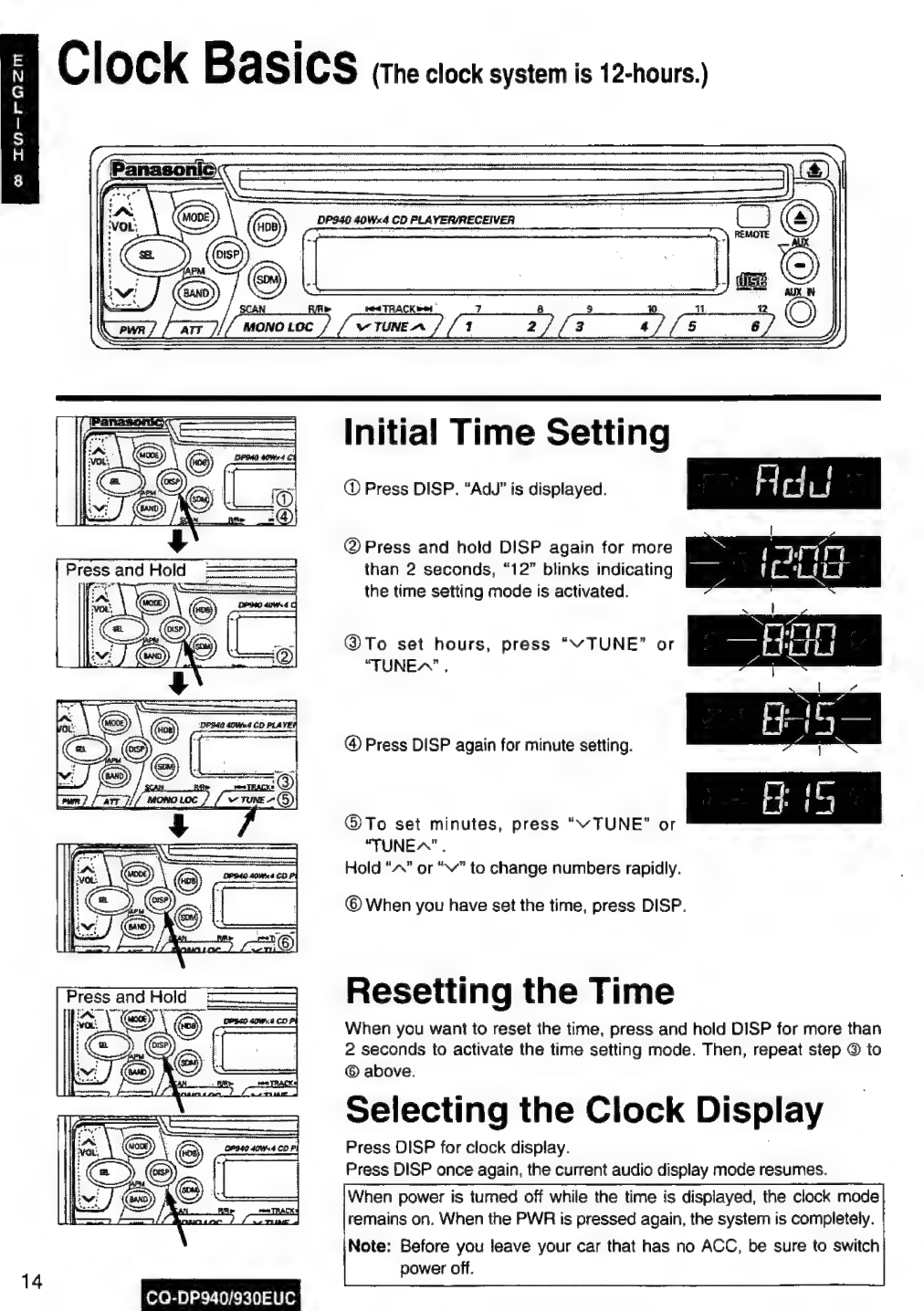

Clock Basics (The clock system is 12-hours.)
Press and Hold
\e
CQ-DP940/930EUC
Initial Time Setting
© Press DISP. “AdJ” is displayed.
@ Press and hold DISP again for more
than 2 seconds, “12” blinks indicating
the time setting mode is activated.
@To set hours, press “V TUNE” or
“TUNES”.
| #
@ Press DISP again for minute setting. Eee
®To set minutes, press ““ TUNE” or
“TUNEA”.
Hold “A” or “v” to change numbers rapidly.
© When you have set the time, press DISP.
Resetting the Time
When you want to reset the time, press and hold DISP for more than
2 seconds to activate the time setting mode. Then, repeat step © to
© above.
Selecting the Clock Display
Press DISP for clock display.
Press DISP once again, the current audio display mode resumes.
When power is tumed off while the time is displayed, the clock mode
remains on. When the PWR is pressed again, the system is completely.
Note: Before you leave your car that has no ACC, be sure to switch
power off.

Programmed Sound Memory (oni tor ca-nsaouc)
|
AE
Fu:
© ` DP940 40Wx4 CD PLAYER/RECEIVER
Programmed Sound Memory Mode
Selection
A desired sound setting (except for VOL and ATT) can be memorized
and recalled. Press SDM to select to the sound memory mode.
Press and Hold 2
a
Programmed
Sound
Memory
Input
e To preset sound setting, press the corresponding preset memory
button (1 to 4) for more than 2 seconds at sound memory mode.
rip ine TI d
GENI L4
¢ The preset memory buttons, 5 and 6 are not valid for sound
memory.
Recall Programmed Sound Memory
e When a desired preset memory button is pressed in sound
memory mode, the corresponding sound setting is called.
e The preset memory button 5 is recommended for setting
+ The preset memory button 6 is used to release all sound settings.
To change to normal mode
e Press MODE or SDM to return to the normal mode.
Note: When the sound memory mode is selected but no setting is
made within 5 seconds, the mode will return to the normal mode.
ee Eo KO A Art WH WE 1 e ==
Securit Level Meter
When power is ON, the level of sound sources, such as radio and
CD, is displayed.
Note: The level meter indications do not change when VOL, BAL, or
other control is turned.
CQ-DP940/930EUC
L-ch sound R-ch sound
source level source level
o BH=Crazm
15

Remote Control Unit Basics (Only for CQ-DP940EUC)
Battery
Replacement
(Remote
Control
Unit)
1.Remove the battery holder.
Puli the holder by the Position B while pushing Position A in the
direction
indicated
by
the
arrow.
Lithium
battery
Rear
view
of
remote
2.Replace the battery. control
Set a new battery properly with the (+) side up as illustrated.
E
N
G
L
l
S
H
=
©
3.
Insert
the
battery
holder.
J
7
Push
in
the
holder
to
the
full.
Position
B
Notes on Batteries 7
Battery holder Position A
Old batteries must immediately be removed and disposed.
Battery Information:
+ Designated Battery: Panasonic Lithium Battery (CR2025)
° Battery Life: 6 montns with normal use e (in normal room temperature}
Caution:
Improper. use of batteries may cause overheating, explosion or ignition, ns in injury of fire.
Battery leakage may cause damage to the unit.
+ Do not disassemble or short the batteries. Do not throw the batteries into the fire.
* To avoid the risk of accident, keep the batteries out of reach of children.
@ Power Button
@BAND/DISC UP Button
@ATT Button
@TUNE/TRACK Button
® Volume Control Button
@Mode Button
Please refer Battery Replacement before using
remote control.
O
pe
rati
n
g
P
roced
u
res
a
UP
controller
toward
the
sensor
of
Power
® POWER (Power Button)
Press POWER to switch on the power.
Press POWER again to switch off the power.
Attenuator/Tone Enhancement
@ATT (ATT Button)
+ Press ATT to immediately decrease
volume to about 1/10 of its previous level.
+ Press ATT again to resume the previous.
Mode
Selection
volume.
® MODE (Mode Button)
Press MODE to switch the operation
mode in the following order.
Radio —— CD Player
t_ aux «|
(Only for CQ-DP940EUC)
Volume
®VVOLA (Volume Control Button)
Press “A” or “V” to increase or decrease
volume level.
19 CQ-DP940/930EUC

Radio
Selecting a Band
@ BAND (Band select Button)
Press BAND to select bands in sequence.
FM1 —> FM2 —> FM3 —— AM
Manual Tuning
@VTUNE (Manual Tuning Button)
Press “V” or “A” to tune the frequency
downward or upward.
Compact Disc Player
(When a disc is inserted, playback starts.)
To starts CD Play
@MODE (MODE Button)
+ Only when a disc is inserted, press to
select CD play mode, and playback starts
automatically.
Radio ——> CD Player
t— aux «—
{Only for CQ-DP940EUC)
When a disc is inserted, the CD play starts
automatically regardless what mode you
are being listened.
Seek Tuning
@VTUNE (Seek Tuning Button)
Press and hold “v” or “A” for more than a
half second, then release. The radio will
automatically stop on the next station.
Selecting a Track
@VTRACKA (Track Select Button)
+ Press “A” once to go to the next track.
* Press “V” once to play from the
beginning of the currently played track.
* Press repeatedly to skip forward or
backward through all the tracks.
Searching a Track
@VTRACKA (Track Search Button)
Press and hold “V” or “=” for more than a
half second to activate fast forward or
reverse through a track.
Release to stop fast forward or reverse.
CQ-DP940/930EUC
In-rozm
= —
17

zn-rozm
h N
18
Installation Guide
ÁN WARNING
The installation information is designed for experienced installers and is not
intended for non-technical individuals. It does not contain warnings or cautions of
potential dangers in attempting to install this product.
Any attempt to install this product in a motor vehicle by anyone other than
qualified installer could cause damage to the electrical system and could result in
serious personal injury or death.
OO Overview
This equipment should be instalied by a
professional. However, if you plan to install this
unit yourself, your first step is to decide where to
install it The instructions in these pages will
guide you through the remaining steps: (Please
refer to “WARNING” statement above).
+ Identify and label the vehicle wires
e Connect the vehicle wires to the wires of the
power connector
+ Install the unit in the dash
e Check the operation of the unit
If you do encounter problems, please consult
your nearest professional installer.
Caution: This unit will operate with a 12 voit DC
negative ground auto battery system only. Do not
attempt to use it in any other system. Doing so
could cause serious damage.
Before you begin installation, look for the
following items included in the packing with your
unit.
+ Warranty Card .... Fill this out promptly
+ MSC (in Canada: Panasonic) Servicenter
Directory ..... Keep for future reference in case
the unit needs servicing
e Installation Hardware ..... Needed for in-dash
installation
CQ-DP940/930EUC
O Installation Hardware
Now| item Diagram |aty
@) | Mounting Collar SP
@ | Hex. Nut (5 mmo)
Tapping Screw
(5 mmo x 16 mm)
®© | Mounting Bolt (5 mmo)
= AU
@ | Dismounting Plate
neuer? Face Plate Er
Case
@) | Remote Control Unit Z
(Only for CQ-DP940EUC,} Z
a = al
@ | Lithium battery 1
E (Only for CQ-DP940EUC,) ©

O Required Tools
You'll need a screwdriver, a 1.5 volt AA battery,
and the following:
SIDE-CUT
PLIERS
12 V DC
TEST BULB
ELECTRICAL
TAPE
O Dashboard Specifications
THICKNESS
MIN. 3/16” (4.75 mm)
E MAX. 7/32” (5.56 mm) |
\ CA | 2- i (53 mm)
7- Ae a mm)
CJ Identify All Leads
The first step in installation is to identify all the
vehicle wires you'll use when hooking up your
sound system.
As you identify each wire, we suggest that you
label it using masking tape and a permanent
marker. This will help avoid confusion when
making connections later.
Note: Do not connect the power connector to the
stereo unit until you have made all connections.
If there are no plastic caps on the stereo hooking
wires, insulate all exposed leads with electrical
tape until you are ready to use them. identify the
leads in the following order.
Power Lead
If your vehicle has a radio or is pre-wired for one:
Cut the connector plug off (leaving the leads as
long as possible) so that you can work with
individual leads.
i=
Turn the ignition on to the accessory position, and
ground one lead of the test bulb to the chassis.
Touch the order lead of the test bulb to each of
the exposed wires from the cut radio connector
plug. Touch one wire at a time until you find the
outlet that causes the test bulb to light.
Now turn the ignition off and then on. If the bulb
also turns off and on, that outlet is the vehicle
power lead.
lf your vehicle is not wired for an audio unit:
Go to the fuse block and find the fuse port for
radio (RADIO), accessory (ACC), or ignition
(IGN).
Battery Lead
if your stereo unit has a yellow lead, you will need
to locate the car's battery lead. Otherwise you
- may ignore this procedure. (The yellow battery
lead provides continuous power to maintain a
clock, memory storage, or other function.)
if your vehicle has a radio or is pre-wired for one:
With the ignition and headlights off, identify the
car battery lead by grounding one lead of the test
bulb to the chassis and checking the remaining
exposed wires from the cut radio connector plug.
If your vehicle is not wired for an audio unit:
Go to the fuse block and find the fuse port for the
battery, usually marked BAT.
Speakers
identify the car speaker leads. There will be two
leads for each speaker, usually color coded.
À handy way to identify the speaker leads and the
speaker they connect with is to test the leads
using a 1.5 volt AA battery as follows.
Hold one lead against one pole of the battery and
stroke the other lead across the other pole. You
will hear a scraping sound in a speaker if you are
holding a speaker lead.
If not, keep testing different lead combinations
until you have located all the speaker leads.
When you label them, include the speaker
location for each.
Antenna Motor
If your vehicle is equipped with an automatic
power antenna, identify the vehicle motor
antenna lead by connecting one bulb tester lead
to the vehicle battery lead and touching the
remaining exposed wires from the cut radio
connector plug one at a time. You will hear the
antenna motor activate when you touch the
correct wire.
Antenna
The antenna lead is a thick, black wire with a
metal plug at the end.
| CQ-DP940/930EUC EUC Li

TH—rowzm
_ >
20
Installation Guide continues
O Connect All Leads
Now that you have identified all the wires in the
vehicle, you’re ready to begin connecting them to
the stereo unit wires. The connection diagram on
Page 24 show the proper connections and color
coding of the leads.
We strongly recommend that you test the unit
before making a final installation.
You can set the unit on the floor and make
temporary connections to test the unit. Use
electrical tape to cover all exposed wires.
Important: Connect the red power lead last, after
you have made and insulated all other
connections.
Ground
Connect the black ground lead of the power
connector to the metal vehicle chassis.
Speakers
Connect the speaker wires. See the wiring
diagram below for the proper hookups. Follow the
diagram carefully to avoid damaging the speakers
and the stereo unit.
The speakers used must be able to handle more
than 40 watts of audio power. If using an optional
audio amplifier, the speakers should be able to
handie the maximum amplifier output power.
Speakers with low input ratings can be damaged.
Speaker impedance should measure 4 - 8 ohms,
which is typically marked on most speakers.
Lower or higher impedance speakers will affect
output and can cause both speaker and stereo
unit damage.
Caution: Never ground the speaker cords. For
example, do not use a chassis ground system or
a three-wire speaker common system. Each
speaker must be connected separately using
paraliel insulated wires. If in doubt about how
your cars speakers are wired, please consult with
your nearest professional installer.
Motor Antenna
Connect the vehicle motor antenna lead to the
blue motor antenna relay control lead.
CQ-DP940/930EUC
Battery
Connect the yellow battery lead to the correct
radio wire or to the battery fuse port on the fuse
block.
Antenna
Connect the antenna by plugging the antenna
lead into the antenna receptacle.
Equipment
Connect any optional equipment such as
amplifier, according to the instructions furnished
with the equipment. Keep about 12 inches (30
cm) of distance between the speaker
cords/amplifier unit and the antenna/antenna
extension cord. Read the operating and
installation instructions for any equipment you will
connect to this unit.
Power
Connect the red power lead to the correct vehicle
radio wire or to the appropriate fuse port on the
fuse block.
If the stereo unit functions properly with all these
connections made, disconnect the wires and
proceed to the final installation.
O Final Installation
Lead Connections
Connect all wires, making sure that each
connection is insulated and secure. Bundle all
loose wires and fasten them with tape so they
won't fall down later. Now insert the stereo unit
into the mounting collar.
Congratulations! After making a few final checks,
you're ready to enjoy your new auto stereo
system.
O Final Checks
1. Make sure that all wires are properly
connected and insulated.
2. Make sure that the stereo unit is securely held
in the mounting collar.
3. Turn on the ignition to check the unit for proper
operation.
If you have difficulties, consult your nearest
authorized professional installer for assistance.
