Panasonic KX-TC1831W User manual

Panasonic
SOOMHz Cordless Phone
Model No. KX-TC1 831 W
Pulse-or-tone dialing capability
Ge USE AND SAVE.
Charge the battery for 6 hours.
< betore initial use. ~~
Contents by Section
1 Getting Started
2 Making/Answering Calls
3 Special Features
4 Things You Should Know
5 Referencia rápida
Panasonic World Wide Web address: http://www.panasonic.com
for customers in the USA or Puerto Rico
We ites ig a at sc eg am te ge sarc ado Di
l Attach your purchase receipt here. i
For your future reference
Serial No, Date of purchase
(found on the bottom of the uniti
Mame and address of dealer
For product service
ePanasonic Servicanters are listed in the servicenter directory.
eCall 1-800-211-PANA(?262) for the location of an authorized servicenter,
@#Panasonic's e-mail address for customer inquiries:
consumerproducts & panasonic.com
for customers. in the USA or Puerto Rico ONLY
When you ship the product
«Carefully pack your unit, preferably in the original carton.
è Attach a letter, detailing the symptom, to the outside of the carton.
eSend the unit to an authorized servicenter, prepaid and adequately insured.
eDo not send your unit to the Panasonic Consumer Electronics Company listed
below or to executive or regional sales offices,
These locations do not rapair consumer products,
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Sales Company,
Division of Matsushita Electric of Puerto Rico, Inc.
Ave. 65 de Infanteria, Km. 9.5, San Gabriel Industrial Park
Carolina, Puerto Aico 00985
Printed in Malaysia PQOX12624Z4-BM FMO600HKO (5)

T Getting Started
poco _ mar me a ee Fi aa ¿yá eee teeth AAA fp A Ne et yt er A Ltt eesti Sy
1-A
Accessories
_
:
|4-
1-B
Location
of
Controls
|
Nee me. eae nm =t
O AC Adaptor Handset
one
Order No. KX-TCA1-G
Base unit
Antenna (1-C)
HANDSET LOCATOR) Button (3-D)
IN USE/CHARGE Indicator
(1-C, 3-D)
C] Telephone Line Cord
one FE
O Battery
one
Order
No.
P-P508
TALK)
Button
O
Handset
Cover
and Indicator (2-A)
one
Order No. L£)
PQKK1009922
Charge Contacts
LOUD/RINGER (4-A)
Button (2-A, 2-B)
U
Belt
Clip
RECHARGE
one Indicator (4-A)
Order No.
O Wall Mounting Adaptor — (3-C) ns (9)
one ae: 78 98
Order No, Y
PQKL10035Z2 . FLASH] Button I | Es E REDIAL | Button
(3-A) (2-A)
C]
Handset
Holder
UY
A
one
Order
No.
ei
PQKE10097722
WHA
TTT
Charge
Contacts
(4-A)
e For extra orders, call 1-800-332-5368.
1-C Settings a ee |
1 Connect as shown. Install the battery in
_ the handset and close
` the handset cover, locking
it into place.
' Single-Line
(RJ11C) STOP hours. '’
eSee section 4-A for more
; 3. details.
Telephone Line Cord @The IN USE/CHARGE
indicator lights.
Power Outlet
(AC 120 V, 60 Hz)
IN USE/CHARGE Indicator
Raise the
antenna.
AC Adaptor Ml To select the dialing mode TONE (preset) or PULSE
You can program the dialing mode using the handset near the base
unit. The TALK indicator light must be off before programming.
Press (#) (PULSE) until 2 beeps sound.
eUSE ONLY WITH Panasonic AC ADAPTOR KX-TCA1 (Order No. While pressing : OR
KX-TCA1-G).
Press
(6)
(TONE)
until
2
beeps
sound.
eThe AC adaptor must remain connected at all times. {It is normal for the
adaptor to feel warm during use.)
eTo connect a standard telephone on the same line, see section 4-F.
elf 3 beeps sound during programming, a wrong key was pressed.
Start again from the beginning.

Getting Started
Section 1
1 Set the handset holder
as shown. E
2 Connect the AC adaptor.
Tuck the telephone line
cord inside the wall
mounting adaptor,
- then push it in
the direction of
the arrow.
è The word “UP” should
face upward.
Making/Answering Calls
[2-A M
LOUD/RINGER
and
Indicator
REDIAL
For best operating performance, see section
4-B.
Lighted handset keypad
The handset dialing buttons will light when
you press a button or lift the handset off |
the base unit, and flash when a call is {
|
| received. The lights will go out about
| 10 seconds after pressing a button, lifting
|
the handset or answering a call. |
ON ë =|
1-D Wall Mounting č
This unit can be mounted on a wall phone plate.
Connect the telephone
line cord. Mount the unit,
then slide down.
e Raise the antenna.
the holder, pull out
Press (TALK).
eThe TALK indicator lights.
elf an alarm tone sounds, see section 4-E.
Dial a phone number.
To hang up,
press or place the handset on
the base unit. -
®The indicator light goes out.
To redial the last number dialed
Press =» (REDIAL).
To select the receiver volume
| 3 levels (HIGH, MEDIUM, LOW) are available.
Press while talking.
eEach time you press the button, the volume
level will change from MEDIUM (preset) to
HIGH to LOW.
eWhen you replace the battery, the selected
receiver volume setting will return to the factory
set. Reprogram if necessary.
While pressing the arrow (@)
and opposite side (©) of
the handset holder.
aking Calls MR
r e e A — o e A A A aaa A A A n ee —
|2-B Answering Calls
lf the handset is off the base unit,
press (TALK).
eYou can also answer'a call by pressing
any dialing button (0) to (9), Œ) or (#)
(—Any Key Taik).
OR
If on the base unit,
just lift up.
Selecting the ringer volume
The TALK indicator light must be off.
eTo select HIGH (preset) or LOW,
press (LOUD/RINGER).
Each time you press the button, the ringer
volume will change and the selected volume
will ring.
eTo turn the ringer OFF, ;
press and hold until 2 beeps
sound. `
eTo turn the ringer ON,
press (LOUD/RINGER).
The ringer will sound at the HIGH tevel.
eWhen you replace the battery, the selected
ringer volume setting will return to the factory
set. Reprogram if necessary.

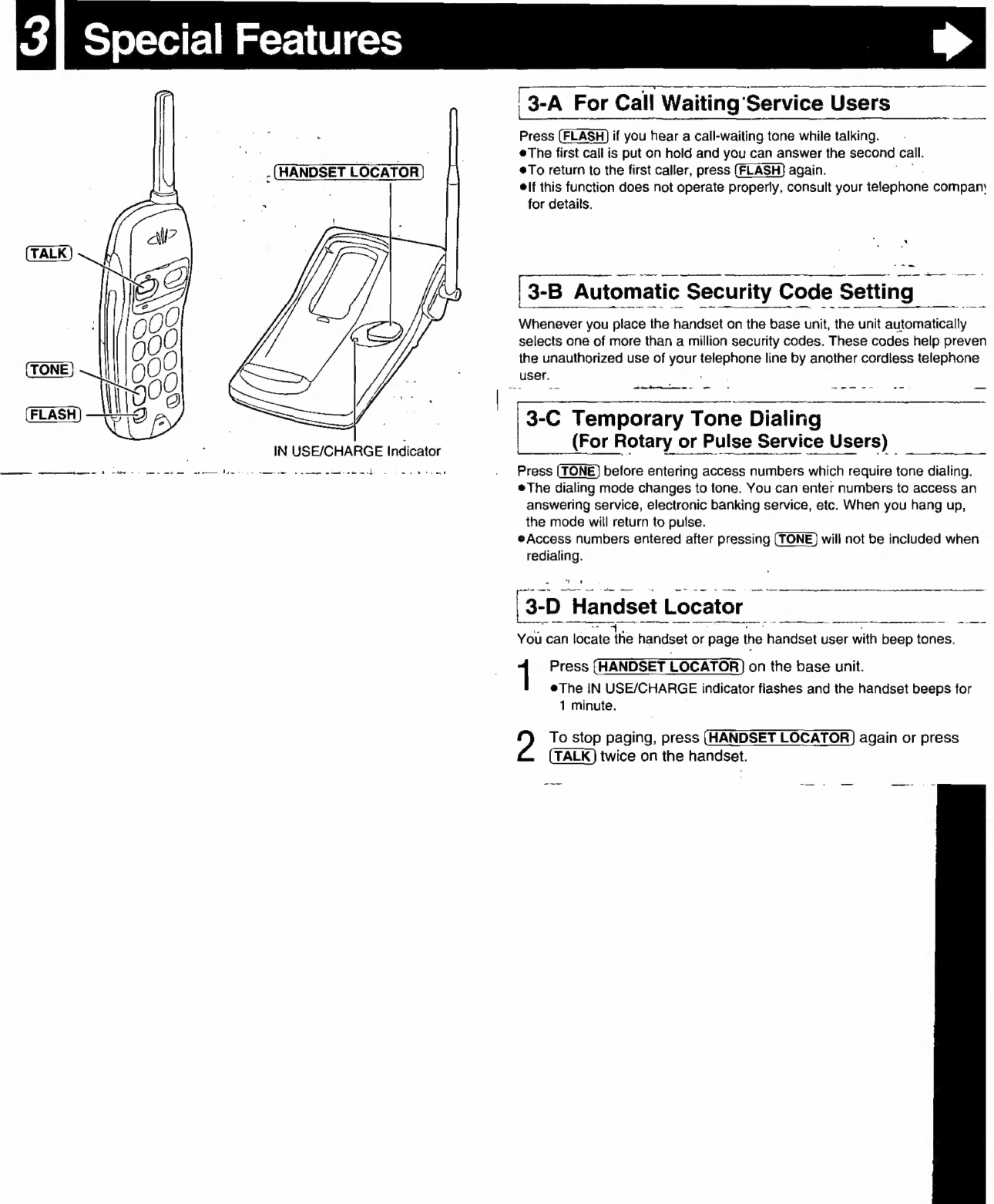

Special Features
[3-A For Call Waiting Service Users o
Press if you hear a call-waiting tone while talking.
eThe first call is put on hold and you can answer the second call.
eTo return to the first caller, press again. o
elf this function does not operate properly, consult your telephone compan:
for details.
- (HANDSET LOCATOR
a
a
A elem are a ee ee eo
| 3-B Automatic Security Code Settin
Whenever you place the handset on the base unit, the unit automatically
selects one of more than a million security codes. These codes help preven
the unauthorized use of your telephone line by another cordless telephone
user,
a i 3-C Temporary Tone Dialing
IN USE/CHARGE Indicator (For Rotary or Pulse Service Users) _
A
NS
NS
A
eee
E
.
Press
before
entering
access
numbers
which
require
tone
dialing.
eThe dialing mode changes to tone. You can enter numbers to access an
answering service, electronic banking service, etc. When you hang up,
the mode will return to pulse.
e Access numbers entered after pressing will not be included when
redialing.
3: Handset Locator
You can locate the handset or page the handset user with beep tones.
Press [HANDSET LOCATOR on the base unit.
eThe IN USE/CHARGE indicator flashes and the handset beeps for
1 minute.
To stop paging, press (HANDSET LOCATOR) again or press
twice on the handset.

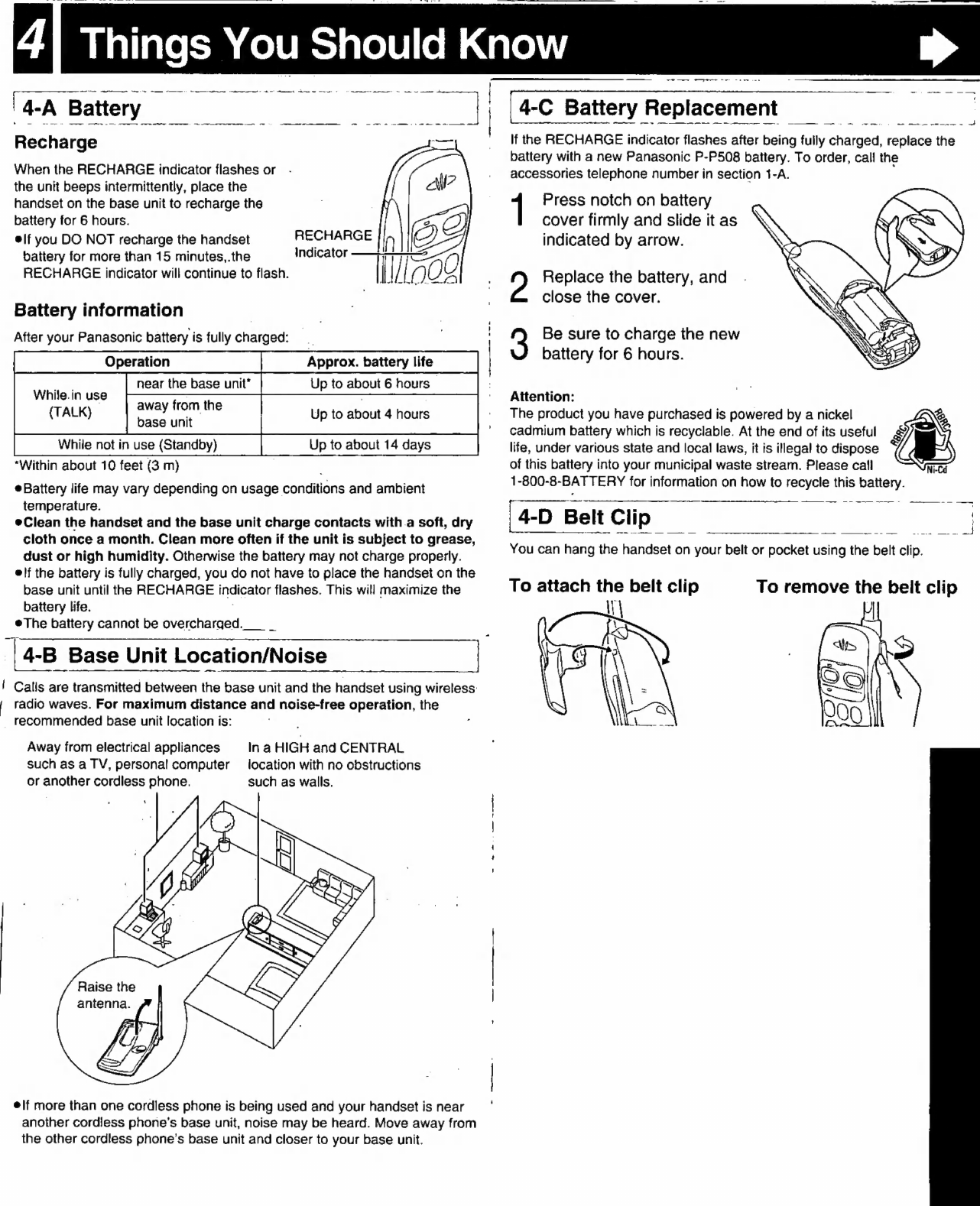

Things You Should Know
[4-A Battery
Recharge
When the RECHARGE indicator flashes or
the unit beeps intermittently, place the
handset on the base unit to recharge the
battery for 6 hours.
elf you DO NOT recharge the handset
battery for more than 15 minutes,.the
RECHARGE indicator will continue to flash.
RECHARGE n
Indicator ——_—_—__—2
11008
Battery information
After your Panasonic battery is fully charged:
Approx. battery life
near the base unit’ Up to about 6 hours
base unit
While not in use (Standby) Up to about 14 days
*Within about 10 feet (3 m)
Battery life may vary depending on usage conditions and ambient
temperature.
Clean the handset and the base unit charge contacts with a soft, dry
cloth once a month. Clean more often if the unit is subject to grease,
dust or high humidity. Otherwise the battery may not charge properly.
eif the battery is fully charged, you do not have to place the handset on the
base unit until the RECHARGE indicator flashes. This will maximize the
battery life.
eThe battery cannot be overcharged.
| 4-B Base Unit Location/Noise
| Calls are transmitted between the base unit and the handset using wireless:
radio waves. For maximum distance and noise-free operation, the
recommended base unit location is:
-- ee ee
While.in use
(TALK)
In a HIGH and CENTRAL
location with no obstructions
such as walls.
Away from electrical appliances
such as a TV, personal computer
or another cordless phone.
- æ — eee
Raise the
antenna.
elf more than one cordless phone is being used and your handset is near
another cordless phone's base unit, noise may be heard. Move away from
the other cordless phone's base unit and closer to your base unit.
-æ — re ir
4-C Battery Replacement
eee. a |
If the RECHARGE indicator flashes after being fully charged, replace the
battery with a new Panasonic P-P508 battery. To order, cali the
accessories telephone number in section 1-A.
1 Press notch on battery
cover firmly and slide it as
indicated by arrow.
Replace the battery, and
close the cover.
2
3
Attention:
The product you have purchased is powered by a nickel
cadmium battery which is recyclable. At the end of its useful
life, under various state and local laws, it is illegal to dispose
of this battery into your municipal waste stream. Please call
1-800-8-BATTERY for information on how to recycle this battery.
Be sure to charge the new
battery for 6 hours.
S
&
Y
|4-D Belt Clip
You can hang the handset on your belt or pocket using the belt clip.
To attach the belt clip To remove the belt clip
i

Things You Should Know
— =- i A eee Ak

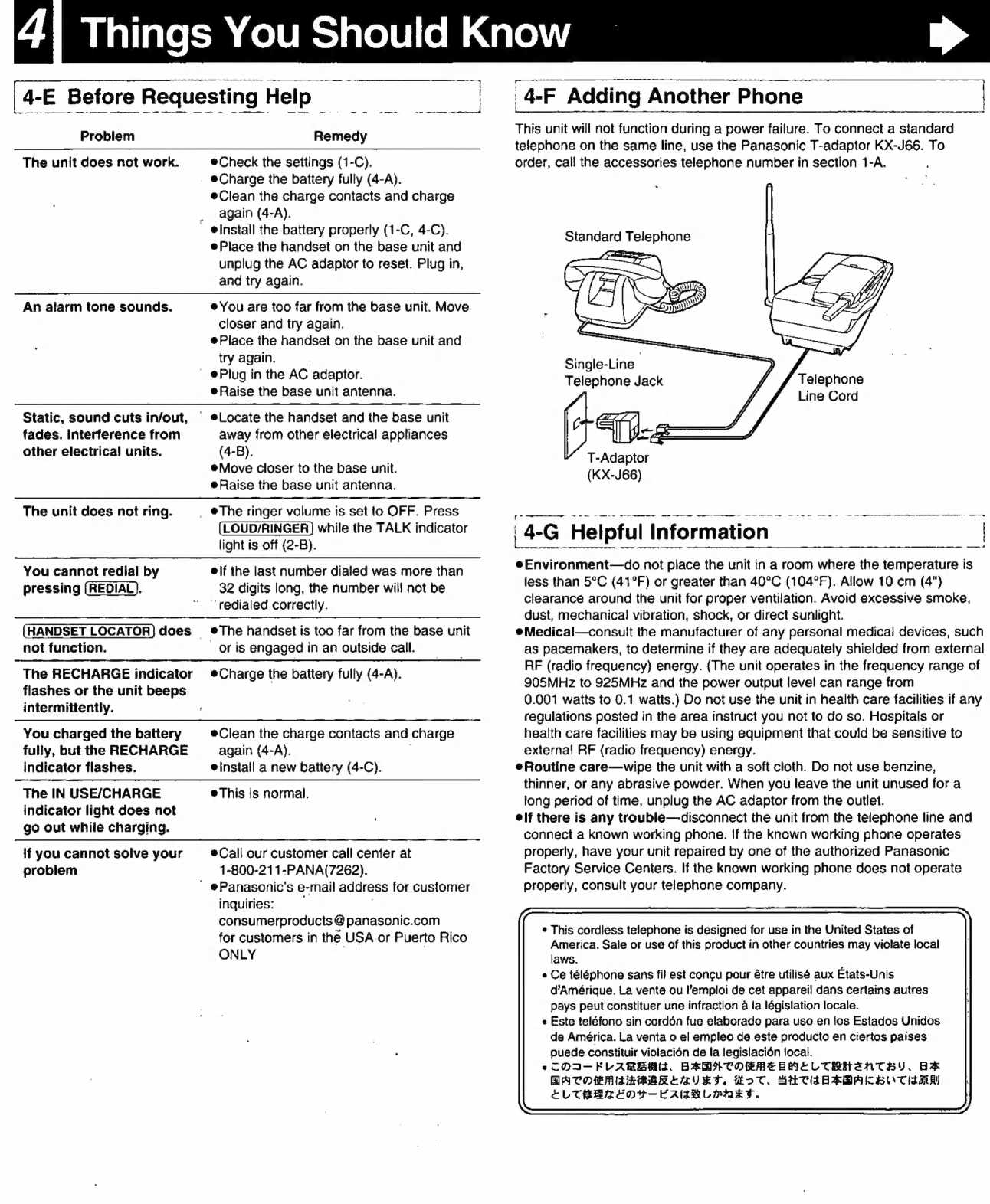

Problem
The unit does not work.
An alarm tone sounds.
Static, sound cuts in/out,
fades. Interference from
other electrical units.
The unit does not ring.
You cannot redial by
pressing (REDIAL).
HANDSET LOCATOR) does ©
not function.
The RECHARGE indicator
flashes or the unit beeps
intermittently.
You charged the battery
fully, but the RECHARGE
indicator flashes.
The IN USE/CHARGE
indicator light does not
go out while charging.
if you cannot solve your
problem
4-E
Before
Requesting
Help
Remedy
Check the settings (1-C).
- Charge the battery fully (4-A).
eClean the charge contacts and charge
again (4-A).
“ elnstall the battery property (1-C, 4-C).
ePlace the handset on the base unit and
unplug the AC adaptor to reset. Plug in,
and try again.
e You are too far from the base unit. Move
closer and try again.
ePlace the handset on the base unit and
try again.
` @Plug in the AC adaptor.
eRaise the base unit antenna.
` eLocate the handset and the base unit
away from other electrical appliances
(4-B).
eMove closer to the base unit.
e Raise the base unit antenna.
. ©The ringer volume is set to OFF. Press
LOUD/RINGER ] while the TALK indicator
light is off (2-B).
elf the last number dialed was more than
32 digits long, the number will not be
‘redialed correctly.
eThe handset is too far from the base unit
or is engaged in an outside call.
Charge the battery fully (4-A).
eClean the charge contacts and charge
again (4-A).
einstall a new battery (4-C).
eThis is normal.
eCall our customer call center at
1-800-211-PANA(7262).
" ePanasonic's e-mail address for customer
inquiries:
consumerproducts Y panasonic.com
for customers in the USA or Puerto Rico
ONLY | |
:4-F Adding Another Phone
This unit will not function during a power failure. To connect a standard
telephone on the same line, use the Panasonic T-adaptor KX-J66. To
order, call the accessories telephone number in section 1-A.
Standard Telephone
Single-Line |
Telephone Jack Telephone
Line Cord
T-Adaptor
(KX-J66)
_4-G Helpful Information
eEnvironment—do not place the unit in a room where the temperature is
less than 5°C (41°F) or greater than 40°C (104°F). Allow 10 cm (4")
clearance around the unit for proper ventilation. Avoid excessive smoke,
dust, mechanical vibration, shock, or direct sunlight.
eMedical—consult the manufacturer of any personal medical devices, such
as pacemakers, to determine if they are adequately shielded from external
RF (radio frequency) energy. (The unit operates in the frequency range of
905MHz to 925MHz and the power output level can range from
0.001 watts to 0.1 watts.) Do not use the unit in health care facilities if any
regulations posted in the area instruct you not to do so. Hospitals or
health care facilities may be using equipment that could be sensitive to
external RF (radio frequency) energy.
eRoutine care—wipe the unit with a soft cloth. Do not use benzine,
thinner, or any abrasive powder. When you leave the unit unused for a
long period of time, unplug the AC adaptor from the outlet.
elf there is any trouble—disconnect the unit from the telephone line and
connect a known working phone. If the known working phone operates
properly, have your unit repaired by one of the authorized Panasonic
Factory Service Centers. If the known working phone does not operate
properly, consult your telephone company.
e This cordless telephone is designed for use in the United States of
America. Sale or use of this product in other countries may violate local
laws,
e Ce téléphone sans fil est conçu pour être utilisé aux Etats-Unis
d'Amérique. La vente ou Pemploi de cet appareil dans certains autres
pays peut constituer une infraction a la législation locale.
e Este teléfono sin cordón fue elaborado para uso en los Estados Unidos
de América. La venta o el empleo de este producto en ciertos paises
puede constituir violación de la legislación local.
*COI-KVAREAIS. BIATORAEBMELTRRHINTEU, BR
HACOPRISAMBR ECVE. Hot. SHCRASBACSU TAR
ELCTEBRENY-EZISRLORET.

Things You Should Know
Section 4
.
4-H Important Safety Instructions E
When using this unit, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, or personal injury.
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from AC outlets before cleaning. Do not use liquid or
aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this unit near water, for example, near a bathtub, washbowl,
kitchen sink, or the like.
Place this unit securely on a stable surface. Serious damage and/or injury
may result if the unit falls.
6. Do not cover slots and openings on the unit. They are provided for
ventilation and protection against overheating. Never place the unit near
radiators, or in a place where proper ventilation is not provided. :
7. Use only the power source marked on the unit. If you are not sure of the
type of power supplied to your home, consult your dealer or local power
company.
8. Do not place objects on the power cord. Install the unit where no one can
step or trip on the cord.
9. Do not overload wall outlets and extension cords. This can result in the risk
of fire or electric shock.
10. Never push any objects through slots in this unit. This may result in the risk
of fire or electric shock. Never spill any liquid on the unit.
11. To reduce the risk of electric shock, do not disassemble this unit. Take the
unit to an authorized servicenter when service is required. Opening or
removing covers may expose you to dangerous voltages or other risks.
incorrect reassembly can cause electric shock when the unit is
subsequently used.
12. Unplug this unit from the wall outlet and refer servicing to an authorized
servicenter when the following conditions occur:
A. When the power supply cord or plug is damaged or frayed.
B, If liquid has been spilled into the unit.
4 FCC Information
A A ee
n
If requested by the telephone company, inform them as follows:
FCC Registration No. ». 262d wmsrae darán ds (found on the bottom of the unit)
Ringer Equivalence. isses at en ue A A tewes 0.1B
The particular telephone line to which the equipment is connected.
This unit must not be connected to a coin operated line.
If you are on a party line, check with your local telephone company.
“ff
Ringer Equivalence No. (REN):
The REN is useful in determining the quantity of devices you may connect to
your telephone line and still have all of those devices ring when your telephone
number is called. In most, but not all areas, the sum of the REN's of all devices
connected to one line should not exceed five (5.0). To be certain of the number
of devices you may connect to your line, as determined by the REN, you should
contact your local telephone company to determine the maximum REN for your
calling area.
In the event terminal equipment causes harm to the telephone network, the
telephone company should notify the customer, if possible, that service may be
stopped.
However, where prior notice is impractical, the company may temporarily cease
service providing that they:
(a) Promptly notify the customer.
(b) Give the customer an opportunity to correct the problem with their
equipment.
(c) Inform the customer of the right to bring a complaint to the Federa!
Communication Commission pursuant to procedures set out in FCC Rules
and Regulations Subpart E of Part 68.
The Telephone Company may make changes in its communications facilities,
equipment, operations or procedures, where such action is reasonably required
in the operation of its business and is not inconsistent with the rules and
regulations in FCC Part 68.
If such changes can be reasonably expected to render any customer terminal
equipment incompatible with telephone company communications facilities, or
require modification or alteration of such terminal equipment, or otherwise
materially affect its use or performance, the customer shall be given adequate
notice in writing, to allow the customer an opportunity to maintain uninterrupted
service.
C. If the unit has been exposed to rain or water.
D. If the unit does not work normally by following the operating instructions.
Adjust only controls covered by the operating instructions. Improper
adjustment may require extensive work by an authorized servicenter.
E. If the unit has been dropped or physically damaged.
F. If the unit exhibits a distinct change in performance.
13. During thunderstorms, avoid using telephones except cordless types.
There may be a remote risk of an electric shock from lightning.
14. Do not use this unit to report a gas leak, when in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
CAUTION:
To reduce the risk of fire or injury to persons, read and follow these instructions.
1. Use only the battery(ies) specified.
2. Do not dispose of the battery(ies) in a fire. They may explode. Check with
local waste management codes for special disposal instructions.
3. Do not open or mutilate the battery(ies). Released electrolyte is corrosive
and may cause burns or injury to the eyes or skin.
The electrolyte may be toxic if swallowed.
4. Exercise care in handling batteries in order not to short the battery to
conductive materials such as rings, bracelets, and keys. The battery and/or
conductor may overheat and cause burns.
5. Charge the battery(ies) provided with or identified for use with this product
only in accordance with the instructions and limitations specified in this
manual.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR ANY TYPE OF MOISTURE.
n
When programming emergency numbers and/or making test calls to emergency
numbers:
1. Remain on the line and briefly explain to the dispatcher the reason for the
call before hanging up.
2. Perform such activities in the off-peak hours, such as early morning hours
or late evenings.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Privacy of communications may not be ensured when using this phone.
CAUTION:
A
Any
changes
or
modifications
not
expressly
approved
by
the
party
responsible
for
compliance
could
void
the
user's
authority
to
operate
this
device.
Note:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Some cordless telephones operate at frequencies that may cause interference
to nearby TVs and VCRs. To minimize or prevent such interference, the base of
the cordless telephone should not be placed near or on top of a TV or VCR.
If interference is experienced, move the cordless telephone further away from
the TV or VCR. This will often reduce or eliminate interference.

Referencia rápida
Sección 5
5-A Preparación
Conecte como se muestra.
Para obtener el máximo alcance
y un funcionamiento sin ruidos,
ponga la unidad base en un
lugar ELEVADO y CENTRICO
sin obstrucciones ni interferencias
de aparatos eléctricos.
Toma telefónica
de una sola linea
eEl adaptador de CA debe permanecer conectado en todo momento.
Instale la batería, y luego “'
cierre la cubierta de la
unidad portátil,
encajándola en posición.
Cargue la batería durante
6 horas.
eEl indicador IN USE/CHARGE
se encenderá.
Indicador IN USE/CHARGE
Selección del modo de marcación por TONO
(preajustado) o PULSACIÓN
Utilizando la unidad portátil cerca de la unidad base usted puede
programar el modo de marcación. El indicador TALK deberá estar
apagado antes de programar.
Presione (++) (PULSACION) hasta que suenen 2 pitidos.
Mientras presiona (FLASH) = O
Presione (] (TONO) hasta que suenen 2 pitidos.
-5-B Funcionamiento
LOUD/RINGER
HANDSET LOCATOR
TALK} e
Indicador
_Indicador
RECHARGE
Cuando el indicador RECHARGE parpadee o la unidad emita pitidos
intermitentemente, cargue la batería.
Para hacer llamadas
Presione » Marque un número de teléfono.
ePara colgar, presione o ponga la unidad portátil en la unidad base.
Para seleccionar el volumen del recibidor
Presione mientras habla.
eCada vez que presione el botón, el volumen cambiará de MEDIANO
(prefijado) a ALTO a BAJO.
o al
Contestación de llamadas
Si la unidad portátil no está en la unidad base, presione o cualquier
botón de marcación ((0) a (9), (*) o (++).
Si está en la unidad base, levántela solamente.
Para seleccionar el volumen del timbre
El indicador TALK deberá estar apagado.
ePara seleccionar ALTO (prefijado) o BAJO,
presione (LOUD/RINGER).
Cada vez que presione el botón, el volumen seleccionado sonará y el
volumen del timbre cambiará.
ePara apagar el timbre, :
‘mantenga presionado (LOUD/RINGER) hasta que suenen 2 pitidos.
ePara encender el timbre,
presione (LOUD/RINGER).
El timbre sonará en nivel ALTO.
Localización de la unidad portátil =
Presione en la unidad base.
eLa unidad portátil emite pitidos durante 1 minuto:
ePara detener la localización, presione de nuevo (HANDSET LOCATOR) o
presione dos veces (TALK) en la unidad portátil.
