ORDERNO. KM40304054C2
Telephone Equipment
KX-TCD400GC / KX-TCD400GF / KX-A140EXC / KX-A140EXF
Digital Cordless Phone
Dark Blue Version
Light PurpleVersion
(for Germany)
SPECIFICATIONS
2003 PanasonicCommunications Co., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
1
1. ABOUT LEAD FREE SOLDER (PbF: Pb free)
Note:
Inthe information below, Pb, the symbol forleadinthe periodic table of elements, will referto
standardsolderorsolderthat contains lead.
We will use PbF whendiscussing the leadfree solderusedinourmanufacturing process which
is made fromTin(Sn), Silver(Ag), and Copper(Cu).
This model, and others like it, manufacturedusing leadfree solderwill have PbF stampedon
the PCB. Forservice and repairwork we suggest using the same type of solderalthough, with
some precautions, standardPbsoldercanalsobe used.
Caution
-PbF solder has amelting point that is50°F ~70°F (30°C~ 40°C)
higher than Pb solder. Please use asoldering iron with
temperature control and adjust itto 700°F ± 20°F (370°C± 10°C). In
case of using high temperature soldering iron, please be careful
not to heat too long.
-PbF solder will tend to splash ifitisheated much higher than its
melting point, approximately1100°F (600°C).
-Ifyou must use Pb solder on aPCB manufactured using PbF
solder, remove as much of the original PbF solder as possibleand
be sure that anyremaining ismelted prior to applying the Pb
solder.
-When applying PbF solder to doublelayered boards, please check
the component side for excess which mayflow onto the opposite
side (See the figure below).
2
1.1. Suggested PbF Solder
There are several types of PbF solderavailable commercially. While this product is
manufacturedusing Tin, Silver, and Copper
(Sn+Ag+Cu), you canalsouse Tinand Copper(Sn+Cu) orTin, Zinc, and Bismuth(Sn+Zn+Bi).
Please check the manufac
turer’s specific instructions forthe melting points of theirproducts and anyprecautions for
using theirproduct withother
materials.
The following leadfree (PbF) solderwire sizes are recommendedforservice of this product:
0.3mm, 0.6mm and 1.0mm.
1.2. How to recognize that Pb Free solder isused
1.2.1. Base Unit PCB
(Component View)
(FlowSolderSide View)
1.2.2. Handset PCB
(Component View)
(FlowSolderSide View)
2. FOR SERVICE TECHNICIANS
3
ICs and LSIs are vulnerable tostatic electricity.
Whenrepairing, the following precautions will helpprevent recurring malfunctions.
1. Cover the plasticparts boxes with aluminum foil.
2. Ground the soldering irons.
3. Use aconductive mat on the worktable.
4. Donot touch ICor LSI pins with bare fingers.
3. CAUTION
Dangerof explosion if batteryis incorrectlyreplaced. Replace onlywiththe same orequivalent
type recommendencedbythe manufacturer.
Dispose of usedbatteries according tothe manufacture’s Instructions.
4. BATTERY
4.1. BatteryInstration
Please ensure the batteries are insertedas shown. part shouldbe insertedfirst.
Close the coveras indicatedbythe arrow.
-When you replace the batteries, part shouldbe removed first.
4.2. BatteryCharge
At the time of shipment, the batteries are not charged. To charge, place the handset on the base
unit.
Please charge the batteries forabout 7 hours before initial use. During charging, the battery
icon is as shownbelow.
4
The handset whichpoweris off will be turnedon automaticallywhenit is placedon the base
unit.
Innormal use, the handset and the base unit shouldbe poweredon at all times.
Note forService:
The batterystrengthmaynot be indicatedcorrectlyif the batteryis disconnectedand connected
again, evenafterit is fullycharged.
Inthat case, byrecharging the batteryas mentionedabove, you will get a correct indication of
the batterystrength.
4.3. BatteryLife
-Batterylife isdependent on use and conditions but ingeneral
when using fullycharged Ni-MHbatteries (700 mAh):
Talktime: 10hrs approx.
Standbytime: 120hrs approx.
-When using Ni-Cdbatteries (250 mAh):
Talktime: 4hrs approx.
Standbytime: 40hrs approx.
(Times indicated are for peak performance)
-The batteries reach peak performance after several full charge/
discharge cycles.
-The batteries cannot be overcharged unless theyare repeatedly
removed and replaced.
-Ifbatterylife isshortened then please check that batteryand
charge terminalsare clean.
-For maximum batterylife, itisrecommended that the handset is
5
not recharged until batteryicon flashes .
4.4. Replacing the Batteries
If the icon flashes aftera fewtelephone calls evenwhenthe handset batteries have
beenfullycharged, 2 batteries must be replaced.
Charge newbatteries forapproximately7 hours before initial use.
(The telephone line cordmust not be connectedtothe telephone socket at this time).
Whenreplacing the batteries, ensure that the correct batterytype is selected.
-To exitthe operation, press anytime.
-When Ni-Cdbatteies are fitted with the
setting in , icon will disappear and stop
charging even ifthe handset ison the cradle.
-Donot use non-rechargeablebatteries. Ifno-rechargeablebatteries
are fitted and start charging, itmaycause the leakage of the
batteryelectrolyte.
Please use onlyPanasonic P03P(Ni-MH) orP03H(Ni-Cd) batteries.
5. LOCATION OF CONTROLS
5.1. Base Unit
6
5.2. Handset
6. SETTINGS
6.1. Connection
Plug inthe AC adaptorand the telephone line cordinorder1, 2, 3, 4.
7
The AC adaptormust remainconnectedat all times (It is normal forthe adaptortofeel warm
during use).
-Never install telephone wiring during alightning storm.
6.2. SymbolsUsed inThisService Manual
6.3. PINCode
6.3.1. Base Unit
8
-To exitthe operation, press anytime.
ForService Hint:

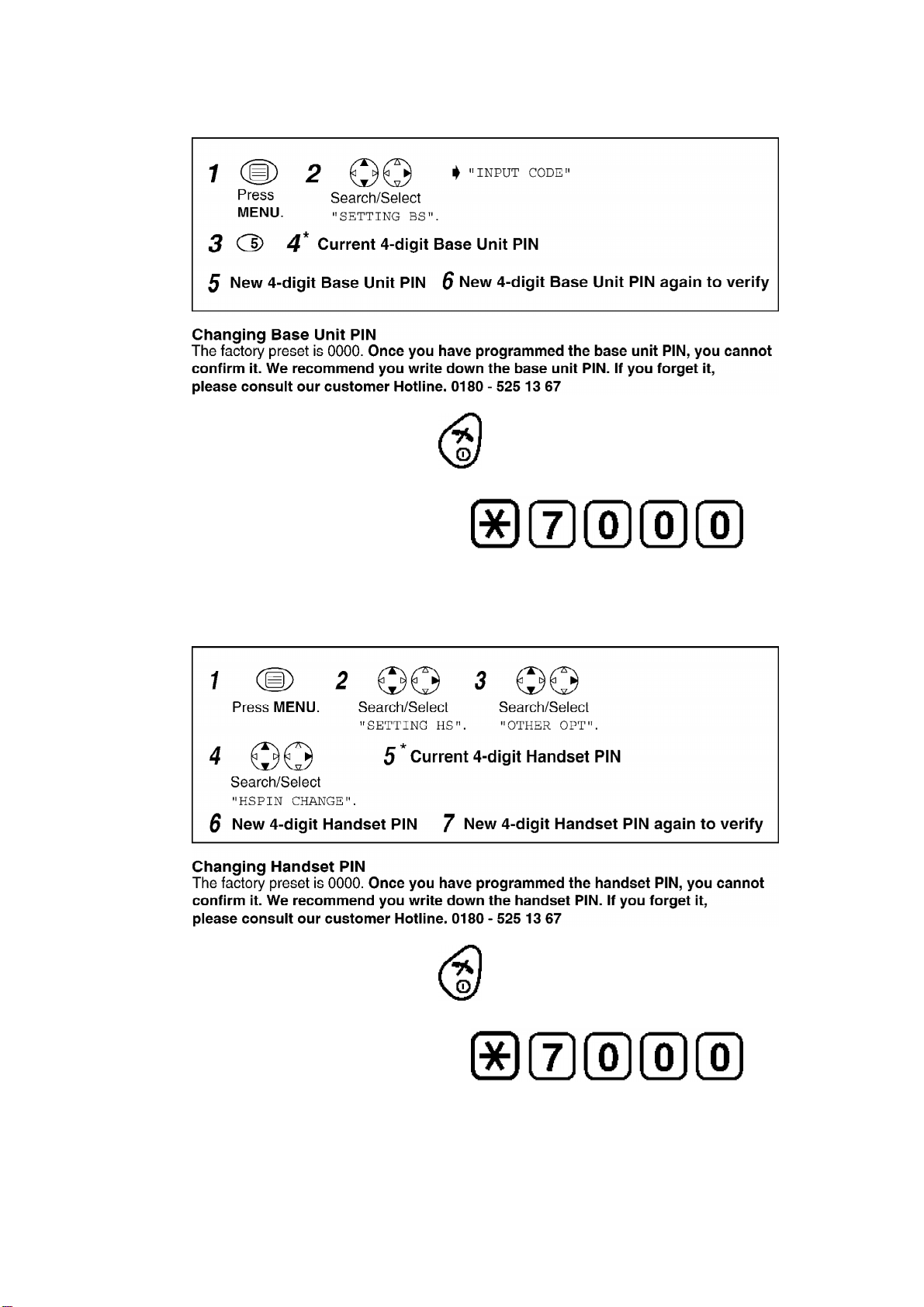

*: If the current 4-digit PIN is forgotten, press and you will
be able toenternewPIN.
6.3.2. Handset
-To exitthe operation, press anytime.
ForService Hint:
*: If the current 4-digit PIN is forgotten, press and you will
be able toenternewPIN.
9
6.3.3. Reset Base Unit PIN toDefault (0000) -When ThereisNO Handset
Registered-
6.3.3.1. Symptom
There is no waytoreset base PIN whenthere is no handset registeredtothe base.
6.3.3.2. Thinkable Situation
-Customer mayask to reset base PINbecause theyforget it.
-Customer maybring onlyabase unitfor repairand there isno
handset registered to the base (Need to register another handset
to the base to confirm ifthe unitworks properlyafter repair).
-When original handset has broken and customer purchased anew
one, ifcustomer forget base PIN, customer cannot register the
new handset and mayask to reset the PIN.
6.3.3.3. Remedy
<Preparation>
Referto JIGs and PC ().
<Connection>
1. Solder apinor lead wire to GND, SDA, and SCLKon base PCB.
2. Plug inAC adaptor to the base.
3. Turn on the power to the JIG (9V).
4. Then connect the cableto each pins using clip.
As forthe connection betweenJIG and PCB, see belowphotos.
<PC setting and howtoreset base PIN todefault (0000)>
1. Refer to PC Setting ().
2. Next, execute <initbspin.bat> bytyping "initbspin". The PC
displaywill be shownas below.
3. After that, turn off DC power supply(9V) to the jig, unplug AC
adaptor, and remove pins on PCB.
Then close the cabinet. The base pinreturns to the default(0000)
and you can register ahandset to the base using the base PIN
(0000).
10
