Panasonic AWE300SP - COLOR CAMERA User manual

OPERATING INSTRUCTIONS

Before attempting to connect, operate or adjust this product, please
read these instructions completely.
1/3-inch Camera With Separate Head
Model AW- P
FOCUS
LOCK

2
indicates safety information.
CAUTION
RISK OF ELECTRIC SHOCK
O NOT OPEN
CAUT ON: TO REDUCE THE R SK OF ELECTR C SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERV CEABLE PARTS NS DE.
REFER TO SERV C NG TO QUAL F ED SERV CE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (service)
instructions in the literature accompanying the appliance.
WARNING:
TO RE UCE THE RISK OF FIRE OR SHOCK HAZAR , O NOT
EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
CAUTION:
TO RE UCE THE RISK OF FIRE OR SHOCK HAZAR AN ANNOYING
INTERFERENCE, USE THE RECOMMEN E ACCESSORIES ONLY.
FCC Note:
This device complies with Part 15 of the FCC Rules. To assure continued
compliance follow the attached installation instructions and do not make any
unauthorized modifications.
This equipment has been tested and found to comply with the limits for a class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.

3
Contents
Introduction. . . . . . . . . . . . . . . . . . . . . . . 4
Features. . . . . . . . . . . . . . . . . . . . . . . . . . 4
Special Notes on Operation. . . . . . . . . . 5
Precautions . . . . . . . . . . . . . . . . . . . . . . . 6
Parts and Their Functions . . . . . . . . . . . 7
$Main unit . . . . . . . . . . . . . . . . . . . . . . 7
$Camera head unit . . . . . . . . . . . . . . . 9
Installation. . . . . . . . . . . . . . . . . . . . . . . 10
$Attaching the lens . . . . . . . . . . . . . . 10
$nstallation on a camera stand
(tripod, etc.) . . . . . . . . . . . . . . . . . . . 10
System Configuration (Connections) . . . 11
$Connecting equipment with a
composite video input connector. . . 11
$Connecting a remote control unit
(RCU) . . . . . . . . . . . . . . . . . . . . . . . 12
$Connecting a remote control box
(RCB) . . . . . . . . . . . . . . . . . . . . . . . 13
$Connecting multiple cameras
(achieving genlock) . . . . . . . . . . . . . 14
$Connections for exercising control
from a computer . . . . . . . . . . . . . . . 15
$Reference: Model numbers of related
equipment . . . . . . . . . . . . . . . . . . . . 16
Operating Mode Selection . . . . . . . . . . 17
$
How to select the operating mode . . 18
Operating Procedures . . . . . . . . . . . . . 19
Adjustments . . . . . . . . . . . . . . . . . . . . . 20
$Flange back adjustment . . . . . . . . . 20
$White balance adjustment. . . . . . . . 21
$Black balance adjustment . . . . . . . . 23
$Black level (total pedestal)
adjustment. . . . . . . . . . . . . . . . . . . . 24
$Genlock adjustment. . . . . . . . . . . . . 25
Menu Item Settings and Changes . . . . 27
$Setting the menu items . . . . . . . . . . 27
$
Halogen light, fluorescent light and
outdoor mode sub-menu screens
. . . 29
$User mode sub-menu screens . . . . 35
Returning to Initial Settings. . . . . . . . . 42
$nitial settings (factory settings). . . . 43
Outline rawings . . . . . . . . . . . . . . . . . 45
$Main unit . . . . . . . . . . . . . . . . . . . . . 45
$Camera head unit . . . . . . . . . . . . . . 45
Specifications . . . . . . . . . . . . . . . . . . . . 46
$Accessories. . . . . . . . . . . . . . . . . . . 47

4
Introduction
OFeaturing digital video signal processing, this 1/3-inch 3-CCD system color camera with
its separate head achieves a high picture quality and high reliability as well as many and
varied functions despite its compact size and light weight.
OThe head is separate which means that it can easily be mounted on a microscope (C
mount), for instance.
OUsing a menu screen format, the camera’s shooting conditions and functions can easily
be set and changed.
OThe camera can be connected to a peripheral unit such as an RCB or RCU for
expanding the capabilities of the system to suit the intended applications.
OA wide range of applications can be supported by installing optional cards.
Features
High picture quality, high reliability, many and varied functions, a compact size and
light weight achieved by incorporating digital video signal processing
OResolution: 800 lines (high band DTL ON), S/N ratio: 62 dB (DNR ON)
OMinimum illumination: 1.5 lux (f/1.4 ‘night eye’ mode)
Many and varied functions despite compact size
OSetting of camera parameters using menu screens enabled
OAuto functions such as ATW, ELC and AGC incorporated
OCCD readout (field, frame) switching supported
The vertical resolution can be improved by switching to the frame mode, and this is
useful for capturing still images and other kinds of image processing.
OSynchro scan function provided to reduce horizontal line noise when computer screens
are shot
OFunctions for controlling camera by computer incorporated
OExtension of cable (standard length of 3 meters) between head unit and main unit up to
10 meters possible
Faithful image reproduction assured by many compensation circuits
OEven areas with dark colors reproduced clearly by chroma detail enhancement
ONatural detail enhancement enabled even for dark areas by dark detail circuit
ONatural dynamic range reproduced by digital highlight chroma
OFaithful reproduction of colors enabled by digital color matrix
Full spectrum of video productions supported
OConditions optimally suited to each application selectable from 4 operation modes
(halogen light mode, fluorescent light mode, outdoor mode and user mode)
OSMPTE color bar display provided
ORemote control enabled by RCU or RCB

5
Special Notes on Operation
OTurn the power off before connecting or disconnecting cables.
OConnection or disconnection of any studio cable, RCB cable or other cable to any unit of
equipment must be performed while power is off.
While the camera is in automatic mode:
OShooting of bright objects in ELC operation mode may result in a smeared picture
unique to the CCD.
OThe ATW function under fluorescent illumination can adversely change the white
balance.

6
Precautions
ODo not attempt to disassemble the camera, Remote Control Unit (RCU) or other units.
n order to prevent electric shock, do not remove screws or covers. There are no user-
serviceable parts inside.
ODo not mishandle the camera. Avoid striking, shaking, etc. The camera contains
precision components which could be damaged by improper handling or storage.
ODo not let the lens remain uncovered when the camera is not in use. f the lens is not
installed, do not leave the lens mount hole uncovered.
ODo not touch the surface of the lens or prism.
ODo not use strong or abrasive detergents when cleaning the camera body.
ODo not aim the camera toward the sun, irrespective of whether it is turned on or not.
ODo not expose the camera or Remote Control Unit (RCU) to rain or moisture, and do not
try to operate the equipment in wet conditions. Do not operate the camera or RCU if it is
wet.
ODo not operate the camera or Remote Control Unit (RCU) outdoors during a thunder
storm.
ODo not use the camera where it will be subject to high temperatures or high humidity.
ODo not leave the camera and Remote Control Unit (RCU) turned on when not in use. Do
not unnecessarily turn the camera power on and off repeatedly. Do not block the
ventilation slots.
ORefer any servicing to qualified service personnel.
OHandle the camera with care.
OPlace the lens cap on the lens when the camera is not in use. f the lens is not installed,
protect the surface of the prism by placing the body cap over the lens mount hole.
OUse a mild blower or lens cleaning tissue designed for coated lenses to clean the
surface of the lens or prism if it requires cleaning.
OUse a dry cloth to clean the camera if it is dirty. f the dirt is hard to remove, use mild
detergent and wipe gently.
OUse caution when operating the camera near spot lights or bright lights, as well as any
objects and surfaces which may reflect light.
Of the camera or RCU gets wet, turn the power off immediately and have the unit
checked by an authorized service facility.
OFollow normal safety precautions to avoid personal injury.
OUse the camera in an environment where the temperature is within 14°F to 113°F
(–10°C to +45°C), and the relative humidity is within 30 % to 90 %.
OAlways turn the power off when the camera is not going to be used. Operate the
camera and RCU only when there is adequate ventilation.
OOperating a wireless device that generates powerful radio waves near the camera may
adversely affect the output images.

7
$Main unit
1
OPT ON CARD
MENU
TEM / AWC
YES / ASC
+
-
NO / BAR
V DEO OUT
G / L N
/ F REMOTE
R S
DC12V N
6=
;
2
<
8
7
9
:
3
4
5
Parts and Their Functions
1Cable connector
This is used to connect the camera to the camera head unit using a cable.
2MENU switch [MENU (t)]
The menu will appear on the screen when this switch is pressed for about 5 seconds.
When it is pressed while a menu is displayed, the menu item immediately above is
selected.
3ITEM/AWC switch [ITEM/AWC (y)]
When this switch is pressed while a menu is displayed, the menu item immediately
below is selected. While a menu is not displayed (when the camera is in the shooting
mode), it serves as the automatic white balance control (AWC) switch.
4YES/ABC switch [YES/ABC (+)]
When this switch is pressed while a menu is displayed, the sub-menu of a menu item
appears on the screen. When it is pressed while a sub-menu is displayed, the higher of
the two settings shown is selected. While a menu is not displayed, it serves as the
automatic black balance control (ABC) switch.
5NO/BAR switch [NO/BAR (–)]
When this switch is pressed while the main menu is displayed, the next item down can
be selected. When it is pressed while a sub-menu is displayed, the lower of the two
settings shown is selected. When it is pressed for about 5 seconds while a menu is not
displayed, the color bar signals and camera (shooting mode) are switched.

8
Parts and Their Functions
6Video output connector [VI EO OUT]
The composite video signals are output from this connector.
(1 V [p-p], 75 Ω, BNC connector)
7Iris connector [IRIS]
This is the standard input connector of the lens which comes with an auto iris function.
8Interface/remote connector [I/F REMOTE]
This is used to connect the remote control unit (RCU: WV-RC700A or WV-RC550),
remote control box (RCB: WV-CB700A), etc.
The AW-CA50A26 RCU cable is required to connect the WV-RC700A or WV-RC550.
The AW-CA50T10 RCB cable is required to connect the WV-CB700A.
9Power LE
This lights up red when DC power is supplied to the DC 12V input socket :.
:C 12V input socket [ C 12V IN]
The DC 12 V power supply (2 A or above) is connected here using the AW-CA4T1 DC
power cable.
;Cable clamp
This clamps the AW-CA4T1 DC power cable which has been connected to the DC 12V
input socket :to prevent the cable from becoming disconnected.
<Genlock input connector [G/L IN]
The external sync (black burst) signals are supplied to this connector to achieve genlock
with the camera.
=Option card slot
This slot is used by the option cards.
For further details, refer to the operating instructions of the option card concerned.

9
?> @
AA
FOCUS
LOCK
FOCUS
LOCK
$Camera head unit
Parts and Their Functions
>Lens mount
A 1/3-inch C mount lens or microscope adapter, etc. is attached here.
?Flange back adjust screw [FOCUS/LOCK]
When the flange back needs to be adjusted, remove the cap, loosen the LOCK screw,
and adjust by turning the FOCUS screw. (Adjustment range: ±0.2 mm)
Upon completion of the adjustment, re-tighten the LOCK screw.
@Cable connector
This is used to connect the head unit to the main unit using a cable.
ACamera mounting adapter
(mounting screw holes: M2.6a10, spring washers provided)
This is used to secure the head unit when it is to be installed on a wall or ceiling or a
tripod is to be used. The head unit can be mounted on the top or bottom surface.

10
FOCUS
LOCK
Less than 4.3 mm
Lens
Camera head unit Connecting cable Main unit
FOCUS
LOCK
Installation
You must ask your dealer to take charge of installing, adjusting and connecting this
unit.
$Attaching the lens
Remove the lens mount cap, align the lens with the thread ridges on the lens mount and
screw it firmly into place.
OA 1/3-inch C mount type of lens can be used.
Be absolutely sure that a lens whose mount threads extend no more than 4.3 mm
from the lens mount surface is used. Use of any other kind of lens may damage the
camera unit.
OSome lenses need to be attached in a different way. Therefore, reference should also
be made to the operating instructions that accompany the lens.
$Installation on a camera stand (tripod, etc.)
1Mount the camera mounting adapter onto the top or bottom surface of the camera
head unit.
2Use the screw holes (1/4-20UNC) in the camera mounting adapter to secure the
camera stand (tripod, etc.) firmly.
Preventing the head unit from falling off or dropping
Check that the stand can adequately withstand the total weight including the weight of
the connecting cable and other parts. Use the prescribed tool to mount the head unit
securely, and be absolutely sure to take steps to prevent the camera from dropping.

11
–
+
MENU
TEM/AWC
YES/ABC
NO/BAR
OPT ON CARD V DEO OUT
/F REMOTE
G/L N
R S
DC12V N
ON
POWER
OFF
POWER
O I
FUSE(POWER)
FUSE
FUSE
AC Adaptor AW- PS505
System Configuration (Connections)

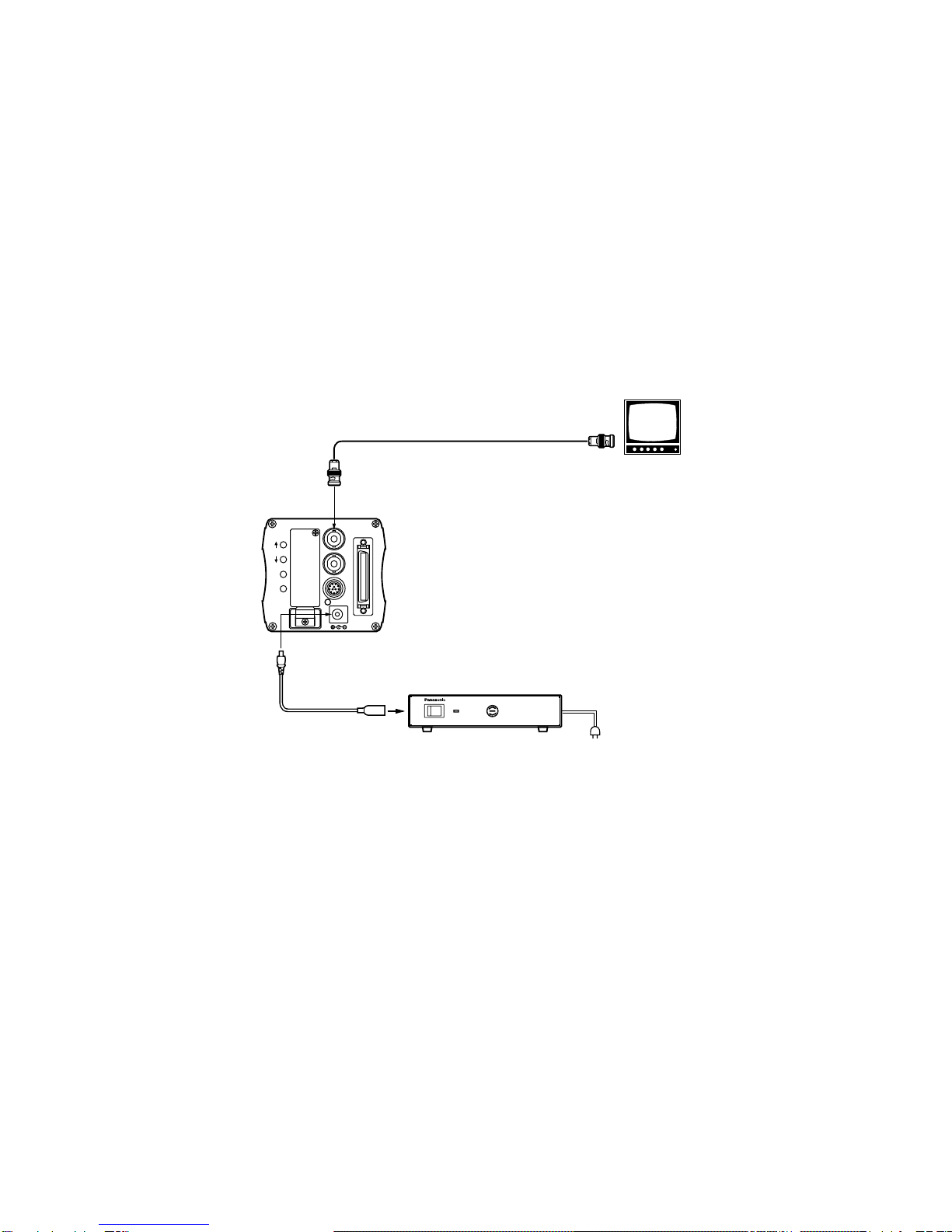

$Connecting equipment with a composite video input
connector
OConnect the output from the camera’s video output connector to the video monitor,
VTR or other such unit which is provided with a composite video input connector.
OUse the AW-PS505 AC adapter for the power supply.
Use the AW-CA4T1 as the DC power cable.
VI EO OUT
AW-CA4T1 C power cable
75 Ωcoaxial cable
Composite video input
connector (VI EO IN)
Video monitor
AW-PS505 AC adapter

12
GEN-LOCK
IN
AUX
IN
AUTO
75 Ω/Hi-Z
AUTO
75 Ω/Hi-Z
R/PR /C
OUT OUT
AUDIO
SEE MANUAL
VIDEO 1
G/Y/Y VIDEO 2
B/PB /B SYNC
S-VIDEO
14
2
TALLY
CAMERA (MULTI)
CABLE SELECT FUSE
250V 1.25A
TALK
INCOM
RECEIVE
CONTROL
TALLY & INCOM
MULTI OVP
MPX
MPX
OUTPUT
–
+
MENU
TEM/AWC
YES/ABC
NO/BAR
OPT ON CARD V DEO OUT
/F REMOTE
G/L N
R S
DC12V N
System Configuration (Connections)

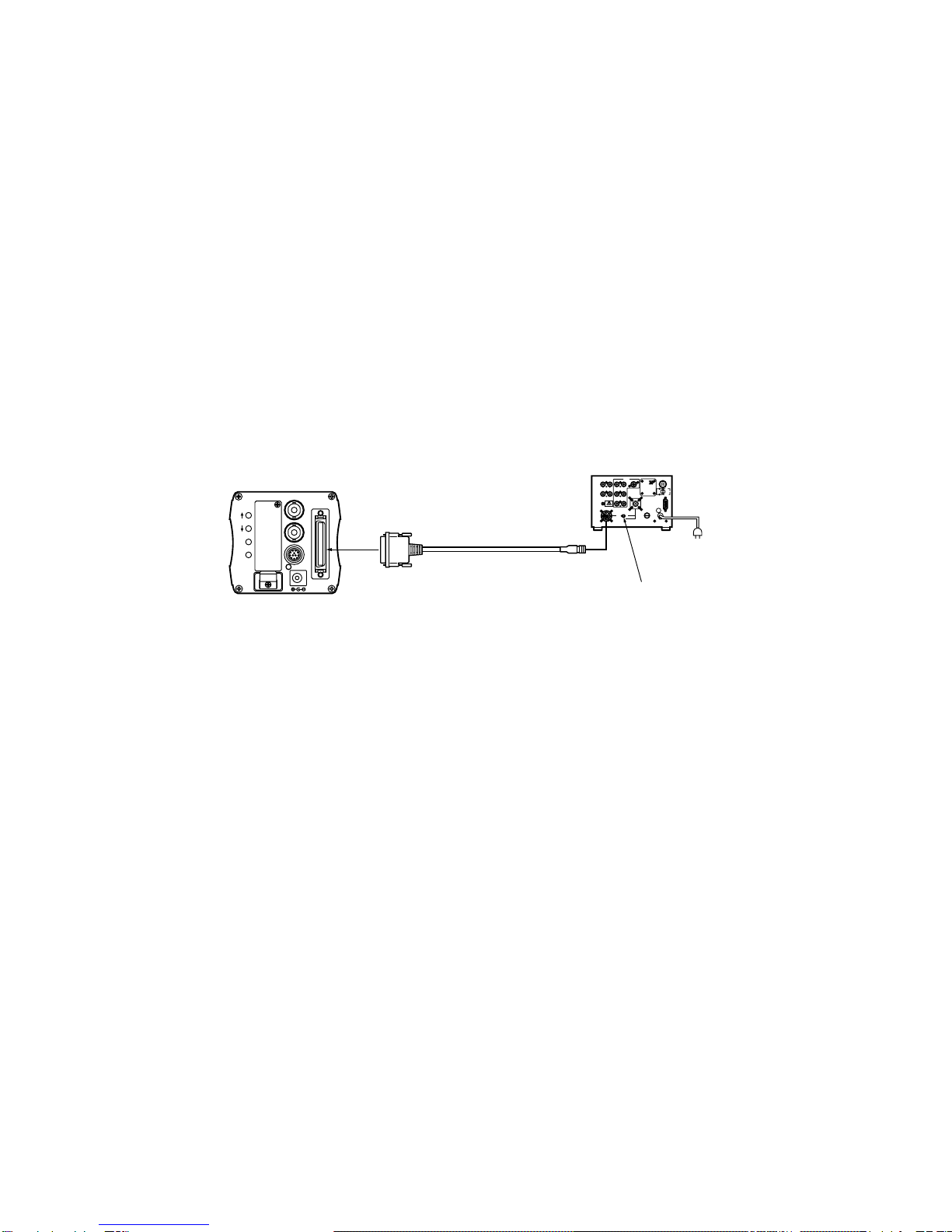

$Connecting a remote control unit (RCU)
OUse the AW-CA50A26 RCU cable to connect the RCU (WV-RC700A or WV-RC550)
and the camera.
OThe distance between the WV-RC700A and the camera can be extended up to a
maximum of 300 meters.
The distance between the WV-RC550 and the camera can be extended up to a
maximum of 100 meters.
Use the WV-CA26U15 (15 meters), WV-CA26U30 (30 meters) and WV-CA26U100
(100 meters) studio cables and the WV-CA26T26 cable joint adapter for extension.
OThe power for the camera is supplied from the RCU.
1Before proceeding to connect the RCU to the camera, set the RCU’s power switch to
OFF.
2f the WV-RC700A is to be used, set the cable selector switch on the RCU to MULT .
3Connect the 50-pin end of the RCU cable to the interface/remote connector on the
camera, and connect the 26-pin end to the RCU.
4When the RCU’s power is set to ON, the camera’s power LED lights up, and the
camera is controlled from the RCU.
Set the cable selector
switch to MULT .
AW-CA50A26 RCU cable
(15 meters)
RCU WV-RC700A

13
–
+
MENU
TEM/AWC
YES/ABC
NO/BAR
OPT ON CARD V DEO OUT
/F REMOTE
G/L N
R S
DC12V N
ALL 1
2
USER SET
ON
POWER
OFF
POWER
O I
FUSE(POWER)
FUSE
FUSE
AC Adaptor AW- PS505
System Configuration (Connections)

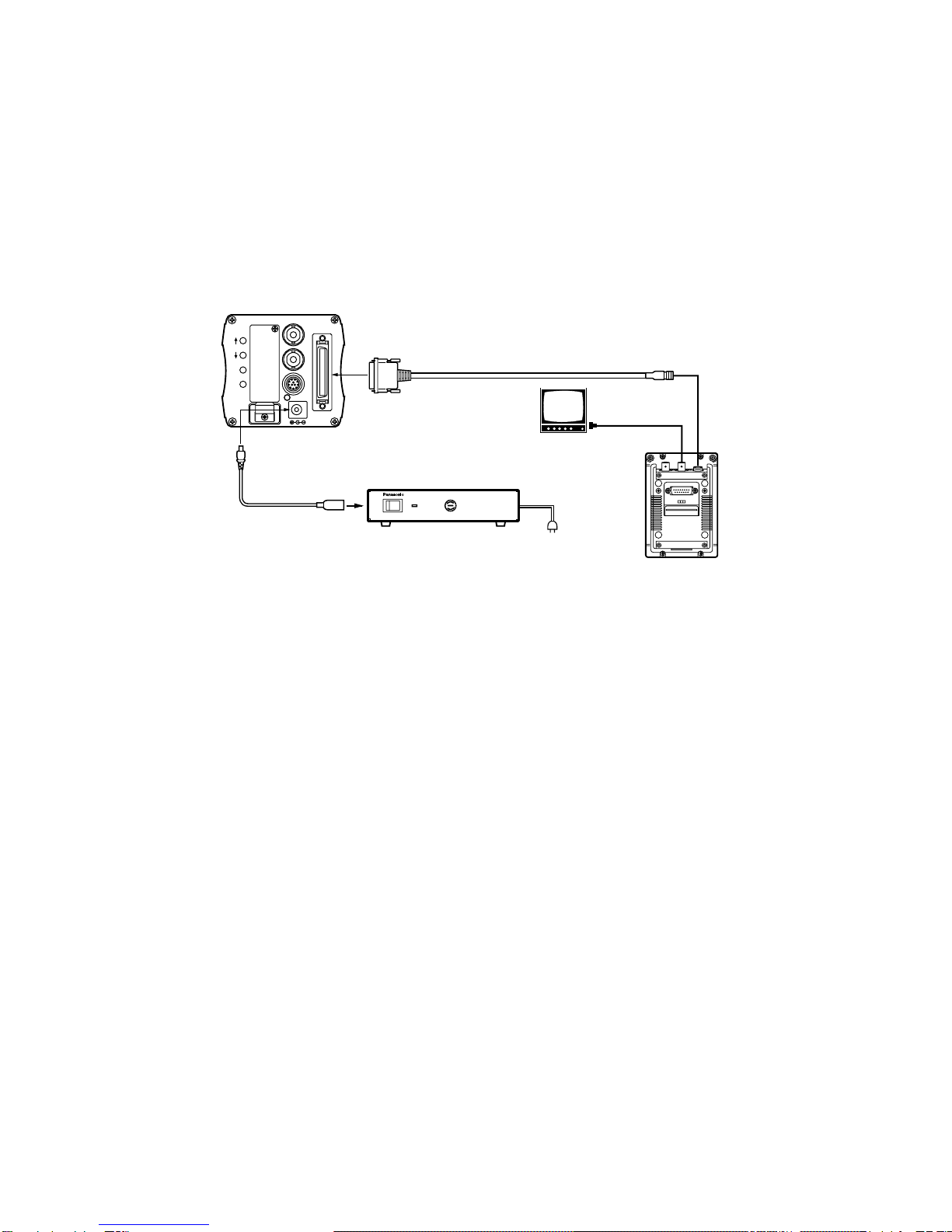

$Connecting a remote control box (RCB)
OUse the AW-CA50T10 RCB cable to connect the RCB (WV-CB700A) and the camera.
1Before proceeding with the connections, set the AC adapter’s power switch to OFF
and the RCB ON/OFF switch on the RCB panel to OFF.
2Connect the 50-pin end of the RCB cable to the interface/remote connector on the
camera, and connect the 10-pin end to the RCB.
3Once the AC adapter’s power switch is set to ON and the RCB ON/OFF switch is set
to ON, the camera can be controlled from the RCB.
4Upon completion of shooting, first set the RCB ON/OFF switch to OFF and then set
the AC adapter’s power switch to OFF.
<Notes>
OThe camera’s setting will not be stored in the memory if the AC adapter’s power switch
is set to OFF before the RCB ON/OFF switch is set to OFF.
OSince use of a cable which is too long causes a deterioration in the RCB’s monitor
output due to attenuation, this output should be used only for monitoring (verification)
purposes.
OGenlock input signals cannot be supplied from the RCB.
AW-CA50T10 RCB cable
(3 meters)
AW-CA4T1
C power cable
Video monitor
RCB WV-CB700A
Video signal IN
connector
RCB
AW-PS505 AC adapter

14
Camera
Camera (or special effects
unit) used to achieve genlock
VI EO OUT
G/L IN
VI EO OUT
INPUT
Video output
To special effects unit or monitoring
system
Genlock signal (BB)
OUTPUT
WJ-300C video
divider
System Configuration (Connections)
$Connecting multiple cameras (achieving genlock)
Onput the sync signal (BB) to the genlock input connector.
ODo not turn off the power of the camera which is used to achieve genlock.
OThe genlock adjustment must be performed when genlock is to be achieved. (See
page 25)

15
–
+
MENU
TEM/AWC
YES/ABC
NO/BAR
OPT ON CARD V DEO OUT
/F REMOTE
G/L N
R S
DC12V N
ON
POWER
OFF
POWER
O I
FUSE(POWER)
FUSE
FUSE
AC Adaptor AW- PS505
System Configuration (Connections)
$Connections for exercising control from a computer
The AW-CA50T9 PC control cable and the dedicated software program are required for
the camera to be controlled from the computer. Ask your dealer for details.
VI EO OUT
AW-CA4T1
C power cable
75 Ωcoaxial cable
AW-CA50T9 (10 meters) PC control cable
RS-232C
Composite video input
connector (VI EO IN)
Video monitor
Computer
AW-PS505
AC adapter

16
System Configuration (Connections)
$Reference: Model numbers of related equipment
Read the operating instructions of the equipment concerned along with these
instructions.
Remote control unit:
WV-RC700A
Remote control unit:
WV-RC550
Remote control box:
WV-CB700A
RCU rack-mounting chassis:
WV-Q70
Connecting cable:
WV-CA9T5 (D-sub 9-pin—BNC, approx. 5 meters)
Studio cable:
WV-CA26U15, WV-CA26U30, WV-CA26U100
Cable joint adapter:
WV-CA26T26
RCB cable:
AW-CA50T10
RCU able:
AW-CA50A26
PC control cable:
AW-CA50T9
C power cable:
AW-CA4T1
RGB cable:
AW-CA50T6
Studio card 1 (with RGB/YPrPb output):
AW-PB301
Studio card 2 (with no RGB/YPrPb output):
AW-PB305
RGB card:
AW-PB302
AC adapter:
AW-PS505

17
Operating Mode Selection
The user can select the camera’s functions to match the operating conditions from the four
modes which have been preset. Select the mode that suits the shooting conditions and the
user’s preferences.
Halogen light mode
This mode is suited to shooting indoors at wedding receptions, parties, seminars and other
indoor events. ts settings can be changed using a simple menu.
Fluorescent light mode
This mode is suited to shooting indoors under fluorescent lighting. ts settings can be
changed using a simple menu.
Outdoor mode
This mode is suited to shooting outdoors. ts settings can be changed using a simple
menu.
User mode
This mode’s settings can be changed using a detailed menu.

18
¢¢Use Mode Set¢¢¢
Halogen
Fluorescent
Outdoor
User
R B
R B
PED
TOTAL
PED
A
B
ATW
AWC
AUTO
HOLD
ABC
R S
MAN
AUTO
1000S/S
ELC
500
100
OFF
SHUTTER SCENE
21
3
USER
SET
AUTO/ATW PA NT NG
GA N
Operating Mode Selection
$How to select the operating
mode
OOperations using the camera by itself
1When the camera’s power is turned
on while the MENU switch is held
down, the Use Mode Set screen
appears on the monitor.
2Each time the MENU switch,
TEM/AWC switch or NO/BAR switch
is pressed, the flashing operating
mode changes. Make the desired
operating mode flash by pressing of
these switches.
3When the YES/ABC switch is
pressed, the flashing item is set, and
the setting screen appears for about 5
seconds, after which the shooting
mode is restored. After this, the
camera will operate the mode which
has been set.
OOperations using the RCU or RCB
The operating mode can be selected using the scene file switch on the RCU or RCB.
Operating mode RCU (RCB)
scene file switch
Camera
–
+
MENU
TEM/AWC
YES/ABC
NO/BAR
OPT ON CARD V DEO OUT
/F REMOTE
G/L N
R S
DC12V N
MENU switch
ITEM/AWC switch
YES/ABC switch
NO/BAR switch
RCU (RCB)
Scene file switch
Halogen light mode 1
Fluorescent light mode 2
Outdoor mode 3
User mode USER SET

19
Operating Procedures
1. Turn on the power to the units concerned.
2. Adjust the subject brightness to the appropriate level.
3. Select the operating mode.
Once this mode is selected, it need not be changed so long as the camera is to be
used under the same conditions.
4. Adjust the flange back of the lens, and adjust the iris and focus.
OThis adjustment must be performed when using the camera for the first time or
when the lens has been changed.
5. Adjust the white balance.
OThis adjustment must be performed when using the camera for the first time or
when the camera has not been used for a prolonged period.
Ot must be performed when the lighting conditions or brightness has changed.
OOnce this adjustment has been performed, it need not be repeated so long as the
camera is to be used under the same conditions.
6. Adjust the black balance.
OThis adjustment must be performed when using the camera for the first time or
when the camera has not been used for a prolonged period.
Ot must be performed when the ambient temperature has changed significantly or at
the turning of the seasons.
OOnce this adjustment has been performed, it need not be repeated so long as the
camera is to be used under the same conditions.
7. Start shooting.
Upon completion of shooting, turn off the power to the units concerned.
8. To change the camera’s settings to match other applications or conditions, refer
to page 27 and following.
The settings performed when the camera was shipped are appropriate for most
situations.
