Basic Operating Instructions
Digital Camera
Model No. DMC-FP2
DMC-FP1
Before connecting, operating or adjusting
this product, please read the instructions
completely.
Please also refer to Operating Instructions (PDF
format) contained on the CD-ROM (supplied).
You can learn about advanced operation methods and check the
Troubleshooting.

2 VQT2K16 (ENG)
Dear Customer,
Thank you for choosing Panasonic!
You have purchased one of the most sophisticated and reliable products
on the market today. Used properly, we’re sure it will bring you and your
family years of enjoyment. Please take the time to fill in the information
below.
The serial number is on the tag located on the underside of your Camera.
Be sure to retain this manual as your convenient Camera information
source. Please note that the actual controls and components, menu
items, etc. of your Digital Camera may look somewhat different from
those shown in the illustrations in these Operating Instructions.
Carefully observe copyright laws.
• Recording of pre-recorded tapes or discs or other published or
broadcast material for purposes other than your own private use may
infringe copyright laws. Even for the purpose of private use, recording
of certain material may be restricted.
Model No. Serial No.
A lithium ion battery that is recyclable powers
the product you have purchased. Please call
1-800-8-BATTERY for information on how to recycle
this battery.
Information for Your Safety
THE SOCKET OUTLET SHALL BE INSTALLED NEAR THE
EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.
This Class B digital apparatus complies with Canadian ICES-003.

(ENG) VQT2K16 3
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT
DAMAGE,
•
DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING
OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS,
SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.
• USE ONLY THE RECOMMENDED ACCESSORIES.
• DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO
USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
Product Identification Marking is located on the bottom of units.
■About the battery pack
CAUTION
Battery pack (Lithium ion battery pack)
• Use the specified unit to recharge the battery pack.
• Do not use the battery pack with equipment other than the specified unit.
• Do not get dirt, sand, liquids, or other foreign matter on the terminals.
• Do not touch the plug terminals (+ and −) with metal objects.
• Do not disassemble, remodel, heat or throw into fire.
If any electrolyte should come into contact with your hands or clothes,
wash it off thoroughly with water.
If any electrolyte should come into contact with your eyes, never rub
the eyes. Rinse eyes thoroughly with water, and then consult a doctor.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in an automobile exposed to direct
sunlight for a long period of time with doors and windows closed.
Warning
Risk of fire, explosion and burns. Do not disassemble, heat above 60 °C
(140 °F) or incinerate.

4 VQT2K16 (ENG)
■About the battery charger
CAUTION!
DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-
IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE
UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC
SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE
THAT CURTAINS AND ANY OTHER MATERIALS DO NOT
OBSTRUCT THE VENTILATION VENTS.
Battery charger
This battery charger operates on AC between 110 V and 240 V.
But
• In the U.S.A. and Canada, the battery charger must be connected to
a 120 V AC power supply only.
• When connecting to an AC supply outside of the U.S.A. or Canada,
use a plug adaptor to suit the AC outlet configuration.
■Cautions for Use
• Do not use any other AV cables except the supplied one.
• Do not use any other USB connection cables except the supplied one.
Keep the camera as far away as possible from electromagnetic equipment
(such as microwave ovens, TVs, video games etc.).
• If you use the camera on top of or near a TV, the pictures and sound on the
camera may be disrupted by electromagnetic wave radiation.
• Do not use the camera near cell phones because doing so may result in noise
adversely affecting the pictures and sound.
• Recorded data may be damaged, or pictures may be distorted, by strong
magnetic fields created by speakers or large motors.
• Electromagnetic wave radiation generated by microprocessors may adversely
affect the camera, disturbing the pictures and sound.
• If the camera is adversely affected by electromagnetic equipment and stops
functioning properly, turn the camera off and remove the battery or disconnect
AC adaptor (DMW-AC5PP; optional). Then reinsert the battery or reconnect AC
adaptor and turn the camera on.
Do not use the camera near radio transmitters or high-voltage lines.
• If you record near radio transmitters or high-voltage lines, the recorded pictures
and sound may be adversely affected.

(ENG) VQT2K16 5
-If you see this symbol-
Information on Disposal in other Countries outside
the European Union
This symbol is only valid in the European Union. If you
wish to discard this product, please contact your local
authorities or dealer and ask for the correct method of
disposal.

6 VQT2K16 (ENG)
Contents
Before use
Standard accessories ................7
Names of parts............................8
Cursor button ...................................9
Preparations
Charging the battery ................10
Inserting and removing the card
(optional)/the battery.................. 12
Picture save destination
(cards and built-in memory) ...........13
Setting the Clock ......................14
Setting the menu ......................15
Basics
Taking pictures with
automatic settings
[INTELLIGENT AUTO] Mode ....16
Selecting the [REC] Mode .......18
Taking motion pictures
[MOTION PICTURE] Mode........19
Viewing your pictures
[NORMAL PLAY] .......................20
Deleting pictures ......................20
Others
Reading the Operating
Instructions (PDF format) ........21
Specifications ...........................23
Optional accessories ...............26
Information for Your Safety .......2

(ENG) VQT2K16 7
Standard accessories
Check that all the accessories are included before using the camera. Part
numbers are as of January 2010.
Battery Pack
DMW-BCH7PP
• Charge the battery
before use.
Battery Pack is indicated as
battery pack or battery in the
text.
Battery Charger
DE-A75B
Battery Charger is indicated as
battery charger or charger in
the text.
Battery Case
VGQ0J54
Hand Strap
VFC4297
USB Connection
Cable
K1HA08AD0002
AV Cable
K1HA08CD0028
CD-ROM
VFF0588
• Software:
Use it to install the
software on your
PC.
• Operating
Instructions
• Cards are optional. You can record or play back pictures on the built-in
memory when you are not using a card.
• If any accessories are lost, customers should contact 1 800 99-LUMIX
(1-800-995-8649) for further information about obtaining replacement
parts.
• Please dispose of all packaging appropriately.

8 VQT2K16 (ENG)
Names of parts
Release lever
Tripod receptacle
• Ensure that the tripod is stable.
Card/Battery door
Zoom lever
Shutter button
Flash
Lens
Self-timer indicator/
AF Assist Lamp
Lens cover
•Fully peel off the strip of tape from the
lens cover before using the camera.
•When opening and closing the lens
cover, make sure that liquid or foreign
objects such as sand do not enter.
LCD monitor
[MODE] button
Cursor button
[DISPLAY] button
[Q.MENU]/Delete button
Microphone
Power button
Playback button
Speaker
button
●We recommend you use a battery with sufficient battery power or the
AC adaptor when recording motion pictures.

(ENG) VQT2K16 9
Hand strap eyelet
Cursor button
[AV OUT/DIGITAL] socket
[DC IN] socket
②
①We recommend using the
supplied hand strap to avoid
dropping the camera.
[MENU/SET]
(menu display/set/finish)
Left cursor button (◄)
• Self-timer
Down cursor button (▼)
• Macro mode
Up cursor button (▲)
• Exposure compensation
Right cursor button (►)
• Flash
●In this manual, the button that is used is shaded or indicated
by▲▼◄►.
●Always use a genuine Panasonic AC adaptor (DMW-AC5PP: optional).
●If while recording motion pictures using the AC adaptor the power
supply is cut off due to a power cut or if the AC adaptor is disconnected
etc., the motion picture being recorded will not be recorded.
The illustrations and screens in this manual may differ from the actual
product. This manual uses the screens from DMC-FP1 as examples in
its explanations.

10 VQT2K16 (ENG)

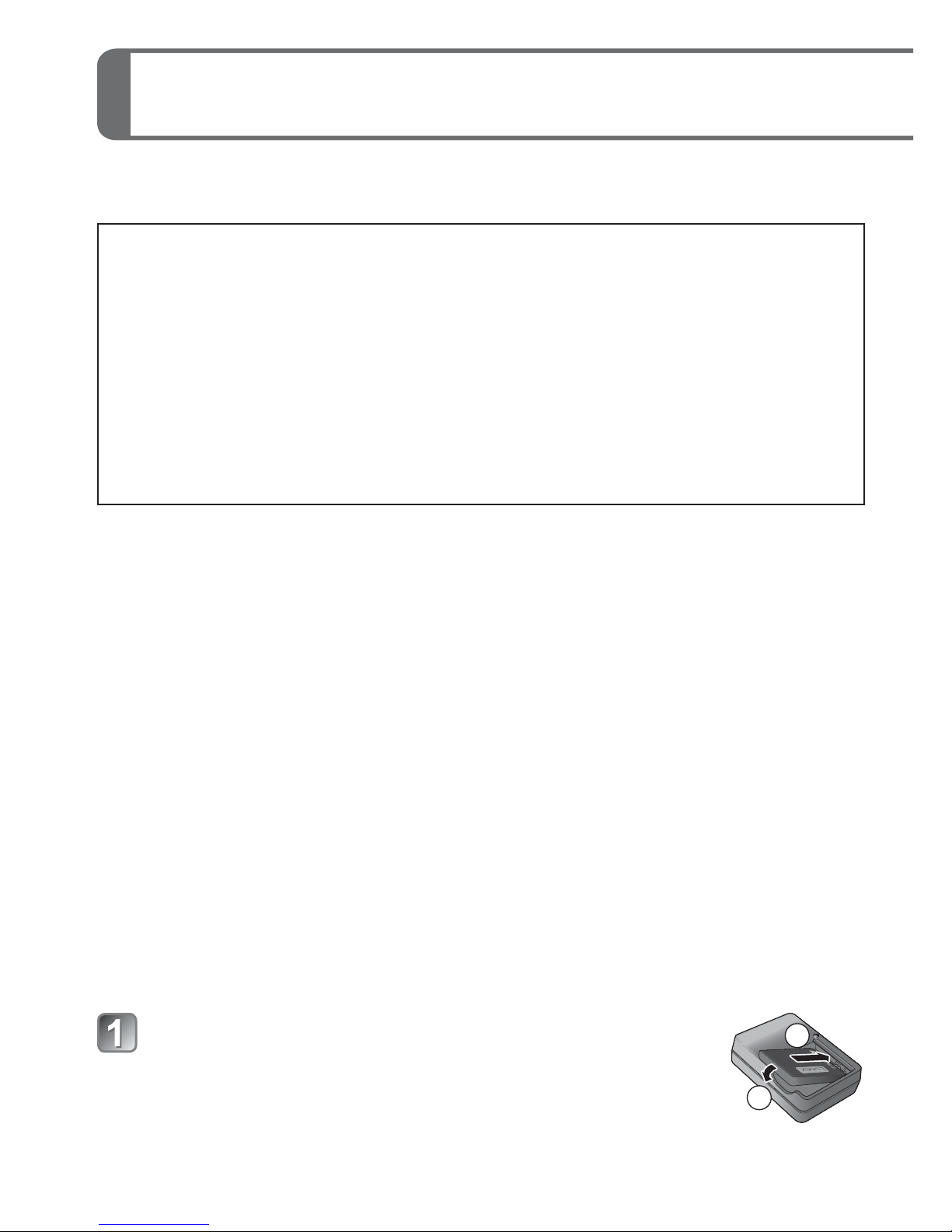

Charging the battery
■About batteries that you can use with this unit
The battery that can be used with this unit is DMW-BCH7PP.
It has been found that counterfeit battery packs which look very
similar to the genuine products are made available to purchase
in some markets. Some of these battery packs are not adequately
protected with internal protection to meet the requirements of
appropriate safety standards. There is a possibility that these
battery packs may lead to fire or explosion. Please be advised
that we are not liable for any accident or failure occurring as a
result of use of a counterfeit battery pack. To ensure that safe
products are used we recommend that a genuine Panasonic
battery pack is used.
•Use the dedicated charger and battery.
•The camera has a function for distinguishing batteries which can
be used safely. The dedicated battery (DMW-BCH7PP) supports
this function. The only batteries suitable for use with this unit
are genuine Panasonic products and batteries manufactured by
other companies and certified by Panasonic. (Batteries which do
not support this function cannot be used). Panasonic cannot in
any way guarantee the quality, performance or safety of batteries
which have been manufactured by other companies and are not
genuine Panasonic products.
•The battery is not charged when the camera is shipped. Charge
the battery and set the clock before use.
•Charge the battery with the charger indoors (10 °C - 35 °C)
(50 °F - 95 °F).
Insert the battery terminals and attach
the battery to the charger
Ensure [LUMIX] faces outwards.
1
2

(ENG) VQT2K16 11
Connect the charger to the electrical outlet
Charging light ([CHARGE])
On: Charging in progress
(approx. 110 min. if fully depleted)
Off: Charging complete
Detach the battery after charging is completed
■Guidelines for the number of recordable pictures and
recording time
Number of recordable
pictures Approx. 300 pictures
Recording time Approx. 150 min
Playback time Approx. 260 min
Recording conditions by CIPA standard
• CIPA is an abbreviation of [Camera & Imaging Products Association].
• [NORMAL PICTURE] Mode.
• Temperature: 23 °C (73.4 °F)/Humidity: 50 % when LCD monitor is on.∗
• Using a Panasonic SD Memory Card (32 MB).
• Using the supplied battery.
• Starting recording 30 seconds after the camera is turned on. (When the
Optical Image Stabilizer function is set to [AUTO].)
•
Recording once every 30 seconds with full flash every second recording.
• Rotating the zoom lever from Tele to Wide or vice versa in every
recording.
• Turning the camera off every 10 recordings and leaving it until the
temperature of the battery decreases.
∗The number of recordable pictures decreases in Auto Power LCD
Mode and Power LCD Mode.

12 VQT2K16 (ENG)
Inserting and removing the card (optional)/
the battery
■To remove
•To remove battery:
move lever in direction of arrow.
•To remove card:
press down in center.
Lever
●Always use genuine Panasonic batteries (DMW-BCH7PP).
●If you use other batteries, we cannot guarantee the quality of this
product.
●The card may be damaged if it is not fully inserted.
Turn the camera off and slide
the release lever ( A) to [OPEN]
before opening the lid
Completely insert battery and
card
BDo not touch terminal
CCheck orientation
Close lid
Slide to the [LOCK] position.
C
B
A
[OPEN] [LOCK]

(ENG) VQT2K16 13
●Keep the Memory Card out of reach of children to prevent swallowing.
Picture save destination (cards and built-in memory)
■Built-in memory (approx. 40 MB)
●
The built-in memory can be used as a temporary storage device when the
card being used becomes full.
●
The access time for the built-in memory may be longer than the access time
for a card.

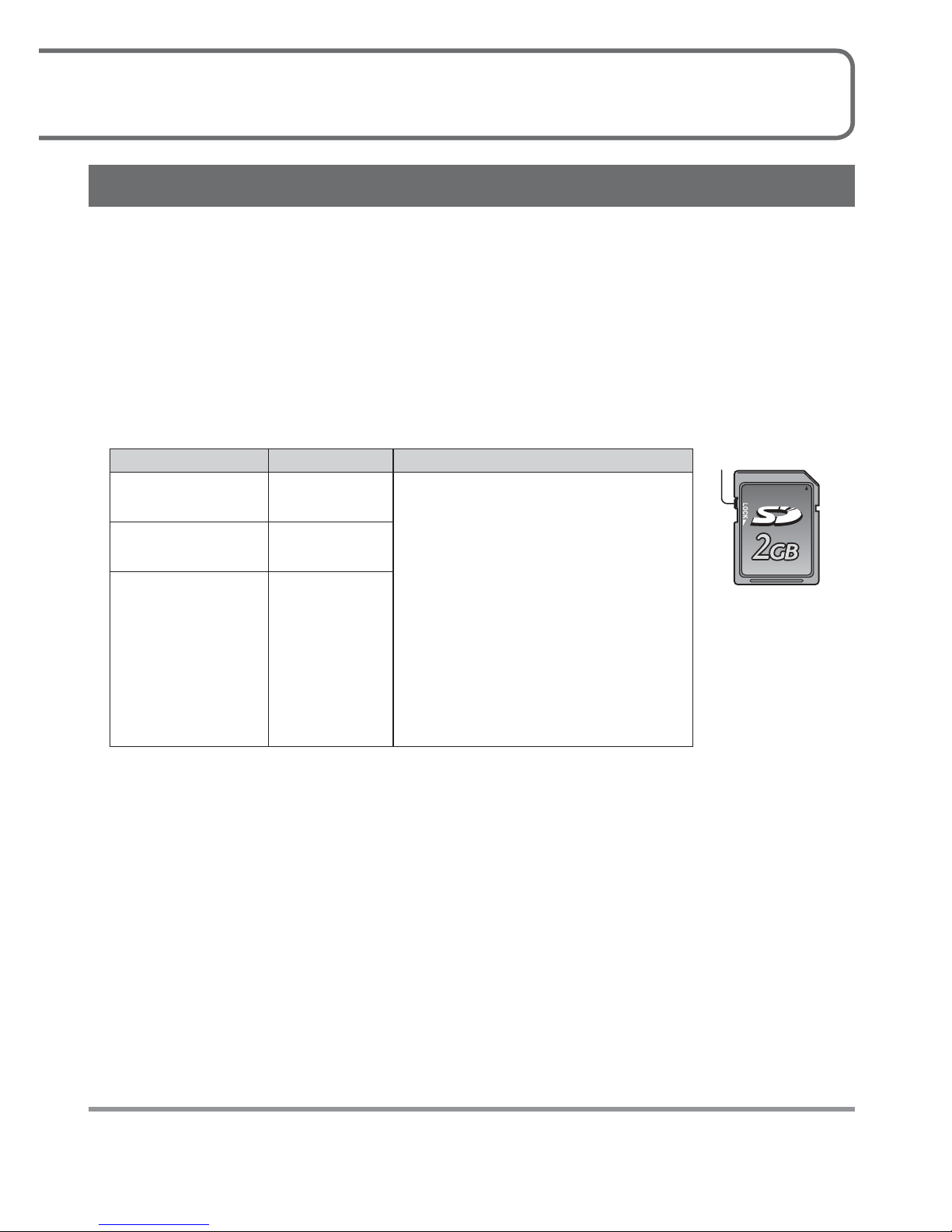

■Compatible memory cards (optional)
The following SD standard-based cards
(Panasonic brand recommended)
Type of Card Capacity Notes
SD memory
cards
8 MB – 2 GB • Can be used with devices
compatible with the
respective formats.
• Before using SDXC memory
cards, check that your
computer and other devices
support this type of card.
http://panasonic.net/avc/
sdcard/information/SDXC.
html
• Cards in capacities not listed
at left are not supported.
SDHC memory
cards
4 GB – 32 GB
SDXC memory
cards
48 GB – 64 GB
●If the write-protect switch is set to ‘LOCK’, the card cannot be used to
record or delete pictures, and it cannot be formatted.
●Latest information:
http://panasonic.jp/support/global/cs/dsc/
(This Site is English only.)
Switch (LOCK)

14 VQT2K16 (ENG)
Setting the Clock
A
The Clock is not set when the camera is shipped.
Open the lens cover ( A)
The power is turned on.
Press [MENU/SET] ( B) while
the message is displayed
Press ◀▶ to select the items
(year, month, day, hour, minute,
display order or time display
format), and press ▲▼ to set
• To cancel →Press
Press [MENU/SET]
Confirm the setting and press
[MENU/SET]
•T o return to the previous screen, press .
• Turn on the power again and check the
time display.
■To change time setting
Select [CLOCK SET] from [REC] or [SETUP] menu, perform and .
B
Do not touch
the lens.

(ENG) VQT2K16 15

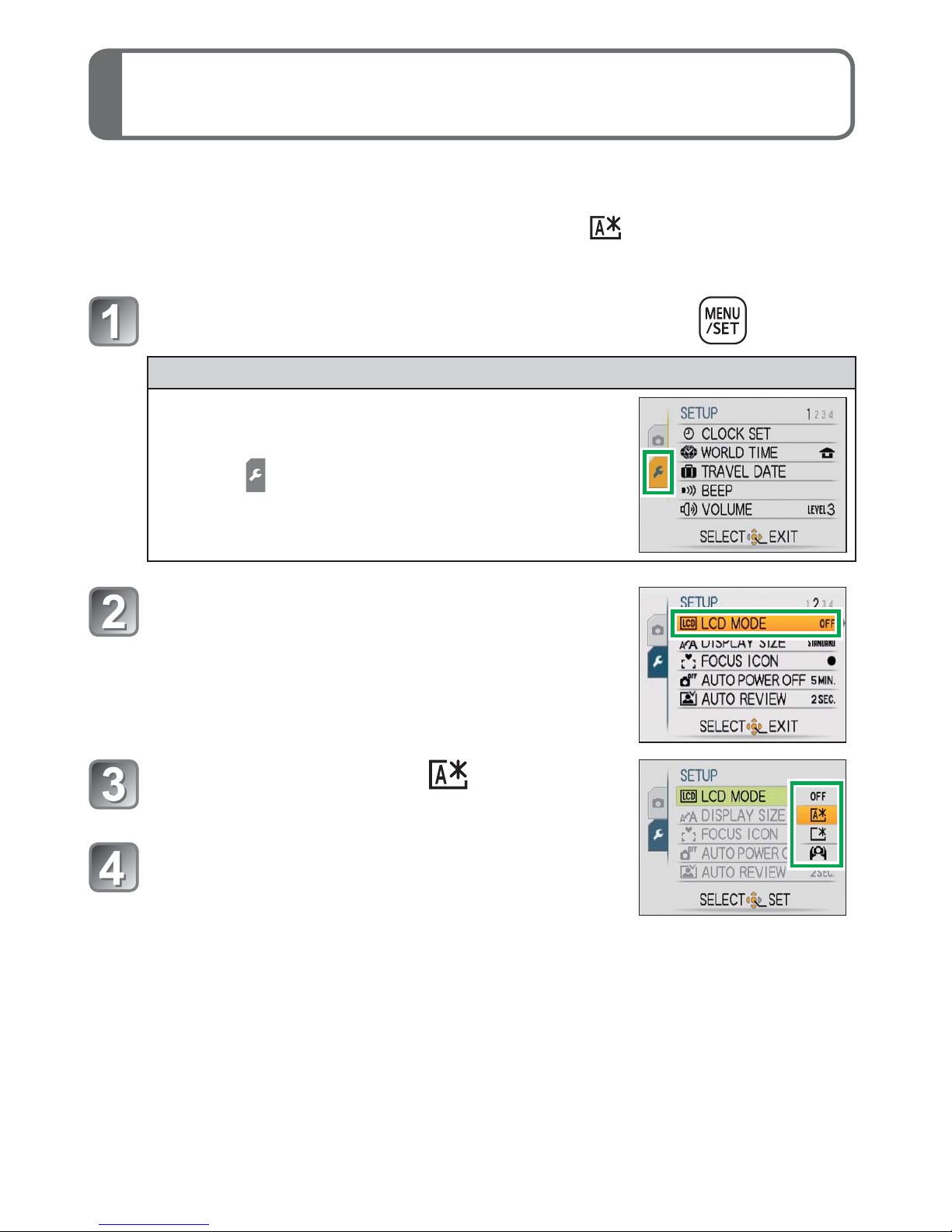

Setting the menu
Refer to the procedure example below when operating the [SETUP]
menu, [REC] menu and [PLAYBACK] menu.
Example: Setting [LCD MODE] from [OFF] to in the [NORMAL
PICTURE] Mode
Press [MENU/SET] to display the menu
Switching to the [SETUP] menu
1 Press ◄.
2 Press ▼to select the [SETUP] menu
icon [ ].
3 Press ►.
• Select a menu item next and set it.
Press ▲▼ to select [LCD MODE]
and then press ►
• Depending on the item, its setting may not
appear or it may be displayed in a different
way.
Press ▲▼ to select and then
press [MENU/SET] to set
Press [MENU/SET] to close the
menu

16 VQT2K16 (ENG)

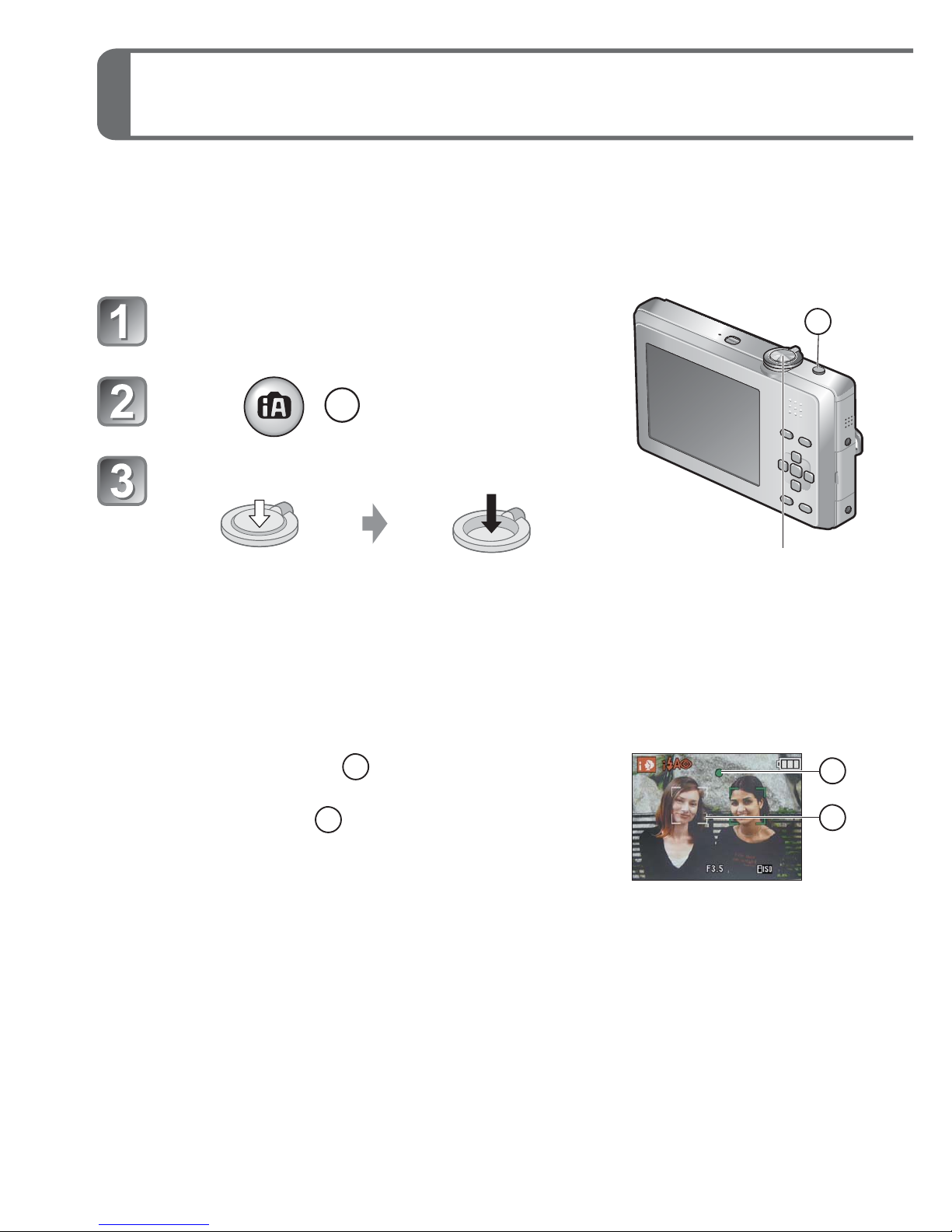

Taking pictures with automatic settings
Optimum settings are made automatically from information such as ‘face,’
‘movement,’ ‘brightness,’ and ‘distance’ just by pointing the camera at
the subject, meaning that clear pictures can be taken without the need to
make settings manually.
Open the lens cover
Shutter button
A
The power is turned on.
Press ( A)
Take pictures
Press halfway
(press lightly and focus)
Press fully
(press the button all the
way to record)
• If jitter becomes noticeable, use both
hands, keep your arms close to your
body, and stand with your feet at shoulder
width.
•Focus display ( B)
(In focus: lit / Not in focus: flashing)
• The AF area ( C) is displayed around
the subject’s face by the Face Detection
function. In other cases, it is displayed at
the point on the subject which is in focus.
• Focus: Max. W: 10 cm (0.33 feet)/
Max. T: 50 cm (1.64 feet) and above
B
C

(ENG) VQT2K16 17
[INTELLIGENT AUTO] Mode
Recording Mode:
■Automatic Scene Detection
Camera identifies the scene when pointed at the subject, and makes
optimum settings automatically. The type of scene detected is indicated
by a blue icon for two seconds.
[i PORTRAIT]: People are
detected
[i NIGHT PORTRAIT]: People and
night scenery are detected
(Only when is selected)
[i SCENERY]: Scenery is detected [i NIGHT SCENERY]: Night
scenery is detected
[i MACRO]: A close-up shot is
detected [i SUNSET]: A sunset is detected
Reads subject movement to avoid blurring when scene does not
correspond to any of the above.
If the camera automatically identifies the scene and determines that
people appear as subjects in the picture（or ）, Face Detection is
activated, and the focus and exposure are adjusted for the recognized
faces.

18 VQT2K16 (ENG)
Selecting the [REC] Mode
A
Open the lens cover
The power is turned on.
Press the [MODE] button ( A)
Press ▲or ▼to select the
recording mode
Press [MENU/SET] ( B)
[NORMAL PICTURE] Mode
Take pictures with your own settings.
[MY SCENE MODE]
Take pictures in commonly used Scene
Modes.
[SCENE MODE]
Take pictures according to the scene.
[MOTION PICTURE] Mode
Take motion pictures.
B

(ENG) VQT2K16 19
Taking motion pictures [MOTION PICTURE] Mode
Recording Mode:
Record motion picture with audio as follows. (Note that recording without
audio is not possible.)
Press the [MODE] button
Press ▲or ▼to select [MOTION PICTURE] Mode
Press [MENU/SET]
Start recording
Elapsed recording time
Remaining recording time
(approx.)
Hold down halfway
(adjust the focus)
Press fully
(start recording)
End recording
Press fully
●The focus and zoom will remain as they were at the beginning of
recording.
●Immediately release the shutter button after pressing it all the way.
●When there is no space left to store the motion picture, recording
automatically ends.
●Motion pictures can be recorded continuously up to 2GB. To record
more than 2 GB, press the shutter button again. (Remaining time for
continuous recording is displayed on the screen.)

20 VQT2K16 (ENG)

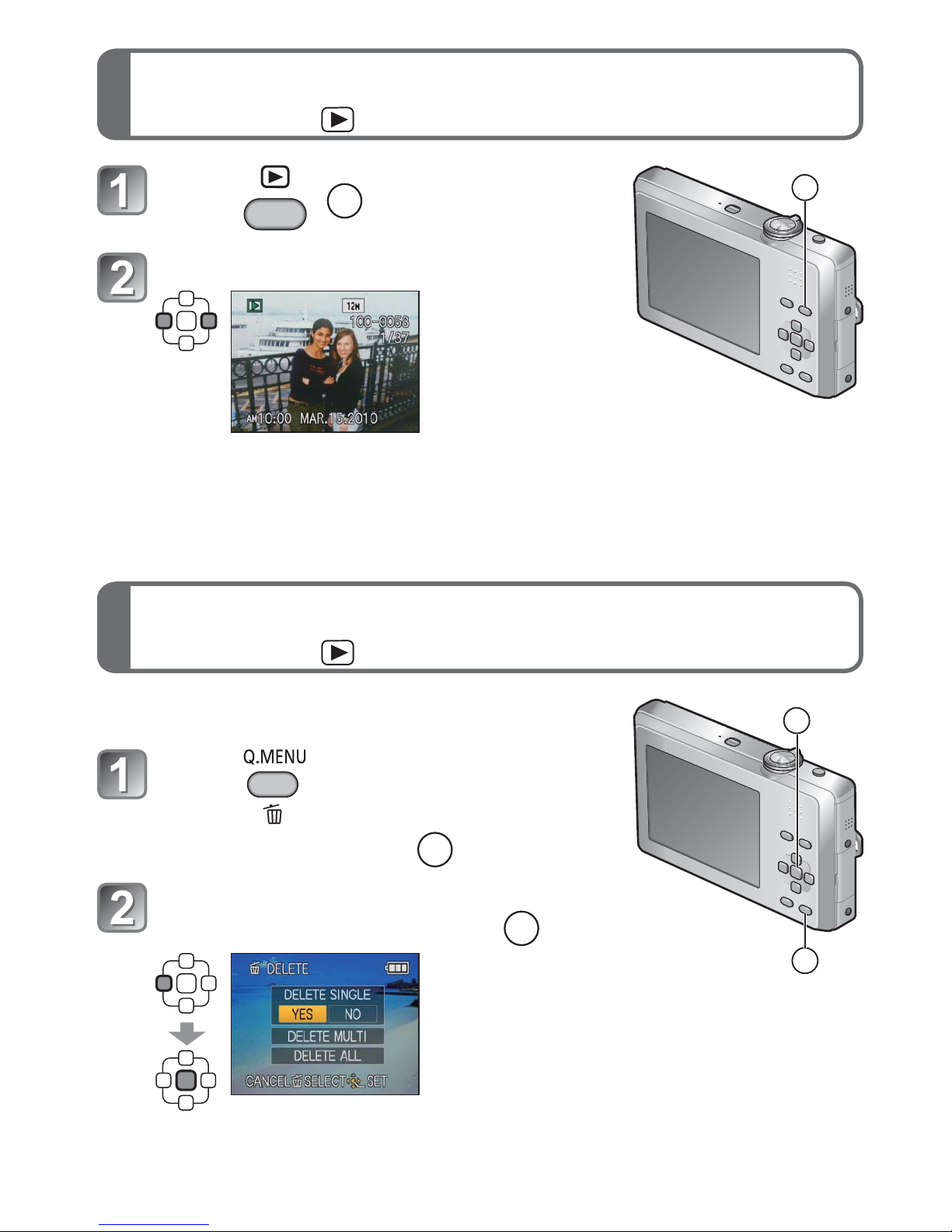

Viewing your pictures [NORMAL PLAY]
Playback Mode:
Deleting pictures
Playback Mode:
Press ( A)
Press ◄► to select the picture
●To play back a motion picture, select an image with ◀or ▶, and then
press ▲to start playback.
Deleted pictures cannot be recovered.
Press to delete the
displayed picture ( A)
Press ◄to select [YES] and
then press [MENU/SET] ( B)
A
A
B
