Panasonic HDC-HS20P User manual

© Panasonic Corporation 2009.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.VM0901011CE
B27
High Definition Video Camera
Model No. HDC-HS20P
HDC-HS20PU
HDC-HS20EG
HDC-HS20EE
HDC-HS20EB
HDC-HS20EC
HDC-HS20EP
HDC-HS20GC
HDC-HS20GK
HDC-HS20EF
HDC-HS20GJ
HDC-HS20GN
HDC-HS20GT
HDC-HS20PC
HDC-HS20SG
HDC-HS25EB
VOL.1
Colours
(K)........Black Type

2
TABLE OF CONTENTS PAGE PAGE
1 Safety Precaution-------------------------------------------------3
1.1. General Guidelines ----------------------------------------3
2Warning--------------------------------------------------------------4
2.1. Prevention of Electrostatic Discharge (ESD)
to Electrostatic Sensitive (ES) Devices---------------4
2.2. Service caution based on legal restrictions----------5
2.3. Caution for AC Cord (For EB/GC/SG) ----------------6
2.4. How to Replace the Lithium Battery
(PROCEDURE)---------------------------------------------7
2.5. How to Recycle the Lithium Battery (U.S.
Only)-----------------------------------------------------------8
3 Service Navigation------------------------------------------------9
3.1. Service Information----------------------------------------9
3.2. Service Caution-------------------------------------------10
3.3. Precautions for Handling HDD------------------------ 11
3.4. Formatting HDD ------------------------------------------15
4 Specifications----------------------------------------------------16
5 Location of Controls and Components------------------17
6 Service Mode-----------------------------------------------------22
6.1. Service Menu----------------------------------------------22
6.2. About Default Setting -----------------------------------27
7 Service Fixture & Tools ---------------------------------------28
7.1. Service Tools and Equipment-------------------------28
8 Disassembly and Assembly Instructions---------------29
8.1. Disassembly Flow Chart--------------------------------29
8.2. P.C.B. Layout----------------------------------------------29
8.3. Disassembly Procedures-------------------------------30
8.4. Disassembly Procedures of Camera Lens
Unit-----------------------------------------------------------41
9 Measurements and Adjustments --------------------------42
9.1. EEPROM Data for spare parts of the MAIN
P.C.B.--------------------------------------------------------42
9.2. Service Positions-----------------------------------------42
9.3. Location for Connectors of the Main P.C.B.
and Sub P.C.B.--------------------------------------------44
9.4. Electrical Adjustment Procedures--------------------46
10 Maintenance ------------------------------------------------------49
10.1. Cleaning Lens and LCD Panel -----------------------49

3
1 Safety Precautions
1.1. General Guidelines
1. IMPORTANT SAFETY NOTICE
There are special components used in this equipment which are important for safety. These parts are marked by in the Sche-
matic Diagrams, Circuit Board Layout, Exploded Views and Replacement Parts List. It is essential that these critical parts
should be replaced with manufacturer’s specified parts to prevent X-RADIATION, shock fire, or other hazards. Do not modify
the original design without permission of manufacturer.
2. An Isolation Transformer should always be used during the servicing of AC Adaptor whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal
injury from electrical shocks. It will also protect AC Adaptor from being damaged by accidental shorting that may occur during
servicing.
3. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.
4. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
5. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.
1.1.1. Leakage Current Cold Check
1. Unplug the AC cord and connect a jumper between the two prongs on the plug.
2. Measure the resistance value, with an ohmmeter, between the jumpered AC plug and each exposed metallic cabinet part on
the equipment such as screwheads, connectors, control shafts, etc. When the exposed metallic part has a return path to the
chassis, the reading should be between 1MΩand 5.2MΩ. When the exposed metal does not have a return path to the chas-
sis, the reading must be infinity.
1.1.2. Leakage current hot check (See Figure 1)
1. Plug the AC cord directly into the AC outlet. Do not use
an isolation transformer for this check.
2. Connect “A” to exposed metallic part on the set. And con-
nect “B” to a good earth ground, as shown in Figure 1.
3. Use an AC voltmeter, with 1 kΩ/V or more sensitivity, to
measure the potential across the resistor.
4. Check each exposed metallic part, and measure the volt-
age at each point.
5. Reverse the AC plug in the AC outlet and repeat each of
the above measurements.
6. The potential at any point should not exceed 0.25 V RMS.
A leakage current tester (Simpson Model 229 or equiva-
lent) may be used to make the hot checks, leakage cur-
rent must not exceed 1/2 mA. In case a measurement is
outside of the limits specified, there is a possibility of a
shock hazard, and the equipment should be repaired and
rechecked before it is returned to the customer.
Figure 1

4
2Warning
2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive
(ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec-
trostatic Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semi-
conductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused
by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alumi-
num foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an antistatic solder removal device. Some solder removal devices not classified as “antistatic (ESD protected)” can
generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or compara-
ble conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
CAUTION:
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) suf-
ficient to damage an ES device).

5
2.2. Service caution based on legal restrictions
2.2.1. General description about Lead Free Solder (PbF)
The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this
equipment in considering the globally environmental conservation.
The normal solder is the alloy of tin (Sn) and lead (Pb). On the other hand, the lead free solder is the alloy mainly consists of tin
(Sn), silver (Ag) and Copper (Cu), and the melting point of the lead free solder is higher approx.30 degrees C (86°F) more than that
of the normal solder.
Definition of PCB Lead Free Solder being used
Service caution for repair work using Lead Free Solder (PbF)
• The lead free solder has to be used when repairing the equipment for which the lead free solder is used.
(Definition: The letter of “PbF” is printed on the PCB using the lead free solder.)
• To put lead free solder, it should be well molten and mixed with the original lead free solder.
• Remove the remaining lead free solder on the PCB cleanly for soldering of the new IC.
• Since the melting point of the lead free solder is higher than that of the normal lead solder, it takes the longer time to melt the
lead free solder.
• Use the soldering iron (more than 70W) equipped with the temperature control after setting the temperature at 350±30 degrees
C (662±86°F).
Recommended Lead Free Solder (Service Parts Route.)
• The following 3 types of lead free solder are available through the service parts route.
RFKZ03D01KS-----------(0.3mm 100g Reel)
RFKZ06D01KS-----------(0.6mm 100g Reel)
RFKZ10D01KS-----------(1.0mm 100g Reel)
Note
* Ingredient: tin (Sn), 96.5%, silver (Ag) 3.0%, Copper (Cu) 0.5%, Cobalt (Co) / Germanium (Ge) 0.1 to 0.3%
The letter of “PbF” is printed either foil side or components side on the PCB using the lead free solder.
(See right figure)

6
2.3. Caution for AC Cord
(For EB/GC/SG)
2.3.1. Information for your safety
IMPORTANT
Your attention is drawn to the fact that recording of pre-
recorded tapes or discs or other published or broadcast
material may infringe copyright laws.
WARNING
To reduce the risk of fire or shock hazard, do not expose
this equipment to rain or moisture.
CAUTION
To reduce the risk of fire or shock hazard and annoying
interference, use the recommended accessories only.
FOR YOUR SAFETY
DO NOT REMOVE THE OUTER COVER
To prevent electric shock, do not remove the cover. No user
serviceable parts inside. Refer servicing to qualified service
personnel.
2.3.2. Caution for AC mains lead
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three-pin mains plug
for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 5 amperes and it is approved
by ASTA or BSI to BS1362
Check for the ASRA mark or the BSI mark on the body of the
fuse.
If the plug contains a removable fuse cover you must ensure
that it is refitted when the fuse is replaced.
If you lose the fuse cover, the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local
Panasonic Dealer.
If the fitted moulded plug is unsuitable for the socket outlet in
your home then the fuse should be removed and the plug cut
off and disposed of safety.
There is a danger of severe electrical shock if the cut off plug is
inserted into any 13-ampere socket.
If a new plug is to be fitted please observe the wiring code as
shown below.
If in any doubt, please consult a qualified electrician.
2.3.2.1. Important
The wires in this mains lead are coloured in accordance with
the following code:
As the colours of the wires in the mains lead of this appliance
may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the ter-
minal in the plug which is marked with the letter N or coloured
BLACK.
The wire which is coloured BROWN must be connected to the
terminal in the plug which is marked with the letter L or coloured
RED.
Under no circumstances should either of these wires be con-
nected to the earth terminal of the three pin plug, marked with
the letter E or the Earth Symbol.
2.3.2.2. Before use
remove the Connector Cover as follows.
2.3.2.3. How to replace the Fuse
1. Remove the Fuse Cover with a screwdriver.
2. Replace the fuse and attach the Fuse cover.
Blue Neutral
Brown Live

7
2.4. How to Replace the Lithium Battery (PROCEDURE)
1. Remove the Front P.C.B.. (Refer to Disassembly Procedures.)
2. Remove the Lithium Battery “ML-614S/ZT” and then replace the new one. (See Figure B1.)
Fig. B1
Note:
The lithium battery is a critical component. (Type No.: ML-614S/ZT Manufactured by Panasonic.)
It must never be subjected to excessive heat or discharge.
It must therefore only be fitted in equipment designed specifically for its use.
Replacement batteries must be of the same type and manufacture.
They must be fitted in the same manner and location as the original battery, with the correct polarity contacts observed.
Do not attempt to re-charge the old battery or re-use it for any other purpose.
It should be disposed of in waste products destined for burial rather than incineration.

8
2.5. How to Recycle the Lithium Battery (U.S. Only)

9
3 Service Navigation
3.1. Service Information
This service manual contains technical information which will allow service personnel's to understand and service this model.
Please place orders using the parts list and not the drawing reference numbers.
If the circuit is changed or modified, this information will be followed by supplement service manual to be filed with original service
manual.
Notes 1:
1. VSK0697 is indicated on AC Adapter used on the following models:
HDC-HS20P/PC.
However, the AC Adapter replacement part number is DE-A51BB which should be used when ordering.
2. VSK0698 is indicated on AC Adapter used on the following models:
HDC-HS20EG/EB/EP/EC/EE/GC/PU/EF/GJ/GN/SG, HDC-HS25EB.
However, the AC Adapter replacement part number is DE-A51CB which should be used when ordering.
3. VSK0699 is indicated on AC Adapter used on the following model:
HDC-HS20GK.
However, the AC Adapter replacement part number is DE-A51DA which should be used when ordering.
4. VSK700 is indicated on AC Adapter used on the following models:
HDC-HS20GT
However, the AC Adapter replacement part number is DE-A51EA which should be used when ordering.
Notes 2:
1) This service manual does not contain the following information, because of the impossibility of servicing at component level.
1. Schematic Diagram, Block Diagram and P.C.B. layout of Main P.C.B. and Sub P.C.B.
2. Parts List for individual parts of Main P.C.B. and Sub P.C.B.
2) The following category are recycle module part. Please send them to Central Repair Center.
*Main P.C.B. (VEP03H65N: HDC-HS20P/PC/PU)
(VEP03H65Q: HDC-HS20GT)
(VEP03H65R: HDC-HS20EC/EF/EG)
(VEP03H65S: HDC-HS20EP)
(VEP03H65T: HDC-HS20EB)
(VEP03H65U: HDC-HS20GC/SG)
(VEP03H65V: HDC-HS20GJ)
(VEP03H65W: HDC-HS20EE)
(VEP03H65X: HDC-HS20GN)
(VEP03H65Y: HDC-HS20GK)
(VEP03H65AM: HDC-HS25EB)
*Sub P.C.B. (VEP01A16B: HDC-HS20P/PC/PU/EB/EC/EE/EG/EP/GC/GK/EF/GJ/GN/GT/SG, HDC-HS25EB)

10
3.2. Service Caution
3.2.1. How to Discharge the Capacitor on the Sub P.C.B.
Remove the Sub P.C.B.. (Refer to Disassembly Procedures.)

11
3.3. Precautions for Handling HDD
1. Handle HDD very carefully to prevent the static electricity and shock.
2. Set the HDD quickly after taking it out from the package. Make sure to put the HDD on buffer materials, etc.
3.3.1. Precautions at incoming process and for opening packages

12
3.3.2. Precautions for installing HDD

13
3.3.3. Precautions for inserting and removing HDD FPC
Make sure to use the tool (LSVQ0112) when locking and unlocking the lock lever of HDD FPC connector.
Do not lock the lock lever without inserting HDD FPC. Otherwise, the connector may be damaged.

14

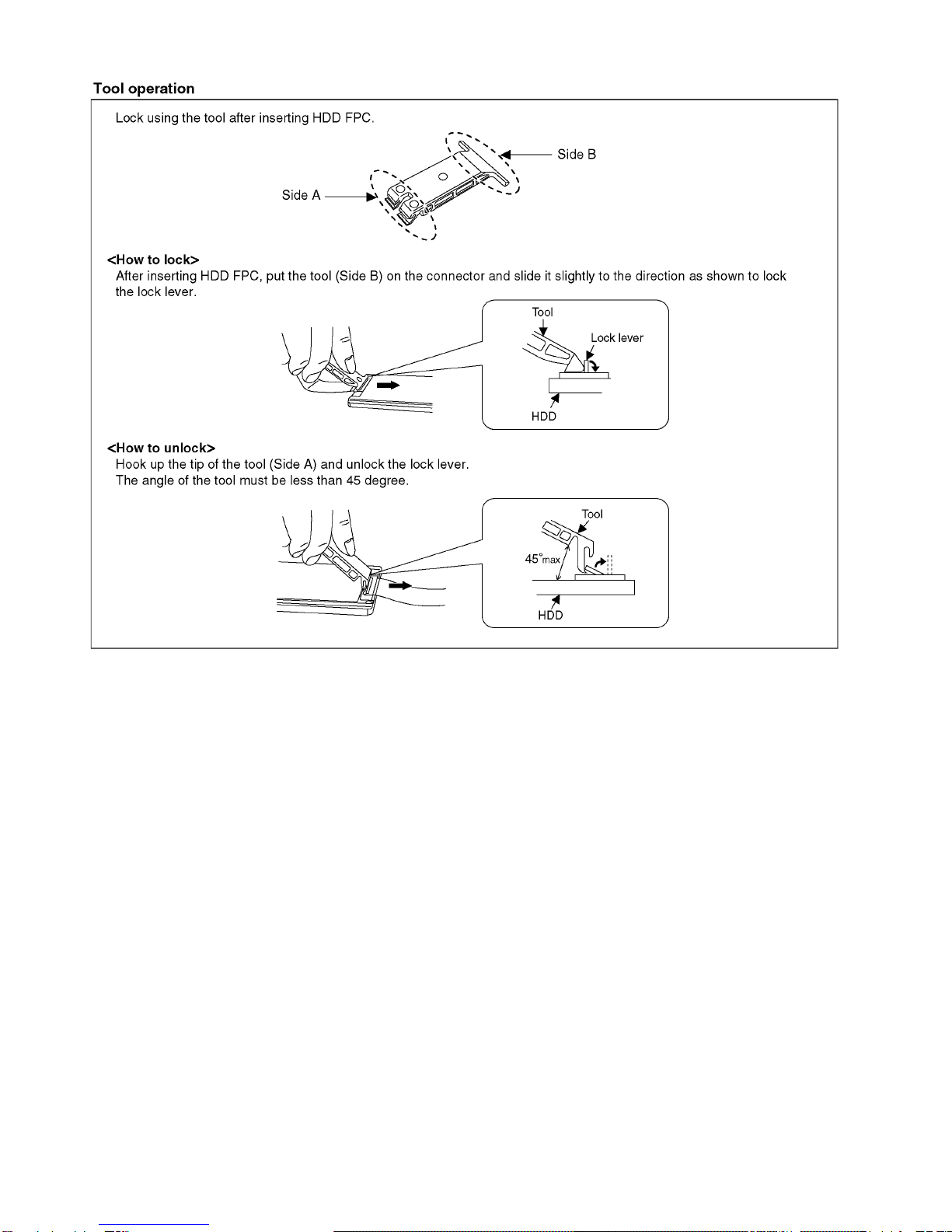

Make sure to use the tool (LSVQ0112) when opening and closing the lock lever.
*See "Disassembly and Assembly Instructions" (Fig. D10) for attaching to the unit.

15
3.4. Formatting HDD

16
4 Specifications

17
5 Location of Controls and Components
Followings are the Location of Controls and Components for HDC-TM20P/PC as a sample.
For other models, refer to each Operating Instructions.

18

19

20
