ORDERNO.DSD0401001C1
B24
DVDVideoRecorder
DMR-E55P/ DMR-E55PC
Colour
(K).......................Black Type
(S).......................SilverType
SPECIFICATIONS
2004 Matsushita ElectricIndustrial CO., Ltd. All rights reserved.
1

Unauthorizedcopying and distribution isaviolation oflaw.
1. Safetyprecautions
1.1. General guidelines
1. Whenservicing, observetheoriginal leaddress. Ifashortcircuit
isfound, replace all parts whichhavebeenoverheatedor
damagedbytheshortcircuit.
2. Afterservicing, see toitthat all theprotectivedevices suchas
insulation barriers, insulation papersshieldsareproperlyinstalled.
3. Afterservicing, make thefollowing leakagecurrentchecks to
preventthecustomerfrombeing exposedtoshock hazards.
1.1.1. Leakagecurrentcoldcheck
1. Unplug theACcordand connect ajumperbetweenthetwoprongs
on theplug.
2. Measuretheresistance value, withanohmmeter, betweenthe
jumperedACplug and eachexposedmetalliccabinet parton the
equipmentsuchas screwheads, connectors, control shafts, etc.
Whentheexposedmetallicparthas areturnpathtothechassis,
thereading shouldbebetween1M and 5.2M . / Whenthe
exposedmetal does nothaveareturnpathtothechassis, the
reading must be . Figure1
1.1.2. Leakagecurrenthotcheck / (See Figure 1 .)
2

1. Plug theACcorddirectlyintotheACoutlet. Donotuse an
isolation transformerforthischeck.
2. Connect a1.5k , 10 watts resistor, inparallel witha0.15 F
capacitors, betweeneachexposedmetallicparton theset and a
good earthground suchas awaterpipe, as shownin Figure1.
3. Use anACvoltmeter, with1000 ohms/voltormoresensitivity, to
measurethepotential across theresistor.
4. Check eachexposedmetallicpart, and measurethevoltageat
eachpoint.
5. Reverse theACplug intheACoutlet and repeat eachoftheabove
measurements.
6. Thepotential at anypointshouldnotexceed0.75 volts RMS. A
leakagecurrenttester(Simpson Model 229 orequivalent) maybe
usedtomake thehotchecks, leakagecurrentmust notexceed1/2
milliampere. Incase ameasurementisoutsideofthelimits
specified, thereisapossibilityofashock hazard, and the
equipmentshouldberepairedand recheckedbeforeitisreturned
tothecustomer.
1.2. Caution forfuse replacement
2. Prevention of ElectrostaticDischarge (ESD) to
ElectrostaticSensitive(ES) Devices
Somesemiconductor (solidstate)devices canbedamagedeasilybystaticelectricity. Such
componentscommonlyarecalledElectrostaticSensitive (ES)Devices. Examples oftypical ES
devices areintegratedcircuitsand somefield-effecttransistor-sandsemiconductor "chip"
components. Thefollowing techniques shouldbeusedtohelpreduce theincidence of
componentdamagecausedbyelectrostaticdischarge(ESD).
1. Immediatelybeforehandling anysemiconductorcomponentor
semiconductor-equippedassembly, drainoff anyESDon your
bodybytouching aknownearthground. Alternatively, obtainand
wearacommerciallyavailabledischarging ESDwrist strap,
3

whichshouldberemovedforpotential shock reasonspriorto
applying powertotheunitundertest.
2. Afterremoving anelectrical assemblyequippedwithES devices,
place theassemblyon aconductivesurface suchas aluminum
foil, topreventelectrostaticchargebuildup orexposureofthe
assembly.
3. Use onlyagrounded-tipsoldering iron tosolderorunsolderES
devices.
4. Use onlyananti-staticsolderremoval device. Somesolder
removal devices notclassifiedas "anti-static(ESDprotected)"can
generate electrical chargesufficienttodamageES devices.
5. Donotuse freon-propelledchemicals. These cangenerate
electrical charges sufficienttodamageES devices.
6. DonotremoveareplacementES device fromits protective
packageuntil immediatelybeforeyou arereadytoinstall it. (Most
replacementES devices arepackagedwithleadselectrically
shortedtogetherbyconductivefoam, aluminumfoil or
comparableconductivematerial).
7. Immediatelybeforeremoving theprotectivematerial fromthe
leadsofareplacementES device, touchtheprotectivematerial to
thechassisorcircuitassemblyintowhichthedevice will be
installed.
Caution
Besureno powerisappliedtothechassisorcircuit, and observe
all othersafetyprecautions.
8. Minimizebodilymotionswhenhandling unpackagedreplacement
ES devices. (Otherwise hamless motion suchas thebrushing
togetherofyourclothes fabricorthelifting ofyourfootfroma
carpetedfloorcangenerate staticelectricitysufficienttodamage
anES device).
4

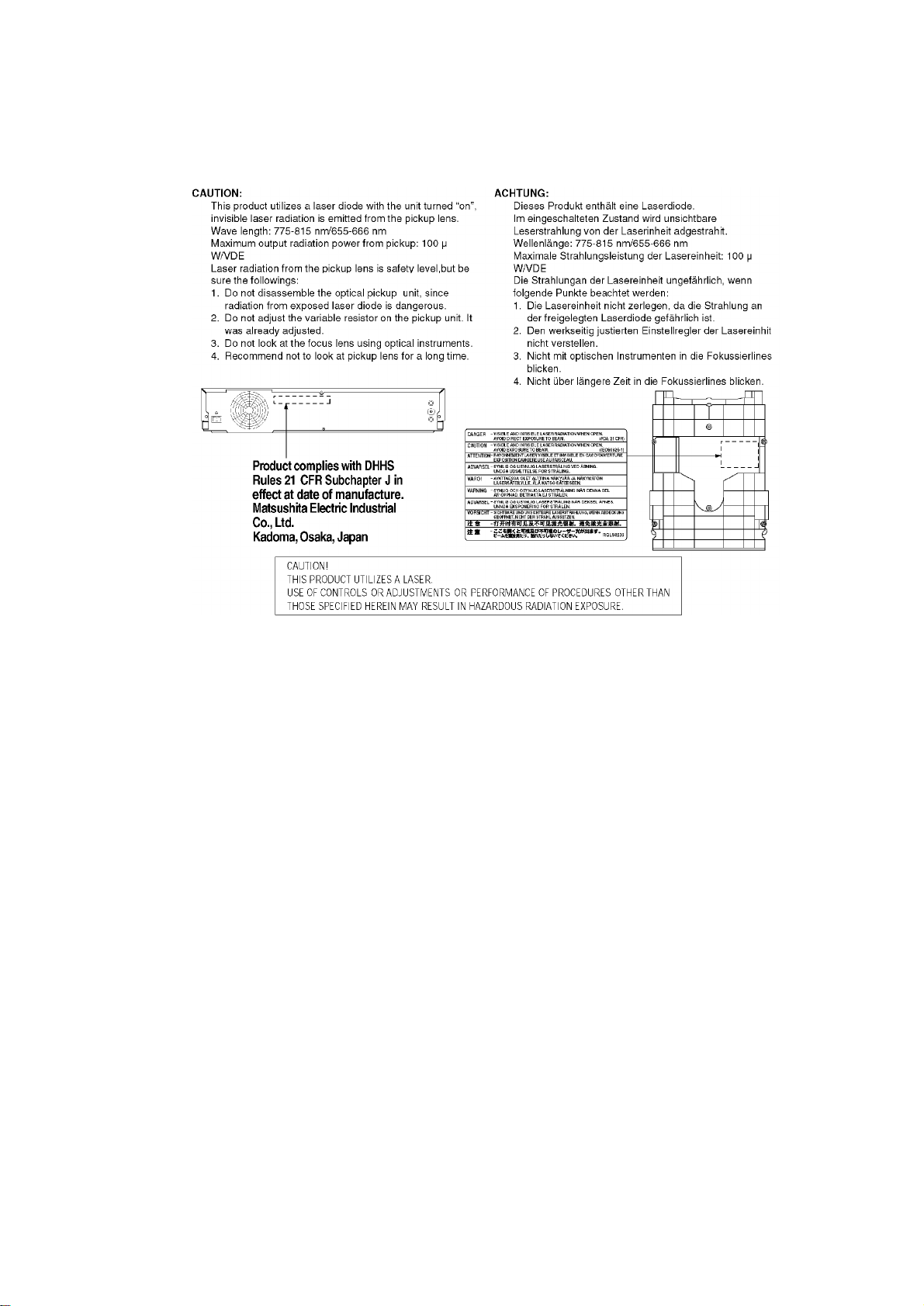

3. Precaution of LaserDiode
4. Howtoreplace the LithiumBattery
REPLACEMENTPROCEDURE
1. RemovetheTop case and DVD-RAMdriveunitwithMainP.C.B. by
referring theDisassembling Procedure.
2. UnsoldertheLithiumBatteries:B7501 and thenreplace itintonew
one.
(Asshownin20.2.1. TheMainP.C.B. )
NOTE:
Thelithium batteryisacritical component. (TypeNo.:CR2354-1GUFManufacturedby
Panasonic. )
Itmustneverbesubjectedtoexcessive heator discharge.
Itmustthereforeonlybefittedinequipmentdesignedspecificallyfor itsuse.
Replacementbatteries mustbeofthesametypeand manufacture.
They mustbefittedinthesamemannerand location as theoriginal battery, withthecorrect
polaritycontactsobserved.
Donotattempttore-chargetheoldbatteryor re-use itfor anyotherpurpose.
Itshouldbedisposedofinwasteproductsdestinedfor burial ratherthanincineration.
5

5. Handling the Lead-free Solder
5.1. Aboutleadfree solder(PbF)
Distinction ofPbF P.C.B.:
P.C.B.s(manufactured)using leadfree solderwill have aPbF stampon theP.C.B.
Caution:
-Pbfree solderhas ahighermelting pointthanstandardsolder;
Typicallythemelting pointis50 -70°F(30 -40°C)higher. Please
use ahigh temperaturesoldering iron. Incase ofthesoldering iron
withtemperaturecontrol,please set itto700 ±20°F(370 ±10°C).
-Pbfree solderwill tend tosplashwhenheatedtoo high (about
1100°F/600°C).
-Whensoldering orunsoldering, please completelyremoveall ofthe
solderon thepinsorsolderarea, and besuretoheat thesoldering
points withthePbfree solderuntil itmelts enough.
6. Each Buttons
7. NewFeatures
7.1. Function ofPowerCircuit(IC1150)
1. General
WeadoptedICmoduleas theSwitching PowerCircuitfor lowerpowerconsumption.
IC1150 isconstructedwithSwitching materialsand Control IC, and ispartial resonance module.
WerealizedSwitching Powerwithhigh efficiency, lownoise and lowpowerconsumption.
2. Equivalence CircuittoIC1150
6

Pin
No. Symbol Description
1 Z/C Triggerinputterminal.
Zero detection voltage:0.25V
Itbecomes less than3V, themode
turnstostandby.
2F/B Bias currentfeedback inputterminal.
Switching ONtime(min.)~(max.)
1.5V ~4.5V / 0 sec. ~25 sec.
Instandbymode
Oscillation stops:less than0.8V
Oscillation starts:over1.8V
3GND GND terminal
4Vcc Powerterminal ofIC.
Oscillation starting voltage:Vcc =
and over14.5V
Oscillation stop voltage:Vcc =and
less than9.6V
Overvoltagelatching voltage:Vcc =
20V
5Drain Drainterminal for Mainswitching
material.

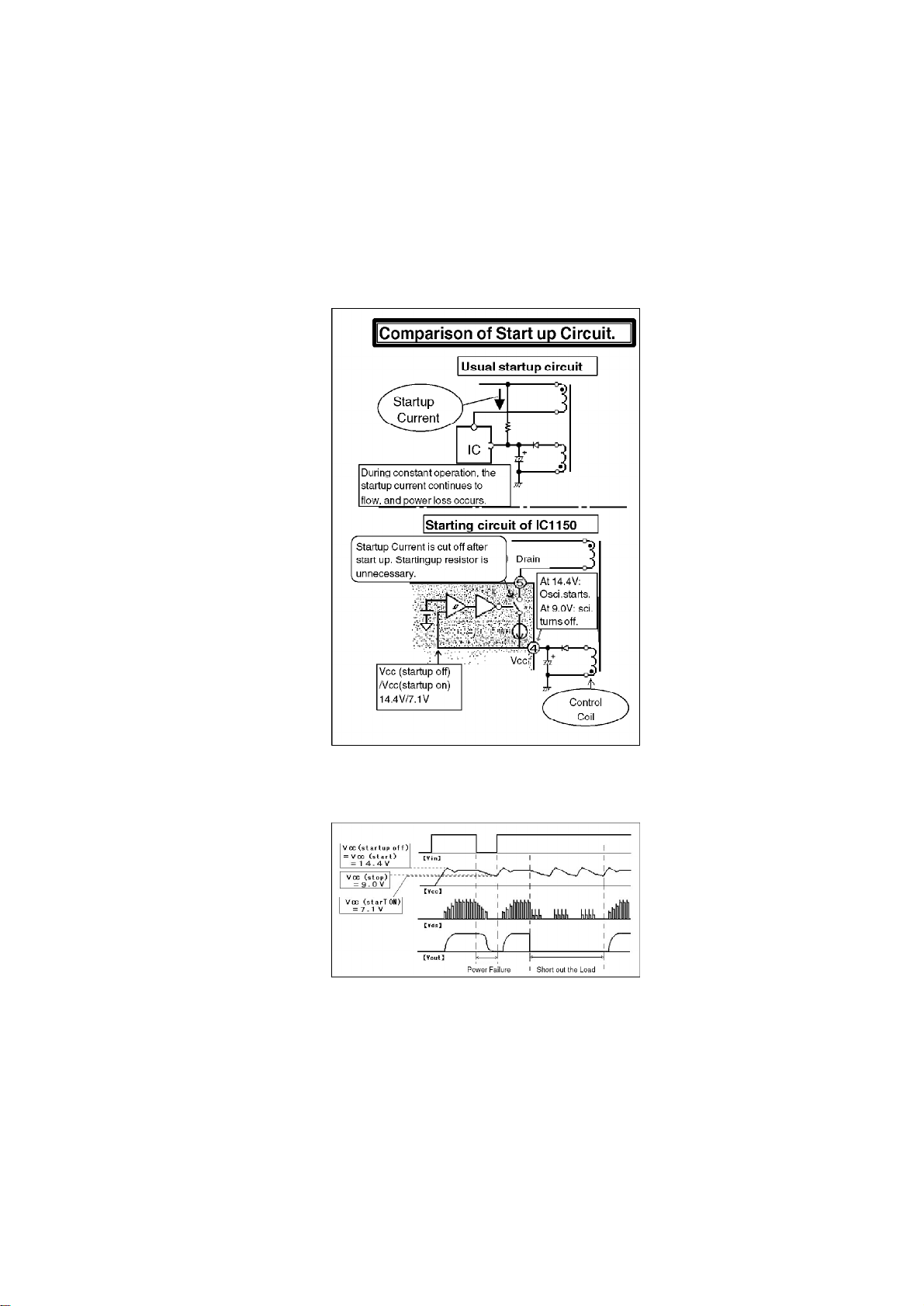

3. Startup Circuit
Whenpoweristurnedon, inputvoltageoftheSwitching TransformerissuppliedtoIC1150 as the
startup power.
7

AfterIC1150 has started, thestartup currentiscutoff.
ThecurrentofStartup Circuitissuppliedas constantcurrentsource inIC1150 and as charge
currentfor thecapacitor connectedbetweenVcc terminal and GND outsideofIC1150 until Vcc
reaches 14.4V.
WhenVcc reaches 14.4V, theStartup Circuitiscutoff, thenoscillation starts.
Afterthen, powerofIC1150 issuppliedfrom control coil.
Incase, thepowerfailureor shortoutoftheload, whenVcc becomes 9.0V;theoscillation stops,
furthermoreVcc becomes 7.1V theStartup Circuitstartsup and Vcc startstorise.
Startup CircuitTiming Chart
Function ofZ/CTerminal
WhenvoltageofZ/Creaches 0.25V, Gatesignal isoutputand Draincurrentstartstoflow.
Function ofF/Bterminal
F/Bsignal decides Switching ONwidthinlowvoltagecontrolling.
8

TheSwitching ONwidthrespondstochangeofF/BVoltage.
StandbyFunction
WhenZ/CVoltagebecomes less than3V, theunitchanges toStandbymode.
IC1150 Block Diagram
Signal name
PinNo. Name Symbol
1 Zero CurrentDet. Z/C
2Feedback F/B
3GND GND
4Vcc Vcc
5Drain Drain
8. Taking out the Disc fromRAM-DriveUnit when the
9

Disc cannot be ejected byOPEN/CLOSE button
8.1. ForcibleDisc Eject
8.1.1. Whenthepowercanbeturnedoff.
1. Turnoff thepowerand press [STOP][CH UP]keyson thefront
panel simultaneouslyfor5seconds.
8.1.2. Whenthepowercannotbeturnedoff.
1. Press [POWER]keyon thefrontpanel forover10 secondstoturn
off thepowerforcibly, and press [STOP][CH UP]keyson thefront
panel simultaneouslyfor5seconds.
8.2. WhentheForcibleDisc Eject cannotbedone.
1. Turnoff thepowerand pull outACcord.
2. RemovetheTop Case.
3. RemovetheFrontPanel.
4. Remove4screwsand UpperBase UnitfromDVD-RAMDrive.
5. Take outthedisc and puttheOpenerRolleron fullyposition for
direction ofArrow.
6. PuttheUpperBase Unitsothat theOpenerRollerisinsertedinto
thegroove.
7. Check centerofOpenerRollerisseenthrough theOpener
position Checking Hole, and tighten4screws.
10

9. Service Explorer
Confirm “RAM-Drive LastError”inService Mode
ExecuteService Mode
1. Press [STOP], [TIMESLIP]and [OPEN/CLOSE]simultaneouslyfor
5secondswhenP-off.
FL Display:
*Afterfinishing display“(7). FactorofDriveErroroccurring”,
press [0] [2] ~[9] [9] keysoftheRemote Controllersothat 99
memories canbedisplayedas maximum.
2. Press [4] [2] keysofremote controller.
ExampleofFL Display:
(1)Error Numberisdisplayedfor 5seconds.
11

(2)Timewhentheerror has occurredisdisplayedfor 5seconds.
(3)LastDrive Error (1/2)isdisplayedfor 5seconds.
(4)LastDrive Error (2/2)isdisplayedfor 5seconds.
(5)Error occurring Disc typeisdisplayedfor 5seconds.
(6)Disc Maker's IDisdisplayedfor 5seconds.
ExampleofDisc Maker's ID:
DVD-R Disc
No. FL Display (Disc
Maker's ID) Disc Maker Country
1MEI Panasonic Japan
2PVC Pioneer Japan
3MCC Mitsubishi Chemical
Corporation Japan
4TDK TDK Japan
5MXL Maxell Japan
6MCI MITUICHEMICALS Japan
7 JVC Victor JVC Japan
8TAIYOYUDEN Taiyoyuden Japan
TYG
9GSC GigaStorage Taiwan
10 PRODISC Prodisc Taiwan
11 PRINCO PRINCO Taiwan
12 RITEK RITEK Taiwan
13 OPTDISC OPTDISC Taiwan
14 LEADDATA LEADDATA Taiwan
15 CMC CMC Taiwan
16 AUVISTAR AUVISTAR Taiwan
17 ACER Acer Taiwan
12

No. FL Display (Disc
Maker's ID) Disc Maker Country
18 VIVASTAR VIVASTAR Switzerland
19 LGE LGElectronics Korea
DVD-RAMDisc
No. FL Display (Disc
Maker's ID) Disc Maker Country
1MEI Panasonic
2MATSUSHITA Panasonic Japan
3MXL Maxell Japan
4PRODISC Prodisc Taiwan
5OPTDISC OPTDISC Taiwan
6CMC CMC Taiwan
*Since andisplay isarbitrarilysetup bythedisk producerside, theabove-mentioneddisplay
may bechanged.
Please make itreference as anexampleofadisplay.
(7)Factor ofDrive Error occurring isleft displayed
Error Occurring Disc Type
FL Display Disc Type
00 DVD-ROM/Video
01 Audio-CD
02 2.6GBDVD-RAM
03 4.7GBDVD-RAM
04 DVD-R
Error Occurring Disc State
13

10. Self-Diagnosisand Special Mode Setting
10.1. Self-DiagnosisFunctions
Self-DiagnosisFunction provides information for errorstoservice personnel by“Self-Diagnosis
Display”whenanyerror has occurred.
U14, H** and F** arestoredinmemoryand held.
Display on FL will becancelledwhenthepoweristurnedoff or ACinputisturnedoff during self-
diagnosisdisplay isON.
Error
Code Diagnosiscontents Description Monitor
Display FL
display
U12 Remotecontrol code
error Display appearswhenmainunit and remotecontrollercodes are
notmatched.
Nodisplay
“*”isremote
controller
codeofthe
main
Display for 5
seconds.
U14 Abnormal inner
temperaturedetected Display appearswhenthedrive temperatureexceeds70°C.
Thepoweristurnedoff forcibly.
For 30 minutes afterthis, all key
entries aredisabled. (Fanmotor
operates atthehighestspeedfor
thefirst5minutes. For the
remaining 25 minutes, fanmotor
isalsostopped.)Theeventis
savedinmemoryas well.
Nodisplay
“U14”is
displayed
minutes.
U99 Hang-up Displayedwhencommunication
error has occurredbetweenMain
microprocessor and Timer
microprocessor.
Nodisplay
Displayedis
left
[POWER] key
is
H01 Inoperative fanmotor Display appearswhen
inoperative fanmotor isdetected
afterpoweredon.
Thepoweristurnedoff when
detecting.
Nodisplay
Displayedis
left.
14

Error
Code Diagnosiscontents Description Monitor
Display FL
display
F00 Noerror information Initial setting for error codein
memory
(Error codeInitialization is
possiblewitherror code
initialization and mainunit
initialization.)
Nodisplay
Displayedis
left.
F01 Drive hardwareerror Display appearswhendrive unit
error isdetected. Theeventis
savedinmemory.
Nodisplay
Displayedis
left.
F12 Initialization error
whenmain
microprocessor is
startedup for program
recording
Display appearswhen
initialization error isdetected
afterstarting up main
microprocessor for program
recording. Theeventissavedin
memory.
Thepoweristurnedoff when
detecting.
Nodisplay
Displayedis
left.
UNSUPPORT
Unsupporteddisc error *Anunsupportedformatdisc was
played, although thedrive starts
normally.
*Thedataformatisnot
supported, although themedia
typeissupported.
*Exceptionallyincase ofthedisc
isdirty.
“Thisdisc is
incompatible.”
Display for 5
seconds.
NO
READ Disc readerror *Adisc isflawedor dirty.
*Apoor qualityfailedtostart.
*Thetrack information couldnot
beread.
“Cannotread.
Please check
thedisc.”
HARD
ERR Drive error Thedrive detectedahard error. “DVDdrive error.” Display for 5
seconds.
SELF
CHECK Restoration operation Since thepowercord fell out during apowerfailureor
operation, itisunderrestoration
operation.
*Itwill OK, ifadisplay disappears
automatically. Ifadisplay does
notdisappear, thereisthe
possibilitythatdefective Digital
P.C.B. / RAMdrive.
Nodisplay
Full
Program16 programsare alreadyset. 16 programsarealreadyset. Nodisplay
15

10.2. Special Modes Setting
Item FL display Key
operation
Modename Description Front
Key
TESTMode *All themainunit's parameters
(includetuner)areinitialized. Press [SKIP (
REV)],
SLIP]and [
OPEN
keys
simultaneously
five seconds
when
isoff.
Service Mode Setting everykind ofmodes for
servicing.
*Detailsaredescribedin“10.3.
Service Mode”.
Whenthe
power
press [STOP], [
TIME
and [OPEN/
CLOSE]
simultaneously
for
seconds.
Rating password Theaudiovisual level setting
password isinitializedto“Level
8”.
Openthetray,
and
[SKIP (REV)]
and
(FWD)]
simultaneously
five seconds.
Forceddisc eject Removing adisc thatcannotbe
ejected.
Thetray will openand unitwill
shift toP-off mode.
*WhenTimerRECisONor EXT-
LINK isON, execute" Forceddisc
eject" afterreleasing TimerREC
or EXT-LINK.
*Thiscommand isnoteffective
during "Childlock" isON.
Thedisplay before
execution leaves. Whenthe
power
press [STOP]
and
keys
simultaneously
five seconds.
Forcedpower-off Whenthepowerbutton isnot
effective whilepowerisON, turn
off thepowerforcibly.*When
TimerRECisONor EXT-LINK is
ON, execute“ForcedPower-off”
afterreleasing TimerRECor EXT-
LINK.
Action:
Thetray will open, and thepower
will turn off.
Display inP-off mode. Press [Power]
key
than10
seconds.
16

Item FL display Key
operation
Modename Description Front
Key
Aging Perform sequence ofmodes as *
Aging Description shownbelow
continually.
Display following thethen
mode. Whenthe
power
press [CH
DOWN],
SLIP]and [
OPEN
simultaneously
for
five seconds
and
than10
seconds.
*The[REC
MODE]
besettoEP or
LP.
*Whentheunit
has
up because of
pressing
keys for over
10
once turn off
the
and re-execute
this
command.
“When
releasing
mode, press [
POWER]
Demonstration
lock/unlock Ejection ofthedisc isprohibited.
Thelock setting iseffective until
unlocking thetray and not
releasedby“Mainunit
initialization”ofservice mode.
*Whenlock thetray.
“LOCK”isdisplayedfor 3
seconds.
Whenthe
power
press [STOP]
and
[POWER] keys
simultaneously
for
seconds.
*Whenunlock thetray.
“UNLOCK”isdisplayed
for 3seconds.
Whenthe
power
press [STOP]
and
[POWER] keys
simultaneously
for
seconds.
*Whenpress OPEN/
CLOSE key whilethetray
being locked.
Display “LOCK”for 3
seconds.
Press [OPEN/
CLOSE]
whilethetray
being
locked.
ATP Initialization ATP setting isinitialized, and the
unitturnsoff automatically. Itissamewithdisplay in stop mode. Whenthe
power
mode), press [
CH
[CH DOWN]
simultaneously
for
seconds.
17

Item FL display Key
operation
Modename Description Front
Key
Progressive
initialization Theprogressive setting is initializedtoInterlace. Thedisplay before execution leaves. Whenthe
power
mode), press [
STOP]
[TIME SLIP]
simultaneously
for
seconds.
Aging Contents(Example):
10.3. Service Modes
Service modesetting:Whilethepowerisoff, press TIME SLIP, STOP and OPEN/ CLOSE
simultaneouslyfor five seconds.
Item FL display Key
operation
Modename Description (Remote
controller
Release Items Item ofService Modeexecuting is
cancelled. Press [0][0]or
[
service mode.
Error CodeDisplay LastError CodeofU14/H/Fheld
byTimerisdisplayedon FL.
*Detailsaredescribedin“10.1.
Self-DiagnosisFunctions”.
Press [0][1]in
service
mode
ROMVersion
Display Region code, MAINfirm version, TIMERfirm version and DRIVE
firmwareversionsaredisplayed
on FL for five secondspereach
version inorder, butROMversion
will beleft displayed.
areversion displays.
Press [0][2]in
service
mode
18

Item FL display Key
operation
Modename Description (Remote
controller
WhitePicture
Output Whitepictureisoutputas componentOutputfrom AV
Decoder.
*Whitepicture
(Saturation rate:100%)
*ItisenabletoswitchInterlace/
Progressive by“I/Pswitch:[1][4]”
*Initial modeis“Interlace”. Press [1][1]in
service
mode.
SwitchInterlace/
Progressive Press [1][4]in
White
PictureOutput
mode.
*I/P are
switched
alternately.
MagentaPicture
Output Magentapictureisoutputwith ComponentOutputfrom AV
Decoder.
*Magentapicture
(Saturation rate:100%)
*ItisenabletoswitchInterlace/
Progressive by“I/Pswitch:[1][4]”
*Initial modeis“Interlace”. Press [1][2]in
service
mode.
SwitchInterlace/
Progressive Press [1][4]in
Magenta
PictureOutput
mode.
*I/P are
switched
alternately.
19

Item FL display Key
operation
Modename Description (Remote
controller
RTSCReturn inXP
(A&V)
L1inputsignal isencoded(XP),
decoded(XP)and output
decodedsignal toexternal
withoutDISCrecording and DISC
playback.
Initial mode:EE2/ Interlace/
XP/ Audio48kHz Press [1][3]in
service
mode.
SwitchInterlace/
Progressive Press [1][4]in
RTSC
Return XP
mode.
*I/P are
switched
alternately.
Audio44.1kHz/ 48 kHz
Switch Press [2][4]in
RTSC
Return XP
mode.
*48 kHz/ 44.1
kHz
switched
alternately.
I/P Switch SwitchInterlace and Progressive
inEE mode.
*Initial setting is“Interlace”.
*Thiscommand iseffective
during executing “WhitePicture
Output”, “MagentaPicture
Output”and “RTSCReturn inXP
(A&V)”modes.
Initial modeisInterlace
SwitchInterlace/
Progressive
Press [1][4]inI
/
mode.
*I/P are
switched
alternately.
AudioMute
(XTMUTE) Check whethermuteisapplied normallybythetimer
microprocessor.
Press [2][1]in
service
mode.
AudioMute
(XDMUTE) Check whethermuteisapplied normallybytheDigital P.C.B.
(GLUE IC).
Press [2][2]in
service
mode.
AudioPattern
Output Theaudiopattern storedinthe internal memoryisoutput
(Lch:1kHz/-18dB)
(Rch:400Hz/-18dB)
*Audiosound clock switching
operation ofDACcan
beconfirmedbysub command [2]
[4].
Initial mode(Audio48kHz) Press [2][3]in
service
mode.
Audio44.1kHz/48kHz
switching Press [2][4]in
Audio
Pattern Output
mode.
*48 kHz/ 44.1
kHz
switched
alternately.
20
