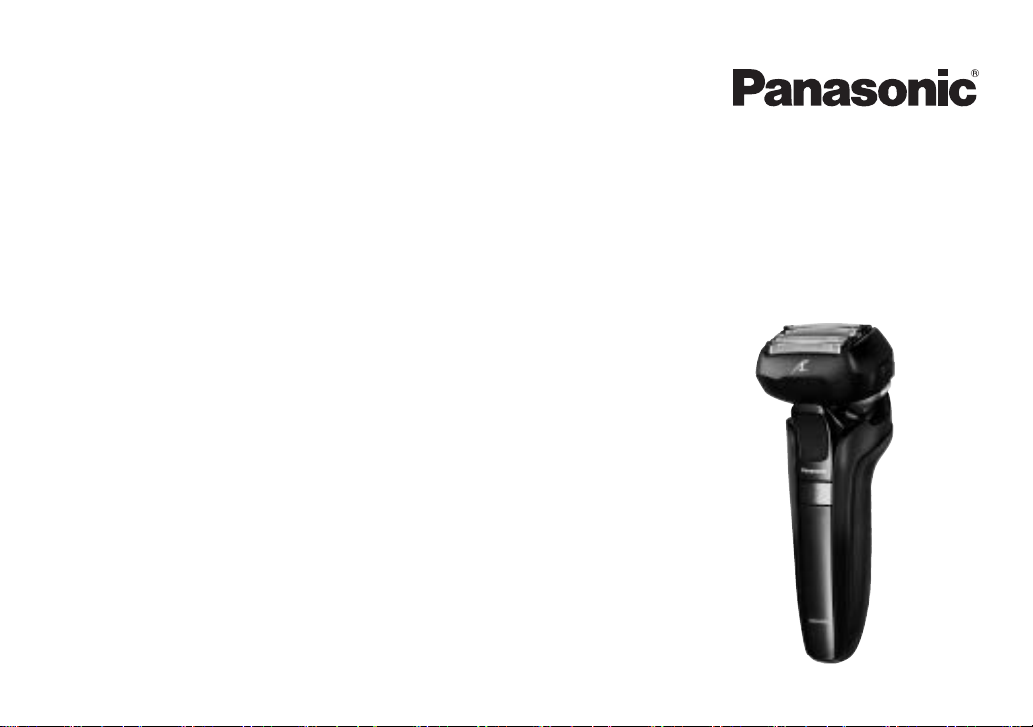

Panasonic ES-LV5E User manual

Operating Instructions
(Household) AC/Rechargeable Shaver
Model No. ES‑LV5E
English��������������������������������������������� 3
中文 ������������������������������������������������ 21
한글 ������������������������������������������������ 35

2

3
English
Operating Instructions
(Household use) AC/Rechargeable Shaver
Model No. ES‑LV5E
Thank you for purchasing this Panasonic product.
Before operating this unit, please read these instructions completely and save them for future use�
Safety precautions..................... 4
Important information �������������������������9
Parts identication ����������������������������10
Preparation�����������������������������������������10
How to use ����������������������������������������� 11
Cleaning the shaver ��������������������������14
Replacing the system outer foil and
the inner blades���������������������������������16
FAQ �����������������������������������������������������16
Troubleshooting ��������������������������������17
Battery life������������������������������������������19
Removing the built-in rechargeable
battery�������������������������������������������������19
Specications ������������������������������������20
Contents

4
English
Safety precautions
To reduce the risk of injury, loss of life, electric shock,
re, and damage to property, always observe the
following safety precautions.
Explanation of symbols
The following symbols are used to classify and
describe the level of hazard, injury, and property
damage caused when the denotation is disregarded
and improper use is performed.
DANGER
Denotes a potential
hazard that will result
in serious injury or
death.
WARNING
Denotes a potential
hazard that could
result in serious
injury or death.
CAUTION
Denotes a hazard
that could result in
minor injury or
property damage.
The following symbols are used to classify and
describe the type of instructions to be observed.
This symbol is used to alert users to a specic
operating procedure that must not be performed.
This symbol is used to alert users to a specic
operating procedure that must be followed in
order to operate the unit safely.
WARNING
►This product
Do not use the appliance for wet shaving�
‑ Doing so may cause electric shock or re due
to a short circuit.
This product has a built-in rechargeable battery�
Do not throw into re, apply heat, or charge,
use, or leave in a high temperature
environment�
‑ Doing so may cause overheating, ignition, or
explosion.
Do not modify or repair�
‑ Doing so may cause re, electric shock, or
injury.
Contact an authorized service center for repair
(battery change etc).
Never disassemble except when disposing of
the product�
‑
Doing so may cause re, electric shock, or
injury.

5
English
WARNING
►In case of an abnormality or malfunction
Immediately stop using and remove the
adaptor if there is an abnormality or
malfunction�
‑ Failure to do so may cause re, electric shock,
or injury.
<Abnormality or malfunction cases>
• The main unit, adaptor or cord is deformed
or abnormally hot�
•
The main unit, adaptor or cord smells of
burning�
• There is an abnormal sound during use or
charging of the main unit, adaptor or cord�
‑ Immediately request inspection or repair at an
authorized service center.
►Power supply
Do not connect or disconnect the adaptor to
a household outlet with a wet hand�
‑ Doing so may cause electric shock or injury.
Do not immerse the AC adaptor in water or
wash with water�
Do not place the AC adaptor over or near
water lled sink or bathtub.
Never use the appliance if the AC adaptor is
damaged or if the power plug ts loosely in a
household outlet�
Do not damage the cord or the power plug�
•
Do not deface, modify, forcefully bend or pull
the cord or the power plug� Also, do not
place anything heavy on, twist or pinch the
cord�
‑ Doing so may cause electric shock or re due
to a short circuit.
Do not use in a way exceeding the rating of
the household outlet or the wiring�
‑ Exceeding the rating by connecting too many
plugs to one household outlet may cause re
due to overheating.
Do not use anything other than the supplied
AC adaptor for any purpose� Also, do not use
any other product with the supplied AC
adaptor� (See page 10�)
‑
Doing so may cause burn or re due to a short
circuit.

6
English
WARNING
Always ensure the appliance is operated on
an electric power source matched to the
rated voltage indicated on the AC adaptor�
Fully insert the adaptor�
‑ Failure to do so may cause re or electric
shock.
Disconnect the AC adaptor when cleaning the
main body with water�
‑
Failure to do so may cause electric shock or
injury.
Regularly clean the power plug and the
appliance plug to prevent dust from
accumulating�
‑ Failure to do so may cause re due to insulation
failure caused by humidity.
►Preventing accidents
Do not place within reach of children or
infants� Do not let them use it�
‑ Putting parts or accessories in the mouth may
cause an accident or injury.
If oil is consumed accidentally, do not induce
vomiting, drink a large amount of water and
contact a physician�
If oil comes into contact with eyes, wash
immediately and thoroughly with running
water and contact a physician�
‑ Failure to follow these instructions may result in
physical problems.
►Note the following precautions
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety�
Children should be supervised to ensure that
they do not play with the appliance�
‑ Failure to do so may cause an accident or
injury.
The supply cord cannot be replaced� If the cord
is damaged, the AC adaptor should be
scrapped�
‑ Failure to do so may cause an accident or
injury.

7
English
CAUTION
►Protecting the skin
Do not use excessive pressure to apply the
system outer foil to your lip or other part of
your face�
Do not apply the system outer foil directly to
blemishes or injured skin.
Do not touch the blade section (metallic
section) of the inner blade�
‑ Doing so may cause injury to skin or hand.
Do not forcefully press the system outer foil�
Also, do not touch the system outer foil with
ngers or nails when in use.
Do not use this product for hair on head or
any other part of the body�
‑ Doing so may cause injury to skin or reduce the
life of the system outer foil.
Check the system outer foil for cracks or
deformations before use�
‑ Failure to do so may cause injury to the skin.
Be sure to place the protective cap on the
shaver when carrying around or storing�
‑ Failure to do so may cause injury to skin or
reduce the life of the system outer foil.
►Note the following precautions
Do not wrap the cord around the adaptor
when storing�
‑ Doing so may cause the wire in the cord to
break with the load, and may cause re due to
a short circuit.
Do not allow metal objects or trash to adhere
to the power plug or the appliance plug�
‑ Doing so may cause electric shock or re due
to a short circuit.
Do not disconnect the adaptor or the
appliance plug by holding onto the cord�
‑ Doing so may cause electric shock or injury.
Do not share your shaver with your family or
other people�
‑ Doing so may result in infection or inammation.
Do not drop or hit against other objects�
‑ Doing so may cause injury.
Disconnect the adaptor from the household
outlet when not using�
‑ Failure to do so may cause electric shock or re
due to electrical leakage resulting from
insulation deterioration.

8
English
Handling of the removed battery when disposing
DANGER
• The rechargeable battery is exclusively for
use with this appliance� Do not use the
battery with other products�
• Do not charge the battery after it has been
removed from the product�
• Do not throw into re or apply heat.
• Do not hit, disassemble, modify, or puncture
with a nail�
• Do not let the positive and negative
terminals of the battery get in contact with
each other through metallic objects�
• Do not carry or store the battery together
with metallic jewellery such as necklaces
and hairpins�
• Do not use or leave the battery where it will
be exposed to high temperatures, such as
under direct sunlight or near other sources
of heat�
• Never peel off the tube�
‑ Doing so may cause overheating, ignition, or
explosion.
WARNING
After removing the rechargeable battery, do
not keep it within reach of children and
infants�
‑ The battery will harm the body if accidentally
swallowed.
If this happens, consult a physician
immediately.
If the battery uid leaks out and comes in
contact with the eyes, do not rub the eyes,
and thoroughly rinse with clean water, such
as tap water�
‑ Failure to do so may cause eye injury.
Consult a physician immediately.
CAUTION
If the battery uid leaks out and comes in
contact with the skin or clothes, rinse off with
clean water, such as tap water�
‑ Failure to do so may cause inammation.

9
English
Important information
• Do not bring the system outer foil into contact with
hard objects.
Doing so may damage the blades as they are very
thin and deform easily.
• Do not dry the main unit with a dryer or a fan heater.
Doing so may cause malfunction or deformation of the
parts.
• Do not leave the shaver exposed to direct sunlight
with the foil frame detached.
Doing so may deteriorate the waterproof rubber and
degrade waterproof function, which may cause to
malfunction.
• Store the shaver in a place with low humidity after
use.
Failure to do so may cause malfunction due to
condensation or rust.
• Keep both the inner blades inserted. If only one of the
inner blades is inserted, the shaver may be damaged.
• If you clean the shaver with water, do not use salt
water or hot water. Do not soak the shaver in water for
a long period of time.
• The following symbol indicates that a specic
detachable power supply unit is required for
connecting the electrical appliance to the supply
mains. The type reference of power supply unit is
marked near the symbol.

10
English
Parts identication









a
c
b
d





Back






AMain body
1Protective cap
2 System outer foil
3 Foil frame
4 Smooth rollers
• They help to glide
over the skin more
easily.
5 Foil frame release
buttons
6 Power switch
7 Lamp display
a. Shaving sensor
lamp ( )
b. Battery capacity
lamp
c. Switch lock lamp
()
d. Charge status
lamp ( )
8Appliance socket
9Outer foil section
: System outer foil
release buttons
;Inner blades
< Trimmer
= Trimmer handle
BAC adaptor (RE7-87)
>Adaptor
? Power plug
@Cord
AAppliance plug
Accessories
CTravel case
DCleaning brush
EOil
Preparation
Charging the shaver
• Turn the shaver off.
• Wipe off any water droplets on the appliance socket.
1 Insert the appliance plug

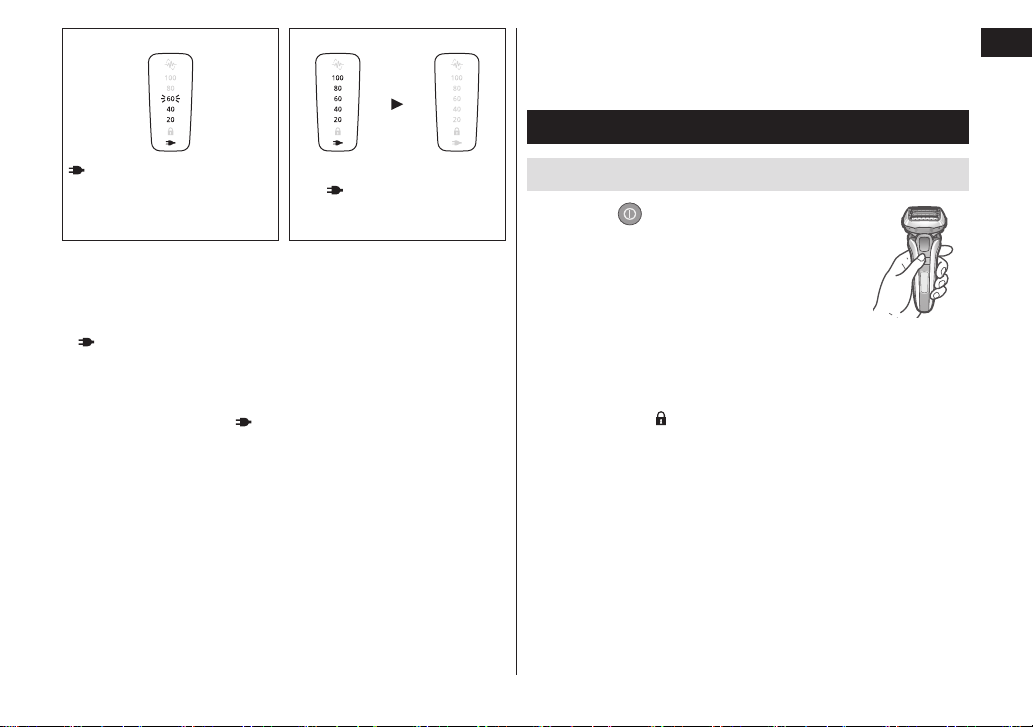

into the shaver�
2 Plug the adaptor into a
household outlet�
• Check that the charge status
lamp ( ) is glowing.
• Charging is completed after
approx. 1 hour.
2
1
3 Disconnect the adaptor after charging is
completed�

11
English
While charging After charging is completed
glows.
The number of the battery
capacity lamp will increase
as charging progresses.
All the battery capacity lamp
and will glow and then
turn off after 5 seconds.
Notes
• When charging the shaver for the rst time or when it
has not been in use for more than 6 months, the
charging time may change or the charge status lamp
() may not glow for a few minutes. It will eventually
glow if kept connected.
• Recommended ambient temperature for charging is
10 °C – 35 °C. It may take longer to charge, or the
charge status lamp ( ) will blink quickly and the
battery may fail to charge properly in extremely high
or low temperatures.
• The shaver can be used for approximately 2 weeks
with a full charge.
(Based on one 3‑minute dry‑shave usages per day in
an ambient temperature range of 20 °C – 30 °C.)
The number of usable days varies depending on the
following conditions.
‑ Beard thickness
‑ Pressure applied to the skin
‑
Usage frequency of the sonic vibration cleaning mode
• If there is noise from the radio or other sources while
using or charging the appliance, move to a different
location to use the appliance.
How to use
Shaving beard
1 Press and shave�
• The “shaving sensor”, which
automatically adjusts the power
depending on the beard thickness,
will operate.
It will shave with high power on areas
where the beard is heavy, and reduce
the power on areas where the beard
is thin, to reduce burden on the skin.
• The power cannot be turned on when the switch
lock lamp ( ) blinks, as the power switch is
locked.
Press the power switch for more than 2 seconds
to unlock. (See page 13.)

12
English
Tips for better shaving
Apply the whole system outer foil
perpendicularly against the skin
and shave by slowly gliding the
shaver over the face against the
grain of the beard.
• The beard under the chin and
around the throat can be shaved
better by stretching the skin so
the beard will stand.
• To prevent damaging the system
outer foil, do not shave with only
a part of the system outer foil.
2 Press when nished.
While using After use
The remaining battery
capacity are shown and
then turn off after
5 seconds.
• Approximate amount of
battery capacity is
displayed as 20 ‑ 100.
• The shaving sensor
lamp ( ) blinks.
•
The charge status lamp
() glows and then turn
off after 5 seconds when
using cord shaving.
The remaining battery
capacity blink and then
turn off after 5 seconds.
When the battery capacity is low
“20” blinks when operating the shaver.
The appliance beeps twice after switched off.
• You can shave 2 to 3 times after “20” blinks.
(This will differ depending on usage.)
Notes
• The appliance may not operate in an ambient
temperature lower than approximately 5 °C.

13
English
• Depending on the beard thickness or the amount of
beard trimmings in the shaver head, the shaving
sensor may not react and the driving sound may not
change. This is not abnormal.
• To prevent erroneous operation, place your ngers on
the nger rest while using the shaver.
• The sonic vibration cleaning mode is activated when
the power switch is pressed for more than 2 seconds
while the shaver is not operating (the switch lock is
unlocked). (See page 14.)
You cannot shave in this mode.

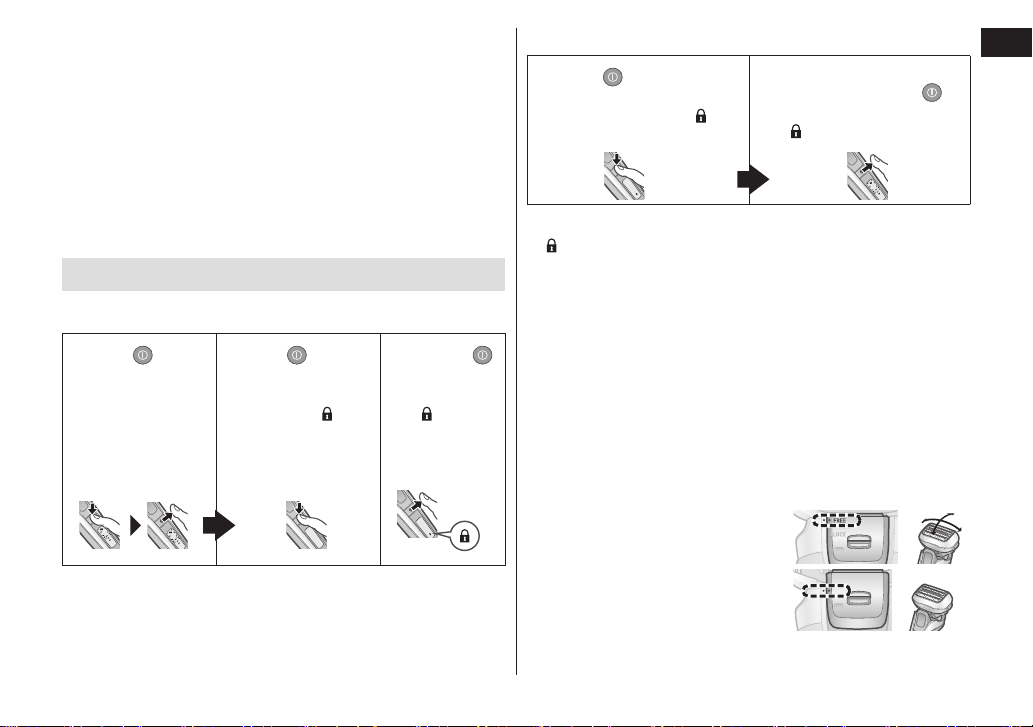

Operation and display of the switch lock
►Locking the power switch
1. Press once
and then release.
• The shaver
starts
operating.
2.
Press for more
than 2 seconds
until the switch
lock lamp ( )
turns on.
• The shaver will
stop operating.
3.
Release .
• The switch
lock lamp
() will
light up for
5 seconds
and turn off.
►Unlocking the power switch
1.Press for more than
2 seconds until the
switch lock lamp ( )
turns off.
2.Once the shaver starts
operating, release .
• The switch lock lamp
() will turn off.
• The power switch is locked when the switch lock lamp
() blinks for 5 seconds and the shaver does not
operate even though the power switch is pressed.
►Cord shaving
If you insert the appliance plug to the shaver and plug
the adaptor into a household outlet, you can use it even
if the battery capacity is low.
• The battery will be consumed even when using the
shaver with the AC adaptor.
• If the shaver does not work, continue charging it for
approx. 1 minute.
►Switching the shaver head
You can change the pivot action.
FREE
The shaver head is moved to
prevent missed spots.
LOCK
You can lock the shaver head.
LOCK
FREE

14
English
►Using the trimmer
1.Slide the trimmer handle up to
the “ ” position so that the
trimmer stands upright.
2.Press and use.
FREE
LOCK
Press and hold the top knob (a)
and slide the trimmer handle
down to lower the trimmer.
FREE
LOCK

Tips for better usage
Apply the trimmer edge perpendicular to skin gently
and move downward slowly.
Trimming sideburns Pre‑shave of long beards
Cleaning the shaver
We recommend cleaning the shaver after each use.
Cleaning with water
• Turn the shaver off and disconnect the AC adaptor.
1 Apply some hand soap and
some water to the system
outer foil�
2
Press for more than
2 seconds to activate the sonic
vibration cleaning mode�
• Splashing of foam is suppressed.
• The battery capacity lamps blink
in order.
• After about 20 seconds, it will be
automatically turned off, or you can turn it off by
pressing the power switch.
3 Remove the outer foil
section and clean with
running water�
• See page 16 for removing the
outer foil section.
• Splashing is reduced by rinsing the shaver in sonic
vibration cleaning mode.
• After rinsing with water, shake the shaver up and
down for a few times to remove excess moisture and
then wipe off any drops of water with a dry cloth.

15
English
4 Dry the outer foil section,
the shaver, and the
trimmer completely�
• Allow the shaver to dry in the
shade, avoid direct sunlight.
5 Lubricate the shaver�
It will keep the movement of the
blade smooth and maintain a
comfort shave.
1.Apply one drop of oil to each of
the system outer foils.
2.Raise the trimmer and apply a drop of oil.
3.Switch the shaver on, and run it for approximately
ve seconds.
4.Switch off the shaver, and wipe off any excess oil
from the system outer foil with a soft cloth.
The mark on the left means suitable for
cleaning under an open water tap�
Warning
Disconnect the cord from the shaver before
cleaning it in water to prevent electric shock.
Notes
• Be careful not to hit the main body on the sink or any
other object while draining the water. Failure to do so
may cause malfunction.
• Do not wipe with thinners, benzine, alcohol etc.
Doing so may cause malfunction, or cracking or
discoloration of the parts.
Wipe with diluted soapy water.
• Do not use any kitchen or bathroom detergents other
than hand soap.
Doing so may cause malfunction.
Cleaning with the brush
Remove the outer foil section and the inner blades.
(See page 16.)
Clean the system outer foil in the areas
indicated by the circles every time you
use the shaver.
►Cleaning with the long brush
Clean the foil frame, system
outer foil, the main body
and the trimmer using the
long brush.
►Cleaning with the short brush
• Clean the inner blades using
the short brush by moving it in
direction as illustrated.
•
Do not move the short brush
perpendicularly against the
blades as it will damage the inner
blades and affect their sharpness.

16
English
Replacing the system outer foil and
the inner blades
system outer foil once every year
inner blades once every two years
►Removing the outer foil section
Press the foil frame release buttons and lift
the outer foil section upwards.
►Attaching the outer foil section
After turning the foil frame mark ( ) to the
front, securely attach the outer foil section
to the shaver until it clicks.
►Replacing the system outer foil
1.Press the system outer foil release
buttons and pull down the system
outer foil.
• Do not press the system outer foil
release buttons with excessive
force.
Doing so may bend the system
outer foil, preventing complete
attachment to the foil frame.
2. Align the foil frame mark ( ) and the system outer foil
mark ( ) and securely attach together until it clicks.
►Replacing the inner blades
1.Remove the inner blades one at a time.
2.Insert the inner blades one at a time.
Note
Do not throw away the foil frame.
►Replacement parts
Replacement parts are available at your dealer or
Service Center.
Replacement parts
for ES‑LV5E
System outer foil WES9179
Inner blades WES9170
FAQ
Question Answer
Will the battery
deteriorate if not used
for an extended
period of time?
The battery will deteriorate if
not used for over 6 months,
so make sure to perform a
full charge at least once
every 6 months.
Can I charge the
shaver after every use?
The battery used is a
lithium‑ion, so charging after
every use will have no effect
on battery life.

17
English
Question Answer
Why should the adaptor
be disconnected after
charge?
Charging the battery for more
than 1 hour will not affect
battery performance, but
disconnect the adaptor for
safety and to save energy.
What is the
constituent of the
dedicated oil?
Constituent of the oil is
liquid parafn.
Why does the
appliance beep twice
after switched off?
The sound indicates that the
battery capacity is running
low. Please charge the
appliance.
Troubleshooting
Perform the following actions.
If the problems still cannot be solved, contact the
store where you purchased the unit or a service
center authorized by Panasonic for repair.
Problem Action
The power switch
does not turn ON.
Unlock the switch lock.
(See page 13.)
Problem Action
The shaving sensor
does not respond.
Depending on the beard
thickness or the amount of
beard trimmings in the
shaver head, the shaving
sensor may not react and the
driving sound may not
change. This is not abnormal.
The shaving sensor may not
respond when the remaining
battery capacity is low. If this
happens, recharge the shaver.
Apply oil. (See page 15.)
The shaving sensor may not
respond when there is not
enough oil on the blades.

18
English
Problem Action
The shaving sensor
responds even though
the shaver is not in
contact with the skin.
Clean the beard trimmings
from the shaver.
When the shaver is
extremely dirty, remove the
foil frame and wash with
water.
(See page 14.)
Replace the system outer
foil and/or inner blades.
Expected life of system
outer foil and inner blades:
System outer foil:
Approximately 1 year
Inner blades:
Approximately 2 years
Operating time is short
even after charging.
Apply oil.
This can be improved by
cleaning every time after
shaving.
When the number of
operations per charge starts
to decrease, the battery is
nearing the end of its life.
Problem Action
Shaver does not
operate even after
charging.
Use the appliance in an
ambient temperature
approximately 5 °C or higher.
The battery has reached the
end of its life. In this case, the
shaver will not operate when
the power is turned on with
the AC adaptor connected.
The driving sound
changes while shaving.
The shaving sensor is
operating. The sound
changes depending on the
beard thickness.
Makes a loud sound.
Apply oil.
The blades will not move
smoothly when there is no
oil on the blades, requiring
more power.
The shaver makes a high‑
pitched sound due to the
linear motor drive. This does
not indicate a problem.
Conrm that the blades are
properly attached.
Clean the system outer foil with
the brush. (See page 15.)
The odor is getting
stronger.
This can be improved by
cleaning every time after
shaving.

19
English
Problem Action
Shavings y out in all
directions.
This can be improved by
cleaning every time after
shaving.
Clean the inner blades with
the brush when shavings are
adhering to the inner blades.
System outer foil gets
hot.
Apply oil.
Replace the system outer
foil if it is damaged or
deformed.
(See page 16.)
You do not get as close
a shave as before.
This can be improved by
cleaning every time after
shaving.
Replace the system outer
foil and/or inner blades.
Expected life of system
outer foil and inner blades:
System outer foil:
Approximately 1 year
Inner blades:
Approximately 2 years
Apply oil.
Battery life
The life of the battery is 3 years. The battery in this shaver
is not intended to be replaced by consumers. Have the
battery replaced by an authorized service center.
Removing the built-in rechargeable battery
Remove the built-in rechargeable battery before
disposing of the shaver�
The battery is to be disposed of safely.
Please make sure that the battery is disposed of at an
ofcially designated location if there is one.

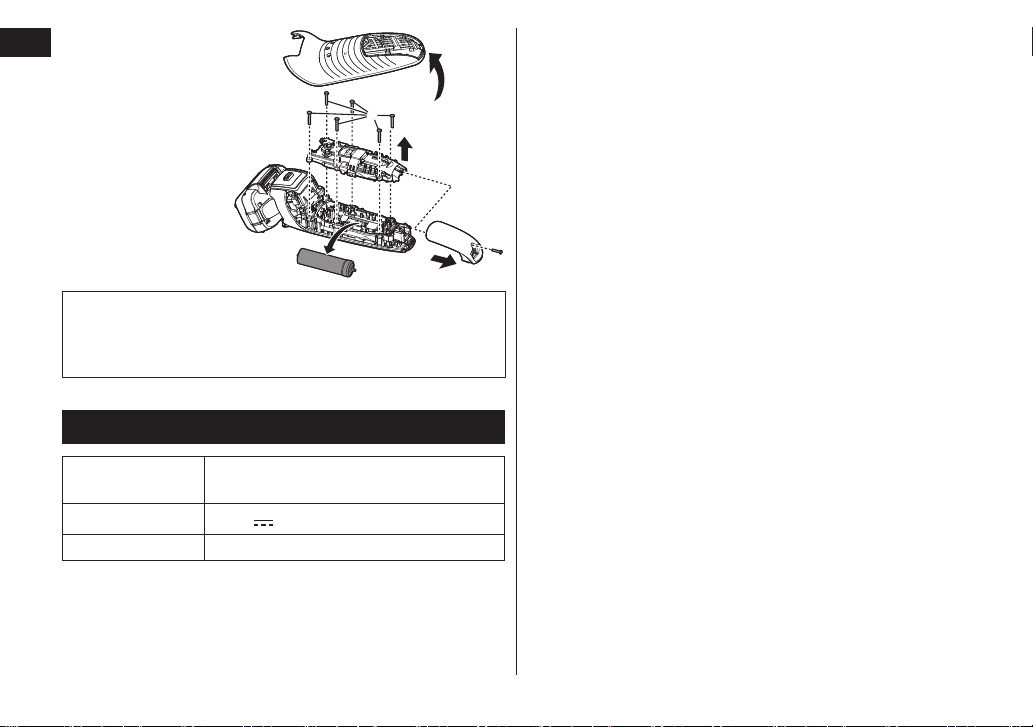

This gure must only be used when disposing of the
shaver, and must not be used to repair it. If you
dismantle the shaver yourself, it will no longer be
waterproof, which may cause it to malfunction.
• Remove the shaver from the AC adaptor.
•
Press the power switch to turn on the power and then keep
the power on until the battery is completely discharged.
• Perform steps 1to 5and lift the battery, and then
remove it.
• Take care not to short circuit the positive and negative
terminals of the removed battery, and insulate the
terminals by applying tape to them.

20
English





For environmental protection and recycling of materials
This shaver contains a Lithium‑ion battery.
Please make sure that the battery is disposed of at an
ofcially assigned location, if there is one in your country.
Specications
Power source
See the name plate on the AC adaptor.
(Automatic voltage conversion)
Motor voltage 3.6 V
Charging time Approx. 1 hour
This product is intended for household use only.
