Operating Instructions
DEEP FREEZER
Model No ：SCR-CH100H*/150H*/200H*/300H*
Thank you very much for purchasing Panasonic Deep Freezer
Picture is only for illustration
Note : indicates product models ending with 0~9 digit.
Before operating this unit, please completely read these instructions especially the Safety Warnings and
Important Instructions.
1

Contents
1. Safety Warnings 3
2. Important Instructions 3
3. Transportation Instructions 4
4. Installation Instructions 5
5. Starting 6
6. Freezer Operation 6
6.1. Temperature Adjustment 7
6.2. Indicator Lights 7
6.3. Storing Frozen Food 7
6.4. Freezing Fresh Food 8
7. Defrosting 8
8. Cleaning and Care 9
9. Do’s and Don’ts 10
10.
Problem Solving/Trouble Shooting 11
11.
Product Specifications 11
2
2~
1. Safety Warnings

1. Safety Warnings
• Do Not connect the appliance to the electricity supply until all packing and transit protectors
have been removed.
• Do Not dispose of the appliance on a fire. At our company, the care and protection of our
environment is an ongoing commitment. This appliance is among the latest range introduced is
particularly environmentally friendly. Take care not to damage, the cooling circuit / pipes of the
appliance in transportation and in use. In case of damage do not expose the appliance to fire,
potential ignition source and immediately ventilate the room where the appliance is situated.
• Do Not use mechanical devices or other means to accelerate the defrosting process, other than
those recommended by the manufacturer.
• Do Not damage the refrigerant circuit.
• Do Not use electrical appliances inside the food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
• Do Not keep outside in the open area.
• Do Not wash the body with water. Only use wet cloth to clean the body.
2. Important Instructions
• Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if
transported horizontally.
• If you are discarding an old product with a lock or latch fitted to the door, ensure that it is left in a
safe condition to prevent the entrapment of children.
• This freezer must only be used for its intended purpose i.e. the storing and freezing of edible
foodstuff.
• To obtain the best possible performance and trouble free operation from your appliance it is very
important to carefully read these instructions.
• On delivery, check to make sure that the product is not damaged and that all the parts and
accessories are in perfect condition.
• We do not recommend the use of extension leads and multi-way adapters.
• We suggest you keep these instructions in a safe place for easy reference.
• Keep distance from the body, It may be warm.
Failure to observe these instructions may invalidate your right to free service during the
warranty period.
3

Note : Picture is for illustration only, can vary from actual product
3. Transportation Instructions
The appliance should be transported only in a vertical upright position. The packing as supplied must
be intact during transportation.
If during the course of transport the product has been transported horizontally, it must only be laid on its
left hand side (when facing the door front) and it must not be operated for at least 4 hours to allow the
system to settle after the appliance is brought back to upright position.
1. Failure to comply with the above instructions could result in damage occurring to the appliance. The
manufacturer will not be held responsible if these instructions are disregarded.
2. The appliance must be protected against rain, moisture and other atmospheric influences.
Important:Care must be taken while cleaning / carrying the appliance to avoid touching the
condenser metal wires at the back of the appliance, as you might injure your fingers and hands or
damage your product.
Important: This appliance is not designed for stacking with any other appliance. Do not attempt to sit or
stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the
appliance.
Important: To avoid the mains cable becoming cut or damaged. Make sure that mains cable is not
caught under the appliance during and after carrying / moving the appliance.
When positioning your appliance take care not to damage your flooring, pipes, wall coverings etc. Do not
move the appliance by pulling by the lid or handle. Do not allow children to play with the appliance or
tamper with the controls. Our company declines to accept any liability in case the instructions are not
followed.
4

4. Installation Instructions
If possible avoid placing the appliance near cookers, radiators or in direct sunlight as this will cause the
compressor to run for long periods. If installed next to a source of heat or refrigerator, maintain the
following minimum side clearances:
From Cookers 4" (100 mm)
From Radiators 12" (300 mm)
From Fridges 4" (100 mm)

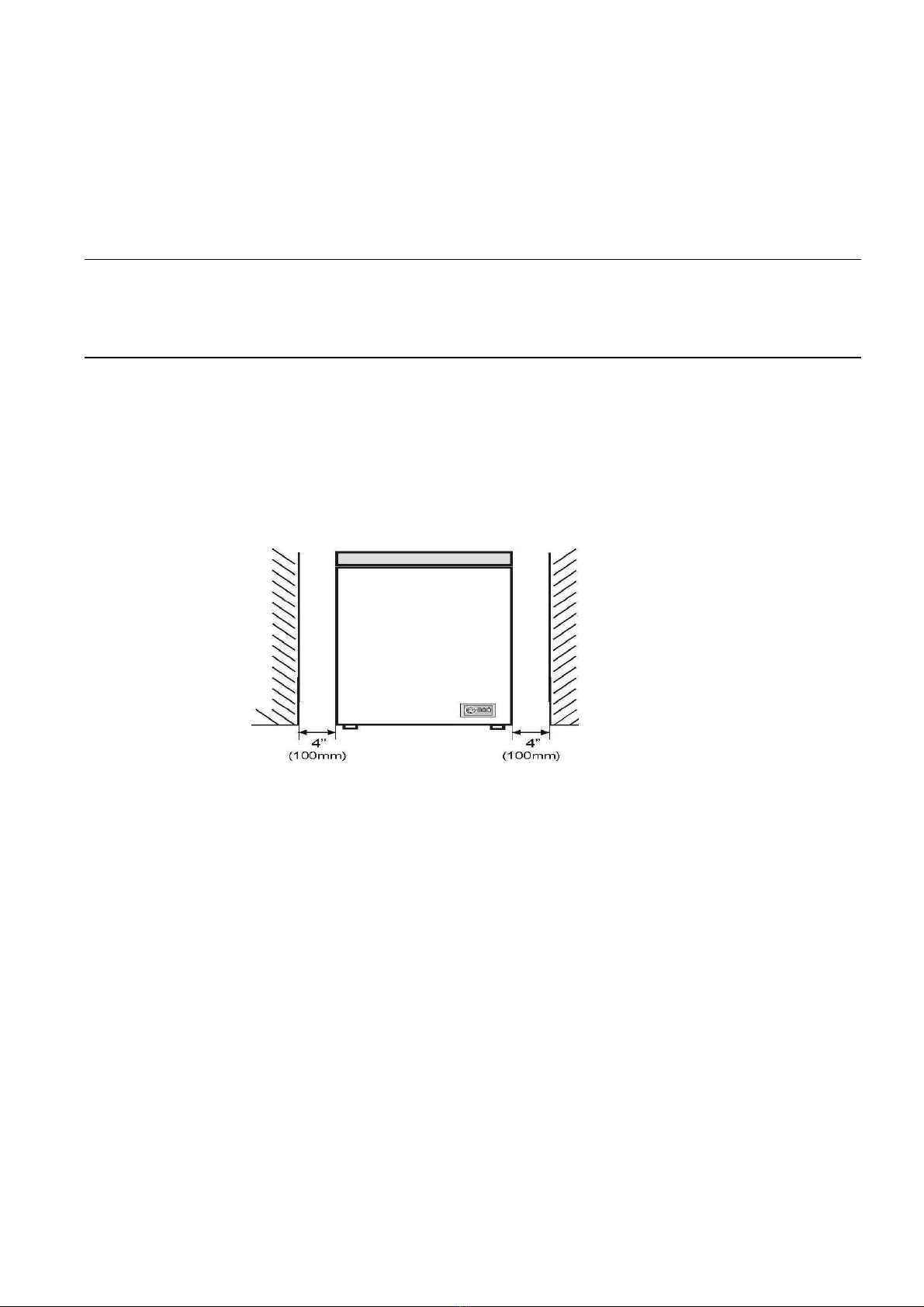

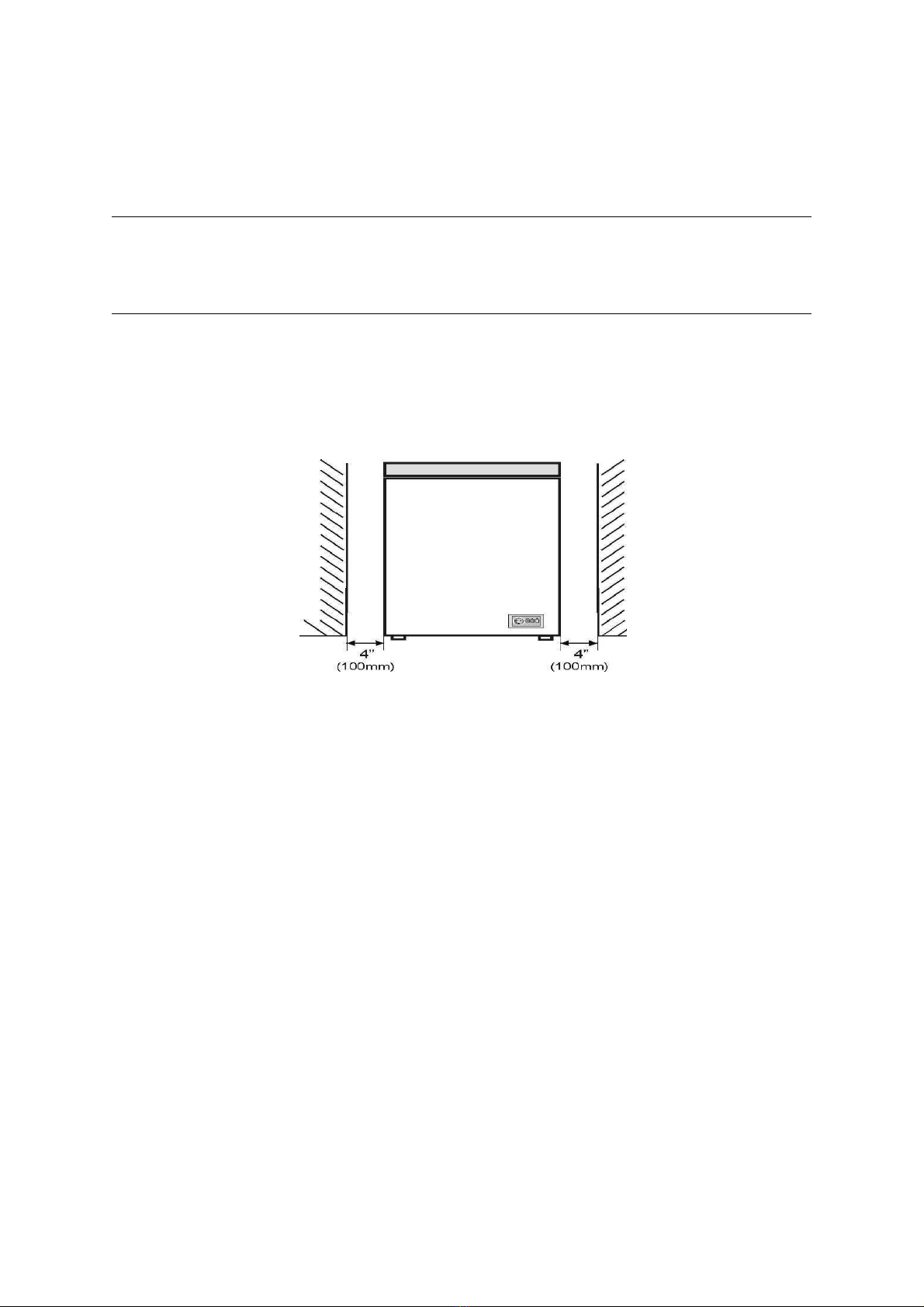

1. Make sure that sufficient room is provided around the appliance to ensure free air circulation. Ideally,
A space of no less than 10cm must be left around the freezer, and ensure you allow gaps as shown in
the below diagram.
Note : Picture is for illustration only, can vary from actual product and conditions.
2. The appliance should be located on a smooth surface.
3. It is forbidden to use the refrigerator outdoors.
4. Protection from moisture. Do not locate the freezer in moist space to avoid the metal parts rusty.
And do not spray water to the freezer, otherwise it will weaken the insulation and causes current
leakage.
5. Refer to "Cleaning and Care" section to prepare your appliance for use.
6. If the freezer is installed in unheated areas, garages etc. condensation may form on the outer
surfaces in cold weather. This is quite normal and is not a fault. Remove the condensation by wiping
with a dry cloth.
5

5. Starting
Before you start to use the freezer, please check that:
1. The interior is dry and air can circulate freely at the rear.
2. Clean the interior as recommended under "CLEANING AND CARE"
3. Insert the plug into the wall socket and switch on the electricity supply, then the Red light is On.
Avoid accidental disconnection by taping over the switch. Green light will glow and the compressor
will start running (see Freezer Operation page 6).
4. You will hear a noise as the compressor starts up. The liquid and gases sealed within the
refrigeration system may also give rise to noise, whether the compressor is running or not which is
quite normal.
5. If you going to store already frozen food open the freezer lid and check that the freezer has
reached the correct temperature. Then you can put in your already frozen food.
(See Storing Frozen Food page 7).
6. Do not load the appliance immediately after it is Switched ON. Wait until the correct storage
temperature has been reached. We recommend that you check the temperature with an accurate
thermometer (see Freezer Operation page 6).
Important Notes:
• If there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts
for less than 20 hours. If the failure is longer, then the food should be checked and eaten
immediately or cooked and then refrozen.
• If you find that the lid of the deep freezer is difficult to open just after you have closed it, don’t
worry. This is due to the pressure difference which will equalize and allow the lid to be opened
normally after a few minutes.

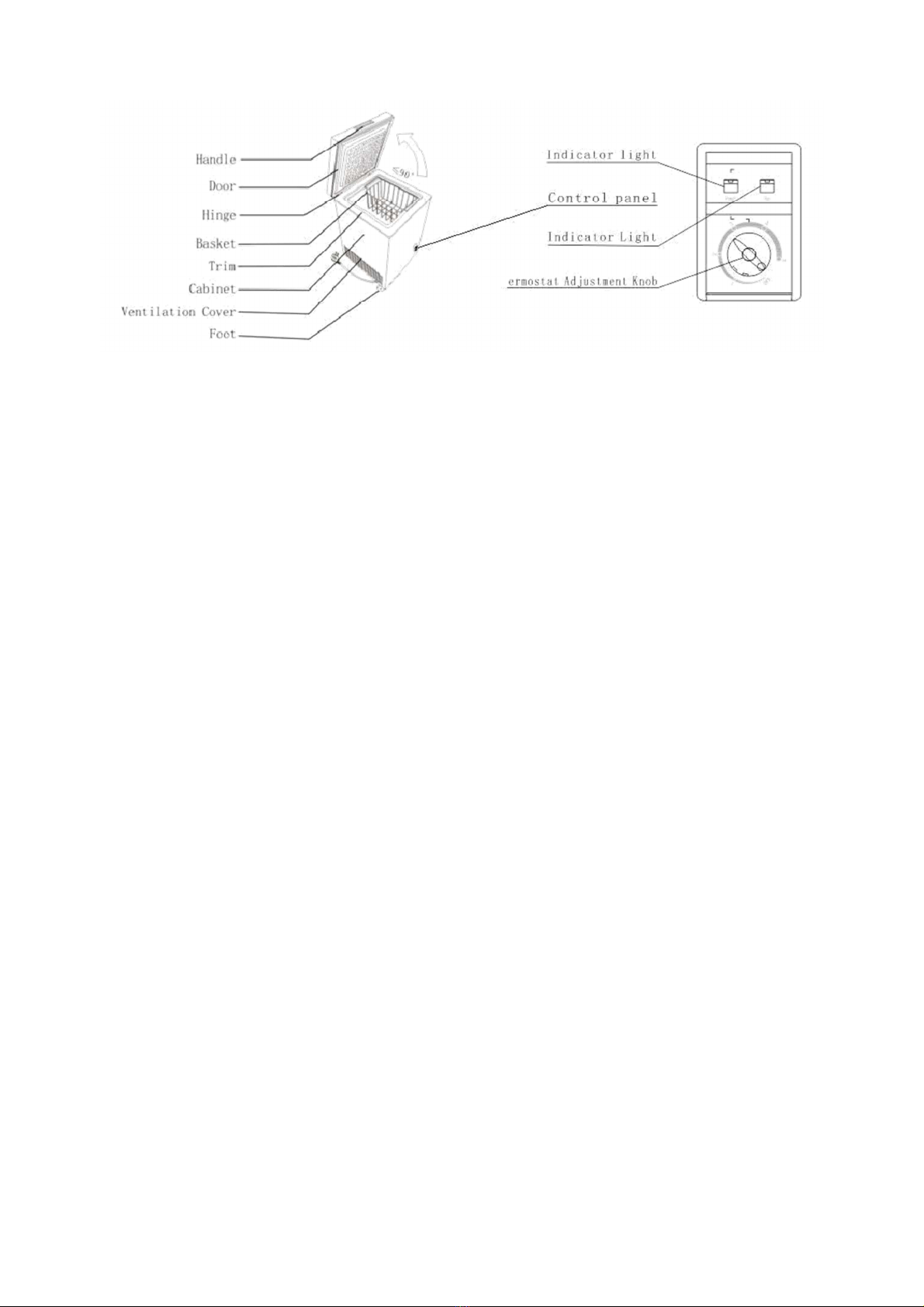

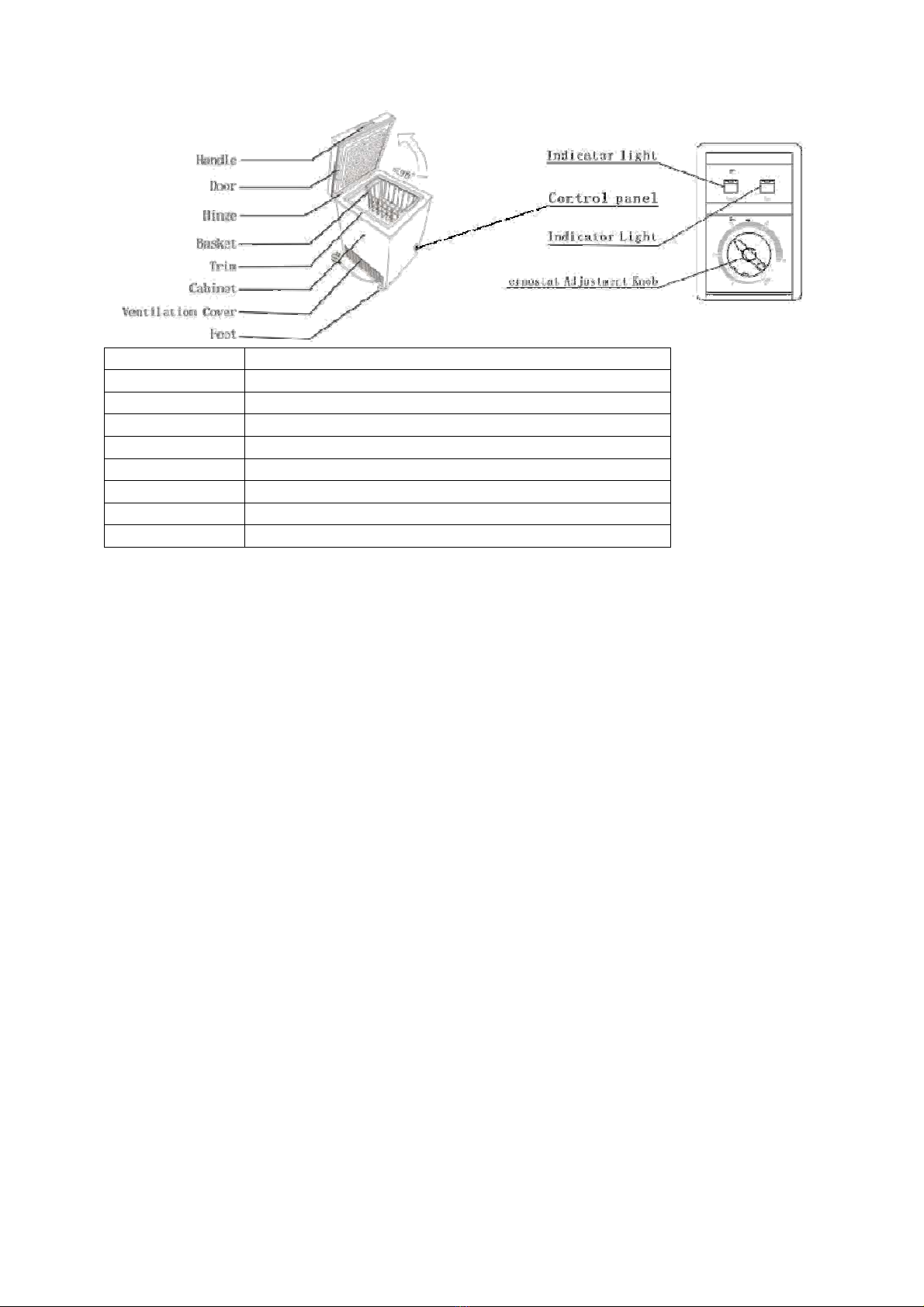

6. Freezer Operation
Note : Picture is for illustration only, can vary from actual product
6

6.1 Temperature adjustment

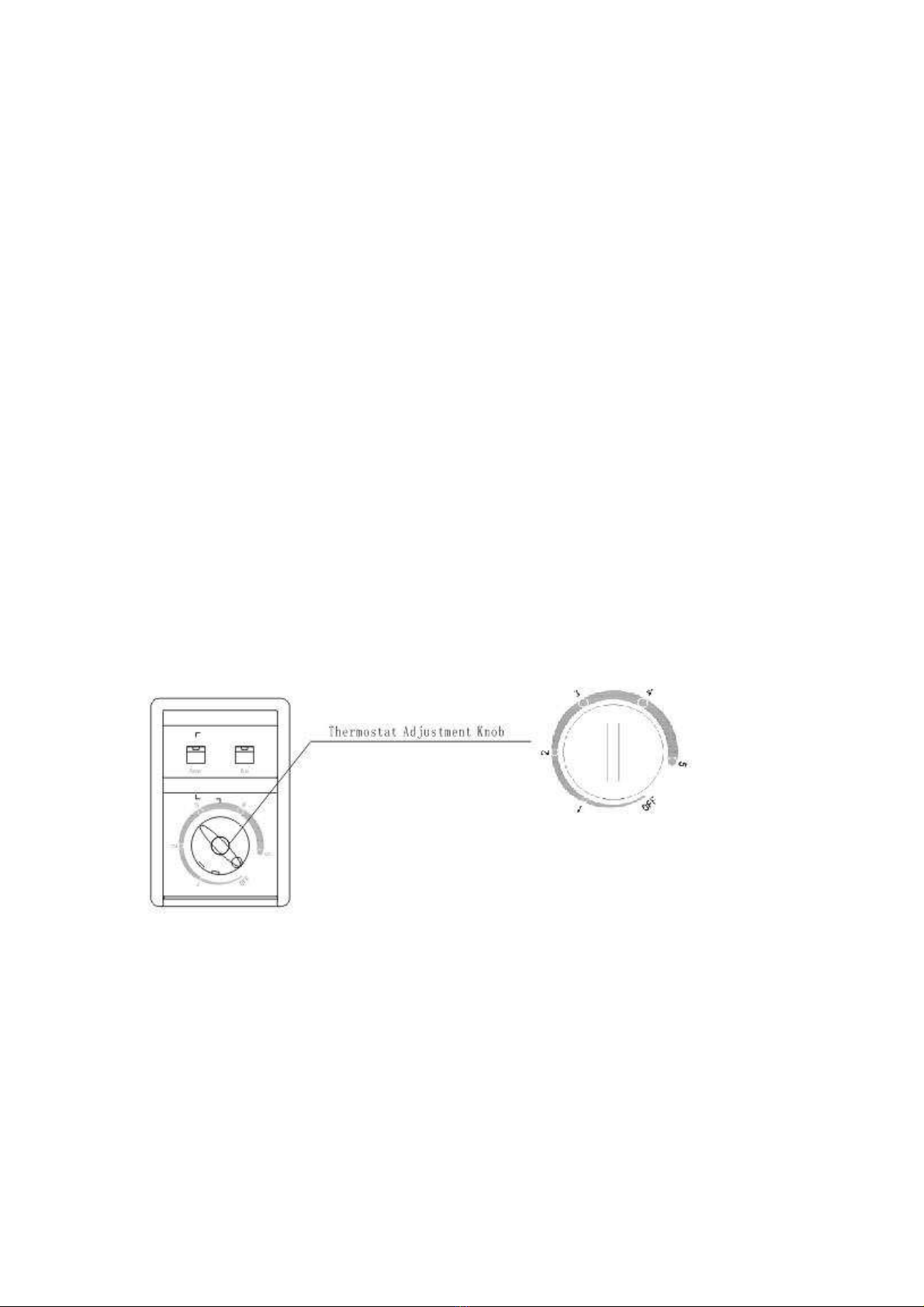

The temperature of the freezer is adjusted by means of the knob assembled on the thermostat.
“1,2,3,4,5” do not represent a specific temperature. The smaller the No. the higher the temperature,
whereas. So, position “5” is being the lowest temperature.
Figures mean:
“ OFF” ：Forced Shutdown Point
1—5 ：Frozen Interval （from -12 ℃ to -30 ℃）
The achieved temperatures can vary according to the conditions of use of the appliance, such as: place
of the appliance, ambient temperature, and frequency of lid opening, extent of filling with food of the
freezer. The position of the thermostat knob will change according to these factors. Normally, for an
ambient temperature of approx. 25℃, the thermostat should be adjusted to the mild position.
We recommended that you check the temperature with a thermometer to ensure that the Freezer is
kept to the desired temperature. Remember you must take your reading very quickly since the
thermometer temperature will rise very rapidly after you remove it from the freezer.
Please remember each time the lid is opened cold air escapes and the internal temperature rises.
Therefore never leave the lid open and ensure it is closed: immediately after Food is put in or removed.
6.2 Indicator lights
The indicator light set is placed on the front side of the freezer for easy visibility.
Indicator lights mean the following:
- Red LED – shows that the appliance is supplied with electric energy.
- Green LED – shows that the compressor is working.
6.3 Storing Frozen Food
Prepackaged commercially frozen food should be stored in accordance with the frozen food
manufacturer’s instructions for a freezer compartment.
To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is
maintained the following should be remembered:
1．Put packets in the freezer as quickly as possible after purchase.
2．Do not exceed “Use By”, “Best Before” dates on the packaging.
7

6.4 Freezing Fresh Food
Place fresh food to be frozen near the side walls to ensure fast freezing and away from already frozen
food, if possible.

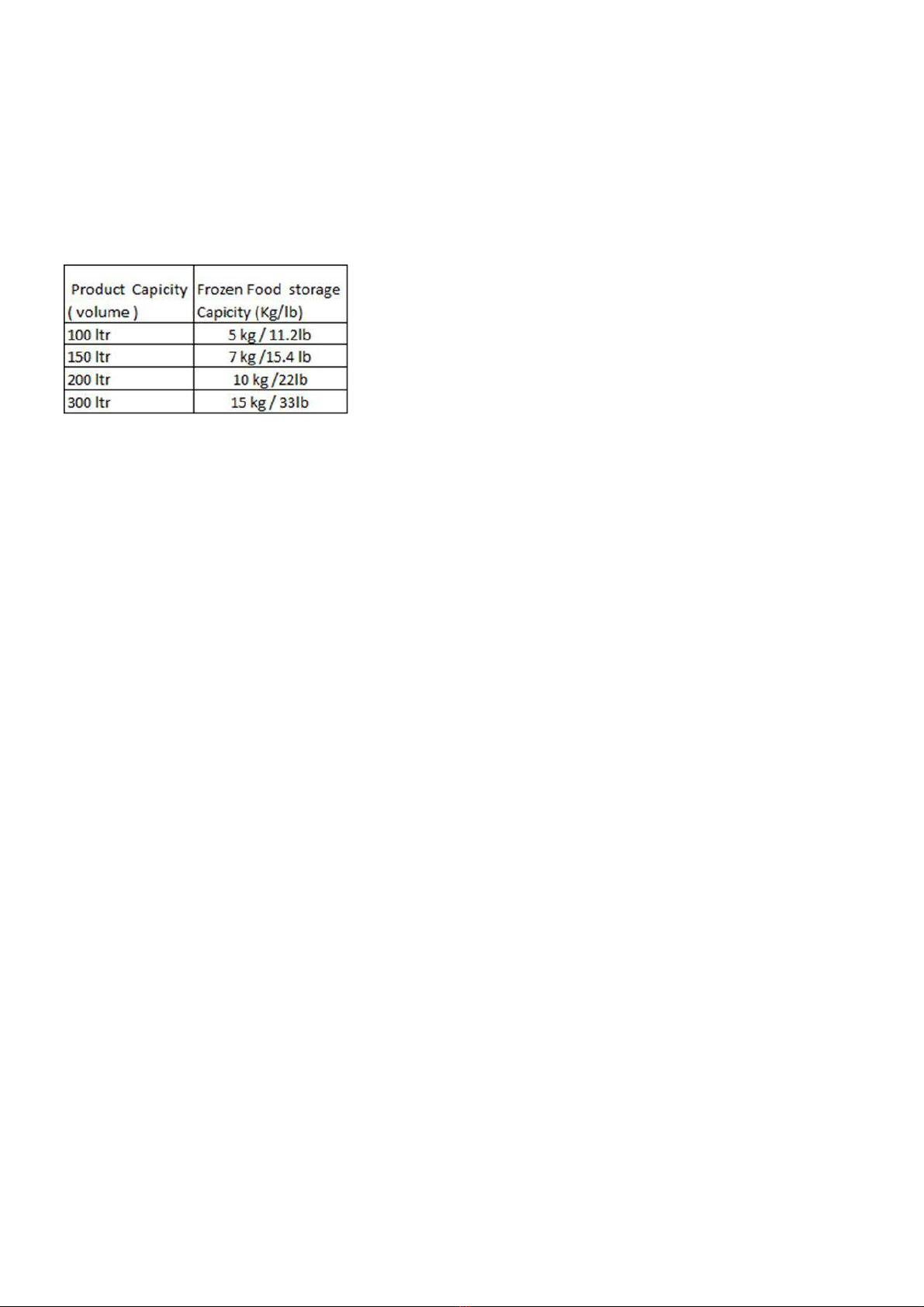

Freezing capacity of your appliance in a 24 hours period is as below:
Never exceed this maximum capacity. Do not freeze too large a quantity at any one time.
The quality of the food is best preserved when it is frozen right through to the center as quickly as
possible.
Take special care not to mix already frozen food and fresh food.
7. Defrosting
Defrost twice a year or when a frost layer of around 7 mm (1/4”) has formed.
Alternatively you may Switch OFF the freezer at the socket outlet and pull out the mains plug.
Extract the water conduit and put in a water container.
6 hours before the defrosting, please set the thermostat knob at “MAX” position to make sure the food
is at the lowest temperature when you get it out. All food should be wrapped in several layers of
newspaper and stored in a cool place (e.g. fridge or larder).
Remove the freezer basket. Leave the lid open. Containers of warm water may be placed carefully in
the freezer to speed up the defrosting.
Never use hairdryers, electrical heaters or other such electrical appliances for defrosting. When
defrosting has finished flow out defrost water which collects at the bottom of the freezer as the below
diagram and dry the interior thoroughly. Switch ON the Fast Freeze and leave it ON for about three
hours.
8

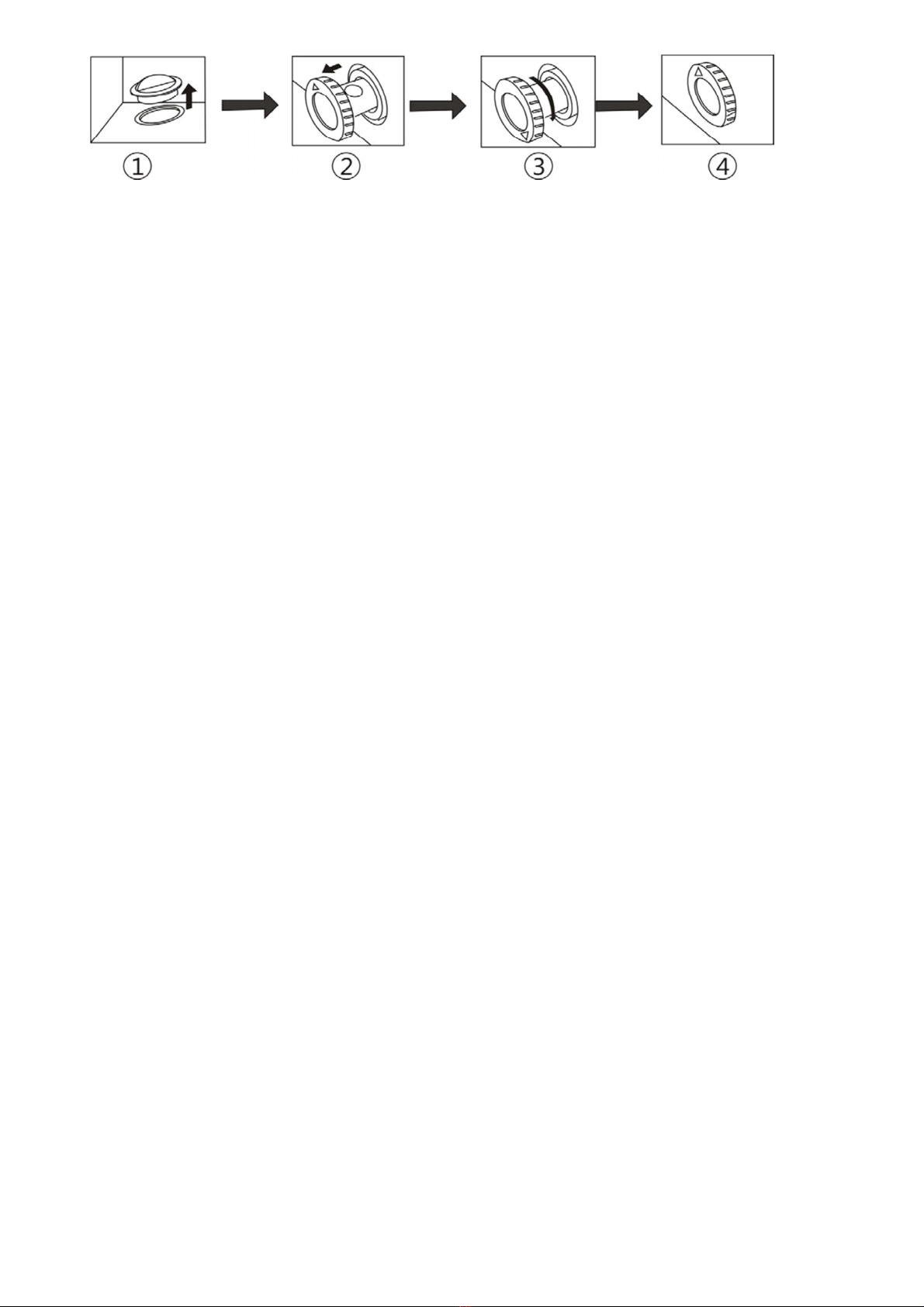

1. There is a water conduit at the bottom of the freezer, when defrosting, extract the rubber cover,
defrosted water will drip into the hole and flow out.
(NOTES: PLEASE KEEP THE RUBBER COVER WELL DURING THE DEFROSTING AND PUT IT BACK AFTER DEFROSTING IS DONE)
2. Extract the water conduit by 20-25mm until the water hole can be seen.
3. Twist the water conduit until the arrow points downward.
4. After defrosting is done, make sure there is no more water coming out before out the water conduit
in place and make the arrow point upward.
Important Notes:
• Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.
• Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.
8. Cleaning and Care
•How to Replace Lamp –
Product have 240VAC /15W lamp in selected model - SCR-CH 200H*/ 300H* only.
1. Disconnect power supply cord.
2. Remove lamp cover carefully and replace the lamp.
Remarks : Be care full while replacing lamp , you may get injured from touching hot lamp.
** We recommend that you Switch OFF the freezer at the socket outlet and pull out the mains plug
before cleaning.
** Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for
cleaning.
** Use lukewarm water to clean the cabinet of the freezer with a cloth and wipe it dry.
Caution: Do not pour water directly on your appliance near the compressor area
** Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water
to clean the interior and wipe it dry.
** Excess deposit of ice should be removed on a regular basis using a plastic ice scraper available from
your local store. Large accumulation of ice will impair the performance of the freezer.
** If the freezer is not going to be used for a long period of time switch it OFF, remove all food, clean it
and leave the lid ajar.
**Check lid seals regularly to ensure they are clean and free from food particles.
Important Notes:
Never use water wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to
prevent rust.
9

9. Do’s and Don’ts
Do – Defrost food from the freezer thoroughly in a fridge or in a microwave oven following Defrosting
and cooking instructions.
Do – Ensure that deep freezer lid is completely closed after each use.
Do – Defrost frozen meat completely before cooking.
Do – Close the lid gently.
Do – Check contents of the freezer at regular intervals.
Do – Clean and defrost your freezer regularly (See “Defrosting”)
Do – Keep food for as short a time as possible and adhere to “Best Before”, “Use By” dates.
Do – Store commercially frozen food in accordance with the instructions given on the packets
Do – Always choose high quality fresh food and be sure it is thoroughly clean before you freeze it.
Do – Prepare fresh food for freezing in small portions to ensure rapid freezing.
Do – Wrap all foods in aluminum foil or freezer quality plastic bags and make sure any air is excluded.
Do – Wrap frozen food when you buy it and put it in to the freezer as soon as possible.
Do – Store small items in the basket provided.
Do – Storage temperature of Ice Cream is too low, it is too hard to eat-Remove Ice Cream from Freezer
before serving.
Don’t – Leave the lid open for long periods as this will make the freezer more costly to run and cause
excessive ice formation.
Don’t – Use pointed sharp edged objects such as knives, forks to remove the ice.
Don’t – Put hot food in the freezer. Let it cool down first.
Don’t – Put liquid-filled bottles or sealed cans containing carbonated liquids into the freezer as they
may burst.
Don’t – Store poisonous or dangerous substances in the freezer. Your freezer has been designed for
the storage of edible foodstuffs only.
Don’t – Exceed the maximum freezing capacity ( 5 kg in any 24 hours) when freezing fresh food.
Don’t – Consume ice-cream and water ices direct from the freezer. The low temperature may cause
‘freezer burns’ on lips.
Don’t – Freeze fizzy drinks.
Don’t –Try to keep frozen food which has thawed, it should be eaten within 24 hours or cooked and
refrozen.
Don’t – Remove items from the freezer with wet hands.
Don’t – Shut the lid with force. You will damage the appliance.
Don’t – Clean with Water near the Compressor area.
10

10. Problem Solving / Trouble Shooting
• If the appliance does not operate when Switched ON, check;
The plug is inserted properly in the socket and that the power supply is ON.
(To check the power supply to the socket, plug in another appliance)
• The fuse has blown / circuit breaker has tripped / main distribution switch has been Turned OFF.
• The temperature control has been set correctly.
• New plug is wired correctly if you have changed the fitted molded plug. If the appliance is still not
operating after the above checks, please contact your nearest Panasonic Authorized dealer.
11. Product Specifications:
Note : Applicable for products with model nos. ending with 0~9, except 5.
SCR-CH100H* SCR-CH150H* SCR-CH200H* SCR-CH300H*
Total Effective
100L 150L 200L 300L
Volume
Input Voltage (AC) 220-240V 220-240V 220-240V 220-240V
Frequency 50Hz 50Hz 50Hz 50Hz
Input Current 1.0A 1.5A 1.5A 2.0A
Electricity Consumption 1.0kw.h/24h 1.5kw.h/24h 2.3kw.h/24h 2.5kw.h/24h
Climate Type T T T T
Refrigerant and Qty. R134a/120g R134a/120g R134a/140g R134a/170g
Net Weight 27kg 31kg 36kg 44kg
SCR-CH100H5 SCR-CH150H5 SCR-CH200H5 SCR-CH300H5
Total Effective
100L 150L 200L 300L
Volume
Input Voltage (AC) 220-240V 220-240V 220-240V 220-240V
Frequency 50Hz 50Hz 50Hz 50Hz
Input Current 1.2A 1.5A 1.5A 2.0A
Electricity Consumption 1.5kw.h/24h 2.0kw.h/24h 2.3kw.h/24h 2.5kw.h/24h
Climate Type T T T T
Refrigerant and Qty. R134a/120g R134a/120g R134a/140g R134a/170g
Net Weight 27kg 31kg 36kg 44kg
11

1


:*SCR-CH100H*/150H*/200H*/300H

 ! "

#:$%&' ( )*"0+9.
 !"#! !$
#% &,!(.

2

1.%!'(3
2.
 !"%! )3
3.
 !"*4
4. !"+5
5.
6
6.
!6
6.1.%7
6.2. !,!7
6.3.-&%!"./!!7
6.4.!%!".% 8
7.
%01+8
8.
23*1*!% *"49
9.
"5"610
10.
7 !/2 7( 8.)'011
11.
 6!1*!11
1.!
~2

3
1. !
•- )  9: )7%;!%:"!% !*8*. •-<&-! )4: ;8 *.96 *7"*% !*:!(!." )-!-=>%8!! %!!"7< &?%:.7@-!8A:/(! )*8*&(5.9%  =5B" ) * ! "5%!!C8->86%)%!) ). •-&()>%7* 7!>D>: (E&>F(%!8%01+2'&C9>)%7%"*!.
•-?:!. •-&().%: )7&!-&!%:9 )500* 7-!G*!4-! %7%"*!. •-47H & 9- 7!I6!. •-(( ) ! .&(%"J !%!23*(.
2.(
•479F2!4 8 (8.4I !(!(5 0!4*79>. •0*7<&-!1*!-8?6>% (%+!K  7@4*>C!9% %*!L*!FM * 6..
•K&(!B%!!!4 "E&>-&!%:% 7N. •8>>-7!!-7 ! )< &C-!D !"% *".
•*8(7@-!82)-!->F!,>4 !%  !!. •5*&( C'(>!'@)!"!C (!. •9*3 65 ) !"9- 7!-!LG)0%)(.
• 3 8% (!-1*!C!(-7 )O.
)&"./01"2,3/045 50%.

4
I !,!B! %7K  I !,!%6! 7 (!+%(2%*& P%) 
#:4$%6&0)75'/.
3.  
K* )9F9(>D!".!79*->-7%!(!79 *+>*.
0* )9F9> *+>%!8*K4"8%)E()*84)!%)K (K84!4  8 (8.I !( 3*(5 " 80 )0FD!".
1.D,? 6&A95 !" 7!
# (0= ).--7%7%"*!%,(!-88  !5) !".
2.K% ! )-!!%+@%E&..
3:K9&*823*/! )K*%(!'!C'(.%*"!2+7!!92&=)*> D,C" >C>? ) .
3:! )M7F!D>)>E&>.5 M>28> )4*.P!! +!&(5.-!-7!!->D,C(6*> ).
3:K*F>2C'(.%(:.7@->C'(.%(:(% 8 ) *+>"!/C  ).
*8F )94* 7!7@-!8A%. K *.%P>-Q0.5C )-8?4(-! B!> .5!( 6NK"  ) >=" *"7.B*7!D>%,(!9% 8G   !".

5
4. 8
K*F )-0-7!>K -!!9))>AG ">%">M! !=->CD,0P  6%.047K* !>%'+3 8*.-!<&9* 9R:
-!!9)
!4%)100!(
-! "! !12%)300!(
-! '+
!4%)100!(
1.7@-!S69 7 )7@-!.-!% *% +!KC% (!5-810( !7@-!C  (!!7!9(9*  *>.
4%4% )100!()100!(
#:4$%)6&075' &..
2.KF )8(M!>.
3.3T&(!H & . 4.% !-!%.5F!9- 7!KK*>.%*"!.5J !8!-.C 2(2" "K(9=K(9 . 5.F0("23*% *""8AC )&('.6.0K7!9-7 !>M)  P-7!->-72+78(.% &9  ."C#"0$U!M@&.%;2+7-8?4(!%"J !% .

6
5. 9"
9&(!?-!9R:
1.2 69&%* 7!0-)%/996&.
2.23*9&K(!49("3*2% *"1*! " 3. &0M 9M!: !!A%  $U:*!..
KV*6B " 8I 6!.F!&.>P 9)3*!9%66.(
4.F!((#$
#'8P .=T: ( %(!& 3*#8 69 $
#(9 % !8P >5!.D"# 80$U!.
5.0!>-&%!"./!!"6 6 P!!?-!!%%.$U:* C*7!F%!".!!"6 . )3*-&%!".!!9%67.(
6.5! )"486.3* )%-&%.9*? -!% &( M !?)3*!%66.(
#3:
•9% G *% 56 .5+@%!".!!0!!(G *% !>-!20#%8 (.9%  G *5!>-!CK?-!%!".7,86>)) "!"C. •9% C 7%" P!4P'?.C%*2'&5DE (!(6  79""%"?: .
6.
7 (!+
#:4$%&06075' /.

7
6.1&"%
%!-8?7%"!!8 (!+.5+! ."12345"%%*"!. !7- 7#* 7%% 8=.C"F"5">F%.
9*" .95:
"2 0(OFF):"%*2 0D A
1-5:6%*!!)-!12%%:!030%%:!(
2&%9)0K(23&( )+!:- 7! )%%!47  !!!%!". .F!7 (!+K(!"% .7D 8#3*% %! ) 9W25%%:!9* (!+8F(!.
9*? -!%&( M !7@-!!8!8%%!.74*>KC8 %8(=F6%M !%8(7"C04-!!. 7@7!-! H&) G 6%%&.9  5C #6!8?'A 7@-!4P:"F>%0 "-!!86.
6.2$"4:
F%8!! !,!8K* 9! !.!%)(,. !,!!9:
--!LED!.-8 )%  %: )7.
- -!LED&.-8!8P .
6.35&*;
9*-&%!".!!%"!#(!7D # !"%7%"/*!%!"N!!% &!.
7@-!3 68% "9)-!%7%"*!%!"N!!9": %!".%: 9*7!9:
1.F"9!%8(- 7!A".
2.5 9& "&("" !"-!8".

8
6.4&*&
F%!".% !!K -!-%* 7@-!%8(!#"-8%!".!!"6  -0-7!>.
-7 )8!'&!24%8 (!79:
%"(1*!)(%"(-& "!!)7/( 10057/11.2 15077/15.4 200107/22 300157/33
5 .).5! !77#9.
">%3 6' "*8!8*92*!%8(- 7!A.
&#5&%!".!!"6 %!". % .
7. ",+'<
%;1+-!#*(>*8-7%-!1+C!(97!)4/1%.(
$
#5-!CC*7!2 0!*8H&M!K(M C(9(:.H&;HF! !4"9  8 !.
7 (!+8F"MAX"!6 8 (%01+7@-!%!".9>%*8 )&0.9*2% 7%!".98 -!:)*&9- 7! )8( +!%'+>.(
%0%(!.C #6!.-7!F%8> !%:% *"9!F(%01+.
5&( 66!"> )%:9: )7>P-!).%: )78?'A%A1+.*8 )*5-!%01+ H&; !1+9)"!6(>F!!7!9(9* 6(. F!269&#! !.  8F!F(47!"!='+ 8 (#.

9
1.HF! !6(>!*8%01+H&; 9 !9  ( !%01+9K+? H &. )#:$
# 3 68 9 !# *+>%01+4"2& " )*5-!%01+(
2.H&;HF! !*8020-25!-7!%,K+ !.
3.% !;HF! !-7M>)(6(.. 4." )*5-!%01+7@-!8H&!-! !H&0HF! !-!4* 7!4M>)(8..
#3:
•5&(!%**(!>2 +!-7 7(>%7%A1+.
•5&( 66!">)>%:%: )7>P-!).%: )78?'A%A1+.
8. 7#  ' "
لااI !
اح240VAC /15 W جذا!اار#ة- SCR-CH 200H* / 300H*%&.
1.'ا(!ا)رار. 2.ﺑ+(ا ,ء!.حا/ﺑواالاح.
ت234:نأن7ن8ار93 :7:3لاااح،('<ﺗﺑا>إ 7إ كﺑ:Aاح ھو:ﺧ
C*2 ;!-!M!: K(M C(9(:H &-
**5&(>7 -  63*!%*!!)!!F!%"!23*.
**&( ! 623*%*&!&( %"J !)(!% .
,:-8!"9
"(8"& &=%
**&(%"J !%"!9!%"!-! *782*!23* 9&4(!# .
**K%0K(:1+73*!&( >71+%7('!9C!9!.K(771+ 9% 80>!.
**0&(!6%-!;2 )H&>% 7%!".)*!)63*C  #6!#:. **< 6> 73*!- !)*7%63*% &-!  ".
#3:
5&( !(- 7!P 4(!&( %"J !% 7 "23*F*!=>.
