Panasonic CY-TM100N User manual

ORDERNo. ACED020589C2
AUTOMOTIVE CONSUMERELECTRONICS
CY-TM100N
DynamicNavigation Unit
SPECIFICATIONS
Specification*
General
Power Supply DC 12V (11V - 16V),
Test Voltage14.4V
NegativeGround
Current Consumption Less than0.3A
Dimensions** 150(W)×30(H)×100(D)mm
Weight** 0.45kg
*Specificationsand thedesign are subject topossible
modification without notice duetoimprovements.
** Dimensionsand Weight shownare approximate.
1

2002 Matsushita Communication Industrial Co., Ltd. All rights
reserved. Unauthorized copying and distribution isaviolation of
law.
1. FEATUERS
-Corresponding to RDS-TMC.
-Transportation of trafic-information to Navigation system.
2. REPLACE THE FUSE
Use fuses of the same specifiedrating 3 amps. Using different substitutes orfuses withhigher
ratings, orconnecting the product directlywithout a fuse, couldcause fire ordamage tothe
stereounit.
3. MAINTENANCE
Use a dry, a soft clothtowipe it.
Neveruse solvents suchas benzine and thinners theymaymarthe surface of unit.
4. DIMENSIONS
2

5. WIRING CONNECTION
6. BLOCK DIAGRAM
7. TERMINALS DESCRIPTION
7.1. MainBlock Block
IC601 : C2CBJG000220
3

Pin No. Port Descriptions I/O Vol
(V)
1-3 - (+5Vpull-up) - 5.0
4AVSS Ground - 0
5,6 - (+5Vpull-up) - 5.0
7AVREF +5Vpower supply - 5.0
8 RXD2 Communication data receive I 5.1
9TXD2 Communication data send O 5.1
10 ASCK2 Notused - -
11 SI1 Serial data I 5.1
12 SO1 Serial data O 5.1
13 /SCK1 Data shift clock O 0
14,15 - (+5Vpull-up) - 5.0
16 PLL_DO PLL data I 5.1
17 PLL_DI PLL data O 0
18 PLL_CLK PLL data shift clock O 5.1
19 PLL_CE PLL chip enable O 0
20-32 - (+5Vpull-up) - 5.0
33 VSS Ground - 0
34-39 - (+5Vpull-up) - 5.0
40 SD FMStereo detection I 0
41-55 - (+5Vpull-up) - 5.0
56 TC I 5.1
57 TEST I 0
58 - (+5Vpull-up) - 5.0
59 RDS.DATA RDSdata I 2.8
60 RESET Reset input I 5.1
61,62 - (+5Vpull-up) - 5.0
63 RDS.CLK RDSdata shift clock I 2.6
64-66 - (+5Vpull-up) - 5.0
67 VSS Ground - 0
68 VDD +5Vpower supply - 5.0
69 X2 Crystal oscillator terminal - 3.2
70 X1 Crystal oscillator terminal - 2.5
71 VPP (Ground pull-down) - 0
72 XT2 Notused - -
73 XT1 (Connecting to ground) - 0
74 VDD +5Vpower supply - 5.0
75 AVDD +5Vpower supply - 5.0
76 VSM S-meter level input I 0.4
77-80 - (+5Vpull-up) - 5.0

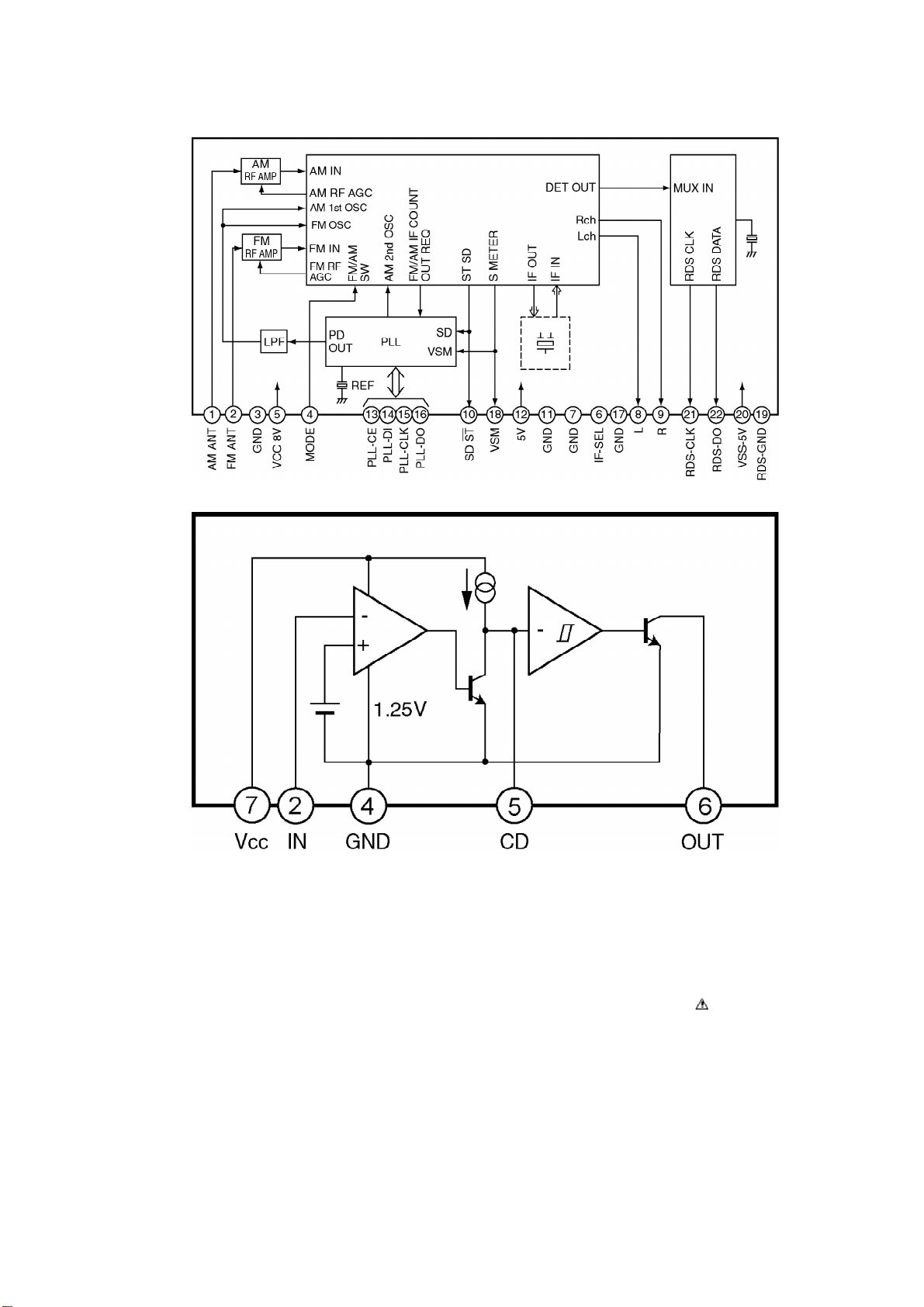

8. PACKAGE AND IC BLOCK DIAGRAM
PA1 : C5EA00000078
4

IC604 : YEAMM957BFE1
9. REPLACEMENT PARTS LIST
Notes :
1. Besure to make your orders of replacement parts according to
thislist.
2. Important safetynotice: Components, identified bymark have
special characteristics important for safety. When replacing any
of these components, use onlymanufacturer's specified parts.
3. Location keysinthe remarks column indicates the general
location of the parts showninthe exploded drawing, as inaroad
map.
5

4. The marking (RTL) indicates that Retention Time islimited for this
item. After the discontinuation of assemblyinproduction, the item
will continue to be availablefor aspecificperiod of time. The
retention period of availabilityisdependent on the type of
assembly, and inaccordance with the lawsgoverning part and
product retention. After the end of thisperiod, the assemblywill
no longer be available.
6

Ref. No. PartNo. PartName& Description Remarks
[E9171] Main Block
ICsAND TRANSISTORs
IC501 C0JBAZ000525 IC
IC601 C2CBJG000220 IC
IC604 YEAMM957BFE1 IC
PA1 C5EA00000078 ElectronicTuner
Q600 B1GDCFJJ0002 Transistor
Q602 B1GBCFJJ0002 Transistor
Q700 B1BBAC000007 Transistor
Q701 YEANB1261ZT Transistor
Q702 B1ABCF000044 Transistor
Q703 YEAND1899ZE1 Transistor
DIODEs
D501 MA153TX Diode
D502 MA153TX Diode
D503 MA153TX Diode
D700 YEADDAM3MA47 Diode
D701 YEADEC10DS1 Diode
D704 YEADRD56M3T1 Diode
D705 MA736TX Diode
D706 YEADRD91M1T2 Diode
CAPACITORs
C14 YECUZ1C104KX Ceramic, 0.1 F 16WV
C401 F1H1E103A011 Ceramic, 0.01 F 25WV
C402 ECA1CM220I Electrolytic, 22 F 16WV
C404 F1H1E103A011 Ceramic, 0.01 F 25WV
C405 ECA1CM470I Electrolytic, 47 F 16WV
C406 F1H1E103A011 Ceramic, 0.01 F 25WV
C407 YECUS1H103JX Ceramic, 0.01 F 50WV
C408 ECA1AM331I Electrolytic, 330 F 10WV
C409 ECA1AM331I Electrolytic, 330 F 10WV
C501 YECUZ1E104ZF Ceramic, 0.1 F 25WV
C502 YECUS1H471JC Ceramic, 470PF 50WV
C503 YECUS1H471JC Ceramic, 470PF 50WV
7

Ref. No. PartNo. PartName& Description Remarks
C504 YECUZ1H103KX Ceramic, 0.01 F 50WV
C601 YECUZ1H102KX Ceramic, 0.001 F 50WV
C602 YECUZ1C104KX Ceramic, 0.1 F 16WV
C603 ECA1AM331I Electrolytic, 330 F 10WV
C604 YECUZ1H150JC Ceramic, 15PF 50WV
C605 YECUZ1H150JC Ceramic, 15PF 50WV
C606 ECA1AM331I Electrolytic, 330 F 10WV
C607 YECUS1H103JX Ceramic, 0.01 F 50WV
C608 YECUS1H103JX Ceramic, 0.01 F 50WV
C609 YECUZ1C104KX Ceramic, 0.1 F 16WV
C610 ECA1AM331I Electrolytic, 330 F 10WV
C611 YECUZ1E104ZF Ceramic, 0.1 F 25WV
C612 YECUZ1E104ZF Ceramic, 0.1 F 25WV
C613 YECUZ1A224KX Ceramic, 0.22 F 10WV
C614 YECUZ1H102KX Ceramic, 0.001 F 50WV
C700 YECUZ1E104ZF Ceramic, 0.1 F 25WV
C701 ECA1CM220I Electrolytic, 22 F 16WV
C703 ECA1CM221I Electrolytic, 220 F 16WV
C704 ECA1CM100I Electrolytic, 10 F 16WV
C705 YECUZ1E104ZF Ceramic, 0.1 F 25WV
C706 ECA0JM101I Electrolytic, 100 F 6.3WV
C713 ECA1CM221I Electrolytic, 220 F 16WV
C714 ECA1AM101I Electrolytic, 100 F 10WV
C715 YECUZ1E104ZF Ceramic, 0.1 F 25WV
C716 ECA1AM101I Electrolytic, 100 F 10WV
C720 ECA1CM102B Electrolytic, 1000 F 16WV
C721 ECA1CM102B Electrolytic, 1000 F 16WV
RESISTORs
L402 ERJ8GEY0R00V Chip, 0 1/8W
L403 ERJ8GEY0R00V Chip, 0 1/8W
R75 ERJ3GEYJ102V Chip, 1k 1/16W
R401 ERJ8GEY0R00V Chip, 0 1/8W
R402 ERJ3GEYJ822V Chip, 8.2k 1/16W
R403 ERJ3GEYJ102V Chip, 1k 1/16W
R404 ERJ3GEYJ103V Chip, 10k 1/16W
R405 ERJ6ENF4702 Chip, 47k 1/10W
R406 ERJ3GEYJ102V Chip, 1k 1/16W
R407 ERJ3GEYJ103V Chip, 10k 1/16W
R408 ERJ3GEYJ103V Chip, 10k 1/16W
R420 ERJ8GEY0R00V Chip, 0 1/8W
R421 ERJ8GEY0R00V Chip, 0 1/8W
R422 ERJ3GEY0R00V Chip, 0 1/16W
R501 ERJ6GEYJ101 Chip, 100 1/10W
R502 ERJ6GEYJ101 Chip, 100 1/10W
R503 ERJ6GEYJ101 Chip, 100 1/10W
8

R503
ERJ6GEYJ101
Chip,
100
1
/
10W
9

Ref. No. PartNo. PartName& Description Remarks
R504 ERJ3GEYJ103V Chip, 10k 1/16W
R505 ERJ3GEYJ103V Chip, 10k 1/16W
R506 ERJ3GEYJ103V Chip, 10k 1/16W
R600 ERJ3GEYJ103V Chip, 10k 1/16W
R601 ERJ3GEYJ103V Chip, 10k 1/16W
R602 ERJ3GEYJ103V Chip, 10k 1/16W
R603 ERJ3GEYJ103V Chip, 10k 1/16W
R604 ERJ3GEYJ103V Chip, 10k 1/16W
R605 ERJ3GEYJ103V Chip, 10k 1/16W
R606 ERJ3GEYJ103V Chip, 10k 1/16W
R607 ERJ3GEYJ103V Chip, 10k 1/16W
R608 ERJ3GEYJ103V Chip, 10k 1/16W
R609 ERJ3GEYJ103V Chip, 10k 1/16W
R610 ERJ3GEYJ102V Chip, 1k 1/16W
R611 ERJ3GEYJ102V Chip, 1k 1/16W
R612 ERJ3GEY0R00V Chip, 0 1/16W
R613 ERJ3GEYJ103V Chip, 10k 1/16W
R614 ERJ3GEYJ103V Chip, 10k 1/16W
R615 ERJ3GEYJ102V Chip, 1k 1/16W
R616 ERJ3GEYJ102V Chip, 1k 1/16W
R617 ERJ3GEYJ102V Chip, 1k 1/16W
R618 ERJ3GEYJ103V Chip, 10k 1/16W
R619 ERJ3GEYJ103V Chip, 10k 1/16W
R620 ERJ3GEYJ103V Chip, 10k 1/16W
R621 ERJ3GEYJ103V Chip, 10k 1/16W
R622 ERJ3GEYJ103V Chip, 10k 1/16W
R623 ERJ3GEYJ103V Chip, 10k 1/16W
R624 ERJ3GEYJ103V Chip, 10k 1/16W
R625 ERJ3GEYJ103V Chip, 10k 1/16W
R626 ERJ3GEYJ103V Chip, 10k 1/16W
R627 ERJ3GEYJ103V Chip, 10k 1/16W
R628 ERJ3GEYJ103V Chip, 10k 1/16W
R629 ERJ3GEYJ103V Chip, 10k 1/16W
R630 ERJ3GEYJ103V Chip, 10k 1/16W
R631 ERJ3GEYJ103V Chip, 10k 1/16W
R632 ERJ3GEYJ103V Chip, 10k 1/16W
R633 ERJ3GEYJ103V Chip, 10k 1/16W
R634 ERJ3GEYJ103V Chip, 10k 1/16W
R635 ERJ3GEYJ103V Chip, 10k 1/16W
R636 ERJ3GEYJ103V Chip, 10k 1/16W
R637 ERJ3GEYJ102V Chip, 10k 1/16W
R638 ERJ3GEYJ103V Chip, 10k 1/16W
R639 ERJ3GEYJ103V Chip, 10k 1/16W
R640 ERJ3GEYJ103V Chip, 10k 1/16W
R641 ERJ3GEYJ103V Chip, 10k 1/16W
R642 ERJ3GEYJ103V Chip, 10k 1/16W
R643 ERJ3GEYJ103V Chip, 10k 1/16W
R644 ERJ3GEYJ103V Chip, 10k 1/16W
R645 ERJ3GEYJ103V Chip, 10k 1/16W
R646 ERJ3GEYJ103V Chip, 10k 1/16W
R647 ERJ3GEYJ103V Chip, 10k 1/16W
10

Ref. No. PartNo. PartName& Description Remarks
R648 ERJ3GEYJ103V Chip, 10k 1/16W
R649 ERJ3GEYJ103V Chip, 10k 1/16W
R650 ERJ3GEYJ103V Chip, 10k 1/16W
R651 ERJ3GEYJ103V Chip, 10k 1/16W
R652 ERJ3GEYJ103V Chip, 10k 1/16W
R653 ERJ3GEYJ103V Chip, 10k 1/16W
R654 ERJ3GEYJ103V Chip, 10k 1/16W
R655 ERJ3GEYJ103V Chip, 10k 1/16W
R656 ERJ3GEYJ102V Chip, 1k 1/16W
R657 ERJ3GEYJ103V Chip, 10k 1/16W
R658 ERJ3GEYJ103V Chip, 10k 1/16W
R659 ERJ3GEYJ103V Chip, 10k 1/16W
R660 ERJ3GEYJ103V Chip, 10k 1/16W
R661 ERJ3GEYJ103V Chip, 10k 1/16W
R662 ERJ3GEYJ333V Chip, 33k 1/16W
R663 ERJ3GEYJ220V Chip, 22 1/16W
R664 ERJ3EKF3901V Chip, 3.9k 1/16W
R665 ERJ3EKF2202V Chip, 22k 1/16W
R666 ERJ3EKF1002V Chip, 10k 1/16W
R667 ERJ3GEYJ472V Chip, 4.7k 1/16W
R668 ERJ3GEY0R00V Chip, 0 1/16W
R700 ERJ6GEYJ100 Chip, 10 1/10W
R701 ERJ6GEYJ222 Chip, 2.2k 1/10W
R702 ERJ6GEYJ562 Chip, 5.6k 1/10W
R703 ERJ12YJ102H Chip, 1k 1/2W
R704 ERJ6GEYJ472 Chip, 4.7k 1/10W
R705 ERJ6GEYJ472 Chip, 4.7k 1/10W
R706 ERJ6GEY0R00V Chip, 0 1/10W
R707 ERJ6GEY0R00V Chip, 0 1/10W
R708 ERJ6GEY0R00V Chip, 0 1/10W
R711 ERJ6GEYJ1R0 Chip, 1 1/10W
R712 ERJ8GEYJ821V Chip, 820 1/8W
R714 ERJ8GEYJ821V Chip, 820 1/8W
R715 ERJ12YJ102H Chip, 1k 1/2W
R801 ERJ3GEYJ103V Chip, 10k 1/16W
CONNECTORs
CN501 YEAE012733 Connector, 8P
CN502 YEAE5339008 Connector, 8P
CN801 K1MN08A00032 Connector, 8P
CRYSTAL
XL600 YEXL5F12582T Crystal OSC
COILs
FB400 YELTBLM21P3S Coil
FB501 YELTBLM21P3S Coil
FB502 YELTBLM21P3S Coil
11

Ref. No. PartNo. PartName& Description Remarks
FB503 YELTBLM21P3S Coil
FB504 YELTBLM21P3S Coil
FB506 YELTBLM21P3S Coil
FB601 YELTBLM21P3S Coil
FB602 YELTBLM21P3S Coil
L401 YELT03N330JT Coil
L404 YELT03N330JT Coil
L700 YETQ012G157 Coil
R690 YELTBLM21B10 Coil
FILTERs
LC600 YECCL39R222T Filter
ZL700 YECCL55B222M Filter
NEON TUBE
Z400 YEAL02012T Neon Tube
Accessories
PRINTING
YEFM283864 Operating Instructions
INSTALLATION PARTS
YEAA33144 AntennaAccessory
YEARCDS240 CD-ROM
YEFG021036 FrontBrakect
YEFM99837 Seal
YEP9BS1080 ScrewKit
YEP9FZ3100 Tape
Mechanical Parts
MISCELLANEOUS
AJ1 YEAJ071222 Cord w/Plug
ANT1 YEAA10060 AntennaReceptacle
AT1 YEAT03346A Terminal
AT2 YEAT03346A Terminal
1YEFA31831 Upper Cover
2YEFM99594 Seal
3YEP0PT9171A0 PCB w/Component RTL
4YEFX0215862 Bracket, RDS
5YEFX0215985 Bracket, ANTReceptacle
6YEFA012019AK Chassis
10 YEJT03015 Tapping Screw, 3mm * 6mm
11 XTB3+6FFZ Tapping Screw, 3mm * 6mm
12

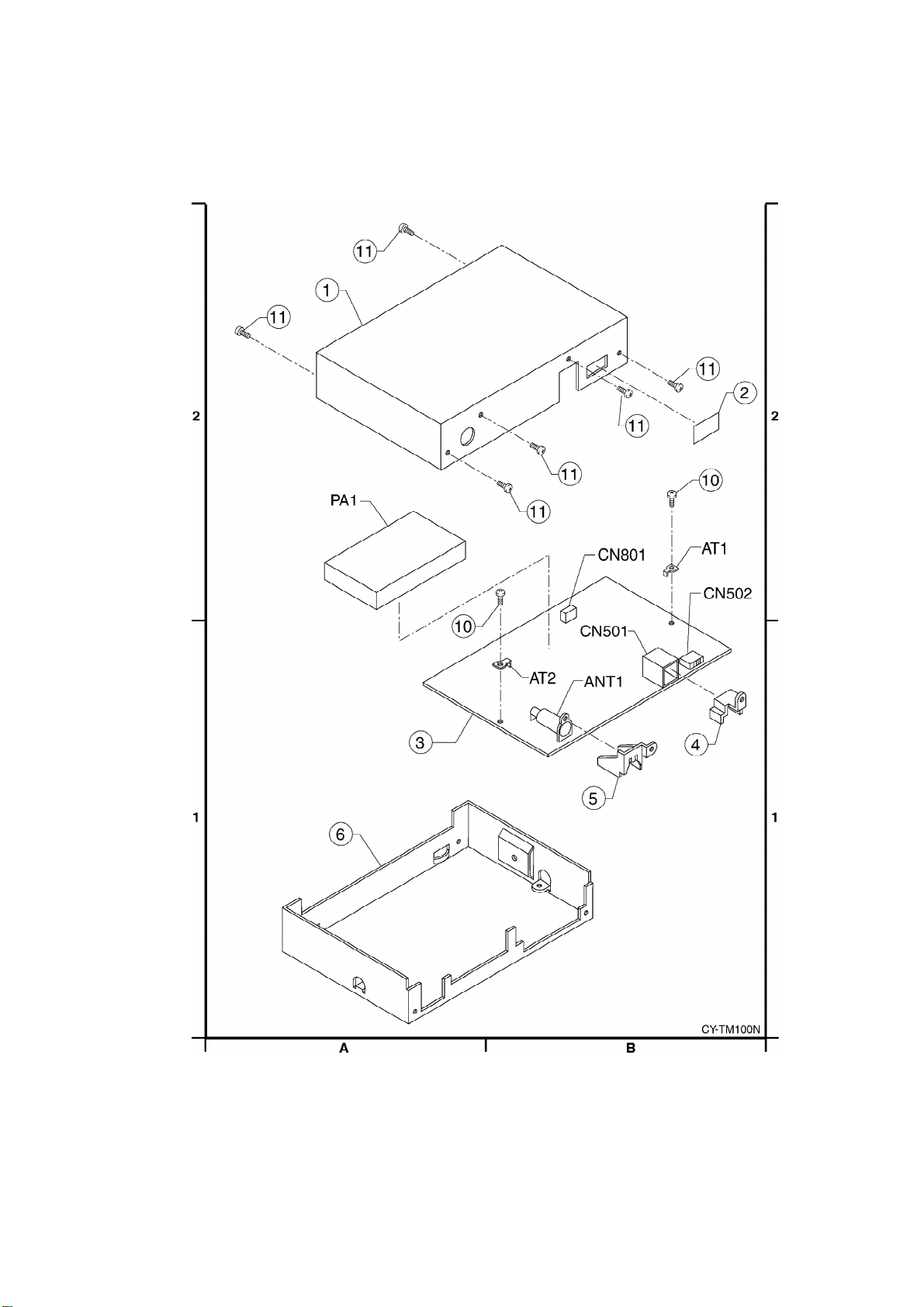

10. EXPLODED VIEW (Unit)
11. WIRING DIAGRAM
11.1. MainBlock (Top View)
13

11.2. MainBlock (Bottom View)

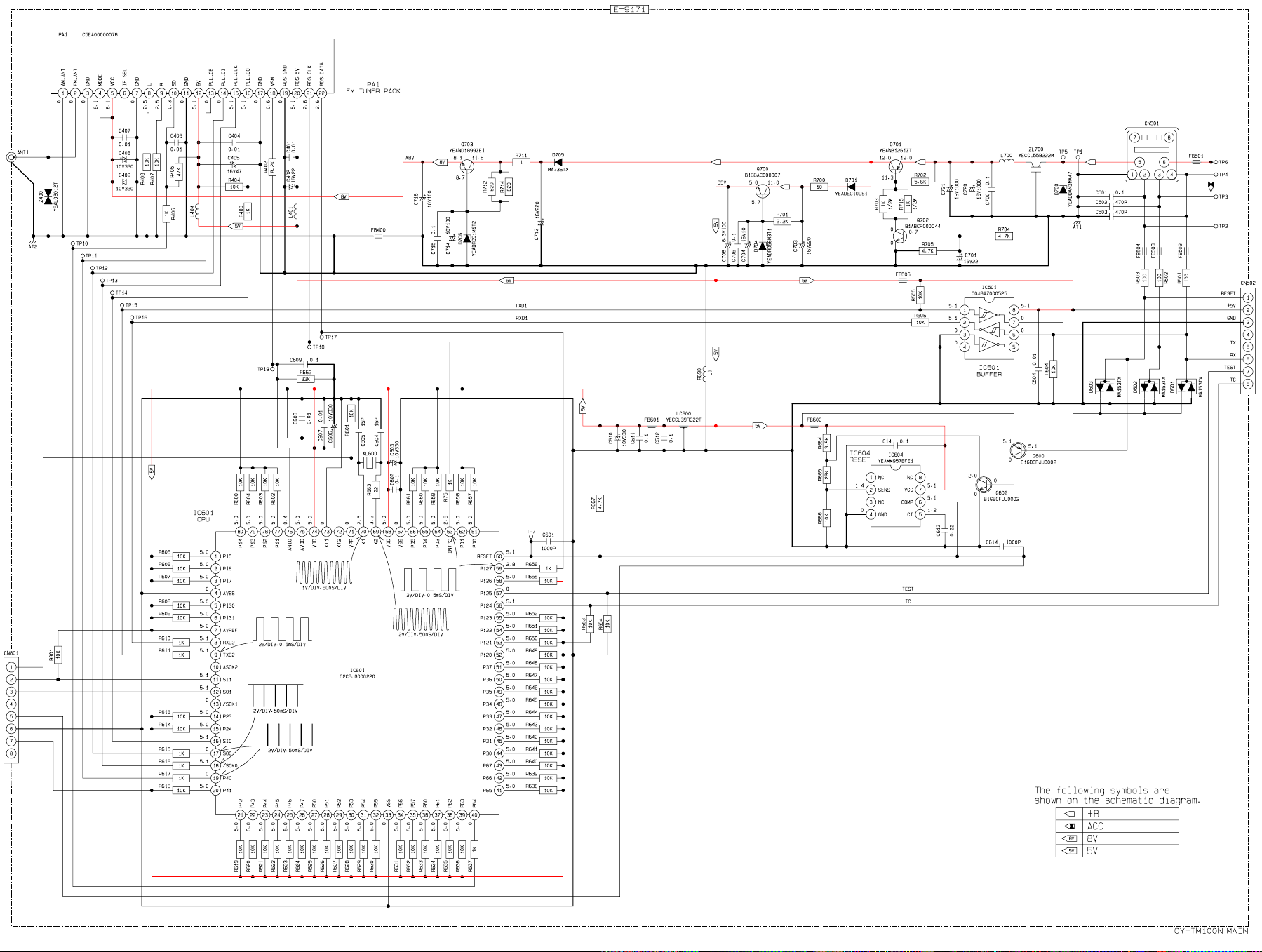

12. SCHEMATIC DIAGRAM
12.1. MainBlock
13. SCHEMATIC DIAGRAM for Printing with A4 Size
13.1. MainBlock (Left Side)

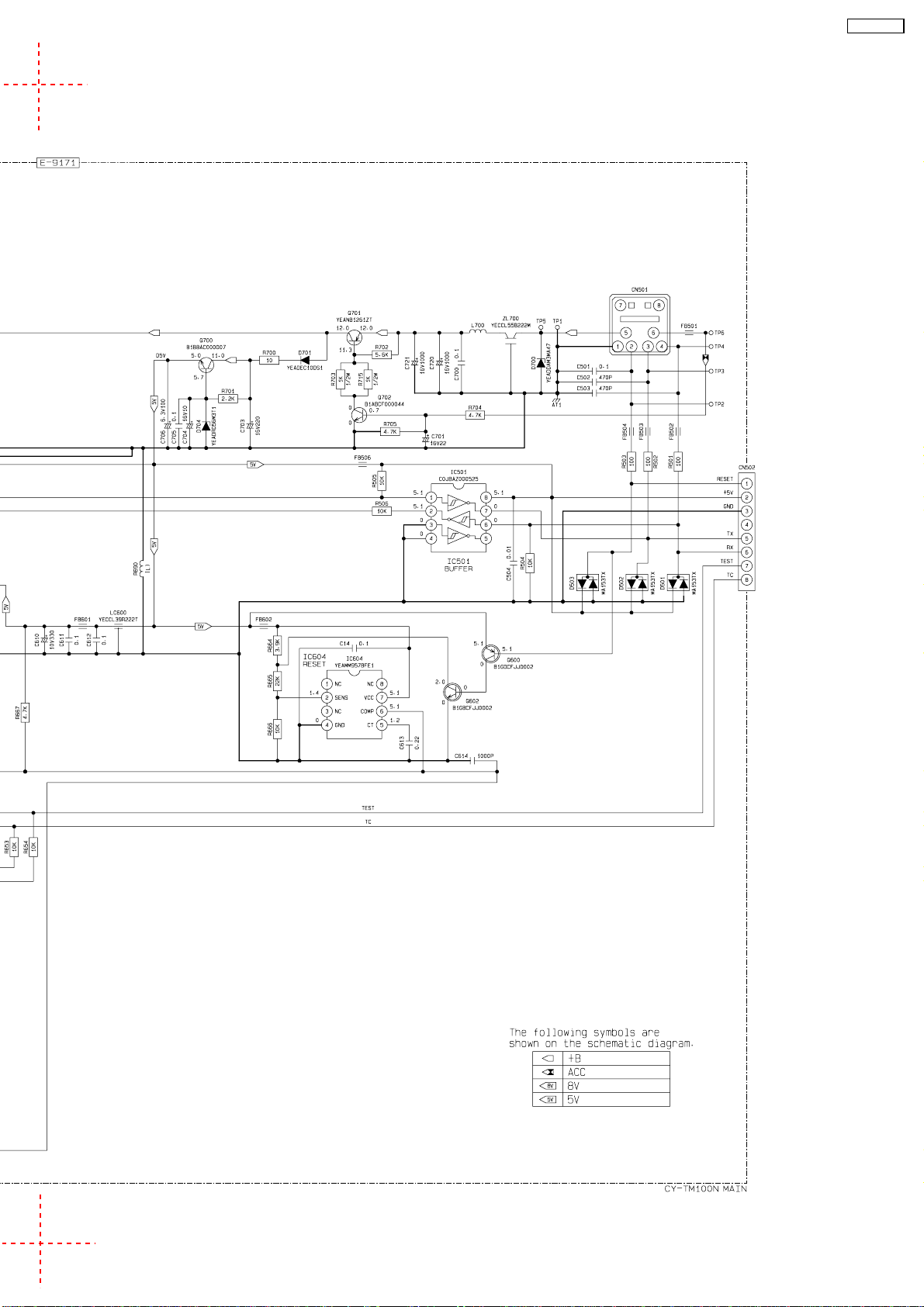

13.2. MainBlock (Right Side)
14

Printed in Japan (K) 2002.5 (Recycled Paper)
