Panasonic F-VXK70A User manual

Service Manual
PEG1409034CE
Version:1801
CONTENTS
2.Parts Identification
3.Wiring Diagram
4.Parts List
PAGE
8
Humidifying Air Purifier
2~7
9~13
(OverSea Market)
F-VXK70A
1.Specifications 1
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by
the general public. It does not contain warnings or cautions to advise non-technical individuals of potential
dangers in attempting to service a product. Products powered by electricity should be serviced or repaired
only by experienced professional technicians. Any attempt to service or repair the product or products dealt
with in this service information by anyone else could result in serious injury or death.
IMPORTANT SAFETY NOTICE
There are special components used in this equipment which are important for safety. These parts are
marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential
that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire
or other hazards. Do not modify the original design without permission of manufacture.
We suggest to handle such parts after the static electricity prevention.
It is forbidden to touch the PCB parts by bare hands during the repairing process.

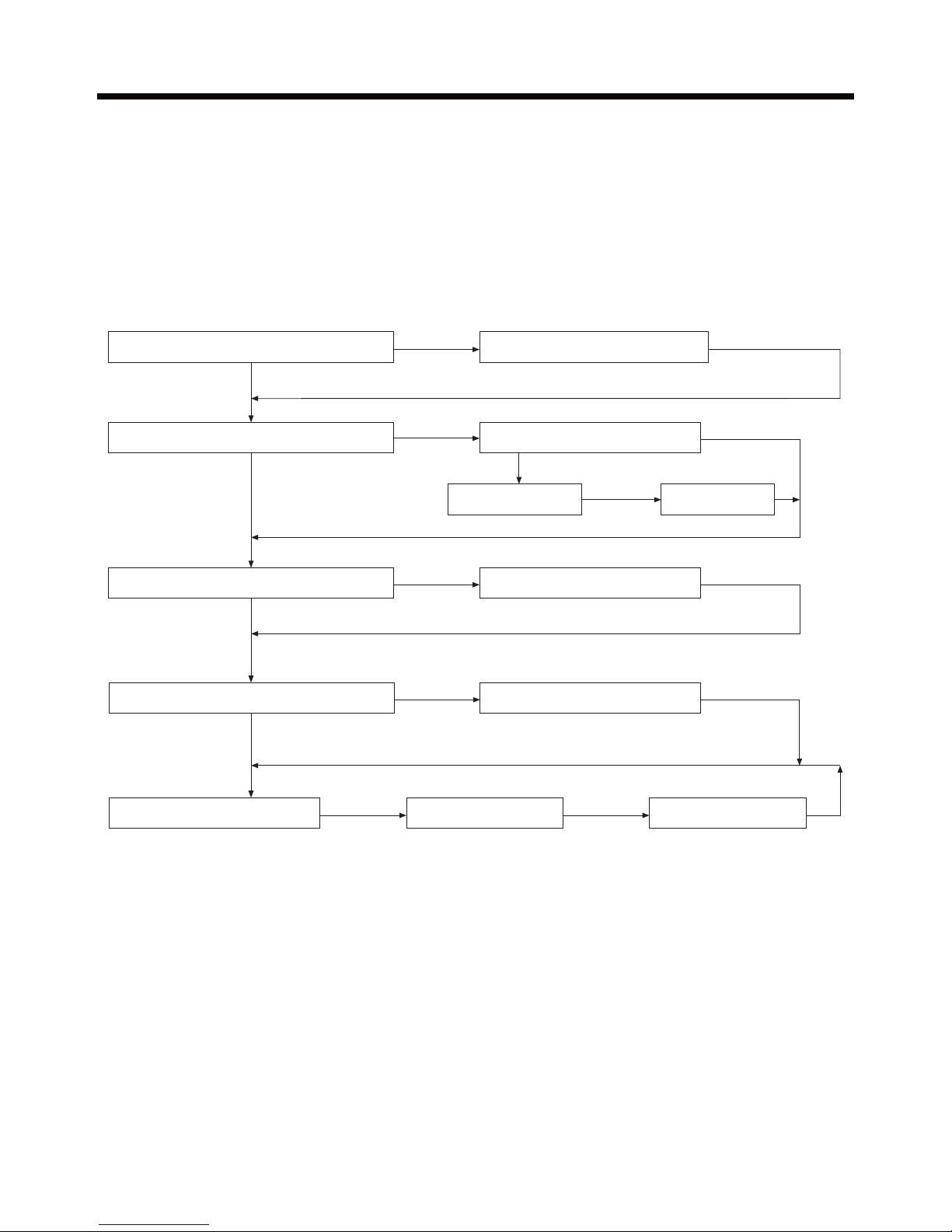

5.Troubleshooting Guide 14~24

Model number
Power supply
Operation mode
Air Volume settings Hi Med Lo Hi Med Lo
Power consumption (W) 66 11 6 58 15 10
Humidifying amount (mL/h) —— — 700 400 250
Air volume (m3/min) 6.7 2.7 1.1 6.3 3.1 1.9
Floor area capacity
Capacity of the tank
Power cord length
Product dimension
Product net weight
(For clean air)
Clean Air Clean/Humid.
Up to 52m in a standard household room Up to 32m in a standard household room
F-VXK70A
About 3.5L
220V 50Hz 230V 50Hz 240V 50Hz
※4 Floor area capacity based on JEM1467(Japan electrical manufacturer's association).
※3 If there is water in the tank, the product uses its water to humidify a little.(The water in the tank will be reduced little)
※2 Humidifying amount in the above table tested under the condition of high speed/room temperature 20 C and humidity 30%.
※1 The power consumption is about 0.8W when the operation is set to "Off".(With the power plug inserted)
2.0m
398mmx [245mm+(Foot:20mm)]x636mm(WXDXH)
10.2kg
The humidifying amount may vary with the indoor temperature and humidity.(Please refer to operating Instructions P.28)
※1
※2※3※3※3
※4
※3
1. Specifications
1
2 2
o

2
Main Body Section
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaa
Switch Box Section
Main Frame Section
Top Cover Section
Casing Section
Rear Case Assembly
Stand Assembly
Tank Section
Tray Section
Front Panel Assembly
18
1
2
3
4
5
6
7
8
9
10
13
14
15
16
17
11
A
(4pcs)
A
(3pcs)
A
(2pcs)
A
A
(2pcs)
A
(6pcs)
2. Parts Identification
Humidifying Filter Section
(For Style Reference)
12
F-VXK70A

3
Top Cover Section
19
20
21
(2pcs)
22
23
24
B
(6pcs)
C
(3pcs)
2. Parts Identification
Front Panel Assembly
If Main Circuit need to be replaced,please taken out the Display Circuit firstly when
replace the lead.Otherwise,the Display Circuit will be damaged.
F-VXK70A

4
37
38
40
39
41
42
43 45
47
46
(3pcs)
48
49
50
(3pcs)
51
52
53
54
A
(3pcs)
F
(3pcs)
G
(2pcs)
A
(3pcs)
2. Parts Identification
Switch Box Section
Main Frame Section
34
(2pcs)
35
(2pcs)
36
(2pcs)
E
(4pcs)
30
(2pcs)
29
E
(2pcs)
A
(2pcs)
27
A
(3pcs)
33
25
D
(2pcs)
26
If Switch PCB Lead need to be replaced,please taken out the Display Circuit and Main
Circuit firstly when replace the lead.Otherwise,the Circuit will be damaged.
28
44
D
31
32
F-VXK70A

5
58
57
56
Cord Assembly(Fuse)
Fixing Place
Micro Switch Assembly
55
59
61
60 62
64
63 66
65
67
68
69
73
70
72
71
74
75
76
79
A
(6pcs)
A
A
(3pcs)
2. Parts Identification
Casing Section
aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaa
78
A
77
Fuse
81
83
82
84
80
A
(2pcs)
Rear Case Assembly
F-VXK70A

6
2. Parts Identification
98
90
91
92
97
(4pcs)
99
(4pcs)
100
I
(4pcs)
Tank Section
Stand Assembly
93
95
94
96
H
aaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaa
aaaaaaaaaa
85
86
87
89
88

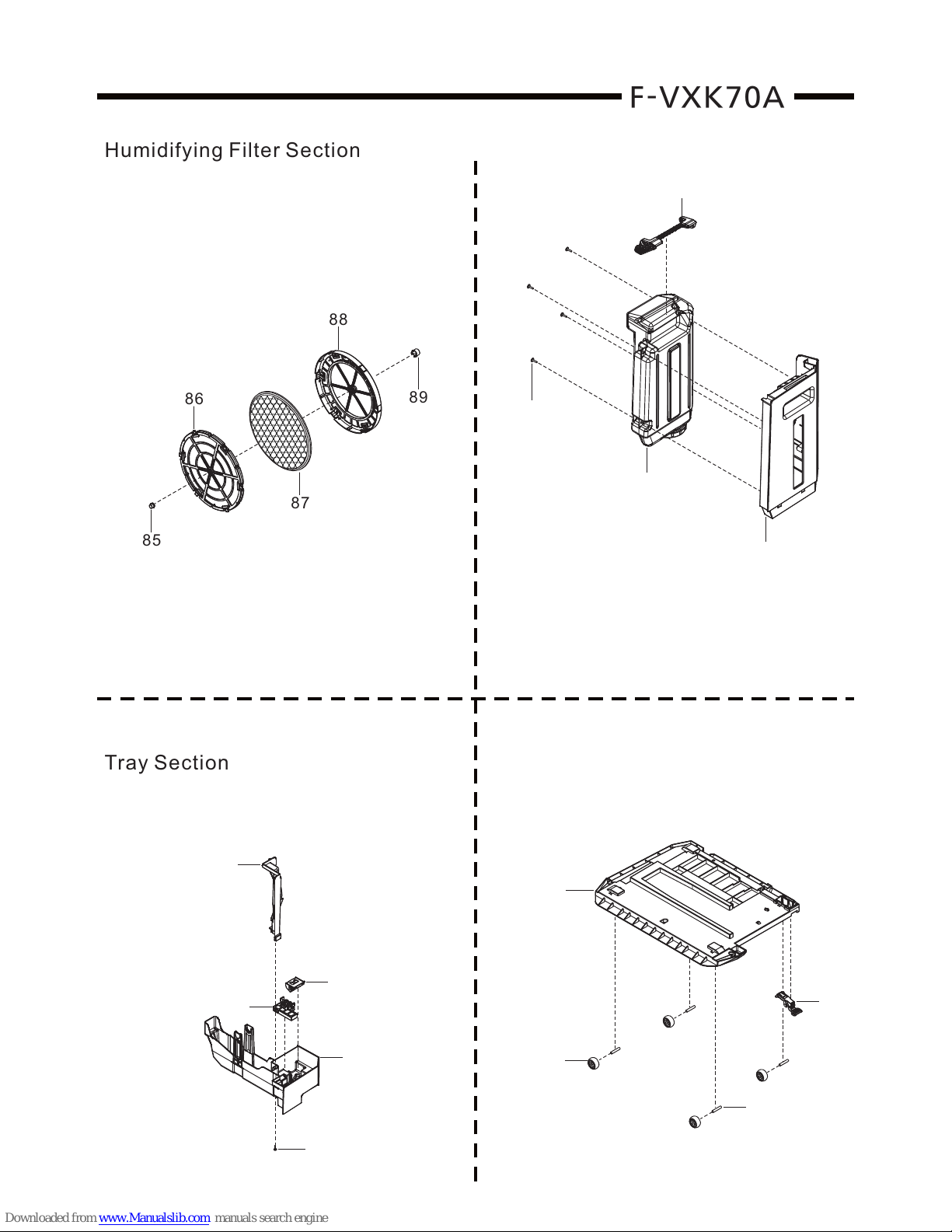

Humidifying Filter Section
Tray Section
F-VXK70A

7
102
101
(104)
103
106
108
2. Parts Identification
Packing Section
104
107
105
aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa
aaaaaaaaaaaaaaa
aaaaaaa
(For Malaysia,Indonesia,
Singapore,Vietnam Market)
F-VXK70A

8

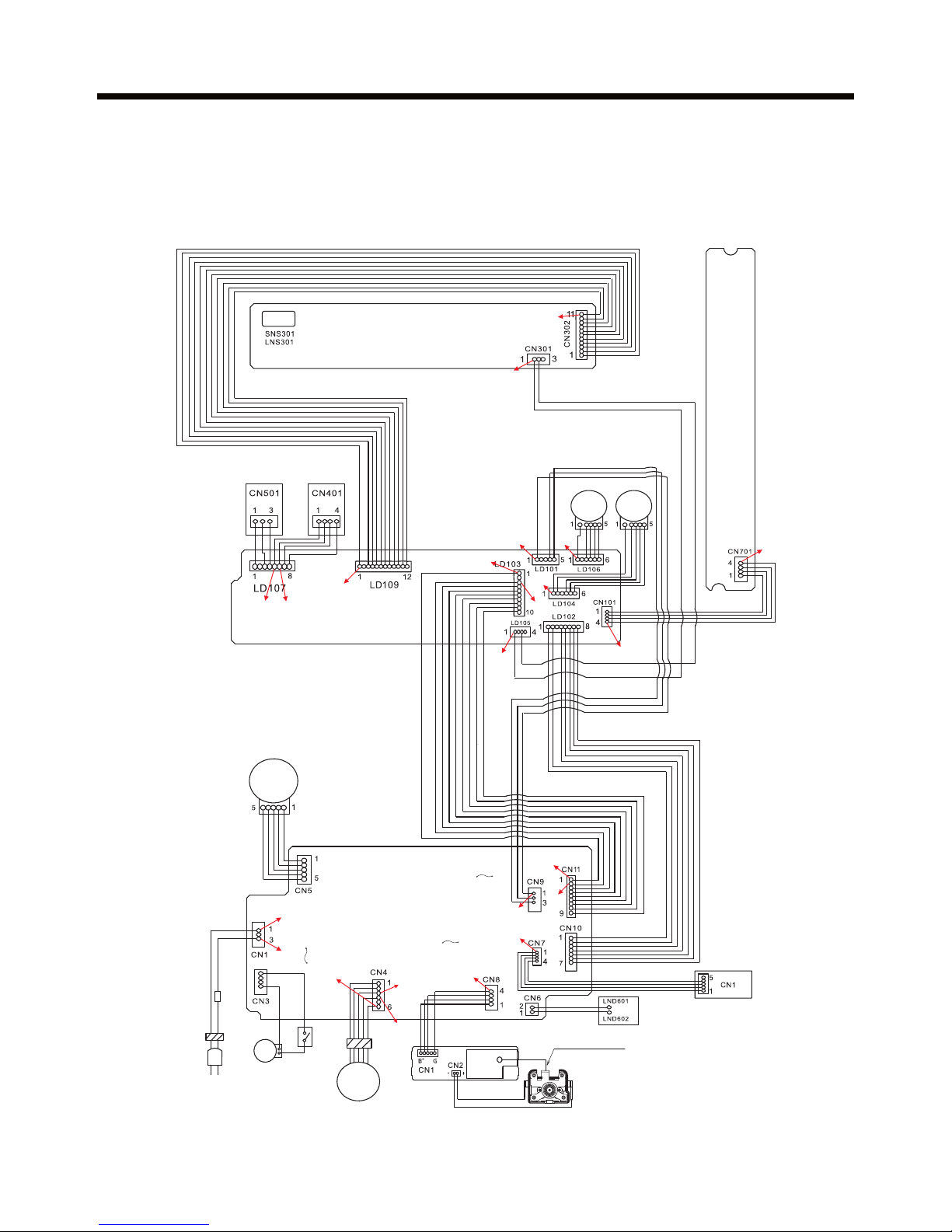

3. Wiring Diagram
SWITCH CIRCUIT ASSEMBLY
DISPLAY CIRCUIT ASSEMBLY
4
1
MAGNET
CORE
NANOE PCB ASSEMBLY
NANOE UNIT
REED PCB
DUST SENSOR
MOTOR
ASSEMBLY
TIMING
MOTOR
CURRENT FUSE
3.15A
0.25A
CURRENT FUSE
0.25A
CURRENT FUSE
POWER CIRCUIT ASSEMBLY
ST
MOTOR
BLACK
WHITE
HIGH VOLTAGE
WHITE
MAIN CIRCUIT ASSEMBLY
HUMIDITY
SENSOR
GAS
SENSOR
ST
MOTOR
ST
MOTOR
MAGNET
CORE
TEMP. FUSE
(114 )℃
F-VXK70A

9
4. Parts List
F-VXK70A
No. Part No. Part Name Q'ty Remark
1 FFE01201410S Front Panel Assembly 1 For Malaysia,Singapore,Thailand,Vietnam Market
(1) FFE01201408S Front Panel Assembly 1 For Indonesia Market
2 FFE41801716S Composite Air Filter Assembly 1
(2) FFE41801806S Composite Air Filter Assembly 1 For Vietnam Market Only
3 FFE41701707S Deodorizing Filter Assembly 1
(3) FFE41701805S Deodorizing Filter Assembly 1 For Vietnam Market Only
4 FFE00791405S Brand Label 1 Stuck On Front Case Painting
5 FFE01221401S Filter Hook 1
6 FFE01041401S Front Case Painting 1
7 FFE36401402S Dust Sensor Cover 1
8 FFE04061402S Top Louver F 1
9 FFE04071402S Top Louver R 1
10 FFE01011403S Rear Case Assembly 1
11 FFE00731201S Warning Label 1 Stuck On Rear Case,For Malaysia,Singapore Market
(11) FFE00751204S Warning Label 1 Stuck On Rear Case,For Indonesia Market
(11) FFE00741203S Warning Label 1 Stuck On Rear Case,For Thailand Market
(11) FFE00731701S Warning Label 1 Stuck On Rear Case,For Vietnam Market
12 FFE00831402S Sirim Label 1 Only For Malaysia Market
13 FFE00501405S Name Plate 1 Stuck On Rear Case,For Malaysia Market
(13) FFE00531401S Name Plate 1 Stuck On Rear Case,For Indonesia Market
(13) FFE00511403S Name Plate 1 Stuck On Rear Case,For Singapore Market
(13) FFE00521403S Name Plate 1 Stuck On Rear Case,For Thailand Market
(13) FFE00541701S Name Plate 1 Stuck On Rear Case,For Vietnam Market
14 FFE00001401S Humidifying Filter Section 1
15 FFE00001404S Tank Section 1
16 FFE00001405S Tray Section 1
17 FFE01091403S Stand Assembly 1
18 FFE16001402S Cord Assembly 1 For Malaysia Market
(18) FFE16301401S Cord Assembly 1 For Indonesia Market
(18) FFE16101401S Cord Assembly 1 For Singapore Market
(18) FFE16201401S Cord Assembly 1 For Thailand,Vietnam Market
A XTB4+14CFJ Bind Tap Screw 18
No. Part No. Part Name Q'ty Remark
19 FFE01201411S Front Panel 1 For Malaysia,Singapore,Thailand Market
(19) FFE01201409S Front Panel 1 For Indonesia Market
20 FFE03051401S Arm Holder 1
21 FFE03031401S Fixed Arm 2
Main Body Section
Front Panel Assembly

10
4. Parts List
F-VXK70A
No. Part No. Part Name Q'ty Remark
22 FFE03061401S Fixed Arm Holder 1
B XTB4+10CFJ Bind Tap Screw 6
No. Part No. Part Name Q'ty Remark
23 FFE01071402S Top Cover Assembly 1 Include Light Guide&Clean Sign Sheet
24 FFE49301405S Display Circuit 1
C XTN35+8CFJ Pan Tap Screw 3
No. Part No. Part Name Q'ty Remark
25 FFE04041404S Switch Plate Assembly 1 Include L.Sensor Panel&Display Sheet
26 FFE09081402S Switch PCB Lead 1
27 FFE49601404S Switch Circuit Assembly 1
28 FFE49401406S Humidity Sensor 1
29 FFE49501404S Gas Sensor 1
30 FFE21300801S Louver Bush 2
31 FFE05070901S Hall IC Magnet 1
32 FFE04011402S Switch Box 1
33 FFE49201410S Main Circuit Assembly 1
34 FFE04081401S STM Cam 2
35 FFE04091401S Louver Spring 2
36 FFE24001101S ST Motor 2
A XTB4+14CFJ Bind Tap Screw 5
D XTB4+12CFJ Pan Tap Screw 3
E XTB3+14CFJ Bind Tap Screw 6
No. Part No. Part Name Q'ty Remark
37 FFE01131401S PCB Cover 1
38 FFE49101410S Power Circuit Assembly 1
39 FFE01111401S PCB Box 1
40 FFE03011101S Arm L 1
41 FFE01121401S D Shaft 1
42 FFE03021101S Arm R 1
43 FFE02091402S Dust Sensor Box 1
Top Cover Section
Front Panel Assembly
Switch Box Section
Main Frame Section

11
4. Parts List
F-VXK70A
No. Part No. Part Name Q'ty Remark
44 FFE09021401S Dust Sensor Lead 1
45 FFE12500601S Dust Sensor 1
46 FFE02031401S Gear Box Gum 3
47 FFE00241401S Gear Box Assembly 1
48 FFE01101401S Main Frame Assembly 1 Include Waterproof Plate
49 FFE02101202S TM Plate 1
50 FFE02111201S TM Gum 3
51 FFE60001401S Timing Motor 1
52 FFE02051301S TM Cover 1
53 FFE21101101S Gear Stay 1
54 FFE02061101S Gear 1
A XTB4+14CFJ Bind Tap Screw 6
F XTT4+14CFJ Truss Tap Screw 3
G XSB4+6FJ Bind Screw 2
No. Part No. Part Name Q'ty Remark
55 FFE02021402S Casing Cover 1
56 FFE12500901S Micro Switch Cover 1
57 FFE35500501S Switch Lever 1
58 FFE12901401S Mirco Switch Assembly 1
59 FFE07201101S Hexagon Nut 1 For Fixing Blade Assembly
60 FFE06090801S Undee Washer 1 For Fixing Blade Assembly
61 FFE21100803S Blade Fix Ring 1 For Fixing Blade Assembly
62 FFE20050801S Blade Plate(A) 1 For Fixing Blade Assembly
63 FFE02041101S Blade Assembly 1
64 FFE02121402S Porous Casing(T) 1
65 FFE02011402S Fan Casing 1
66 FFE49701404S Reed PCB 1
67 FFE02071401S Nanoe Case 1
68 FFE48041401S Nanoe PCB Assembly 1
69 FFE09051401S Nanoe Lead 1
70 FFE09061201S High Voltage Lead 1
71 FFE15001302S Nanoe Unit 1
72 FFE09071401S Peltier Lead 1
72 FFE02081401S Nanoe Cover 1
74 FFE20031401S Blade Plate 1 For Fixing Blade Assembly
Main Frame Section
Casing Section

12
4. Parts List
F-VXK70A
No. Part No. Part Name Q'ty Remark
75 FFE08110801S Holder Gum(A) 1
76 FFE23001401S Motor Assembly 1
77 FFE08120801S Holder Gum(B) 1
78 FFE01191401S Cord Clip 1
79 FFE08101401S Motor Holder 1
A XTB4+14CFJ Bind Tap Screw 11
No. Part No. Part Name Q'ty Remark
80 FFE01011404S Rear Case 1
81 FFE01311401S Tank Hook Cover 1
82 FFE01331401S Tank Spring 1
83 FFE01321401S Tank Hook 1
84 FFE01301403S Tank Buttom 1
A XTB4+14CFJ Bind Tap Screw 2
No. Part No. Part Name Q'ty Remark
85 FFE06051201S Cap(A) 1
86 FFE06031401S Humidifying Filter Cover 1
87 FFE06131702S Humidifying Filter Set 1
(87) FFE06131801S Humidifying Filter Set 1 For Vietnam Market Only
88 FFE06021401S Humidifying Filter Case 1
89 FFE06061201S Cap(B) 1
No. Part No. Part Name Q'ty Remark
90 FFE05041401S Tank Stand 1
91 FFE05011402S Tank Unit 1
92 FFE05031402S Tank Cover 1
I XTT4+14CZ Truss Tap Screw 4
No. Part No. Part Name Q'ty Remark
93 FFE05111401S Tray Plate 1
94 FFE01181401S Float Assembly 1
Rear Case Assembly
Humidifying Filter Section
Tank Section
Tray Section
Casing Section

13
4. Parts List
F-VXK70A
No. Part No. Part Name Q'ty Remark
95 FFE05551401S Germproof Set 1
96 FFE05101402S Tray 1
H XTB4+14CZ Bind Tap Screw 1
No. Part No. Part Name Q'ty Remark
97 FFE01091404S Stand 1
98 FFE01251401S Caster 4
99 FFE01241401S Caster Shaft 4
100 FFE01231401S Caster Stopper 1
No. Part No. Part Name Q'ty Remark
101 FFE80101407S Top Pack 1
102 FFE89501405S Instruction 1 For Malaysia,Singapore Market
(102) FFE89521401S Instruction 1 For Indonesia Market
(102) FFE89511401S Instruction 1 For Thailand Market
(102) FFE89531701S Instruction 1 For Vietnam Market
103 FFE21821401S Poly Cover 1 For Body Packing
104 FFE01110801S Poly Cover 1 For Cord Assembly Packing
(104) FFE01110801S Poly Cover 1 For Malaysia,Indonesia,Singapore,Vietnam Market
105 FFE21371101S Poly Cover 1 For Deodorizing Filter Assembly Packing
106 FFE80201402S Bottom Pack 1
107 FFE80301401S Front Panel Pack 1
108 FFE80011409S Carton Case Assembly 1 For Malaysia Market
(108) FFE80011410S Carton Case Assembly 1 For Indonesia Market
(108) FFE80021401S Carton Case Assembly 1 For Singapore Market
(108) FFE80011411S Carton Case Assembly 1 For Thailand Market
(108) FFE00241701S Carton Case Assembly 1 For Vietnam Market
Packing Section
Stand Assembly
Tray Section

14
5. Troubleshooting Guide
TROUBLESHOOTING GUIDE
Symptom Cause Troubleshooting
Without
Energization
1,The machine’s power supply is
abnormal.
2,The PCB assembly may fail.
1, Check the power supply status and
check if the related wiring connection is
loosed.
2,Replace the PCB assembly.
The humidity
does not
increase
1,Is the room ventilated,or has laid the
carpet onto the floor.
1,If the floor is carpeted,the humidity may
be difficult to increase sometimes,
depending on the specific ventilation,
floor and wall material.
The motor does
not operate or
speed is lower
than normal
levels
1,The motor assembly may fail.
2,The component on the PCB is
abnormal.
1,Replace the motor assembly.
2,Replace the PCB assembly.
Polluted air is
difficult to be
removed
1,Is the C.Filter assembly dirty. 1,Clean it.If the symptoms persist,replace
the filter a new one.
Even if there is
waterinthe
tank,the water
fill indicator is
still blinking or
lit up.
1,Is the tray fit into the interior of the
product.
2,Is the product tilted.
1, Fixing the tray into the interior of the
product.
2,Please install the product onto the level
and stable table or floor.
Remote control
does not work
1,Infrared Circuit assembly without
electricity.
2,The remote control assembly may fail.
3,The battery may be exhausted.
1,Check the Infrared Circuit assembly
wiring connection.
2,Replace the remote control assembly.
3,Replace the battery.

15
5. Troubleshooting Guide
Corrective Maintenance
Fault Phenomena:1,Air Volume Indicator Light Flashing
2,Machine out of operation
Cause:1,Motor's rotating speed is abnormal.
2,Motor out of operation
Substitute Part: Motor,Power Circuit Assembly
Check if the motor lead wire terminals disconnect
with the power circuit assembly
Reconnect the motor lead wire terminal
on the power circuit assembly
Abnormal
Rotating blade by hand and check the motor
shaft lock
In running condition to check the CN4 Terminal
voltage
Abnormal
Normal
Eliminate any blade contact or
foreign object
Motor rotating heavily Replace the motor
assembly
Abnormal
Abnormal
Replace the power circuit assembly
Normal
Run the machine
Abnormal
Replace the motor assembly
Normal
Unplug&plug in and operate the
machine
Abnormal In checking mode to check
the whole machine
Abnormal Replace the diagnosed
defective parts
Abnormal
Normal

16
5. Troubleshooting Guide
SWITCH CIRCUIT ASSEMBLY
DISPLAY CIRCUIT ASSEMBLY
4
1
MAGNET
CORE
NANOE PCB ASSEMBLY
NANOE UNIT
REED PCB
DUST SENSOR
MOTOR
ASSEMBLY
TIMING
MOTOR
CURRENT FUSE
3.15A
0.25A
CURRENT FUSE
0.25A
CURRENT FUSE
POWER CIRCUIT ASSEMBLY
ST
MOTOR
BLACK
WHITE
HIGH VOLTAGE
WHITE
MAIN CIRCUIT ASSEMBLY
HUMIDITY
SENSOR
GAS
SENSOR
ST
MOTOR
ST
MOTOR
MAGNET
CORE
The output voltage of the circuit assembly terminal is used for
checking when machine detected.
GND
+5V
GND +5V
GND
+15V
+5V
+15V
+5V GND
GND
GND
+15V
N
L
+15V
GND
GND
+5V
GND
15V
GND
( 310V)≈
TEMP. FUSE
(114 )℃

17
5. Troubleshooting Guide

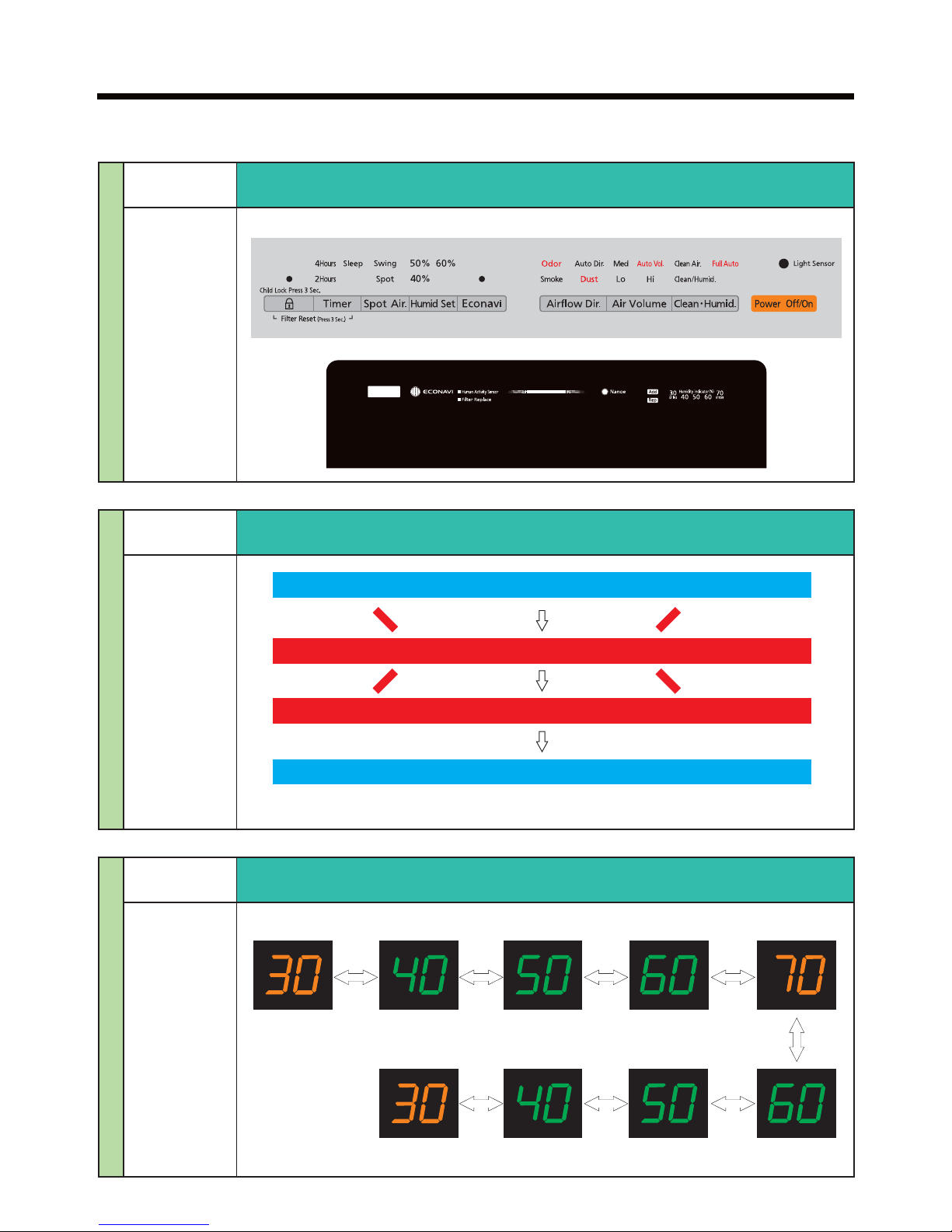

Setting method of checking mode
1
Body
Operation
Body
Operation
Indicating
confirmation
Plug in the power supply.Press +
2
Body
Operation
Body
Operation
Indicating
confirmation
Press
3
Body
Operation
Body
Operation
Indicating
confirmation
Press

18
5. Troubleshooting Guide
Setting method of checking mode
4
Body
Operation
Body
Operation
Indicating
confirmation
Press
5
Body
Operation
Body
Operation
Indicating
confirmation
Press
6
Body
Operation
Body
Operation
Indicating
confirmation
Press
1.Press Float Assembly 2.Unlock Float Assembly
1.Slope The Machine 2.Machine Reset

19
5. Troubleshooting Guide
Setting method of checking mode
7
Body
Operation
Body
Operation
Indicating
confirmation
8
Body
Operation
Body
Operation
Indicating
confirmation
9
Body
Operation
Body
Operation
Indicating
confirmation
Use a cloth to wipe the dust sensor to confirm the status of dust sensor
Use the alcoho spray to odor circuit assembly to confirm the status
of the odor circuit assembly
Repetition
Block out the light with hand to confirm the status of the the light sensor
