Panasonic CF-51JFDECBM - Toughbook 51 - Pentium M 2... User manual

ORDER NO. CPD0406024C1
Notebook Computer
CF-51
Model Number Reference
The following models are numbered in accordance with the types of CPU, LCD and HDD etc. featured by product.
Model No. CF-511234A56
1: CPU type
A: Intel® Pentium®M Processor 1.7 GHz
2: LCD type
B: 15.0 UXGA TFT Color
3: HDD type / RAM size
L: 60 GB / 512 MB
4: Drive / Modem –LAN
B: Combo Drive / Wireless LAN
D: Floppy Disk Drive /Combo Drive / Wireless LAN
E: Floppy Disk Drive /DVD Multi Drive / Wireless LAN
5: Operation System
K: Microsoft® Windows® XP Professional
6: Area
M: Refer to above area table
This is the Service Manual for
the following areas.
M …for U.S.A. and Canada
©
2004 Matsushita Electric Industrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation of law.

2-1

2-2
LASER SAFETY INFORMATION
For U.S.A.
Class 1 LASER-Product
This product is certified to comply with DHHS Rules 21 CFR Subchapter J.
This product complies with European Standard EN60825 (or IEC Publication 825)
For all areas
This equipment is classified as a class 1 level LASER product and there is no hazardous LASER radiation.
Caution:
(1) Use of controls or adjustments or performance of procedures other than those specified herein may result in
hazardous radiation exposure.
(2) The drive is designed to be incorporated into a computer-based system or unit which has an enclosing cover.
It should never be used as a stand alone drive.
Danger:
The serviceman should not remove the cover of drive unit and should not service because the drive unit is a non-
serviceable part.
Please check DANGER label on PD-drive unit.
• Unplug the AC power cord to the equipment before opening the top cover of the drive.
• When the power switch it on, do not place your eyes close to the front panel door to look into the interior of the unit.
LASER Specification
Class 1 level LASER Product
Wave Length: DVD 658±8 nm
CD 775~815 nm
Laser safety information is appropriate only when drive with laser is installed.

2-3

2-4

CONTENTS
Specifications -----------------------------------------------------------------------------
4
Names and Functions of Parts --------------------------------------------------------
5

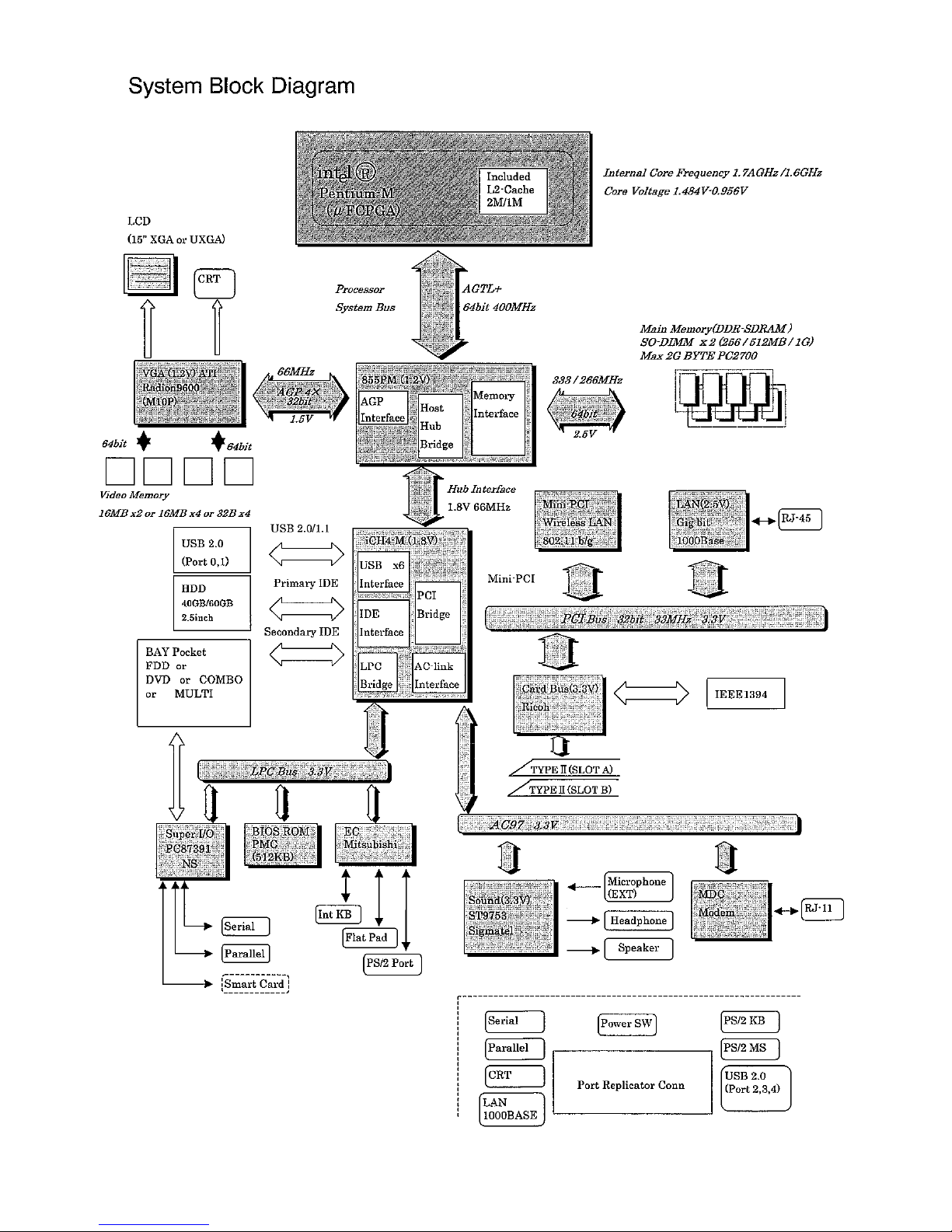

Block Diagram ----------------------------------------------------------------------------
6
System Memory Map --------------------------------------------------------------------
7
Diagnosis Procedure --------------------------------------------------------------------
8
Power-On Self Test (Boot Check) ----------------------------------------------------
9
List of Error Codes -----------------------------------------------------------------------
10
Diagnosis Test ----------------------------------------------------------------------------
11
Self Diagnosis Test ----------------------------------------------------------------------
12
Wiring Connection Diagram -----------------------------------------------------------
13
Disassembly /Reassembly ------------------------------------------------------------
14
Exploded View ----------------------------------------------------------------------------
15
Replacement Parts List -----------------------------------------------------------------
16
3

Specifications
This page provides the specifications for the basic model CF-51GAMBAKM/CF-51GAMDAKM/CF-51GAMEAKM/CF-
51ABLDAKM/CF-51ABLEAKM/CF-51ABLBAKM. The model number will change depending on the configuration of the
unit, such as, CPU speed, memory size, HDD size, Operating System, LCD type, and whether a DVD-ROM drive, a
DVD-ROM & CD-R/RW drive or a DVD MULTI drive is included or not.
To check the model number:
Check the bottom of the computer or the box the computer came in at the time of purchase.
To check CPU speed, memory size and the hard disk drive (HDD) size:
Run the Setup Utility ( Reference Manual “Setup Utility”) and select [Information] menu.
Confirm the required information by checking the following items.
CPU speed:[CPU Speed]
Memory size:[System Memory]
Hard disk drive size:[Primary Master]
Main Specifications
*1 1MB = 1,048,576 bytes
*2 When expanding memory, remove the RAM module that was inserted at the time of factory shipment, and insert two 1024 MB-RAM modules.
*3 A 16,000,000 color display is achieved by using the dithering function.
*4 Maximum resolution depends on the specifications of the external display.
*5 1GB = 1,000,000,000 bytes. Your operating system or some application software will report as fewer GB.
*6 Varies depending on the usage conditions.
*7 Measured using BatteryMark™ Version 4.0.1 (LCD brightness: Maximum - Minimum)
*8 Measured using MobileMark™ 2002 (LCD brightness: 60 cd/m 2)
Model No. CF-51GAMBAKM
CF-51GAMDAKM
CF-51GAMEAKM
CF-51ABLDAKM
CF-51ABLEAKM
CF-51ABLBAKM
CPU Intel®Pentium®M Processor
1.6 GHz, 1 MB*1 L2 cache
Intel®Pentium®M Processor
735 (1.70 GHz, 2 MB*1 L2
cache, 400 MHz FSB)
Memory 256 MB*1 (2048 MB*1 *2 Max.) 512 MB*1 (2048 MB*1 *2 Max.)
Video Memory 64 MB*1
LCD Type 15.0 XGA type (TFT) 15.0 UXGA type (TFT)
Displayed Colors*3 65536/Approx.16,000,000 col-
ors (800 ×600 dots/1024 ×
768 dots)
65536/Approx.16,000,000 col-
ors (800 ×600 dots/1024 ×768
dots/1280 × 1024 dots/1600 ×
1200 dots)
External Display 65536/Approx.16,000,000 colors (800 ×600 dots/1024 ×768
dots/1280 ×1024 dots/1600 ×1200 dots/2048 ×1536 dots)*4
Hard Disk Drive 40 GB*5 60 GB*5
Battery Pack Li-ion 11.1 V, 6.6 Ah
Operating
Time*6
Main Battery Approx. 2.5 hours - 6.5 hours*7
(Approx. 6.0 hours*8)
Approx. 2.0 hours - 5.5 hours*7
(Approx. 5.0 hours*8)
Main Battery +
Second Battery
Approx. 4.0 hours - 8.5 hours*7
(Approx. 9.5 hours*8)
Approx. 3.5 hours - 7.0 hours*7
(Approx. 8.5 hours*8)
Charging
Time*6
Power On Main Battery Approx. 4.0 hours
Main Battery +
Second Battery
Approx. 6.5 hours
Power Off Main Battery Approx. 4.0 hours
Main Battery +
Second Battery
Approx. 6.5 hours
Clock Battery Coin type lithium battery 3.0 V
4-1

Main Specifications
*1 Either a PC2700-compliant RAM module or a PC2100-compliant RAM module can be added.
*2 Use only a monaural condenser microphone.
*3 The Product Recovery DVD-ROM is required.
*4 The AC adaptor is compatible with power sources up to 240 V AC adaptor. This computer is supplied with a 125 V AC compatible AC cord.
*5 Approx. 0.9 W when the battery pack is fully charged (or not being charged) and the computer is OFF.
Approx. 1.5 W when the Wake up from LAN has been enabled.
*6 Rated power consumption.
Slots PC Card Slots Two Type Ior Type II, or one Type III
Allowable current
(total for two slots)
3.3 V: 400 mA
5 V: 400 mA
RAM Module Slot 200-pin, SO-DIMM, DDR SDRAM, PC2700 Compliant*1
Interface Parallel Port Dsub 25-pin female
External Display Port Mini Dsub 15-pin female
Serial Port Dsub 9-pin male
Microphone Jack*2 Miniature jack, 3.5 DIA
Headphone Jack Miniature jack, 3.5 DIA
Impedance 32 , Output Power 4 mW ×2
External Keyboard/ Mouse Port Mini DIN 6-pin female
Expansion Bus Connector Dedicated 100-pin female
USB Port 4-pin x 2, USB 2.0
Modem RJ-11 Data: 56 kbps (V.92 & K56flex) FAX:14.4 kbps
LAN RJ-45 IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T
Wireless LAN IEEE802.11b/g
IEEE1394 Interface Connector 4-pin ×1
Pointing Device Touch Pad
Speaker Stereo Speaker
Sound WAVE and MIDI playback
Keyboard 87 keys
Operating System Microsoft®Windows®XP Professional with Service Pack 1a
Utility Programs Setup Utility, DMI Viewer, Adobe®Acrobat®Reader, Hard
Disk Data Erase Utility*3, PC Information Viewer, Icon
Enlarger, WinDVD™ 5 (OEM Version), B’s Recorder GOLD7
BASIC, B’s CLiP 5, Intel®PROSet
AC Adaptor*4 Input 100 V- 240 VAC, 50 Hz/60 Hz
Output 15.6 VDC, 5.0 A
Power Consumption*5 Approx. 35 W*6/ Approx. 90 W(maximum when recharging
in the ON state)
Environ-
ment
In use Temperature 5 °C to 35 °C {41 °F to 95 °F}
Humidity 30% to 80% RH (No condensation)
Not in use Temperature -20 °C to 60 °C {-4 °F to 140 °F}
Humidity 30% to 90% RH (No condensation)
Physical Dimensions (W ×H ×D) 325 mm ×47 mm ×278 mm {12.8 ’’ ×1.9 ’’ × 10.9 ’’}
Weight with the DVD-ROM & CD-R/RW drive
inserted in the multimedia pocket
Approx. 3.0 kg {Approx. 6.7 lb.}
with no devices inserted in the multi-
media pocket
Approx. 2.8 kg {Approx. 6.2 lb.}
4-2

Specifications
Multimedia Pocket (DVD-ROM & CD-R/RW Drive or DVD MULTI Drive)
Multimedia P ocket (Flopp y Disk Drive)
*1 The drives included in the computer cannot be inserted into the multimedia pocket simultaneously.
*2 Read only.
*3 1GB = 1,000,000,000 bytes. Your operating system or some application software will report as fewer GB.
*4 In the case of DVD-RAM, only non-cartridge discs or removable cartridge discs can be used.
*5 If an unbalanced disc (e.g., a disc with which the balance has been displaced from the center) is inserted, the speed may become slower if
there are large vibrations while the disc is rotating.
*6 Depending on the disc, the writing speed may become slower.
*7 1KB = 1,024 bytes
*8 1MB = 1,024,000 bytes. Your operating system or some application software will report as fewer MB.
Model No. CF-51GAMBAKM
CF-51GAMDAKM*1
CF-51ABLDAKM*1
CF-51ABLBAKM
CF-51GAMEAKM*1
CF-51ABLEAKM*1
Drive DVD-ROM & CD-R/RW Drive DVD MULTI Drive
Supports DVD DVD-ROM (Single Layer, Dual
Layer), DVD-R*2 (3.95 GB*3, 4.7
GB*3), DVD-RW*2 (4.7 GB*3), DVD-
RAM*2*4 (2.6 GB*3, 4.7 GB*3)
DVD-ROM (Single Layer, Dual
Layer), DVD-R*2 (3.95 GB*3, 4.7
GB*3), DVD-RW (4.7 GB*3), DVD-
RAM*2*4 (2.6 GB*3, 4.7 GB*3)
CD CD-Audio, CD-ROM, CD-R, Photo CD, VideoCD, Enhanced Music CD, CD-
RW, CD-TEXT
DVD-ROM read*5 8X speed (Max.)
CD-ROM read*5 24X speed (Max.)
CD-R write*6 4X speed, 8X speed, 16X speed
(Max.), 24X speed (Max.)
4X speed, 8X speed, 16X speed
(Max.)
CD-RW write 4X speed
High-Speed CD-RW write 4X speed, 8X speed, 10X speed 4X speed, 8X speed
Ultra-Speed CD-RW write 10X speed, 16X speed (Max.), 24X
speed (Max.)
DVD-R write 2X speed
DVD-RW write 1X speed
DVD-RAM write 2X speed
Model No. CF-51GAMDAKM*1/CF-51GAMEAKM*1/CF-51ABLDAKM*1/
CF-51ABLEAKM*1
Floppy Disk Drive 720 KB*7/1.44 MB*8 (two-mode)
4-3

G etting S tarted

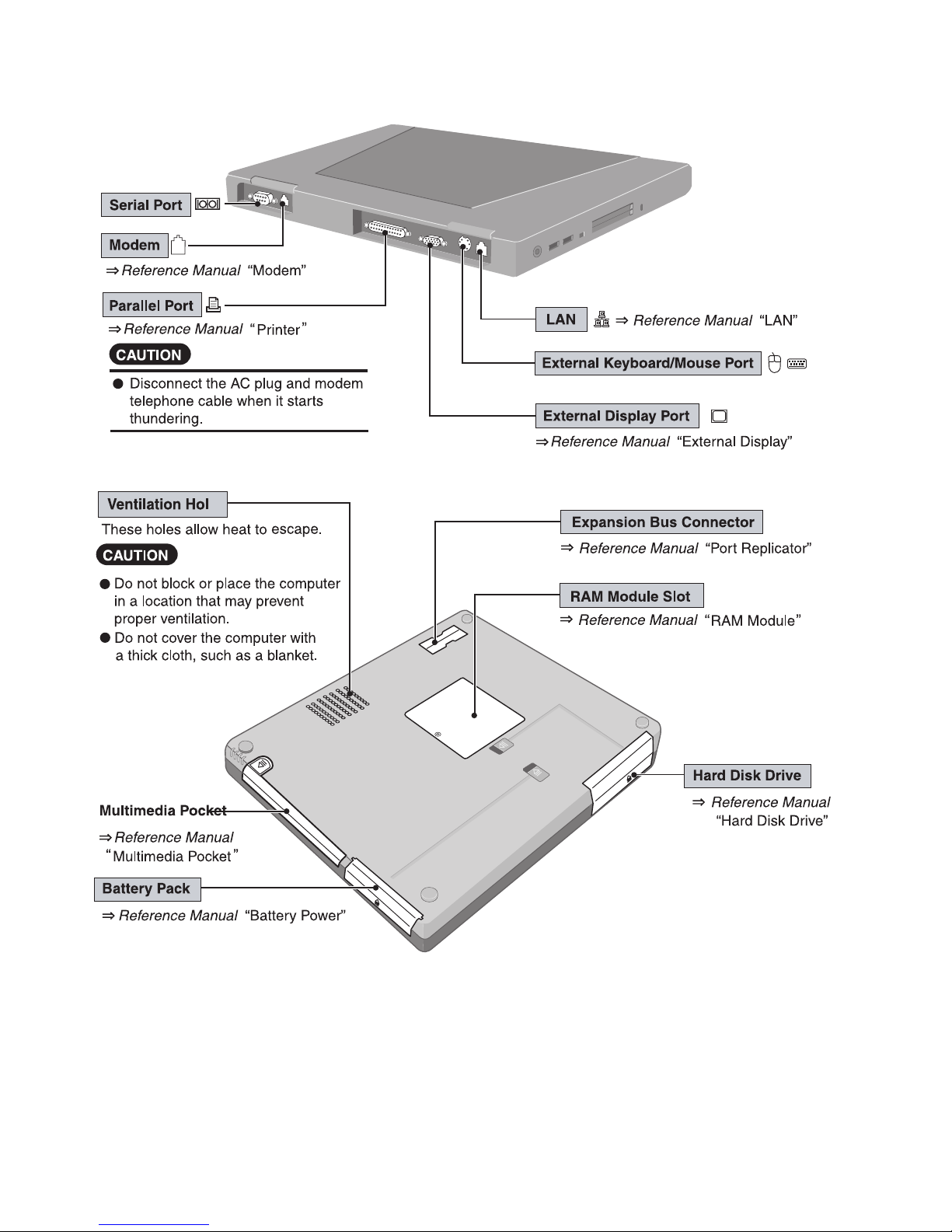

Names and Functions of Parts
5-1

Names and Functions of Parts
5-2

6-1

6-2

System Memory Map
7

Diagnosis Procedure
8

Power-On Self Test (Boot Check)
Outline of POST
The set has a boot check function called POST (Power-On Self Test) in it. The condition of the main body is diagnosed by checking
beep sound or error code.
zStart .............Test begins automatically when power switch is set to ON.
zNormal finish .....After memory checking, a beep sound is issued once and the set is placed into automatic stop.
Note: If no error occurs, nothing is displayed. (No display of OK, etc.)
Error Diagnosis by Checking Beep Signal Sound
The beep sound is as follows:
= long sound (about 0.4 sec.), = short sound (about 0.2 sec.), Length between sounds is about 0.1 sec.
zTable of errors classified by beep sounds
(1 (long sound) -2-3-4)
(Length of bar shows length of sound.)
Diagnosis Beep signal sound Error message
1(long sound)-2 BIOS ROM error
BIOS ROM error
RAM error
Keyboard controller error
RAM error
RAM error
RAM error
1-2-2-3
1-3-1-1
1-3-1-3
1-3-4-1
1-3-4-3
1-4-1-1
BIOS ROM error2-1-2-3
Occurrence of unexpected offering2-2-3-1
Main board
(Note) A beep sound is also issued in case of other I/O trouble.
9

List of Error Codes <Only when the port replicator is connected>
The following is a list of the messages that BIOS can display. Most of them occur during
POST. Some of them display information about a hardware device, e.g., the amount of memory
installed. Others may indicate a problem with a device, such as the way it has been configured.
Following the list are explanations of the messages and remedies for reported problems.
If your system displays one of except the messages marked below with an asterisk (*), write
down the message and contact Panasonic Technical Support. If your system fails after you
make changes in the Setup menus, reset the computer, enter Setup and install Setup defaults
or correct the error.
0200 Failure Fixed Disk
Fixed disk in not working or not configured properly. Check to see if fixed disk is attached
properly. Run Setup. Find out if the fixed-disk type is correctly identified.
0210 Stuck key
Stuck key on keyboard.
0211 Keyboard error
Keyboard not working.
0212 Keyboard Controller Failed
Keyboard controller failed test. May require replacing keyboard controller.
0213 Keyboard locked - Unlock key switch
Unlock the system to proceed.
0230 System RAM Failed at offset : nnnn
System RAM failed at offset nnnn of in the 64k block at which the error was detected.
0231 Shadow RAM Failed at offset : nnnn
Shadow RAM failed at offset nnnn of the 64k block at which the error was detected.
0232 Extended RAM Failed at offset : nnnn
Extended memory not working or not configured properly at offset nnnn.
0250 System battery is dead - Replace and run SETUP
The CMOS clock battery indicator shows the battery is dead. Replace the battery and run Setup
to reconfigure the system.
*0251 System CMOS checksum bad - Default configuration used
System CMOS has been corrupted or modified incorrectly, perhaps by an application program
that changes data stored in CMOS. The BIOS installed Default SETUP Values. If you do not
want these values, enter Setup and enter your own values. If the error persists, check the system
battery or contact Panasonic Technical Support.
0260 System timer error
The timer test failed. Requires repair of system board.
0270 Real time clock error
Real-time clock fails BIOS test. May require board repair.
*0280 Previous boot incomplete - Default configuration used
Previous POST did not complete successfully. POST loads default values and offers to run
Setup. If the failure was caused by incorrect values and they are not corrected, the next boot
will likely fail. On systems with control of wait states, improper Setup settings can also termi-
nate POST and cause this error on the next boot. Run Setup and verify that the wait-state
configuration is correct. This error is cleared the next time the system is booted.
0281 Memory Size found by POST differed from EISA CMOS
Memory size found by POST differed from EISA CMOS.
10-1

Troubleshooting
02D0 System cache error - Cache disabled
Contact Panasonic Technical Support.
02F0: CPU ID:
CPU socket number for Multi-Processor error.
02F4: EISA CMOS not writable
ServerBIOS2 test error: Cannot write to EISA CMOS.
02F5: DMA Test Failed
ServerBIOS2 test error: Cannot write to extended DMA (Direct Memory Access) registers.
02F6: Software NMI Failed
ServerBIOS2 test error: Cannot generate software NMI (Non-Maskable Interrupt).
02F7: Fail - Safe Timer NMI Failed
ServerBIOS2 test error: Fail-Safe Timer takes too long.
device address Conflict
Address conflict for specified device.
Allocation Error for: device
Run ISA or EISA Configuration Utility to resolve resource conflict for the specified device.
Failing Bits : nnnn
The hex number nnnn is a map of the bits at the RAM address which failed the memory test.
Each 1 (one) in the map indicates a failed bit. See error 230,231 or 232 for offset address of the
failure in System, Extended or Shadow memory.
Invalid System Configuration Data
Problem with NVRAM (CMOS) data.
I/O device IRQ conflict
I/O device IRQ conflict error.
Operating System not found
Operating system cannot be located on either drive A: or drive C:. Enter Setup and see if fixed
disk and drive A: are properly identified.
Parity Check 1 nnnn
Parity error found in the system bus. BIOS attempts to locate the address and display it on the
screen. If it cannot locate the address, it displays ????. Parity is a method for checking errors
in binary data. A parity error indicates that some data has been corrupted.
Parity Check 2 nnnn
Parity error found in the I/O bus. BIOS attempts to locate the address and display it on the
screen. If it cannot locate the address, it displays ????.
Press <F1> to resume, <F2> to Setup
Displayed after any recoverable error message. Press <F1> to start the boot process or <F2> to
enter a Setup and change the settings. Write down and follow the information shown on the
screen.
10-2

11
Diagnostic Test
Diagnostic Test Procedure
Equipment
(1) Test Computer ......................................................................................................................................1 unit
(2) AC Adapter ...........................................................................................................................................1 pc.
(3) External Printer ..................................................................................................................................... 1 unit
(4) Loopback Plu (Parallel Port Test) [P/N: DFWV95C0081] ................................................................... 1 pc.
(5) Loopback Plu (Serial Port Test for RS232C) [P/N: DFWV95C0067] .................................................. 1 pc.
(6) Floppy Disk contain file DIAG ............................................................................................................. 1 pc.
Preparation
(1)Connect the AC Adapter and External Printer to the computer.
(2) The System Setup should be set to the factory settin values by executin the "SETUP UTILITY" which can be invoked
by F2 key at the POST.
If not, the messa es and items of the dia nostic test may not be displayed properly on the LCD.
(3) The serial port must be enabled in the "SETUP UTILITY" in order to execute the "1st SERIAL PORT" test.
(4) Connect the serial loopback plu .
(5) In order to test the parallel port with Loopback Plu , disconnect the printer cable and connect the parallel loopback plu
with Power OFF.
NOTICE
When "Enter password" is displayed, use "Password Skippin Plu " in order to skip the user password.
1) Connect the parallel plu to the parallel port.
2) Connect the PS/2 mouse plu to the mouse port.
3) Power on the computer.
The wirin of the parallel plu is described below.
Connect pins 2-5-6-8-11-13-15-18-19-20-21-22-23 to Shield GND (PS/2 mouse plu pin 3.)
Connect pins 3-4-7-9-10-12 to VC5 (PS/2 mouse plu pin 4) with 4.7KW each.
CAUTION
The plu described above must be used for servicin purpose only.
Do not use it for other than the above purpose and ensure that it remains confidential.
Usin the plu enables the user to skip the previous password and disable the password.

Insert the diagnostics floppy disk
Return the setup
contents to default
Choose test from
the menu screen
to start the test.
Menu Screen1
1. DIAG on FD (CF-51)
2. Memory test
4. Parallel test
5. GLAN test
Q. Quit
Caution:
After completing repairs, be sure
to carry out the Automatic test
and Peripheraltest.
<Automatic test> <Peripheral test> <Test selection>
Tests selected (O) from the test
item list will be performed in
succession.
After completing repairs,be sure
to carry out the test.
1. DIAG on FD
Wireless LAN can be tested.
After completing repairs,be sure
to carry out the test.
Menu -- 4,5,6,7,8
Specifc tests required can
be freely selected and
performed from the test item
list.
Be sure to carry out the Selection
test only when necessary .
Problems in the unit are located and divided according
to error messages that occur during testing.
Self Diagnosis Test
1. Floppy disk is included for the self-diagnostic tests that should be performed before using this product.
2. Connect External Floppy Disk Drive (FDD) to USB port for diagnosis test.
Important notice
System password
This product has a password function. If this function is turned on, the self-diagnostics tests will not work.
You will need ask the user for the password before performing the self-diagnostics.
1. Outline of Self Diagnostic Tests
12-1
Starting up the setup utility
Turn on the power .
When "Panasonic Press F2 to enter setup" appears
on the screen, press F2.
Press " " to select [ Exit ]
Press " " to select [ Get default value ]
Press Enter .
Choose Yes for "Load default Configuration now?"
Select "Save V alues & Exit" and press Enter .
Choose Yes for "Save Configuration changes and exit now?"
and press Enter .
1. DIAG (without CD-ROM support)
2. CD-ROM test
Menu Screen2 Choose 1 Choose 2
CD-ROM test is starting.
Set CD-ROM(except music CD)
before choosing 2.
*
8. Modem test
7. 1394 I/F test
6
3. HDD read test
. Wireless LAN test (Wireless model only)
Function of I/F, LAN,Modem and
