Panasonic Toughbook CF-28 Series Instructions for use

ORDER NO. CPD0311020A1
Notebook Computer
CF-28
Model Number Reference
The following models are numbered in accordance with the types of CPU, LCD and HDD etc.
featured by product.
Model No. CF-2812305 45
1: CPU type
S: Mobile Intel® Pentium® III Processor-M 1.0 GHz
2: LCD type
R: 12.1” TFT Color with Touch Screen
3: HDD type / RAM size
J: 30 GB / 256 MB
4: Operation System
K: Microsoft® Windows® XP Professional
5: Area M: Refer to above area table
This is the Service Manual for
the following areas.
M …for U.S.A. and Canada

Replacement Parts List
CF-28SRJ05KM
Main Block Unit, Accessories and Mechanical Parts
PART NO. DESCRIPTION Q'TY
Main Block Unit
E 1 DL3U11151JXB PCB, MAIN RTL 1
E 2 DL3U21151JXB PCB, RJ RTL 1
E 3 DL3U31151JXB PCB, IR RTL 1
E 4 DL3U41151JXB PCB, BATT RTL 1
E 6 DL3U11162CAA PCB, l/O RTL 1
E 7 N5BDBA000002 PCB, TOUCH SCREEN 1
E 8 DL3UP1163AAA FPC UNIT, MP 1
E 9 N3CABQD00009 HDD 1
E 10 DFWV99A0072 HDD MOUNTING KIT 1
E 10-01 DL3UP1120AXA FPC UNIT, HDD 1
E 13 L5BDD3N00008 LCD 1
E 15 DFJE40N027BB FFC, l/O CONNECTION 2
E 16 DFJE9137ZA FFC, TOUCH PAD 1
E 18 N2EAEEC00001 TOUCH PAD 1
E 19 DFJS659WA CABLE, INNER, RJ11 1
E 21 DFJS669ZA CABLE, SPEAKER 1
E 22 DFSE058ZB POWER SWITCH, WIRED 1
E 23 DFSE059ZA MICROPHONE, WIRED 1
E 24 DFSE060YA LEAD SWITCH , WIRED 1
E 25 L0AA02A00017 SPEAKER 1
E 26 DFJS711YB CABLE, LCD 1
E 27 DFJS666ZA CABLE, TS EXTENSION 1
E 28 N0GF1J000002 INVERTER 1
E 29 DFSX1A71TATG KEYBOARD 1
E 30 DFWP0125UA MODEM MODULE 1
E 31 CR2032/S5J BATTERY, COIN 1
E 32 DL1BA0151AAA ASS'Y, FDD 1
E 32-01 DFJE9077ZA FFC, FDD 1
E 32-02 N3AAAAA00004 FDD 1
E 32-03 DL3U21162CAA PCB, FDD RTL 1
E 41 DL3U61151JXB PCB, TS12 1
E 42 DL3UP1143AAA PCB, SENSOR RTL 1
E 43 DFWV84A0216 TOUCH SCREEN PANEL KIT 1
E 43-1 DFHG1473YA TP SPACER A 2
E 43-2 DFHG1474YA TP SPACER B 2
E 44 DFJS671ZA CABLE, INVERTER EXTENSION 1
E 51 L9DZAA000003 HEATER 1
E 215 DFJS663YA CONNECTOR/CABLE, RJ45 1
E 216 N5HBC0000001 LAN UNIT 1
Accessories
A 1 DFQX5323XA OPERATING INSTRUCTION MANUAL 1
A 2 CF-AA1653M1 AC ADAPTER 1
A 4 DFHS9017ZA CLOTH, LCD 1
A 5 DFJS535ZB MODEM CABLE 1
A 6 DFKH1012ZA-0 STRAP 1
A 7 K2CG3DR00003 AC CABLE 1
A 8 N4HUNSA00002 BATTERY PACK, LITHIUM 1
A10 DFHR9039ZA-0 STYLUS PEN 1
Packing Material
P 1 DFPE0611ZA HOLDER, MANUAL 1
P 2 DFPK1063YA CASE 1
P 3 DFPN0754YA CUSHION, PACKAGE 1
Mechanical
K 201 DXQT2+D25VL SCREW 5
REF. NO and AREA
Note: Important Safety Notice
Components identified by mark have special characteristics important for safety.
When replacing any of these components, use only manufacturer's specified parts.

K 202 DFHG1415ZA DAMPER (A), HDD 1
K 203 DFHG1462YB TAB (A), HDD 1
K 204 DFHM0229ZA SHAFT, HDD CONNECTOR 1
K 205 DFHR5851YA CONNECTOR GUIDE, HDD 1
K 206 DFHR3193YA DAMPER, HDD, B 1
K 207 DFHR3192YA DAMPER, HDD, A 1
K 208 DFHR7961YA TAB (B), HDD 1
K 210 DFMD2133WA HOLDER, HDD 1
K 211 DFMD9073ZB HDD COVER 1
K 212 DFMX0909ZA FPC SHEET, HDD 1
K 213 DFQT6244ZA HDD SHEET 2
K 301 DFGL0018ZC-3 LENS, FDD 1
K 302 DFGX0178PA-0 CABINET, FDD 1
K 303 DFGX0179VA-0 BACK PANEL, FDD 1
K 304 DFHE5076YA SCREW 4
K 305 DFHR4050ZA TUBE, LED 1
K 306 DFHR5440YA GUIDE, FDD CONNECTOR 1
K 308 DFHR8295ZC LS DAMPER, UNDER-1 1
K 309 DFHR8296ZB LS DAMPER, UNDER-2 2
K 310 DFHR8297ZC DAMPER, FDD 2
K 311 DFHE0088ZA CUSHION, FDD 3
K 312 DFMD7339ZA CHASSIS, FDD 1
K 313 DFMD7340ZA CLAMP, FDD 2
K 314 DFMD7445YA CLAMP, FDD CONNECTOR, PCB 1
K 315 XTB2+6GFZ SCREW 1
K 316 XTB26+8GFZ SCREW 4
K 404 DFWV80A0325 ASS'Y, LCD FRONT CABINET 1
K 404-1 DFKF0218YA-4 LCD FRONT CABINET 1
K 404-2 DFHE0418ZA LID MAGNET 1
K 404-3 DFHP7113ZB SHEET, LCD PANEL 1
K 404-4 DFHG1309ZAT LCD PACKING 1
K 404-5 DFHG1347XAT TS DAMPER 4
K 404-6 DFHG1487ZA TS DAMPER B 10
K 500 DFUV0070ZA BLIND SHEET (TOP), PCMCIA 1
K 501 DFUQ0081ZA SPRING, R 2
K 502 DFMD7846ZA ANGLE, MP FPC 1
K 503 DFMC0613ZA TAPE A, EMI 1
K 504 DFMC0722YA SPRING, L, EARTH 1
K 505 DFMC0723ZA SHEET, CONDUCTIVE 1
K 506 DFMX0939ZA SHEET 11, RJ11 1
K 507 DFMX0973YA SHEET, INSULATING, MAIN PWB 1
K 508 DFMX0999ZA SHEET, FIXING, RJ11 CABLE 1
K 509 DFMX1006ZA SHEET, CABLE 1
K 510 DFMY0294ZA RUBBER, HEAT RADIATION, CPU 2
K 511 DFHE5104YA SCREW 2
K 512 DFHG1539YA PACKING, WATERPROOF, KB CABLE, UPPER 1
K 513 DFHG1541YA PACKING, WATERPROOF, LCD CABLE, UPPER 1
K 514 DXSB3+8VL SCREW 2
K 515 DFHG1464YB PACKING, WATERPROOF, LCD CABLE 1
K 516 DFHG1532ZA-0 PACKING, WATERPROOF, PAD BUTTON 1
K 517 DFHG1540ZA PACKING, WATERPROOF, KB CABLE, LOWER 1
K 518 DFHG1542ZA PACKING, WATERPROOF, LCD CABLE, LOWER 1
K 519 DXSN26+5FNL SCREW 4
K 520 DFHP7115ZA TAPE, WATERPROOF, TOUCH PAD BUTTONS 1
K 521 DFBC0281ZA BUTTON, PAD 1
K 522 DFKE0630ZA-0 BACK GUARD, BOTTOM, R 1
K 523 DFGE9004ZA-0 ASS'Y, LOCK DUMMY 1
K 524 DFHR3183YA NET, SPEAKER 1
K 525 DFHR3198ZA-0 LABEL, POWER SW 1
K 526 DFHR3293ZA SHEET, MP EJECT 1
K 528 DFHR9042ZB ASS'Y, KNOB R 1
K 529 DFHR9043WB ASS'Y, KNOB L 1
K 530 DFKE0629ZB-4 HOLDER, REINFORCEMENT 1

K 531 DFKE0655YA-0 COVER, HINGE 1
K 532 DFKE0657ZA COVER, KB CABLE 1
K 533 DFKE0658ZB-4 COVER, HDD/BAT 1
K 534 DFHR3181ZA PACKING, HDD/BATT COVER 1
K 535 DFHR3278ZA CORE HOLDER, RJ11 1
K 538 DFHR7968ZA SHEET, CDD 1
K 540 DFHE0489ZB CUSHION, HDD 1
K 541 DFHP7106YA TAPE, KEYBOARD 1
K 542 DFQT9675ZA LABEL, ENERGY STAR 1
K 543 DFQT9821ZA LABEL, MODEM 1
K 544 DFJE10T032BS FFC, IrDA 1
K 545 DFMC0724ZA SHEET, CONDUCTIVE, HDD 1
K 546 DFMX0921ZA SHEET, INSULATION, RJ11 1
K 547 DFMX1063ZA SHEET, INSULATION, IrDA 1
K 548 DFMX1000ZA SHEET, CONDUCTIVE, CPU 1
K 549 DFWV82A0127 ASS'Y, MP COVER 1
K 550 DFWV82A0128 ASS'Y, CONNECTOR COVER 1
K 551 DFWV82A0129 ASS'Y, PC CARD COVER 1
K 552 DFHR3203ZA SHEET, LCD SPACER 2
K 553 DFHG1568ZA DAMPER, LCD HINGE 2
K 2 DFBE0010YA-0 RING, POWER SW 1
K 3 DFGL0096XA-0 LENS (A), LED 1
K 4 DFGL0097ZB-0 LENS (B), LED 1
K 5 DFGX0293ZA-0 COVER PLATE, LAN 1
K 6 DFGX0289XA-0 COVER, PALM TOP, MID 1
K 7 DFGX0290ZA-0 COVER, PALM TOP, L 1
K 8 DFGX0291ZA-0 COVER, PALM TOP, R 1
K 9 DXQT2+D25VL SCREW 10
K 10 DXSB26+5VL SCREW 24
K 11 DFHE5058ZA SCREW 6
K 13 DXSB26+6VL SCREW 8
K 14 DFHE5104YA SCREW 9
K 16 DFHG1407YA PACKING, WATERPROOF, RJ11 1
K 17 DFHG1423XA-0 COVER, SERIAL PORT 1
K 18 DFHG1424WB-0 COVER, USB PORT 1
K 19 DFHG1433YA CUSHION, SPEAKER 1
K 20 DFHG1609ZA-0 COVER, DC-IN 1
K 21 DFHG1463ZA CUSHION, MICROPHONE 1
K 22 DFHG1481ZA PACKING, WATERPROOF, ANTENNA CABLE 1
K 23 DFHG1465ZA PACKING, WATERPROOF, BODY 1
K 25 DFHG1467ZB CUSHION, LEAD SWITCH 1
K 28 DFHG809ZA RUBBER, LCD STOP 2
K 31 DFHG814ZB PACKING RING, WATERPROOF, POWER SW 1
K 32 DFHG815XA PACKING, WATERPROOF, TOUCH PAD 1
K 40 DFHR7938ZC SHEET, WATERPROOF, MICROPHONE 1
K 42 DFHR7940ZB SHEET, SW COVER, WM 1
K 49 DFKH1011ZA-4 ASS'Y, HANDLE 1
K 50 DFMC0406XA GASKET, MP 1
K 52 DFMD1144YA ANGLE, LOCK STOPPER 1
K 53 DFMD1145YA ANGLE, PCMCIA 1
K 54 DFMD4032ZA PLATE, COVER, SERIAL PORT 1
K 55 DFMD4033ZA PLATE, COVER, DC-IN/USB PORT 2
K 57 DFMD7745ZA ANGLE, MODEM CONNECTOR 1
K 58 DFMD7747ZA ANGLE-A, HEAT PIPE 1
K 59 DFMD7748ZA ANGLE-B, HEAT PIPE 1
K 60 DFMD7749ZB ANGLE, LOCK BACK 1
K 62 DFMD7753WA HOLDER, LED LENS 1
K 63 DFMD7756YA ANGLE-A, BATTERY HOOK 1
K 64 DFMD7757YA ANGLE-B, BATTERY HOOK 2
K 67 DFMX0900ZA SHEET, INSULATING 1
K 68 DFMX0903ZA TAPE 2
K 71 DFMY0276YA RUBBER, HEAT PIPE 1
K 73 DFMY9014ZC HEAT PIPE 1
K 76 DFUS0279ZA GROUND BOARD SPRING-A 1
K 77 DFUS0280ZA GROUND BOARD SPRING-B 1
K 82 DFUW0109ZA SPRING, POWER SWITCH 1

K 84 XTB2+6GFZ SCREW 2
K 86 DXYN3+J10V SCREW 7
K 87 DXSB3+5VL SCREW 7
K 88 DFGB0087ZA-0 BADGE, TOUGH BOOK 1
K 89 DFHG1478XA DAMPER, LCD BACK 1
K 90 DFWV80C0461 ASS'Y, BOTTOM CABINET 1
K 90-01 DFBD0146YA-0 LOCK KNOB, MP 1
K 90-02 DFBE0011ZA-4 EJECT TAB, MP 1
K 90-03 DFHM0234ZA SHEET, MP TAB 1
K 90-04 DFGX0308ZA-0 PAT, BOTTOM BACK, L 1
K 90-05 DFGX0309ZA-0 PAT, BOTTOM BACK, R 1
K 90-06 DXQT2+D25VL SCREW 6
K 90-07 DFHR5848XA MP EJECT 1
K 90-08 DFHR5870ZA MP EJECT GEAR 1
K 90-09 DFHR3012ZA SHEET, MP EJECT 1
K 90-10 DFHR7937ZA MP WATER PROOF SHEET 1
K 90-11 DXYN2+F4V SCREW 2
K 90-12 DFMX0962ZA SPACER, MP LEVER 1
K 90-13 DFKE0058ZA-4 LID, CONFIG 1
K 90-14 DFKF0225YA-4 BOTTOM CABINET 1
K 90-15 DFMD4030ZB-4 EJECTOR, MP 1
K 90-16 DFUQ0061ZBT MP LOCK SPRING 1
K 90-17 DFUW0064YAT MP EJECT SPRING 1
K 90-18 DXQT2+H3FNLT SCREW 1
K 90-19 DFHR3200ZAT SHEET, COVER, BOTTOM CONFIG 1
K 90-20 DFHR3019ZA TAPE, BOTTOM, R 1
K 90-21 DFHR3020ZA TAPE, BOTTOM, L 1
K 91 DFWV80A0327 ASS'Y, TOP CABINET 1
K 91-01 DFBH1080YAT HINGE 6
K 91-02 DFGL0095ZA-0 IrDA PANEL 1
K 91-03 DFGX0273WA-0 CORNER GUARD A 1
K 91-04 DFGX0274WA-0 CORNER GUARD B 1
K 91-05 DFGX0341ZA-0 CORNER GUARD C 1
K 91-06 DFGX0342ZA-0 CORNER GUARD D 1
K 91-08 DXQT2+D25VL SCREW 18
K 91-09 DFHG1130ZAT CUSHION 1
K 91-10 DFHG1533ZA PACKING, MEDIA POCKET 1
K 91-11 DFHG1534ZA PACKING, CARD SLOT 1
K 91-12 DFHM0247ZA-4 LATCH, CARD SLOT LID 1
K 91-13 DFHM0248ZA-4 LATCH, MEDIA POCKET LID 1
K 91-14 DFHR5857ZA-0 LATCH, I/O LID 1
K 91-15 DFHR7922XA CUSHION 1
K 91-16 DFHR7923YA CUSHION 1
K 91-17 DFKE0439ZBT0 SLIDING DOOR 1
K 91-19 DFKE0580YB-4 LID, I/O 1
K 91-20 DFKE0581XA-4 LID, MEDIA POCKET 1
K 91-21 DFKE0582YB-4 LID, CARD SLOT 1
K 91-22 DFKE0583ZA-0 COMM PACK HOUSING L 1
K 91-23 DFKM0409YA-4 TOP CABINET 1
K 91-24 DFMD2109ZBT BACK ANGLE 1
K 91-25 DFMD7751XA PLATE, MEDIA POCKET 1
K 91-26 DFMD7752YA PLATE, CARD SLOT 1
K 91-27 DFUQ0089ZA SPRING 2
K 91-28 DFUQ0084YA SPRING 1
K 91-29 DXSB2+5VL SCREW 4
K 91-30 DFMX0937ZA SHEET, WATERPROOF, TOP CABINET 1
K 91-35 DFHE5104YA SCREW 2
K 92 DFWV80C0460 ASS'Y, REAR CABINET, LCD 1
K 92-1 DFKM0379XA-4 LCD REAR CABINET 1
K 92-2 DFHG1365ZAT LCD SUPPORTER A 1
K 92-3 DFGX0269XB-0 LCD CORNER GUARD A 1
K 92-4 DFGX0270XB-0 LCD CORNER GUARD B 1
K 92-5 DFGX0271YA-0 LCD CORNER GUARD C 1
K 92-6 DFGX0272YA-0 LCD CORNER GUARD D 1
K 92-7 DFHR3021ZB TAPE 2
K 92-8 DFHR3022ZA LCD TAPE B 2
K 93 DFBH1117YA HINGE L 1
K 94 DFBH1118YA HINGE R 1

K 95 DFBS9002XA-4 LCD LATCH 1
K 96 DFGB0070ZA-1 BADGE, PANA 1
K 97 DFHG1476XA DAMPER, LCD SIDE B 1
K 99 DFHG1432ZC-0 RUBBER, ANTENNA WATERPROOF 1
K 100 DFHG1475YA DAMPER, LCD HINGE A 2
K 101 DFHG1488YA DAMPER, LCD HINGE B 2
K 102 DFHP7093ZA SHEET, CONNECT FPC 2
K 105 DFHR7973ZA DAMPER, TAPE, BACK 2
K 106 DFHR7974YA SHEET, INV HOLD 1
K 107 DFMD7772YA PLATE, LCD HOLD 2
K 108 DFMX0383ZA COVER, INSULATION 7
K 109 DFMX0868YA COVER, INSULATION, INV 1
K 110 DFMX0869XA COVER, INSULATION, TS 1
K 111 DFMX0907YA CABLE GUIDE, INV 1
K 112 DFMX0906ZA COVER, TS EXTENSION 1
K 115 DFHG1420ZA RUBBER, ANTENNA 1
K 117 DFMY0278YA SHEET, LCD 2
K 118 DFUW0095ZC SPRING, LATCH 1
K 119 DXYN26+J10V SCREW 14
K 120 DXYN26+J8VL SCREW 2
K 121 DFGT0899ZA RATING LABEL 1
K 122 DFQT9664ZA-1 SEAL, TOUGH BOOK 1
K 123 DXQT2+D25VL SCREW 8
K 124 DFHE5119ZA SCREW 4
K 125 DFHR7955ZA CUSHION, BATT 1
K 126 DFMX0383WA SHEET, INSULATION 2
K 128 DFMX0902ZA SHEET, CPU 1
K 129 DFMX0904ZA SHEET, CONNECT DIMM 1
K 131 DFMY3104ZA ANGLE, CPU 1
K 132 K1NBD6G00002 CONNECTOR, PCMCIA 1
K 133 K1YY68000006 CONNECTOR, PCMCIA 1
K 140 DFHE0450ZA GASKET 2
K 141 DFMD7743YA ANGLE, JACK 1
K 142 DFMD7847YA PLATE, IrDA 1
K 143 DFGT0823ZB SHEET, HEAT 1
K 144 DFMC0689ZA CONDUCTIVE CLOTH, PCMCIA 1
K 145 DFHE5104YA SCREW 1
K 146 DFMC0683ZA GASKET, PCMCIA 1
K 147 DFHR7986ZB MICROPHONE SPACER 1
K 154 DXYN3+J8VL SCREW 4
K 157 DFHG1429YA RUBBER, PACKING 1
K 161 DFHR5886ZA DROP HOLDER, LCD 2
K 162 DFMC0684ZA GASKET, KB 4
K 163 DFHG1480ZA SHEET, L. SENSOR WATERPROOF 1
K 164 DFHE0473ZA GLASS FILTER 1
K 165 DFHR5896ZA HOLDER, L, SENSOR 1
K 166 DFHG1477ZB DAMPER, LCD SIDE C 2
K 167 DXSB26+5VL SCREW 1
K 174 DFHP7107ZA SHEET, WATERPROOF, LED INDICATORS 1
K 177 DFMX0938ZA SPACER, T/PAD 1
K 182 DFHE0241ZA CUSHION, HDD /BATTERY LID 1
K 186 DFHG370ZA RUBBER, FOOT 2
K 189 DFMD7784ZA ANGLE, BATTERY PCB 1
K 197 DFMX1066ZA SHEET, INSULATION 2
K 750 DFMC0772ZA SHEET, LCD EMI 1
K 826 DFMC0693ZA GASKET, LAN 1
K 827 DFMX0921ZA SHEET, INSULATION, LAN 1
K 828 DFHG1468ZA RUBBER, RJ11 PACKING 1
K 830 DFHE0610ZA GASKET 1
K 831 DFHE0611ZA GASKET 1
K 832 DFHE0612ZA GASKET 1
K 833 DFHE0615ZA GASKET 2
K 834 DFHE0612ZA GASKET 1
K 835 DFHE0613ZA GASKET 1
K 836 DFHE0614ZA GASKET 1
K 837 DFHR7952ZA CUSHION, LAN 1
K 838 DFHR7953ZA SHEET, LAN 1
K 839 DFHR7970ZA SPACER, LAN 1

K 840 DFQT9800ZA LABEL, POWER SW 1
K 880 DFHE0618ZA KB INSULATION SHEET 1
K 881 DXSB2+5VL SCREW 3
K 882 DFKE0577ZB-0 COMM PACK HOUSING R 1
K 950 DFHR3310ZA SHEET, MP PAC TOP 1
K 951 DFHR3311ZA SHEET B, MP PAC TOP 1
K 952 DFHG845ZA SHEET 1
K 953 DFHP7139ZA TAPE, CORE 1
K 954 DFHR5922ZA LOCK BLOCK 1
K 955 DFHR3370ZA SPACER, SPEAKER 1
K 956 DFMX0634ZA SHEET, CD EDGE 5
K 957 DXSB26+5VL SCREW 1

Replacement Parts List Comparison Table
CF-28SRJ05KM Q'TY
CF-28S3JGZKM CF-28SRJ05KM
TS12 PCB
CN852 ------------- K1MN08B00073 CONNECTOR 0->1
CN853 ------------- K1KA04B00137 CONNECTOR 0->1
SENSOR PCB
C12456 ------------- ECUV1C104ZFV CAPACITOR, 16V, 0.1µF0->5
C3 ------------- DCUE1C106MBY CAPACITOR, 16V, 10µF0->1
CN1 ------------- DFJP217ZA006 CONNECTOR 0->1
CN2 ------------- K1KA07A00132 CONNECTOR 0->1
IC1 ------------- B3JB00000007 IC, PHOTO 0->1
IC2 ------------- C0DBZHC00014 IC, REGULATOR 0->1
IC3 ------------- DA7ST08U85L0 IC, CMOS 0->1
Q1 ------------- 2SC4081RT107 TRANSISTOR 0->1
R1 4 ------------- ERJ3GEYJ103V RESISTOR, 1/16W, 10kΩ0->2
R2 ------------- ERA3YED221V RESISTOR, 1/16W, 220Ω0->1
R3 ------------- ERA3YED101V RESISTOR, 1/16W, 100Ω0->1
Note: Important Safety Notice
Components identified by mark have special characteristics important for safety.
When replacing any of these components, use only manufacturer's specified parts.
REF. NO. and
AREA DESCRIPTIONPART NO.

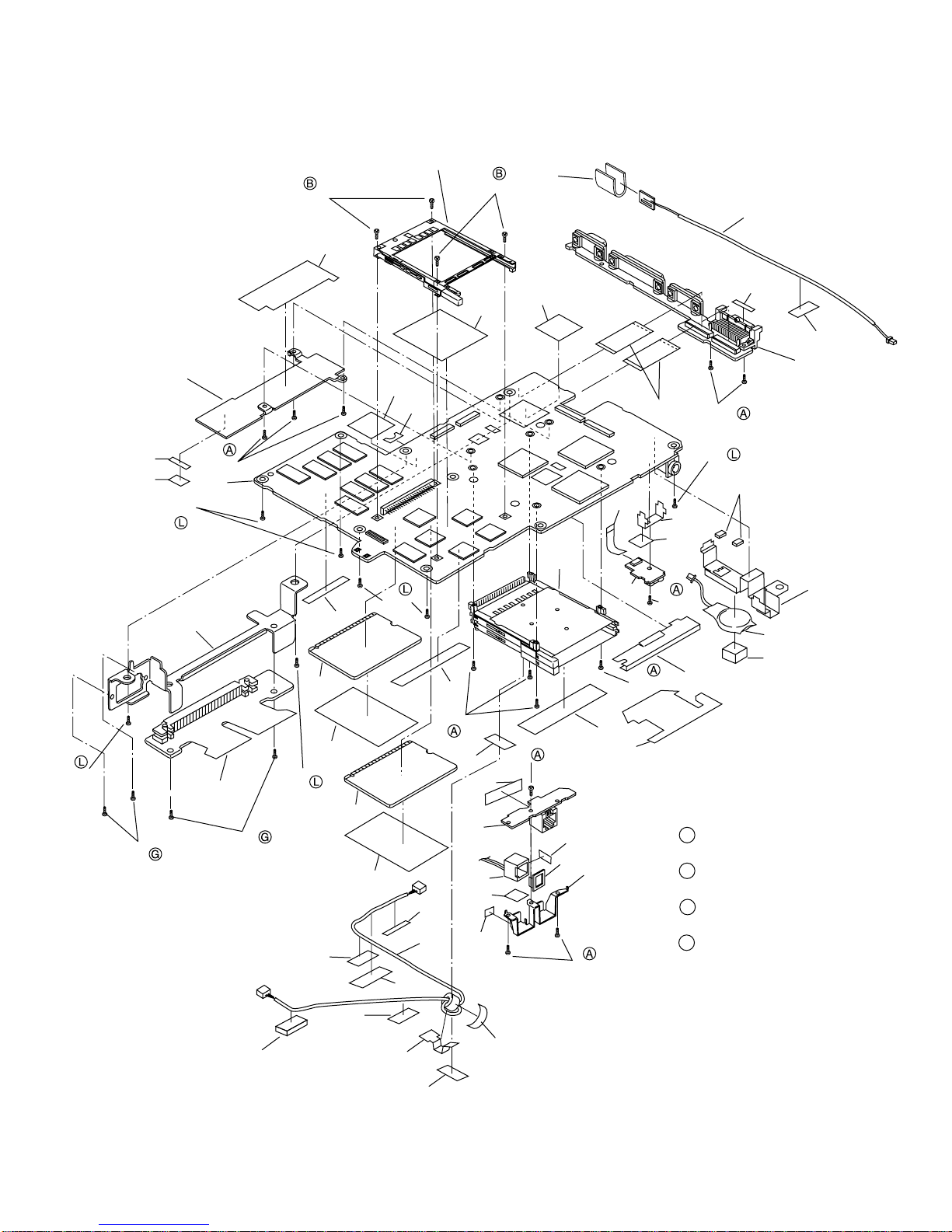

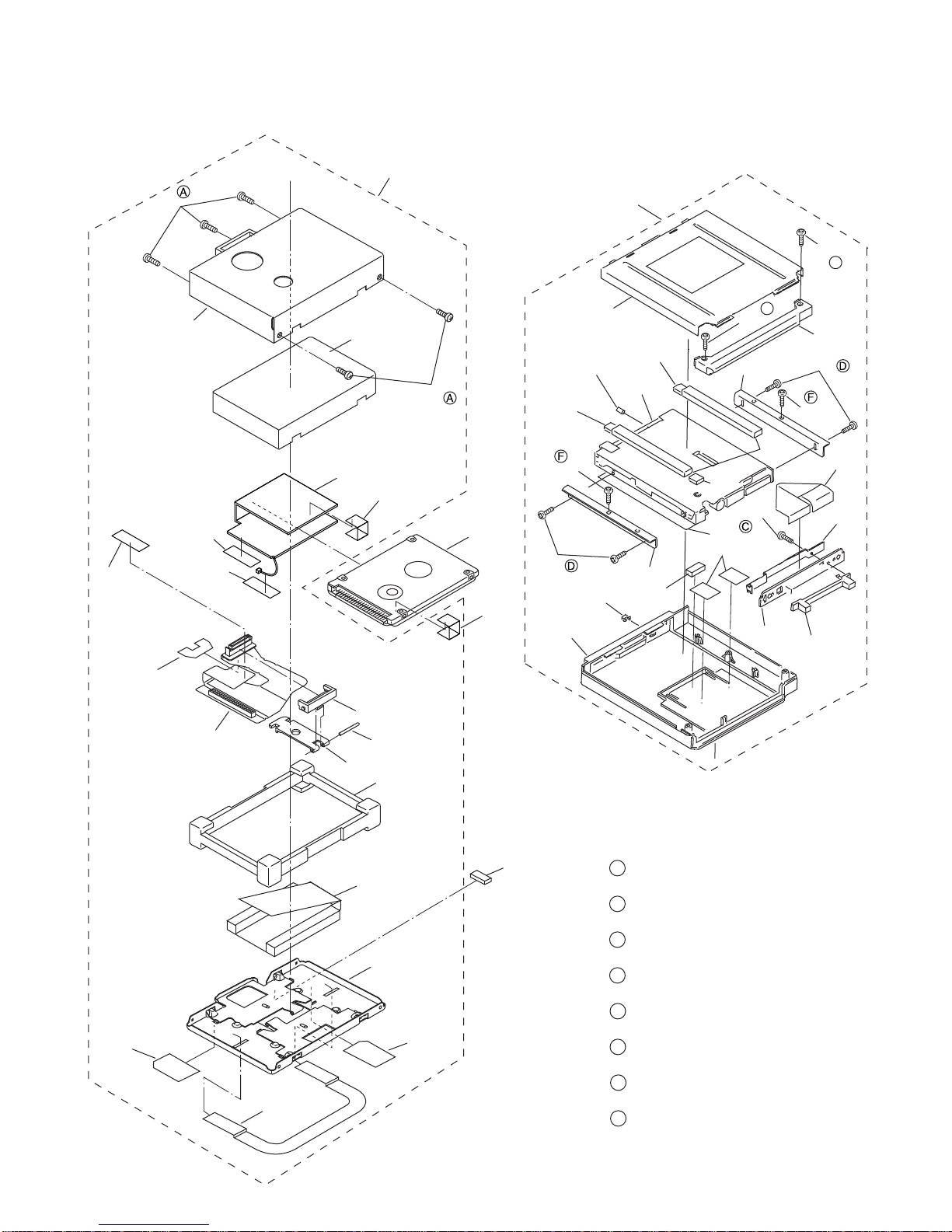

Screw tightening torque
A 0.19 ± 0.02 N.m
(2.0 ± 0.2 kgf.cm)
B 0.12 ± 0.02 N.m
(1.3 ± 0.2 kgf.cm)
C 0.216 ± 0.0196 N.m
(2.2 ± 0.2 kgfácm)
D 0.314 ± 0.0196 N.m
(3.2 ± 0.2 kgf.cm)
E 0.49 ± 0.05 N.m
(5.0 ± 0.5 kgf.cm)
F 0.441 ± 0.049 N.m
(4.5 ± 0.5 kgf.cm)
G 0.11 ± 0.02 Nám
(1.2 ± 0.2 kgf.cm)
M 0.45 ± 0.03 N.m
(4.5 ± 0.3 kgf.cm)
K316
K303
K316
K304
K316
K313
E32
K311
K312
K305
K311
K311
E32-02
K304
K316
K301
K302
K308
K539
K309
K313
K315
E32-03
E32-01
K314
K306
K310
FDD
M
M
K210
K206
E9
K956
K956
E51
K956
K956
K205
K212
K956
E10-01 K204
K203
K202
K207
K540
K211
K213
K213
K208
E10
K123
K123
HDD
CF-28SRJ05KM

K827
E216
K84
K57
K838
E215
K828
K837
K839
K131
K505
K545
K123
K124
K124
K133
K510
K510
K548
K546
K128
E15
E6
K201
K68
K505
E24
K25
E1
E8
K87
K87
K502
K87
K87
K67
E30
K129
E2
K953
K68
K68
E19
K129
K535
K954
K509
K508
K506
K197
K9
K123
K123
K144
K500
K132
K80
K125
E31
K141
K140
K544
K142
K547
K123
E3
K87
PCB
K14
K511
Screw tightening torque
A 0.19 ± 0.02 N.m
(2.0 ± 0.2 kgf.cm)
B 0.12 ± 0.02 N.m
(1.3 ± 0.2 kgf.cm)
G 0.11 ± 0.02 N.m
(1.2 ± 0.2 kgf.cm)
L 0.59 ± 0.05 N.m
(6.0 ± 0.5 kgf.cm)
CF-28SRJ05KM
K826

K5
K77
K835
K836
K840
K834
TOP CABINET
K91
K14
K881
K14
K188
K14
K7
K6
K8
E29 K10
K531
K9
K532
K512
K154
K513
K541
K880
K517 K518
K42
K28
K174
K51
K154
K11
K11 K11
K22
K40
K147
K21
E23
K20
K55
K881
K28
K542
K49
K4
K10
K76
K50
K23
K521
K177
K520
K516
K3
K519
K519
K62
E16
E18
K32
K507
K510
Screw tightening torque
A 0.19 ± 0.02 N·m (2.0 ± 0.2 kgf·cm)
E 0.49 ± 0.05 N·m (5.0 ± 0.5 kgf·cm)
K16
K157
K17
K14
K9
K54
A
A
K14
K14
K10
K55
K18
Screw tightening torque
0.2 ± 0.02 N·m (2.0 ± 0.2 kgf·cm)
K91-10
K91-25
K91-08
K91-08
K91-22
K91-16
K91-03
K91-29
K91-29
K91-27
K91-13
K91-23
K503
K515
K91-05
K91-04 K91-15 K882 K91-21
K91-01
K91-01
K91-08
K91-08
K91-11
K91-26
K551
K91-08
K91-08
K91-12
K91-02
K91-06
K91-29
K91-27
K91-30
K91-35
K91-28
K91-14
K91-08
K91-24
K91-09
K91-17
K91-19
K550
K91-08
K91-01
K91-08
K91-01
K549
K126
K91
K91-20
K91-01
K91-08
K91-01
K91-08
A
A
A
A
A
K951
K950
K957
CF-28SRJ05KM

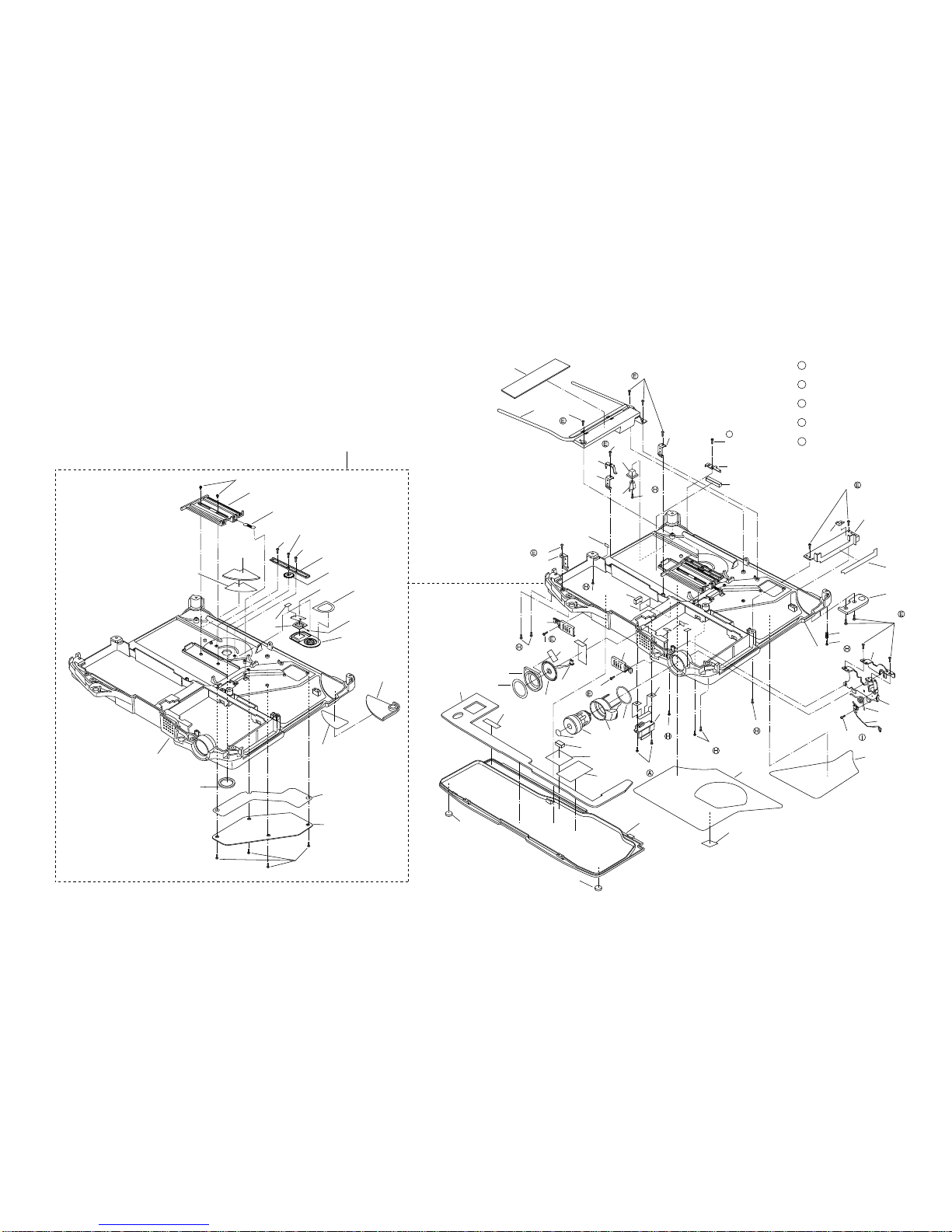

BOTTOM CABINET
K90
K71
K10
K10
K10
K10
K73
K63
K64
K58 K530
K504 K514
K526
K64
K59
K527
K9
K10
K146
K53
K81
K501
K514
K10
K52
K60
K82
E22
K145
K143
K121
K86
K86
K14
E4
K189
K533
K543
K186
K186
K182
K31
K2
K523
K525
K10
K528
E25
E21
K524
K19
K126
K955
K86
K86
K10
K529
Screw tightening torque
A 0.19 ± 0.02 N.m
(2.0 ± 0.2 kgf.cm)
E 0.49 ± 0.05 N.m
(5.0 ± 0.5 kgf.cm)
H 0.89 ± 0.05 N.m
(9.0 ± 0.5 kgf.cm)
I 0.10 ± 0.02 N.m
(1.0 ± 0.2 kgf.cm)
J 0.16 ± 0.02 N.m
(1.7 ± 0.2 kgf.cm)
K86
Screw tightening torque
0.2 ± 0.02 N.m
(2.0 ± 0.2 kgf.cm)
K90
K90-11
K90-07
K90-17
K90-05
K90-20
K90-18
K90-06
K90-06
K90-15
K90-08
K90-03
K90-09
K90-12
K90-01
K90-16
K90-02
K90-04
K90-21
K90-13
K90-19
K90-06
K90-10
K90-14
K534
A
K522
K952
CF-28SRJ05KM
K833
K830
K832
K833
K831

K750
CF-28SRJ05KM
E43-2
E43-2
E43-1
E43-1
K404-3
K404-1
K404-2
K404-6
K404-6
K404-6
K404-6
K404-4
K92-3
K92-4
K92-7
K92-2
K92-1
K92-6
K92-8
K92-8
K92-5
K404-5
