1
Reference Manual
Personal Computer
Model No. CF-W5 Series
We recommend that this Reference Manual be printed.

2
Read Me First
In this manual, “Microsoft®Windows®XP Professional Service Pack 2 with Advanced Security Technologies” is indicated
as “Windows” or “Windows XP.”
In this manual, the following software packages are described as follows:
• “WinDVD™ 5 (OEM Version)” as “WinDVD”
• “B’s Recorder GOLD8 BASIC” as “B’s Recorder”
• “B’s CLiP 6” as “B’s CLiP”
Illustrations and Terminology in this Reference Manual
NOTE NOTE provides a useful fact or helpful information.
CAUTION CAUTION indicates a condition that may result in minor or moderate injury.
Enter This illustration means to press the Enter key.
Fn + F5 This illustration means to press and hold the Fn key, then press the F5 key.
When using with the
Fn key and the Ctrl key functions interchanged, read with the Fn
key and the
Ctrl key reversed.
[start] - [Run] This illustration means to click [start], then to click [Run].
or ⇒These symbols indicate related pages.
: If this is clicked, it will jump to the page corresponding Reference Manual.
⇒: Refer to the Operating Instructions.
xxxx*1 If *1 is clicked, it will jump to a related topic.

3
Using the Touch Pad
Use the Touch Pad to move the cursor on the screen and perform computer operations.
A. Work Surface (Touch Pad)
B. Left Button
C. Right Button
Function Operation
Moving the Cursor Move the tip of your finger lightly over the
work surface.
Tapping/Clicking
tapping or clicking
To right-click: Can only be performed by clicking the right
button.
Double-Tapping/
Double-Clicking
double-tapping or double-clicking
Dragging
Two quick taps, but on the second tap leaving your finger
down (applying pressure) and moving it on the work surface.
or
While holding down the button, moving your finger on the work
surface.
Scroll Trace a circle around the Touch Pad. (page 4)

4
Using the Touch Pad
NOTE
You can change the speed of the double-click or the operations of mouse buttons by clicking [start] - [Control Panel] -
[Printers and Other Hardware] - [Mouse].
There are two ways of scrolling with the Touch Pad: the Touch Pad utility, and the Virtual Scrolling Function. You cannot use
both functions at the same time.
The Touch Pad utility is enabled in the default setting.
The Touch Pad utility (below)
You can scroll continuously by tracing a circle on the Touch Pad.
The Virtual Scrolling function (page 9)
You can scroll vertically (or horizontally) by tracing repeatedly in the desired direction.
You can use separate settings for each account regarding whether to use the Touch Pad utility or the Virtual Scrolling func-
tion.
Using the Touch Pad Utility
You can scroll easily by tracing a circle on the Touch Pad.
NOTE
External mouse drivers cannot be used at the same time as the Touch Pad utility. (page 64)
1Make the following settings to use the horizontal scroll.
Once the settings have been made, it is not necessary to make the same settings the next time.
Scroll
Vertical scroll It can be used in the default setting.
Horizontal scroll A setting is required to use the horizontal scroll.
Vertical scroll The Virtual Scrolling function must be set to enable.
Horizontal scroll

5
Using the Touch Pad
AClick on the notification area, and click [Settings].
When is not displayed:
Click [start] - [All Programs] - [Panasonic] - [Touch Pad utility settings].
If a message appears indicating that the Touch Pad utility is not running, click
[start] - [All Programs] - [Panasonic] - [Touch Pad utility], and display .
BAdd a check mark for [Use horizontal scroll function] in the [General settings]
screen, and click [OK].
2Display the scrollable screen.
3Place the cursor over the area that you want to scroll, and tap (click).
4Remove your finger from the pad, then place your finger in the appropriate area to begin
scrolling.
The finger position on the Touch Pad can be changed using the Touch Pad utility. (page 6) This explanation
assumes in the default setting.
*1 If the horizontal scroll function has not been enabled, the segment shown in the figure above (A) is also included in the area
to begin vertical scrolling.
5Trace a circle around the Touch Pad without lifting your finger from the pad.
The scroll direction can be changed using [Reverse the direction of the vertical scrolling] or [Reverse the direction
of the horizontal scrolling] in the Touch Pad utility. (page 6)

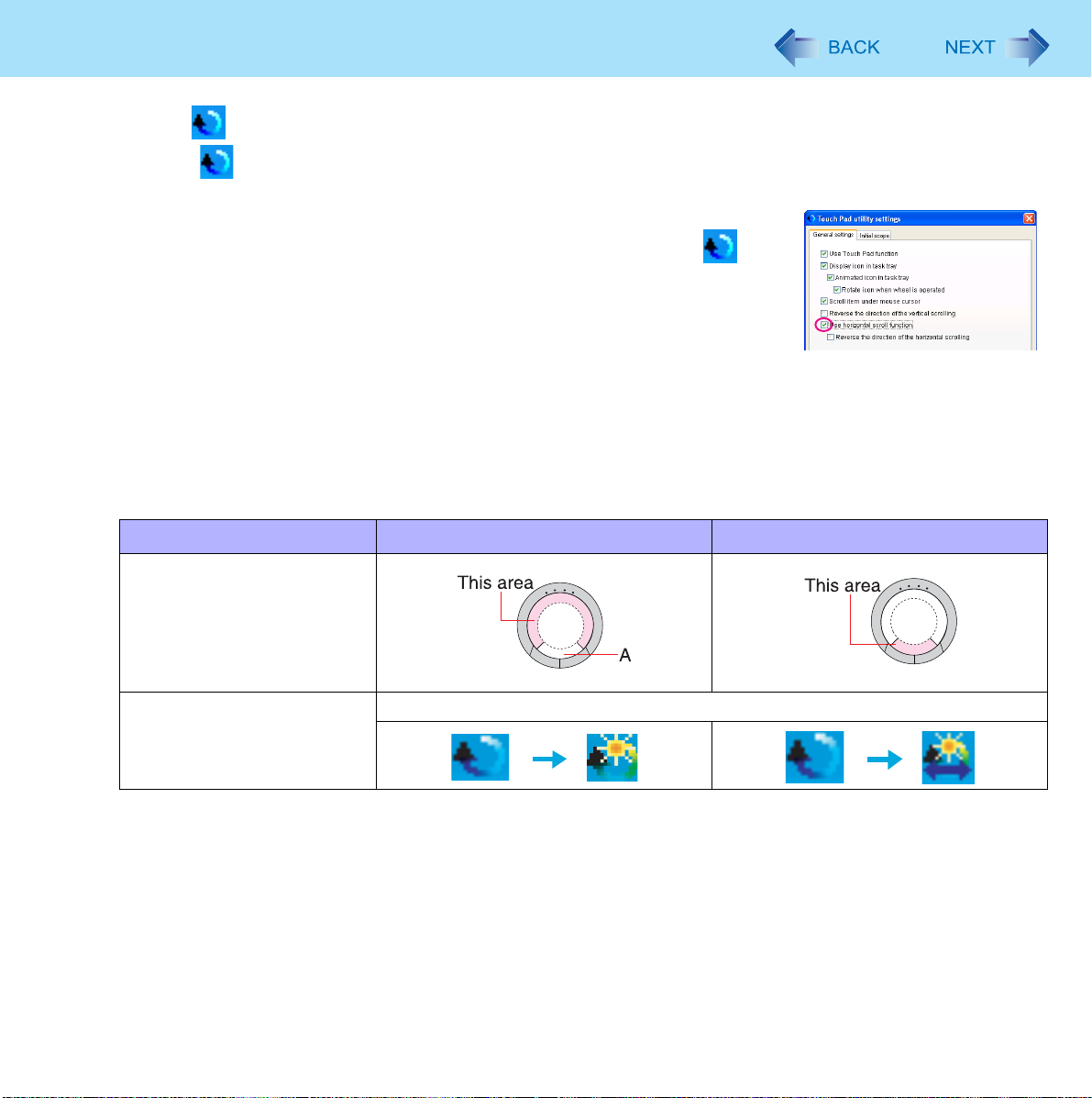

Vertical scroll*1 Horizontal scroll
Position where finger is
placed
Icon on the notification area When you place your finger on the Touch Pad, the icon changes.

6
Using the Touch Pad
*2 When the horizontal scroll function has not been enabled, any scrolling will be vertical scrolling.
The screen will not scroll if you trace toward the center of the Touch Pad.
On screens that cannot be scrolled (e.g., desktop screen), if you scroll, the computer may try to scroll the screen,
causing the cursor to freeze. If this happens, remove your finger from the Touch Pad and begin again, this time
starting from the center of the Touch Pad.
For example, on a screen that will only scroll horizontally, even if you execute a vertical scroll, the screen will
scroll horizontally.
6Once scrolling has begun, continue to trace a circle on the Touch Pad without removing
your finger from the pad.
As long as you are tracing a circle, you can continue scrolling using any position on the Touch Pad.
To scroll in the opposite direction, trace a circle in the opposite direction without removing your finger from the
Touch Pad.
7When you finish scrolling, remove your finger from the Touch Pad.
Change the settings for the Touch Pad utility
1Click on the notification area, and then click [Settings].
When is not displayed:page 5, step1-A
Vertical scroll Horizontal scroll*2
Trace clockwise To scroll down To scroll right
Trace counter-clockwise To scroll up To scroll left

7
Using the Touch Pad
2Change the settings.
General settings
UseTouch Padfunction
(On/Off) If you add a check mark, you can use the Touch Pad function (screen scroll). If you remove the check mark,
the Touch Pad function will be disabled, and will be
displayed on the notification area.
Display icon in task tray
(On/Off) If you add a check mark, the icon will be displayed in the notification area.
Animated icon in task
tray (On/Off) If you add a check mark, the icon will change while scrolling and the finger located within the region which
starts scrolling.
Rotateiconwhenwheel
is operated (On/Off) If you add a check mark, the icon will rotate while you are scrolling.
Scroll item under
mouse cursor If you add a check mark, scroll the region where the mouse cursor is located within the active window.
If you remove the check mark, scroll the selected region
within the active window. In either case, if the mouse
cursor is outside the active window, scroll the selected
region.
Reverse the direction of
the vertical scrolling You can change the direction in which the screen scrolls when you trace the Touch Pad clockwise.
• When check mark is added: Upwards
• When check mark is removed: Downwards
Use horizontal scroll
function (On/Off) If you add a check mark, you can use the horizontal scroll.
Reverse the direction of
the horizontal scrolling When you add a check mark for [Use horizontal scroll function], you can change the direction in which the
screen scrolls when you trace the Touch Pad clockwise.
• When check mark is added: Scroll left
• When check mark is removed: Scroll right
Scroll speed setting You can change the scroll speed.

8
Using the Touch Pad
Initial scope
3Click [OK].
A. Width of the initial
scope By dragging the inner circumference of the starting area, you can change the width of the initial scope (A) in five
stages.
You can also change the width by sliding the [Initial
scope] slide bar.
B. Vertical and
horizontal scroll
initial scope
You can change the initial scope (B) by dragging border
of the vertical and horizontal scroll initial scope. The
maximum starting area for the horizontal scroll is half
the circumference.

9
Using the Touch Pad
Using the Virtual Scrolling Function
Set the Virtual Scrolling function using the following procedure. The Touch Pad utility will be disabled.
1Click on the notification area, and click [Settings].
When is not displayed:page 5, step 1-A
2Remove a check mark from [Use Touch Pad function] in [General settings], and then click
[OK].
3Click [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse] - [Device Set-
tings].
4Click the device name (e.g., Synaptics TouchPad) in [Devices] , then click [Settings].
5Click [Virtual Scrolling], add a check mark for the scroll functions you want to use, then
click [OK].
6Click [OK] at [Mouse Properties].
NOTE
Because the Touch Pad utility and the Virtual Scrolling function both offer scrolling
functions that use the Touch Pad, these two features cannot be used simultaneously.
If you try to use them at the same time, a message may be displayed asking you if
you want to enable the Touch Pad utility.
• To use the Touch Pad utility: Click [Yes]. The Virtual Scrolling function will be
disabled.
• To use the Virtual Scrolling function: Click [No].
You can uninstall the Touch Pad utility using the following procedure.
AClick or on the notification area, and then click [Exit].
BClick [start] - [Control Panel] - [Add or Remove Programs] - [Touch Pad Utility], and then click [Change/Remove] to
remove the program.
To begin using the Touch Pad utility again:
AClick [start] - [Control Panel] - [Add or Remove Programs].
When [Touch Pad Utility] is not displayed, perform the following procedures from step B.
When [Touch Pad Utility] is displayed, perform the following procedures from step C.
BInput [c:\util\touchpad\setup.exe] in [start]-[Run] and then click [OK].
Follow the on-screen instructions.

10
Using the Touch Pad
CConduct steps 3to 4above.
DClick [Virtual Scrolling], remove a check mark from [Enable vertical scrolling] and [Enable horizontal scrolling], then
click [OK].
EClick [OK] at [Mouse Properties].
FClick [start] - [All Programs] - [Panasonic] - [Touch Pad utility settings].
GClick [General settings], add a check mark for [Use Touch Pad function], then click [OK].
Adjust [PalmCheck] and [Touch Sensitivity] using the following procedure:
1Click [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse] - [Device Set-
tings].
2Click the device name in [Devices] (e.g. Synaptics TouchPad), then click [Settings].
3Double-click [Sensitivity], then click [PalmCheck] or [Touch Sensitivity].
4After making the adjustment, click [OK].
PalmCheck™
When operating the keyboard, if your hand touches the Touch Pad unintentionally causing the cursor to move, adjust the
sensitivity using “PalmCheck™.”
• By dragging slide bar to the [Maximum] position, you can prevent the cursor from moving unintentionally.
• By dragging slide bar to the [Minimum] position, you can enable the cursor to move even with a light touch of the palm
on the Touch Pad.
Touch Sensitivity
When operating the Touch Pad, if your finger touches the Touch Pad, unintentionally causing the cursor to move; or if the
cursor does not move even when you move your finger on the Touch Pad, adjust the sensitivity using the “Touch Sensitiv-
ity”.
• By dragging slide bar to the [Heavy Touch] position, the cursor will only move with a strong touch on the Touch Pad.
• By dragging slide bar to the [Light Touch] position, the cursor will move even with a light touch on the Touch Pad.
By design, the Touch Pad is to be used with a fingertip only. Do not place any object on the work surface or press down
forcefully with sharp-pointed objects (e.g., nails) or hard objects that can leave marks (e.g., pencils and ball point pens).
Adjusting the Sensitivity when Touching the Touch Pad
Handling the Touch Pad

11
Using the Touch Pad
Try to avoid having any harmful substances, such as oil, come in contact with the Touch Pad. The cursor may not work
properly in such cases.
When the Touch Pad becomes dirty:
Wipe to remove dirt by using a dry soft cloth such as gauze or a soft cloth first applied with detergent diluted with water
and then thoroughly wrung.
Do not use benzene or thinner, or rubbing alcohol. Doing so may adversely affect the surface, e.g., discoloration. In addi-
tion, do not use commercially available household cleaners and cosmetics, as they may contain components harmful to
the surface.

12
Key Combinations
NOTE
Do not repeatedly press the keys in quick succession.
Do not use the key combinations together with Touch Pad (external mouse) or other key operations.
Do not use the key combinations before you log on to Windows. Wait until the hard disk drive indicator turns off.
On the Setup Utility screen, you can use the key combinations of
Fn + F1 , Fn + F2 and Fn + F3 .
The key combinations may not work with some applications.
The pop-up icon appears after logging on to Windows. It may not appear in some application conditions (e.g., when
[Command Prompt] is set to “Full Screen”).
Key Functions Pop-up Icon
Fn + F1
Fn + F2
LCD brightness
(
Fn + F1 = down / Fn + F2 = up)
You can select a different brightness level setting for when the AC adaptor is con-
nected and for when it is not connected.
(In the default setting, the LCD brightness is set to be darker when the AC adaptor is
not connected.)
NOTE
The brightness of the power indicator changes in keeping with the brightness
level of the internal LCD.
Fn + F3 Display switching (page 61)
(When an external display is connected)
Internal LCD Simultaneous display External display
CAUTION
Do not press any keys until the display has finished switching.
Do not use this function:
• When an external display is not connected.
• When playing motion video such as DVD or MPEG.
• When using the Extended Desktop.
• When showing a game screen such as pinball.

13
Key Combinations
Fn + F4 Speaker on/off
NOTE
Beeps do not sound if you turn off the speaker sound.
You cannot turn off the speaker sound connected to the USB port.
OFF
(MUTE)
ON
Fn + F5
Fn + F6
Volume
(
Fn + F5 = down / Fn + F6 = up)
NOTE
This does not work on beeps or speakers connected to the USB port.
Fn + F7 Activate standby (page 27)
Fn + F9 Remaining battery power page 16
Fn + F10 Activate hibernation (page 27)
Fn + NumLk Run the ScrLk (Scroll Lock) function
The functions differ depending on the application software.
Fn + Home Lead to the last page or move the cursor to the end of the current line (End)
Fn +  Move the back page (PgUp)
Fn +  Move the next page (PgDn)
Key Functions Pop-up Icon

14
Key Combinations
You can make two settings:
•Fn key lock
When you press
Fn , the key is locked (pressed-down) until you press another key. Use this when pressing difficult key
combinations.
• Pop-up icon on/off
1Start up the Hotkey Settings.
Click [start] - [All Programs] - [Panasonic] - [Hotkey Settings].
2Make the settings.
[Use Fn key lock]
When using an
Fn key combination
APress
Fn once. (Locked)
BPress another key. (Lock released)
When using successive
Fn key combinations
APress
Fn twice. (Locked)
BPress another key.
Fn key remains locked until you press
Fn again.
[Notification]
[Make sounds when Fn key is pressed]*1
[Show status on screen]: Displays the Fn key status on the notification area.
•:
Fn is locked.
•:
Fn is not locked.
[Disable popup]
The Pop-up icon will not be displayed.
3Click [OK].
NOTE
You can have different settings for each user.
*1 If the speakers are muted, beeps do not sound.
Hotkey Settings

15
Battery Power
[Important Tips] (On-Line Manual)
[Important Tips] provides information on how to maximize use of the battery pack, which is necessary for computing away
from your home or office.
See [Important Tips] using one of the following methods.
• Double-click on the desktop.
• Using the [start] menu.
AClick [start] - [All Programs] - [Panasonic].
BSelect [On-Line Manuals] or [Battery], and click [Important Tips].
Tips about the Battery Pack
Checking the Battery Status
Battery Indicator Battery Status
Not lit Battery pack is not connected or no charging.
Orange light on /
flashing*1*2 Charging in progress.
If [Battery Charging Indicator] in the [Main] menu of the Setup
Utility is set to [Flashing], the indicator will alternately become
lighter and darker (Flashing) (page 80).
Green*1 Fully charged.
Red The remaining battery power approximately 9% or less.
Blinking red*1 Battery pack or charging circuit may not be working properly.
Quickly save your data and power off your computer.
Remove the battery pack and disconnect the AC adaptor,
then connect them again. If the problem persists, contact
your technical support office. The battery pack or charging
circuit may be defective.
Blinking orange*1*2 The battery cannot be charged temporarily due to the follow-
ing reasons:
Its internal temperature is out of the acceptable range.
The power supply is not enough because software appli-
cations or peripheral devices are consuming a large
amount of power.

16
Battery Power
*1 When the AC adaptor is connected.
*2 The orange display light has three modes: on, flashing and blinking. Note the difference between flashing and blinking.
NOTE
Once the battery is fully charged, the computer performs recharging only when the remaining battery power becomes
less than approximately 95% (75% when Economy Mode (ECO) is enabled), so overcharging is avoided.
There are three methods to check the remaining battery power.
To check the remaining battery power on the screen
(After logging on to Windows)
1Press Fn + F9 .
To check the remaining battery power and remaining time using the Windows
Power Meter
(After logging on to Windows)
1Double-click on the notification area when the AC adaptor is not connected.

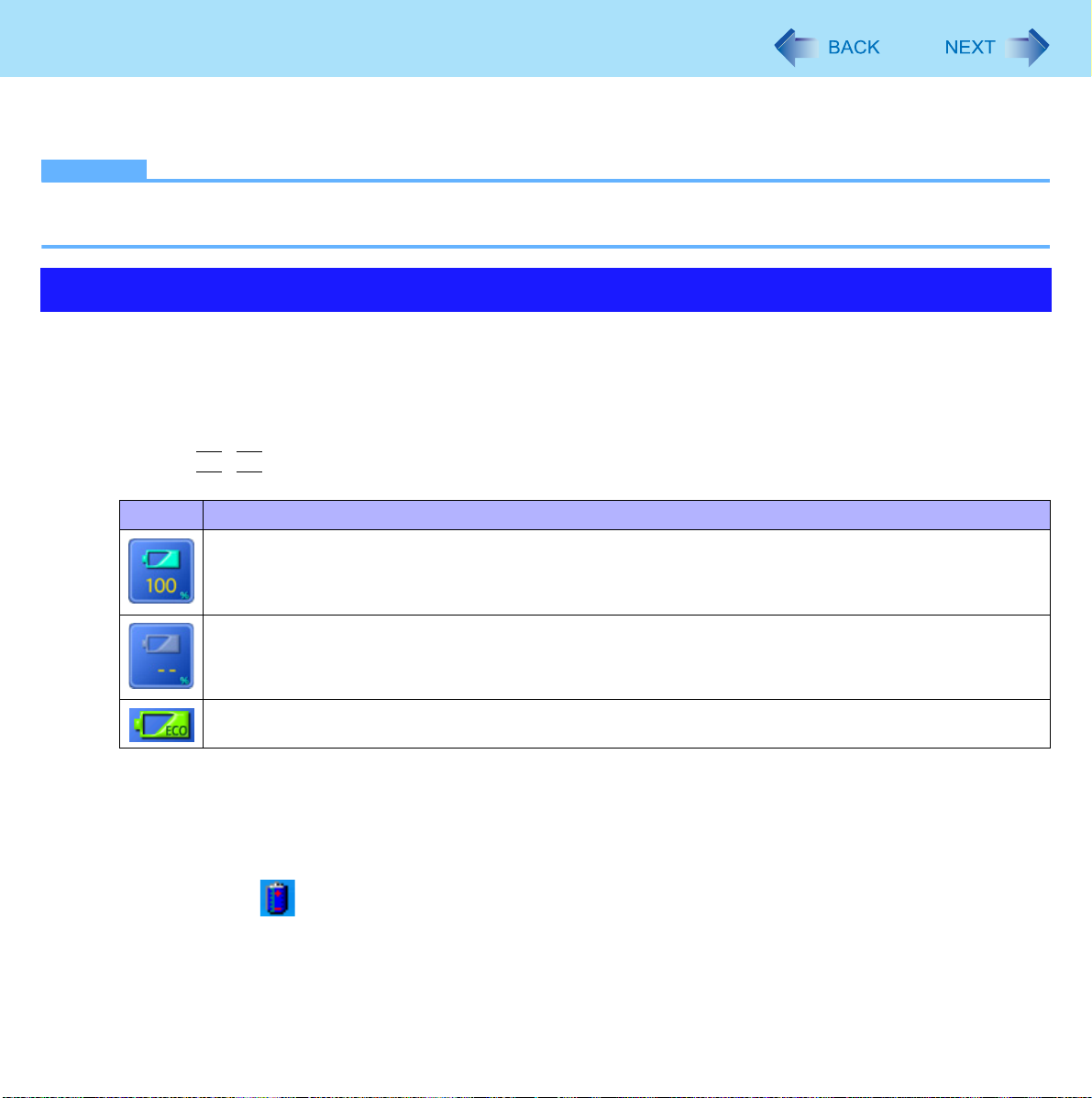

Checking the Remaining Battery Power
Display Condition
When the battery pack is inserted (example)
When the battery pack is not inserted.
[ECO] is displayed when Economy Mode (ECO) is enabled.

17
Battery Power
NOTE
The battery display may not correspond to the actual remaining battery power in the cases as below. To correct the
display, perform the Battery Recalibration (page 20).
• The battery indicator remains red.
• The battery indicator lights orange and the display shows 99% for a long time (79% when Economy Mode (ECO) is
enabled).
• Low battery warning appears soon after a short time of use.
This can occur when the computer is in standby for a long time without power supply from the AC adaptor.
The battery display may not be the same as that of [Power Meter] in [Power Options Properties]. This is not a malfunc-
tion.
To check the remaining battery power using the battery indicator
(When the power is off or in standby or hibernation)
1Close the display and confirm that the latch is locked.
2Disconnect the AC adaptor.
3Slide the power switch (A) and confirm the battery indicator (B).
Battery Indicator (B) Remaining Battery Power
Red 0 % - 4 %
Blinking orange 5 % - 19 %
Orange 20 % - 49 %
Blinking green 50 % - 94 %
Green 95 % - 100 %

18
Battery Power
Computer behavior with low battery
The default settings are as follows.
When the remaining battery power becomes 10%
[Low battery alarm] When the remaining battery power becomes 5% [Critical battery alarm]
Displays a message that the remaining battery power is
low. Displays a message that the remaining battery power is low, and then the computer enters hibernation.
↓↓
Charge the battery. Connect the AC adaptor or replace the battery to start up
the computer.
Connect the AC adaptor immediately. If you do not
have the AC adaptor, exit the running programs and
Windows, then confirm that the power indicator is off.
If you have a fully charged spare battery, turn off the
computer, replace the battery and turn the computer on
again.
Connect the AC adaptor and charge the battery.
If you have a fully charged spare battery, turn off the
computer, replace the battery and turn the computer on
again.
When the computer enters hibernation with the battery
down and you resume the operation without charging
the battery, Windows may not start up normally or the
alarm function may not operate normally from then on.
Do not replace the battery pack when the computer is in standby.

19
Battery Power

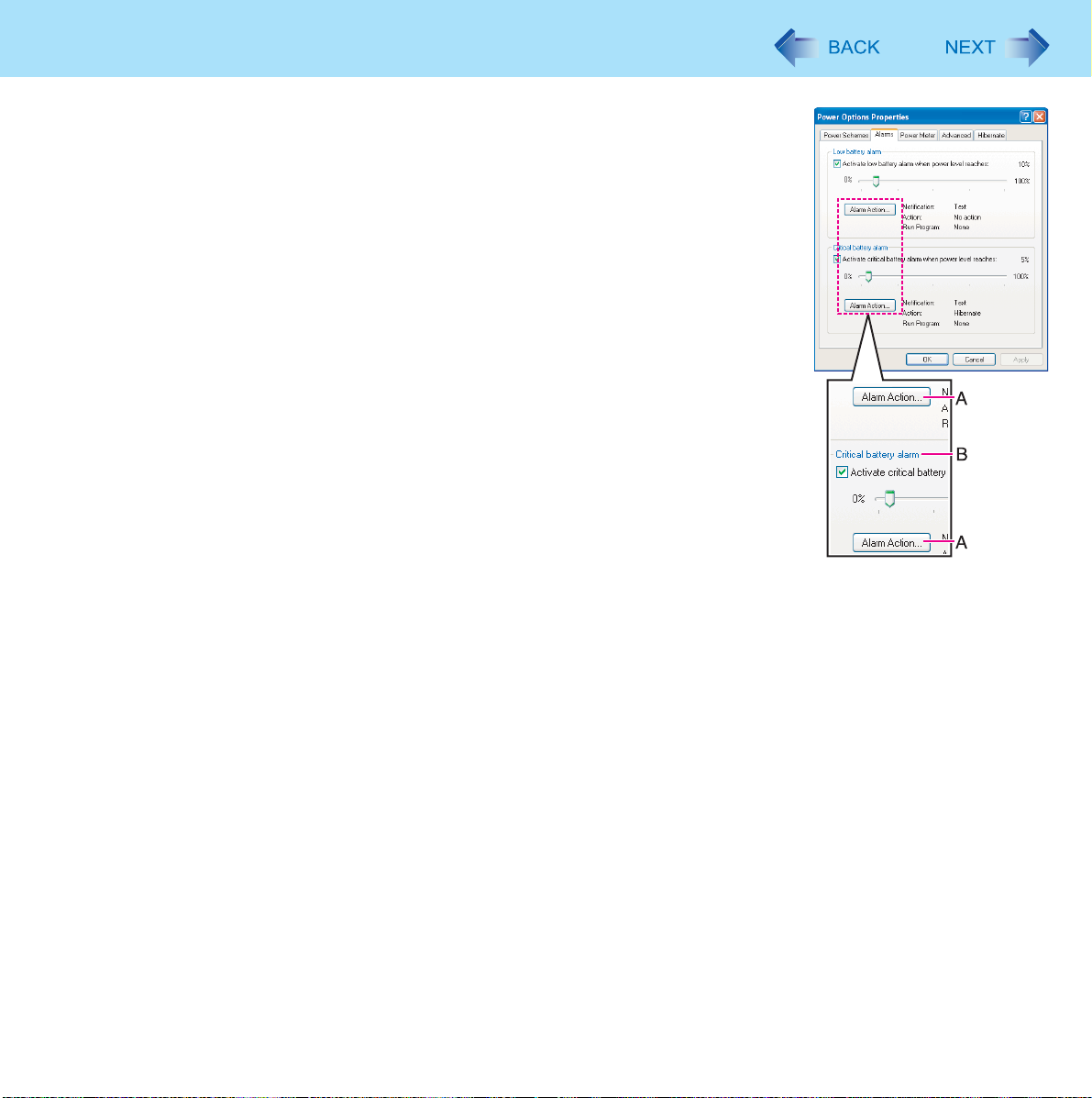

We recommend that you become familiar with alarm settings to become aware when battery
power is low.
A. When making a setting for [When the alarm goes off, the computer will] in [Alarms] -
[Alarm Action]:
Add a check mark for [Force stand by or shutdown even if a program stops
responding].
B. Set the value for [Critical battery alarm] to 5% or more.
This is necessary for the standby or hibernation to be completed (assuring data is
saved) when the remaining battery power is low.

20
Battery Power
The “Battery Recalibration” function measures and memorizes the battery capacity. To correct the battery display, use this
function to fill the battery and then discharge it completely. Perform the procedure at least once immediately after purchasing
the computer. Normally the interval of “Battery Recalibration” is three months. The battery display may not be correct when
the battery pack deteriorates after a long time use. In this case, perform the procedure again.
1Connect the AC adaptor.
2Close all the applications.
3Perform “Battery Recalibration”.
AClick [start] - [All Programs] - [Panasonic] - [Battery] - [Battery Recalibration].
BWhen the confirmation message appears, click [Start].
Frequent recalibration of the battery can degrade the battery. A caution message appears when the “Battery
Recalibration” is performed at the shorter interval than approximately a month. In this case, cancel the “Bat-
tery Recalibration”.
CWhen the message requests shut down of Windows, click [Yes].
The “Battery Recalibration” starts.
After the battery pack is fully charged, discharging starts. When the discharging is completed, the power goes off
automatically.
After the “Battery Recalibration” is finished, normal charging starts.
CAUTION
Do not close the LCD while “Battery Recalibration” is being executed.
NOTE
The temperature range should be 10°C to 30°C {50°F to 86°F}.
The “Battery Recalibration” may take a long time due to the large battery capacity. This is not a malfunction.
• Full charge: Approximately 5 hours [MAX]
• Complete discharge: Approximately 5 hours
“Battery Recalibration” does not increase the battery’s capacity. If “Battery Recalibration” is executed frequently, dete-
rioration of the battery may result.
If you have two or more battery packs, perform the “Battery Recalibration” for each battery pack.
If the computer is turned off during the “Battery Recalibration” (e.g., due to power failure, or accidental removal of the
AC adaptor and battery pack), the “Battery Recalibration” will not be completed.
You can also perform the “Battery Recalibration” with the following procedure.
ARestart the computer.
Correcting the Battery Display (Battery Recalibration)
