Panasonic CF-Y4 - Batt For User manual

ORDER NO. CPD0512063C1
Personal Computer
CF-Y4
Model No. CF-Y4HWPZZ 1 2
1
: Operation System
B:Microsoft
® Windows® XP Professional
2
: Area
M: Refer to above area table
This is the Service Manual for
the following areas.
M …for U.S.A. and Canada
© 2005 Matsushita Electric Industrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation of law.

LASER SAFETY INFORMATION
For U.S.A
Class 1 LASER-Product
This product is certified to comply with DHHS Rules 21 CFR Subchapter J.
This product complies with European Standard EN60825 (or IEC Publication 825)
For all areas
This equipment is classified as a class 1 level LASER product and there is no hazardous LASER radiation.
Caution:
(1) Use of controls or adjustments or performance of procedures other than those specified herein may result
in hazardous radiation exposure.
(2) The drive is designed to be incorporated into a computer-based system or unit which has an enclosing
cover. It should never be used as a stand alone drive.
Danger:
The serviceman should not remove the cover of drive unit and should not service because the drive unit is a
non-serviceable part.
Please check DANGER label on bottom cabinet of the equipment.
.Unplug the AC power cord and remove the battery pack from the equipment before opening the top cover of
the drive.
.When the power switch it on, do not place your eyes close to the top cover to look into the interior of the unit.
LASER Specification
Class 1 level LASER Product
Wave Length: DVD 650 660 nm
CD 778 787 nm
Laser safety information is appropriate only when drive with laser is installed.

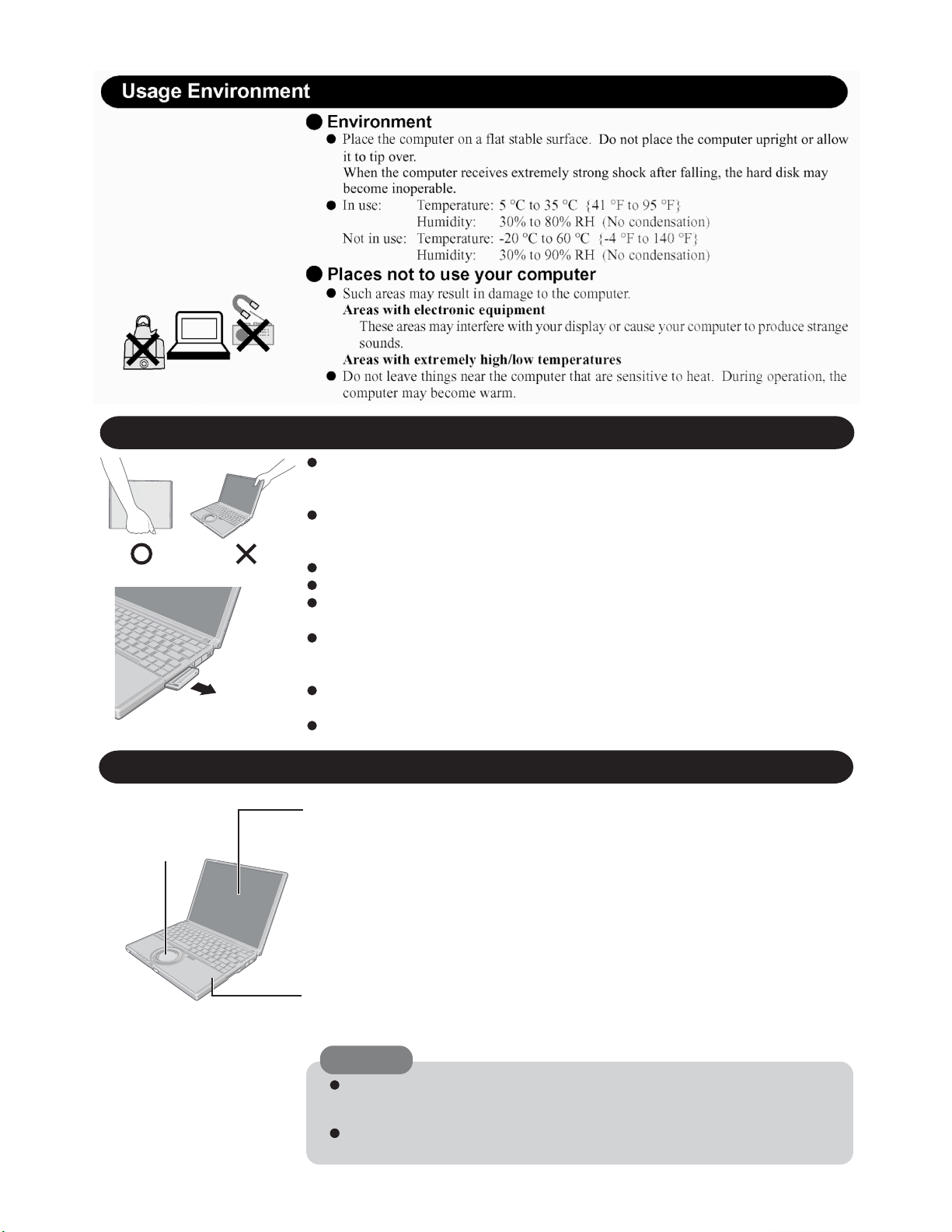

Handling
This computer has been designed so as to minimize shock to the LCD and hard disk drive, etc.,
but no warranty is provided against such trouble. Therefore, as a precision instrument, be
extremely careful in the handling.
Do not carry the computer while the display is open, or carry it by gripping the display or the
cabinet around the display (see figure A). When closing the display, ensure that the latch is
positioned correctly in the slot .
Do not carry your computer when the power is on.
Do not drop or hit your computer against solid objects.
Remove all external devices, cables, PC Cards sticking out of the computer (see figure B),
SD memory cards, and MultiMedia Cards before transporting the computer.
We recommend preparing a fully charged battery pack.
When transporting a spare battery pack inside a package, briefcase, etc., it is recommended
that it be placed in a plastic bag so that its contacts are protected.
Always carry your computer with you. Never check it in with luggage. For use of the com-
puter inside an aircraft, we recommend asking the airlines regarding their policy on this issue.
It is a good idea to make backup copies on disks and carry them with you.
A
B
Touch Pad
Display
Avoid using water when cleaning the panel. Ingredients included in water may leave scratches
and reduce readability of the screen.
<When cleaning dust/dirt>
Avoid rubbing off dust/dirt with cloth since it may leave scratch on the screen.
Sweep dust/dirt with fine brush, then wipe it with a dry soft cloth used for cleaning glasses.
<When cleaning oily surface>
Apply camera lens cleaner on a soft gauze and clean it with gentle force. Then, wipe with a
dry soft cloth used for cleaning glasses.
Areas excluding the display
Wipe these areas with a soft cloth, after applying water or detergent diluted with water to the
soft cloth and firmly wringing out excess water.
Maintenance
Do not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect the
surface, e.g., discoloration. In addition, do not use commercially-available household
cleaners and cosmetics, as they may contain components harmful to the surface.
Do not directly add or spray water or detergent. If liquid enters the inside of the
computer, it may cause it to work improperly or be damaged.
CAUTION

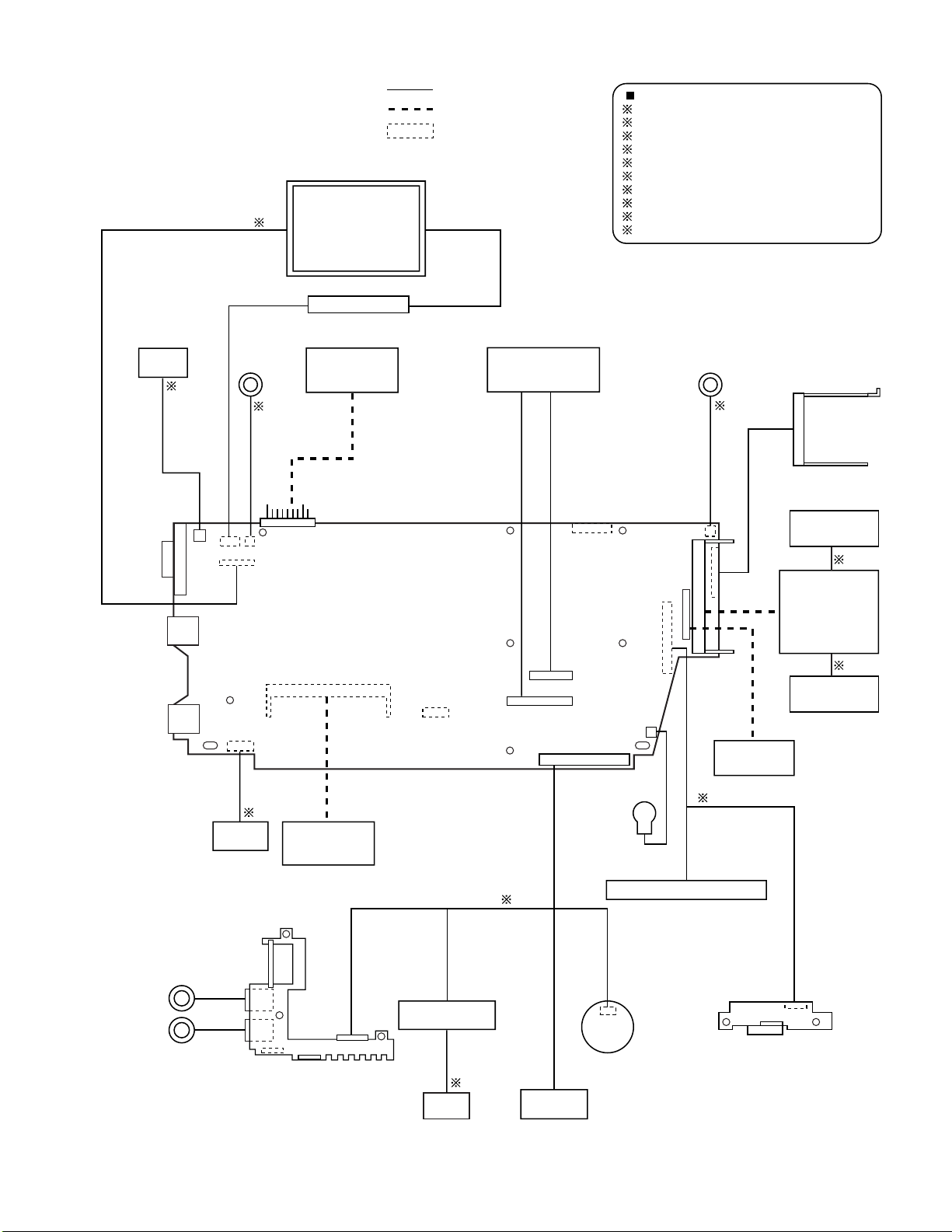

1 Connection Diagram
CN6
VGA
USB
USB
CN24
CN8
CN23
CN9
CN11
CN14
CN27
CN4
CN35
CN34
CN36
CN31
CN29
CN15
CN12
CN14
CN920
SW920
CN910
SW910 SW911
CN26
CN1
CN25
CN7
JK911
JK910
Litiuim Battery
Battery
ack
Touch ad
LCD
Inverter Board
DC
Jack
CF Slot I/F
(Option)
SD Card Slot
Card Bus Ejector
LAN
KeyBoard
Main Board
Open SW & Jack Board
owerSW Board
HDD
Headphone
Mic
DIMM Memory
(Option)
Wireless LAN
Module
Antenna
Board L
Antenna
Board R
Speaker L Speaker R
MODEM
CF-BAV0256U
CF-BAV0512U
CN911
DVD-ROM & CD-R/RW Drive
Connection Cable
1
2
3
4
5
6
7
8
9
10
DFU 1368YA
DFJS893YA
DFJS897ZA
DFJS898ZA
DFJS878YB
DFJS895ZA
DFJS896YA
DL3U 1470GBW
DFJS899ZA
DFJS900ZA
SW-DVD-MAIN F C
LCD Cable
Speaker Cable L
Speaker Cable R
DC-IN Cable
LAN Cable
Modem Cable
AD-HDD-MAIN F C
Antenna Cable L
Antenna Cable R
Connection by Cable
Direct connection by Connectors
arts on Bottom Side
1
8
9
10
4
3
5
2
7
6
MDC MODEM
1-1

2 Disassembly & Reassembly Instructions
2.1. Disassembly Flowchart
· The chart below shows the various parts which should be removed in order to remove the parts that are to be replaced.
· Parts can be replaced efficiently by following the disassembly steps in the chart.
Disassembly in LCD Block
LCD Front Ass’y/
Hinge(L), (R)
LCD Unit
Inverter Board
Main Unit
Main Unit
Display Unit
1. End the Windows.
2. Turn off the ower and, then remove the AC Adaptor or Battery ack.
3. Remove any optional DIMM Memory Cards or CMCIA Cards.
4. Remove any other peripherals or Connected Devices.
reparations
2.2.1
Keyboard Ass’y
2.2.2
Bottom Case Ass’y
2.2.3
2.2.14
2.2.15
2.2.16
HDD
2.2.5
DVD-ROM & CD-R/RW Drive /
ower SW Board
2.2.9
Latch Knob
2.2.8
Open SW
&
Jack Board
2.2.7
F C
( AD-HDD-MAIN)/
Touch ad
2.2.11
MDC
Modem Board
2.2.6
LCD Block
2.2.4
Antenna Board
(L), (R)
Speaker
(L), (R)
Main Board /
Wireless LAN Module
2.2.10
2.2.12 2.2.13
Main replaceable parts
2.2.1
2.2.2
2.2.3
2.2.4
2.2.5
2.2.6
2.2.7
2.2.8
2.2.9
2.2.10
2.2.11
2.2.12
2.2.13
2.2.14
2.2.15
2.2.16
AC Adapter
Battery ack
DIMM Cover Ass’y
Keyboard Ass’y
Bottom Case Ass’y
Side Covers (L), (R)
LCD Block
HDD
HDD F C Unit
HDD Case
MDC Modem
Open SW & Jack Board
ower Knob
Jack & HDD Angle
Latch Knob
Latch Spring
DVD-ROM & CD-R/RW Drive
Disk Knob
Disk Knob Spring
Disk Cover Lock Angle
F C (Drive)
ower SW Board
Main Board
Wireless LAN Module
Card Bus Ejector
DC-IN Jack
F C ( AD-HDD-MAIN)
Touch ad
ad Ring
ad Button
Antenna Board (L), (R)
Antenna Cable (L), (R)
Speaker (L), (R)
LCD Front Ass’y
Hinge Cover (L), (R)
Hinge (L), (R)
LCD Unit
LCD Rear Cabinet
LCD Rear Cover
LCD Cable/
Inverter Cable
Inverter Board
2-1

2.2.1. Preparations
· Before disassembly, be sure to perform the following
steps.
1. End the Windows.
2. Turn off the power, and remove the AC Adapter.
3. Slide the two Hooks (A) of the Battery Pack toward the
inside, and remove the Battery Pack.
4. Remove Screw (A), and then remove the DIMM Cover
Ass’y.
Screw (A):XSB2+4FNL
5. If the optional DIMM Memory is provided, remove it. Also
disconnect any connected devices.
Hook (A)
Battery ack
DIMM Cover Ass'y
Screw (A)
2.2.2. Removing the Keyboard Ass’y
· Preparation: Make sure that the steps in section 2.2.1
have been taken first.
1. Remove the six Screws (B).
Screw (B): DXHM0039ZA
Screw (B)
Screw (B)
Screw (B)
Bottom Cover Ass'y
2. perate the Open Button of the LCD Unit, and open the LCD
Block to an angle of 90 degrees or more.
Release the four hooks of the LCD Unit and the two hooks,
one at the left and one at the right, by inserting a
regularslot-head watch screwdriver into them.
3. Lift up the Keyboard from the LCD, and turn it over on the
Top Case Ass’y.
4. Disconnect the FFC (Keyboard) from connectors
(CN34)/(CN35), and then remove the Keyboard Ass’y.
CN34
CN35
Keyboard Ass'y
LCD Block
Hook
LCD Latch Knob
Top Case
2.2.3. Removing the Bottom Case Ass’y
· Preparation: Make sure that the steps in sections 2.2.1
and 2.2.2 have been taken first.
1. Remove Screw (C).
Screw (C): DFHE5025XA
2. Remove the nine Screws (D).
Screw (D): DXHM0057ZA
Screw (C)
Screw (D)
Screw (D)
Screw (D)
Screw (D)
Screw (D)
Bottom Case Ass'y
2.2. Disassembly
2-2

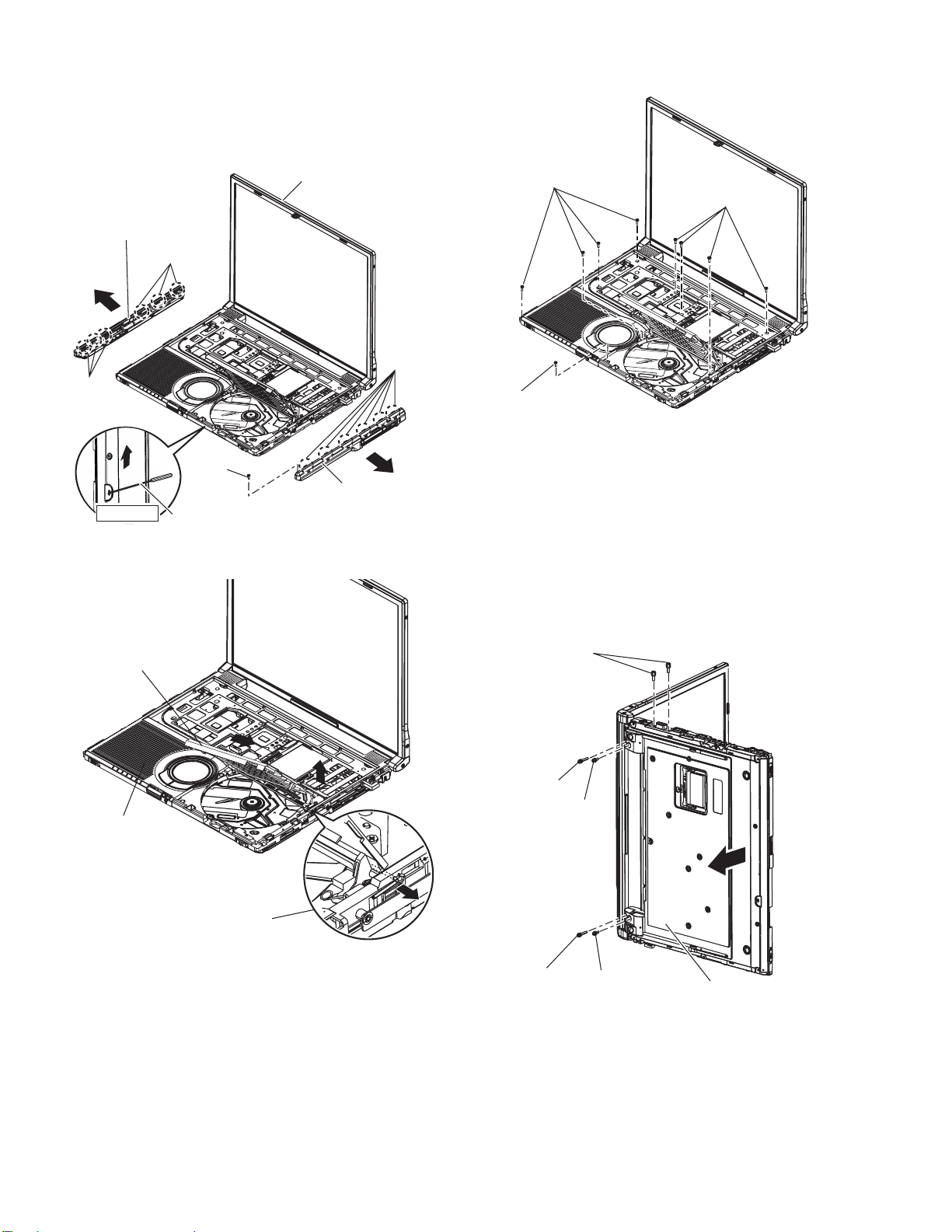

3. Operate the Open Button of the LCD Unit, and open the
LCD Block to an angle of 90 degrees or more.
4. Remove the Screws (E) and the six Hooks, and then
remove the Side Cover (R).
Screw (E): DRQT2+G6FKL
5. Remove the six Hooks, and remove the Side Cover (L).
Back side
A
Side Cover (R)
Side Cover (L)
LCD Block
Hook
Hook
Hook
Slot-head watch screwdriver
Screw (E)
6. Remove the Disk Cover Shaft from the Disk Cover.
Disk Cover Shaft
Top Case Ass'y
Disk Cover Ass'y
7. Remove the nine Screws (F) of the Top Case Ass’y.
Screw (F): DRQT2+G6FKL
Screw (F)
Screw (F)
Screw (F)
8. Set the Main Unit upright with its DVD-ROM & CD-R/RW
Drive side facing down.
9. Remove the two Hexagonal-head Screws (G) of the VGA
connector.
Hexagonal-head Screw (G): DFHE5035ZB
10. Remove the two Screws (H) and two Screws (J) of the LCD
Block, and then remove the Bottom Case Ass’y.
Screw (H): XTB26+10GFN
Screw (J): DXYN3+J5FNL
Hexagonal-head
Screw (G)
Screw (H)
Screw (J)
Screw (J)
Screw (H)
Bottom Case Ass'y
2-3

2.2.4. Removing the LCD Block
· Preparation: Make sure that the steps in sections 2.2.1
to 2.2.3 have been taken first.
(The entire unit is now standing upright with the LCD
Block open at a 90-degree angle.)
1. Disconnect the LCD Cable from the connector (CN8) on the
Main Board.
2. Disconnect the Inverter Cable from the connector (CN11).
3. Remove the LCD Hook, lift the front end of the Top Case
Ass’y using the hinge as a fulcrum, and move the LCD
Block from the Top Case Ass’y in the direction of the arrow
to remove it.
Conductive
Cloth
Hinge
LCD Block
Top Case Ass'y
CN8
CN11
*The Conductive Cloth cannot be re-used.
Use a new one instead.
2.2.5. Removing the HDD
· Preparation: Make sure that the steps in sections 2.2.1
to 2.2.4 have been taken first.
1. Remove the HDD by lifting it and disconnecting the HDD
Flexible Connector.
HDD
HDD Case
HDD Flexible Connector
Bottom Case Ass'y
F C
* Take care to avoid bending the connecting pins on the
HDD side when disconnecting the HDD Flexible Connecor.
2.2.6. Removing the MDC Modem Board
· Preparation: Make sure that the steps in sections 2.2.1
to 2.2.5 have been taken first.
1. Remove the two Screws (K).
Screw (K): DXHM0056ZA
2. Disconnect the MDC Board Block from the Pad/HDD FPC
connector.
3. Peel off the tape, disconnect the Modem Cable, and
remove the Modem Jack.
Screw(K) Modem Cable
MDC Modem Board
Tape
Modem Jack
Top Case Ass’y
2.2.7. Removing the Power SW & Jack
Board
· Preparation: Make sure that the steps in sections 2.2.1
to 2.2.5 have been taken first.
1. Remove the two Screws (L), and remove the HDD Angle.
Screw (L): DXHM0056ZA
2. Disconnect the FPC (HDD/Angle) from the connector
(CN910).
3. Remove the Screw (M), and remove the LED/Power Board.
Screw (M):DXHM0056ZA
CN910
Screw (M)
Open SW
& Jack CB
ower Knob
Jack HDD Angle
Screw (L)
2-4

2.2.8. Removing the Latch Knob
· Preparation: Make sure that the steps in sections 2.2.1
to 2.2.5 have been taken first.
1. Remove the LCD Knob Spring.
2. Remove the Screw (X), and remove the Latch Knob from
the Top Case Ass’y.
Screw (X): DXHM0064ZA
Latch Knob
Latch Spring
Screw (X)
2.2.9. Removing the DVD-ROM & CD-
R/RW Drive and Power SW
· Preparation: Make sure that the steps in sections 2.2.1
to 2.2.4 have been taken first.
1. Remove the Spring for Disk Knob.
2. Remove the Disk Cover Lock Angle.
3. Disconnect the FPC (DVD-ROM & CD-R/RW Drive) from
the connector (CN920).
4. Disconnect the FPC (DVD-ROM & CD-R/RW Drive) from
the connector (CN4).
5. Peel off the Conductive Cloth from the Top Case Ass’y.
6. Remove the two Screws (N) and Screw (P), and remove the
CD/DVD Drive.
Screw (N): DXHM0057ZA
Screw (P): DXHM0064ZA
Spring for Disk Knob
Disk Cover Lock Angle
CN4
Screw ( )
Screw (N)
Screw (N)
ower SW & DVD F C
Conductive Cloth
CN920
* The Conductive Cloth cannot be re-used.
Use a new one instead.
7. Remove the Screw (Q), and remove the Drive/Open Board.
Screw (Q): DXHM0056ZA
Screw (Q)
ower SW Board
CN920
Drive Knob
Top Case Ass'y
SW920
2-5

2.2.10. Removing the Main Board/Wireless
LAN Module
· Preparation: Make sure that the steps in sections 2.2.1
to 2.2.4 have been taken first.
1. Remove the two Screws (R) and two Screws (S) of the Card
Bus Ejector.
Screw (R): DXHM0056ZA
Screw (S): DXHM0049ZA
2. Disconnect the Speaker Cables (L) and (R) from the
connectors (CN27) and (CN31).
3. Disconnect the LAN Cable from the connector (CN14).
4. Remove the DC-IN Jack from the Top Case Ass’y.
5. Remove the two Screws (T).
Screw (T): DXHM0049ZA
6. Remove the Main Board and Wireless LAN Module.
7. Disconnect the HDD/Pad FPC from the connector (CN36),
and then remove the Main Board.
8. Disconnect the DC Jack Cable from the connector (CN23),
and then remove the DC-IN Jack.
Screw (R)
Screw (S)
Card Bus Ejector
CN12
CN4
Screw (R)
Screw (S)
Screw (T)
CN31
CN27
CN14
LAN Cable
DC-IN Jack
Conductive
Cloth
Conductive
Cloth
* The Conductive Cloth cannot be re-used.
Use a new one instead.
9. Peel off the tape that secures the Wireless LAN Module.
DC-IN Cable
CN23
CN36 F C ( AD-HDD-MAIN F C)
Top Case
Main Board
Wireless LAN
Module
Fixed tape
10. Release the Module Locks, and remove the Wireless LAN
CN2
Lithium Battery
Fixed Tape
Module Lock
2-6

2.2.11. Removing the HDD/Pad FPC
/Touch Pad
Preparation: Make sure that the steps in sections 2.2.1 to
2.2.4 and section 2.2.10 have been taken first.
1. Remove the Pad Ring Hooks, and remove the Pad Ring
from the Top Case Ass’y.
ad Ring
ad Ring Hook
HDD/ ad F C
2. Release the Pad Button Hooks, and remove the Pad Button
from the Top Case Ass’y.
ad Button Hook
HDD/ ad F C
Top Case Ass’y
3. Remove the HDD/Pad FPC from the Touch Pad Connector.
ad Button
HDD/ ad F C
Touch ad Connector
4. Peel off the Pad Sheet, and remove the Touch Pad from
the Pad Button.
Touch ad
ad Sheet
ad Button
5. Remove Screw (U), and disconnect the Pad/HDD FPC from
the Top Case Ass’y.
Screw (U): DXHM0056ZA
Screw (U)
HDD/ ad F C
2-7

2.2.12. Removing the Antenna Board (L),
(R)
· Preparation: Make sure that the steps in sections 2.2.1
to 2.2.4 and section 2.2.10 have been taken first.
1. Remove the Screw (V) of the Antenna Board (L).
Screw (V): DXHM0056ZA
2. Draw out the Antenna Cable (L) from the groove in the Top
Caset Ass’y, and remove the Antenna Board (L).
3. Remove the two Screws (W) of the Antenna Board (R).
Screw (W): DXHM0056ZA
4. Draw out the Antenna Cable (R) from the groove in the Top
Case Ass’y, and remove the Antenna Board (R).
Screw (V)
Antenna Board (L)
Antenna Board (R)
Screw (W)
Antenna Cable (L)
Antenna Cable (R)
2.2.13. Removing the Speaker (L), (R)
· Preparation: Make sure that the steps in sections 2.2.1
to 2.2.4 and section 2.2.10 have been taken first.
1. Peel off the Double-sided Tape from the Top Case Ass’y,
and remove Speaker (L) and (R).
Speaker (L)
Speaker (R)
2.2.14. Removing the LCD Front
Ass’y/Hinge (L), (R)
· Preparation: Make sure that the steps in sections 2.2.1
to 2.2.4 have been taken first.
1. Remove the Screw (Y) from the Hinge Cover (L) and the
Screw (Y) from Hinge Cover (R), and remove the Hinge
Cover (L) and (R) from the LCD Block.
Screw (Y): DRHM0075ZA
Screw (Y)
Hinge Cover (R)
Hinge Cover (L)
Screw (Y)
2. Remove the Screw (Z) from the Hinge (L) and the Screw (Z)
from Hinge (R).
Screw (Z): DRHM0002ZA
3. Remove each of the Screws (a) and (b) from the LCD Front
Case Ass’y.
Screw (a): DRHM0075ZA
Screw (b): DFHE5025XA
4. Remove the three hooks near the Hinge (L) and (R), and
then remove the Hinge (L) and (R).
Screw (Z)
Screw (Z)
Screw (a)
Screw (a)
Screw (b)
Screw (b)
Hinge (R)
Hinge (L)
2-8

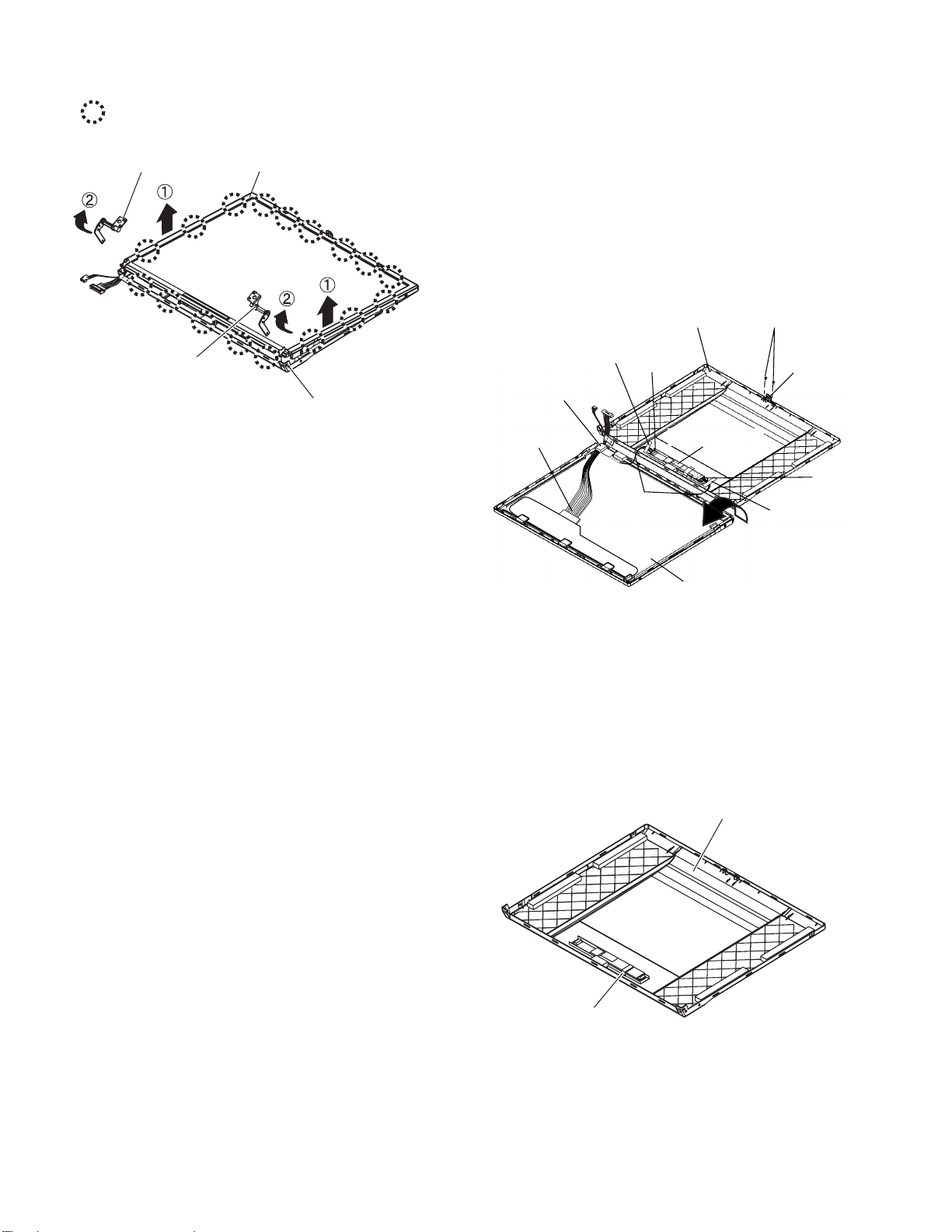

5. Remove all the hooks (6 at the top, 5 at the bottom and 3
on each side) of the LCD Front Case Ass’y, and remove the
LCD Front Case Ass’y.
Hook position
LCD Front Case
LCD Rear Case
Hinge (R)
Hinge (L)
* The Hooks can be removed more easily by repeatedly
inserting a screwdriver with a protective cloth wound around
it between the LCD Front Case Ass’y and LCD Rear
Case Ass’y, and sliding it.
* Take care not to scratch or mark the exterior.
2.2.15. Removing the LCD Unit/LCD Cable
· reparation: Make sure that the steps in sections 2.2.1 to
2.2.4 and section 2.2.14 have been taken first.
1. Remove the two Screws (c) of the LCD Hook.
Screw (c): DFHE5025XA
2. Lift the LCD Unit from the LCD Rear Case Ass’y, and turn
it over in front.
3. Peel off the two tapes anchoring the LCD Cable (Inverter).
4. Disconnect the Inverter Cable and LCD Cable (Inverter)
from the Inverter Board, and then remove the LCD Unit.
5. Peel off the Conductive Cloth anchoring the LCD Cable.
6. Disconnect the LCD Cable form the LCD Connector.
Screw(c)
LCD Hook
LCD unit
LCD Cable
LCD Rear Case Ass’y
CN1
CN2
Inverter Board
LCD Cable
(Inverter) Tape
Tape
Conductive Cloth
* The Conductive Cloth cannot be re-used.
Use a new one instead.
2.2.16. Removing the Inverter Board
· Preparation: Make sure that the steps in sections 2.2.1
to 2.2.4 and in sections 2.2.14 and 2.2.15 have been
taken first.
1. Peel off the tape from the LCD Rear Case Ass’y, and then
remove the Inverter Board.
LCD Rear Case Ass'y
Tape
2-9

2.3. Reassenbly instructions
2.3.1. Attention when CF-Y4H series is repaired
· Execute writing BIOS ID when you exchange the Main Board.
· Parts (sheet and rubber) etc. related various the conductive cloth and heat spreader cannot be recycled. Use new parts.

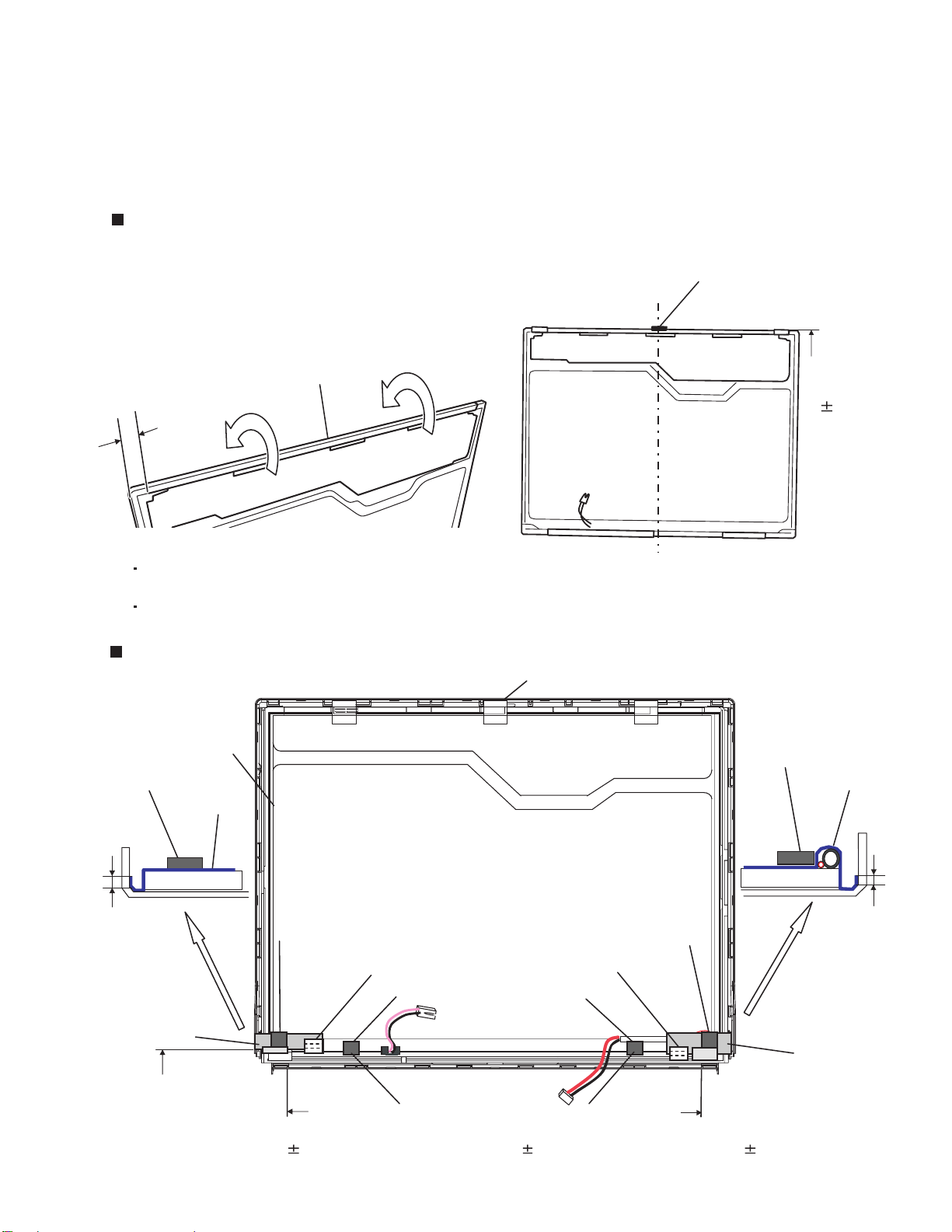

2.3.2. Assembly knowhow of part LCD
LCD rotect late
Insert the LCD rotect late to down forward while holding a transparent sheet in the back.
(The two sided tape side is the front.)
ut the LCD Dumper (D) on the back of the LCD rotect late.
LCD Dumper (D)
Externals
suiting
0~ 0.5mm
10~12mm
utting of the LCD rotect late and LCD Dumper (D)
LCD Front Case
LCD Dumper (I)
EMI Sheet
EMI Sheet
LCD Dumper (I)
Match the LCD damper (I)
by rib edge/LCD anel externals
of the LCD Front case 0.5mm.
Match the LCD Damper (I)
by rib right edge 0.5mm.
Match the LCD Damper (I)
by rib right edge 0.5mm.
EMI Sheet
Match the EMI Sheet to the edge
side of wall of the LCD Front Case.
EMI Sheet
LCD Dumper (I)
LCD Module
LCD Module
LCD Module
LCD Dumper (I)
LCD Gusket
LCD Dumper (I)
LCD Gusket
3~5mm
LCD Dumper (I)
utting of LCD Damper (I), EMI Sheet and LCD Gasket
3~5mm
2-10

Assenbly of Hinge
Conclusion position
Hinge insertion details
LCD anel
Hinge RHinge L
Hinge L
Insert in the divergence part of the LCD
Cable before installing Hinge (L).
Hook position LCD Front Case
LCD Rear Case
AAA
AAA
B
B
C
D
C
D
E
E
E
E
E
Confirm all hooks (17 places) hang.
The order of setting hooks: A B C D E
Combination procedure of LCD Case
2-11

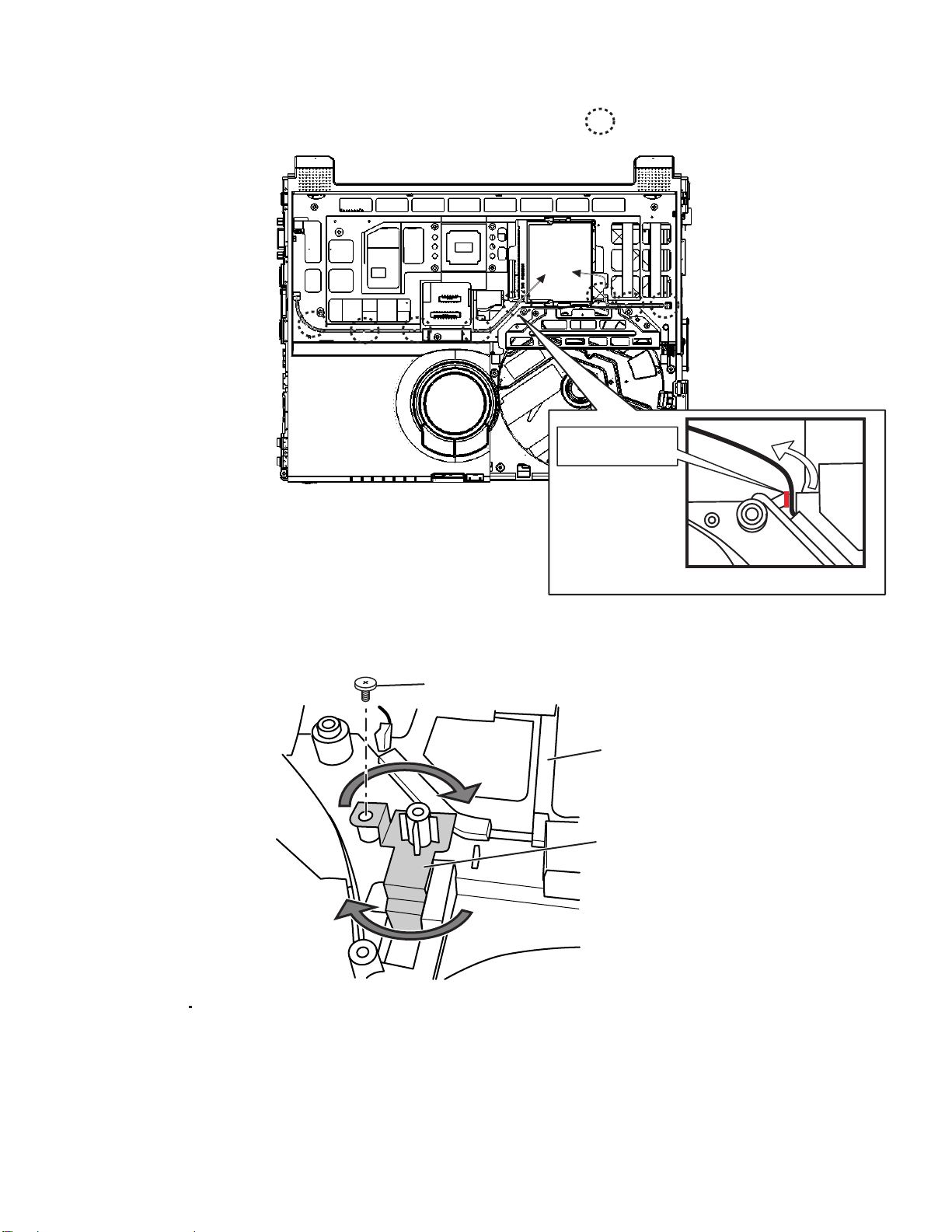

2.3.3. Line processing of Antenna Cable
R
L
Hang on the hook, and hold down the part of .
rocessing chart seen from core side
ass the outside
of this rib.
2.3.4. Installation of Disk Cover Click Plate
Draw shaking clockwise when you arrange the Disk Cover Click late.
Screw
Disk Cover Click late
Bottom Case
2-12
