2
Read Me First
Terminology in this Reference Manual
The following terminology is used in this Reference Manual particularly when notes are
not used.
Circular media such as CD-ROM and DVD-ROM are described as “discs”.
The following drives are described as “CD drive”.
CD-ROM drive, DVD-ROM drive, CD-R/RW drive, DVD-ROM & CD-R/RW drive
NOTE:NOTE provides a useful fact or helpful information.
CAUTION:CAUTION indicates a condition that may result in minor or moder-
ate injury.
WARNING:WARNING indicates a hazard that may result in moderate or seri-
ous injury.
Windows 2000 : Information for Microsoft Windows® 2000 Professional users.
Windows XP : Information for Microsoft Windows® XP Professional users.
Enter : This illustration means to press the [Enter] key.
Fn + F5 : This illustration means to press and hold the [Fn] key, then press
the [F5] key.
[Start]* - [Run]: This illustration means to click [Start]*, then to click [Run].
For some applications, you may need to double-click.
* Windows XP :[start]
page: When the cursor is moved to an item under [Contents] or to
page (green display), the shape of the cursor will change to .
Under this condition, if characters are tapped (or a click is made),
the corresponding page in the Reference Manual will be displayed.
: This illustration means to refer to the Operating Instructions.
Windows 2000 screens are used in this manual when no specific OS notes are re-
quired.
Some of the illustrations in this manual may differ slightly in shape from the actual
items in order to make the explanation easier to understand.
Illustrations in this Reference Manual
If the user has logged on without the administrator authority, some functions may not
be executable, and some screens may not be displayed as shown in this manual. If
this happens, log on with the administrator authority to enable these functions.
Confirm the latest information on optional products in catalogs, etc.

3
Key Combinations
Do not press the following key combinations repeatedly in (quick) succession.
Do not press the following key combinations while using the touch pad (mouse) or other keys.
CAUTION
NOTE
The key combinations below may not work while some applications are running in high priority.
After you log on toWindows, it will take some time until the key combinations will be operable.
The popup window may not be displayed depending on the state of the application you are using (e.g., when
[Command Prompt] screen is set to “Full Screen”).

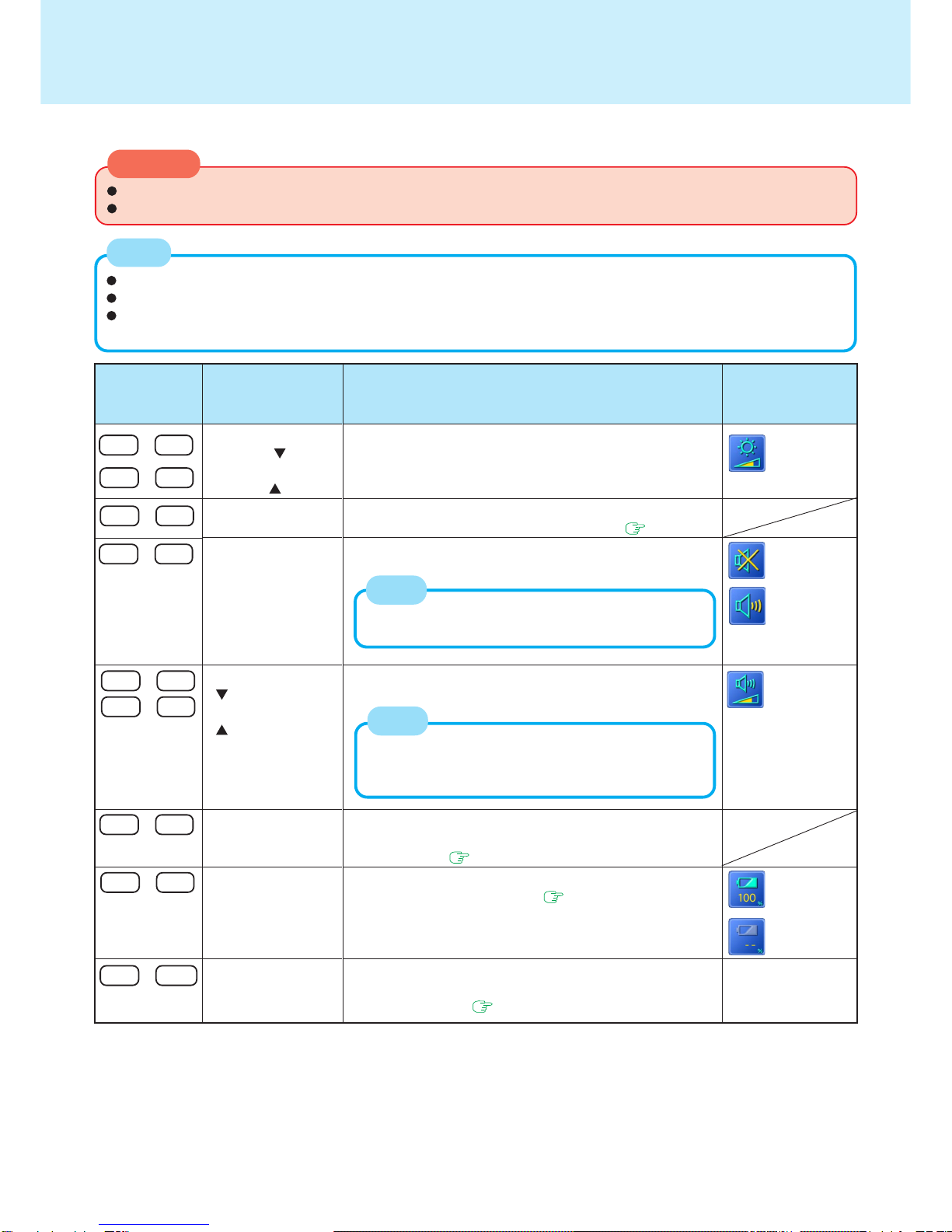

Key Functions
LCD brightness
control ( down)
LCD brightness
control ( up)
Display change
Speaker on/off
switch
Volume control
(down)
Volume control
(up)
Power off using
the standby func-
tion
Remaining ca-
pacity of the bat-
tery pack
Power off using
the hibernation
function
Function Descriptions
Pressingthiskey combination adjuststhe brightness ofLCD.
The brightness setting is stored in memory separately un-
der the condition the AC adaptor is connected and under
the condition the AC adaptor is not connected.
By pressing this key combination, you can select either
an external display, LCD or simultaneous.( page 33)
Pressing this key combination turns on/off audio from the
internal speakers and headphone jack.
Pressing this key combination adjusts the volume of the
internal speakers and headphone jack.
Pressing this key combination causes the current status
of the computer to be saved to memory, and powers off
the computer. ( page 8)
Pressing this key combination displays the remaining bat-
tery capacity on the screen. ( page 19)
Pressing this key combination causes the current status
of the computer to be saved to the hard disk, and powers
off the computer. ( page 8)
PopupWindow
(Displayed after log-
ging on toWindows)
OFF
(MUTE)
ON
Fn + F1
Fn + F3
Fn + F4
Fn + F2
This key combination cannot be used to adjust the
volume of the warning beep or speakers connected
to the USB port.
NOTE
Fn + F5
Fn + F6
NOTE
Disabling the speakers will also disable the warning
beep.
Fn + F9
Fn + F 10
Fn + F7
*1Operable even before you log on toWindows, but popup windows will not be displayed.
*2Operable even before you log on toWindows.
Remaining
capacity (%)
display
Battery pack is
not inserted.
*1
*1
*2

4
Key Combinations

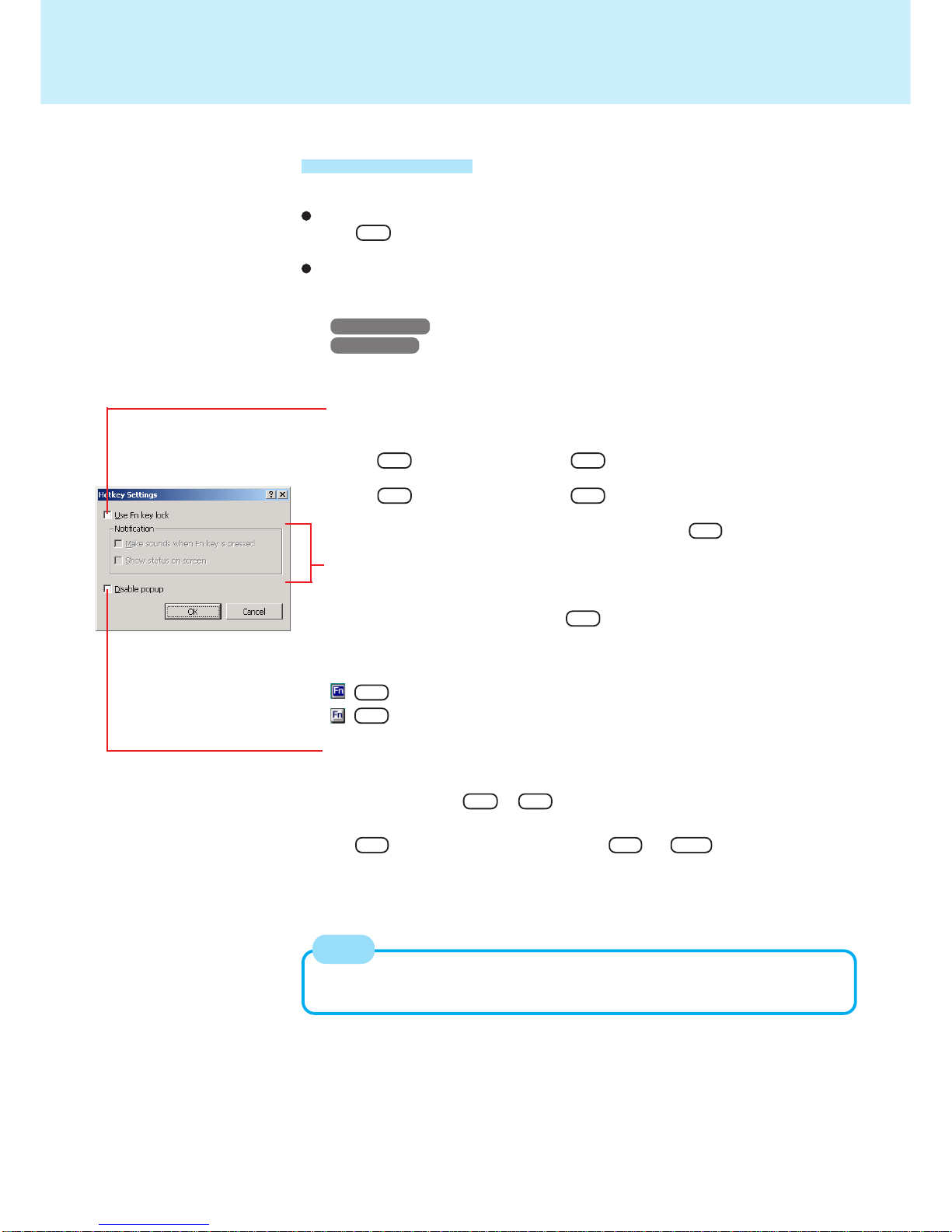

Hotkey Settings
There are two Fn key functions as follows:
Fn key lock function
After Fn is pressed once, it stays in the “pressed” position until another key is
pressed. This is convenient when it is difficult to press two buttons simultaneously.
Popup windows display ON/OFF
1Run the Hotkey Settings
Windows 2000 Select [Start] - [Programs] - [Panasonic] - [Hotkey Settings].
Windows XP Select [start] - [All Programs] - [Panasonic] - [Hotkey Settings].
2Set the parameters
Use Fn key lock
Add the check mark if you want to enable the Fn key lock function.
The following Fn key lock function will then be enabled.
To use Fn only once : 1Press Fn once.(Locked)
2Press another key for combination. (Lock released)
To use Fn successively: 1Press Fn twice. (Locked)
2Press another key for combination.
Fn key remains locked until Fn is pressed once more.
Notification
This setting is only available when [Use Fn key lock] is checked.
[Make sounds when Fn key is pressed]:
Notifies the user with a sound when Fn is pressed, locked, or released.
(If MUTE is set, you will not hear a beep.)
[Show status on screen]:
Displays the Fn key status on the taskbar.
: Fn is locked
: Fn is not locked
Disable popup
Add the check mark if you want to turn the popup window display function OFF.
The full-screen display of [Command Prompt] screen or MPEG files may change to
a window display if Fn + Fx * are pressed.To prevent this, turn the popup
window display function OFF.
NOTE
Each user can select separate settings for whether or not to use the Hotkey
settings.
3Select [OK]
*“ Fx ” indicates any function key from F1 to F10 .

5

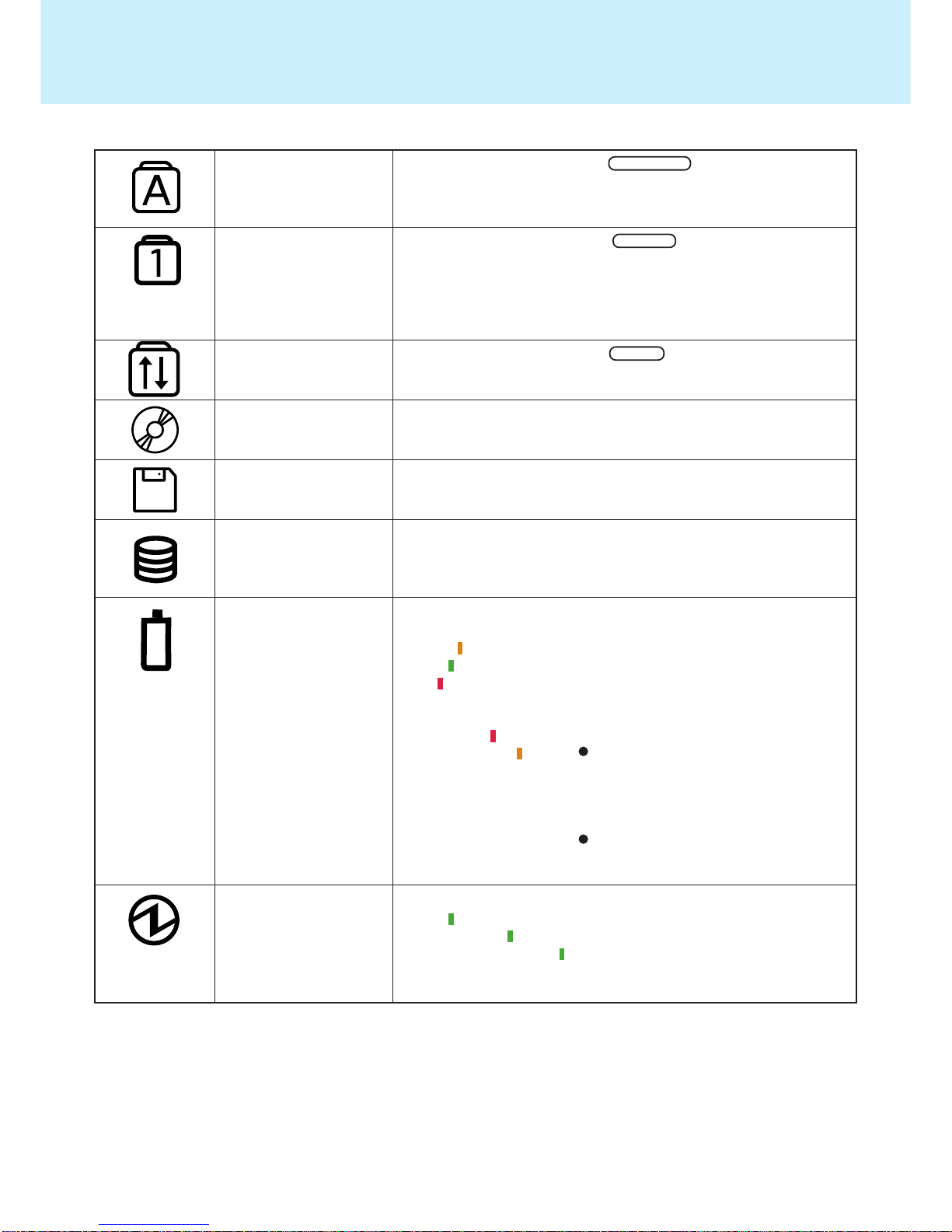

This indicator lights green when Caps Lock is pressed. Subsequent
non-shifted input is capitalized.
This indicator lights green when NumLK is pressed. This causes a
portion of the keyboard to function as a numeric keypad. The [Enter]
key functions differently depending on the application.
(If an external keyboard or ten-keyboard is connected to the external
keyboard/mouse port, the numeric keypad of the internal keyboard will
not operate.)
This indicator lights green when ScrLK is pressed. Scroll lock func-
tions differently depending on the application.
This indicator lights when the CD drive is accessed.
The access lamp on the CD drive lights at the same time as this indica-
tor. (In some cases, only one of them may light.)
This indicator lights when the floppy disk drive is accessed.
This indicator lights when the hard disk drive is accessed.
Not lit : AC adaptor not connected or charging not
being performed.
Orange * : Charging in progress.
Green * : Charging finished.
Red : Battery is low
(remaining battery capacity is approx. 9%
or less).
Blinking red * : Battery pack or charging malfunction.
Blinking orange *:Unable to recharge due to violation of
temperature limits.The ambient tempera-
ture is outside the allowable range. Once
the allowable range requirement is sat-
isfied, charging begins automatically.
When using the application, power con-
sumption is high; therefore there is in-
sufficient power to recharge the battery.
Not lit : Power off / Hibernation mode
Green : Power on
Blinking green : Standby mode
Blinking green rapidly : Due to extremely low temperatures, power
cannot be turned on, or computer cannot
resume from standby mode.
Caps Lock
NumLk (Numeric key)
ScrLk (Scroll lock)
CD drive status
Floppy disk drive
status
Hard disk drive sta-
tus
Battery pack status
Power status
LED Indicators
* When the AC adaptor is connected.

6

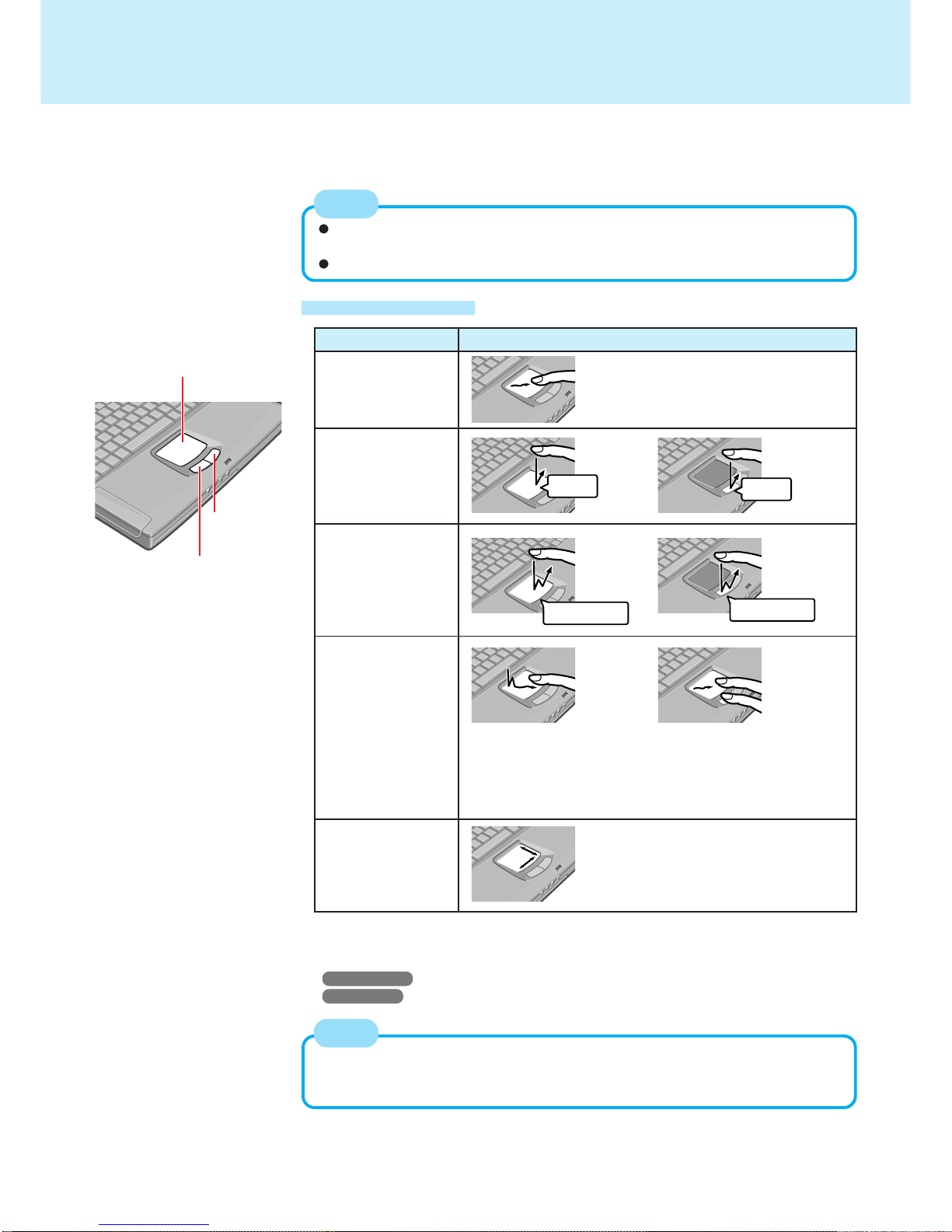

Use the touch pad to move the cursor on the display and perform normal computer
operations.
Touch Pad
Left Button
Right Button
Work Surface
By design the touch pad is to be used with a finger tip only. Therefore, do not
use any implement which causes damage on the work surface.
The double-tapping speed of the touch pad cannot be changed.
NOTE
or
Two quick taps, but on the
second tap leaving your
finger down (applying
pressure) and moving it
on the work surface.
While holding down the
button, moving your finger
on the work surface.
or
Function Operation
Moving the Cursor
Tapping/Clicking
Double-Tapping/
Double-Clicking
Dragging
Scroll
Scroll a document
(The movements will dif-
fer depending on the ap-
plication.)
or
Move the tip of your finger
lightly over the surface.
Basic Operation
Besides the above operations, operations such as Zoom and Pan are possible by
allocating these functions to the buttons and/or pad. For more details, refer to [Mouse
Properties]*.
*Windows 2000 : Select [Start] - [Settings] - [Control Panel] - [Mouse].
Windows XP : Select [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse].
tapping clicking
double-tapping double-clicking
The operations of Scroll, Pan or Zoom will differ depending on the application.There
are cases the touch pad will not support these operations even with an application
that supports the functions.
NOTE

7
Touch Pad
Do not place any object on the work surface or press down forcefully with sharp-
pointed objects (e.g.nails) or hard objects that can leave marks (e.g.pencils and
ball point pens).
Try to avoid having any harmful substances, such as oil, come in contact with the
touch pad. The cursor may not work properly in such cases.
When the touch pad becomes dirty:
Wipe to remove dirt by using a dry soft cloth such as gauze or a soft cloth first
applied with detergent diluted with water and then thoroughly wrung.
Do not use benzene or thinner, or rubbing alcohol. Doing so may adversely affect
the surface, e.g., discoloration. In addition, do not use commercially-available
household cleaners and cosmetics, as they may contain components harmful to
the surface.
Handling theTouch Pad

8
Standby/Hibernation Functions
Starting UpYour Computer Quickly
We recommend plugging in the AC adaptor if the standby function is to be
used for a long period of time. If the AC adaptor cannot be connected, we
recommend that hibernation mode be used instead of the standby mode.
If the standby or hibernation function is used repeatedly, the computer may
not work properly.To stabilize computer operations, we recommend shutting
down Windows on a regular basis (about once a week) without using the
standby or hibernation function.
NOTE
Use any of the following methods to enter the standby or hibernation mode.
To use the hibernation mode, make the setting below in advance. (Enabled in factory
preset.)
Fn key combinations ( page 3)
Using the power switch ( page 10)
From the shut down screen:
•Standby
Windows 2000 : In [Start] - [Shut Down], select [Stand by].
Windows XP : In [start] - [Turn Off Computer], select [Stand By].
•Hibernation
Windows 2000 : In [Start] - [Shut Down], select [Hibernate].
Windows XP :In [start] - [Turn Off Computer], press and hold Shift , then
select [Hibernate].
Entering the Standby or Hibernation mode
Setting for using the hibernation mode
Windows 2000
1Select [Start] - [Settings] - [Control Panel] - [Power Options].
2In [Hibernate], add the check mark for [Enable hibernate support] and select [OK].
Windows XP
1Select [start] - [Control Panel] - [Performance and Maintenance] - [Power Op-
tions].
2In [Hibernate], add the check mark for [Enable hibernation] and select [OK].
(To next page)
Differences between the standby and hibernation functions
Function Where data is saved to Speed Requires power supply
Standby Memory Fast Yes (if power is cut, all data is lost)
function
Hibernation Hard disk Somewhat Power is not required to maintain data
function slow
If you want to immediately start up and continue an application after shutting down your
computer, you can do so by using either the standby or hibernation function.

9
Standby/Hibernation Functions
Precautions
Before entering the standby or hibernation mode
Save all data.
When a file in an external device such as a CD drive, external hard disk, or ATA
card is opened, close the file.
Even when a password has been set in the Setup Utility, [Enter Password] does
not appear when the computer resumes from the standby or hibernation mode.
If you want to use the security function when using the standby or hibernation
mode, use the Windows password as follows:
Windows 2000
1Set the password in [Control Panel] - [Users and Passwords].
2Add the check mark for [Prompt for password when computer goes off standby]
in [Control Panel] - [Power Options] - [Advanced].
Windows XP
1Select the account to change in [Control Panel] - [User Accounts].
2Set the password.
3Add the check mark for [Prompt for password when computer resumes from
standby] in [Control Panel] - [Performance and Maintenance] - [Power Options]
- [Advanced].
Do not enter either the standby or hibernation mode under the following condi-
tions. You may corrupt your data or file, the standby or hibernation function may
not work, or the computer (or peripherals) may fail to work properly.
• When the floppy disk drive indicator ( ), hard disk drive indicator ( ), CD drive
indicator ( ) or access lamp on the CD drive is on ( page 5).
• When playing/recording audio files and displaying images (such as MPEG files).
• When using the communications software and the network function.
• When using LAN port (cards), SCSI cards and modem port (cards) etc. (If these
cards fail to work properly, restart the computer.)
When entering the standby or hibernation mode*
Avoid the following:
•Touching the keyboard, pointing device (touch pad, external mouse, etc.), or
power switch.
• Connecting or disconnecting the AC adaptor.
• Closing or opening the display.
* Standby mode: until the power indicator blinks green
Hibernation mode: until the power indicator goes off
In standby or hibernation mode
Do not insert or remove peripherals; abnormal operation may result.
In standby mode, power is consumed. If PC Cards are inserted, more of that
power is consumed. When all power has been consumed, all data saved at standby
is lost since it is retained in memory. We therefore recommend plugging in the AC
adaptor when using the standby function.

10
Standby/Hibernation Functions
Press the power switch; at the “beep*”sound, re-
lease your finger
The computer will enter either the standby or hibernation mode,
depending on the setting.
After releasing your finger from the power switch, do not touch the power switch
until the power indicator goes off or blinks.
At the “beep*” sound, release your finger from the power switch. If you con-
tinue to press down on the switch and hold it for more than four seconds, the
unit will emit a second “beep*” then power off. Data not previously saved will
be lost.
Windows 2000
Even when [When I press the power button on my computer] is set to [Power
Off] with [Start] - [Settings] - [Control Panel] - [Power Options] - [Advanced], if
you press the power switch for more than four seconds and do not release it, a
second“beep*” will sound and the computer will be turned off forcibly. Data not
previously saved will be lost.
Windows XP
Even when [When I press the power button on my computer] is set to [Shut
down] with [start] - [Control Panel] - [Performance and Maintenance] - [Power
Options] - [Advanced], if you press the power switch for more than four sec-
onds and do not release it, a second “beep” will sound and the computer will
be turned off forcibly. Data not previously saved will be lost.
CAUTION
*When the speaker function is disabled, e.g., by the key combination Fn + F4 , there will
be no beep sound.
Shutting down
Using the Power Switch
Setting
Windows 2000
1Select [Start] - [Settings] - [Control Panel] - [Power Options] - [Advanced].
2Select [Standby] or [Hibernate] for [When I press the power button on my com-
puter] and then select [OK].
Windows XP
1Select [start] - [Control Panel] - [Performance and Maintenance] - [Power Options]
- [Advanced].
2Select [Stand by] or [Hibernate] for [When I press the power button on my com-
puter], then select [OK].

11
Standby/Hibernation Functions
When [Standby]*1or [Hibernate] is selected as the setting for [When I close the lid of my
portable computer] in [Control Panel]*2- [Power Options] - [Advanced], the computer
will enter either the standby or hibernation mode when the LCD panel is closed. Opera-
tion will resume when the LCD panel is opened. Even if the display is closed after the
computer has entered either the standby or hibernation mode, operation will resume
when the display is opened. If the computer does not resume when the LCD panel is
opened, press the power switch.
*1Windows XP :[Stand by]
*2Windows XP : [Control Panel] - [Performance and Maintenance]
Resuming Operation
When resuming operation, avoid the following:
• Touching the keyboard (except for password input), pointing device (touch pad,
external mouse, etc.), or power switch.
• Connecting or disconnecting the AC adaptor.
• Closing or opening the display.
After the display returns, the computer needs about 15 seconds to reinitialize.
Do not shut down or restart Windows, or enter either the standby or hibernation
mode again during this time, as this may subsequently cause Windows to oper-
ate abnormally.
CAUTION
Press the power switch

12
Security Measures
To prevent unauthorized access of your computer, the various security measures are provided below.
You should set your “Supervisor Password” and “User Password” (The User Password
can only be set when the Supervisor Password has been set).
Without the password, access to your computer is impossible.
Starting up when the password is set
When [Password on boot] of [Security] menu is set to [Enable], enter your pass-
word*1and press Enter .
When you do not want your computer to be used without permission
When the Setup Utility is started with the Supervisor Password
You can register all items of the Setup Utility ( page 43).
When the Setup Utility is started with the User Password
You can not register [Advanced] menu and [Boot] menu.
When [User Password Protection] has been set to [Protected], you can not regis-
ter the User Password.
F9 does not work.
*1Supervisor Password or User Password set in the Setup Utility (not theWindows password).
*2Even if no password is entered for about a minute when starting up the Setup Utility, the
power will not be turned off.
ReferenceSituation
You do not want your computer to be used without permission
You do not want the data on the hard disk to be read, or data to
be written to the hard disk, in cases including theft.
You want to prevent theft or damage to data by using a floppy
disk
You want to prevent theft of your computer
Function to use
Supervisor Password
User Password
Hard Disk Lock
Prevent operation by
using a floppy disk
Security lock
below
page 15
page 16
“Names and Func-
tions of Parts”
When [Password on boot] in the Setup Utility is set to [Disable], the password is not
necessary when the computer is started up, but the password becomes necessary
when the Setup Utility is started up. This alternative makes it possible to prevent the
contents of the Setup Utility from being changed.
NOTE
Will Start
Will Not Start
(Power off)
Three incorrect attempts
or
No password for about a minute*2
The correct password
EnterPassword [ ]
Windows has a security function that differs from the above security measures. For detailed information, refer to
the Windows help.
NOTE

13
Security Measures
Setting the Supervisor Password (enabling, changing, disabling)
1Run the Setup Utility ( page 43)
2Using either or , select [Security]
3Using either or , select [Set Supervisor Password] and
press Enter
4<Only when the Supervisor Password has been set>
Enter your password at [Enter Current Password] and press
Enter
5Enter your password at [Enter New Password] and press
Enter
To disable the Supervisor Password
Press only Enter
6Re-enter your password at [Confirm New Password] and press
Enter
To disable the Supervisor Password
Press only Enter
7At [Setup Notice], press Enter
8Press F10 and select [Yes], then press Enter
Do not forget your password. If your Supervisor Password is forgotten you
will be unable to use your computer. Contact Panasonic Technical Support.
When running the Setup Utility, do not leave your computer even for a short
time, as the possibility exists for the password to be set/changed by another
person.
CAUTION
Your password will not be displayed on the screen.
Limit your password to seven characters. Note that there is no distinction
between upper and lower case letters.
Do not input your password while holding down on Shift or Ctrl .
Use only the upper horizontal row of numeric keys to input your password.
Only the alphabet keys or number keys can be used. Note that the space bar
and function keys cannot be used.
Disabling the Supervisor Password also disables the User Password.
NOTE

14
Security Measures
Setting the User Password (enabling, changing, disabling)
1Run the Setup Utility ( page 43)
2Using either or , select [Security]
3Using either or , select [Set User Password] and press
Enter
4<Only when the User Password has been set>
Enter your password at [Enter Current Password] and press
Enter
5Enter your password at [Enter New Password] and press
Enter
<When the Setup Utility is started up with the Supervisor Pass-
word>
To disable the User Password
Press only Enter
6Re-enter your password at [Confirm New Password] and press
Enter
<When the Setup Utility is started up with the Supervisor Pass-
word>
To disable the User Password
Press only Enter
7At [Setup Notice], press Enter
8Press F10 and select [Yes], then press Enter
When the Supervisor Password has not been set, the User Password can not be
set.Set the Supervisor Password if you have not done so. ( page 13)
NOTE
Do not forget your password. If a password is forgotten, you will be unable to use
your computer. Contact Panasonic Technical Support.
When running the Setup Utility, do not leave your computer even for a short time,
as the possibility exists for the password to be set/changed by another person.
CAUTION
Your password will not be displayed on the screen.
Limit your password to seven characters. Note that there is no distinction
between upper and lower case letters.
Do not input your password while holding down on Shift or Ctrl .
Use only the upper horizontal row of numeric keys to input your password.
Only the alphabet keys or number keys can be used. Note that the space bar
and function keys cannot be used.
When you do not want the User Password enabled or changed without
permission:
1Run the Setup Utility and enter the Supervisor Password.
2Using and , select [User Password Protection] in [Security] menu and
press Enter .
3Using and , select [Protected] and press Enter .
NOTE

15
1Run the Setup Utility (page 43)
2Using either or , select [Security]
3Using either or , select [Hard Disk Lock] and press
Enter
4To enable the Hard Disk Lock
Select [Enable] and press Enter
At [Caution], press Enter .
To disable the Hard Disk Lock
Select [Disable] and press Enter
5Press F10 and select [Yes], then press Enter
Security Measures
If your computer requires repair
Contact Panasonic Technical Support.
Be sure to set [Hard Disk Lock] to [Disable].
In the default setting, [Hard Disk Lock] is set to [Disable].
You cannot set [Hard Disk Lock] without setting the Supervisor Password.Set
the Supervisor Password if you have not done so. ( page 13)
The hard disk protection function only works with the internal hard disk. This
function does not work with the external hard disk.
NOTE
CAUTION
When the Hard Disk Lock is set to [Enable], it is impossible to read/write data from/to
the hard disk when the hard disk is inserted in a different computer, since a password is
also set for the hard disk.When the hard disk is returned to the original computer, you
can read and write data as before. In this case, however, make the settings in the Setup
Utility exactly the same as they were before the hard disk was removed.
It is possible to set the Hard Disk Lock even if [Password on boot] is set to [Disable], but
we recommend that [Password on boot] be set to [Enable] for security reasons.
(Note that this Hard Disk Lock does not guarantee complete protection of data.)
When you do not want the data on the hard disk to be read/written
Procedure

16
Disabling the floppy disk operation makes it impossible to read and write a floppy disk
and to start the computer from a floppy disk.This can prevent data from being accessed
illegally or overwritten accidentally using a floppy disk.
Preventing theft or damage to data using a floppy disk
Security Measures
1Run the Setup Utility (page 43)
2Using either or , select [Security]
3Using either or , select [Floppy Operation] and press
Enter
4Using and , select [Disable] and press Enter
To enable the floppy operation
Select [Enable].
5Press F10 and select [Yes], then press Enter
Procedure

17
Computing on the Road
One of the main features of notebook-type computers is that you have the power of
computing away from your home or office. In the following, information is provided on
how to maximize use of the battery pack which is necessary for such computing.Select
to view important tips for using the battery pack.
You can also view important tips using the following procedure.
Windows 2000
Select [Important Tips] in [Start] - [Programs] - [Panasonic] - [On-Line Manuals].
Windows XP
Select [Important Tips] in [start] - [All Programs] - [Panasonic] - [On-Line Manuals].
Four Important Points
Saving Power
Be sure to charge your battery before and after use.
To get the maximum use of your battery, set the power man-
agement mode.
Check to see that you have your AC adaptor with you before
leaving your home or office.
Purchasingasparebattery (CF-VZSU18A) is highlyrecommended.
Always watch your battery level!
Leave your computer off when it is not in use
( “Starting Up/Shutting Down”)
Adjust the brightness (darker) with Fn + F1
By holding down on the keys ( will be displayed), the degree of brightness will
be lowered, thereby lowering the power consumption.
Before stepping away from your computer, press Fn + F7 or
Fn + F10 to put your computer in the standby or hiberna-
tion mode (page 3)
Windows 2000
In [Control Panel] - [Power Options], make settings in detail
By making settings in detail for the timeout, alarm, etc., it is possible to control
the consumption of power.
Windows XP
In [Control Panel] - [Performance and Maintenance] - [PowerOp-
tions], make settings in detail
By making settings in detail for the timeout, alarm, etc., it is possible to control
the consumption of power.
Windows 2000
Setting the Intel®SpeedStep™ technology ( page 18)
POINT 4
POINT 2
POINT 1
POINT 3
Things to Remember
CAUTION
When installed in a network environment (except when theWake up from LAN
function is in use).
Do not use the standby or hibernation mode.
After resuming operation from the standby or hibernation mode, the network con-
nection may be severed or the computer may not work properly.

18
Select on the taskbar
By using the Intel(R) SpeedStep(TM) technology applet, you can set the computer’s
performance to optimize power consumption.
Setting the Intel(R) SpeedStep (TM) technology
Displays settings currently in effect.
The icon differs depending on the current setting.
Maximum Performance (The CPU performance is maximized at all times.)
Automatic (The CPU performance is automatically maximized only when
necessary.)
Battery Optimized Performance
Maximum Battery (Maximum battery life)
You can also start using [Start] - [Settings] - [Control Panel] - [Power Options]
- [Intel(R) SpeedStep(TM) technology].
Do not add the check mark.
Computing on the Road
Starting up the Intel(R) SpeedStep(TM) technology
NOTE
Windows 2000

19
Battery Status
Charging
Fully-charged
Battery charge is low (the charge is less than approx. 9%
capacity)
Battery pack or charger may not be working properly.
Quickly remove the battery pack and disconnect the AC
adaptor, then connect them again. If the problem persists,
contact Panasonic Technical Support.
Unable to recharge due to violation of temperature limits.
The ambient temperature is outside the allowable range.
Once the allowable range requirement is satisfied, charg-
ing begins automatically.
When using the application, power consumption is high;
therefore there is insufficient power to recharge the battery.
Batterypack isnot connectedor chargingnot beingperformed.
Battery Power
Use the Battery Indicator to Check the Battery Status
Battery Indicator
Orange*
Green*
Red
Blinking red*
Blinking orange*
Not lit
* When the AC adaptor is connected.
This computer prevents overcharging of the battery by recharging only when the
remainingpowerislessthanapprox.95%of capacityafter thebattery isfully charged.
Until you log on to Windows, this key combination will be inoperable.
The actual remaining battery capacity and the displayed indication may differ
as follows.
• The battery indicator light remains red.
• The battery remaining displays 99% and the indicator light is orange for a
long period of time.
• Low battery warning appears after a short period of time.
This may be caused by the use of standby mode for long periods of time. The
battery is discharging while the computer is in standby mode when the AC
adaptor is not connected.
To correct them, perform the “Refresh Battery” utility. ( page 21)
There may be a discrepancy with the % value that is displayed on the taskbar
of Windows, but this is not a malfunction.
NOTE
NOTE
Check the Remaining Battery Power
Fn + F9 When the battery pack is inserted in the com-
puter (example)
When the battery pack is not inserted in the
computer
Press Fn + F9 to Check the Remaining Battery Power
on the Screen (After logging on toWindows)

20
Battery Power
Remaining Battery Level Confirmation by Alarm
The computer can be set to notify of a low battery level, etc. using the following proce-
dure. When the battery level goes down to the level specified, the computer sets off an
alarm and displays a message indicating the low battery level.
Windows 2000
[Start] - [Settings] - [Control Panel] - [Power Options] - [Alarms]
Windows XP
[start] - [Control Panel] - [Performance and Maintenance] - [Power Options] - [Alarms]
Set the value for [Critical battery alarm] to 5% or more. This is necessary for the
standby or hibernation function to be completed (assuring data is saved) when the
battery level is low.
When making a setting for [When the alarm goes off, the computer will:] in [Alarms]-
[Alarm Action], add a check mark for [Force standby or shutdown even if a program
stops responding.].
If the computer shuts down or enters the standby or hibernation mode by the Alarm
settings function, start up the computer or resume operations after connecting the
AC adaptor. If the computer starts up or resumes while the AC adaptor is not con-
nected, Windows may not operate properly or alarm operations may stop working.
When disabling the speakers with pressing Fn + F4 , the sound alarm is also
disabled.
When the Remaining Battery Charge Becomes Low
Save your data and power off your computer
Then:Plug in the AC adaptor, and fully charge your battery.
Use a spare battery if you have one.
In the standby mode, do not remove/change the battery pack.
If you have neither the AC adaptor nor an extra battery, power the computer off.
About HighTemperature Mode
This computer has a high temperature mode function that prevents the degradation of
the battery in high temperature environments.
We recommend setting the high temperature mode function when installing the com-
puter in a car, etc.To do this, set [Environment] in [Main] menu of the Setup Utility to
[High Temperature].Note that a 100% remaining battery reading in [High Temperature]
mode is about an 80% reading in [Normal Temperature] mode.
After switching from [Normal Temperature] to [High Temperature], or vice versa, the
remaining battery will not be displayed properly until the battery pack is completely
discharged or fully charged.
