Using my Home Screen
my Home Screen
Features
my Home Screen is a gateway to the TV, applications, and more. It provides
easy access to special features such as the Media Player, videos, games,
communication tools, etc.

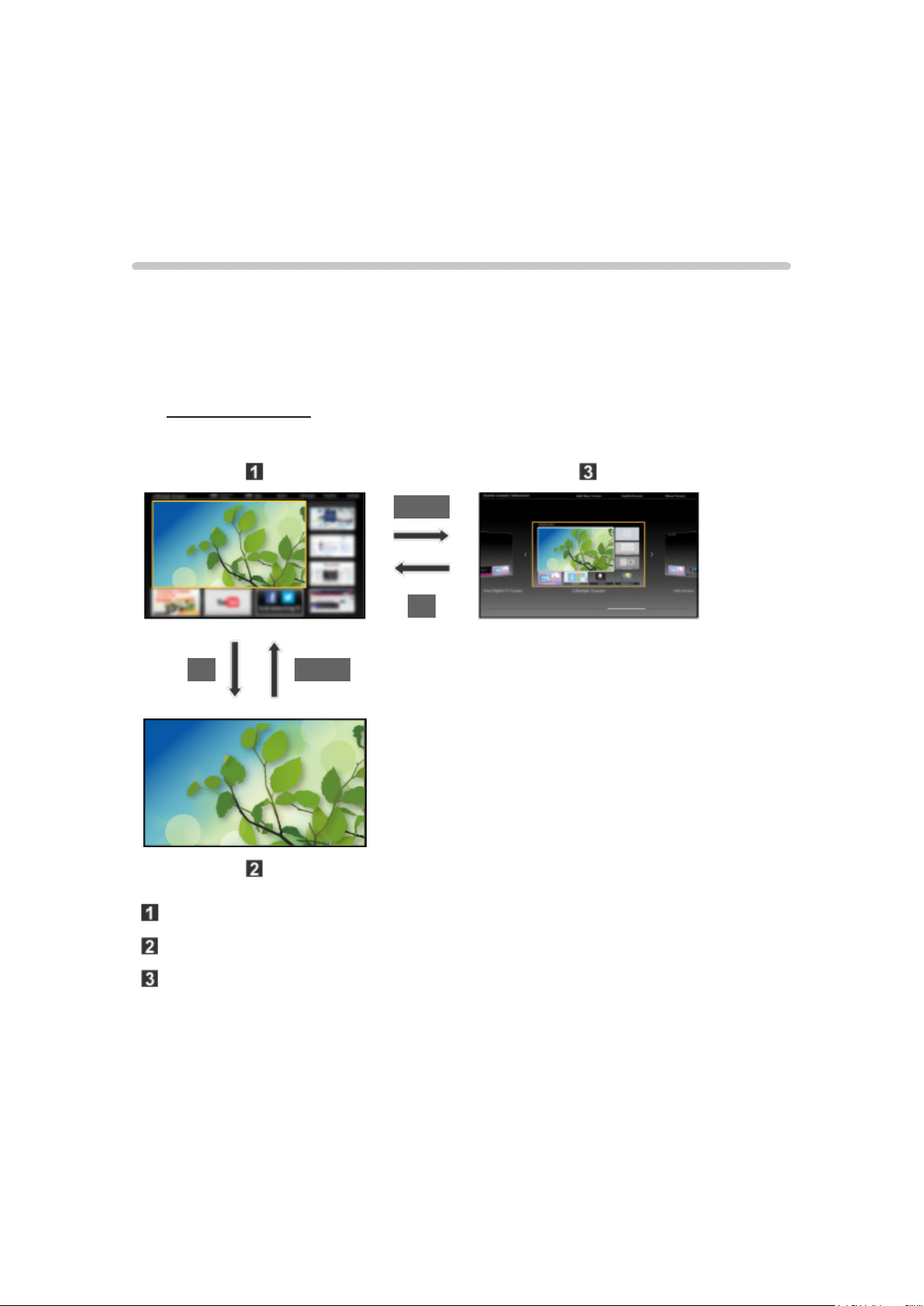

■Home Screen
(Example)
HOME
OK
OK HOME
Home Screen (Full Screen TV, Various Home Screen, etc.)
Selected content screen (TV, application, etc.)
Home Screen Selection
– Choose your preferred Home Screen layout.

- 9 -
How to use
The Home Screen provides access to special features such as the Media
Player, TV, Internet content, data services, communication tools, etc.

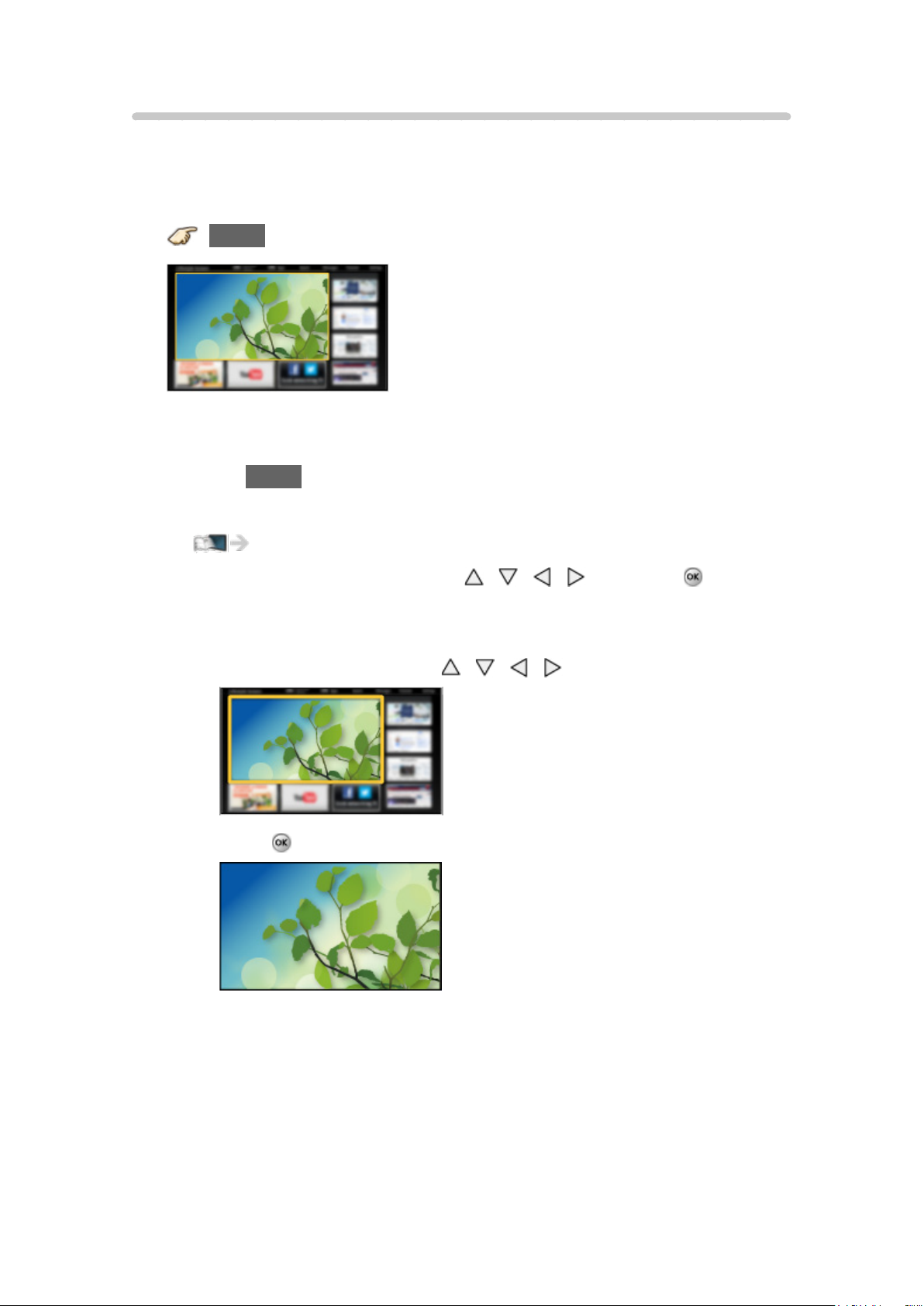

1. Display Home Screen
HOME
●The last viewed Home Screen is displayed each time the TV is turned
on.
●Press HOME again to return to Home Screen Selection.
●You can change the default Home Screen when the TV is turned on.
Using my Home Screen > my Home Screen > Settings
2. Select a Home Screen icon using / / / and press to
access the feature.
●To watch full-screen TV
1) Select the TV window with / / /
2) Press to watch
●Also refer to Tutorial from the tool guide.

- 10 -
Settings
Select the setup menu from the tool guide on the top of the screen.
(Example)
■Home Screen Selection
1. Display Home Screen Selection with HOME
(Example)
2. Select the type of Home Screen with / and press to set.
●Full Screen TV
Exits the Home Screen and displays the TV picture in full-screen.
– To Keep Full Screen TV
While watching the TV on this full-screen, select Settings from tool
guide. Then, set the Power ON Option.
●Various Home Screens
You can change the layout of the Home Screen according to your
lifestyle and personal preferences.
■Settings
You can customize Home Screen. For example, you can change the
wallpaper, rename the screen, add / delete or set your preferred Home
screen, edit applications, etc.
1. Select Settings from the tool guide
2. Follow the on-screen instructions

- 11 -
■Search function
You can search the content of various Home screen features.
1. Select Search from the tool guide
2. Follow the on-screen instructions
●To use this function fully, you need a broadband network environment.
Ensure the network connections and network settings are completed.
●Be sure to update the software when a software update notice is
displayed on the TV screen. If the software is not updated, you will not
be able to use my Home Screen. You can update the software later
manually.
●To change the color type of on-screen displays.
All settings > Setup > Display customization

- 12 -
Using Apps list
Features
Special features (Internet contents, network contents, Media Player, etc.) can
be accessed easily from Apps (applications) list.
■APPS list
●Apps list is subject to change without notice.

- 13 -
How to use
You can access special features such as Internet contents, network contents,
Media Player, etc. from Apps list (applications list).
1. Display Apps list
APPS
(Example)
●To exit Apps list
EXIT
2. Select an icon of the features with / / / and press to
access

- 14 -
Settings
You can set up Apps list manually. (For example, Screen Settings, Account
Information, restriction, etc.)
1. Display Apps list
APPS
2. Select the setup menu on Apps list with / / / and press
to access
3. Follow the on-screen instructions
●Setup items may be changed without notice

- 15 -
Watching TV
Cable / Satellite / Fiber Optic box
Initial setting
1. Connecting
Select the wiring method connecting your box to the TV, AV IN or
Antenna/Cable in.
Note:
●HDMI will provide the best HD picture
2. Change INPUT
INPUT
Press the INPUT button to select the proper connection. Wait for 2
seconds.
●The menu choices vary depending on which input is selected.
3. Power on your Cable, Satellite or Fiber Optic box
Use the box’s remote control to change channels.
●If the box is connected to the TV using a COAX cable (Antenna/Cable
in), then set the TV channel to CH3 or CH4. Note that the picture will not
be in HD.
●CC/SAP is not available when watching TV with a Cable or Satellite box
connected via HDMI.
●If you have a High Definition box, ensure that it is outputting 720p or
1080i signal.
Tip: press the TV’s INFO button to verify.
●Check your box’s “aspect” or “format” settings. It should be set to 16:9,
Widescreen or Full.
●If the audio volume is too low, check the box’s audio settings.
●Contact your Cable or Satellite provider for instructions on any box
settings.

- 16 -
Antenna / Cable service without a box
Initial setting
1. Connect coax
Connect a COAX wire from either an antenna or Basic Cable service to
the TV’s “ANTENNA/CABLE IN” screw terminal.
TV (ANTENNA/CABLE IN)
Antenna
2. Scan the channel
MENU Menu > Setup > ANTENNA/Cable setup > ANTENNA/
Cable signal, Auto program
1) Select either Cable or Antenna programming source in ANTENNA/
Cable signal.
2) Select Auto program and then the appropriate scan mode:
(All channels / Analog only / Digital only)
3) Start scanning.
●The tuner setup menu (auto scan, etc.) is only available when INPUT is
set to TV.
●If no channels are found by the end of the scan, then check the
following:
– Antenna’s position - or availability of Cable service.
– Cable, Satellite or Fiber Optic services with a box are typically
connected to the TV’s A/V inputs, preferably HDMI, for best HD
picture. In such a case, the channel scanning is not needed.

- 17 -
Select channels
■Select desired channel
or
●CH buttons are also available on the TV.
■Select desired digital channel
To directly enter a digital channel number use button to enter the dash.
(e.g.CH15-1→ )

- 18 -
Favorite channels
Channel numbers registered in Favorite are displayed on the favorite tune
screen. Select the desired broadcast station with the cursor or use the
number buttons.
●Favorite channels cannot be set when using Cable or Satellite box
■Set the Favorite channel
OPTION Options menu > Set favorite
Select the list number using / and or - / directly to
save the displayed channel.
■Delete a Favorite channel
OPTION Options menu > Set favorite
Select the list number using / and to delete.
●To change the page in Set favorite
FAVORITE or / repeatedly
■Display a Favorite channel
FAVORITE Favorite channels
Select the list number using / and or - / directly to
save the displayed channel.
●To change the page in Favorite channels
FAVORITE or / repeatedly

- 19 -
Closed Caption
■Viewing with Closed Caption
CC
Switches the Closed Caption mode.
(Off / On / On mute)
●CC is not available when watching TV with a Cable or Satellite box
connected via HDMI.
●Contact your Cable or Satellite operator for instructions on enabling CC
with their box.
●The TV’s CC button does not operate the Satellite or Cable box’s CC
function.
●For viewing the CC of digital broadcasting, set the aspect to Full (If
viewing with H-FILL, JUST, ZOOM or 4:3; characters might be cut off).
●If the CC is set to On on both the receiver and TV when the signal is
480i (except for the HDMI connection), the CC may overlap on the TV.
●If a digital program is being output in analog format, the CC data will
also be output in analog format.
●If the recorder or output monitor is connected to the TV, the CC needs to
be set up on the recorder or output monitor.

- 20 -
SAP
■Listen with SAP (Secondary Audio Programming)
●SAP is not available when watching TV with a Cable or Satellite box
connected via HDMI.
●Contact your Cable or Satellite operator for instructions on enabling SAP
with their box.
●The TV’s SAP button does not operate the Satellite or Cable box’s SAP
function.
Select the Audio mode for watching TV.
SAP
Digital mode:
Select available audio service when receiving a digital channel.
Audio track is automatically selected as Preferred audio type and
Preferred SAP language settings.
(Menu > Sound > Preferred audio type)
(Menu > Setup > Language > Preferred SAP language)
●If you change the audio settings with the SAP button, Preferred SAP
language and Preferred audio type settings will not change.

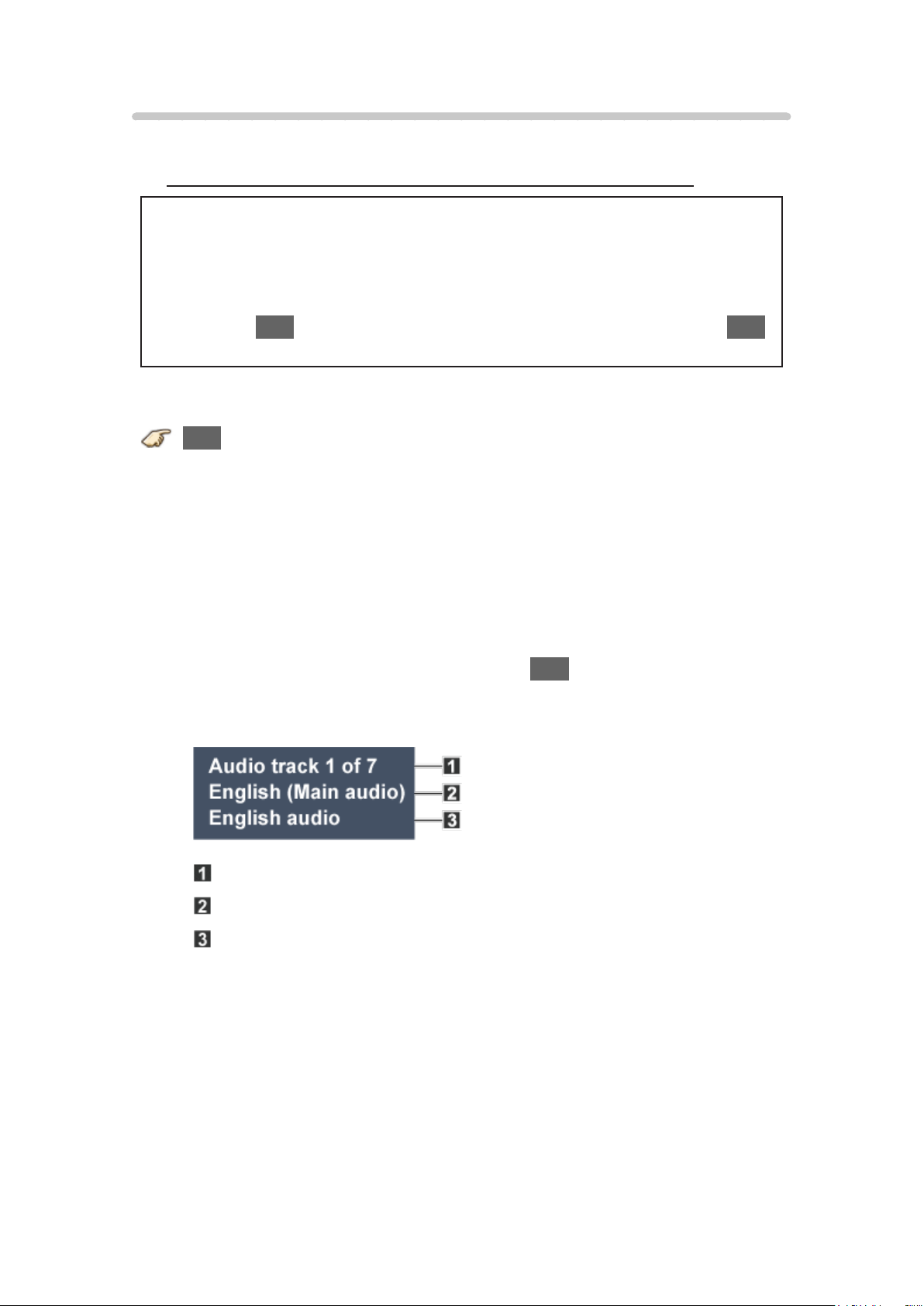

(Example)
Track number / Number of tracks
Current audio track information
Audio service information
Analog mode:
Select the desired Audio mode.
(Stereo / SAP / Mono)
