Panasonic TH-65GX706M User manual

LED Television
Model No. TH-65GX706M
Chassis. 9M40T
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It dose not contain warnings or cautions to advise non -technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to ser-
vice or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

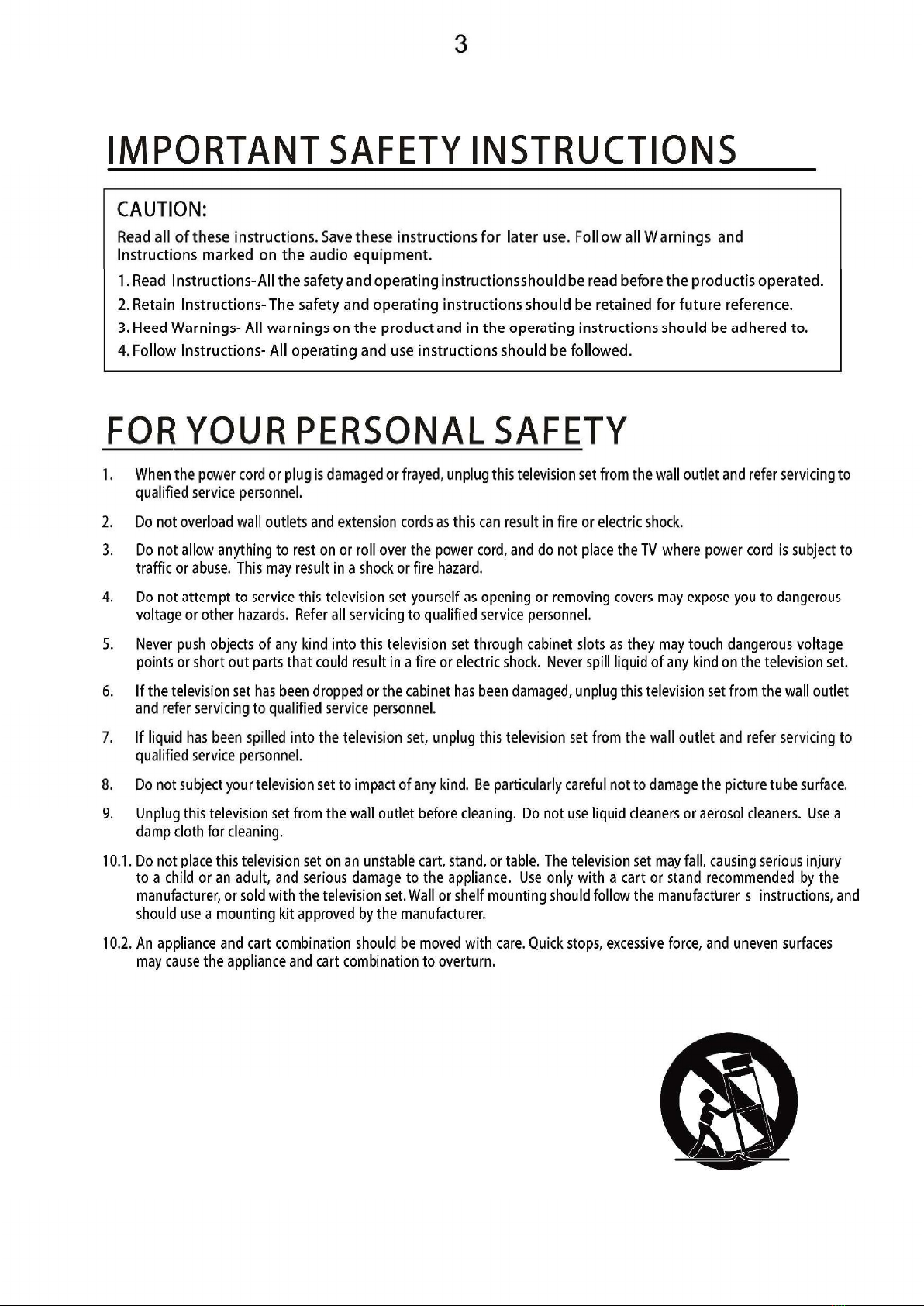

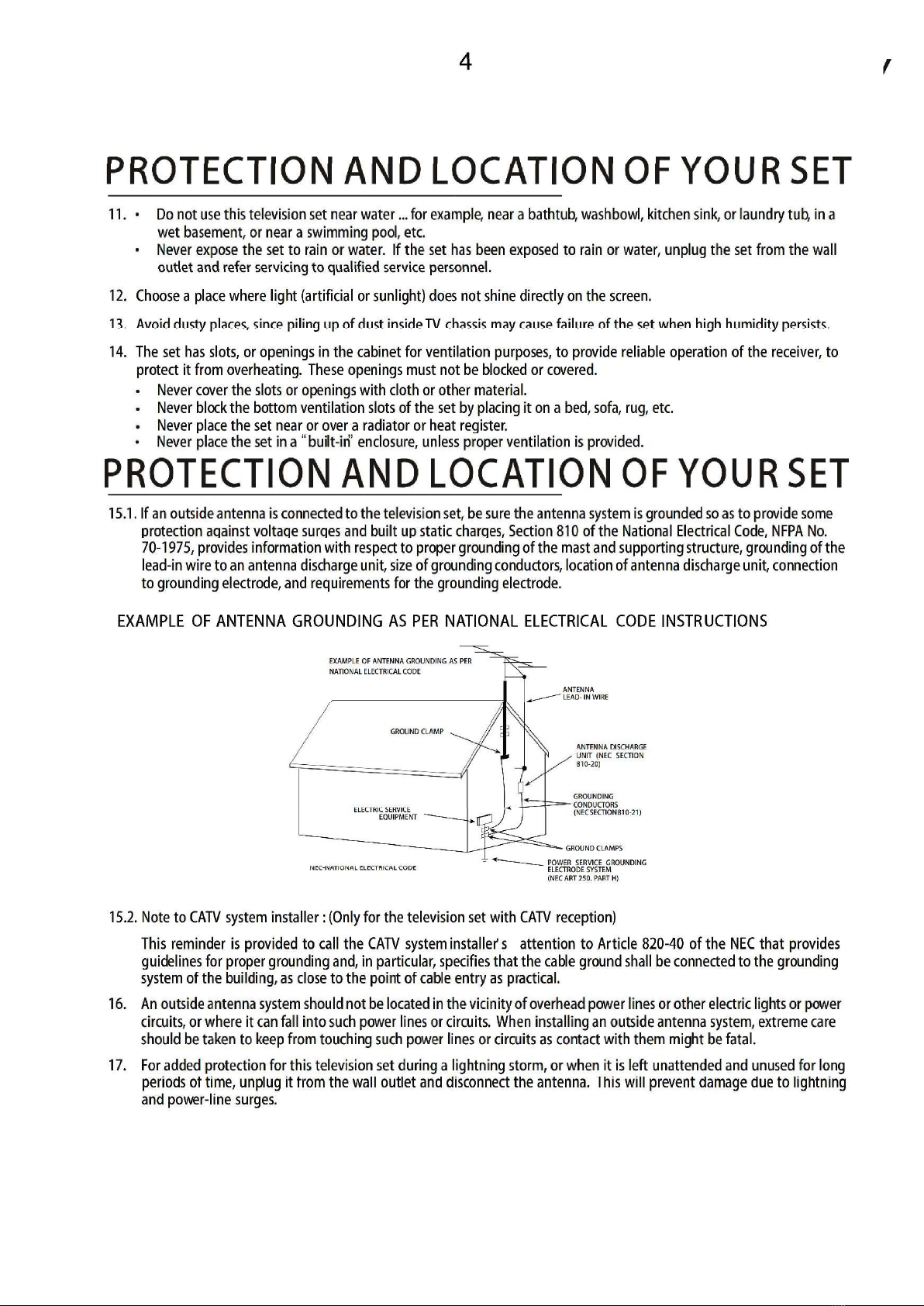

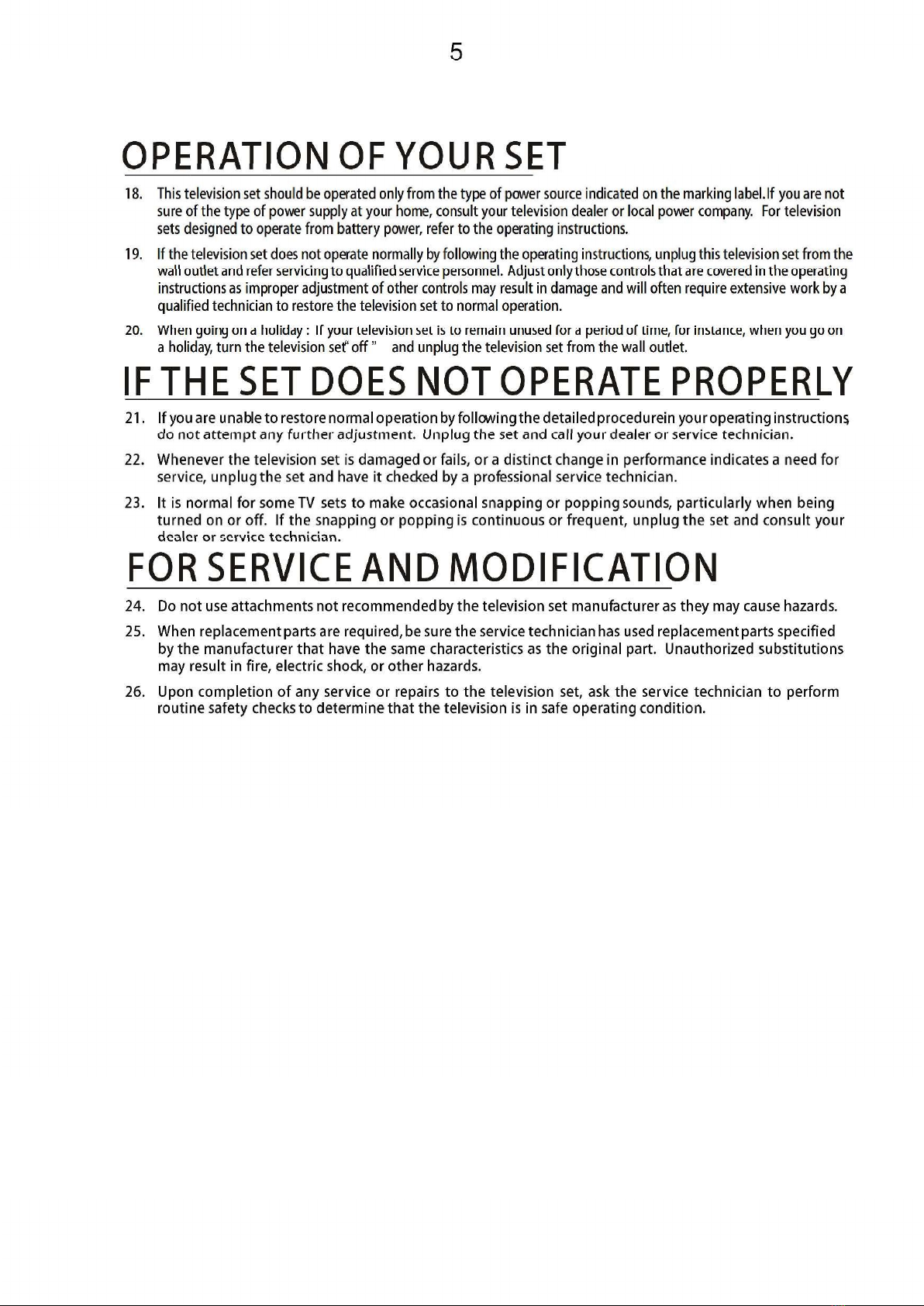

IMPORTANT SAFETY NOTICE
There are special components used in this equipment which are important for safety. These parts are marked by 7in the schematic
diagram, circuit board diagrams, exploded views and replacement parts list. It is essential that these critical parts should be replaced
with manufacturer’s specified parts to prevent shock, fire, or other hazards. Do not modify the original design without permission of
manufacturer.
© Panasonic Corporation 2015. Unauthorized
copying and distribution is a violation of law.

Technical Document
2/43
CONTENT
1. Technical Specification··························································································· 3
2. Overview of the terminals configuration·································································· 17
3. System Block and Power Tree··············································································18
4. Wiring Diagram····································································································19
5. List of key parts·································································································· 20
6. IC General Description························································································· 21
7. Software Upgrade································································································ 33
8. Setting Hotle Mode Menu····················································································· 34
9. PCB Silkscreen·································································································· 286
10. Schematic Circuit Diagram·················································································· 38
11. Trouble Shooting································································································ 44

Technical Document
3/43
1. Technical Specification

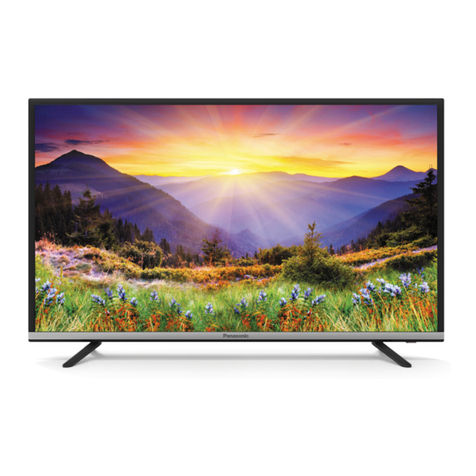

1 Outlook
Please refer to the p
icture
2 Brief Information
2.1 Product Name 9M40T-65Q20
2.2 Chassis Name 9M40T
2.3 Solution MSD6886
2.4 Key functions DVB Netflix TV
2.5 Target Market Asian area
2.6 Product Category D-LED
2.7 Product Positioning Middle End
2.8 Product size 65"
3 Panel Specification
3.1 Model Number Model Number
3.1.1 Panel Manufacturer Skyworth
3.1.2 Model Number LC650EGY-SMM3
3.2 Mechanical Mechanical
3.2.1 Panel Size 65inches
3.2.2 Dimension 1445.79(H) X 825.39 (V) x 51 mm(D)
3.2.3 Pixel Format (H × V) 3840 horiz. by 2160 vert. Pixels
3.2.4 Backlight Type LED
3.2.5 Pixel Pitch (mm) 0.372(H) x 0.372(V)mm
3.2.6 Visible Area (mm) : H x V 1440.3(H) X 817.9 (V)mm
3.2.7 Diagonal Screen Size 64.53 inches
3.3 Electronic Parameter Electronic Parameter
3.3.1 Brightness (cd/m2)(for panel) 350nit（min）
3.3.2 Power consuption(W，for panel) TBD
3.3.3 Brightness (cd/m2)(for product) 300
3.3.4 Dynamic Contrast Ratio No

Technical Document
4/43
3.3.5 Contrast Ratio 1300:1
3.3.6 Veiwing Angle 178
3.3.7 Response Time (ms) 9ms
3.3.8 Back light Time (Hours) 30000
3.3.9 120Hz(100Hz)/240Hz(200Hz) No
4
Signal Receiving Syst
em
4.1 ATV Receiving Syste
m
ATV Receiving System
4.1.1 PAL BG/I/DK/ No
4.1.2 NTSC-M No
4.1.3 PAL/SECAM BG/DK/I Yes
4.1.4 PAL M/N NTSC-M No
4.2 DTV Receiving Syste
m
DTV Receiving System
4.2.1 ATSC No
4.2.2 DVB-T Yes
4.2.3 DVB-T with CI Yes
4.2.4 DVB-T2 Yes
4.2.5 DVB-T2 with CI+ Yes
4.2.6 ISDB-T/SBTVD-T No
4.2.7 DTMB No
4.2.8 DVB-C Yes
4.2.9 ISDB-T/ISDB-S No
4.2.10 DVB-S No
4.2.11 DVB-S/S2 No
4.3 Antenna input Antenna input
4.3.1 Antenna Input port: 1 (1 for analogue) No
4.3.2
Antenna Input port: 1 (1 for both analog
ue and digital)
Yes
4.3.3 Antenna Input port: 2 (1 air + 1 Cable) No
4.3.4 Type of Antenna Input Port IEC 169-24,Female*1
4.3.5 Receiving Frequency range (ATV) 47.25MHZ~870.25

Technical Document
5/43
4.3.6 Receiving Frequency range (DTV)
DVB-T/T2:174 MHz ~ 230 MHz, 470 MHz ~ 8
60 MHz, 104MHz ~ 300 MHz, 304 MHz ~ 86
0 MHz
DVB-C: 50 MHz ~ 858 MHz
4.4
External Signal Recei
ving System
4.4.1 Composite Input PAL 50Hz/60Hz Yes
4.4.2 SECAM Yes
4.4.3 NTSC 3.58 Yes
4.4.4 NTSC4.43 Yes
4.4.5 Component Input 480i /480p/720p/1080i (60Hz) No
4.4.6 576i /576p/720p/1080i (50Hz) No
4.4.7 1080P 24Hz/25Hz/30Hz/50Hz/60Hz No
4.4.8 PC Input VGA (640 x 480) No
4.4.9 S-VGA (800 x 600) No
4.4.10 XGA (1024 x 768) No
4.4.11 W-XGA (1280 x 768) No
4.4.12 W-XGA（1360×768）No
4.4.13 S-XGA (1280 x 1024) No
4.4.14 UW-XGA 1920*1080 No
4.4.15 HDMI Input
480i /480p/720p/1080i (60Hz) (Video For
mat)
Yes
4.4.16
576i /576p/720p/1080i (50Hz) (Video For
mat)
Yes/Yes/Yes/Yes
4.4.17
1080P 24Hz/25Hz/30Hz/50Hz/60Hz (Video
Format)
Yes/Yes/Yes/Yes
4.4.18
4K 24Hz/25Hz/30Hz/50Hz/60Hz (Video For
mat)
Yes/Yes/Yes/Yes/Yes
4.4.19 VGA (640 x 480) (PC Format) Yes
4.4.20 S-VGA (800 x 600) (PC Format) Yes
4.4.21 XGA (1024 x 768) (PC Format) Yes
4.4.22 W-XGA (1280 x 768) (PC Format) Yes
4.4.23 W-XGA（1360×768）(PC Format) Yes
4.4.24 S-XGA (1280 x 1024) (PC Format) Yes

Technical Document
6/43
4.4.25 UW-XGA (1920*1080) (PC Format) Yes
4.4.26 USB Media player formats Refer to the attachment
5 Features
5.1 Picture Picture
5.1.1 Picture Mode Standard/Movie/User/Dynamic
5.1.2 Picture Display Size Auto/4:3/16:9/Movie/Panorama/Just Scan
5.1.3 Picture Freeze No
5.1.4 Backlight Adjust Yes
5.1.5 Auto Format Yes
5.1.6 Noise Reduction Yes
5.1.7 MPEG Reduction Yes
5.1.8 Color temperature Cool/Warm/Nature/User
5.1.9 3:2 Pull Down No
5.1.10 4:3 Stretch NO
5.1.11 Comfilter Yes
5.1.12 PIP(Single tuner) No
5.2 Sound Sound
5.2.1 Sound Mode Standard/Music/Movie/Sport/User
5.2.2 For personal mode:Treble/Bass/Balance Balance
5.2.3 Surround Yes
5.2.4 Equalizer 120HZ/500HZ/1.5KHZ/5KHZ/10KHZ
5.2.5 Audio Output Power 10W + 10W
5.2.6 NICAM Yes
5.2.7 A2 Yes
5.2.8 BTSC(MTS) No
5.3 Teletext Teletext
5.3.1 FLOF/TOP Yes
5.3.2 Memory Page 1000
5.3.3 Character Language Asian
5.3.4 Teletext Level 1.0/1.5
5.4 Program Managemen
t
Program Management
5.4.1 V-Chip No

Technical Document
7/43
5.4.2 Parent Control(Child Lock) Yes
5.4.3 Closed Caption No
5.4.4 Subtitle Yes
5.4.5 EPG Yes
5.4.6 Channel list Yes
5.4.7 Faivorate Channel List Yes
5.4.8 Channel Editor Yes
5.4.9 On/Off timer No
5.4.10 Sleep timer Yes
5.4.11 Channel Swap timer No
5.4.12 Blue Screen No
5.5 AC Input AC Input
5.5.1 AC Input Range 110~240V
5.5.2 AC Plug Type VDE
5.5.3 AC Cable Length 1.5m
5.5.4 Power Consumption 200W
5.5.5 Standby Power Consumption 普通待机小于 0.5W，网络待机小于 2W
5.6 HDMI HDMI
5.6.1 CEC Yes
5.6.2 ARC NO
5.7 Software Update Software Update
5.7.1 By USB Yes
5.7.2 By Internet Yes
5.7.3 Internet Auto search No
5.7.4 By Over-Air YES
5.7.5 By other Service Port No
5.8 PVR PVR
5.8.1 By External USB or HDD Yes
5.8.2 Built in HDD No
5.8.3 Time Shift Yes
5.9 OSD Lauguage OSD Lauguage

Technical Document
8/43
5.9.1 OSD Lauguage TBD
5.1O USB File System USB File System
5.10.1 FAT16 Yes
5.10.2 FAT32 Yes
5.10.3 NTFS No
5.11 Middleware Middleware
5.11.1 MHEG5 NO
5.11.2 Ginga No
5.11.3 MHP No
5.11.4 Hbb TV Yes
5.12 Wifi Wifi
5.12.1 Wifi Dongle No
5.12.2 Wifl Built in Yes
5.13 OS&Apps OS&Apps
5.13.1 Web OS No
5.13.2 Preset Application Yes
5.13.3
HomePage Preset Application Content (Vie
tnam)
(Preset applications may change)
NFX5.1/Youtube/Facebook/Twitter/ScreenCast/A
pps Market (Netrange)/Open Browser/YahooW
eather/Live TV/MediaPlayer
5.13.4 HomePage Weather Content /
6
Terminals Configurati
on
6.1
Teminal Direction (Si
de and Bottom & Si
de and Rear)
Side and Back
6.2 Wifi Wifi Built-in
6.2.1 Tuner 1 Back
6.2.2 Composite 1 Back
6.2.3 Full Scart No
6.2.4 Half Scart No

Technical Document
9/43
6.2.5 Component No
6.2.6
PC input with 3.5mm mini jack audio inp
ut
No
6.2.7 HDMI 1 Side & 2 Back
6.2.8 USB 2 Side
6.2.9 LAN 1 Back
6.2.10 CI Slot No
6.2.11 CA Slot No
6.3 Output Output
6.3.1 Video Output No
6.3.2 Audio Output (Fixed & Variable) No
6.3.3 Digital Audio Output (Coaxial & Optical) 1 optical
6.3.4 Earphone No
6.4 Diagram of Teminal
Configuration
/
7 Mechanical Spec
7.1 Cabinet Cabinet
7.1.1 Cabinet color For front back stand /
7.1.2
Operation Keys / To
uch sensor
Yes/No
7.1.3 AC Power Switch Mechanical power switch No
7.1.4 LED Indicator Power on (Green) No
7.1.5 Power on / Standby (Green / Red ) Yes (Green / Red)
7.1.6
Power on / Standby / Recording(Green /
Red / Orange)
No
7.1.7
Program Timer / Recoding (Green / Red)
No
7.1.8 On Timer or Program Timer(Green) No
7.1.9 Logo Style Silk Printing / SUS Badge (inlet type) TBD
7.1.10 Stand Type Tilt / Swivel Tilt
7.2 Dimension & Stuffin
g
Dimension & Stuffing
7.2.1 Size (with stand)( mm ) TBD
7.2.2 Size (without stand) ( mm ) TBD

Technical Document
10/43
7.2.3 Package Size (with stand)(mm) TBD
7.2.4 Net Weight(Kg) TBD
7.2.5 Gross Weight TBD
7.2.6
Loading quantity (20GP/40GP/40GP) with
pallet
TBD
7.2.7
Loading quantity (20GP/40GP/40GP) witho
ut pallet
TBD
7.2.8 Stand build in Packing Box TBD
8Requested Certificati
on
8.1 CB Yes
8.2 CE No
8.3 UL No
8.4 EMC Yes
8.5 FCC No
8.6 HDMI Yes
8.7 USB No
8.8 CI+ No
8.9 Dolby No
8.10 DOLBY + No
8.11 Dvix Hometheatre No
8.12 DviX HD No
8.13 DviX+HD No
8.15 CTS No
8.16 Wifi No
8.17 MPES No
8.18 Energy Star No
8.19 DTS TruSorround Yes
8.20 EWS No
8.21 DTT No
8.22 NBTC No
8.23 CAST TV No
8.24 Netflix Yes
8.25 Youtube Yes

Technical Document
11/43
8.26 MS12 Yes
8.27 HbbTV No
8.28 RED Yes
9
Digital Right Manage
ment
9.1.1 DRM Widewine YES
9.1.2 Playready YES
10 Accessories
10.1 Remote Controller Remote Controller
10.1.1 Type No. HS-9001H-00
10.1.2 Battery Yes
10.1.3 Q. Manual and Language(for Skyworth) TBD
10.2 Instruction Manual Instruction Manual for ODM/OEM
10.2.1 Paper size TBD
10.2.2 Printing Color TBD
10.2.3 Languages (Refer to Sales Country Sheet) TBD
10.2.4 Total Pages TBD

Technical Document
12/43
2. Overview of the terminals configuration

Technical Document
13/43
3. System Block and Power Tree
LVDS&TCONT
TMDS
USB2.0
远场语音
USB*2
HDMI*3
EEPROM
(OPTION)
Video
PANEL
Audio
UHD
POWER SUPPLYER DDR3*2
RJ45
Title
Size Document Number Rev
Date: Sheet of
1.0Custom
3 17Monday, April 15, 2019
Amplifier
EMMC&NAND
DIF
AV(Composite)IN
SPDIF
IR 、 LED&KEY
QF
MSD6886
LNA
WIFI model
USB2.0
RF(ATV&DTV)
I2S

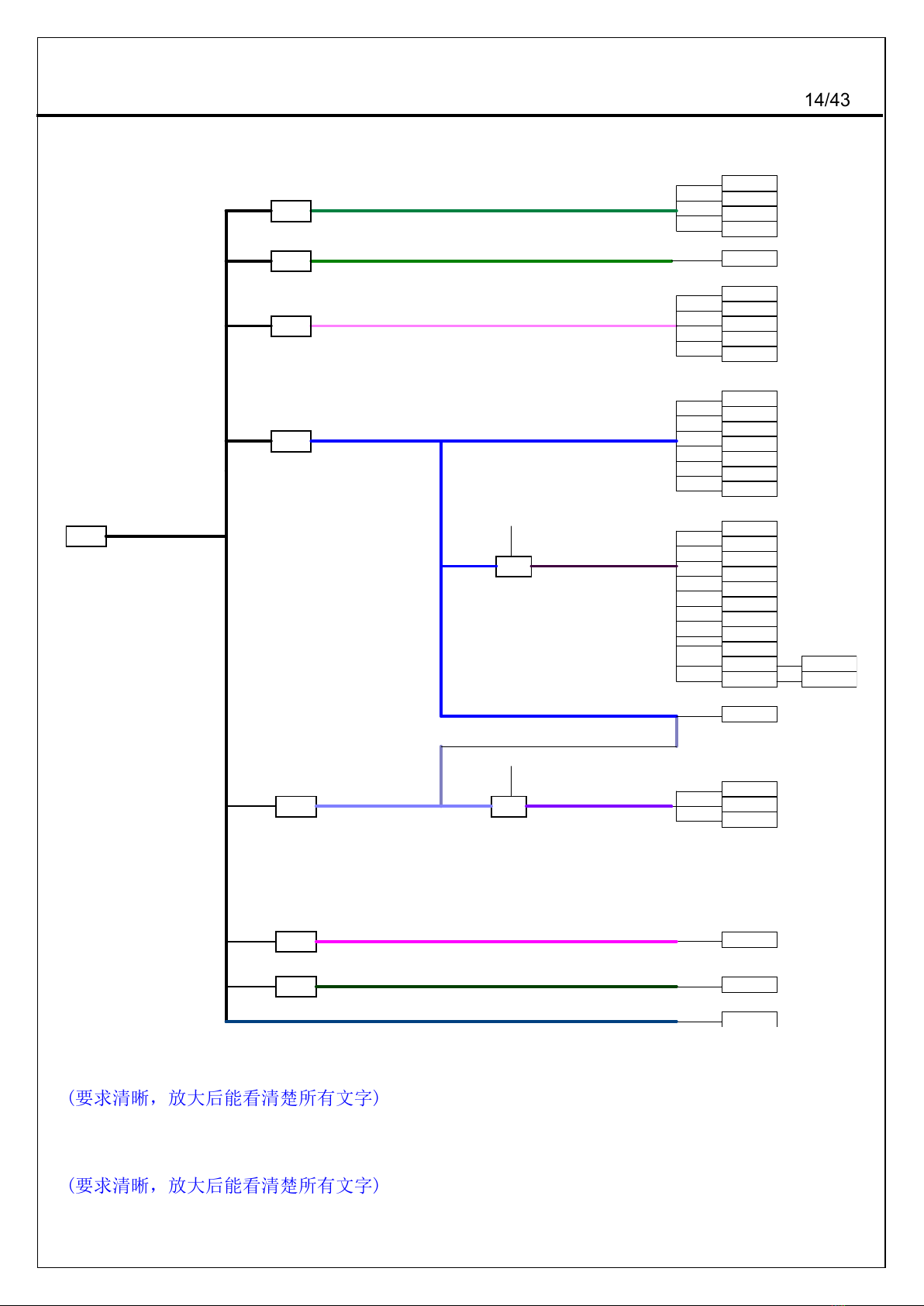

Technical Document
14/43
+3.3V_Standby
300mA
(3A)
+5V_PCMCIA
295mA
85mA
150mA
AVDD3P3_MHL3
(2A)
1.6A
AOZ2152
90mA
1200mA
50mA
AVDD_NODIE
50.4mA
AVDD_EMMC_PLL
AVDD_MOD_VTERM
500mA
+12V_PWR
200mA
AVDD_DDR
225mA
20mA
600mA
(470mA)
+3.3V_T_Tuner
STANDBY ON
DVDD_DDR
VDDP_3318
+3.3V_Standby
250mA
(1395mA)
+12V_PWR
55mA
BL1117_12CX
WIFI 模块
+3.3V_Normal
ME2345A
1A
BL1117_12CX
Option
5mA
AVDD33_ADC
1.0A
AVDD_USB
500mA
eMMC
110mA
AVDD_MOD
VDDC_CPU
+0.95V_VDDC
VDDP33
ME2345A
+1.5V_DDR
20mA
88mA
100mA
AVDD_DRAM
AVDD_LPLL
+3.3V_Normal
MP1652
50mA
+12V_PWR
+12V_PWR
AVDDL_HDMI
1200mA
(4045MA)
3.5A
95MA
10mA
MSH6103A
+5V_STB
120mA
EXT:DDR3
(830mA)
MP1652
AVDD_AU33
AVDD_PLL
STANDBY ON
205MA
+3.3V_S2
LNB_POWER
375MA
MP1652
11mA
+0.95V_VDDC_CPU
AVDD_EAR33
(830mA)
(6A)
ME2345A
(1900mA)
+5V_Normal
+12V_Panel
615MA
AVDDL_MOD
RT5047GSP
200mA
+12_AMP
16.5mA
(470mA)
(2A)
+12V_PWR
150mA
(1A)
760MA
100mA
POWER
VDDC
AVDD_DMPLL
AVDD_DDR_B
300mA
+5V_USB
AVDD_DADC
(600mA)
(2A)
AVDD_DDR_A
+5V_DVB-T2
(要求清晰，放大后能看清楚所有文字)

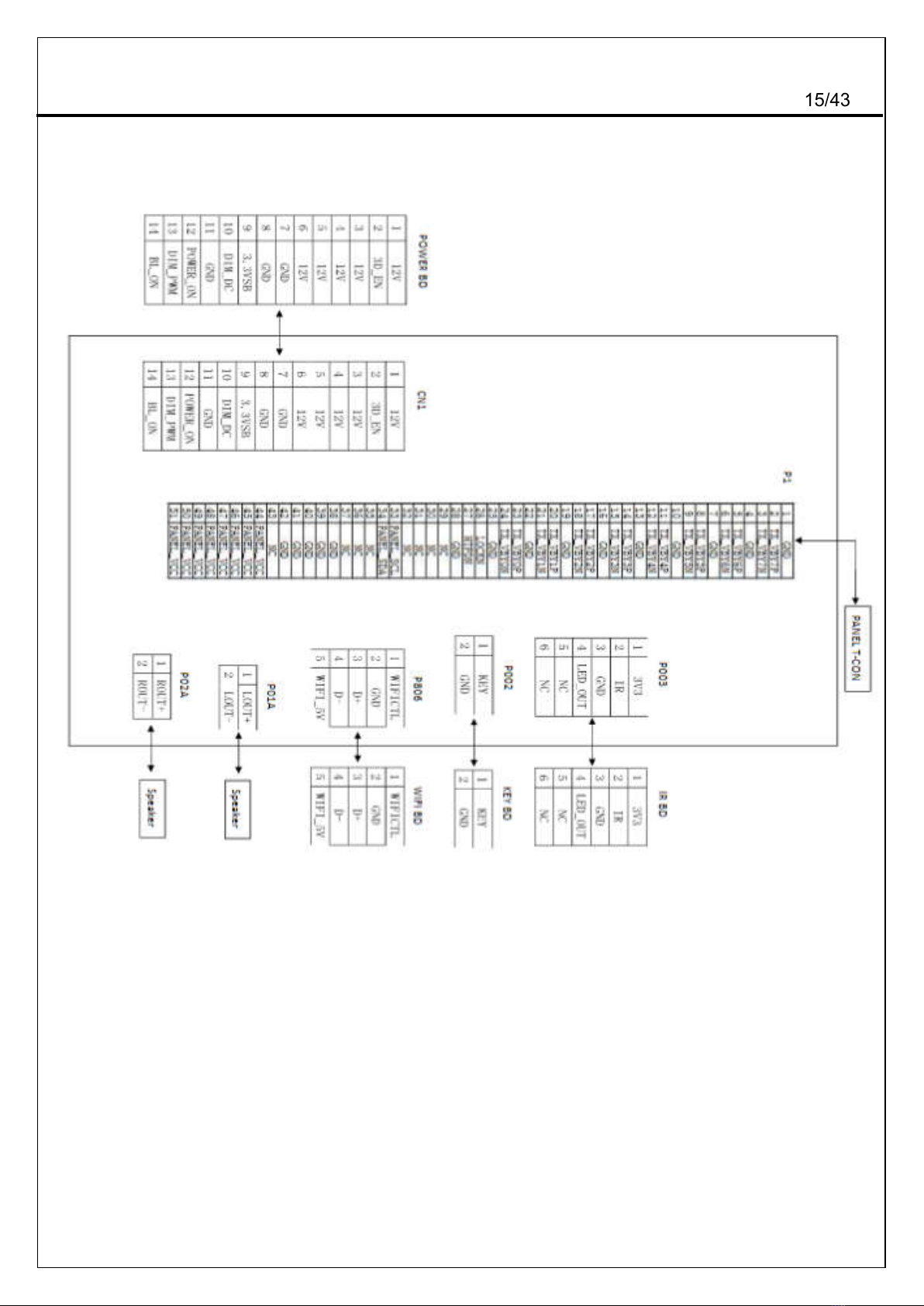

4. Wiring Diagram
(要求清晰，放大后能看清楚所有文字)

Technical Document
15/43

Technical Document
16/43
5. List of key parts
（三合一板需要加入电源部分关键器件）
Supplier Description Type/Model Material Name
MPS 2A 18V STEP DOWN CONVERTER MP1652GTF-Z DC-DC Converter
MPS 3A 17V STEP DOWN CONVERTER MP1653GTF-Z DC-DC Converter
AOZ 6A SYNCHRONOUS BUCK REGULATOR AOZ2152EQI-30 DC-DC Converter
MTK POWER MANAGEMENT MSH6103A DC-DC Converter
JINGYANG 1A ADJUSTABLE LDO JY1117EA LDO
BELLING 1V2/1A BIPOLAR REGULATOR BL1117C-12CX LDO
TOSHIBA 4GB EMMC FLASH THGBMNG5D1LBAIL EMMC
HYNIX 128M*16 DDR3-2133MHz H5TQ2G63GFR-TEC DDR3
SILICON DIGITAL AND ANALOG TV TUNER SI2151-A10 Silicon tuner
TEXAS DIGITAL INPUT AUDIO POWER AMPLIFIER TAS5733LDCAR AUDIO AMPLIFIER
MTK DTV PROCESSOR MSD6886NQHAT-8-00GN SOC
FUDANWE 1.7V-5.5V 32K BIT EEPROM FM24C32D-SO-T-G EEPROM
MATSUKI P-CHANNEL MOSFET ME9435A SWITCH
ADVANCED -30V/-3.6A POWER MOSFET AP3P080N POWER SWITCHES
MTK WIFI 2T2R SINGLE CHIP MT7603UN WIFI CONTROLLER
