Panasonic NN-K153WF User manual

ORDERNO.SIMMC0301010A2
Microwave Oven
NN-K153WF / NN-K103WF / NN-K123MF
BPQ(U.K.)
EPG(Germany, France, Italy, Finland, Spain, Portugal, Greece,
Poland, Holland)
WPG(Switzerland)
Please fileand use thisspecified manual together with the service
manual for Model NN-K152WF/NN-K102WF(ORDERNO.
SIMMC0203001C2).
SPECIFICATIONS
1

2003 Shanghai Matsushita Microwave Oven Co., Ltd. / All rights
reserved. Unauthorized copying and distribution isaviolation of
law.
2

3

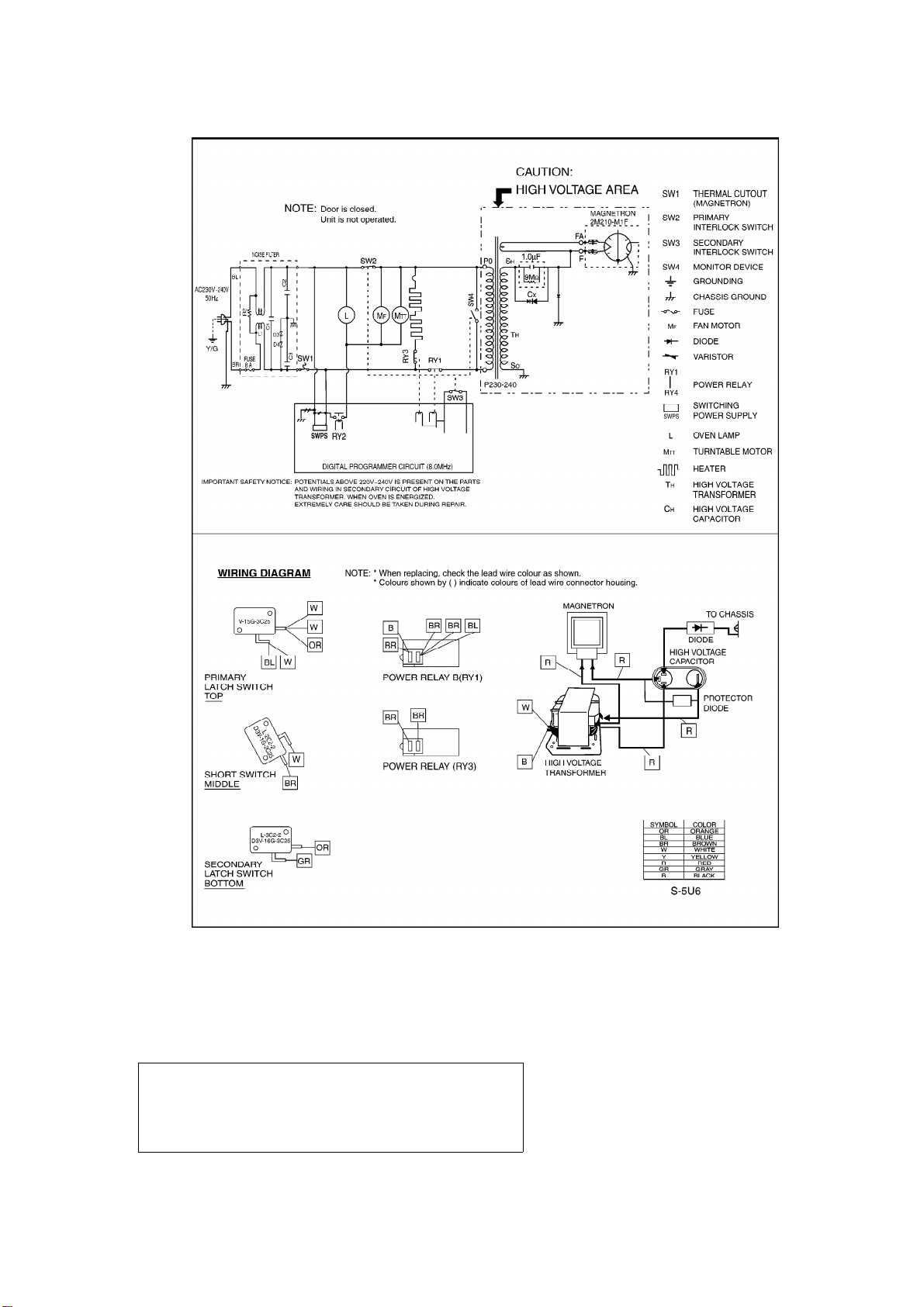

1. SCHEMATIC DIAGRAM (NN-K103WF)
2. SCHEMATIC DIAGRAM (NN-K153WF, NN-K123MF)
4

3. CAUTIONS TO BE OBSERVED WHEN
TROUBLESHOOTING
Unlike manyotherappliances, the microwave ovenis high-voltage, high-current equipment.
Though it is free fromdangerinordinaryuse, extreme care shouldbe takenduring repair.
CAUTION
Servicemenshouldremove theirwatches
wheneverworking close toorreplacing the
magnetron.
5

3.1. Check the grounding
Donot operate on a 2-wire extension cord. The microwave ovenis designedtobe usedwhen
grounded. It is imperative, therefore, tomake sure it is groundedproperlybefore beginning
repairwork.
3.2. Warning about the electriccharge inthe high voltage capacitor
Forabout 30 seconds afterthe ovenis turnedoff, anelectric charge remains inthe high voltage
capacitor.Whenreplacing orchecking parts, remove the powerplug fromthe outlet and short
the terminal of the high voltage capacitor(terminal of leadwire fromdiode) tochassis ground
withaninsulatedhandle screwdrivertodischarge.
WARNING
There is high-voltage present, withhigh-current
capabilities inthe circuits of the high voltage
winding and filament winding of the high voltage
transformer. It is extremelydangerous towork on
ornearthese circuits withovenenergized. / DO
NOTmeasure the voltage inthe high voltage
circuit including filament voltage of magnetron.
WARNING
Nevertouchanycircuit wiring withyourhand nor
withaninsulatedtool during operation.
3.3. When parts must be replaced, remove the power plug from the
outlet.
3.4. When the 8Amp fuse isblowndue to the operation of short
switch:
6

WARNING
Whenthe 8 Ampfuse is blowndue tothe operation
of short switch, you must replace Primarylatch
switchand short switch. Alsoreplace powerrelay
B (RY1) whenthe continultycheck reads shorted
contacts(1-2).
1. Thisismandatory. Refer to “Adjustments and Measurement” for
these switches.
2. When replacing the fuse, confirm that ithas the appropriate rating
for these models.
3. When replacing faultyswitches, be sure mounting tabs are not
bent, broken or otherwise deficient intheirabilityto holdthe
switches.
3.5. Avoidinserting nails, wire, etc. through anyholes inthe unit
during operation.
Neverinsert a wire, nail oranyothermetal object through the lampholes on the cavityorany
otherholes orgaps, because suchobjects maywork as anantenna and cause microwave
leakage.
3.6. Confirm after repair
1. After repairor replacement of parts, make sure that the screwsof
the oven, etc. are neither loose nor missing. / Microwaves might
leak ifscrewsare not properlytightened.
2. Make sure that all electrical connections are tight before inserting
the plug into the wall outlet.
3. Check for microwave energyleakage.
CAUTION / MICROWAVE RADIATION
DO NOTBECOME EXPOSED TO RADIATION
FROM THE MICROWAVE GENERATOR OR OTHER
PARTS CONDUCTING MICROWAVE ENERGY.
7

IMPORTANTNOTICE
1.The following components have potentials above
2000V while the appliance is operated.
*Magnetron
*High voltage transformer
*High voltage diode
*High voltage capacitor
Payspecial attention on these portions.
2.Whenthe appliance is operatedwiththe door
hinge ormagnetron fixedincorrectly, the
microwave leakage canreachmore than5mW/cm2.
Afterrepairorexchange, it is veryimportant to
check if magnetron and the doorhinge is correctly
fixed.
3.7. Sharp edges
CAUTION
Please use caution whenunpacking, installing or
moving the unit, as some exposededges maybe
sharptotouchand cause injuryif not handledwith
care.
4. MEASUREMENTS AND ADJUSTMENTS
4.1. Adjustment of primarylatch switch, secondarylatch switch and
short switch.
1. When mounting Primarylatch switch,Secondarylatch switch and
short switch to door hook assembly, mount the Primarylatch
swith, the Secondarylatch switch and the short switch to the door
hook assemblyas shownintable.
NOTE:
Nospecificadjustment during installation of Primarylatch
switch,Secondarylatch switch and short switch to the door hook
isnecessary.
2. When mounting the door hook assemblyto the oven assembly,
adjust the door hook assemblybymoving itinthe direction of
arrow inthe illustration so that the oven door will not have any
playinit. Check for playinthe door bypulling the door assembly.
Make sure that the latch keysmove smoothlyafter adjustment is
8

completed. Completelytighten the screwsholding the door hook
assemblyto the oven assembly.
3. Reconnect the short switch and check the coninuityof the
monitor circuitand all latch switches againbyfollowing the
components test procedures.
4.2. Measurement of microwave output
The output powerof the magnetron canbe determinedbyperforming IEC standardtest
procedures. However, due tothe complexityof IEC test procedures, it is recommendedtotest
the magnetron using the simple method outlinedbelow.
NecessaryEquipment:
-1liter beaker
-Glass thermometer
-Wrist watch or stopwatch
NOTE:
Check the line voltage under load.Low voltage will lower the
magnetron output. Take the temperature readings and heating time
as accuratelyas possible.
1. Fill the beaker with exactlyone liter of tap water. Stirthe water
using the thermometer and record the beaker’stemperature.
(recorded as T1).
2. Place the beaker on the center of glass cook plate. / Set the oven
9

for High power and heat itfor exactlyone minute.
3. Stirthe water againand read the temperature of the beaker.
(recorded as T2).
4. The normal temperature rise at High power position for each
model isas shownintable.
TABLE (1L-1min.test)
RATED OUTPUT TEMPERATURE RISE
800W(IEC60705) Min. 8°C

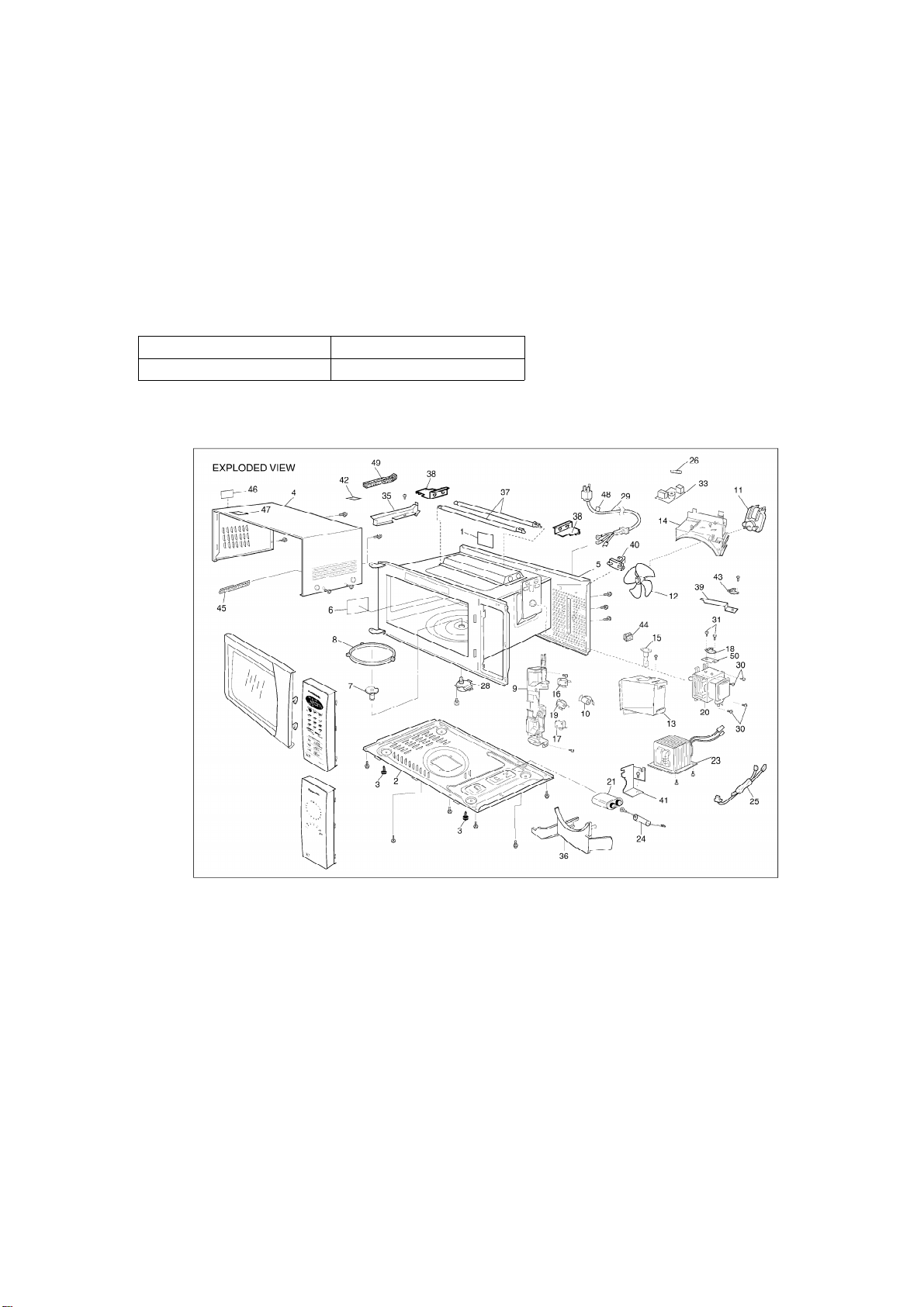

5. EXPLODED VIEW AND PARTS LIST
6. PARTS LIST
NOTE:
1. When ordering replacement part(s), please use part number(s)
showninthispart list.
Donot use description of the part.
2. Important safetynotice:
Components identified bymark have special characteristics
important for safety.
When replacing anyof these components, use onlymanufacture’s
10

specified parts.
NOTE:
Please order all parts from MELUK inU.K.
Ref. No. PartNo. PartName& Description Pcs/Set Remarks
1F00064080BP CAUTION LABEL 1 BPQ
1F00069000EP CAUTION LABEL 1 EPG, WPG
2F10015G50XN BASE 1
3F10084T00AP RUBBER FOOT 2
4F110D5U50HBP CABINETBODY 1 K153WF, K103WF
4F110D5G60SXN CABINETBODY 1 K123MF
5F200A5G50XN OVEN 1
6F20555G10XN COVER 1
7F21315G10XN PULLYSHAFT 1
8F290D5G10XN ROLLER RING (U) 1
9F30205G10XN DOOR HOOK 1
10 F31365G10XN HOOK LEVER A 1
11 F400A5U00XN FAN MOTOR 1
12 F40085G50XN FAN BLADE 1
13 F40255G10XN AIR GUIDEA 1
14 F41445G40XN ORIFICE 1
15 F612E5G10XN INCANDESCENTLAMP(U) 1 25W, 240V
16 F61425U30XN MICRO SWITCH 1 (PRIMARYLATCH SWITCH)
17 F61425U30XN MICRO SWITCH 1 K103WF (SECONDARYLATCH SWITCH)
17 F61415U30XN MICRO SWITCH 1 K153WF, K123MF (SECONDARYLATCH SWITCH)
18 F61454J50XN THERMAL CUTOUT 1 K103WF (185°C OFF)
19 F61785U30XN MICRO SWITCH 1 (SHORTSWITCH)
20 2M210-M1G MAGNETRON 1
21 F60905G10XN H.V.CAPACITOR 1 1.0 F, 2100V
23 F621B5G10MN H.V.TRANSFORMER 1
24 F62025G10XN DIODE 1
25 F606V5G10XN PROTECTOR DIODE(U) 1
26 ANE6230Z70BP FUSE 1 8A, 250V
28 F63265U30XN TURNTABLEMOTOR 1
29 F900C5G50BP AC CORD W/PLUG 1 BPQ
29 F900C5G40ZP AC CORD W/PLUG 1 EPG
29 F900C5G60WP AC CORD W/PLUG 1 WPG
30 XTWFA4+12T SCREW 4 FOR MAGNETRON
31 XTEFA3+6B SCREW 2 FOR THERMAL CUTOUT
33 F692Y5G10QP NOISE FILTER (U) 1
35 F40268920XN AIR GUIDEB 1
36 F40305G50XN AIR GUIDED 1
37 F630G5G50BP HEATER (AU) 2 120V, 550W
38 F64605G50XN HEATER MOUNTING PLATE 2
39 F66265G60XN THERMAL CUTOUTMOUNTING 1 K153WF, K123MF
39 F66265G50XN THERMAL CUTOUTMOUNTING 1 K103WF
40 F11407000AP STOPPER 1
11

Ref. No. PartNo. PartName& Description Pcs/Set Remarks
41 F66625G50XN GROUNDING PLATE 1
42 F01504Y00XN NO TOUCHING LABEL 1 EPG, WPG
43 F61455G60XN THERMAL CUTOUT 1 K153WF, K123MF (150°C OFF)
43 F61455G50XN THERMAL CUTOUT 1 K103WF (67°C ON, 77°C OFF)
44 F0922000AE CUSHION RUBBER C 1
45 F0922000EF CUSHION RUBBER C 1
46 F04905U60HEP ENERGYLABEL 1 K153WF EPG
46 F04905U60SEP ENERGYLABEL 1 K123MF EPG
46 F04905U50HEP ENERGYLABEL 1 K103WF EPG
47 F01505G50BP NO TOUCHING LABEL 1 BPQ
48 F02395G50BP AC CORD CAUTION LABEL 1 BPQ
49 F0923000AL CUSHION RUBBER C 1
50 F62385G50XN SPACER 1 K103WF
7. DOOR ASSEMBLY
12

Ref. No. PartNo. PartName& Description Pcs/Set Remarks
D1 F30185G10XN DOOR KEY A 1
D2 F30015U40HXN DOOR A 1 K153WF, K103WF
D2 F30015U60SBP DOOR A 1 K123MF
D3 F302K5G10XN DOOR E(U) 1
D4 F30215G10XN DOOR KEY SPRING 1
D5 F30855G10XN DOOR C 1
D6 F31455G10XN DOOR SCREEN A 1
D7 F31465U30XN DOOR SCREEN B 1

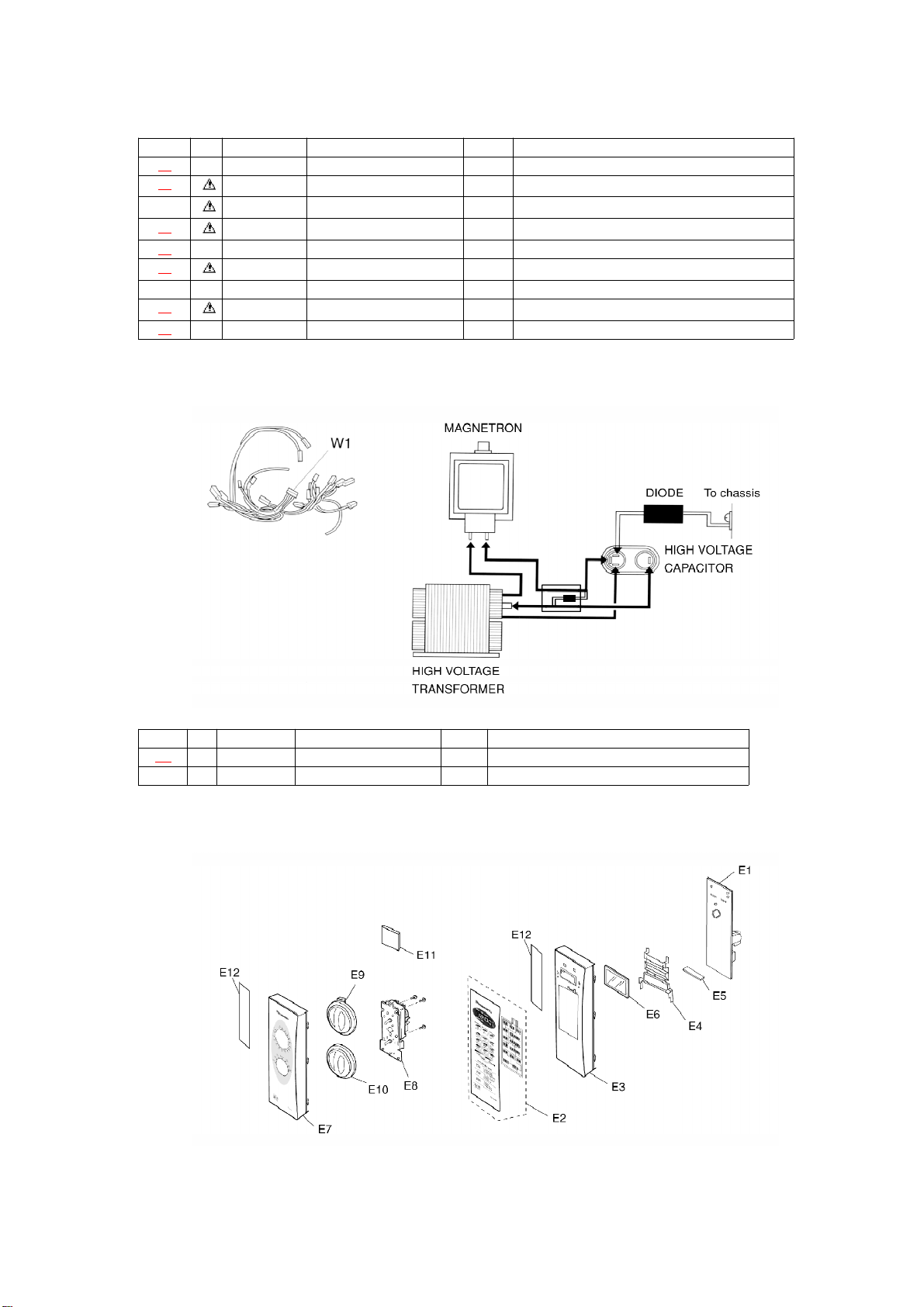

8. WIRING MATERIALS
Ref. No. PartNo. PartName& Description Pcs/Set Remarks
W1 F030A5G60BP LEAD WIREHARNESS 1 K153WF, K123MF
W1 F030A5U50BP LEAD WIREHARNESS 1 K103WF
9. ESCUTCHEON BASE ASSEMBLY
13

Ref. No. PartNo. PartName& Description Pcs/Set Remarks
E1 F603L5G60BP D.P.CIRCUIT 1 K153WF (BPQ), K123MF (BPQ)
E1 F603L5G60EP D.P.CIRCUIT 1 K153WF (EPG, WPG), K123MF (EPG, WPG)
E2 F630Y5U60HBP MEMBRANESWITCH (U) 1 K153WF (BPQ)
E2 F630Y5U60HEP MEMBRANESWITCH (U) 1 K153WF (EPG, WPG)
E2 F630Y5U60SBP MEMBRANESWITCH (U) 1 K123MF (BPQ)
E2 F630Y5U60SEP MEMBRANESWITCH (U) 1 K123MF (EPG, WPG)
E3 F80345U40HXN ESCUTCHEON BASE 1 K153WF
E3 F80345U60SBP ESCUTCHEON BASE 1 K123MF
E4 F66174T00AP DISPLAYTUBECOVER 1 K153WF, K123MF
E5 A67004T00AP RUBBER CONNECTOR 1 K153WF, K123MF
E6 AEDDHJ5G60XN DISPLAY 1 K153WF, K123MF
E7 F80345U50HBP ESCUTCHEON BASE 1 K103WF (BPQ)
E7 F80345U50HEP ESCUTCHEON BASE 1 K103WF (EPG)
E8 F60015U50BP TIMER 1 K103WF
E9 F80205U30HXN TIMER KNOB 1 K103WF
E10 F80205V00HXN TIMER KNOB 1 K103WF
E11 F603L5G50EP INRUSH CURRENT
SUPPRESSION 1 K103WF
E12 F00075U60HBP NAMEPLATE 1 K153WF (BPQ)
E12 F00075U60HEP NAMEPLATE 1 K153WF (EPG)
E12 F00075U60HWP NAMEPLATE 1 K153WF (WPG)
E12 F00075U60SBP NAMEPLATE 1 K123MF (BPQ)
E12 F00075U60SEP NAMEPLATE 1 K123MF (EPG)
E12 F00075U60SWP NAMEPLATE 1 K123MF (WPG)
E12 F00075U50HBP NAMEPLATE 1 K103WF (BPQ)
E12 F00075U50HEP NAMEPLATE 1 K103WF (EPG)
10. PACKING AND ACCESORIES
14

Ref. No. PartNo. PartName& Description Pcs/Set Remarks
P1 F00035U50BP INSTRUCTION MANUAL 1 K153WF (BPQ), K123MF (BPQ), K103WF (BPQ)
P1 F00035U50EP INSTRUCTION MANUAL 1 K153WF (EPG), K123MF (EPG), K103WF (EPG)
P1 F00035U60WP INSTRUCTION MANUAL 1 K153WF (WPG), K123MF (WPG)
P2 F01025U60HBP PACKING CASE, PAPER 1 K153WF
P2 F01025U60SBP PACKING CASE, PAPER 1 K123MF
P2 F01025U50HBP PACKING CASE, PAPER 1 K103WF
P3 F01045G10XN UPPER FILLER 1
P4 F01055G10XN LOWER FILLER 1
P5 F01065M00BP P.E.BAG 1
P6 F01075G10XN DOOR SHEET 1
P7 A06015G10XN COOKING TRAY 1
P8 F01924T00AP SHEET 1
P10 F01085G50XN TRAYPACKING 1
P11 F060V5G50XN OVEN RACK 1
P12 F01695M70BP SERVICECENTER LIST 1
11. DIGITAL PROGRAMMER CIRCUIT(NN-153WF/
K123MF)

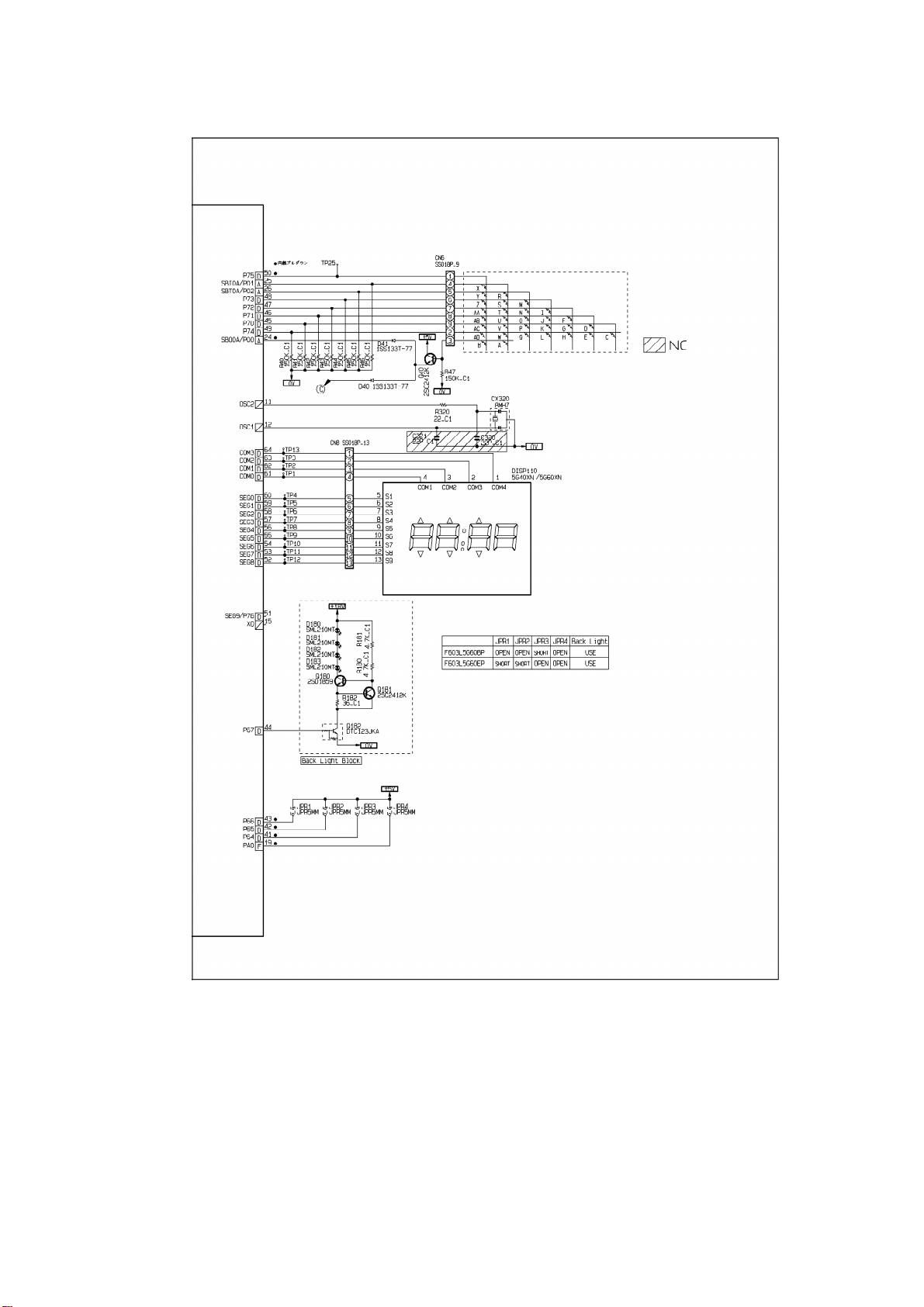

SCHEMATIC DIAGRAM
15

16

12. DIGITAL PROGRAMMER CIRCUIT (NN-K153WF/
K123MF)
PARTS LIST
17

Ref. No. PartNo. PartName& Description Pcs/Set Remarks
BZ310 AEFBTFM571 BUZZER 1 2.0KHz
C10 AECETK1V471B AL CHEMCAPACITOR 1 470 F/35V
C221 AECUU06F103Z CHIPCAPACITOR 1 0.01 F/50V
C12, C350 AECUT06F104Z CHIPCAPACITOR 2 0.1 F/25V
CN1 AEEMXH01505W CONNECTOR 1
CN4 F03535G40XN CONNECTOR 1 4PIN
CX320 AEFOS800MG06 CERAMIC RESONATOR 1 8.00MHz
D10 AESSRCT1A6-E DIODE 1
D40, D41, D220, D221, D222,
D223, D224 AESS133T-77 DIODE 7
D180, D181, D182, D183 AESQPY1112H LED 4
D25 AERZ511KD10A VARISTOR 1
D26, D27 AERZ102KD10A VARISTOR 2
IC1 MN101C589DM L.S.I 1
Q11, Q180 2SD1859TV2Q TRANSISTOR 2
Q40, Q181, Q220, Q225 2SC2412KT146 CHIPTRANSISTOR 4
Q182, Q210, Q222, Q223 AESC23JKE CHIPDIGI-TRANSISTOR 4
Q226 AESA14EKE CHIPDIGI-TRANSISTOR 1
R211 AERJ06J102R CHIPRESISTOR 1 1K , 1/16W, 5%
R226 AERJ06J103R CHIPRESISTOR 1 10K , 1/16W, 5%
R221, R228, R229, R350, R351 AERJ06J104R CHIPRESISTOR 5 100K , 1/16W, 5%
R40, R41, R42, R43, R44, R45,
R46, R47 AERJ06J154R CHIPRESISTOR 8 150K , 1/16W, 5%
R320, R352 AERJ06J220R CHIPRESISTOR 2 22 , 1/16W, 5%
R220, R222, R223 AERJ06J222R CHIPRESISTOR 3 2.2K , 1/16W, 5%
R210 AERJ06J332R CHIPRESISTOR 1 3.3K , 1/16W, 5%
R440, C440 AERJ06J333R CHIPRESISTOR 2 33K , 1/16W, 5%
R182 AERJ06J360R CHIPRESISTOR 2 36 , 1/16W, 5%
R441 AERJ06J471R CHIPRESISTOR 1 470 , 1/16W, 5%
R180, R181 AERJ06J472R CHIPRESISTOR 2 4.7K , 1/16W, 6%
R10, R11 AERDY2TJ102T CARBON FILMRESISTOR 2 1K , 1/4W, 5%
R290 AERDY2TJ103T CARBON FILMRESISTOR 1 10K , 1/4W, 5%
RY1, RY3 AEGG5G1A12 POWER RELAY 2
RY2 AEBJQ1A18 POWER RELAY 1
T10 AETP4T00QP LOWVOLTAGE
TRANSFORMER 1
ZD11 AESZMTZJ5R6B ZENER DIODE 1
01/03 / S-5U5/ S-5U6/ Printed inChina
18

ORDERNO.SIMMC0203001C2
Microwave Oven
NN-K152WF / NN-K102WF
BPQ(U.K.)
EPG(Germany, France, Italy, Finland, Spain, Portugal, Greece,
Poland, Holland)
WPG(Switzerland)
SPECIFICATIONS
2002 Shanghai Matsushita Microwave Oven Co., Ltd. / All rights
reserved. Unauthorized copying and distribution isaviolation of
1

law.
2
