Panasonic NN-P795 User manual

© 2005 Panasonic Home Appliances Microwave
Oven (Shanghai) Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation
of law.
NN-P795 NN-P794SFR
NN-P794BFR NN-P794WFR
NN-T795 NN-T785SF
NN-T775SF NN-T765SF
NN-T755SF NN-T745SF
NN-T735SF NN-T794SFR
NN-T774SFR NN-T764SFR
NN-H765 NN-S755
NN-H735 NN-S735
NN-S754BFR NN-S754WFR
APH(USA)
CPH(CANADA)
RPH(Mexico/Latin American)
Microwave Oven
Please file and use this specified manual together with the service manual for Model NN-T695 (ORDER NO.
PHAMOS0501001C1).
ORDER NO.PHAMOS0501003A7
E1

2
NN-P795 NN-P794SFR

3
NN-P795 NN-P794SFR

1 SCHEMATIC DIAGRAM 5
1.1. APH 5
1.2. CPH 6
1.3. RPH 7
2 MEASUREMENTS AND ADJUSTMENTS 8
2.1. Adjustment of primary latch switch, secondary latch switch
and short switch. 8
2.2. Measurement of microwave output 8
3 PROCEDURE FOR MEASURING MICROWAVE ENERGY
LEAKAGE 9
3.1. Equipment 9
3.2. Procedure for measuring radiation leakage 9
3.3. Record keeping and notification after measurement 9
3.4. At least once a year, have the radiation monitor checked
for calibration by its manufacturer. 9
4 SIMPLE WAY OF H.V. INVERTER/MAGNETRON
TROUBLESHOUTING 10
5 EXPLODED VIEW AND PARTS LIST 11
5.1. EXPLODED VIEW 11
5.2. PARTS LIST 12
5.3. WIRING MATERIALS 13

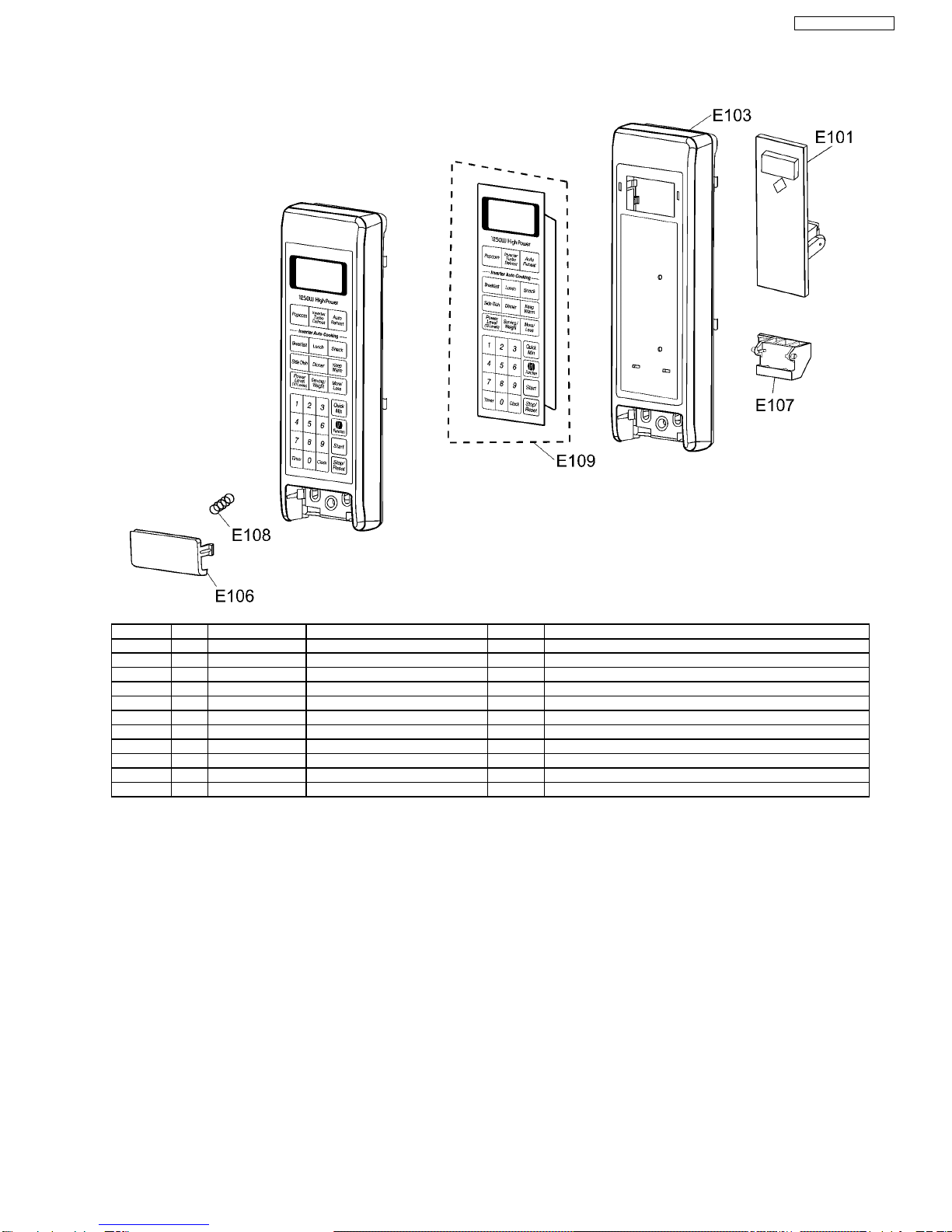

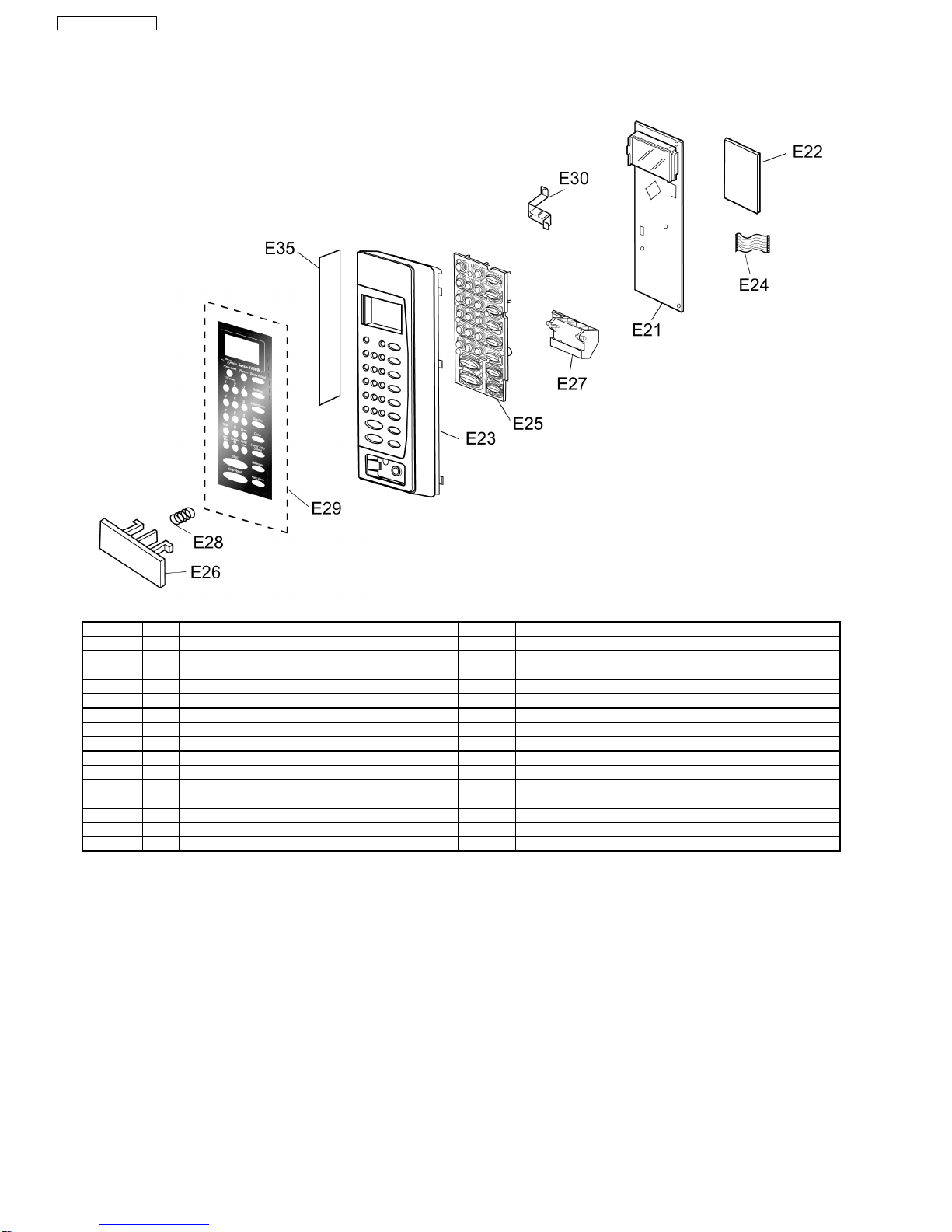

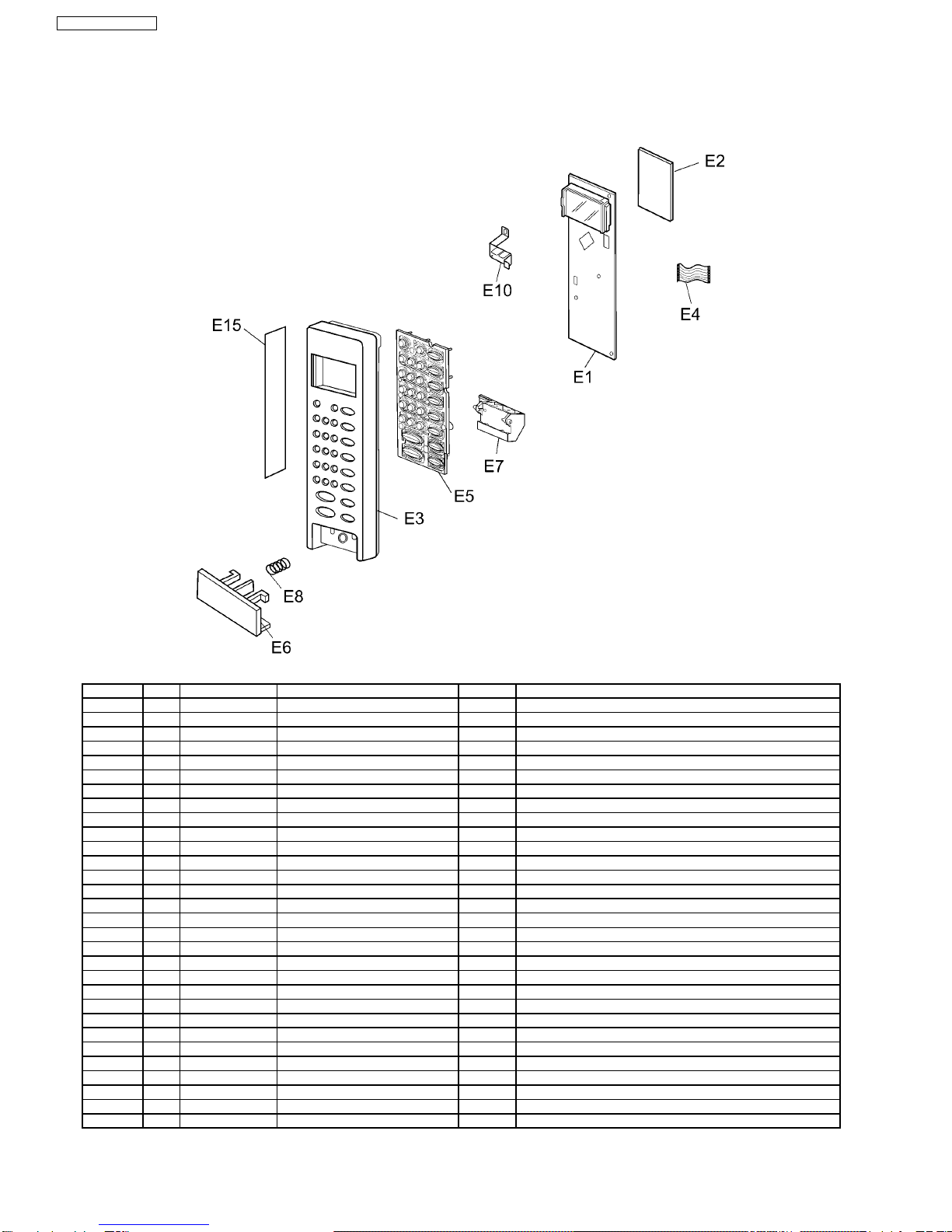

5.4. ESCUTCHEON BASE ASSEMBLY 14

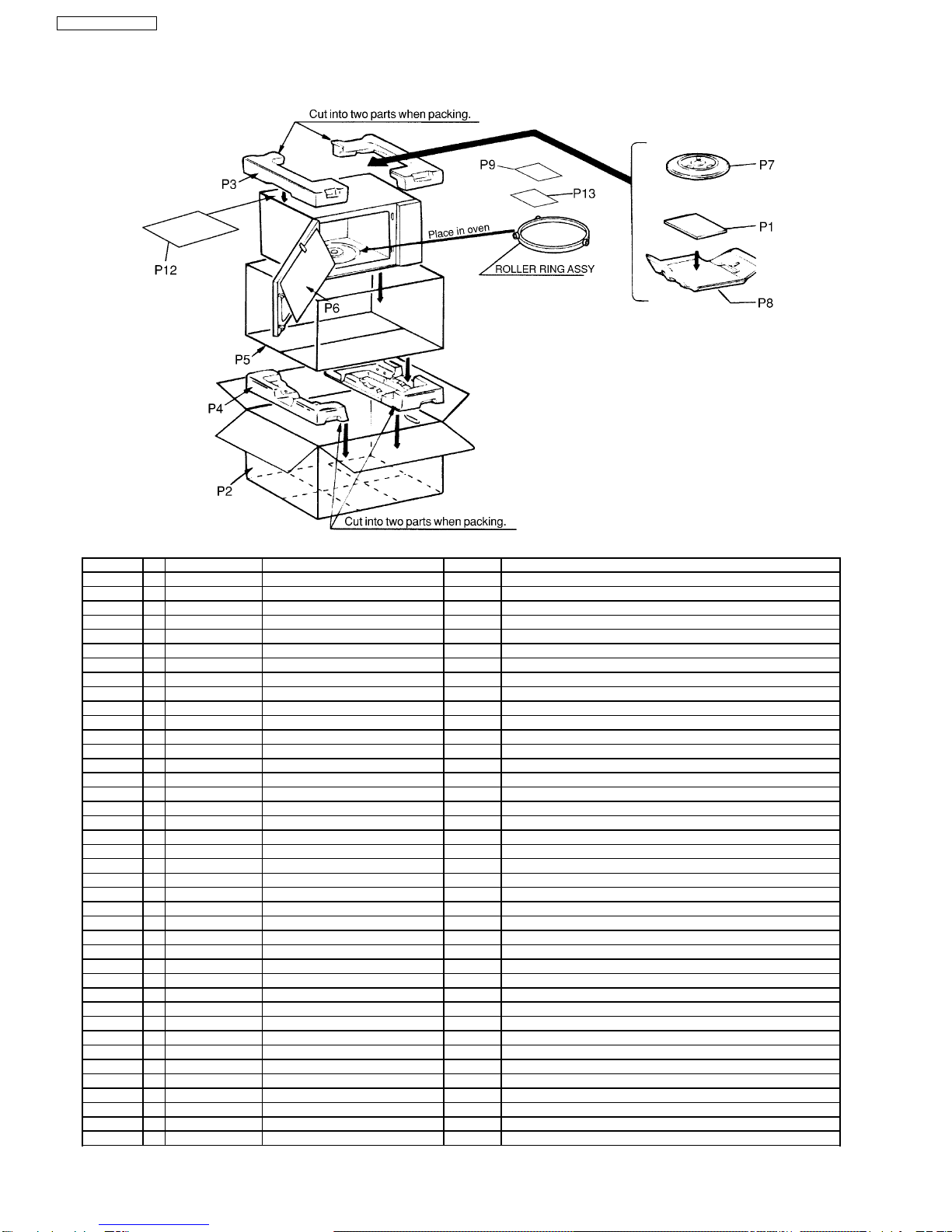

5.5. PACKING AND ACCESSORIES 20
5.6. DOOR ASSEMBLY 21
6 DIGITAL PROGRAMMER CIRCUIT 22
6.1. NN-P795 CPH, P794*FR APH/CPH 22
6.2. NN-T795SF APH/CPH, T795SF/SM RPH, T785SF APH
24
6.3. NN-T755SF APH, T794SFR APH, T774SFR APH 26
6.4. NN-T775SF/T765SF/T745SF/T735SF APH, T764SFR
APH 28
6.5. NN-H765 APH/CPH, H735 APH, S755 APH 30
6.6. NN-S735 APH 32
6.7. NN-S755 RPH 34
6.8. NN-S754*FR APH 36
6.9. PARTS LIST 38
CONTENTS
Page Page
4
NN-P795 NN-P794SFR

1 SCHEMATIC DIAGRAM
1.1. APH
5
NN-P795 NN-P794SFR

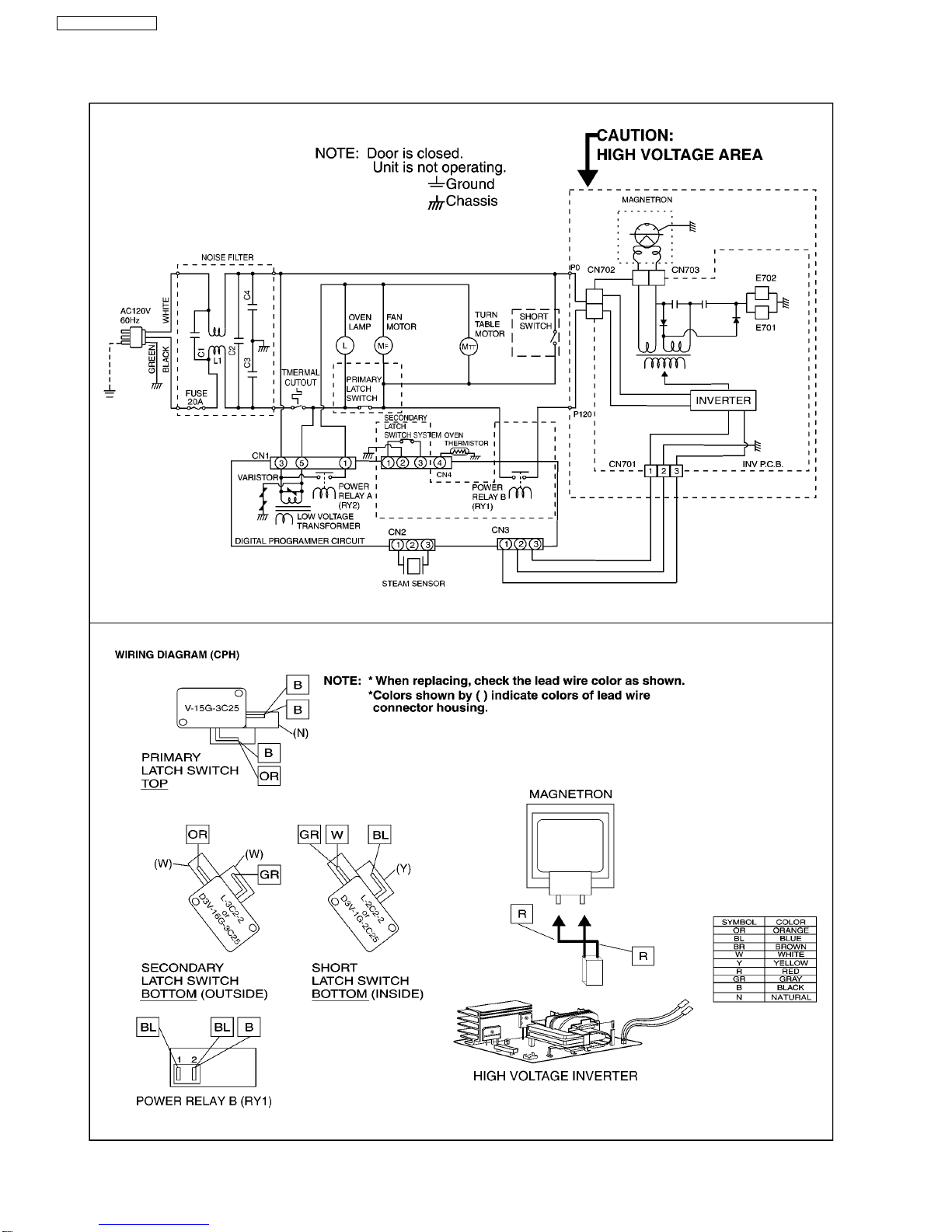

1.2. CPH
6
NN-P795 NN-P794SFR

1.3. RPH
7
NN-P795 NN-P794SFR

2.1. Adjustment of primary latch
switch, secondary latch switch
and short switch.
1.Mount the Primary latch switch, the Secondary latch switch
and the short switch to the door hook assembly as shown in
ILL.
NOTE:
No specific individual adjustments during
installation of the Primary latch switch, Secondary
latch switch or Short switch to the door hook are
required.
2.When mounting the door hook assembly to the oven
assembly, adjust the door hook assembly by moving it in
the direction of the arrows in the illustration so that the oven
door will not have any play in it. Check for play in the door
by pulling the door assembly. Make sure that the latch keys
move smoothly after adjustment is completed. Completely
tighten the screws holding the door hook assembly to the
oven assembly.
3.Reconnect the short switch and check the continuity of the
monitor circuit and all latch switches again by following the
component test procedures.
2.2. Measurement of microwave
output
The output power of the magnetron can be determined by
performing IEC standard test procedures. However,due to the
complexity of IEC test procedures, it is recommended to test
the magnetron using the simple method outlined below.
Necessary Equipment:
*1 liter beaker *Glass thermometer
*Wrist watch or stopwatch
NOTE:
Check the line voltage under load.Low voltage will
lower the magnetron output. Take the temperature
readings and heating time as accurately as possible.
1.Fill the beaker with exactly one liter of tap water.Stir the
water using the thermometer and record the water’s
temperature. (recorded as T1).
2.Place the beaker on the center of glass tray.
Set the oven for High power and heat it for exactly one
minute.
3.Stir the water again and read the temperature of the water.
(recorded as T2).
4.The normal temperature rise at High power level for each
model is as shown in table.
TABLE (1L-1min.test)
RATED OUTPUT TEMPERATURE RISE
1200W Min. 18.5°F(10.3°C)
1300W Min. 19.8°F(11.1°C)
2 MEASUREMENTS AND ADJUSTMENTS
8
NN-P795 NN-P794SFR

NOTE:
The U.S. Government standard is 5 mW/cm2while in the
customer’s home. 2mW/cm2stated here is our own
voluntary standard. (1mW/cm2for Canada)
3.1. Equipment
• • •
• Electromagnatic radiation monitor
• • •
• Glass thermometer 212°F or 100°C
• • •
• 600cc glass beaker
3.2. Procedure for measuring
radiation leakage
Note before measuring.
• • •
• Do not exceed meter full scale deflection. Leakage monitor
should initially be set to the highest scale.
• • •
• To prevent false readings the test probe should be held by
the grip portion of the handle only and moved along the
shaded area in Figure no faster than 1 inch/sec
(2.5cm/sec).
• • •
• Leakage with the outer panel removed ...... less than
5mW/cm2.
• • •
• Leakage for a fully assembled oven with door normally
closed ...... less than 2mW/cm 2(1mW/cm 2for Canada).
• • •
• Leakage for a fully assembled oven [Before the latch switch
(primary) is interrupted] while pulling the door ...... less than
2mW/cm 2.
1.Pour 275 ± 15cc (9ozss± 1/2oz) of 20°C ± 5°C (68° ± 9°F)
water in a beaker which is graduated to 600cc, and place in
the center of the oven.
2.Set the radiation monitor to 2450MHz and use it following
the manufacturer´s recommended test procedure to assure
correct results.
3.When measuring the leakage, always use the 2 inch (5cm)
spacer supplied with the probe.
4.Tap the start pad or set the timer and with the magnetron
oscillating, measure the leakage by holding the probe
perpendicular to the surface being measured.
3.2.1. Measurement with the outer panel
removed.
Whenever you replace the magnetron, measure for radiation
leakage before the outer panel is installed and after all
necessary components are replaced or adjusted. Special care
should be taken in measuring around the magnetron.

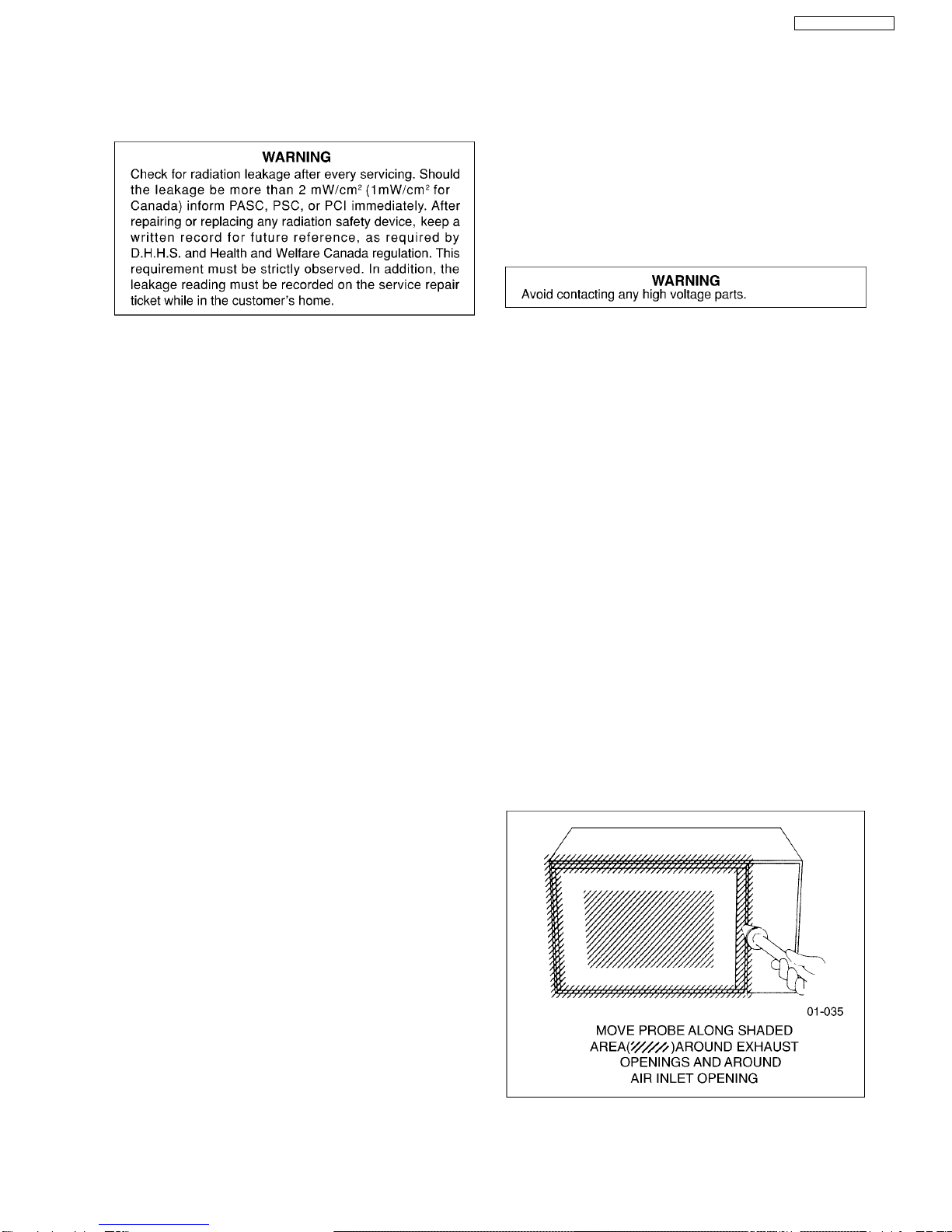

3.2.2. Measurements with a fully
assembled oven.
After all components, including outer panel are fully assembled,
measure for radiation leakage around the door periphery, the
door viewing window, the exhaust opening and air inlet
openings.
3.3. Record keeping and
notification after measurement
• • •
• After any adjustment or repair to a microwave oven, a
leakage reading must be taken. Record this leakage
reading on the repair ticket even if it is zero.
A copy of this repair ticket and the microwave leakage
reading should be kept by repair facility.
• • •
• Should the radiation leakage be more than 2 mW/cm2
(1mW/cm for Canada) after determining that all parts are in
good condition, functioning properly, and genuine
replacement parts as listed in this manual have been used,
immediately notify PASC, PSC or PCI.
3.4. At least once a year, have the
radiation monitor checked for
calibration by its
manufacturer.
3 PROCEDURE FOR MEASURING MICROWAVE ENERGY
LEAKAGE
9
NN-P795 NN-P794SFR

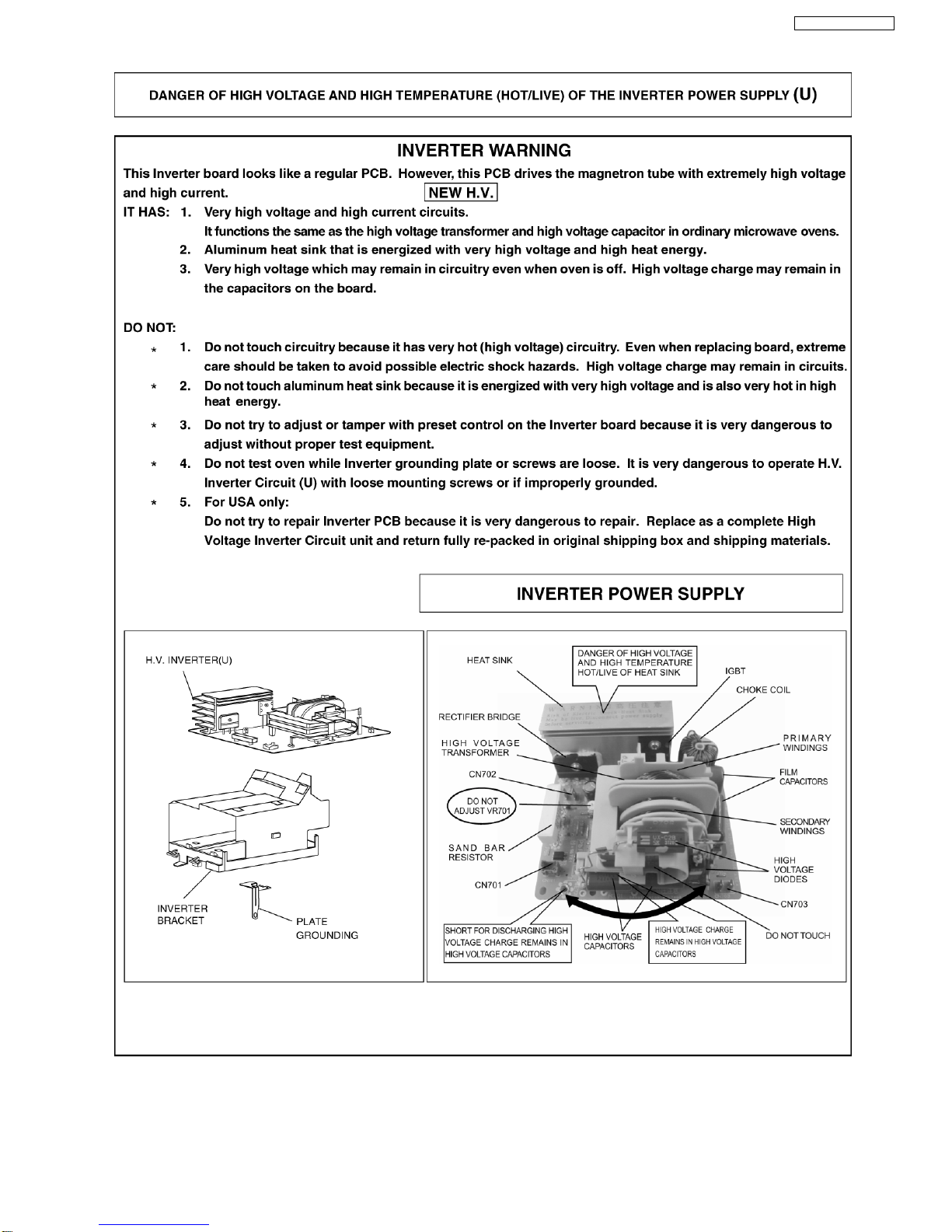

4 SIMPLE WAY OF H.V. INVERTER/MAGNETRON
TROUBLESHOUTING
Purpose:
Simple way (3/23 seconds rule) of identifying whether it’s Magnetron, Inverter, or others.
Set-up:
The unit under question is connected through the Ammeter as shown below.
Procedure:
Follow the matrix table below to identify the problem source.
Note:
Do not replace both Inverter board and Magnetron simultaneously and automatically without going through this
procedure.
Power will: Ammeter reading is: To do: Remedy:
Shut off in 23 seconds
after “Start”. 1. Between 0.5A and 1.0A. Check and repair open magnetron circuit Open magnetron wiring between Inverter and magnetron terminal.
2. Between 1.0A and 2.0A. Check continuity of D702 in Inverter PCB.
1. D702 shorted Replace H.V.Inverter
(F606Y6G00AP/F606Y6G00CP)
2. D702 is OK Replace magnetron
Shut off in 3 seconds
after “Start” 1. Less than 0.5A Check open circuit: Latch Switch, DPC, Power Relay and CN701 Replace defective component(s), or correct switch, cables and connectors.
10
NN-P795 NN-P794SFR

5 EXPLODED VIEW AND PARTS LIST

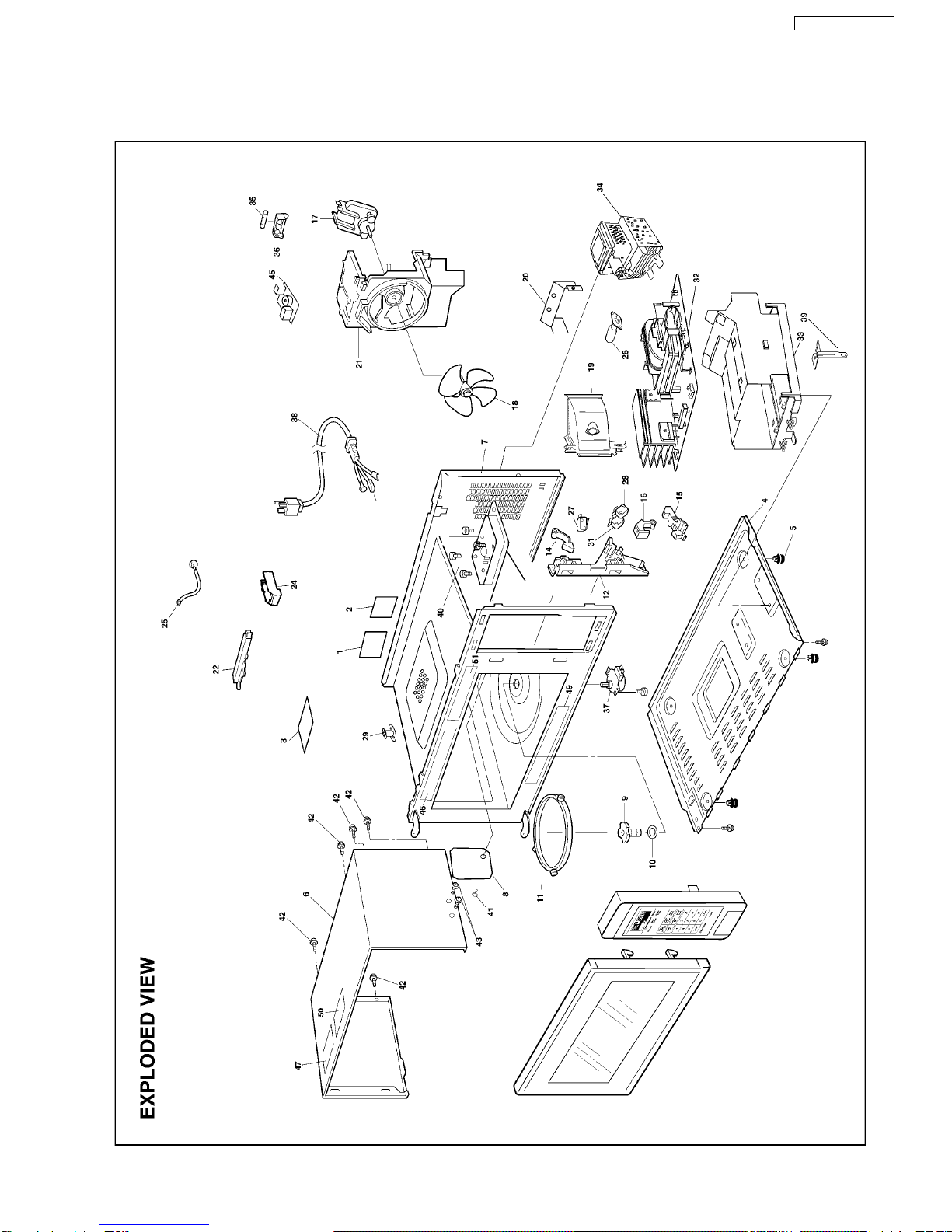

5.1. EXPLODED VIEW
11
NN-P795 NN-P794SFR

5.2. PARTS LIST
NOTE:
1.When ordering replacement part(s), please use part number(s) shown in this part list.
Do not use description of the part.
2.Important safety notice:
Components identified by mark have special characteristics important for safety.
When replacing any of these components, use only manufacture’s specified parts.
NOTE:
“A” parts are supplied by CSD (Japan)
“F” parts are supplied by PHAMOS (China)
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
1F00064W70AP CAUTION LABEL 1P794*FR APH,T7*5SF APH,T7*4SFR APH
1F00069660AP CAUTION LABEL 1H7*5 APH,S7*5 APH,S754*FR APH,T795 RPH,S755 RPH
1F00067600CP CAUTION LABEL 1 CPH
2F00077C50BAP NAME PLATE 1H765BF APH
2F00077C50HAP NAME PLATE 1H765WF APH
2F00077F40BAP NAME PLATE 1H735BF APH
2F00077F40HAP NAME PLATE 1H735WF APH
2F00077C70BAP NAME PLATE 1S755BF APH
2F00077C70HAP NAME PLATE 1S755WF APH
2F00077C90BAP NAME PLATE 1S735BF APH
2F00077C90HAP NAME PLATE 1S735WF APH
2F00077C60BAP NAME PLATE 1S754BFR APH
2F00077C60HAP NAME PLATE 1S754WFR APH
2F00077C80HRP NAME PLATE 1S755WF RPH
3F00337D00AP FUSE LABEL 1APH,CPH
3F00337D00RP FUSE LABEL 1 RPH
4F10016H60AP BASE 1
5F10084T00AP RUBBER FOOT 4
6F110D6H60SAP CABINET BODY (U) 1P794SFR
6F110D6H70BAP CABINET BODY (U) 1P794BFR APH
6F110D6H70HAP CABINET BODY (U) 1P794WFR APH
6F110D5X00SAP CABINET BODY (U) 1T795SF/SM,T775SF,T765SF,T794SFR APH,T764SFR APH
6F110D5X20SAP CABINET BODY (U) 1T785SF,T755SF,T745SF,T735SF,T774SFR
6F110D5X20BAP CABINET BODY (U) 1P795BF,H7*5BF,S7*5BF,S754BFR
6F110D5X20HAP CABINET BODY (U) 1P795WF,H7*5WF,S7*5WF/WM,S754WFR
7F200A5X20AP OVEN (U) 1 P795 CPH,P794*FR APH/CPH,T7*5SF APH/CPH,
T795SF/SM RPH,T7*4SFR APH,H7*5 APH/CPH
7F200A5X30AP OVEN (U) 1 S7*5 APH,S754*FR APH,S755 RPH
8F20555K00AP COVER 1
9F21315Y00AP PULLY SHAFT 1
10 F2177-F80 WASHER 1
11 F290D9330AP ROLLER RING (U) 1
12 F3020-1200 DOOR HOOK 1
14 F3136-1200 HOOK LEVER A 1
15 F31374650AP HOOK LEVER B 1
16 F31384650AP HOOK LEVER C 1
17 F400A5Y00AP FAN MOTOR 1AC120V,SINGLE PHASE,60Hz
18 F40084T00AP FAN BLADE 1
19 F40254W00AP AIR GUIDE A 1
20 F40264T60AP AIR GUIDE B 1
21 F41445W00AP ORIFICE 1
22 F64508660AP SENSOR COVER B 1P795 CPH,P794*FR APH/CPH,T7*5SF APH/CPH,
T795SF/SM RPH,T7*4SFR APH,H7*5 APH/CPH
24 F65434W00AP SENSOR COVER C 1P795 CPH,P794*FR APH/CPH,T7*5SF APH/CPH,
T795SF/SM RPH,T7*4SFR APH,H7*5 APH/CPH
25 A607S4M00AP STEAM SENSOR 1P795 CPH,P794*FR APH/CPH,T7*5SF APH/CPH,
T795SF/SM RPH,T7*4SFR APH,H7*5 APH/CPH
26 F612E4W00AP INCANDESCENT LAMP (U) 1125V,60Hz,20W
27 J61424T00AP MICRO SWITCH 1(PRIMARY LATCH SWITCH)(V-15G-3C25)
28 J61414T00AP MICRO SWITCH 1(SECONDARY LATCH SWITCH)(D3V-16G-3C25)
29 F61456N60AP THERMAL CUTOUT 1150°C/-20°C
31 J61784T00AP MICRO SWITCH 1(SHORT SWITCH)(D3V-1G-2C25)
32 F606Y6G00AP H.V.INVERTER (U) 1APH,RPH
12
NN-P795 NN-P794SFR

Ref. No. Part No. Part Name & Description Pcs/Set Remarks
32 F606Y6G00CP H.V.INVERTER (U) 1 CPH
33 F65856K50AP INVERTER BRACKET 1
34 2M261-M32F MAGNETRON 1APH,RPH
34 2M261-M32J MAGNETRON 1 CPH
35 F62307A00AP FUSE 1 20A/120V,60Hz
36 F62315G10XN FUSE HOLDER 1 RPH
37 F63265G60AP TURNTABLE MOTOR 1
38 F900C4T60CP AC CORD W/PLUG 1P794*FR APH,T7*5SF APH,T7*4SFR APH
38 F900C4T00AP AC CORD W/PLUG 1H7*5 APH,S7*5 APH,S754*FR APH,T795 RPH,S755 RPH
38 F900C4W10CP AC CORD W/PLUG 1 CPH
39 F66626H60AP GROUNDING PLATE 1
40 XTWFA4+12T SCREW 4FOR MAGNETRON
41 F90804W00AP CANOE CLIP 1FOR COVER
42 XTTANE4T12A0 SCREW 5FOR CABINET BODY
43 XTTFA4+6BFZ SCREW 2FOR CABINET BODY SIDE
(P795BF,P794BFR,H7*5BF,S7*5BF,S754BFR)
43 XTTFA4+6BN SCREW 2FOR CABINET BODY SIDE (P795WF,P794SFR/WFR,
T7*5SF/SM,T7*4SFR,H7*5WF,S7*5WF/WM, S754WFR)
45 J692Y7D00AP NOISE FILTER 1 APH
45 J692Y4T00CPR NOISE FILTER 1 CPH
46 F03347B60AP MENU LABEL 1T795SF APH,T785SF APH
46 F03347B60CP MENU LABEL 1T795SF CPH
46 F03347B60RP MENU LABEL 1T795SF/SM RPH
46 F03347D60AP MENU LABEL 1H765BF/WF APH,H735BF/WF APH
46 F03347D60CP MENU LABEL 1H765BF/WF CPH
46 F03347D80AP MENU LABEL 1S755BF/WF APH
46 F03346L20AP MENU LABEL 1S735BF/WF APH
46 F03347G50RP MENU LABEL 1S755WF/WM RPH
47 F02445Y00AP CAUTION LABEL 1P794SFR APH/CPH,T795SF APH/CPH,T795SF/SM RPH
T794SFR APH,T764SFR APH,T775SF APH,T765SF APH
49 F04467D00AP FUNCTION LABEL 1T795SF APH,T785SF APH
49 F04467D00CP FUNCTION LABEL 1T795SF CPH
49 F04467D00RP FUNCTION LABEL 1T795SF/SM RPH
50 F00066G00RP CAUTION LABEL 1T795SF/SM RPH
51 F00167D00AP CAUTION LABEL 1T795SF APH, T785SF APH
5.3. WIRING MATERIALS
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
W1 F030A7B60AP LEAD WIRE HARNESS 1 APH
W1 F030A7B60CP LEAD WIRE HARNESS 1 CPH
W1 F030A6P40AG LEAD WIRE HARNESS 1 RPH
W2 F030E6G30AP H.V.LEAD WIRE 1APH,RPH
W2 F030E6J00CP H.V.LEAD WIRE 1 CPH
13
NN-P795 NN-P794SFR

5.4. ESCUTCHEON BASE ASSEMBLY
5.4.1. NN-P795BF/WF CPH, P794*FR APH/CPH
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
E1 F603L7B50AP D.P.CIRCUIT (AU) 1P794SFR/BFR/WFR APH
E1 F603L7B50CP D.P.CIRCUIT (AU) 1P795BF/WF CPH,P794SFR CPH
E2 F603Y5W00AP D.P.CIRCUIT (DU) 1P794SFR/BFR/WFR APH
E2 F603Y5W00CP D.P.CIRCUIT (DU) 1P795BF/WF CPH,P794SFR CPH
E3 F800L7B50BCP ESCUTCHEON BASE (U) 1P795BF CPH
E3 F800L7B50HCP ESCUTCHEON BASE (U) 1P795WF CPH
E3 F800L6H60SAP ESCUTCHEON BASE (U) 1P794SFR APH
E3 F800L6H60SCP ESCUTCHEON BASE (U) 1P794SFR CPH
E3 F800L6H60BAP ESCUTCHEON BASE (U) 1P794BFR APH
E3 F800L6H60HAP ESCUTCHEON BASE (U) 1P794WFR APH
E4 F66164W20AP FLAT CABLE 1P795BF/WF CPH,P794*FR APH/CPH
E5 F82987B50BAP BUTTON 1P795BF CPH
E5 F82987B50HAP BUTTON 1P795WF CPH
E5 F82986H60SAP BUTTON 1P794SFR APH/CPH
E5 F82986H60BAP BUTTON 1P794BFR APH
E5 F82986H60HAP BUTTON 1P794WFR APH
E6 F891P7B50BAP DOOR OPENING BUTTON 1P795BF CPH
E6 F891P7B50HAP DOOR OPENING BUTTON 1P795WF CPH
E6 F891P6H60SAP DOOR OPENING BUTTON 1P794SFR APH/CPH
E6 F891P6H60BAP DOOR OPENING BUTTON 1P794BFR APH
E6 F891P6H60HAP DOOR OPENING BUTTON 1P794WFR APH
E7 F82565X00AP DOOR OPENING LEVER 1P795BF/WF CPH,P794*FR APH/CPH
E8 F80375K00AP COOK BUTTON SPRING 1
E10 F90095X00AP GROUNDING PANEL 1P795BF/WF CPH,P794*FR APH/CPH
E15 F00077D70BCP NAME PLATE 1P795BF CPH
E15 F00077D70HCP NAME PLATE 1P795WF CPH
E15 F00077B50SAP NAME PLATE 1P794SFR APH
E15 F00077B50SCP NAME PLATE 1P794SFR CPH
E15 F00077B50BAP NAME PLATE 1P794BFR APH
E15 F00077B50HAP NAME PLATE 1P794WFR APH
14
NN-P795 NN-P794SFR

5.4.2. NN-T795SF APH/CPH, T795SF/SM RPH, T785SF APH
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
E41 F603L7B60AP D.P.CIRCUIT (AU) 1T795SF APH,T785SF APH
E41 F603L7B60CP D.P.CIRCUIT (AU) 1T795SF CPH
E41 F603L7B60RP D.P.CIRCUIT (AU) 1T795SF/SM RPH
E42 F603Y7A10AP D.P.CIRCUIT (DU) 1T795SF APH,T785SF APH
E42 F603Y7A10CP D.P.CIRCUIT (DU) 1T795SF CPH,T795SF/SM RPH
E43 F800L7B60SAP ESCUTCHEON BASE (U) 1T795SF APH/CPH,T795SF/SM RPH,T785SF APH
E44 F66167D00AP FLAT CABLE 1T795SF APH/CPH,T795SF/SM RPH,T785SF APH
E46 F80724W70SAP DOOR OPENING BUTTON 1T795SF APH/CPH,T795SF/SM RPH,T785SF APH
E47 F82564W00AP DOOR OPENING LEVER 1T795SF APH/CPH,T795SF/SM RPH,T785SF APH
E48 F80375K00AP COOK BUTTON SPRING 1
E49 F630Y7B60SAP MEMBRANE SWITCH (U) 1T795SF APH,T785SF APH
E49 F630Y7B60SCP MEMBRANE SWITCH (U) 1T795SF CPH
E49 F630Y7B60SRP MEMBRANE SWITCH (U) 1T795SF/SM RPH
E50 F90095X00AP GROUNDING PANEL 1T795SF APH/CPH,T795SF/SM RPH,T785SF APH
E51 F803G7D00BAP POP-UP DIAL (U) 1T795SF APH/CPH,T795SF/SM RPH,T785SF APH
E52 F80187D00BAP BACKSTOP 1T795SF APH/CPH,T795SF/SM RPH,T785SF APH
E55 F00077B60SAP NAME PLATE 1T795SF APH
E55 F00077B60SCP NAME PLATE 1T795SF CPH
E55 F00077B60SRP NAME PLATE 1T795SF RPH
E55 F00077B70SAP NAME PLATE 1T785SF APH
15
NN-P795 NN-P794SFR

5.4.3. NN-T755SF APH, T794SFR APH, T774SFR APH
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
E21 F603L7B80AP D.P.CIRCUIT (AU) 1T755SF APH,T794SFR APH,T774SFR APH
E22 F603Y5W00AP D.P.CIRCUIT (DU) 1T755SF APH,T794SFR APH,T774SFR APH
E23 F800L5X00BAP ESCUTCHEON BASE (U) 1T755SF APH,T794SFR APH,T774SFR APH
E24 F66164W20AP FLAT CABLE 1T755SF APH,T794SFR APH,T774SFR APH
E25 F82985X00AP BUTTON 1T755SF APH,T794SFR APH,T774SFR APH
E26 F80724W70SAP DOOR OPENING BUTTON 1T755SF APH,T794SFR APH,T774SFR APH
E27 F82565X00AP DOOR OPENING LEVER 1T755SF APH,T794SFR APH,T774SFR APH
E28 F80375K00AP COOK BUTTON SPRING 1
E29 F83377C20SAP MEMBRANE SHEET 1T755SF APH
E29 F83376H70SAP MEMBRANE SHEET 1T794SFR APH
E29 F83376Q30SAP MEMBRANE SHEET 1T774SFR APH
E30 F90095X00AP GROUNDING PANEL 1T755SF APH,T794SFR APH,T774SFR APH
E35 F00077C20SAP NAME PLATE 1T755SF APH
E35 F00077C00SAP NAME PLATE 1T794SFR APH
E35 F00077B80SAP NAME PLATE 1T774SFR APH
16
NN-P795 NN-P794SFR

5.4.4. NN-T775SF APH, T765SF APH, T745SF APH, T735SF APH, T764SFR APH
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
E61 F603L7B90AP D.P.CIRCUIT (AU) 1T775SF APH,T765SF APH,T745SF APH,T735SF APH,
T764SFR APH
E63 F800L7B70SAP ESCUTCHEON BASE (U) T775SF APH,T765SF APH,T745SF APH,T735SF APH
E63 F800L4W70BAP ESCUTCHEON BASE (U) T764SFR APH
E66 F80724W70SAP DOOR OPENING BUTTON 1T775SF APH,T765SF APH,T745SF APH,T735SF APH,
T764SFR APH
E67 F82564W00AP DOOR OPENING LEVER 1T775SF APH,T765SF APH,T745SF APH,T735SF APH,
T764SFR APH
E68 F80375K00AP COOK BUTTON SPRING 1
E69 F630Y7B90SAP MEMBRANE SWITCH (U) 1T775SF APH
E69 F630Y7C10SAP MEMBRANE SWITCH (U) 1T765SF APH,T745SF APH
E69 F630Y7C40SAP MEMBRANE SWITCH (U) 1T735SF APH
E69 F630Y6Q40SAP MEMBRANE SWITCH (U) 1T764SFR APH
E73 F81274W70AP BACK PANEL 1T775SF APH,T765SF APH,T745SF APH,T735SF APH,
T764SFR APH
E75 F00077B90SAP NAME PLATE 1T775SF APH
E75 F00077C10SAP NAME PLATE 1T765SF APH
E75 F00077C30SAP NAME PLATE 1T745SF APH
E75 F00077C40SAP NAME PLATE 1T735SF APH
E75 F00077D20SAP NAME PLATE 1T764SFR APH
17
NN-P795 NN-P794SFR

5.4.5. NN-H765 APH/CPH, H735 APH, S755 APH, S735 APH
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
E81 F603L7C50AP D.P.CIRCUIT (AU) 1H765BF/WF APH,H735BF/WF APH
E81 F603L7C50CP D.P.CIRCUIT (AU) 1H765BF/WF CPH
E81 F603L7C70AP D.P.CIRCUIT (AU) 1S755BF/WF APH
E81 F603L7C90AP D.P.CIRCUIT (AU) 1S735BF/WF APH
E82 F603Y5W00AP D.P.CIRCUIT (DU) 1H765BF/WF APH,H735BF/WF APH
E82 F603Y5W00CP D.P.CIRCUIT (DU) 1H765BF/WF CPH
E82 F603Y7B20AP D.P.CIRCUIT (DU) 1S755BF/WF APH
E82 F603Y7B40AP D.P.CIRCUIT (DU) 1S735BF/WF APH
E83 F80347C50BAP ESCUTCHEON BASE 1H7*5BF APH/CPH,S7*5BF APH
E83 F80347C50HAP ESCUTCHEON BASE 1H7*5WF APH/CPH,S7*5WF APH
E84 F66164W20AP FLAT CABLE 1H765 APH/CPH,H735 APH,S755 APH,S735 APH
E85 F82987D60KAP BUTTON 1H765 APH/CPH,H735 APH,S755 APH,S735 APH
E86 F80727C50BAP DOOR OPENING BUTTON 1H7*5BF APH/CPH,S7*5BF APH
E86 F80727C50HAP DOOR OPENING BUTTON 1H7*5WF APH/CPH,S7*5WF APH
E87 F82564W00AP DOOR OPENING LEVER 1H765 APH/CPH,H735 APH,S755 APH,S735 APH
E88 F80375K00AP COOK BUTTON SPRING 1
E89 F630Y7C50BAP MEMBRANE SWITCH (U) 1H765BF APH,H735BF APH
E89 F630Y7C50HAP MEMBRANE SWITCH (U) 1H765WF APH,H735WF APH
E89 F630Y7C50BCP MEMBRANE SWITCH (U) 1H765BF CPH
E89 F630Y7C50HCP MEMBRANE SWITCH (U) 1H765WF CPH
E89 F630Y7C70BAP MEMBRANE SWITCH (U) 1S755BF APH
E89 F630Y7C70HAP MEMBRANE SWITCH (U) 1S755WF APH
E89 F630Y7C90BAP MEMBRANE SWITCH (U) 1S735BF APH
E89 F630Y7C90HAP MEMBRANE SWITCH (U) 1S735WF APH
E95 F00077C50BCP NAME PLATE 1H765BF CPH
E95 F00077C50HCP NAME PLATE 1H765WF CPH
18
NN-P795 NN-P794SFR

5.4.6. NN-S754*FR APH, S755 RPH
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
E101 F603L7C60AP D.P.CIRCUIT (AU) 1S754BFR/WFR APH
E101 F603L7C80RP D.P.CIRCUIT (AU) 1S755WF/WM RPH
E103 F80346J00BAP ESCUTCHEON BASE 1S754BFR APH
E103 F80346J00HAP ESCUTCHEON BASE 1S755WF/WM RPH,S754WFR APH
E106 F80726J00BAP DOOR OPENING BUTTON 1S754BFR APH
E106 F80726J00HAP DOOR OPENING BUTTON 1S754WFR APH,S755WF/WM RPH
E107 F82564W00AP DOOR OPENING LEVER 1S754BFR/WFR APH,S755WF/WM RPH
E108 F80375K00AP COOK BUTTON SPRING 1
E109 F630Y6J30BAP MEMBRANE SWITCH (U) 1S754BFR APH
E109 F630Y6J30HAP MEMBRANE SWITCH (U) 1S754WFR APH
E109 F630Y7C80HRP MEMBRANE SWITCH (U) 1S755WF/WM RPH
19
NN-P795 NN-P794SFR

5.5. PACKING AND ACCESSORIES
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
P1 F00036J00AP INSTRUCTION MANUAL 1P794 SFR/BFR/WFR APH,T7*4SFR APH
P1 F00036J00CP INSTRUCTION MANUAL 1P795BF/WF CPH,P794SFR CPH
P1 F00037D00AP INSTRUCTION MANUAL 1T795SF APH,T785SF APH
P1 F00037D00CP INSTRUCTION MANUAL 1T795SF CPH
P1 F00037D00RP INSTRUCTION MANUAL 1T795SF/SM RPH
P1 F00037C40AP INSTRUCTION MANUAL 1T775SF APH,T765SF APH,T755SF APH,T745SF APH,T735SF APH
P1 F00037C50AP INSTRUCTION MANUAL 1H765BF/WF APH,H735BF/WF APH
P1 F00037C50CP INSTRUCTION MANUAL 1H765BF/WF CPH
P1 F00037C70AP INSTRUCTION MANUAL 1S755BF/WF APH
P1 F00037E20AP INSTRUCTION MANUAL 1S735BF/WF APH
P1 F00036J30AP INSTRUCTION MANUAL 1S754BFR/WFR APH
P1 F00037G50RP INSTRUCTION MANUAL 1S755WF/WM RPH
P2 F01027D70BCP PACKING CASE,PAPER 1P795BF CPH
P2 F01027D70HCP PACKING CASE,PAPER 1P795WF CPH
P2 F01027B50SAP PACKING CASE,PAPER 1P794SFR APH
P2 F01027B50SCP PACKING CASE,PAPER 1P794SFR CPH
P2 F01027B50BAP PACKING CASE,PAPER 1P794BFR APH
P2 F01027B50HAP PACKING CASE,PAPER 1P794WFR APH
P2 F01027B60SAP PACKING CASE,PAPER 1T795SF APH
P2 F01027B60SCP PACKING CASE,PAPER 1T795SF CPH
P2 F01027B60SRP PACKING CASE,PAPER 1T795SF RPH
P2 F01027G20SRP PACKING CASE,PAPER 1T795SM RPH
P2 F01027B70SAP PACKING CASE,PAPER 1T785SF APH
P2 F01027B90SAP PACKING CASE,PAPER 1T775SF APH
P2 F01027C10SAP PACKING CASE,PAPER 1T765SF APH
P2 F01027C20SAP PACKING CASE,PAPER 1T755SF APH
P2 F01027C30SAP PACKING CASE,PAPER 1T745SF APH
P2 F01027C40SAP PACKING CASE,PAPER 1T735SF APH
P2 F01027C00SAP PACKING CASE,PAPER 1T794SFR APH
P2 F01027B80SAP PACKING CASE,PAPER 1T774SFR APH
P2 F01027D20SAP PACKING CASE,PAPER 1T764SFR APH
P2 F01027C50BAP PACKING CASE,PAPER 1H765BF APH
P2 F01027C50HAP PACKING CASE,PAPER 1H765WF APH
P2 F01027C50BCP PACKING CASE,PAPER 1H765BF CPH
P2 F01027C50HCP PACKING CASE,PAPER 1H765WF CPH
P2 F01027F40BAP PACKING CASE,PAPER 1H735BF APH
P2 F01027F40HAP PACKING CASE,PAPER 1H735WF APH
P2 F01027C70BAP PACKING CASE,PAPER 1S755BF APH
P2 F01027C70HAP PACKING CASE,PAPER 1S755WF APH
P2 F01027C90BAP PACKING CASE,PAPER 1S735BF APH
20
NN-P795 NN-P794SFR
