Panasonic NN-ST34HMYTE User manual

Microwave Oven
Specifications
Power Requirement
Power Output
Microwave Frequency
Magnetron
Timer
Outside Dimensions
Cavity Dimensions
Net Weight
Shipping weight
Specifications subject to change without notice.
1,270 Watts (10.4 A)
Single phase, 3 wire grounded
2,450 MHz
0 ~ 99 min. 90 sec.
485 (W) x 287 (H) x 400 (D) mm
12.7kg (approx.)
2M219J
Model No.
Model No.
Model No.
Model No.
© Panasonic Corporation 2017 Unauthorized
copying and distribution is a violation of law
NN-ST34HMYTE
NN-ST34HMYPQ
NN-ST34HMRPH
NN-ST34HWQPQ
14.7 kg (approx.)
23L
800 Watts full microwave power (IEC60705)
315(W) x 227(H) x 349 (D) mm
Silver / White
120 Volts AC 60 Hz
Singapore (Re-Export)
Singapore, Panama, Australia
240 Volts AC 50Hz
1270 Watts (5.5 A)
Single phase, 3 wire grounded
NN-ST34HMYPQ / ST34HWQPQ
220 Volts AC 50 Hz
1270 Watts (5.9 A)
Single phase, 3 wire grounded
NN-ST34HMYTE NN-ST34HMRPH
Order No. MOD1708473CE

This device is to be serviced only by properly qualified service personnel.
Consult the service manual for proper service procedures to assure continued safety operation and for precautions to be
taken to avoid possible exposure to excessive microwave energy.
PRECAUTIONSTO BE OBSERVED BEFORE AND
DURING SERVICINGTO AVOID POSSIBLE
EXPOSURETO EXCESSIVE MICROWAVE ENERGY
A) Do not operate or allow the oven to be operated with the door open.
B) Make the following safety checks on all ovens to be serviced before activating the magnetron or other
microwave source, and make repairs as necessary; (1) interlock operation, (2) proper door closing, (3)
seal and sealing surfaces (arcing, wear, and other damage), (4) damage to or loosening of hinges and
latches, (5) evidence of dropping or abuse.
C) Before turning on microwave power for any service test or inspection within the microwave generating
compartments, check the magnetron, wave guide or transmission line, and cavity for proper alignment,
integrity, and connections.
D) Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation
and transmission systems shall be repaired, replaced, or adjusted by procedures described in this manual
before the oven is released to the owner.
E) A microwave leakage check to verify compliance with the Federal Performance Standard should be
performed on each oven prior to release to the owner.
SAFETY PRECAUTIONS
CAUTION
MICROWAVE RADIATION
DO NOT BECOME EXPOSED TO RADIATION FROM THE MICROWAVE GENERATOR
OR OTHER PARTS CONDUCTING MICROWAVE ENERGY.
WARNING
This product should be serviced only by trained qualified personnel.
This service manual covers products for following markets.
When troubles or replacing parts, please refer to the country iden ca shown below for your
applicable product specifica on.
YPQ ：For Singapore QPQ : For Australia YTE : For Singapore (Re-export) PRH : For Panama

(Page)
SAFETY PRECAUTIONS --------------------------------------------------------------------- Inside front cover
SPECIFICATIONS
----------------------------------------------------------------------------------------------------- 1-1
CAUTIONS
-------------------------------------------------------------------------------------------------------------- 2-1
INSTALLATIONS
------------------------------------------------------------------------------------------------------ 3-1
OPERATING INSTRUCTIONS
- - --- - ------------------------------------------------------------------------------ 4-1
FEATURES ------------------------------------------------------------------------------------------------------------------------ 4-1
CONTROL PANEL
-------------------------------------------------------------------------------------------------------------- 4-1
OPERATING SEQUENCE
---------------------------------------------------------------------------------------------------- 4-3
SCHEMATIC DIAGRAM
------------------------------------------------------------------------------------------------------ 4-4
CIRCUIT DESCRIPTION
----------------------------------------------------------------------------------------------------- 4-5
SERVICE INFORMATION ------------------------------------------------------------------------------------------ 5-1
TOOLS AND MEASURING INSTRUMENTS --------------------------------------------------------------------------- 5-1
MICROWAVE LEAKAGE TEST
-------------------------------------------------------------------------------------------- 5-1

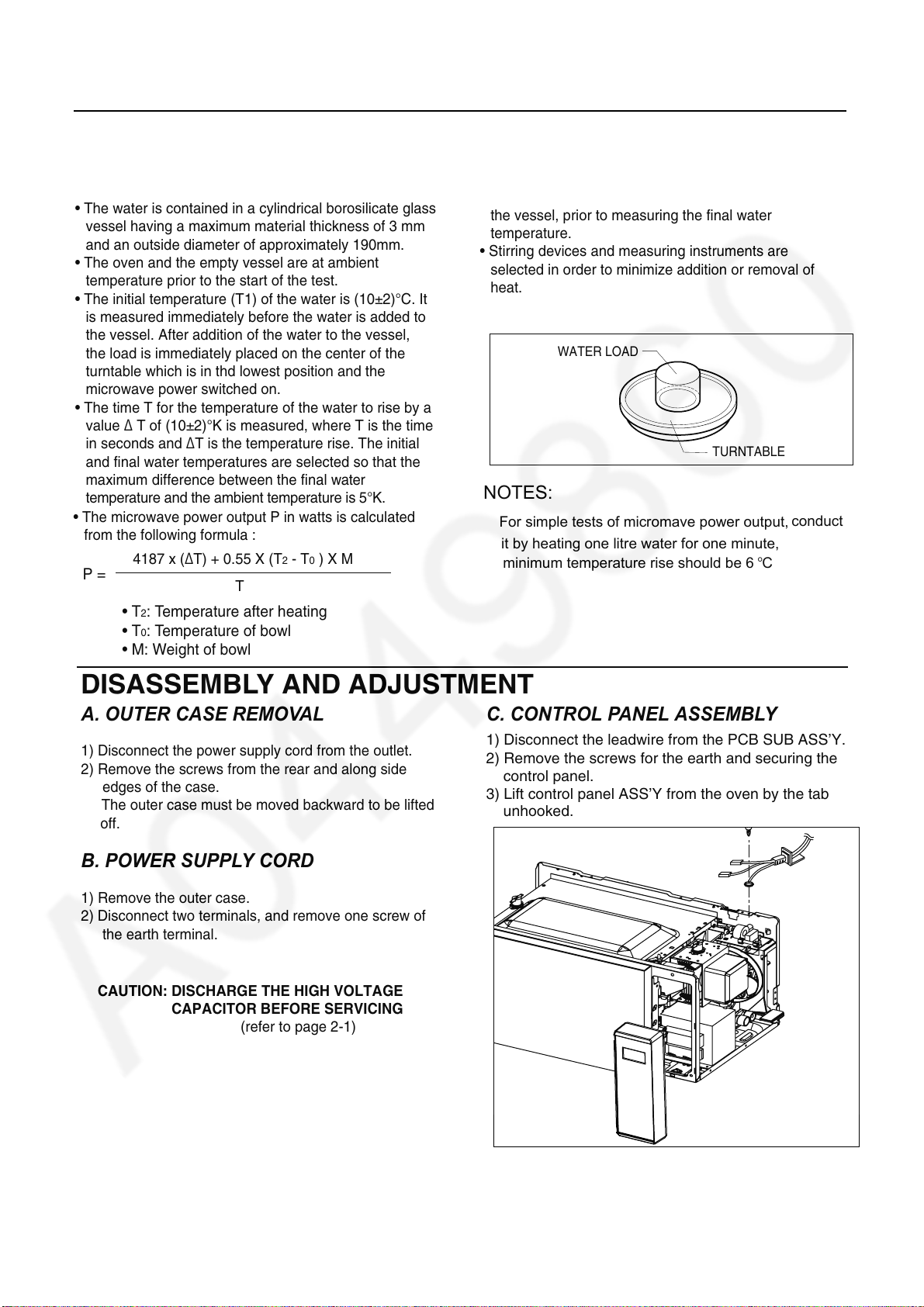

MEASUREMENT OF MICROWAVE POWER OUTPUT
----------------------------------------------------------- 5-3
DISASSEMBLY AND ADJUSTMENT
------------------------------------------------------------------------------------- 5-3
INTERLOCK CONTINUITY TEST
------------------------------------------------------------------------------------------ 5-7
COMPONENT TEST PROCEDURE
-------------------------------------------------------------------------------------- 5-8
TROUBLE SHOOTING
------------------------------------------------------------------------------------------------------ 5-12
EXPLODED VIEW ------------------------------------------------------------------------------------------------ 6-1
REPLACEMENT PARTS LIST
- - --- - ------------------------------------------------------------------------------ 7-1
SCHEMATIC DIAGRAM OF P.C.B.
---------------------------------------------------------------------------- - - 8-1
CONTENTS

1-1
POWER LEVEL & ACCESSORIES
This microwave oven is designed for household use only.
It is not recommended for commercial purposes.
DESCRIPTION
Microwave Power for Variable Cooking
Power level
ITEM
Control Complement
Rating Label Location
Accessories
Glass Tray
Roller Ring
Instruction manual
Inside
240 Watts
High
Defrost
Medium
Low
Warm
800 Watts
520 Watts
560 Watts
80 Watts

• DO NOT operate on a 2-wire extension cord during
repair and use.
• NEVER TOUCH any oven components or wiring during
operation.
• BEFORE TOUCHING any parts of the oven, always
remove the power plug from the outlet.
• For about 30 seconds after the oven stops, an electric
charge remains in the high voltage capacitor. When
replacing or checking, you must discharge the high
voltage capacitor by shorting across the two terminals
with an insulated screwdriver.
• Remove your watches whenever working close to or
replacing the Magnetron.
• NEVER operate the oven with no load.
• NEVER injure the door seal and front plate of the oven
cavity.
• NEVER put iron tools on the magnetron.
• NEVER put anything into the latch hole and the
interlock switches area.
• Proper operation of the microwave oven requires that
the magnetron be assembled to the waveguide and
cavity. Never operate the magnetron unless it is
properly installed.
• Be sure that the magnetron gasket is properly
installed around the dome of the tube whenever
installing the magnetron.
2-1
CAUTIONS
Unlike other appliances, the microwave oven is
high-voltage and high-current equipment.
Though it is free from danger in ordinary use,
extreme care should be taken during repair.
THE OVEN IS TO BE SERVICED ONLY
BY PROPERLY QUALIFIED SERVICE
PERSONNEL.
MICROWAVE RADIATION
Personnel should not be exposed to the
microwave energy which may radiate from the
magnetron or other microwave generating
device if it is improperly used or connection.
All input and output microwave connections,
waveguide, flange and gasket must be secure
never operate the device without a microwave
energy absorbing load attached.
Never look into an open waveguide or antenna
while the device is energized.
ANTENNA
COOLING FIN
MAGNETRON
CHASSIS GROUND
FILAMENT
TERMINALS
MAGNETRON
GASKET

INSTALLATIONS
3-1
INSTALLING
1. Empty the microwave oven and clean inside it with
a soft, damp cloth. Check for damage such as
misaligned door, damage around the door or dents
inside the cavity or on the exterior.
2. Put the oven on a counter, table, or shelf that is
strong enough to hold the oven and the food and
utensils you put in it. (The control panel side of the
oven is the heavy side. Use care when handling.)
3. Do not block the vent and the air intake openings.
Blocking vent or air intake openings can cause
damage to the oven and poor cooking results.
Make sure the microwave oven legs are in place to
ensure proper air flow.
4. The oven should not be installed in any area where
heat and steam are generated, because they may
damage the electronic or mechanical parts of the
unit.
Do not install the oven next to a conventional
surface unit or above a conventional wall oven.
5. Use microwave oven in an ambient temperature
less than 104°F(40°C).
6. Place the microwave oven on a sturdy and flat
surface at least 10 cm(4 inches) from the wall.
7. Place the microwave oven as far away as possible
from TV, RADIO, COMPUTER, etc., to prevent
interference.
EARTHING INSTRUCTIONS
This microwave oven is designed to be used in a fully
earthed condition.
It is imperative, therefore, to make sure it is properly
earthed before servicing
WARNING-
THIS APPLIANCE
MUST BE EARTHED
IMPORTANT
As the colors of the wires in the mains lead of this
appliance may not correspond with the colored
markings identifying the terminals in your plug,
proceed as follows.
The wire which is colored green-and-yellow must be
connected to the terminal in the plug which is marked
with the letter Eor by the earth symbol ( ) or
colored green or green-and-yellow.
The wire which is colored blue must be connected to
the terminal in the plug which is marked with the letter
Nor colored black.
The wire which is colored brown must be connected
to the terminal in the plug which is marked with the
letter Lor colored red.
BEFORE YOU BEGIN, READ THE FOLLOWING INSTRUCTIONS COMPLETELY AND CAREFULLY.
10cm
The wires in this mains lead are colored in
accordance with the following code:
Green-and-yellow: Earth
Blue: Neutral
Brown: Live

4-1
OPERATING INSTRUCTIONS
FEATURES
CONTROL PANEL
Oven Front Plate
Safety Door Lock System
Control Panel
Roller Ring
Glass Tray
See-Through oven window
Door C
1
7
12
10
2
3
4
6
8
9
11
5
1 Display window
2 Micro Power pad
3 Turbo Defrost pad
4 Auto Reheat pad
5 Time pads
6 Auto Menu pad
7 Timer / Clock pad
8 Up / Down pads for weight
setting
9 Add Time pad
10 Quick 30 pad
11 Stop / Reset pad
Before Cooking
One press clears your instructions.
During Cooking
One press temporarily stops the
cooking process. Another press
cancels all your instructions and a
colon or the time of day will appear
in the display.
12
Start pad
One press allows oven to begin
operation. If door is opened or
Stop/Reset is pressed once during
oven operation, Start must be
pressed again to restart oven.
Beep sound
When a pad is pressed correctly a
beep will be heard. If a pad is pressed
and no beep is heard, the unit has not
or cannot accept the instruction. The
oven will beep twice between
programmed stages. At the end of any
complete programme, the oven will
beep 5 times.

Beepsound
Whenabuttonispressedcorrectlya
beepwillbeheard.Ifabuttonispressed
andnobeepisheard,theunithasnotor
cannotaccepttheinstruction.Attheend
ofanycompleteprogram,theovenwill
beep5times.
1
7
9
14
12
2
3
4
6
8
11
13
5
10
1 Pantalla de visualización
2 Almohadilla Nivel de Potencia
3 Almohadilla Descongelación
Automática
4 Almohadilla Recalentamiento
Automático
5 Almohadillas de Tiempo
6 Almohadilla Cocción Automática
7 Almohadilla Cronómetro / Reloj
8 Almohadilla Palomitas
9 Almohadilla Más / Menos
10 Almohadillas Arriba / Abajo para
ajuste de peso
11 Almohadilla Tiempo Adicional
12 Almohadilla 30 Seg Automático
13 Almohadilla Pausa / Cancelar
Antes de cocinar
Borra las instrucciones si se pulsa una
vez.
Durante la cocción
Detiene temporalmente el programa de
cocción si se pulsa una vez. Si se pulsa
de nuevo, se cancelan todas las
instrucciones y se muestran dos puntos
o la hora en la pantalla.
14 Almohadilla de Encender
Si se pulsa una vez, el horno comienza
a funcionar. Si se abre la puerta o si se
pulsa el botón Pausa/Cancelar una vez
durante el funcionamiento del horno, se
debe pulsar Encender de nuevo para
reiniciar el horno.
*NN-ST34HMRPHonly
4-2
CONTROL PANEL

OPERATING SEQUENCE
The following is a description of component functions
during oven operation.
1. SETTING THE CLOCK
NOTE: You can set 12 hour clock.
2. CANCEL FUNCTION
Touch the Stop/Reset pad whenever you need to
cancel an entry or a function currently in use.
The display will either return to the last item entered
or to the clock.
COOKING
This oven has a CHILD LOCK feature
• TO SET CHILD LOCK
• Press Start 3 times in 10 seconds.
The clock will disappear. Actual time
will not be lost. “Child” is indicated in
the display.
• TO CANCEL CHILD LOCK
• Press Stop/Reset 3 times in
10 seconds.
The clock will reappear in the display.
4-3
Stop/
Reset Timer/
Clock Timer/ Clock
Set the time
by pressing
Stop/
Reset
Desired
defrost Desired
Start
Stop/
Reset
Desired
cooking time
Desired
cooking power Start
2 STAGE
3. MICROWAVE COOKING
4. MULTI-STAGE MICROWAVE
5. AUTO WEIGHT DEFROST
time pads
program weight
Stop/
Reset
Desired Desired
Start
program weight
reheat
6. AUTO WEIGHT REHEAT
7. CHILD LOCK
COOKING
Stop/
Reset
Desired
cooking time
Desired
cooking power
Desired
cooking time
Desired
cooking power Start

SCHEMATIC DIAGRAM
4-4

CIRCUIT DESCRIPTION
GENERAL DETAILS
•The low voltage transformer supplies the necessary
voltage to the micom controller when power cord is
plugged in.
• When the door is closed, the primary switch is ON, the
secondary switch is ON, and the monitor switch opens
(contact COM and NO).
WHEN SELECTING COOKING POWER
LEVEL AND TIME
• The micom controller memorizes the function you set.
• The time you set appears in the display window.
• Each indicator light turns on to indicate that the stage
has been set.
WHEN TOUCHING THE START PAD
• The coil of the relay is energized by the micom
controller.
• Power input is supplied to the high voltage transformer
through the fuse to the primary switch and relay 2.
• Turntable rotates.
• Cooking time starts counting down.
• 3.2 volts AC is generated from the filament winding of
the high voltage transformer. This 3.2 volts is applied to
the magnetron to heat the magnetron filament through
two noise-preventing choke coils.
• A high voltage of approximately 2100 volts AC is
generated in the secondary of the high voltage
transformer which is increased by the action of the high
voltage diode and charging of the high voltage
capacitor.
• The negative 4000 Volts DC is applied to the filament
of the magnetron.
WHEN THE OVEN IS SET AT ANY LEVEL
EXCEPT MAXIMUM.
• The micom controller controls the ON-OFF time of relay
2 by the applied signal to vary the average output
power of microwave oven as POWER LEVEL.
(refer to page 1-1)
WHEN THE DOOR IS OPENED DURING
COOKING
• Both the primary switch and relay 2 are cut off primary
winding voltage of the high voltage transformer.
• ON-OFF of relay 2 is coupled electrically with opening
and closing of the secondary switch.
• When the door is opened, the secondary switch is
opened and when the door is closed, the secondary
switch is closed.
• The cooking time stops counting down.
• Relay stops functioning.
• As the door is opened, if the contact of primary switch
and relay 2 and/or secondary switch fails to open, the
fuse opens due to the large current surge caused by
the monitor switch activation, which in turn stops
magnetron oscillation.
4-5
L
FUSE
TRANS-
FORMER
RELAY 2
MICOM CONTROLLER
SECONDARY
SWITCH
SWITCH
N
MONITOR
SWITCH
PRIMARY
MONITOR
SWITCH
L
FUSE
FORMER
RELAY 2
MICOM CONTROLLER
SECONDARY
SWITCH
PRIMARY
SWITCH
N
• The fan motor rotates and cools the magnetron by
blowing the air (coming from the intake on the
• The air is also directed into the oven to exhaust the
vapor in the oven through the left side.
backplate).

CAUTIONS
• Be sure to check microwave leakage prior to
servicing the oven if the oven is operative prior to
servicing.
• The service personnel should inform the
manufacture importer, or assembler of any
certified oven unit found to have a microwave
emission level in excess of 5 mW/cm
2
and should
repair any unit found to have excessive emission levels
at no cost to the owner and should ascertain the cause
of the excessive leakage. The service personnel
should instruct the owner not to use the unit until the
oven has been brought into compliance.
• If the oven operates with the door open, the service
personnel should:
- Tell the user not to operate the oven.
- Contact the manufacturer.
• The service personnel should check all surface and
vent openings for microwave leakage.
• Check for microwave leakage after every servicing.
The power density of the microwave radiation leakage
emitted by the microwave oven should not exceed
4 mW/cm
2
. Always start measuring of an unknown field
to assure safety for operating personnel from radiation
leakage.
MEASURING MICROWAVE ENERGY
LEAKAGE
• Pour 275±15cc of 20±5°C(68±9°F) water in a beaker
which is graduated to 600 cc, and place the beaker
on the center of the turntable.
• Set the energy leakage monitor to 2450 MHz and
use it following the manufacturer's recommended
test procedure to assure correct result.
• When measuring the leakage, always use the 2-
inch (5cm) spacer supplied with the probe.
• Operate the oven at its maximum output.
• Measure the microwave radiation using and
electromagnetic radiation monitor by holding the
probe perpendicular to the surface being measured
Move probe along shaded area
Probe scanning speed
Less than 2.5 cm/sec
( 1in/sec)
5-1
SERVICE INFORMATION
TOOLS AND MEASURING INSTRUMENTS
MICROWAVE LEAKAGE TEST
NECESSARY TOOLS
Tools normally used for TV servicing are sufficient.
Standard tools are listed below.
• Diagonal pliers
• Long nose pliers
• Phillips screwdriver
• Flat blade screwdriver
• Wrench (size 5mm)
• Nutdriver (size 5mm)
• Adjustable wrench
• Soldering iron
• Solder
• Vinyl insulation tape
• Polishing cloth
NECESSARY MEASURING INSTRUMENTS
• TESTER(VOLTS-DC, AC., Ohmmeter)
• Microwave survey meter
- Holaday HI-1500
HI-1501
- Narda 8100
8200
• Inch scale
• 600 cc non conductive material beaker (glass or plastic),
inside diameter: approx. 8.5 cm(31/2 in.)
• Cylindrical and made of borosilicate glass vessel.
max. thickness: 3 mm
outside diameter: approx. 190mm
height: approx. 90mm
• Glass thermometer: 100°C or 212°F (1 deg scale)

MEASUREMENT WITH OUTER CASE
REMOVED
•When you replace the magnetron, measure for
microwave energy leakage before the outer case is
installed and after all necessary components are
replaced or adjusted.
Special care should be taken in measuring the
following parts. (Circled area of below Fig.)
- Around the magnetron
- The waveguide
MEASUREMENT WITH A FULLY
ASSEMBLED OVEN
•After all components, including the outer case, are fully
assembled, measure for microwave energy leakage
around the door viewing window, the exhaust opening,
and air inlet openings.
•Microwave energy leakage must not exceed the values
prescribed below.
NOTE: Leakage with the outer case removedless than
5 mW/cm2.sq. Leakage for a fully assembled
oven (Before the latch switch (primary) is
interrupted) with the door in a slightly opened
position-less than 2 mW/cm2.sq.
NOTES WHEN MEASURING
•Do not exceed meter full scale deflection.
•The test probe must be removed no faster than
1 inch/sec (2.5 cm/sec) along the shaded area,
otherwise a false reading may result.
•The test probe must be held with the grip portion of the
handle.
A false reading may result if the operator's hand is
between the handle and the probe.
•When testing near a corner of the door, keep the probe
perpendicular to the surface making sure the probe
horizontally along the oven surface, this may possibly
cause probe damage.
RECORD KEEPING AND NOTIFICATION
AFTER MEASUREMENT
•After adjustment and repair of any microwave energy
interruption or microwave energy blocking device,
record the measured values for future reference. Also
enter the information on the service invoice.
•The microwave energy leakage should not be more
than 4 mW/cm2.sq. after determining that all parts are
in good condition, functioning properly and genuine
replacement parts which are listed in this manual have
been used.
•At least once a year, have the electromagnetic energy
leakage monitor checked for calibration by its
manufacturer.
WARNING : AVOID CONTACTING ANY
HIGH VOLTAGE PARTS
5-2

5-3
DISASSEMBLY AND ADJUSTMENT
A. OUTER CASE REMOVAL
1) Disconnect the power supply cord from the outlet.
2) Remove the screws from the rear and along side
edges of the case.
The outer case must be moved backward to be lifted
off.
B. POWER SUPPLY CORD
1) Remove the outer case.
2) Disconnect two terminals, and remove one screw of
the earth terminal.
C. CONTROL PANEL ASSEMBLY
1) Disconnect the leadwire from the PCB SUB ASS’Y.
2) Remove the screws for the earth and securing the
control panel.
3) Lift control panel ASS’Y from the oven by the tab
unhooked.
MEASUREMENT OF MICROWAVE POWER OUTPUT
• Microwave power output measurement is made with
the microwave oven supplied at its rated voltage and
operated at its maximum microwave power setting with
a load of (1000±5) g of potable water.
• The water is contained in a cylindrical borosilicate glass
vessel having a maximum material thickness of 3 mm
and an outside diameter of approximately 190mm.
• The oven and the empty vessel are at ambient
temperature prior to the start of the test.
• The initial temperature (T1) of the water is (10±2)°C. It
is measured immediately before the water is added to
the vessel. After addition of the water to the vessel,
the load is immediately placed on the center of the
turntable which is in thd lowest position and the
microwave power switched on.
• The time T for the temperature of the water to rise by a
value ∆T of (10±2)°K is measured, where T is the time
in seconds and ∆T is the temperature rise. The initial
and final water temperatures are selected so that the
maximum difference between the final water
temperature and the ambient temperature is 5°K.
4187 x (∆T) + 0.55 X (T2- T0) X M
T
• T 2 : Temperature after heating
• T
0 : Temperature of bowl
• M: Weight of bowl
is measured while the microwave generator is
operating at full power. Magnetron filament heat-up
time is not included. (about 3 sec)
• The water is stirred to equalize temperature throughout
the vessel, prior to measuring the final water
temperature.
• Stirring devices and measuring instruments are
selected in order to minimize addition or removal of
heat.
WATER LOAD
TURNTABLE
P =
• The microwave power output P in watts is calculated
from the following formula :
NOTES:
For simple tests of micromave power output,
it by heating one litre water for one minute,
minimum temperature rise should be 6 C
conduct
°
CAUTION: DISCHARGE THE HIGH VOLTAGE
CAPACITOR BEFORE SERVICING
(refer to page 2-1)
No need to remove the door. Only control panel
should be removed.

5-4
D. DOOR ASSEMBLY REMOVAL
1) Open the door.
CAUTION : Be careful not to damage Door C
by screwdriver.
3) Lift up and pull the door.
NOTE:
1. After replacing the door, be sure to check that the
primary switch, monitor switch, and secondary switch
operate normally.
2. After replacing the door, check for microwave energy
leakage with a survey meter. Microwave energy must
be below the limit of 5 mW/cm
2
. (with a 275 ml water
load)
3. When mounting the door assembly to the oven
assembly, be sure to adjust the door assembly parallel
to the chassis. Also adjust so the door has no play
between the inner door surface and oven frame
assembly. If the door assembly is not mounted
properly, microwaves may leak from the clearance
between the door and the oven.
E. HIGH VOLTAGE TRANSFORMER
REMOVAL
1) Discharge the high voltage capacitor.
2) Disconnect the leadwire from magnetron, high voltage
transformer, and capacitor.
3) Remove the screw holding the high voltage
transformer to the baseplate.
Remove door Assembly
Remove door Assembly
to the Cavity Ass'y.
2) Remove two screws holding the Hinge
F.
1) Discharge the high voltage capacitor.
2) Disconnect the leadwire from fan motor, noise filter
and high voltage capacitor.
3) Remove the two screws holding the orifice
oven cavity and remove the high voltage
earth screw.
4) Remove the screw of the capacitor bracket.
5) Remove the two screws holding the fan motor ASS’Y
to the Orifice
G. HIGH VOLTAGE CAPACITOR AND
DIODE REMOVAL
1) Discharge the high voltage capacitor.
2) Disconnect the leadwire from fan motor, noise filter
and high voltage capacitor.
cavity
and remove the high voltage diode
earth screw.
4) Remove the screw holding the high voltage capacitor
bracket.
3) Remove the screw holding the Orifice
ORIFICE
to the diode
ASSEMBLY REMOVAL
ASS’Y
.
ASS’Y
the oven
to
ASS’Y

5-5
H. AIR GUIDE ASSEMBLY REMOVAL
1) Disconnect the leadwire from lamp, A.C Relay and
monitor resistor and magnetron.
2) Remove the screw to the cavity.
I. MAGNETRON REMOVAL
1) Disconnect the leadwire from the high voltage
transformer and high voltage capacitor.
2) Remove the air guide.
3) Carefully remove the mounting screws holding the
magnetron and the waveguide.
4) Remove the magnetron until the tube is
clear from the waveguide.
NOTE:
1. When removing the magnetron, make sure its
dome does not hit any adjacent parts, or it may be
damaged.
magnetron.
J. REMOVING THE TURNTABLE MOTOR
1) Remove the .
2) Remove the pully shaft VERY CAREFULLY
3) Lay the unit down on its back.
4) Remove the turntable motor cover.
The turntable base cover is easily removed by
pinching the six parts with a wire cutting.
5) Disconnect the leadwire from the turntable motor
terminals.
6) Remove the screw securing the turntable motor to
the oven cavity ASS’Y
7) After rep the motor, rotate the removed
turntable motor cover.
8) Fit the turntable motor cover’s projecting part to the
base plate slit.
NOTE:
1. Remove the wire lead from the turntable motor
VERY CAREFULLY.
Waveguide
Magnetron
Gasket
Magnetron
Dome
Waveguide
Bracket
Magnetron
2. When replacing the magnetron, be sure to install
the magnetron gasket in the correct position and
be sure that the gasket is in good condition.
3. After replacing the magnetron, check for microwave
leakage with a survey meter around the
magnetron. Microwave energy must be below the
limit of 5 mW/cm
2
. (With a 275 ml. water load).
Make sure that gasket is rigidly attached to the
To prevent microwave leakage, tighten the
mounting screws properly, making sure there is no gap
between the waveguide and the magnetron.
2. Be sure to grasp the connector, not the wires, when
removing
glass tray
lacing
Base plate

K.PCBASSEMBLYREMOVAL
1) Remove the control panel assembly from the
cavity.
2) Remove screws which hold the PCB to
control panel.
3) Disconnect the flat cable from the PCB
take off the PCB .
L.INTERLOCKSYSTEM
1) INTERLOCK MECHANISM
The door lock mechanism is a device which has
been specially designed to eliminate completely
microwave activity when the door is opened during
cooking and thus to prevent the danger resulting
from the microwave leakage.
2) MOUNTING OF THE PRIMARY/MONITOR/
SECONDARY SWITCHES TO THE LATCH
BOARD
3) INSTALLATION AND ADJUSTMENT OF THE
LATCH BOARD TO THE OVEN ASSEMBLY
• Mount the latch board to the oven assembly.
• Adjust the latch board in the arrow direction so that
oven door will not have any play in it when the door
is closed.
• Tighten the mounting screw.
• Check for play in the door by pushing the door
release button. Door movement should be less
than 0.5 mm. (1/64 inch)
Don't push the door release button while making
adjustment. Make sure that the latch moves
smoothly after adjustment are completed and that
the screws are tight. Make sure the primary, monitor,
and secondary switches operate properly by
following the continuity test procedure.
5-6
PRIMARY
SWITCH
ADJUSTMENT
DIRECTION
MONITOR
SWITCH
SECONDARY
SWITCH
CAUTION: CHECK THE CORRECT POSITION
MAGNETRON
H.V. TRANSFORMER
PRIMARY
H.V. CAPACITOR
H.V.
DIODE
FIG. 1
the
and

A. PRIMARY INTERLOCK SWITCH TEST
When the door release button is depressed slowly
with the door closed, an audible click should be
heard at the same time or successively at
intervals. When the button is released slowly, the
latches should activate the switches with an
audible click.
If the latches do not activate the switches when
the door is closed, the switches should be a
adjusted in accordance with the adjustment
procedure. Disconnect the wire lead from the
primary switch. Connect the ohmmeter leads to
the common (COM) and normally open (NO)
terminal of the switch. The meter should indicate
an open circuit in the door open condition.
When the door is closed, the meter should
indicate a closed circuit.
When the primary switch operation is abnormal,
make the necessary adjustment or replace the
switch only with the same type of switch.
B. SECONDARY INTERLOCK SWITCH TEST
Disconnect the wire lead from the secondary
switch.
Connect the ohmmeter leads to the common
(COM) and normally open (NO) terminals of the
switch. The meter should indicate a open circuit in
the door open condition. When the door is closed,
meter should indicate an closed circuit. When the
secondary switch operation is abnormal, make the
necessary adjustment or replace the switch only
with the same type of switch.
C. MONITOR SWITCH TEST
Disconnect the wire lead from the monitor switch.
Connect the ohmmeter leads to the common
(COM) and normally closed (NC) terminals of the
switch. The meter should indicate closed circuit in
the door open condition. When the door is closed,
meter should indicate an open circuit. When the
monitor switch operation is abnormal, replace with
the same type of switch.
NOTE: After repairing the door or the interlock
system, it is necessary to do this continuity
test before operating the oven.
5-7
WARNING : FOR CONTINUED PROTECTION AGAINST EXCESSIVE RADIATION
EMISSION, REPLACE ONLY WITH IDENTICAL REPLACEMENT PARTS.
COMPONENTS TEST PROCEDURE RESULTS
SWITCHES Check for continuity of the Door Door
(Wire leads removed) switch with an Ohm-meter open closed
Primary
Switch
Monitor
Switch
NOTE : After checking for the continuity of switches, make sure that are
correctly connected.
COM
NO
COM
NC
COM
NO
INTERLOCK CONTINUITY TEST
Secondary
Switch
TYPE NO. KW3A FOR SWITCHS
Type No.KW3A
Type No.KW3A
Type No.KW3A

5-8
CAUTIONS
1. DISCONNECT THE POWER SUPPLY CORD FROM THE OUTLET WHENEVER REMOVING THE
OUTER CASE FROM THE UNIT. PROCEED WITH THE TEST ONLY AFTER DISCHARGING THE HIGH
VOLTAGE CAPACITOR AND REMOVING THE WIRE LEADS FROM THE PRIMARY WINDING OF THE
HIGH VOLTAGE TRANSFORMER. (SEE PAGE 2-1)
2. ALL OPERATIONAL CHECKS WITH MICROWAVE ENERGY MUST BE DONE WITH A LOAD (1 LITER
OF WATER IN CONTAINER) IN THE OVEN.
COMPONENTS TEST PROCEDURE RESULTS
HIGH VOLTAGE
TRANSFORMER
(Wire leads removed)
MAGNETRON
(Wire leads removed)
1. Measure the resistance.
(Ohm-meter scale: Rx1)
• Primary winding
• Secondary winding
• Filament winding
2. Measure the resistance.
(Ohm-meter scale: Rx1000)
• Primary winding to ground
• Filament winding to ground
1. Measure the resistance.
(Ohm-meter scale: Rx1)
• Filament terminal
2. Measure the resistance.
(Ohm-meter scale: Rx1000)
• Filament to chassis
Approx.: 1.4 ohm
Approx.: 90 ohm
Less than: 1 ohm
Normal: Infinite
Normal: Infinite
Normal: Less than 1 ohm
Normal: Infinite
COMPONENT TEST PROCEDURE
PRIMARY
TERMINAL
SECONDARY
WINDING
FILAMENT
WINDING
TERMINAL

5-9
COMPONENTS TEST PROCEDURE RESULTS
HIGH VOLTAGE
CAPACITOR
HIGH VOLTAGE
DIODE
Measure the resistance.
(Ohm-meter scale: Rx1000)
• Terminal to terminal.
Measure the resistance.
(Ohm-meter scale: Rx1000)
• Terminal to case.
Measure the continuity (Forward).
(Ohm-meter scale: Rx10000)
Measure the continuity (Reverse).
(Ohm-meter scale: Rx10000)
Normal: Momentarily indicates
several ohms, and then
gradually returns to
Normal: ∞
Normal: ∞
Abnormal: Continuity.
NOTE: When testing the magnetron, be sure to install the magnetron gasket
in the correct position and be sure that the gasket is in good condition.
Antenna
Gasket
Chassis
Filament
10M ohms.
NOTE :
Some inexpensive meters
may indicate infinite
resistance in both direction.
*
Normal: Continuity.
Abnormal: ∞*
