Panasonic TC-P42 3 Series User manual

© Panasonic Corporation 2011.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.MTNC110323AE
42 inch Class 720p Plasma HDTV
Model No. TC-P42X3X
GPH14DU Chassis
TABLE OF CONTENTS
PAGE PAGE
1 Different points---------------------------------------------------- 2
1.1. Mechanical Replacement Parts List ------------------ 2
1.2. Electrical Replacement Parts List --------------------- 2
2 Block Diagram----------------------------------------------------- 3
2.1. Main Block Diagram -------------------------------------- 3
2.2. Block (1/4) Diagram--------------------------------------- 4
3 Schematic Diagram ---------------------------------------------- 5
3.1. A-Board (1/16) Schematic Diagram------------------- 5
3.2. A-Board (4/16) Schematic Diagram------------------- 6
3.3. A-Board (10/16) Schematic Diagram ----------------- 7
Please file and use this manual together with the service manual for Model No.
TC-P42X3, ORDER NO. MTNC110103CE.

2
1 Different points
1.1. Mechanical Replacement Parts List
1.2. Electrical Replacement Parts List
Ref. No. Parts No. Parts name & Description Pcs Remarks
TC-P42X3 TC-P42P3X
18 TQB2AA0597 TQB2AC0031 INSTRUCTION BOOK(ENG/SPA) 1 PAVCA
34 TXFKU01ZSER TXFKU25ZSER REAR COVER 1 PAVCA
35 TXFKY01PPUU TXFKY01LWUX CABINET ASSY 1 PAVCA
Ref. No. Parts No. Parts name & Description Pcs Remarks
TC-P42X3 TC-P42X3X
PCB TXN/A1PPUUS TXN/A1LWUXS CIRCUIT BOARD A 1 (RTL) PAVCA
C3301 ----- F1J1A106A043 C 10UF, 10V 1
C3302 ----- F1J1A106A043 C 10UF, 10V 1
C3303 ----- F1J1A106A043 C 10UF, 10V 1
IC8900 TVRS095S TVRS095AES IC 1 PAVCA
IC8902 TVRS015S TVRS199AAS IC 1 PAVCA
IC9304 TVRS112S TVRS112AAS IC 1 PAVCA
JK3300 ----- K1FY315A0010 CONNECTOR 1 PAVCA
JS003 ----- D0GBR00J0004 M 0 OHM J 1/10W 1
R3012 ----- D0GA680JA023 M 68 OHM, J,1/16W 1
R3013 ----- D0GA101JA015 M 100 OHM, J,1/16W 1
R3014 ----- D0GA680JA023 M 68 OHM, J,1/16W 1
R3015 ----- D0GA101JA015 M 100 OHM, J,1/16W 1
R3016 ----- D0GA680JA023 M 68 OHM, J,1/16W 1
R3301 ----- D1BB75R0A055 M 75 OHM,J.1/10W 1
R3302 ----- D1BB75R0A055 M 75 OHM,J.1/10W 1
R3303 ----- D1BB75R0A055 M 75 OHM,J.1/10W 1
R3304 ----- D0GDR00J0004 M 0 OHM, 1/8W 1
R3305 ----- D0GDR00J0004 M 0 OHM, 1/8W 1
R3313 ----- D0GA472JA023 M 4.7KOHM, J,1/16W 1
R3314 ----- D0GA472JA023 M 4.7KOHM, J,1/16W 1

3

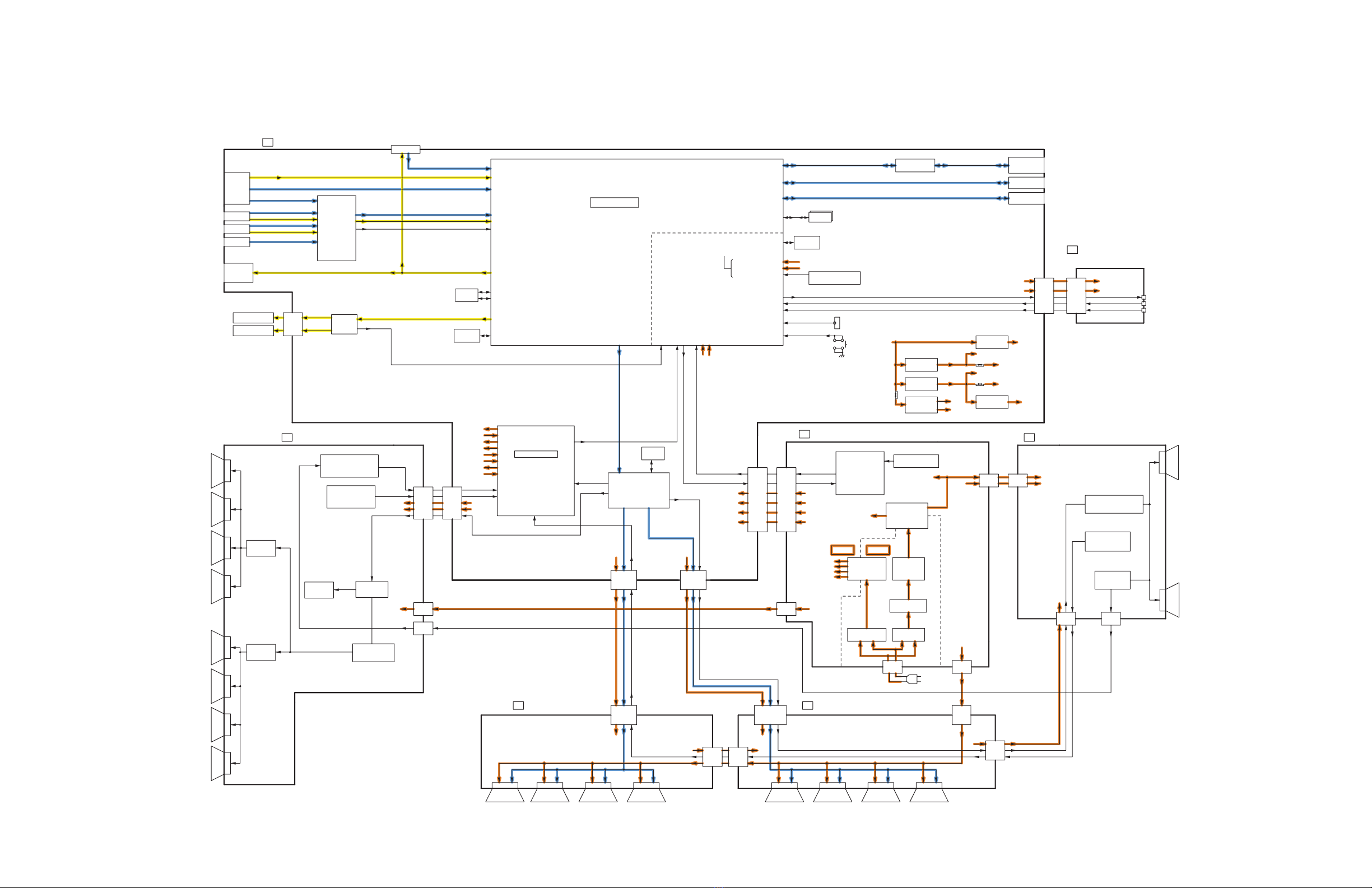

2 Block Diagram
2.1. Main Block Diagram
P
P
P
HOT
(LED:4TIMES)
(LED:8TIMES)
(LED:7TIMES)
COLD
(LED:6TIMES)
(LED:10TIMES)
(LED:5TIMES)
(LED:6TIMES)
(LED:3TIMES)
(LED:4TIMES)
(LED:12TIMES)
(LED:8TIMES)
(LED:7TIMES)
(LED:10TIMES)
(LED:9TIMES)
STANDBY
VOLTAGE
CONVERTER
DATA
DRIVER
P11
SN3
P+5V
AC CORD
MID
RECOVERY
SCAN DRIVE
ENERGY
P+15V
VIDEO DATA
Vda
DATA
DRIVER
COIL
SS3
MID
POWER SUPPLY
MID
A34
VSUS
DATA
DRIVER
P35
Vda
DATA DRIVER (LEFT)
PS SOS4
DATA
DRIVER
POWER MICOM
SCAN CONTROL
STB5V
SOS8_SS
C20
P
SCAN
DRIVER
C1
SN SUSTAIN DRIVE
VIDEO DATA
VSUS
CONTROL
PULSE
SOS8_SS
SUSTAIN CONTROL
VSUS
DATA
DRIVER
SOS6_SC1
Vda
RELAY
C23
P+5V
C2
P+15V
F15V
ON/OFF CONTROL
P2
DATA
DRIVER
P-BOARD
SOS DETECT
P6
A23
SOUND15V
P+3.3V
VIDEO DATA
A33
P+3.3V
VSUS
VSUS
P+3.3V
DATA DRIVER (RIGHT)
SCAN
DRIVER
SN20
DATA
DRIVER
P+15V
DATA
DRIVER
SOS8_SS
POWER
FACTOR
CONTROL
P9
VSCAN GEN.
SS-BOARD
SOS DETECT
SN2
SUSTAIN CONTROL
SN-BOARD
ENERGY RECOVERY
SOS DETECT
SS23
VSUS GEN.
VIDEO DATA
SS
C11
SOS7_SC2
C21
RECTIFIER
ENERGY RECOVERY
VAD GEN.
SN-BOARD
FLOATING PART
SOS DETECT
C25
SUSTAIN CONTROL
SS11
MAIN
CONVERTER
VIDEO DATA
C10
RECTIFIER
P+5V
P+15V
Vda
P+5V
P+5V
VE GEN.
P+3.3V
STB5V
PD5L
P+1.2V
SUB1.5V
VIDEO
SUB1.2V
STB5V
DCDCIN
SUSTAIN
CONTROL
SUB5V
SOS6_SC1
SUB5V
TUNER_POWER_SOS
ARC
(HDMI1)
REMOTE IN
SOUND SOS
P+5V
SUB1.2V
P+3.3V
P+5V
L
SUB3.3V
PANEL SOS
SOS7_SC2
SD CARD DATA
REMOTE RECEIVER
SUB9V
ETHERNET DATA
AUDIO
R
SUB3.3V
L/R DDR3 I/F
Y/PB/PR
P+5V DET
USB I/F
DCDC
P+5V
SUB5V
PANEL SOS
AMP
SD CARD I/F
SUB3.3V
VIDEO DATA
COMP
LAN CON I/F
P+1.2V
AV SW
STM IIC
SUB5V
OUT
SOS4_PS
SUB3.3V
KEY1
NAND FLASH I/F
NAND
FLASH
AUDIO PWM
SUB1.5V
SOUND SOS
P+3.3V
DDR3
F15V
DCDC
DCDC
STB3.3V
K1
SOS8_SS
POWER LED
REMOTE RECEIVER
SOS6_SC1
L/R
A1
LVDS DATA
SUB5V
P+3.3V DET
ARC
(HDMI1)
K
SD CARD
LED R
SOS4_PS
CVBS/Y,PR/C,PB
STM
EEPROM
VIDEO DATA
STB1.2V
AUDIO INPUT
L/R
HDMI1,2
C.A.T.S SENSOR
IEC OUT
TUNER
PEAKS
EEPROM
IIC
CPU BUS I/F
P+3.3V
KEY SWITCH
PANEL MAIN ON
SUB+5V SENSE
SPEAKER(L)
SCAN CONTROL
V
A6
USB_1,2
P+5V
STM
STB3.3V
P+15V
HDMI I/F
VDDSD
18V33V
SOS7_SC2
V
MAIN AV INPUT,PROCESSING
TMDS DATA
A
SPEAKER(R)
PWM L/R
SUB3.3V
AUDIO
DCDC
SOUND15V
SUB1.8V
TUNER I/F
A33
SUB1.8V
SIF I/F
SUB3.3V
VIDEO INPUT
ETHERPHY
DCDC
C.A.T.S SENSOR
C.A.T.S. SENSOR
DIGITAL
SOS8_SS
TUNER_POWER_SOS
STB3.3V
LVDS I/F
KEY3
POWER SWITCH
PANEL MAIN ON
SPI
FLASH
IFD_OUT
P+3.3V
SIF_OUT
F15V
F15V
USB
DIGITAL AUDIO OUT SUB+3.3V SENSE
SOS_DCC
A11
POWER LED(R)
P+15V
PEAKS-sLD2
ANALOG-ASIC
F15V
HOT
(LED:4TIMES)
(LED:8TIMES)
(LED:7TIMES)
COLD
(LED:6TIMES)
(LED:10TIMES)
(LED:5TIMES)
(LED:6TIMES)
(LED:3TIMES)
(LED:4TIMES)
(LED:12TIMES)
(LED:8TIMES)
(LED:7TIMES)
(LED:10TIMES)
(LED:9TIMES)
P+15V
F15V
STB5V
Vda
SOUND15V
LAN
BUFFER
PC
R/G/B
VIDEO (PC) INPUT
PC_H/V

4

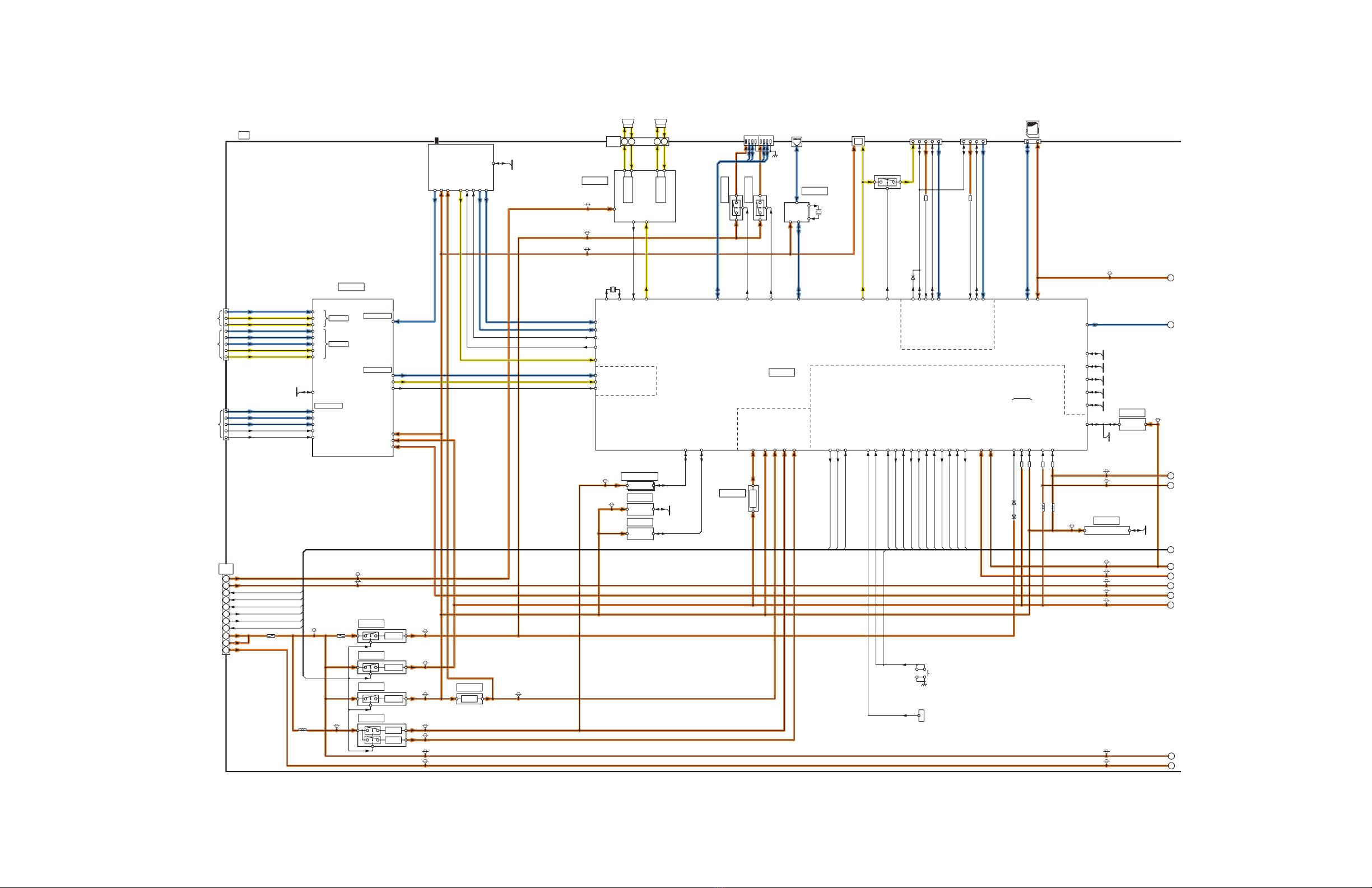

2.2. Block (1/4) Diagram
(LED:4TIMES)
(LED:12TIMES)
(LED:10TIMES)
(LED:5TIMES) (LED:3TIMES)
P
P P
SUB9V
P+15V
PA5601
P+3.3V
STB1.2V
F15V
SUB3.3V
STB3.3V
SUB1.8V
SUB3.3V
P+5V
USB5V
SUB1.5V
USB5V
DCDCIN
F15V
P+15V
VJ1001
X8300
STB3.3V
SOUND15V
VJ9803
VDDSD18V33V
SUB3.3V
SUB1.5V
SUB3.3V
SUB5V
F15V
X8600
STB5V
SOUND15V
VJ9805
STB5V
PA5440
SUB5V
SUB1.2V
SW2056
D1105
D1104
IC8200,01
IC8532
9V
STM
IIC
V1_R
SW2053
5
L/R
CH.UP
24.576MHz
JK8650
POWER_DET
R(-)
R
SW_OFF_DET
AXO
L
PB
SBI0
SBO0
JK8531
PR
COMP
SDVOLC
LAN CON I/F
SIF I/F
DRVRST
1
3
VCC
SUB1.5V
P+3.3V DET
COMP
VIDEO
MENU
+3.3V
SUB1.2V
SUB5V
IIC3
SW2054
AV IN
IIC3
R
V1_V
STB5V_SW_ON
PANEL SOS
L
CVBS/Y,PR/C,PB
SUB5V_SENSE
SOS
AUDIO PWM
KEY1
13
IIC1
PANEL_MAIN_ON REMOTE_IN
SIF_OUT
15
3.3V
PANEL MAIN ON
TUNER_SUB_ON
DMD_
IIC0
D1_PR
HDMI3.3V
TU4801
TUNER_SUB_ON
2
ANT IN
SOS4_PS
DDR3
IIC3
SOS4_PS
D1_PB
PDP_DRVRST
L_OUT
3.3V
+1.5V
VIDEO
PEAKS-sLD2
SOS4_PS
STM
C.A.T.S
PANEL_SOS
USB1
IF_AGC
XRSTSTM
USB2
XRSTSTM CPU BUS I/F
JK3000
LVDS DATA
IC8701
Y
7
STB3.3V
9
SPEAKER
VIDEO
IIC3
SW2051
VOL.UP
IFD1
8
5V
P_S1
FE_XRST
F15V
DMD_
IIC0
IC8100
IFD2
AV SW
XRST
R(+)
SUB1.2V
STM
EEPROM
SBI0
SBO0
P_S0
IC8702
11
15V
3
STB1.2V
IIC0
10
DDR3 I/F
IC3753
TV_V
12
D1_Y
SPEAKER_R
FE_XRST
+5V
L/R
PANEL_MAIN_ON
1.8V
IC8000
SPEAKER_L
4
11
STM
IIC
SPEAKER
SUB1.5V XRST
7
5
V1_L
JK8702
6
D1_L
DCDCEN
SD CARD
2
P6
P+5V DET
SW_OFF_DET
1
IC3001
IC8900
PANEL_MAIN_ON
6
XRST_SYS_PD5
SUB3.3V_SENSE R_LED_ON
+1.8V
L(-)
R_OUT
AXI
SOUND SOS
P_S0
L(+)
IC5350
4
R_LED_ON
USB1VBUS
1
XRST_SYS_PD5
USB I/F
3.3V
TUNER
VOL.DN
4
P+15V
SW2050
STB5V
LVDS I/F
IF_AGC
F15V
25MHz
2
IC8902
KEY3
SD CARD I/F
C.A.T.S_SENSOR SUB1.8V
SOUND15V
3
TUNER_SUB_ON
USB0VBUS
STB5V_SW_ON
USB5V
DMD_
IIC0
PWM L/R
V
IIC1
+5V
V
TUNER_SUB_ON
SUB3.3V
+1.2V
IIC1
SDVOLC
IFD_OUT1
TUNER
VDDSD1.8V3.3V
MAIN
SD DATA:4bit
P_S1
TEMP SENSOR
IC8707
HDMI3.3V
HDMI I/F
AUDIO AMP
IIC0
D1_R
ETHERPHY
CVBS/YPbPr/RGB/YC
IC8901
A6
10
REMOTE IN
SOS4_PS
NAND
FLASH
SUB3.3V
CH.DN
IC8531
POWER_DET
PEAKS
EEPROM
IC8601
IC8706
KEY SWITCH
A11
IFD_OUT2
SW2052
IC4900
KEY1
INPUT/OKSW2055
POWER SWITCH
KEY3 KEY1
KEY3
KEY3
HDMI_5V_DET1 +5V
RX1
OUT
AUDIO
TMDS DATA
CLOCK
RX0
DDC_IIC1
HDMI_5VDET0
HDMI_CEC
+5V
HDMI_CEC
HDMI1
JK4600
DIGITAL
IEC OUT
DDC_IIC0
DDC_IIC0
TMDS DATA
CLOCK
JK4601
D3050
HDMI2
HDMI_CEC
Q4500
DDC_IIC1
ARC_OFF
HDMI_CEC_
PULL_ON ARC
TUNER_POWER_SOS
AMAIN AV INPUT,PROCESSING
(LED:4TIMES)
(LED:12TIMES)
(LED:10TIMES)
(LED:5TIMES) (LED:3TIMES)
LAN
PC_H
PC_V
PC
PC_B G
B
PC_G
PC_R
V
H
PC
JK3300
R
H/VPC_H/V

5

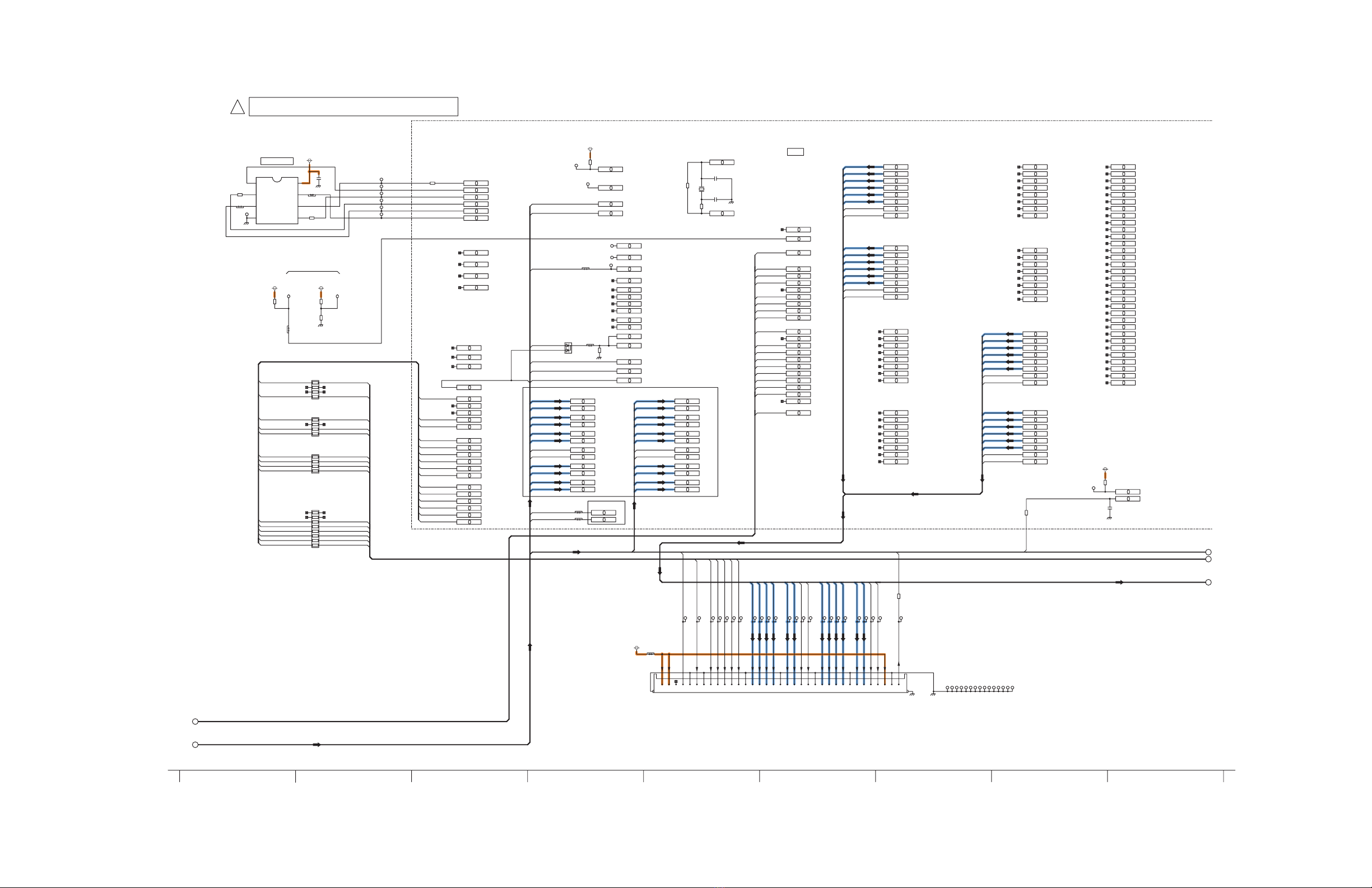

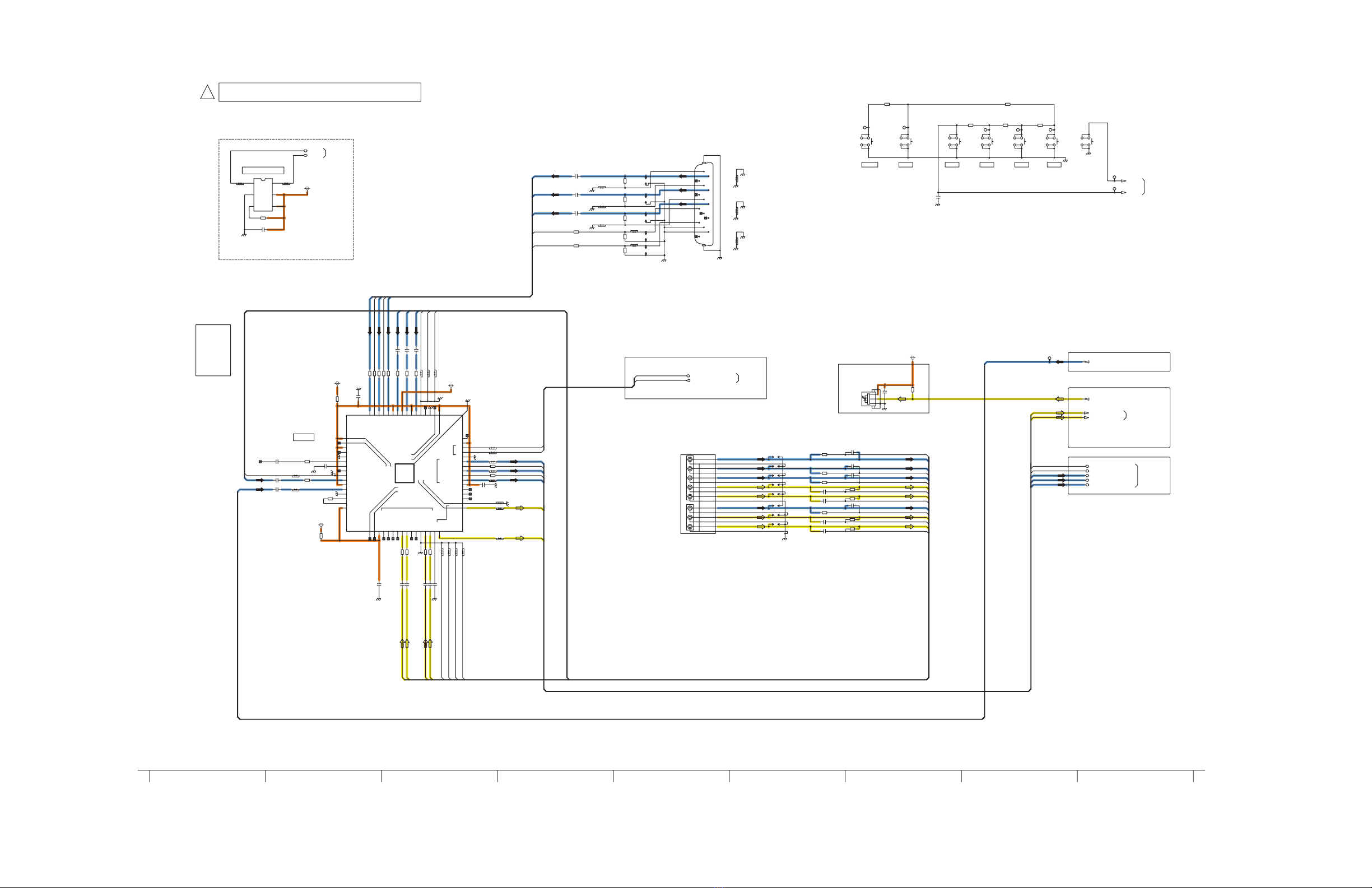

3 Schematic Diagram
3.1. A-Board (1/16) Schematic Diagram
AH_ED0 AH_ED2 AH_ED5
SUB3.3V
AH_ED3 AH_ED1 AH_ED4 AH_ED6 AH_ED7
AH_ED7
AH_ED6
AH_ED4
AH_ED3
AH_ED1
AH_ED0
AH_ED2
AH_ED5
C8902
16V
0.1u
C8900
16V
0.1u
C8903
16V
0.1u
C8901
16V
0.1u
IC8902
TVRS199AAS
1
E0
2
E1
3
E2
4
Vss
5
SDA
6
SCL
7
WC
8
Vcc
TVRS001S
IC8901
1
A0
2
A1
3
A2
4
GND
5
SDA
6
SCL
7
WP
8
Vcc
TVRS095AES
IC8900
1NC 2NC 3NC 4NC 5NC 6NC 7R/B# 8RE# 9CE#
10 NC 11 NC 12 VCC 13 VSS 14 NC 15 NC 16 CLE 17 ALE 18 WE# 19 WP# 20 NC 21 NC 22 NC 23 NC 24 NC 25
NC
26
NC
27
NC
28
NC
29
I/O0
30
I/O1
31
I/O2
32
I/O3
33
NC
34
NC
35
NC
36
VSS
37
VCC
38
NC
39
NC
40
NC
41
I/O4
42
I/O5
43
I/O6
44
I/O7
45
NC
46
NC
47
NC
48
NC
STB3.3V
STB3.3V
SUB3.3V
SUB3.3V
SUB3.3V
TP8991
TP8980
TP0912
TP0911
P_TMS
P_TCK
P_TRST
P_TDI
AA_PEAKS_EEP_WP AA_STM_EEP_WP
P_NFALE
P_XNMIRQ
P_XNFCE
P_ED2
BE_SDA1
P_ED3
P_XNFRE
P_ED0
P_XIRQ1
P_XNFWP
P_PORT36
P_NFCLE
P_ED4
P_ED6
P_XNFWE
AA_STMSDA
AA_STMSCL
BE_SCL1
P_ED7
P_NANDRYBY
P_ED5
P_STMGPIO8
P_ED1
R8939
EXB28V560JX
R8965
EXB28V103JX
R8938
EXB2HV470JV
R9050
22
R8910
10k
R8919
100
R8909
2.2k
R8924
4.7k
R8964
10k
R8963
10k
R8914
4.7k
R8940 56
R8911
100
R8937 56
R8941 56
STM_EEPROM
EX-BUS
JTAGPEAKS_EEPROM
16Kbit
32Kbit
STM-EEP_WP
I2CBUS
PEAKS-SLD2
EEPROM_WP
PEAKS-SLD2
PEAKS-SLD2
I2CBUS
A
D
731
C
54 869
B
E
F
2
NAND FLASH
!
NAND/EEPROM/JTAG
A-BOARD TXN/A1LWUXS (1/16)
PEAKS EEPROM
STM EEPROM
TO 13/16
TO 13/16
TO 8/16
TO 13/16
TO 8/16
TO 8/16
TO 13/16
TO 8/16
TO 13/16
TP0009
TP0006
JS003
0
Suffix:AE

6
3.2. A-Board (4/16) Schematic Diagram
S
S
S
S
S
S
Thermal
Pad
S
V
R
L
R
L
Y
PR
PB
S
S
S
S
S
S
DRIVE IC
VCC
Vin
GND
S
S
S
S
S
S
S
S
P
S
S
P
S
P
PC_HS
D1_LG
V1_V
MAIN_PB/C
D1_RG
V1_L
D1_L
V1_R V1_L D1_R
PC_VS
D1_L
PC_HS
AC_TV1_V
D1_PBG
BE_SDA3
V1_LG
D1_YG
BE_SDA3
MAIN_PB/C
D1_PRG
BE_SCL3
SPDIF_OUT
BE_SCL3
MAIN_R
MAIN_L
D1_PR
V1_RG
MAIN_Y/CVBS
D1_YG
D1_Y
AC_TV1_V
V1_LG
V1_RG
D1_PB
V1_V
D1_PB
D1_LG
V1_VG
D1_PR
PC_VS
D1_PRG
MAIN_PR
D1_R
MAIN_PR
D1_PBG
V1_R
MAIN_L
D1_RG
MAIN_Y/CVBS
MAIN_R
D1_Y
V1_VG
PC_R
PC_H
PC_G PC_B PC_V
PC_G
PC_H
PC_B
PC_V
PC_R
C3135
100p
50V
C3070
33p
50V
VJ3329
MAIN_PB/C
R3022 68
C027
10V
10u
TP2055
R3062
VJ3048
C3134
100p50V
R2050
1.74k
R2051
1.62k
TP2054
PC_VS
R3052 220
R3198
75
SUB3.3V
R3023
220
R3061
C3028
10V 10u
C3047 10u10V
C3073 33p
50V
MAIN_PR
SW2051
K0H1BA000445
SW2052
K0H1BA000445
SUB3.3V
VJ3310
R3757
C3048 10V 1u
IC3001
C1AB00003385
1
T_DET1
2
CYin2/G3
3
L3_DET1
4
PRin2/R3
5
GND(Video_IN1)
6
PBin1
7
T_DET2
8
CYin1
9
HD/VD_MUTE
10
PRin1
11
VCC5V(Video_IN1)
12
Bin
13
VDin
14
Gin
15
HDin
16
Rin
17
T_DET3
18
Yin4
19 VCC5V(Video_IN2)
20 Cin4
21 S2_DET1
22 CVBSin3
23 BG
24 CVBSin2
25 GND(Video_IN2)
26 CVBSin1
27 T_DET4
28 CVBSin6
29 GND(75driver)
30 SAG_CVBSout3
31 CVBS/Y+Cout3
32 VCC9V(75driver)
33
R1out/R6in
34
L1out/L6in
35 VCC9V(Audio) 36 L1in 37 R1in 38 L2in 39 R2in 40 L3in 41 R3in 42 L4in 43 R4in 44 GND(Audio) 45 L5in 46 R5in 47 AU1/2Vcc 48 R2out
49
L2out
50
Port-EXP2
51
CVBSin4
52
Port-EXP1/T_DET6
53
CVBSin5
54
VCC5V(Driver)
55
G/CY/CVBSout1
56
HD_out1
57
B/PB/Cout1
58
VD_out1
59
R/Prout1
60
GND(Driver)
61
SDA
62
SCL
63
T_DET5
64
PBin2/B3
65
C3071
33p50V
VJ3309
R3193 39k
JK3000
K1U816A00007
Y
Y-G
PB
PB-G
PR
PR-G
L
L-G
R
R-G
V
V-G
L
L-G
R
R-G
BE_SDA3
SUB9V
C3157
16V
0.1u
VJ3330
R3192 39k
AC_TV1_V
AG_KEY3
VJ3055
VJ3313
C3005 10V 10u
IC3753
C1ZBZ0004368
1SCL
2GND
3ALERT 4
ADD0
5
V+
6
SDA
C3131
100p50V
MAIN_R
SUB5V
R3058 68
C3026
10V 10u
VJ3059
TP2050
MAIN_L
SW2055
K0H1BA000445
SUB3.3V
R3027 220
R3202 39k
R2052
2.32k
R3024
220
AG_KEY1
C3023
10u
10V
R3209 75
VJ3303
R2053
3.16k
BE_SCL3
VJ3311
C3054
16V 0.1u
C3753
16V
0.1u
SW2050
K0H1BA000445
SW2053
K0H1BA000445
D3050
K7AAAY000006
BE_SDA3
VJ3312
TP2056
R3051 220
VJ3028
C3006 10V 10u
R3050
C3011
16V 0.1u
BE_SCL3
R3005
0
TP3001
R3756
10k
R3174
47k
C2050
1000p
50V
R3194 75
C3072 33p50V
C3007 10V 10u
R3021 68
TP2053
SPDIF_OUT
R3004
0
R3204 39k
R3056 68
C3046 10V 1u
R2054
21k
R3030
0
R3758
C3130
100p50V
C3045 10V 1u
R3028 220
C3035 16V 0.1u
SW2056
K0H1BA000445
VJ3057
PC_HS
R3020 68
TP2052
C3049 10V 1u
R3049
MAIN_Y/CVBS
R3189 75
TP2051
SW2054
K0H1BA000445
VJ3301
R3314
4.7k
R3016 68
VJ3302
R3012 68
R3301
75
R3015 100
C3301
10V
10u
R3304
0
VJ3326
R3313
4.7k
VJ3323
R3013 100 R3014 68
R3305
0
VJ3324
R3303
75
VJ3327
C3302
10V
10u
R3302
75
C3303
10V
10u
VJ3325
JK3300
K1FY315A0010
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
VJ3328
OUT
Lite2 AD1 SCL2
V3
YPbPr2:D2
Aud1c R
ADV 62 V
SDA3
OUT1:Peaks
RGB:PC
ADV
TUNER
Audio1c
ADV 96 B/C
CVBS2:AV2 Back
OUT3:Monitor Out
CVBS6:MainTnr
RENESAS
AUDIO OUT2
AUDIO IN 1-5
AUDIO IN/OUT
V2
V1
V6
YPbPr2
YPbPr1
YC1
OUT3
IIC
OUT1
V5
V4
CH.UP
KEYSCAN
ANALOG SW
!
OPEN-OK
29
AV SW
OPEN-OK
34
AV TERMINAL
INPUT/OK
35
DIGITAL AUDIO OUT
VOL.DN
SCL3
32
TO 3/16
VOL.UP
6dBup
28
TO 8/16
Lite2 AC4 SDA2
33
TO 8/16
CVBS1:AV1 Back
31
TO 5/16
CH.DN
YPbPr1:D1
30
TO 7/16
MENU
OPEN-OK
36
TO 3/16
V5:-
TEMP SENSOR
TO 6/16
V6:MainTnr GR
V4:AV3 Back
D1
CVBS3:AV3 SIDE
Aud1c L
sLD2
OPEN-OK
ADV 63 H
OPEN-OK
ADV 97,99 Y
IIC
YC4:PeaksliteDnC
AV1_V
AV1
ATV
In
ADV 94 R
RGB
PC
PC IN
A-BOARD TXN/A1LWUXS (4/16)

7
3.3. A-Board (10/16) Schematic Diagram
TERM
SIDE
S
S
S
S
S
S
S
P
DD1_2+
PD_SCCLK
D-PCD4
PD_LED1
DD1_3-
P_TB1N
P_TE1P
PD_PCD3
DD12_13_2+
DD12_13_3-
PD_CML
P_TE1N
DD1_1+
PD_CLRD2
D-LED2
DD14_15_3-
PD_CERS
PD_PCD4
DD2_3_3+
PD_CLRD1
PD_ODED1
PD_CIS
PD_PCD1
PD_LED1
PD_CRC2
UMH_C
D-ODED2
P_TE2N
PD_UML
P_TA1N
PD_PCD2
D_OHZ1
P_TA1P
PD_OHZ1
DD2_3_2-
PD_PCD1
PD_PCD3
DD2_3_1+
P_TCLK1N
DD14_15_2+
D-PCD3
PD_CEL
D-CLRD1
DD1_1-
DRVCLK8-
PD_OHZ2
DD12_13_2-
DD12_13_1+
PD_PCD4
DRVCLK1+
PD_OC2
DRVCLK7+
D-ODED1
P_TC1P
DD14_15_1+
PD_SCNRST
PD_CLRD1
UEH_C
PD_LED2
PD_VSET2
DD12_13_1-
PD_OC1
P_TC2P
DRVCLK2+
PD_SEL2
DD1_2-
PD_PCD2
PD_OHZ2
DRVCLK2-
DD14_15_3+
SOS8_SS
P3V_SDA02
OFF_FLAG
PD_CSH
PD_UMH PD_UML
SOS_DCC
PD_UMH
PD_ODED1
PD_CRC1
DD1_3+
P_TD1P
D-LED1
DD2_3_3-
P_TA2N
UML_C
D_OHZ2
P_TCLK2P
PD_LED2
PD_CPH1
DRVCLK8+
DD2_3_2+
P_S0
D-PCD2
P_TC2N
D-PCD1
PD_ODED2
PD_SIU
P_TB2N
P_TB1P
DD14_15_1-
P_S1
XRST_SYS
P_TA2P
D-CLRD2
PD_ODED2
OSD_VIN
C_3.3V_DET
PD_UEH
P_TB2P
PD_CMH
DRVRST
P_TE2P
P3V_SCL02
PD_UEH
PD_OHZ1
DD12_13_3+
DD2_3_1-
D_UHZ
DRVMUTE
DRVCLK1-
PD_CSL
DRVCLK7-
P_TC1N
P_TD1N
DD14_15_2-
P_TD2P
P_TCLK1P
P_TCLK2N
PD_CLRD2
P_TD2N
KEYSCAN_D
D-LED1
D-ODED1
D-PCD1 D-PCD2
D-CLRD1
D_OHZ1
DD1_3- DD1_3+ DD1_2- DD1_2+ DD1_1- DD1_1+
DRVCLK1- DRVCLK1+ DD2_3_3- DD2_3_3+ DRVCLK2- DRVCLK2+ DD2_3_2- DD2_3_2+ DD2_3_1- DD2_3_1+
C9099
0.1u
16V
C9301
50V
15p
C9300
16V
0.1u
C9302
50V
18p
D9806
B0ADCK000001
IC9300 G30 DCCOP22
IC9300 AJ6 LVDOD37N
IC9300 L3 DCCOP25
IC9300 AG30 LVDOD11P
IC9300 M2 DCCOP16
IC9300 N1 DCCOP17
IC9300 F2 DCCOSCRST
IC9300 B19 RX0CP
IC9300 AK13 LVDOD30P
IC9300 AA30 LVDOD5P
IC9300 B6 EXTFLSI
IC9300 A7 EXTFLNCS
IC9300 C5 OSDRI
IC9300 U29 LVDOD1N
IC9300 AJ28 LVDOD14N
IC9300 B5 OSDVO
IC9300 N28 DCCOP37
IC9300 C8 XRST
IC9300 H3 DCCOP2
IC9300 AE28 LVDOD13N
IC9300 B21 RX0AP
IC9300 M4 DCCIFBK2
IC9300 A5 OSDHO
IC9300 AD30 LVDOD8P
IC9300 A3 OSDHI
IC9300 AA29 LVDOD5N
IC9300 AG1 LVDOD43P
IC9300 AE30 LVDOD9P
IC9300 F29 DCCOP41
IC9300 Y2 LVDOD50N
IC9300 AJ21 LVDOD21N
IC9300 AJ18 LVDOD24N
IC9300 E3 DCCIDRVRST
IC9300 AD29 LVDOD8N
IC9300 H2 DCCIFBK1
IC9300 AJ17 LVDOD25N
IC9300 AE1 LVDOD45P
IC9300 B4 OSDBI
IC9300 H28 DCCOP13
IC9300 AE3 LVDOD48P
IC9300 W28 LVDOD6P
IC9300 W29 LVDOD3N
IC9300 N3 DCCOP39
IC9300 A14 RX1BN
IC9300 N27 DCCOP23
IC9300 F28 SPIHZ
IC9300 E27 DEBUG0
IC9300 C7 XRSTSYS
IC9300 AK25 LVDOD17P
IC9300 AA2 LVDOD49N
IC9300 E1 DCCOP8
IC9300 AJ4 LVDOD39N
IC9300 AG29 LVDOD11N
IC9300 M28 DCCOP21
IC9300 K1 DCCOP27
IC9300 D30 FLSIO2
IC9300 F1 DCCOP7
IC9300 A19 RX0CN
IC9300 K28 DCCOP19
IC9300 D2 DCCOP6
IC9300 AJ10 LVDOD33N
IC9300 G3 DCCOP10
IC9300 C1 DCCOP30
IC9300 AK14 LVDOD29P
IC9300 AF28 LVDOD13P
IC9300 L2 DCCOP36
IC9300 B17 RX0DP
IC9300 A20 RX0BN
IC9300 A21 RX0AN
IC9300 B13 RX1CP
IC9300 D1 DCCOP34
IC9300 V29 LVDOD2N
IC9300 AF30 LVDOD10P
IC9300 AJ27 LVDOD15N
IC9300 AK28 LVDOD14P
IC9300 C30 FLSCK
IC9300 AD2 LVDOD46N
IC9300 K3 DCCOP31
IC9300 H30 DCCOP15
IC9300 AK10 LVDOD33P
IC9300 AJ25 LVDOD17N
IC9300 W2 LVDOD51N
IC9300 AH18 LVDOD27P
IC9300 AG2 LVDOD43N
IC9300 AJ8 LVDOD35N
IC9300 AA1 LVDOD49P
IC9300 C29 FLSIO0
IC9300 F3 DCCIDISPEN
IC9300 AJ7 LVDOD36N
IC9300 B16 RX0EP
IC9300 Y1 LVDOD50P
IC9300 K2 DCCOP38
IC9300 AD1 LVDOD46P
IC9300 H1 DCCOP9
IC9300 AK5 LVDOD38P
IC9300 D3 SOS
IC9300 W3 LVDOD55N
IC9300 AJ5 LVDOD38N
IC9300 C4 OSDYSI
IC9300 V3 LVDOD55P
IC9300 AE29 LVDOD9N
IC9300 AF29 LVDOD10N
IC9300 A6 EXTFLSCK
IC9300 J2 DCCOP0
IC9300 A15 RX1AN
IC9300 G28 DCCOP24
IC9300 V2 LVDOD52N
IC9300 AC29 LVDOD7N
IC9300 V28 LVDOD6N
IC9300 AK26 LVDOD16P
IC9300 L28 DCCOP18
IC9300 J29 DCCOP11
IC9300 U2 LVDOD53N
IC9300 AJ13 LVDOD30N
IC9300 AJ24 LVDOD18N
IC9300 AH13 LVDOD34N
IC9300 AK6 LVDOD37P
IC9300 AJ19 LVDOD23N
IC9300 AJ14 LVDOD29N
IC9300 G29 DCCOP40
IC9300 AH1 LVDOD42P
IC9300 W1 LVDOD51P
IC9300 B8 SDA
IC9300 A13 RX1CN
IC9300 AK24 LVDOD18P
IC9300 AF2 LVDOD44N
IC9300 U30 LVDOD1P
IC9300 P1 DCCOP35
IC9300 AK27 LVDOD15P
IC9300 B15 RX1AP
IC9300 AJ11 LVDOD32N
IC9300 A16 RX0EN
IC9300 Y29 LVDOD4N
IC9300 AK11 LVDOD32P
IC9300 A8 SCL
IC9300 P30 XO
IC9300 J28 DCCOP29
IC9300 N30 XI
IC9300 C24 SFVO
IC9300 E29 FLSIO1
IC9300 AK21 LVDOD21P
IC9300 N2 DCCOP28
IC9300 AH25 LVDOD20P
IC9300 U1 LVDOD53P
IC9300 A18 RX0CKN
IC9300 J1 DCCOP3
IC9300 AE2 LVDOD45N
IC9300 B12 RX1CKP
IC9300 A17 RX0DN
IC9300 AK19 LVDOD23P
IC9300 AH2 LVDOD42N
IC9300 J3 DCCOP1
IC9300 AH6 LVDOD41N
IC9300 V30 LVDOD2P
IC9300 AK17 LVDOD25P
IC9300 F30 DCCIPORT0
IC9300 AF1 LVDOD44P
IC9300 D29 FLSIO3
IC9300 AH5 LVDOD41P
IC9300 B3 OSDCKI
IC9300 AJ12 LVDOD31N
IC9300 E30 FLNCS
IC9300 AH12 LVDOD34P
IC9300 L1 DCCOP5
IC9300 Y30 LVDOD4P
IC9300 P2 DCCOP26
IC9300 B18 RX0CKP
IC9300 AK4 LVDOD39P
IC9300 A10 RX1EN
IC9300 B7 EXTFLSO
IC9300 B20 RX0BP
IC9300 AH26 LVDOD20N
IC9300 A11 RX1DN
IC9300 H29 DCCOP14
IC9300 E2 DCCOP33
IC9300 W30 LVDOD3P
IC9300 A4 OSDGI
IC9300 J30 DCCOP12
IC9300 B10 RX1EP
IC9300 M1 DCCOP20
IC9300 AK18 LVDOD24P
IC9300 C6 OSDCKO
IC9300 AK20 LVDOD22P
IC9300 AC30 LVDOD7P
IC9300 B11 RX1DP
IC9300 G2 DCCOP4
IC9300 G1 DCCOP32
IC9300 D24 DEBUG1
IC9300 C2 DCCIFBK0
IC9300 V1 LVDOD52P
IC9300 AJ26 LVDOD16N
IC9300 B14 RX1BP
IC9300 AK7 LVDOD36P
IC9300 AH19 LVDOD27N
IC9300 A12 RX1CKN
IC9300 AK8 LVDOD35P
IC9300 AF3 LVDOD48N
IC9300 AK12 LVDOD31P
IC9300 AJ20 LVDOD22N
IC9304
TVRS112AAS
1/CS
2DO(IO1)
3/WP(IO2)
4GND 5
DI(IO0)
6
CLK
7
/HOLD(IO3)
8
VCC
A33
23 29 30
2
12
5
33 14 32 20 28 26
4 9
11 19 22 21 25
8
13
6
31 17 10 34 24 18
1 7
27 16 15
3
35
P5V
P3.3V
P3.3V
P3.3V
P3.3V
P3.3V
R9123
R9318
R9309
VJ9001
VJ9000
R9306
R9042
VJ9902
TP9433
TP9207 TP9198
TP9117
TP9199
TP9301
TP9216 TP9900
TP9118 TP9119
TP9076
TP9431 TP9123
TP9106
TP9105
TP9121 TP9122
TP9300
TP9212
TP9430
TP9102
TP9213
TP9107
TP9215
TP9120 TP9116
TP9109
TP9903
TP9434
TP9205 TP9208
TP9432
TP9197 TP9209 TP9901
TP9124 TP9115
TP9915 TP9904
TP9302
TP9206 TP9211 TP9140 TP9139 TP9902 TP9210
TP9529
TP9217
TP9108
TP9110
TP9214
TP9113
P_STMTIME6
P_STMTIME5
R9609
EXB38V470JV
R9610
EXB38V470JV
R9611
EXB38V470JV
R9608
EXB2HV470JV
R9203
2.7k
R9035
3.3k
R9907
100
R9206
56k
R9205
33k
R9323
1k
R9320
1.2k
R9329
1k
R9321
1M
R9330
1k
R9307
47
R9308
47
R9310
0
X9300
H0J200500076
20MHz
DATA_DRIVER
IIC
SS_PULSE
P5V_DET
P3.3V_DET
LVDS_INPUT
DD1_1+
ODE1
PC1
DRVCLK2-
DD1_3-
DD2_3_3-
DRVCLK1+
LE1
DRVCLK2+
GND GND
DD1_2-
P3.3V
DD2_3_1-
CLR1
DD2_3_2+
P3.3V
PC2
GND
DD1_2+
GND
DD2_3_2-
KEY
GND
DD2_3_3+
3.3V_DET_O
DRVCLK1-
DRVSOS8
NC
GND GND
DD2_3_1+
DD1_3+
OHZ1
DD1_1-
84 86 8887 9083 8582 89
SPI FLASH
!
PD5L
A-BOARD TXN/A1LWUXS (10/16)
IC9300
PD5L
C1AB00003409
TO
C1-BOARD
(C11)
2
1
11
12
13
TO 13/16
