Panasonic NR-A191GW User manual

Order Number MRT0508021C3
Refrigerator
NR-A191G, NR-A191GW,
NR-A191GS,
NR-A221G, NR-A221D,
NR-A221DS, NR-A251D
Product Color
White (W), Pretty Gray (H), Silver (S),
Destination
Malaysia, Kuwait, Saudi Arabia, UAE, Oman, Qatar,
Bahrain, etc.
© 2005 Matsushita Reiki Refrigerator (Thailand) Co., Ltd.
All rights reserved. Unauthorized copying and distribution
is a violation of law.

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
2
1 Specification
1.1. NR-A191G, NR-A191GW, NR-A191GS
Model NR-A191G NR-A191GW NR-A191GS
Plug C2P S3P C2P S3P S3D
Power Source AC 220V - 240V, 50Hz AC 220V, 50 / 60Hz
Specification
Capacity (L) 159
Outside dimention (mm.) Width x Depth x Height
572 x 570 x 1,144
Net weight (kg.) 28
Type Fresh food refrigerator
Temperature control Thermostat
Defrosting Push button off cycle (semi-automatic)
Defrost water disposal Auto forcibly evapored into the air
Exterior finish (cabinet / door) Acrylic enamel baked finish / PCM color
Inner liner Vacuum formed ABS resin
Insulation Polyurethane foam (cabinet and door) HCFC-141b used
Sealed Unit
Compressor SD35C65GAW5 SB35C80GAX0
(Winding resisitance at 20 °C) Main : 24.4 Ω, Aux : 39.8 ΩMain : 18.1 Ω, Aux: 35.1 Ω
Evaporator Roll-bonded aluminum sheet type
Condenser Wrapper type (concealed condenser)
Refrigerant charge HFC-134a, 90 ± 5g
Oil charge 195ml (freol α-22)
Electric Parts
Thermostat MM1-8632F / 250V / 3A
Door switch MM7-331(F), 250V / 0.5A D3D-121, 250V / 0.5A
Lamp Socket E12, 250V /
1A E14 / 22, 250V / 0.5A
Lamp bulb E12 / 15, 240V
/ 15W E14 / 22, 240V / 10W
PTC relay PTH7M330MC1
Motor protector 5TM181NHBYY 5TM189NHBYY
* Specification subjects to change without notice

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
3
1.2. NR-A221G, NR-A221D, NR-A221DS
Model NR-A221G NR-A221D NR-A221DS
Plug C2P S3P C2P S3P S3D
Power Source AC 220V - 240V, 50Hz AC 220V, 50 / 60Hz
Specification
Capacity (L) 175
Outside dimention (mm.) Width x Depth x Height
572 x 570 x 1,214
Net weight (kg.) 29 30
Water tank capacity (L) 2.5
Type Fresh food refrigerator
Temperature control Thermostat
Defrosting Push button off cycle (semi-automatic)
Defrost water disposal Auto forcibly evapored into the air
Exterior finish (cabinet / door) Acrylic enamel baked finish / PCM color
Inner liner Vacuum formed ABS resin
Insulation Polyurethane foam (cabinet and door) HCFC-141b used
Sealed Unit
Compressor SD35C65GAW5 SB35C80GAX0
(Winding resisitance at 20 °C) Main : 24.4 Ω, Aux : 39.8 ΩMain : 18.1 Ω, Aux: 35.1 Ω
Evaporator Roll-bonded aluminum sheet type
Condenser Wrapper type (concealed condenser)
Refrigerant charge HFC-134a, 90 ± 5g
Oil charge 195ml (freol α-22)
Electric Parts
Thermostat MM1-8632F / 250V / 3A
Door switch MM7-331(F), 250V / 0.15A D3D-121, 250V / 0.5A
Lamp Socket E12, 250V /
1A E14 / 22, 240V / 10W
Lamp bulb E12 /15,240V
/ 15W E14 / 22, 240V / 10W
PTC relay PTH7M330MC1
Motor protector 5TM181NHBYY 5TM189NHBYY
* Specification subjects to change without notice

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
4
1.3. NR-A251D
Model NR-A251D
Plug C2P S3P
Power Source AC 220V - 240V, 50Hz
Specification
Capacity (L) 207
Outside dimention (mm.) Width x Depth x Height
572 x 570 x 1,368
Net weight (kg.) 34
Water tank capacity (L) 2.5
Type Fresh food refrigerator
Temperature control Thermostat
Defrosting Push button off cycle (semi-automatic)
Defrost water disposal Auto forcibly evapored into the air
Exterior finish (cabinet / door) Acrylic enamel baked finish / PCM color
Inner liner Vacuum formed ABS resin
Insulation Polyurethane foam (cabinet and door) HCFC-141b used
Sealed Unit
Compressor SD43C90RAY5
(Winding resisitance at 20 °C) Main : 18.92 Ω, Aux : 31.4 Ω
Evaporator Roll-bonded aluminum sheet type
Condenser Wrapper type (concealed condenser)
Refrigerant charge HFC-134a, 90 ± 5g
Oil charge 195ml (freol α-22)
Electric Parts
Thermostat MM1-8632F / 250V / 3A
Door switch MM7-331(F), 250V / 0.5A D3D-121, 250V / 0.5A
Lamp Socket E12, 250V / 1A E14 / 22, 250V / 0.5A
Lamp bulb E12 / 15, 240V / 15W E14 / 22, 250V / 0.5A
PTC relay PTH7M330MC1
Motor protector 5TM181NHBYY-53
* Specification subjects to change without notice

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
5
2 Electric circuit
2.1. NR-A191G, NR-A221G and NR-A251D (Non - Regulation Control)

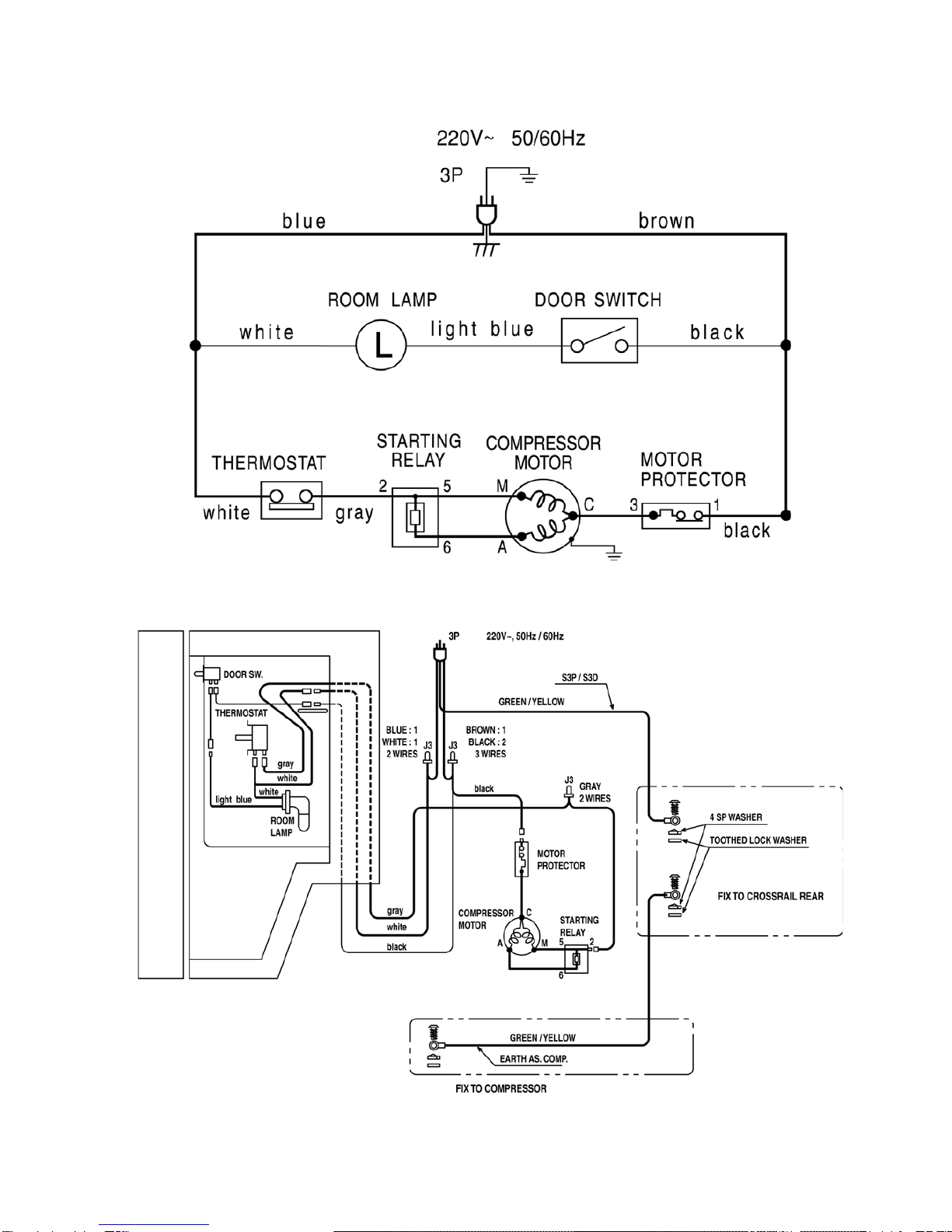

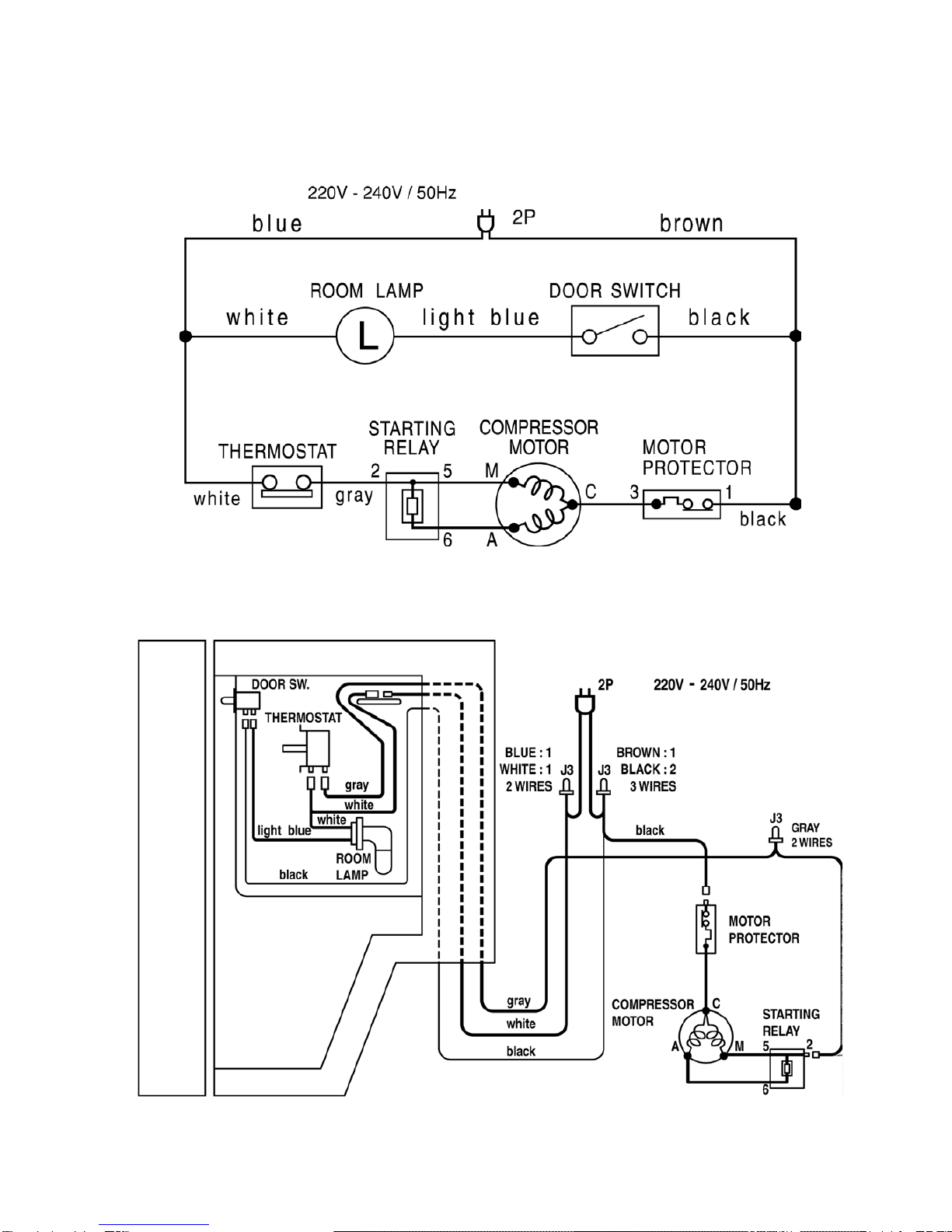

WIRING DIAGRAM
WIRING CONNECTION

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
6
2.2. NR-A191G, NR-A191GW, NR-A221G, NR-A221D and NR-A251D
(IEC - Regulation Control)
WIRING DIAGRAM
WIRING CONNECTION

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
7
2.3. NR-A191GS and NR-A221DS (Saudi Arabia - Regulation Control)
WIRING DIAGRAM
WIRING CONNECTION

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
8
3 Disassembly Instruction for Water Dispenser
4 Disassembly Instruction for Evaporator
OWater dispenser disassembly
- Remove the water dispenser case.
(unlock the water dispenser case at bottom side by
the minus screwdriver) Fig. 1
- Push the water dispenser upward to remove.
- Remove the pin locate at the lever water dispenser.
Fig. 2 Fig. 1 Fig. 2
- Remove the screws of main pipe (2 Pcs) Fig. 3
To replace the water dispenser
- Be sure to set the water dispenser lever should be
locate in place.
- Be carefully the lib of water dispenser case and
water dispenser escutcheon are broken. Fig. 3
OEvaporator disassembly
- Remove the evapoator door
- Remove the screw of evapoator cover (2 Pcs) Fig. 4
(only model NR-A221D, NR-A221DS and NR-A251D)
- Remove the screw of evapoator trim (4 Pcs) Fig. 5
- Unlock between evaporator and trim, then pull the
trim toward you to remove carefully. Fig. 4 Fig. 5
- Replace the damage parts in the thermostat case,
the parts assembly evaporator portion as;
1. Evaporator 5. Thermostat Dial
2. Evaporator Trim 6. Defrost Button
3. Door Switch 7. Lamp
4. Thermostat 8. Lamp Socket Regulation Control Non-Regulation Control
To replace the evaporator Fig. 6 Fig. 7
- Be sure to set above parts should be locate in place.
- Be carefully the lib of evaporator trim for lock with evaporator are broken.

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
9
5 Identification
5.1. NR-A191G
Non - Regulation Control
IEC - Regulation Control
5.2. NR-A191GW
IEC - Regulation Control

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
10
5.3. NR-A191GS
Saudi Arabia - Regulation Control
5.4. NR-A221G
Non - Regulation Control
IEC - Regulation Control

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
11
5.5. NR-A221D
IEC - Regulation Control
5.6. NR-A221DS
IEC - Regulation Control
5.7. NR-A251D
Non - Regulation Control

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
12

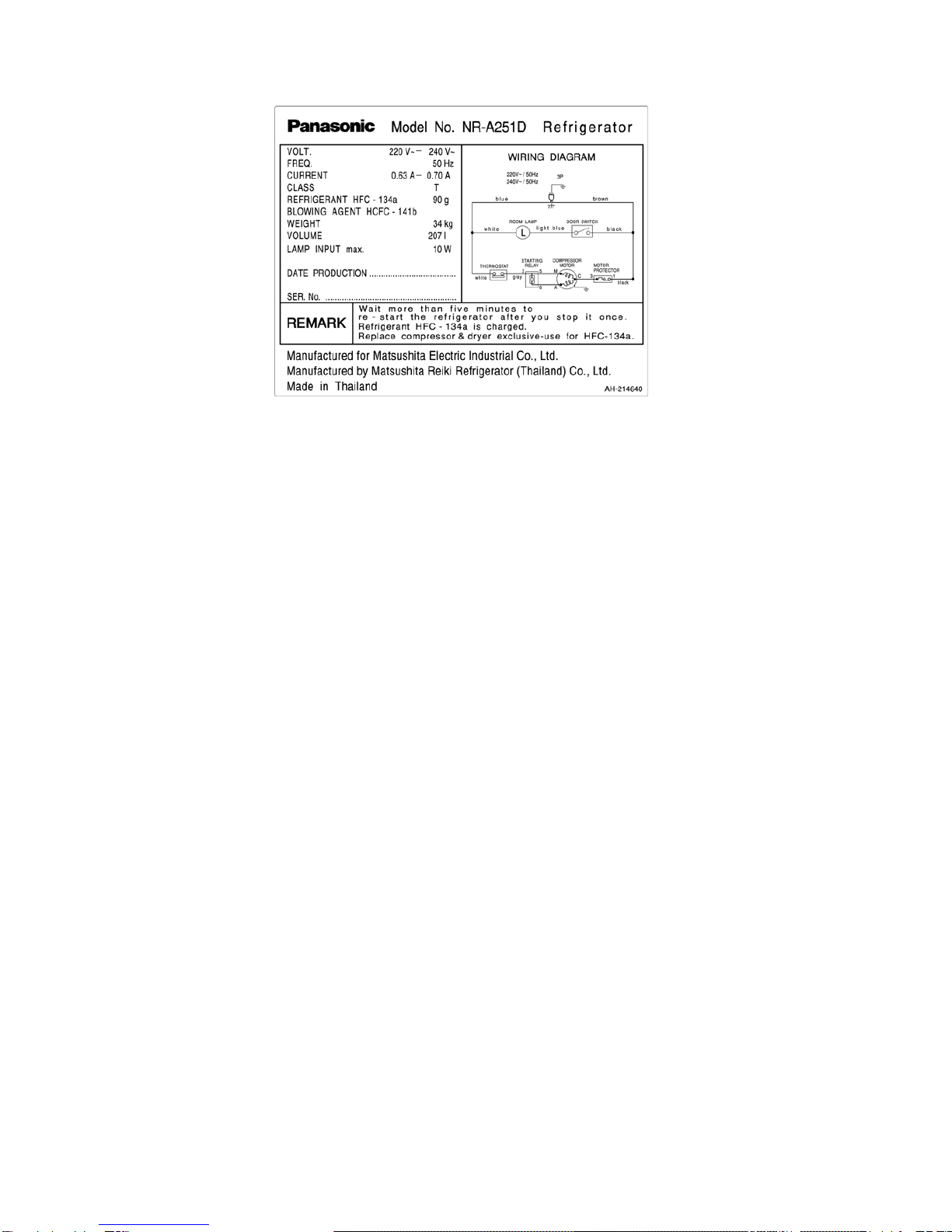

IEC - Regulation Control

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
13
6 Performance Data
6.1. NR-A191G and NR-A191GW
* Under no-load and ambient temperature 32 °C
6.2. NR-A191GS
* Under no-load and ambient temperature 32 °C
6.3. NR-A221G
* Under no-load and ambient temperature 32 °C
6.4. NR-A221D and NR-A221DS
* Under no-load and ambient temperature 32 °C
6.5. NR-A251D
* Under no-load and ambient temperature 32 °C
Thermostat Dial Setting “5” “3” “1”
Freezer Temperature ( °C) -12.5 or lower -7.5 or lower -3.5 or lower
Fresh Food Compartment Temperature ( °C) -3.0 ± 2.5 1.0 ± 2.5 4.5 ± 2.5
Running Ratio ( % ) 55.0 ± 15 40.0 ± 15 25.0 ± 15
Power consumption (kWh / Day) - 1.0 -
Thermostat Dial Setting “5” “3” “1”
Freezer Temperature ( °C) -12.0 or lower -7.5 or lower -3.5 or lower
Fresh Food Compartment Temperature ( °C) -3.0 ± 2.5 1.0 ± 2.5 4.5 ± 2.5
Running Ratio ( % ) 55.0 ± 15 40.0 ± 15 20.0 ± 15
Power consumption (kWh / Day) - 1.0 -
Thermostat Dial Setting “5” “3” “1”
Freezer Temperature ( °C) -14.5 or lower -6.5 or lower 0.0 or lower
Fresh Food Compartment Temperature ( °C) -6.5 ± 2.5 1.0 ± 2.5 6.5 ± 2.5
Running Ratio ( % ) 80.0 ± 15 40.0 ± 15 25.0 ± 15
Power consumption (kWh / Day) - 1.1 -
Thermostat Dial Setting “5” “3” “1”
Freezer Temperature ( °C) -14.0 or lower -7.5 or lower -2.0 or lower
Fresh Food Compartment Temperature ( °C) -4.0 ± 2.5 1.0 ± 2.5 6.5 ± 2.5
Running Ratio ( % ) 70.0 ± 15 40.0 ± 15 25.0 ± 15
Power consumption (kWh / Day) - 1.1 -
Thermostat Dial Setting “5” “3” “1”
Freezer Temperature ( °C) -15.5 or lower -8.0 or lower -1.5 or lower
Fresh Food Compartment Temperature ( °C) -2.0 ± 2.5 2.5 ± 2.5 8.0 ± 2.5
Running Ratio ( % ) 70.0 ± 15 35.0 ± 15 20.0 ± 15
Power consumption (kWh / Day) - 0.9 -

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
14
7 Parts Location
7.1. NR-A191G, NR-A191GW, NR-A191GS and NR-A221G

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
15

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
16
7.2. NR-A221D, NR-A221DS and NR-A251D

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
17

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
18

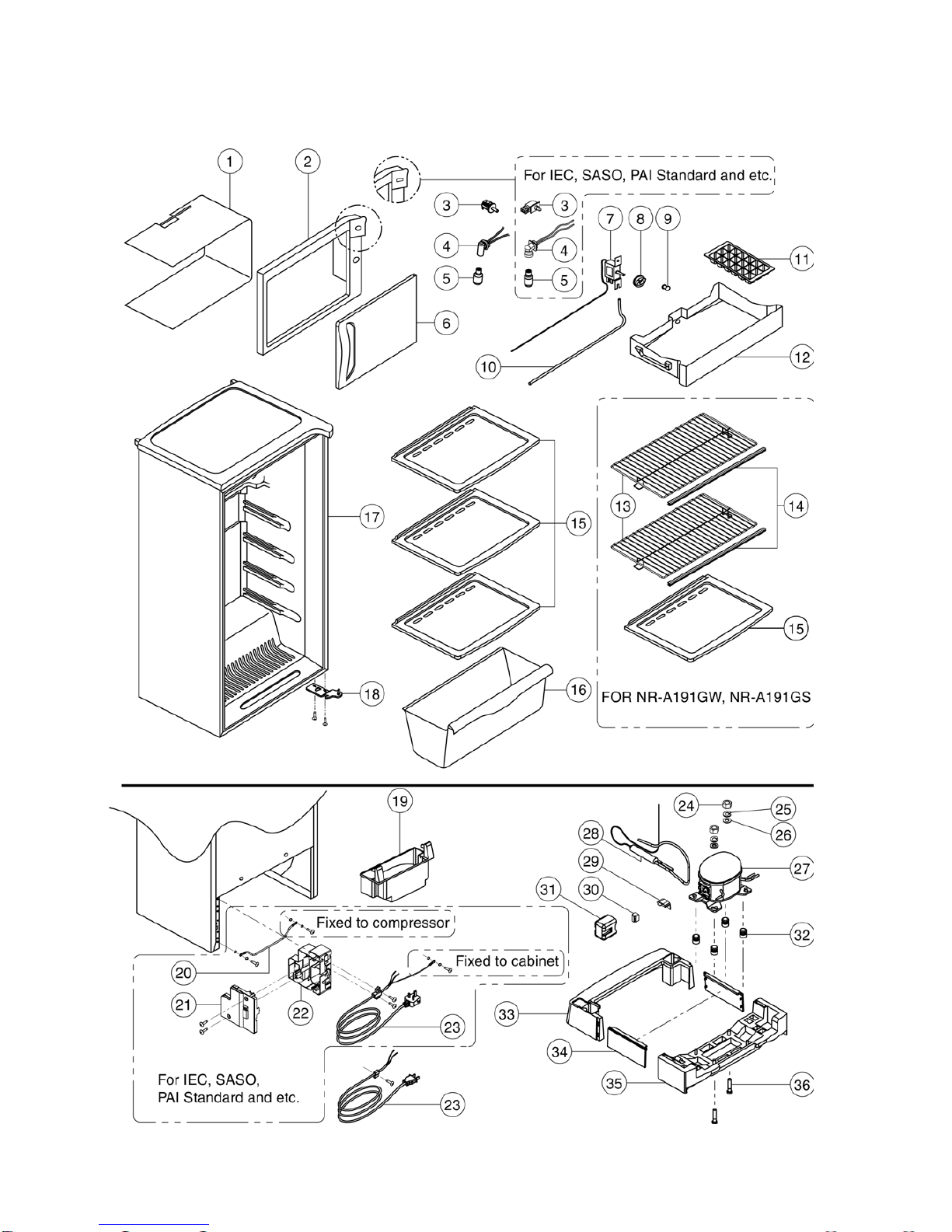

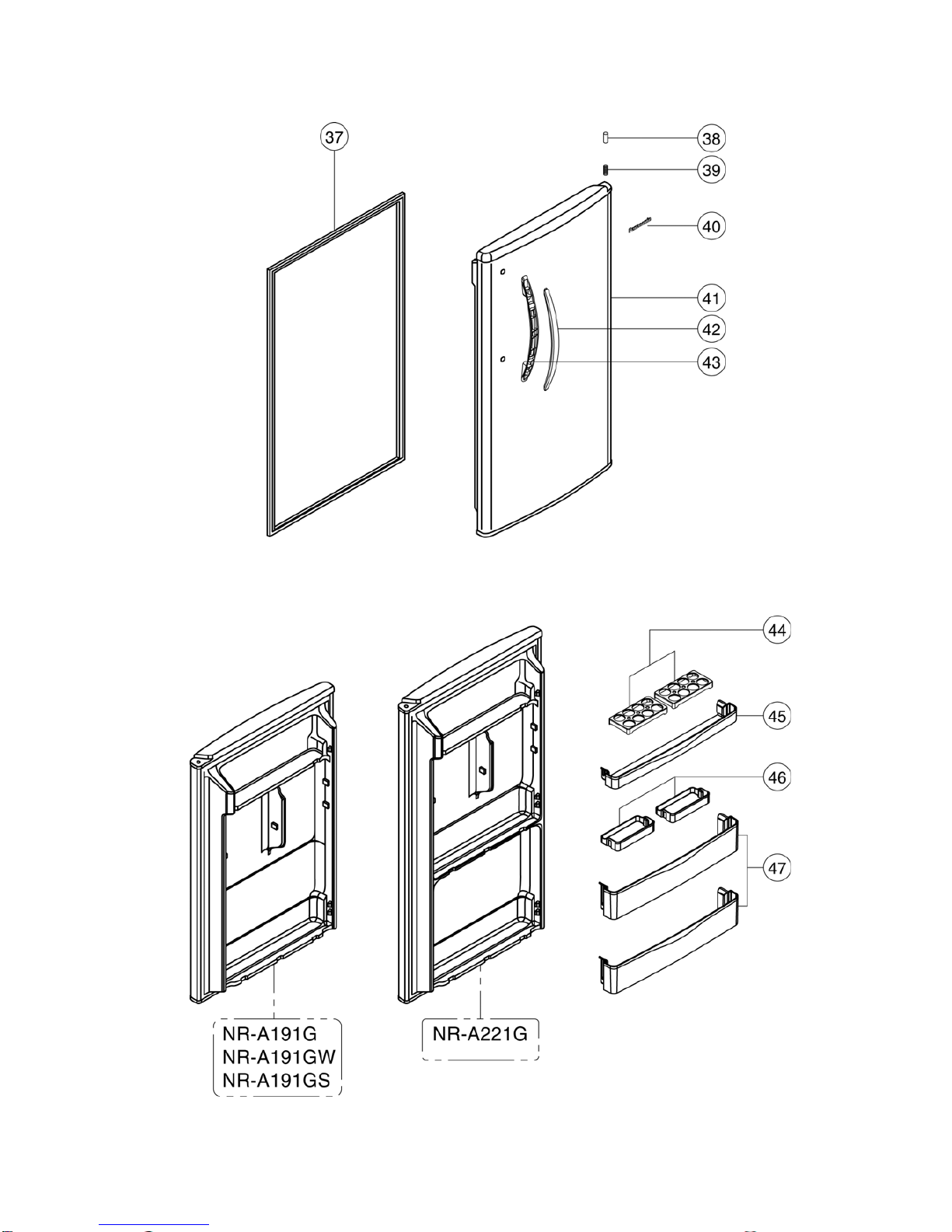

8 Parts List and Packing List
8.1. Parts List
NR-A191G, NR-A191GW, NR-A191GS and NR-A221G
Ref.
No. Parts Number Parts Name & Description
Pcs. / Model
NR-A191G NR-A191GW
NR-A191GS
NR-A221G
RBD S3P UAE S3P S3D RBD S3P
C2P C2P C2P
W4 H4 W7 H7 W8 H8 W7 H7 W7 H7 W4 H4 W7 H7
1 CNRAF-161302 EVAPORATOR 1 1 111111111111
2 CNRAF-165251 EVAPORATOR TRIM 1 1 1 1
2 CNRAF-165271 EVAPORATOR TRIM 11111111 11
3 CNR01-454200 DOOR SWITCH 1 1 1 1
3 CNRAG-153290 DOOR SWITCH 11111111 11
4 CNRBG-150861 ROOM LAMP SOCKET AS 1 1 1 1
4 CNRBG-155280 ROOM LAMP SOCKET AS 11111111 11
5 CNRAG-150430 15-240 LAMP 1 1 1 1
5 CNR39-520340 10-240 LAMP 11111111 11
6 CNRAF-161294 EVAPORATOR DOOR 1 1 111111111111
7 CNR39-610711 THERMOSTAT 1 1 111111111111
8 CNRAH-207520 DIAL THERMOSTAT 1 1 111111111111
9 CNRAG-150711 BUTTON DEFROST 1 1 111111111111
10 CNRAJ-145310 4 TUBE (PVC HT) 350 1 1 111111111111
11 CNRAH-140750 ICE TRAY 1 1 111111111111
12 CNRAH-207494 MEAT TRAY 1 1 111111111111
13 CNRAH-213300 WIRE TRAY 222222
14 CNRAH-213310 WIRE TRAY DECO 222222
15 CNRAH-207502 TRAY 3 3 331111113333
16 CNRAH-207511 CRISPER 1 1 111111111111
17 CNRBC-270090 SHELL & LINER AS. (FOAM) - W 1 1
17 CNRBC-270100 SHELL & LINER AS. (FOAM) - H 1 1
17 CNRBC-270180 SHELL & LINER AS. (FOAM) - W 1 1 1
17 CNRBC-270190 SHELL & LINER AS. (FOAM) - H 111
17 CNRBC-267130 SHELL & LINER AS. (FOAM) - W 1
17 CNRBC-270430 SHELL & LINER AS. (FOAM) - H 1
17 CNRBC-267150 SHELL & LINER AS. (FOAM) - W 1
17 CNRBC-267140 SHELL & LINER AS. (FOAM) - H 1
18 CNRAE-104765 HINGE BOTTOM 1 1 111111111111
19 CNRAF-161280 EVAPORATOR WATER PAN 1 1 111111111111
20 CNRBG-135260 EARTH AS COMP 400 11111111 11
21 CNRAG-131611 CAPACITOR BOX COVER 11111111 11
22 CNRAG-154000 CAPACITOR BOX 11
22 CNRAG-144102 CAPACITOR BOX 11 1111 11

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
19
23 CNRBG-150480 SUPPLY CORD AS. 11
23 CNRBG-155760 SUPPLY CORD AS. 1 1 1 1
23 CNRAG-153990 SUPPLY CORD AS. 1 1 1 111 11
24 CNR38-817010 HEXAGON NUT 2 2 222222222222
25 CNR38-427080 SPRING WASHER 8 2 2 222222222222
26 CNR38-417010 8 WASHER 2 2 222222222222
27 CNR91-065651 COMPRESSOR SD35C65GAW5 1111111 1 1 111
27 CNR91-067070 COMPRESSOR SB35C80GAX0 11
28 CNR39-340920 5 DRYER W 1 1 111111111111
29 CNR06-598100 MOTOR PROTECTOR 5TM181NHBYY 1111111 1 1 111
29 CNR06-596600 MOTOR PROTECTOR 5TM189NHBYY 11
30 CNR06-592680 PTC RELAY PTH7M330MC1 11111111111111
31 CNRGD-036530 PROTECTOR COVER 1 1 111111111111
32 CNR01-219932 GROMMET RUBBER 4 4 444444444444
33 CNRAH-219260 PLATFORM F - W 1 1 1 1
33 CNRAH-219270 PLATFORM F - H 1 111
33 CNRAH-213294 PLATFORM F - W (KEY - SILKSCREEN) 1 1
33 CNRAH-213283 PLATFORM F - H (KEY - SILKSCREEN) 1 1
33 CNRAH-213394 PLATFORM F - W 1
33 CNRAH-207285 PLATFORM F - H 1
34 CNRAH-213820 PLATFORM S - W 2 2 2 2 2 2 2
34 CNRAH-207352 PLATFORM S - H 2 222222
35 CNRAH-213830 PLATFORM B - W 1 1 1 1 1 1 1
35 CNRAH-207421 PLATFORM B - H 1 111111
36 CNR38-9924A0 HEXAGON 8 BOLT 40 2 2 222222222222
37 CNRAD-284660 GASKET DOOR 1 1 11111111
37 CNRAD-262993 GASKET DOOR 1111
38 CNRAE-111552 PIN HINGE TOP 1 1 111111111111
39 CNR08-226871 SPRING HINGE PIN 1 1 111111111111
40 CNRAD-263001 EMBLEM 1 1 111111111111
41 CNRBD-283850 DOOR AS. (FOAM) A191G - W 1 1 1
41 CNRBD-283860 DOOR AS. (FOAM) A191G - H 1 1 1
41 CNRBD-288720 DOOR AS. (FOAM) A191GW - W KEY 1 1
41 CNRBD-288730 DOOR AS. (FOAM) A191GW - H KEY 1 1
41 CNRBD-278381 DOOR AS. (FOAM) A221G - W4, W7 1 1
41 CNRBD-283981 DOOR AS. (FOAM) A221G - H 11
42 CNRAE-128731 ESCUTCHEON HANDLE 1 1 111111111111
43 CNRAE-129861 BASE HANDLE 1 1 111111111111
44 CNRAD-156490 EGG TRAY 2 2 222222222222
Ref.
No. Parts Number Parts Name & Description
Pcs. / Model
NR-A191G NR-A191GW
NR-A191GS
NR-A221G
RBD S3P UAE S3P S3D RBD S3P
C2P C2P C2P
W4 H4 W7 H7 W8 H8 W7 H7 W7 H7 W4 H4 W7 H7

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D
20
8.2. Packing list
NR-A191G, NR-A191GW, NR-A191GS and NR-A221G
45 CNRAD-262894 EGG SHELF 1 1 111111111111
46 CNRAD-262911 FREE RACK 2222
47 CNRAD-262882 BOTTLE SHELF 2 2 222222222222
Ref.
No. Parts Number Parts Name & Description
Pcs. / Model
NR-A191G NR-A191GW
NR-A191GS
NR-A221G
RBD S3P UAE S3P S3D RBD S3P
C2P C2P C2P
W4 H4 W7 H7 W8 H8 W7 H7 W7 H7 W4 H4 W7 H7
CNRAK-130870 CARTON BOX NR-A191G 1 1 1 1
CNRAK-130930 CARTON BOX NR-A191GW 111 1
CNRAK-130880 CARTON BOX NR-A191GS 11
CNRAK-130460 CARTON BOX NR-A221G 1111
CNRBK-106684 BOTTOM TRAY AS 1 1 111111111111
CNR80-040021 PLASTIC COVER 1 1 111111111111
CNRAK-125970 TOP PAD L 1 1 111111111111
CNRAK-125980 TOP PAD R 1 1 111111111111
CNRAK-130852 INSTRUCTION BOOK A191G, A221G - C2P 11 1 1
CNRAK-131410 INSTRUCTION BOOK A191G, A221G - S3P 1 1 11
CNRAK-130841 INSTRUCTION BOOK A191GW 111 1
CNRAK-130830 INSTRUCTION BOOK A191GS 11
Ref.
No. Parts Number Parts Name & Description
Pcs. / Model
NR-A191G NR-A191GW
NR-A191GS
NR-A221G
RBD S3P UAE S3P S3D RBD S3P
C2P C2P C2P
W4 H4 W7 H7 W8 H8 W7 H7 W7 H7 W4 H4 W7 H7
