Panasonic D-R Series User manual

Order No. PAPTH131101CE
Service Manual
Refrigerator
NR-AH146R
NR-AH186R
NR-AH186D
NR-AH186H
NR-AH186G
NR-AH186P
Product Colour
Eco-Blue (RA, HA)
Eco-Gray (RH)
Eco-Peach (RP, HP)
Eco-Green (DG)
Eco-Silver (DS)
Eco-Dark Gray (GH)
Eco-Copper (PN)
Destination
Thailand
© Panasonic Appliances (Thailand) Co., Ltd. 2013.
All rights reserved. Unauthorized copying and
distribution is a violation of law.
There are special components used in this equipment which are important for safety. These parts are marked by
in the Schematic Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that
these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards. Do
not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
WARNING
The service information is designed for experienced repair technicians only and is not designed for use by the general
public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting
to service a product. Products powered by electricity should be serviced or repaired only by experienced professional
technicians. Any attempt to service or repair the product or products dealt within this service information by anyone
else could result in serious injury or death.
CFCs have been used in refrigerant as refrigerator and the insulation materials for many years. But it
is now known that these compounds which once seemed so ideal for use as cleaning agents and in
refrigeration systems, destroy the earth’s ozone layer as a result, an international body decided on a
total worldwide ban of harmful CFCs by the end of 1995.
D -R SERIES G - P SERIESH SERIES

- 2 -
CONTENT
Page
3
4
5
5
6
6
7
8
9
10
11
12 - 13
14 - 16
1. Safety Cautions for Repairing
1.1 Warning
1.2 Caution
2. Specification and Components
3. Schematic Diagram
3.1 Wiring Diagram : NR-AH146
3.2 Wiring Diagram : NR-AH186
3.3 Wiring Connection : NR-AH146
3.4 Wiring Connection : NR-AH186
4. Performance Data
4.1 NR-AH146
4.2 NR-AH186
5. Disassembly Instruction
5.1 Cover Hinge Top : NR-AH146R, NR-AH186R/D, NR-AH186H
5.2 Top Table : NR-AH186G, NR-AH186P
5.3 Hinge Top
6. Parts Exploded View and Replacement Parts List
6.1 Part Exploded View : Body
6.2 Part Exploded View : Door
6.3 Part Exploded View : Packing
6.4 Replacement Parts List : NR-AH146
6.5 Replacement Parts List : NR-AH186
NR-AH146 / NR-AH186

- 3 -
1. SAFETY CAUTIONS FOR REPAIRING
When you repair the refrigerator, please kindly take care for the following cautions.
1.1 Warning
Before repairing unit, unplug supply cord
• Before you repair the refrigerator, please unplug the supply cord.
Use authentic parts when repairing
• When you replace the parts, please use authentic parts to replace defective parts.
Caution during brazing
• When you use touch for brazing, please ensure ventilation.
Otherwise, you will be poisoned by carbon monoxide.
Pay attention to using refrigerant
• If refrigerant touches fire, the gas becomes poisonous gas.
Pay attention to getting electricity shock
• When you check the voltage of terminal, please do not touch the electricity part terminal.
• When you replace the parts, please wait for 3 minutes at least for discharging capacitor.
Check safety after repairing
• Check the screws, parts, lead wires to take in place.
• Check the repairing portion whether circumferential parts are damaged or not.
• Check insulation resistance between supply plug and earth.
• When install refrigerator, check condition of supply cord and plug.
• Wipe off the dust on plug.
• Cutting and seal the electric device carefully.
1.2 Caution
Watch the hot parts
• During operation and after operation, compressor and pipes are hot.
• Also, under these condition, heater are hot.
• Do not burn your fingers when you touch it.
Pay attention to refrigerant
• Do not touch liquid refrigerant. Otherwise your hands may be burnt.
Pay attention to edge of parts
• Otherwise, your fingers may be cut.
Pay attention to fins of evaporator and condenser
• Otherwise, your fingers may be cut.
Before transportatin, adjust the bolt
• Otherwise, the floor may be damaged.
Do not touch the pipe after brazing
• Otherwise, your hands may be burnt.
NR-AH146 / NR-AH186

- 4 -
2. SPECIFICATION AND COMPONENTS
Model
Destination
Code Attached Model
Colour Name
Model Type
Material Spec. (Door)
Plug
Power Source
Specification
Sealed Unit
RA
Eco-
Blue
Eco-
Gray
Eco-
Peach
Eco-
Blue
Eco-
Gray
Eco-
Peach
Eco-
Silver
Eco-
Green
Eco-Dark
Gray
Eco-
Copper
Eco-
Blue
Eco-
Peach
RH
AH146R AH186R
RP RA RH
Flat Type
AH186D
RP
Side : 50 mm., min. / Back : 100 mm., min. / Top : 300 mm., min.
Level 5
Full automatic temp. Control equipment (Thermostat)
Thailand
PCM
C2P
220V, 50Hz
DS DG
AH186HAH186G AH186P
GH PN HA
Grip Type
HP
Evaporator
Compressor
Overload Protector
PTC Relay
Condenser
Refrigrant Charge
Lubricating Oil
Roll - Bond type
Single wall steel tube (Zinc coat)
R134a, 85 ± 5g.
195 ml. (Freol S10)
Capacity Total Volume
Freezer FC
Fresh food PC
EVAP.
PC
Internal Dimension
External Dimension
Net Weight
Installation Space
Energy Level
Temperature Control
Semi automatic (Forcibly evaporated in the air)Defrosting
SGCD (Emboss coating)
SPCC - SD
Exterior
Finish
Shell
Door
Vacuum formed ABS resinInner Liner
Cyclopentane foam (shell and door)Insulation
138L 183L
31L 31L
107L 152L
412 x 308 x 220 412 x 308 x 220
W x D x H (mm) W x D x H (mm)
474 x 377 x 756 474 x 377 x 952
572 x 570 x 1007 572 x 590 x 1203572 x 570 x 1220572 x 570 x 1203
SF35C53GPW5-T1YS SFJ39C72RLW-T0YS
5TM134LFBYY 5TM142MHBYY
PTH7M330MC1 PTH7M330MD2
Electric Parts
Compressor Motor
Door Switch PC
Lamp Receptacle
Lamp
* Specification subjects to change without notice.
Split-phase induction motor, 220 ~ 240V / 50Hz / 77.8W 2 poles
D3D - 121 (Omron), 250V / 0.5A, Switch type S.P. - S.T.
5PS - 51T - 187, 250V / 2A
FDS003
27 Kgs. 34 Kgs.
NR-AH146 / NR-AH186

- 5 -

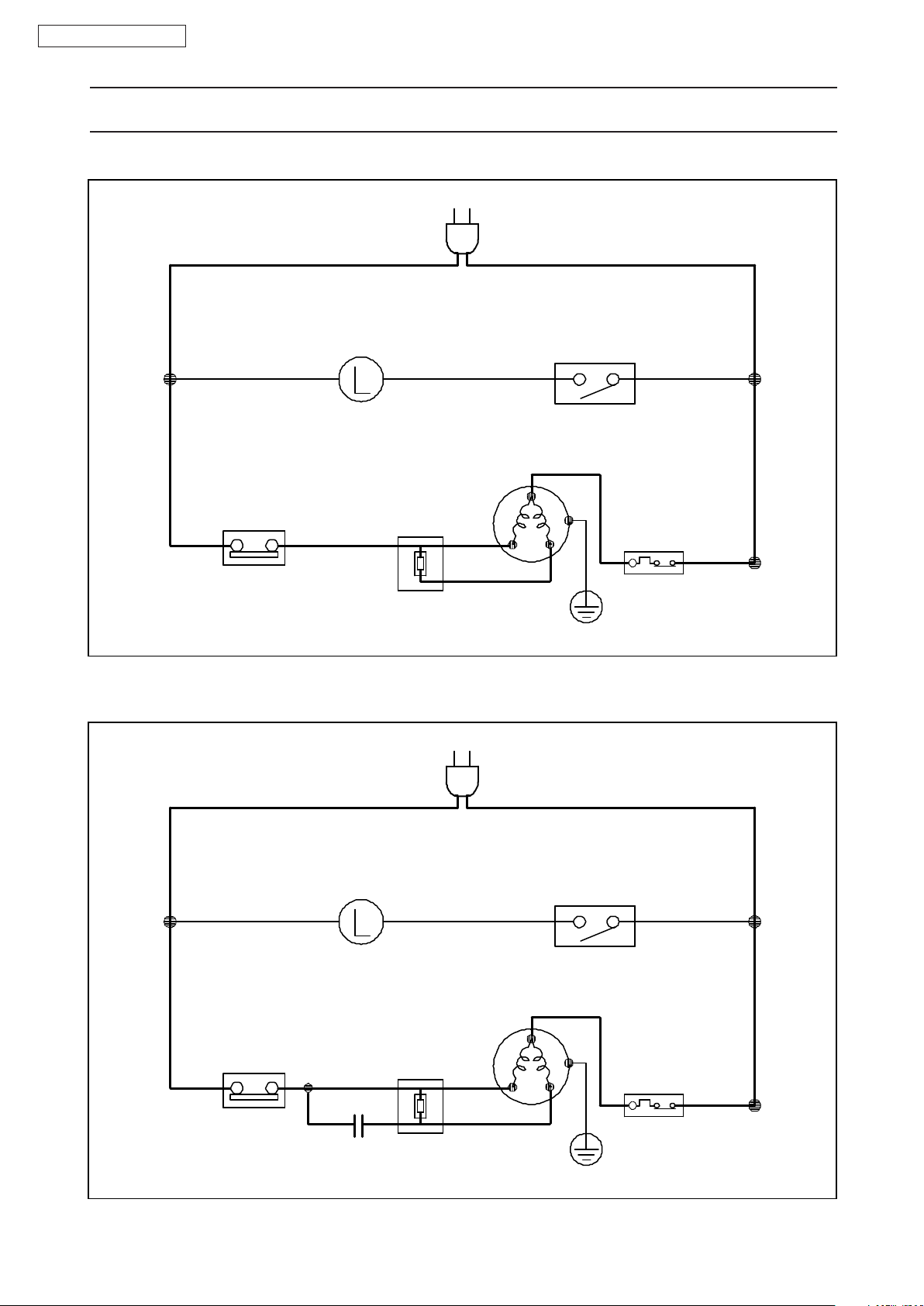

3. SCHEMATIC DIAGRAM
3.1 Wiring Diagram : NR-AH146 ( No Capacitor)
LAMP (240V - 15W)
THERMOSTAT
STARTING
RELAY OVERLOAD
PROTECTOR25
6
31
DOOR
SWITCH
N.C C
brownblue
white
white
gray
black
black
blue
C2P 220V / 50Hz
3.2 Wiring Diagram : NR-AH186 ( Have Capacitor)
LAMP (240V - 15W)
THERMOSTAT
STARTING
RELAY
RUNNING
CAPACITOR
COMPRESSOR
OVERLOAD
PROTECTOR25
63
A
M
C
31
DOOR
SWITCH
N.C C
brownblue
white
white gray
gray
blue
black
black
blue
C2P 220V / 50Hz
COMPRESSOR
A
M
C
NR-AH146 / NR-AH186

- 6 -
3.3 Wiring Connection : NR-AH146 ( No Capacitor)
HARNESS AS. WIRE (MAIN)
HARNESS AS. WIRE (MAIN)
HARNESS AS. WIRE (L T S)
SOCKET ROOM LAMP AS.
THERMO BOX AS.
DOOR SW.
3 WIRES
BROWN : 1
BLACK : 2
2 WIRES
BLUE : 1
WHITE : 1
ROOM
LAMP
THERMOSTAT
# 187 # 187
blue 0.52 mm2
blue 0.5 mm2
black 0.83 mm2
gray 0.83 mm2
black 0.33 mm2
white 0.83 mm2
gray 0.83 mm2
black 0.33 mm2 white 0.83 mm2
gray 0.83 mm2
blue 0.83 mm2
white 0.83 mm2
3 2 1
3 2 1
# 2 5 0 H
# 2 5 0 H
STARTING
RELAY
OVERLOAD
PROTECTOR RUNNING
CAPACITOR
SUPPLY CORD
COMPRESSOR
MOTOR
C
M
52
6
A
3 2 1
1
3
J 3 J 3
J 3 J 3
3 2 1
3 2 1
3 2 1
white 0.5 mm2
gray 0.83 mm2
3.4 Wiring Connection : NR-AH186 ( Have Capacitor)
NR-AH146 / NR-AH186
HARNESS AS. WIRE (L T S)
SOCKET ROOM LAMP AS.
THERMO BOX AS.
DOOR SW.
3 WIRES
BROWN : 1
BLACK : 2
2 WIRES
BLUE : 1
WHITE : 1
ROOM
LAMP
THERMOSTAT
# 187 # 187
blue 0.52 mm2
blue 0.5 mm2
black 0.83 mm2
black 0.33 mm2
white 0.83 mm2
gray 0.83 mm2
black 0.33 mm2 white 0.83 mm2
gray 0.83 mm2
white 0.83 mm2
3 2 1
# 2 5 0 H
STARTING
RELAY
OVERLOAD
PROTECTOR
SUPPLY CORD
COMPRESSOR
MOTOR
C
M
52
6
3
A
3 2 1
1
3
white 0.5 mm2
gray 0.83 mm2

- 7 -
4. PERFORMANCE DATA
Cooling Performance : Temperature Control
4.1 NR-AH146 (AT 32 ± 1°C)
Thermostat Dial Setting
Mean Fresh Food Compartment Temp.
Mean Ice Making Compartment Temp.
Running Ratio
Power Consumption
“ 5 ”
t3 (°C)
(°C)
(%)
(kWh/Day)
“ 3 ” “ 1 ”
-4.0 ± 2.5 1.0 ± 2.5 6.5 ± 2.5
-12.0 ± 2.5 -6.5 ± 2.5 -0.5 ± 2.5
Vegetable Crisper Temp. (°C) - 5.0 ± 2.5 -
Egg Tray Temp. (°C) - 4.0 ± 2.5 -
Door Shelf Bottom Temp. (°C) - 1.0 ± 2.5 -
60 ± 15 40 ± 15
0.9 or under
25 ± 15
Thermostat Dial Setting
Mean Fresh Food Compartment Temp.
Mean Ice Making Compartment Temp.
Running Ratio
Power Consumption
“ 5 ”
t3 (°C)
(°C)
(%)
(kWh/Day)
“ 3 ” “ 1 ”
-10.0 ± 2.5 -1.0 ± 2.5 3.0 ± 2.5
-15.0 ± 2.5 -6.5 ± 2.5 -1.0 ± 2.5
Vegetable Crisper Temp. (°C) - 3.0 ± 2.5 -
Egg Tray Temp. (°C) - 2.5 ± 2.5 -
Door Shelf Bottom Temp. (°C) - 0.0 ± 2.5 -
85 ± 15 35 ± 15
0.9 or under
25 ± 15
4.2 NR-AH186 (AT 32 ± 1°C)
NR-AH146 / NR-AH186

- 8 -

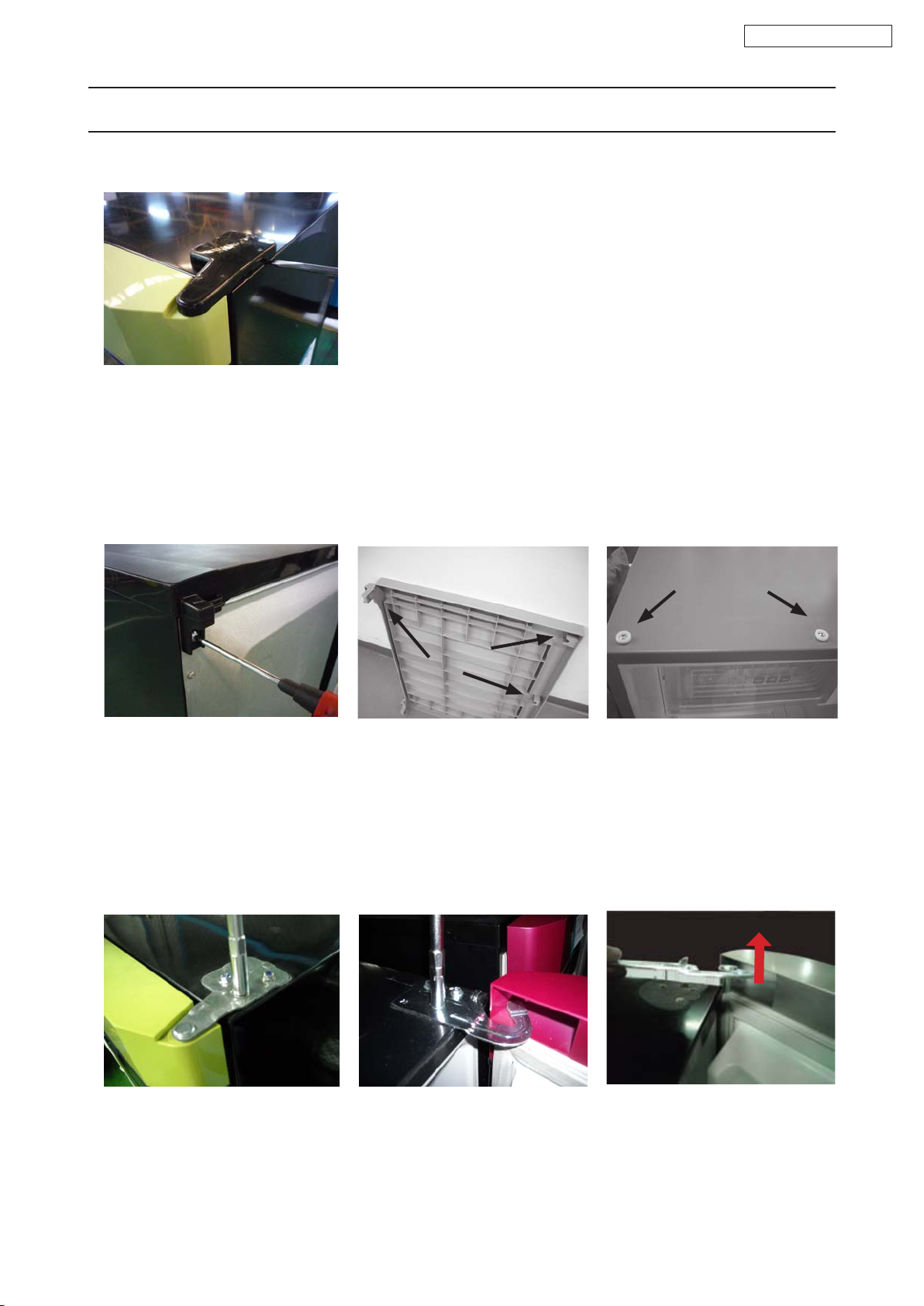

5. DISASSEMBLY INSTRUCTION
5.1 Cover Hinge Top : NR-AH146R / NR-AH186R / NR-AH186D / NR-AH186H
5.2 Top Table : NR-AH186G / NR-AH186P
5.3 Hinge Top
- Take out by use screwdriver put at small gap between the cover hinge top with body at arrow mark
and lift it up little.
- Then use hand pull it up slowly.
Fig. 1
- Take out the top panel by remove screws at hanger shells. (Fig. 2)
- Open the door.
- Lift the top panel by pull back a little for unlock from hook. (Fig. 3)
- Lift up the top panel and push it forward for unlock from grill button. (Fig. 4)
- Take out by use boltdriver remove the screws as Fig. 5 and Fig. 6.
- After that lift it up / as Fig. 7 have to lift it until hook loose from hole at Door As.
- When repair it finish / have to tighten screws by control torque 40 ~ 100 kgf.
Fig. 2 Fig. 3 Fig. 4
Fig. 5 (NR-AH145R/185R/185D) Fig. 6 (NR-AH185G/185P) Fig. 7 (NR-AH185G/185P)
NR-AH146 / NR-AH186

- 9 -
6. PARTS EXPLODED VIEW AND REPLACEMENT PARTS LIST

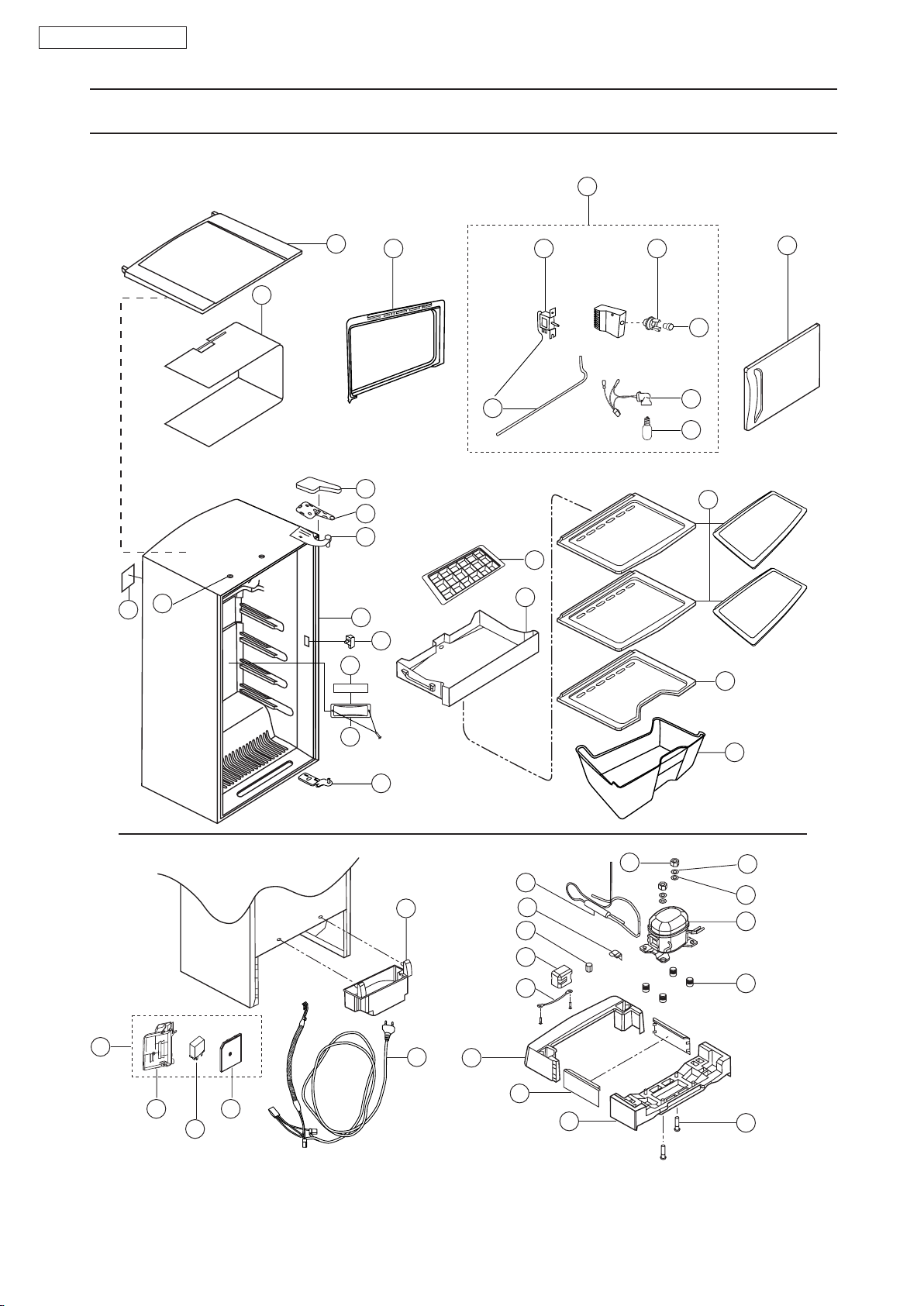

6.1 Parts Exploded View : Body
(NR-AH146 x 1PC)
(FOR NR-AH146R, 186D/R, 186H)
(FOR NR-AH186G/186P)
(FOR NR-AH186G/P)
Tempered Glass
(NR-AH186G/186P)
(FOR NR-AH186D/G/P)
(FOR NR-AH186)
(FOR NR-AH186)
(NR-AH186G/186P)
22
1
2
3
12
20
(FOR NR-AH146R, 186D/R, 186H)
20
19
13
14
15
16
17
23
24
25 21
18
41
42
39
40
44
43
30
31
32
33
45
36
35
37 38
26 27
28
29
34
NR-AH146 / NR-AH186
4
5
6
7
8
11
10
9

- 10 -
6.2 Parts Exploded View : Door
NR-AH146 NR-AH186
(FLAT TYPE)
(GRIP TYPE)
NR-AH146 NR-AH186
50 50
51
51
52
46
52
NR-AH146 / NR-AH186
47
49
48

Refrigerator
Refrigerator
- 11 -
6.3 Parts Exploded View : Packing
PLASTIC COVER
BOTTOM TRAY AS.
PACKING AS.
STICKER MODEL NAME
STICKER BAR CODE
TOP PAD R
TOP PAD L
NR-AH146 / NR-AH186

- 12 -
6.4 Replacement Part List : NR-AH146
Important safety notice :
Parts List
REF.
NO. PART NAME PART NO. SAFETY REMARK
146RA 146RP
MODEL / Q’TY
146RH
111
111
111
111
111
111
111
111
111
111
111
111
111
111
111
1
1
1
111
111
111
111
111
111
111
111
111
444
111
111
222
222
111
111
111
111
111
111
1
1
1
111
1
1
1
222
222
222
LOW SIDE AS.1 CNRBF-153654
Components identified by mark have special characteristics important for safety.
When replacing any of these components, use only manufacturer’s specified part.
TRIM EVAP.2
DOOR SW.3
THERMOSTAT4
3.5 TUBE (PVC HT) 5205
THERMO BOX CONTROL AS.6
SOCKET ROOM LAMP AS.7
CNRAF-179912
CNRAG-153290
CNRAG-173331
CNRAJ-169610
CNRBH-147663
CNRBG-192011
15-240 LAMP8
DIAL THERMO9
DOOR EVAPORATOR
10
TRAY ICE
11
S
CNRAG-156520
CNRAH-314353
BUTTON DEFROST CNRAH-314361
CNRAF-179921
CNRAH-140750
NO HOLE / TRANSPARENT
TRANSPARENT
TRANSPARENT
TRANSPARENT
INNOCENT WHITE
INNOCENT WHITE
MENAM GRAY
TRANSPARENT
LAMP SCREW TYPE
INNOCENT WHITE
BLACK
BLACK
5TM134LFBYY
R134a
PTH7M330MC1
BLACK
BLACK
BLACK
C2P
ECO-GRAY
ECO-PEACH
ECO-BLUE
MEAT TRAY
12
CNRAH-316920
TRAY PC
13
TRAY PC BOTTOM
14
LABEL NAME - AH146RATH
LABEL NAME - AH146RPTH
LABEL NAME - AH146RHTH
45
CNRAH-272040
CNRAH-270950
CRISPER
15
CNRAH-270961
CNRAH-316360
S
S
CNRAH-316370
CNRAH-316380
HINGE BOTTOM17 CNRAE-136091
SHELL & LINER AS. (FOAM)18 CNRBC-372850
COVER HINGE TOP - K19 CNRAE-138990
CNRAE-140580HINGE TOP20
WIRING DIAGRAM - AH146RATH
WIRING DIAGRAM - AH146RPTH
WIRING DIAGRAM - AH146RHTH
25 CNRAH-316390
CNRAH-316410
CNRAH-316400
HEXAGON NUT 826 CNR38-8170A1
SP. WASHER 827 CNR38-4270A0
8 WASHER28 CNR38-4170A0
COMP. SF35C53GPW5-T1YS29 CNR51-419481
5 DRYER W30
OVERLOAD PROTECTOR31
S
S
CNRAF-189490
SCNR06-598030
PTC RELAY32
PROTECTOR COVER33
CNR06-592680
CNRGD-036540
RUBBER GROMMET34
PLATFORM F - K
35
PLATFORM S - K36
PLATFORM B - K37
CNR01-219932
CNRAH-248011
CNRAH-248700
CNRAH-248251
HEXAGON 8 BOLT 4038
HARNESS AS. WIRE (MAIN)40
CNR38-9924A0
CNRBG-176963
BOX CAPACITOR AS.41
EARTH AS. COMP. 270
44
16
GASKET DOOR
46
DOOR AS. (FOAM) - AH146RHTH
47
EMBLEM
48
CNRBG-166090
111
BOX CAPACITOR42 CNRAG-169950
COVER BOX CAPACITOR CNRAG-169960
CNRBG-163470
CNRAD-300742
DOOR AS. (FOAM) - AH146RATH CNRBD-390853
DOOR AS. (FOAM) - AH146RPTH CNRBD-390843
CNRBD-390863
CNRAD-33980149
NR-AH146 / NR-AH186

- 13 -
Parts List
Packing List
Screws
REF.
NO. PART NAME PART NO. SAFETY REMARK
146RA 146RP
MODEL / Q’TY
146RH
146RA 146RP 146RH
146RA 146RP 146RH
111
111
51
52
SHELF EGG
SHELF BOTTLE
CNRAD-338090
11150 TRAY EGG 8 CNRAD-350530
CNRAD-338100
REF.
NO. PART NAME PART NO. SAFETY REMARK
MODEL / Q’TY
444
111
333
888
222
TRUSS 4 TS 12 (SUS) CNR38-114351
CNR38-114351 FIX TRIM EVA.
FIX THERMO BOX CONTROL
TRANSPARENT
TRANSPARENT
TRANSPARENT
FIX HINGE TOP
FIX PLATFORM
FIX HINGE BOTTOM
HEXAGON M5. TS 14
CNRAJ-167960
CNRAJ-167960
CNRAJ-167960
REF.
NO. PART NAME PART NO. SAFETY REMARK
MODEL / Q’TY
111
1
1
1
111
111
111
111
111
STICKER MODEL NAME - AH146RATH
CARTON BOX
STICKER MODEL NAME - AH146RPTH
STICKER MODEL NAME - AH146RHTH
THAI LANGUAGE
CNRAK-170740
BOTTOM TRAY AS.
PLASTIC COVER
TOP PAD L
TOP PAD R
CNRAH-316420
CNRAH-316430
CNRAH-316440
CNRBK-136210
CNRAJ-162961
CNRAK-139182
CNRAK-139192
INSTRUCTION BOOK CNRAK-170650
NR-AH146 / NR-AH186

- 14 -
6.5 Replacement Part List : NR-AH186
Parts List
REF.
NO. PART NAME PART NO. SAFETY REMARK
186PN 186DS 186DG 186RA 186RP 186RH 186HA
GRIP TYPEFLAT TYPE
186HP
1 1111111
MODEL / Q’TY
1
2
3
INNOCENT WHITE
TRANSPARENT
TEMPERED GLASS
TRANSPARENT
TRANSPARENT
BLACK
BLACK
BLACK
BLACK
AG-SILVER
5TM142MHBYY
1 TUBE
PTH7M330MD2
BLACK
BLACK
4
5
6
7
8
9
10
11
12
13
14
15
17
18
19
20
21
22
23
1 1111111
1S
S
S
S
S
S
1111111
1 1111111
1 1111111
1 1111111
1 1111111
1 1111111
1 1111111
1 1111111
111
1 1111111
11111
2
222222
1 1111111
1 1111111
1
1
1
1
1
2
1
11
11
111111
11111
11111
2 2222222
2 2222222
2 2222222
1 1111111
1 1111111
1 1111111
1 1111111
1 1111111
1 1111111
2 2222222
4 4444444
1
1
1
1
1
1
1
1
2
26
27
28
29
30
31
32
33
34
LOW SIDE AS.
TRIM EVA.
DOOR SW.
THERMOSTAT
3.5 TUBE (PVC HT) 520
THERMO BOX CONTROL AS.
SOCKET ROOM LAMP AS.
15-240 LAMP
DIAL THERMO
DOOR EVAPORATOR
TRAY ICE
MEAT TRAY
TRAY PC
GLASS TRAY AS.
TRAY PC BOTTOM
CRISPER
HINGE BOTTOM
SHELL & LINER AS. (FOAM) - G, P
SHELL & LINER AS. (FOAM) - R, D, H
HINGE TOP
HINGE TOP AS.
BUTTON GRILL FRONT
HEXAGON NUT 8
SP. WASHER 8
8 WASHER
COMP. SFJ39C72RLW-T0YS
5 DRYER W
OVERLOAD PROTECTOR
PTC RELAY
PROTECTOR COVER
RUBBER GROMMET
CNRBF-153503
CNRAF-179912
CNRAG-153290
CNRAG-173331
CNRAJ-169610
CNRBH-147663
CNRBG-192011
CNRAG-156520
CNRAH-314353
BUTTON DEFROST CNRAH-314361
CNRAF-179921
CNRAH-140750
CNRAH-316910
CNRAH-272040
CNRBH-140571
CNRAH-270950
CNRAH-27096116 1 1111111
CNRAE-136091
CNRBC-372790
1
1
1
1
COVER HINGE TOP - K CNRAE-138990
CNRBC-372770
CNRAE-140580
CNRBE-108742
TOP TABLE - K CNRAH-291290
AG CLEAN CASE CNRAH-272170
AG BIO FILTER CNRAH-245521
CNRAJ-112920
24
25 WIRING DIAGRAM - AH186PNTH CNRAH-316130
WIRING DIAGRAM - AH186GHTH CNRAH-316140
WIRING DIAGRAM - AH186DSTH CNRAH-316150
WIRING DIAGRAM - AH186DGTH CNRAH-316160
WIRING DIAGRAM - AH186RATH CNRAH-316170
WIRING DIAGRAM - AH186RPTH CNRAH-316180
WIRING DIAGRAM - AH186RHTH CNRAH-316190
WIRING DIAGRAM - AH186HATH CNRAH-315860
WIRING DIAGRAM - AH186HPTH CNRAH-315870
CNR38-4270A0
CNR38-8170A1
CNR38-4170A0
CNR6T-000290
CNRAF-189490
CNR06-597410
CNR06-592700
CNRGD-036540
CNR01-219932
35 PLATFORM F - K CNRAH-248011
36 PLATFORM S - K CNRAH-248700
LAMP SCREW TYPE
MENAM GRAY
TRANSPARENT
INNOCENT WHITE
INNOCENT WHITE
111
C2P
BLACK37 11
S
11 1
2 2222222
111
111
111
11111
11111
11111
PLATFORM B - K
HEXAGON 8 BOLT 40 CNR38-9924A0
CNRAH-248251
38
PAN WATER EVA CNRAF-19063039
HARNESS AS. WIRE (MAIN) CNRBG-17695340
BOX CAPACITOR AS. CNRBG-16429041
186GH
1
1
1
1
1
1
1
1
1
1
1
HAVE HOLE / TRANSPARENT
1 11111111
1
2
1
1
1
1
2
1
1
1
2
2
2
1
1
1
1
1
1
2
4
1
1
1
2
1
1
1
NR-AH146 / NR-AH186

- 15 -
Parts List
REF.
NO. PART NAME PART NO. SAFETY REMARK
186GH186PN 186DS 186DG 186RA 186RP 186RH 186HA
GRIP TYPEFLAT TYPE
186HP
MODEL / Q’TY
11 1111111
11111111
11111111
11111111
1
1
1
1
1
1
1
1
1
2
1
1
1
2 2222222
EARTH AS. COMP. 270 11111111CNRBG-163470
GASKET DOOR CNRAD-300713
46
DOOR AS. (FOAM) - PN CNRBD-39092348
47
EMBLEM CNRAD-33980149
TRAY EGG 8 CNRAD-35053050
SHELF EGG CNRAD-33809051
52 SHELF BOTTLE CNRAD-338100
DOOR AS. (FOAM) - GH CNRBD-376244
DOOR AS. (FOAM) - DS CNRBD-390913
DOOR AS. (FOAM) - DG CNRBD-393820
DOOR AS. (FOAM) - RA CNRBD-390883
DOOR AS. (FOAM) - RP CNRBD-390873
DOOR AS. (FOAM) - RH CNRBD-390893
DOOR AS. (FOAM) - HA CNRBD-393450
DOOR AS. (FOAM) - HP CNRBD-393460
ECO-COPPER
ECO-DARK GRAY
ECO-GREEN
ECO-SILVER
ECO-BLUE
ECO-PEACH
ECO-GRAY
ECO-BLUE
ECO-PEACH
TRANSPARENT
TRANSPARENT
TRANSPARENT
45
S
S
S
S
S
S
S
S
1
1
1
1
1
1
1
1
1
1
LABEL NAME - AH186GHTH
LABEL NAME - AH186PNTH
LABEL NAME - AH186DSTH
LABEL NAME - AH186RATH
LABEL NAME - AH186DGTH
LABEL NAME - AH186RPTH
LABEL NAME - AH186RHTH
LABEL NAME - AH186HATH
CNRAH-316061
CNRAH-316071
CNRAH-316081
CNRAH-316091
CNRAH-316101
CNRAH-316111
CNRAH-316121
CNRAH-315841
S
LABEL NAME - AH186HPTH CNRAH-315851
NR-AH146 / NR-AH186
400 VAC - 4µF11111111143 MF. CAPACITOR CNRAG-153360
1111111144 COVER BOX CAPACITOR CNRAG-171390 1
1 1111111
BOX CAPACITOR CNRAG-17138142 1

- 16 -
NR-AH146 / NR-AH186
186GH186PN 186DS 186DG 186RA 186RP 186RH 186HA
GRIP TYPEFLAT TYPE
186HP
186GH186PN 186DS 186DG 186RA 186RP 186RH 186HA
GRIP TYPEFLAT TYPE
186HP
Screws
REF.
NO. PART NAME PART NO. SAFETY REMARK
44444444
MODEL / Q’TY
FIX TRIM EVA.
FIX THERMO BOX CONTROL
FIX AG CLEAN CASE
FIX BUTTON GRILL FRONT
FIX TOP TABLE
FIX PLATFORM
FIX HINGE BOTTOM22222222
11
222
2
111111
FIX HINGE TOP33333333
8
4
2
1
2
2
22
3
8 8888888
11111111
11111111
1
1
1
1
1111111
11
11
1111111
11111
11
11 111
11
11
1
1
1
1
1
1
1
1
1
TRUSS 4 TS 12 (SUS) CNR38-114351
CNR38-114351
CNR38-114351
TRUSS 4 TS 10
TRUSS 5 TS 18
HEXAGON M5. TS 14
CNR38-1156A1
CNRAJ-167960
CNRAJ-167960
CNRAJ-167960
CNRAJ-160900
Packing List
REF.
NO. PART NAME PART NO. SAFETY REMARK
MODEL / Q’TY
THAI LANGUAGE
THAI LANGUAGE
CARTON BOX
STICKER MODEL NAME - AH186PNTH
STICKER MODEL NAME - AH186GHTH
STICKER MODEL NAME - AH186DSTH
STICKER MODEL NAME - AH186DGTH
STICKER MODEL NAME - AH186RATH
STICKER MODEL NAME - AH186RPTH
STICKER MODEL NAME - AH186RHTH
STICKER MODEL NAME - AH186HATH
STICKER MODEL NAME - AH186HPTH
CNRAK-170730
CNRAK-170600
CNRAH-316210
CNRAH-316230
BOTTOM TRAY AS.
PLASTIC COVER
CNRAH-316240
CNRAH-316250
CNRAH-316260
CNRAH-315880
CNRAH-315890
CNRBK-136210
CNRAJ-162961
TOP PAD L CNRAK-140592
CNRAK-139182
TOP PAD R CNRAK-140602
CNRAK-139192
INSTRUCTION BOOK CNRAK-170650
CNRAK-170590
CNRAH-316220
CNRAH-316200
