Panasonic NR-BC532VSAE User manual

Operating Instructions
Refrigerator-Freezer
(Household use)
Model No.
Thank you for purchasing the Panasonic product
Please read these instructions carefully and follow safety precautions before using this product.
Please keep product purchase documents like invoice copy with this operating instructions manual for warranty
claim purpose.
*
Picture is only for illustration
NR-BC532VSAE
Panasonic Marketing Middle East & Africa FZE
Website : www.panasonic.com
0002-1761

EN -1-
Index
BEFORE USING THE APPLIANCE ..................................................................... 2
General warnings .........................................................................................................2
Old and out-of-order fridges .........................................................................................4
Safety warnings ............................................................................................................4
Installing and operating your fridge ..............................................................................5
Before Using your Fridge..............................................................................................6
THE VARIOUS FUNCTION AND POSSIBILITIES ............................................... 7
Information about New Generation Cooling Technology ..............................................7
Thermostat Setting .......................................................................................................8
Warnings about Temperature Adjustments...................................................................8
Accessories ..................................................................................................................9
Icematic..................................................................................................................................9
Chiller Shelf..........................................................................................................................10
Fresh dial .............................................................................................................................10
Adjustable door shelf ..........................................................................................................10
Adjustable glass shelf ..........................................................................................................11
Maxi-fresh preserver............................................................................................................11
ARRANGING FOOD IN THE APPLIANCE ........................................................ 12
Refrigerator Compartment..........................................................................................12
Freezer Compartment ................................................................................................13
CLEANING AND MAINTENANCE ..................................................................... 14
TRANSPORTATION AND CHANGING OF INSTALLATION POSITION ........... 16
Repositioning the Door ...............................................................................................16
BEFORE CALLING YOUR AFTER SALES SERVICE....................................... 16
Tips for saving energy ................................................................................................18
THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS .................... 19

EN -2-
PART - 1. BEFORE USING THE APPLIANCE
General warnings
WARNING: Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended
by the manufacturer.
WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: To avoid a hazard due to the instability of the
appliance, it must be xed in accordance with the instructions.
WARNING: When positioning the appliance, ensure the supply
cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance
SYMBOL ISO 7010 W021
Warning: Risk of fire / flammable materials
• If your appliance uses R600a as a refrigerant – you can learn
this information from the label on the cooler- you should
be careful during shipment and installation to prevent your
appliance’s cooler elements from being damaged. Although
R600a is an environmentally friendly and natural gas. As it is
explosive, in the event of a leak due to damage to the cooler
elements, move your fridge from open ame or heat sources
and ventilate the room where the appliance is located for a
few minutes.
• While carrying and positioning the fridge, do not damage the
cooler gas circuit.

EN -3-
• Do not store explosive substances such as aerosol cans with
a ammable propellant in this appliance.
• This appliance is intended to be used in household and similar
applications such as;
- staff kitchen areas in shops, ofces and other working en-
vironments
- farm houses and by clients in hotels, motels and other resi-
dential type environments
- bed and breakfast type environments;
- catering and similar non-retail applications
• If the socket does not match the refrigerator plug, it must be
replaced by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power
cable of your refrigerator. This plug should be used with a
specially grounded socket of 16 amperes. If there is no such
socket in your house, please have it installed by an authorized
electrician.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazard
involved. Children shall not play with the appliance. Cleaning
and user maintenance, shall not be made by children without
supervision.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similar qualied persons
in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding
2000 m.

EN -4-
Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock before discarding it, because
children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore,
take care not to harm environment when you are discarding your old fridges.
Disposal of your old appliance
This symbol on the product or package implies that the product should not be
treated as domestic waste. Instead, it should be delivered to applicable waste
collection places recycling electrical and electronic equipment. You will contrib-
ute to avoid potential negative results regarding environment and human health,
which will arise due to wrong waste procedure for the product by ensuring that this
product is annihilated properly. Recycling materials will help natural resources be preserved.
For more detailed information regarding recycling of this product, please contact local mu-
nicipality, domestic waste annihilation service or the shop you have purchased the product.
Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle
and recovery purposes.
Notes:
• Please read the instruction manual carefully before installing and using your appliance.
We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual
in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic
environments and for the specied purposes. It is not suitable for commercial or common
use. Such use will cause the guarantee of the appliance to be cancelled and our company
will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing
foods. It is not suitable for commercial or common use and/or for storing substances
except for food. Our company is not responsible for the losses to be occurred in the
contrary case.
Safety warnings
• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not use plug adapter.
• This appliance is designed for use by adults, do not allow children to
play with the appliance or let them hang off the door.
• Do not plug-in or out the plug from the receptacle with wet hands to
prevent electrocution!

EN -5-
• Do not place glass bottles or beverage cans in the freezer department.
Bottles or cans may explode.
• Do not place explosive or ammable material in your fridge for your
safety. Place drinks with higher alcohol amount vertically and by closing
their necks tightly in the fridge department.
• When taking ice made in the freezer department, do not touch it, ice may
cause ice burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes
immediately after you have taken them out of the freezer department!
• Do not re-freeze frozen goods after they have melted. This may cause health issues
like food poisoning.
• Do not cover the body or top of fridge with lace. This affects the performance of your fridge.
• Fix the accessories in the fridge during transportation to prevent damage to accessories.
Installing and operating your fridge
Before starting to use your fridge, you should pay attention to the following points:
• Operating voltage for your fridge is 220-240 V at 50Hz.
• We do not take the responsibility of the damages that occur due to ungrounded usage.
• Place your fridge in a place that it would not be exposed to direct sunlight.
• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores,
and should be at least 5 cm away from electrical ovens.
• Your fridge should never be used outdoors or left under the rain.
• When your fridge is placed next to a deep freezer, there should be at least
2 cm between them to prevent humidity on the outer surface.
• Do not place anything on your fridge, and install your fridge in a suitable
place so that at least 15 cm is available on the upper side.
• The adjustable front legs should be adjusted to make sure your appliance
is level and stable. You can adjust the legs by turning them clockwise (or in the opposite
direction). This should be done before placing food in the fridge.
• Before using your fridge, wipe all parts back with warm water added with a tea spoonful
of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after
cleaning.
If your refrigerator has a fan condenser:
The condenser of your fridge is placed at the bottom of cabinet. As a result of that, details
that arranges the distance between the refrigerator and the back wall at where you place the
fridge, exist at the cover of the bottom of cabinet. You can move the fridge towards the back
wall until that point.
Plastic for distance setting

EN -6-
If your fridge doesn’t have a fan condenser, in other words, back side of your fridge
is like below:
• Install the plastic distance guide (the part with black vanes
at the rear) by turning it 90° as shown in the gure to
prevent the condenser from touching the wall.
• Refrigerator should be placed against a wall with a free
distance not exceeding 75 mm.
Before Using your Fridge
• When it is operated for the rst time or after transportation, keep your
fridge in the upright position for 3 hours and plug it on to allow efcient
operation. Otherwise, you may damage the compressor.
• Your fridge may have a smell when it is operated for the rst time; the smell will fade
away when your fridge starts to cool.

EN -7-
PART - 2. THE VARIOUS FUNCTION AND POSSIBILITIES

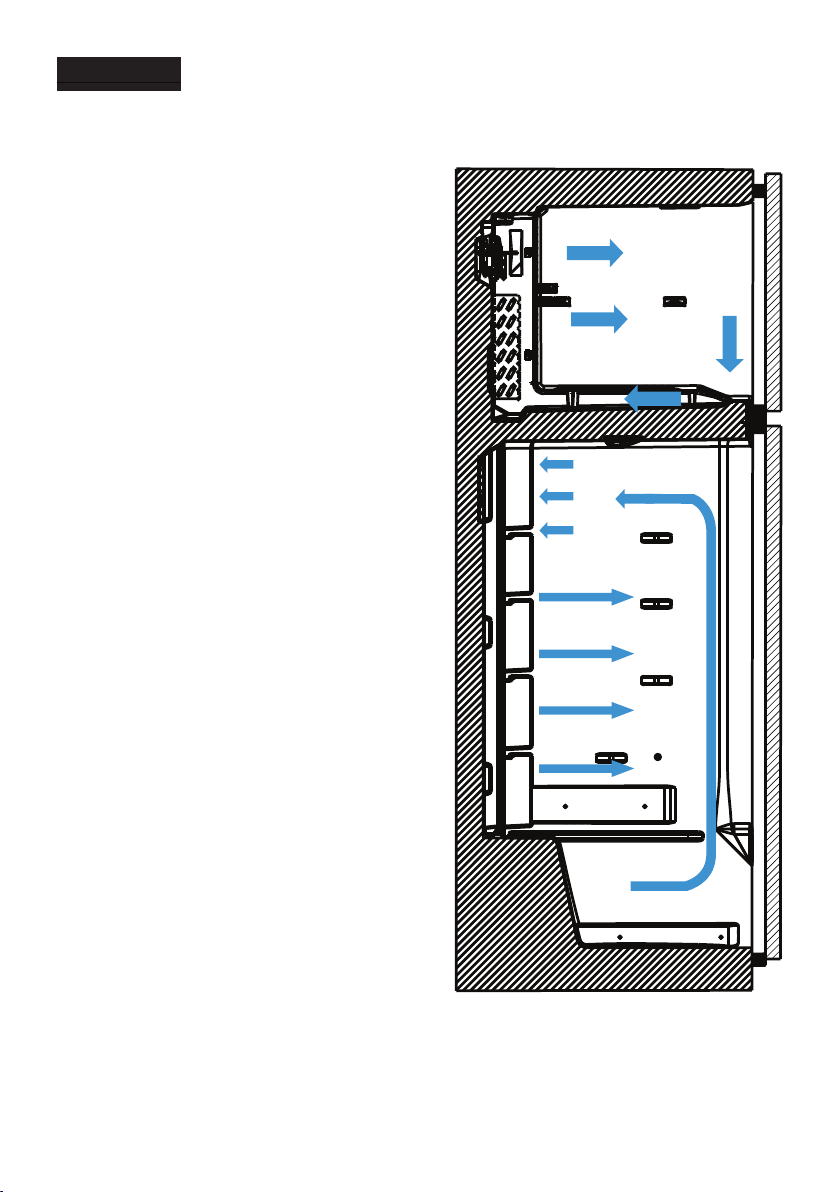

Information about New Generation Cooling Technology
Fridges with new generation cooling technology
have a different working system than static fridges.
In normal fridges, humid air that enters into fridge
and the water vapor that comes out from the foods,
accumulates frost formation in freezer compart-
ment. In order to melt this frost, in other words
defrost, the fridge has to be stopped. During the
stopping period, to keep the foods cold, user has
to extract the food to outside of fridge and user
has to clear the ice during this period.
In the fridges with new generation cooling tech-
nology, situation in the freezer compartment is
completely different. With the aid of fan, cold and
dry air is blown out through many points into the
freezer compartment. As a result of the homoge-
nously blown cold air, even in the spaces between
shelves, foods are frozen equally and correctly.
On the other hand there will be no frost formation.
In the refrigerator compartment, there will be
nearly same conguration with freezer compart-
ment. Air, that is emitted with the fan, located at
the top of refrigerator compartment, is cooled while
passing through the gap behind the air duct. At the
same time, air is blown out through the holes on
the air duct so that cooling process is successfully
completed in the refrigerator compartment. Holes
on the air duct are designed such that the air distri-
bution becomes homogenous in this compartment.
As there is no air passage between freezer and
refrigerator compartment, there will be no odor
mixing.
As a result of these, your fridge with new genera-
tion cooling technology, gives you, ease of use
beside the huge volume and esthetic appearance.

EN -8-

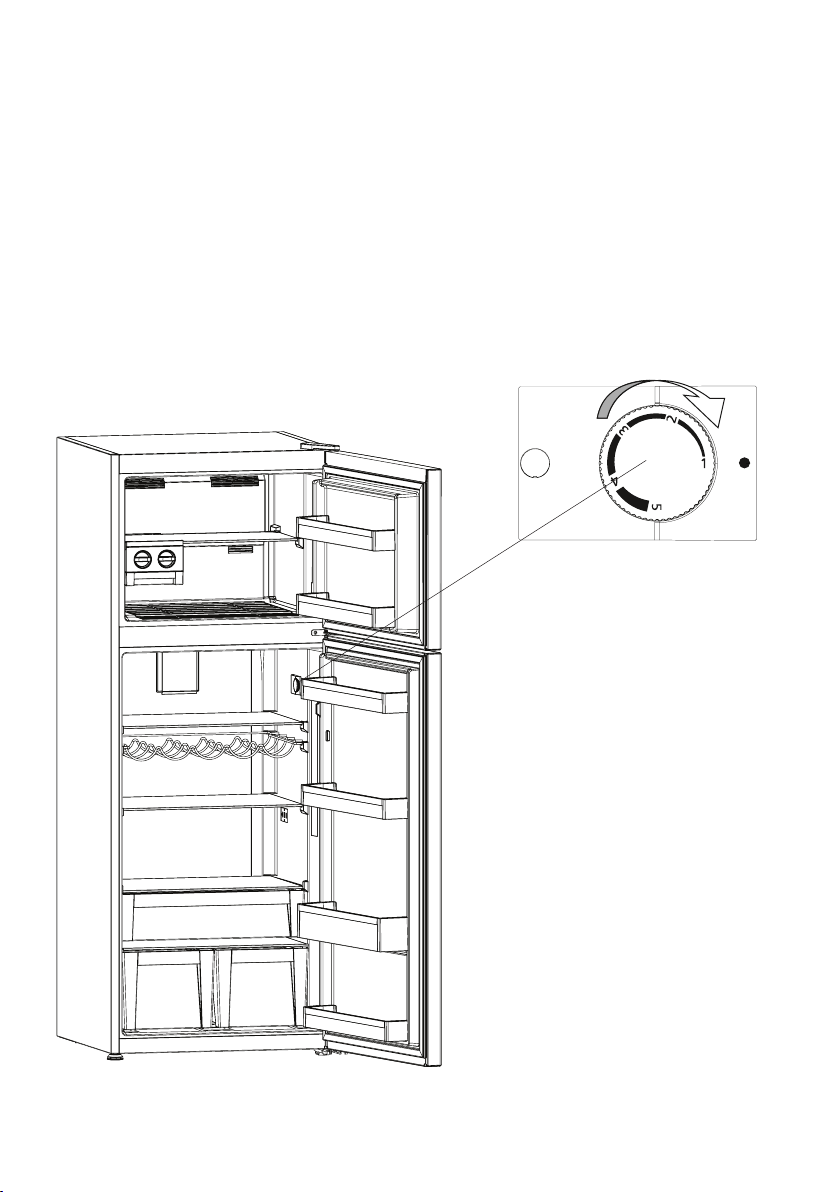

Thermostat Setting
Freezer and refrigerator thermostat automatically regulates the inside temperature of the
compartments. By rotating the knob from position 1 to 5, colder temperatures can be obtained.
In cold seasons, you can set lower positions in order to decrease the energy consumption.
Thermostat level;
1 – 2 : For short-term storage of food in the freezer compartment, you can set the knob
between minimum and medium position.
3 – 4 : For long-term storage of food in the freezer compartment, you can set knob
medium position.
5 – MAX : For freezing the fresh food. Th appliance will work longer. After you get the cold
condition you must position to its original position.
Warnings about Temperature
Adjustments
• Temperature adjustments should be
made according to the frequency of
door openings and the quantity of
food kept inside the fridge.
• This fridge is designed to work in all
ambient temperature. In the ambi-
ent temperatures colder than -5 oC,
preserving food in the refrigerator
compartment isn’t suggested be-
cause the foods that you put into
refrigerator compartment, will have
a temperature close to ambient
temperature. Consequently, they will
freeze. You can keep your foods until
-5 oC in refrigerator compartments.
With the aid of special algorithm that
is designed by engineers, foods can
be preserved in the freezer compart-
ment, colder than -5 oC ambient
temperature.

EN -9-
Accessories
Icematic
• Take out the ice making tray
• Fill the water in level of line.
• Place the ice making tray in its original
position
• When ice cubes are formed, twist the lever
to drop off ice cubes into the icebox.
Note:
• Do not ll the icebox with water in order to make ice. It can be broken.
• The movement of the ice maker may be difcult while the refrigerator is running. In such
a case should be cleaned by removing the glass shelves.
Removing the Ice maker
• Take out of the freezer glass shelves
• Remove the icemaker by dragging left or
right on the shelf.
You can remove the icemaker to use a larger volume of the freezer compartment.
• Do not pass to another adjustment before completing an adjustment.
• Your fridge should be operated up to 24 hours according to the ambient temperature
without interruption after being plugged in to be completely cooled. Do not open doors
of your fridge frequently and do not place much food inside it in this period.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before restart-
ing or re-plugged the unit in order not to damage the compressor.
• Your fridge is designed to operate in the ambient temperature intervals stated in the
standards, according to the climate class stated in
the information label. We do not recommend operat-
ing your fridge out of stated temperatures value limits
in terms of cooling effectiveness.
• This appliance is designed for use at an ambient
temperature within the 10°C - 43°C range.
Note:
This appliance is designed to work at 43 oC ambient temperature with no problem. Below -5
oC ambient temperature, do not use refrigerator compartment as the foods that you put into
there will freeze. You can continue using freezer compartment.
(Making ice cubes)
Climate class Ambient (oC)
T16 to 43 (oC)
ST 16 to 38 (oC)
N16 to 32 (oC)
SN 10 to 32 (oC)
The ice-maker on the freezer compartment can only be replaced or removed by an author-
ized personnel.

EN -10-
Chiller Shelf
Keeping food in the Chiller compartment instead of the
freezer or refrigerator compartment allows food retain
freshness and avour longer, while preserving its fresh
appearance. When chiller tray becomes dirty, remove
it and wash it with water.
(Water freezes at 0°C, but foods containing salt or sugar
freeze at temperature lower than that)
Normally people use the chiller compartment for raw
sh, lightly pickled, rice, etc...
Do not put foods you want to freeze or ice trays in order to make ice.
Removing the Chiller shelf
• Pull the chiller shelf out toward you by sliding on
rails.
• Pull the chiller shelf up from rail to remove.
After the chiller shelf was removed, Max. 20 kg load
can be placed.

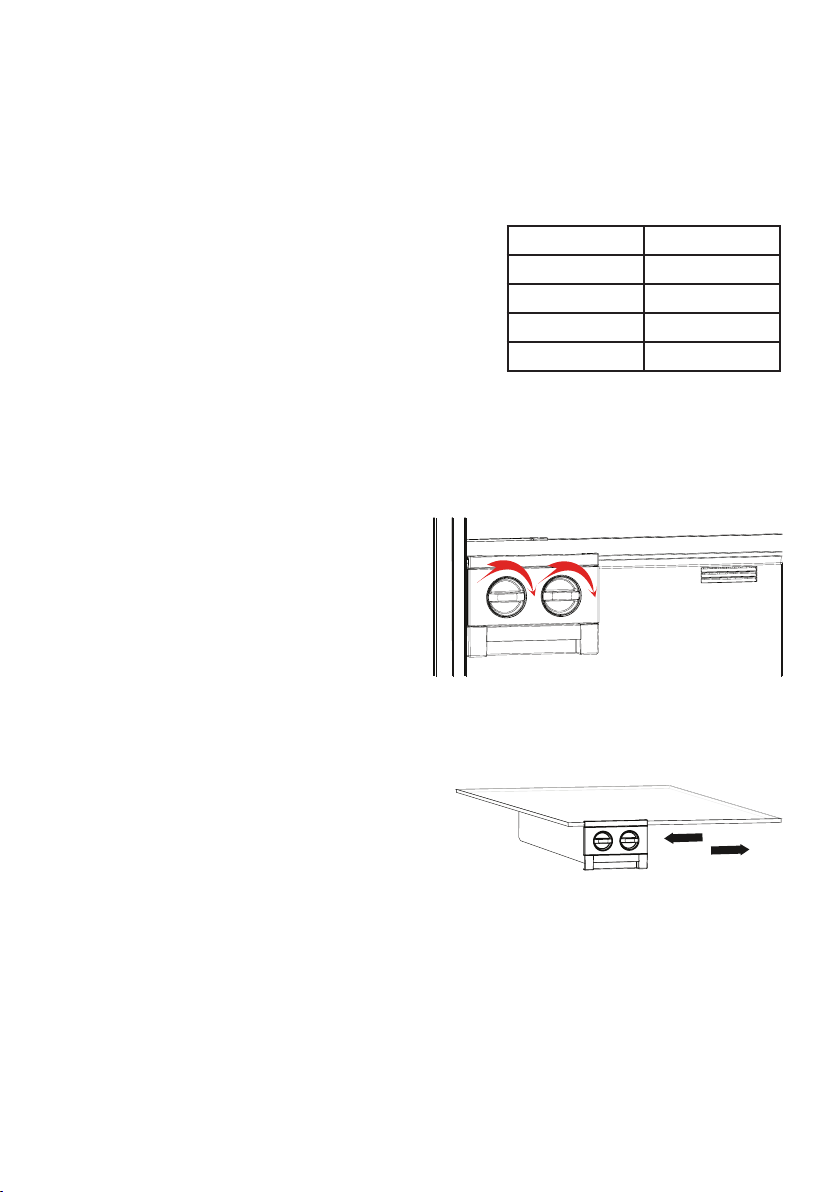

Adjustable door shelf
Six different height adjustments can be made to
provide storage areas that you need by adjustable
door shelf .
To change the position of adjustable door
shelf;
Hold the bottom of the shelf and pull the buttons
on the side of the door shelf direction of arrow (Fig.1).
Position door shelf the height you need by moving up and down. After you get the position
that you want the door shelf, release the buttons on the side of the door shelf (Fig.2) Before
releasing the door shelf, move up down and make sure the door shelf is xed.
Note: Before moving door shelf is loaded, you must hold the shelf by supporting the bottom.
Otherwise, door shelf could fall off the rails due to the weight. So damage may occur on the
door shelf or rails.
(In some models)
Fig.1
Fig.2
Fresh dial
When the humidity controler in the closed position, it allows fresh fruit and vegetables to be
stored longer.
In case of the crisper is totally full, the fresh dial is located in front of crisper, should be opened.
By means of this the air in the crisper and humidity rate will
be controlled and endurance life will be increased.
If you see any condensation on glass shelf, humidity control
should be taken into the open positions.

EN -11-
Adjustable glass shelf
Adjustable glass shelf mechanism provides higher
storage spaces with a simple movement.
• To cover the glass shelf, push it (Fig.1).
• You can load your food as you want in the
resulting extra space (Fig.2).
• To bring the shelf in its original position, pull it
toward you (Fig.1).
(In some models)
Fig.1 Fig.2
Maxi-fresh preserver
Maxi Fresh Preserver technology eliminates the etylene gas (a biproduct of fresh foods) in-
side the crisper. By this method, it maximizes the fresh foods’ shelf lifes, especially the green
vegetables. Also Maxi Fresh Preserver blocks the bad smell in refrigerator.
• Maxi Fresh Preserver must be cleaned once in a year. It can be cleaned under sunlight
for one day.
• When you want to clean the lter, remove the back side in the direction of the arrow.
• Don’t wet this part with water or detergent.
Maxi Fresh Preserver
(In some models)
Visual and text descriptions on the accessories section may
vary according to the model of your appliance.

EN -12-
PART - 3. ARRANGING FOOD IN THE APPLIANCE
It will be enough to set the thermostat to “2 or 3”, for fridge to work in normal working conditions.
Refrigerator Compartment
• To reduce humidity and consequent increase of frost never place liquids in unsealed
containers in the refrigerator.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room
temperature and should be arranged to ensure adequate air circulation in the refrigera-
tor compartment.
• Arrange the meat and cleaned sh (wrapped in packages or sheets of plastic) which
you will use in 1-2 days.
• You can put the fruits and vegetables into crisper without packing.
Important Note:
• Cover any nished dishes when you put
them in the fridge. Place them in the fridge
when they are cool, otherwise temperature/
humidity inside the fridge increases and
this causes the fridge to operate more. Cov-
ering food and beverages also preserves
their avour and aroma.
• Potatoes, onion and garlic shouldn’t be
kept in the fridge.
• Please avoid the foods from touching to
temperature sensor which is located at
refrigerator compartment. In order to keep
optimum preservation temperature in refrig-
erator compartment, foods mustn’t contact
with the sensor.
Temperature sensor area

EN -13-
Freezer Compartment
• The use of freezer is, storing of deep-frozen or frozen foods for long periods of time
and making ice cubes.
• Do not put fresh and warm foods to the freezer door shelves to be frozen. Only use for
storage of frozen foods.
• Do not put fresh and warm food with frozen food side by side as it can thaw the frozen
food.
• Use the fast freezing shelf to freeze home cooking (and the foods which is wanted to
freeze) more quickly because of the freezing room’s greater freezing power.
• While freezing fresh foods (i.e. meat, sh and mincemeat) divide them in parts you will
use in one time.
• While freezing fresh foods; Maximum amount of fresh food (in kg) that can be frozen in
24 hours is indicated on the appliance label.
• For optimum appliance performance to reach maximum freezing capacity, turn the ther-
mostat knob to position max 24 hours before placing fresh food inthe freezer.
• After placing fresh food in the freezer, 24 hours on max position is generally sufcient,
After 24 hours, don not need to set the thermostat knob to position max.
• Attention; In order to save energy, When freezing small amounts of food, don not need
to set the thermostat knob to position max.
• For storing the frozen foods; the instructions shown on frozen food packages should
always be followed carefully and if no information is provided food should not be stored
for more than 3 months from the purchased date.
• When buying frozen foods ensure that these have been frozen at suitable temperatures
and that the packing is intact.
• Frozen foods should be transported in appopriate containers to maintain the quality
of the food and should be returned to the freezing surfaces of the unit in the shortest
possible time.
• If a package of frozen food shows the sign of humidity and abnormal swelling it is
probable that it has been previously stored at an unsuitable temperature and that the
contents have deteriorated.
• The storage life of frozen foods depends on the room temperature, thermostat setting,
how often the door is opened, the type of food and the length of time required to transport
the product from the shop to your home. Always follow the instructions printed on the
package and never exceed the maximum storage life indicated.
In some models; while loading the freezing compartment, the loading lines
should not be passed. Otherwise, the door might remain open. In case that
the freezing compartment door is left open, snow formation might occur
in the freezing compartment. The problem shall not repeat itself after the
snowed part is cleaned and it is made certain that its door is fully closed.
Also, not closing the freezing and/or cooling compartment door would
increase your energy consumption.

EN -14-

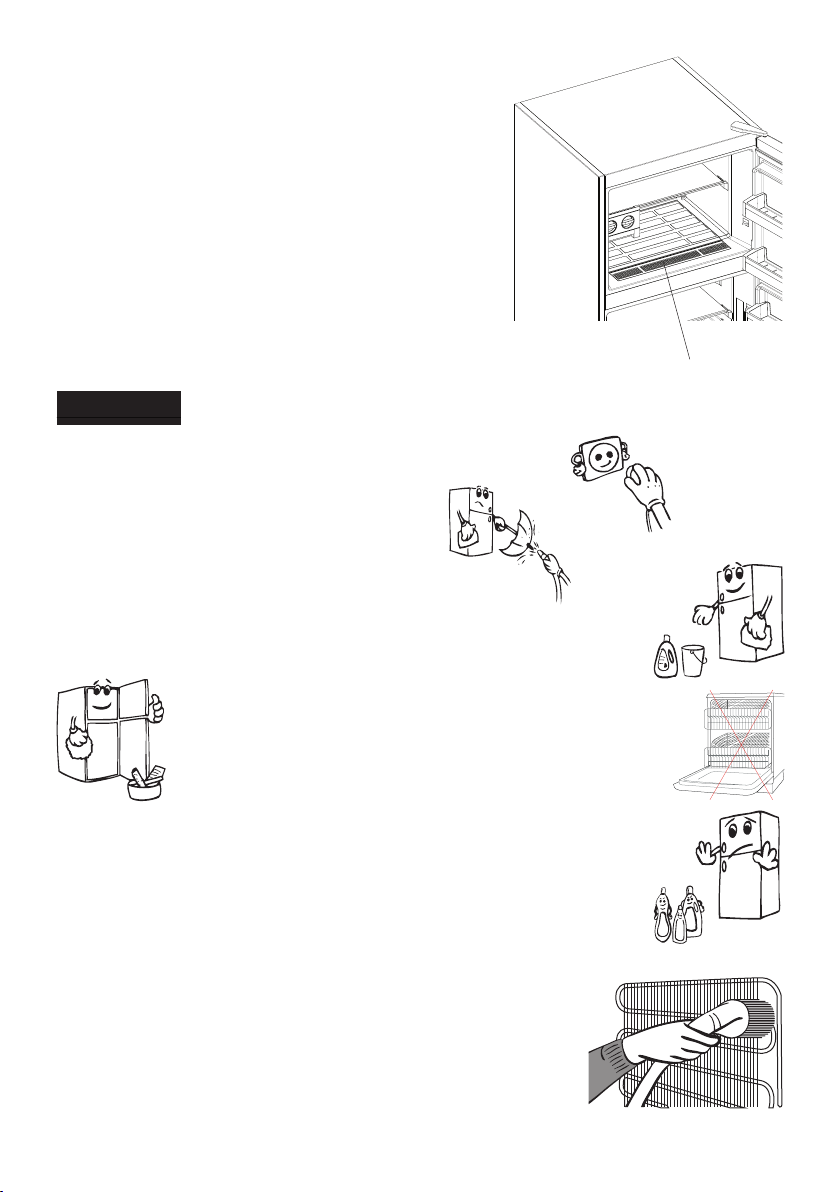

Air suction hole
With putting the foods onto the air suction hole by extracting
the the lower shelf located at freezer door, will affect the
performance of the fridge, negatively. Therefore, please
be careful while loading the freezer compartment in order
not to close down the air suction hole.
PART - 4. CLEANING AND MAINTENANCE
• Make sure to unplug the fridge before starting to clean it.
• Do not wash your fridge by pouring water.
• You can wipe the inner and outer sides with a soft cloth or a sponge
using warm and soapy water.
• Remove the parts individually and clean with soapy water. Do
not wash in washing machine.
• Never use ammable, explosive or corrosive material like thinner, gas,
acid for cleaning.
• You should clean the condenser with broom at least once a year
in order to provide energy saving and increase the productivity.
Make sure that your fridge is unplugged while cleaning.

EN -15-
Replacing The Light Led (If the illumination is occured via LED strip)
1 led strip in freezer compartment and 2 led strips in cooler compartment are used to illumi-
nate your appliance.
Please call the service man.
Note: Numbers and location of led strips may be changed according to the model.
Freezer compartment
Led strip lamp
Fridge compartment
Led strip lamps
!!! Some versions may be without freezer illumination.

EN -16-
PART - 5. TRANSPORTATION AND CHANGING OF
INSTALLATION POSITION
Transportation and Changing of Installation Position
• Original package and foam may be kept for re-transportation (optionally).

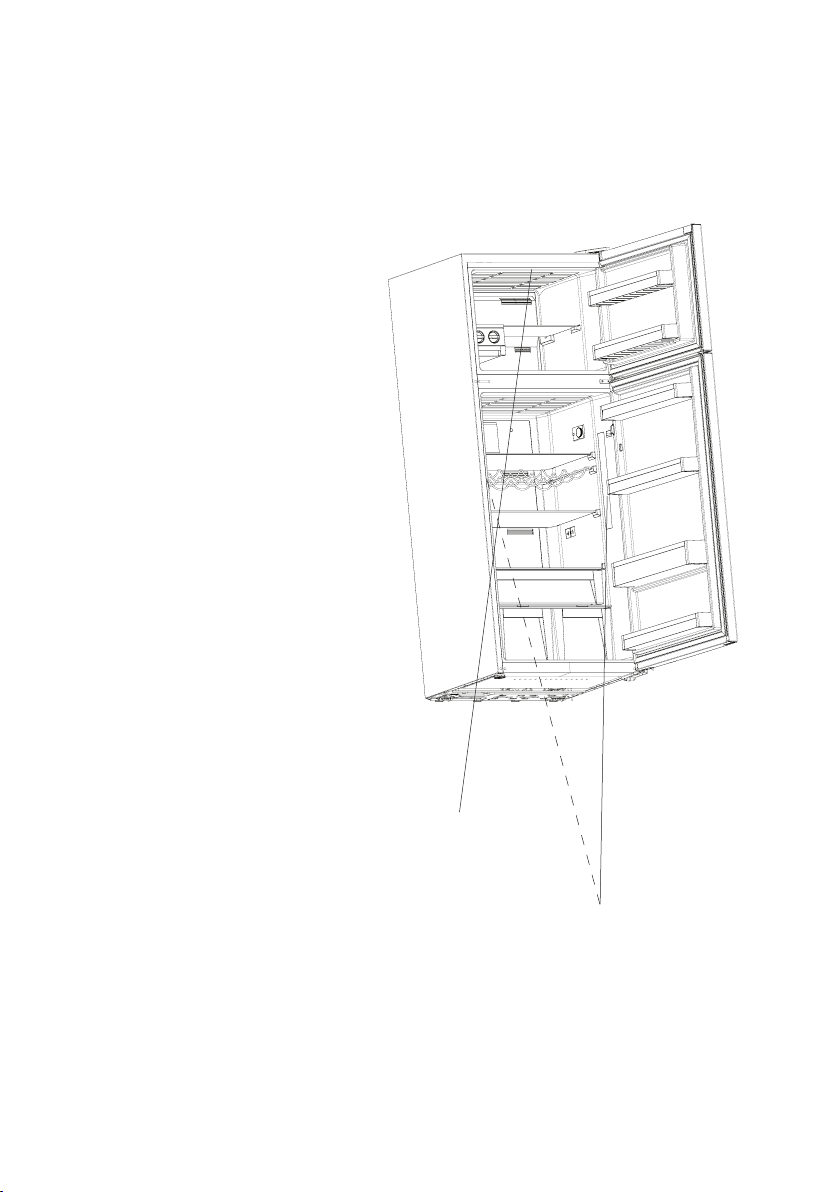

• You should fasten your fridge with thick package,
bands or strong cords and follow the instructions for
transportation on the package for re-transportation.
• Remove movable parts (shelves, accessories, veg-
etable bins etc.) or x them into the fridge against
shocks using bands during re-positioning and trans-
portation.
Carry your fridge in the upright position.
Repositioning the Door
• It is not possible to change the opening direction of your fridge door, if the door handles
on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your fridge may be changed, you should contact the
nearest Authorized Service to have the opening direction changed.
PART - 6. BEFORE CALLING YOUR AFTER SALES SERVICE
What to do if your refrigerator does not operate;
Check that;
• There is no power ,
• The general switch in your home is disconnected ,
• The thermostat setting is on “1” position ,
• The socket is not sufcient. To check this, plug in another appliance that you know which
is working into the same socket.
What to do if your refrigerator performs poorly;
Check that;
• You have not overloaded the appliance ,
• The doors are closed perfectly ,
• There is no dust on the condenser ,
• There is enough place at the rear and side walls.
If your fridge is operating too loudly;
Normal Noises
Cracking (Ice cracking) noise:
• During automatic defrosting.
• When the appliance is cooled or warmed (due to expansion of appliance material).
Click noise: Heard when the thermostat switches the compressor on/off.

EN -17-
Compressor noise
• Normal motor noise: This noise means that the compressor operates normally
• Compressor may cause more noise for a short time when it is activated.
Bubbling noise and splash: This noise is caused by the ow of the refrigerant in the
tubes of the system.
Waterownoise: Normal ow noise of water owing to the evaporation container during
defrosting. This noise can be heard during defrosting.
Air blow noise (Normal fan noise): This noise can be heard during the normal operation
of system due to the circulation of air..
If humidity builds up inside the fridge;
• Are all food packed properly? Are the containers dried before placing them in the fridge?
• Are the fridge doors opened frequently? Humidity of the room gets in the fridge when
the doors are opened. Humidity build up will be faster when you open the doors more
frequently, especially if the humidity of the room is high.
• Building up of water drops on the rear wall after automatic defrosting is normal. (in
Static Models)
If the doors are not opened and closed properly;
• Do the food packages prevent closing of the door?
• Are the door compartments, shelves and drawers placed properly?
• Are door gaskets broken or torn?
• Is your fridge on a level surface?
If the edges of fridge cabinet that the door joint contact are warm;
Especially in summer (hot weather), the surfaces that the joint contact may get warmer during
the operation of the compressor, this is normal.
IMPORTANT NOTES:
• If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting
or re-plugged the unit in order not to damage the compressor.
• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean
your fridge according to Part 4 and leave the door open to prevent humidity and smell
• If the problem persists after you have followed all the instructions above, please consult
to the nearest service.
• The appliance you bought is designed for home type use and can be used only at
home and for the stated purposes. It is not suitable for commercial or common use. If
the consumer use the appliance in a way that does not comply with these features, we
emphasize that the producer and the dealer shall not be responsible for any repair and
failure within the guarantee period.

EN -18-
Tips for saving energy
1– Install the appliance in a cool, well ventilated room , but not in direct sunlight and not near
heat source (radiator, cooker.. etc. ). Otherwise use an insulating plate.
2– Allow warm food and drinks to cool down outside the appliance.
3– When thawing frozen food, place it in the refrigerator compartment. The low temperature
of the frozen food will help to cool the refrigerator compartment when it is thawing. So it
reduces the energy requirements.
4– When placing, drinks and liquids they must be covered. Otherwise humidity increases at
the appliance. Therefore the working time gets longer. Also covering drinks and liquids
helps preserve the smell and taste.
5– When placing food and drinks, open the appliance door as briey as possible.
6– Keep the covers closed of any different temperature compartment in the appliance (crisper,
chiller ...etc. ).
7– Door gasket must be clean and pliable. Replace gaskets if worn.

EN -19-

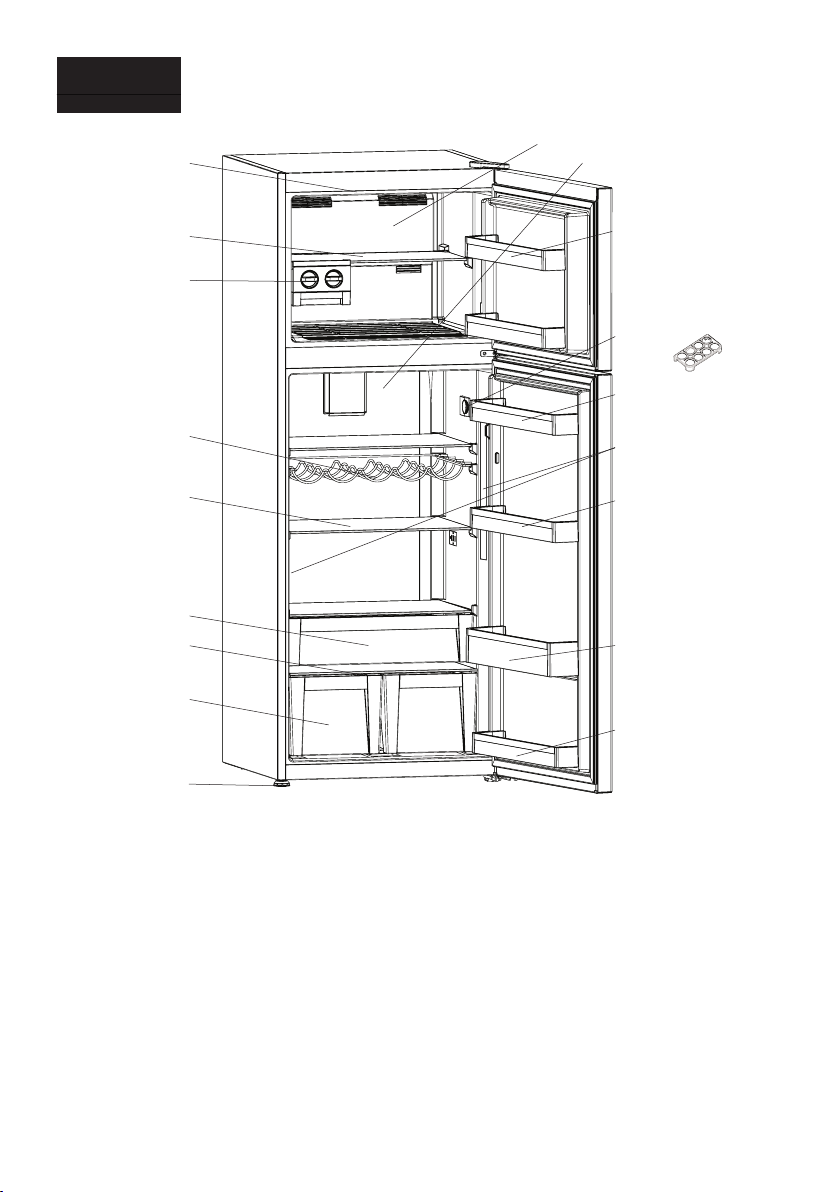

PART - 7. THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
This presentation is only for information about the parts of the appliance.
Parts may vary according to the appliance model.
A. Freezer compartment
B. Fridge compartment
1. Freezer door shelves
2. Freezer compartment led lamp *
3. Freezer shelf
4. Icematic *
5. Bottle shelf / Wine rack *
6. Fridge compartment shelves
7. Chiller shelf
8. Crisper cover
9. Crispers
10. Levelling feet
11. Door bottom shelf *
12. Door bottle shelf
13. Door shelf (Adjustable door shelf *)
14. Fridge compartment led lamp
15. Door shelf
16. Egg holder
17. Thermostat box
* In some models
A
B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
15
