Panasonic NR-B32SX1 User manual

© Panasonic Corporation 2011 Unauthorized copy-
ing and distribution is a violation of law.
Order Number VESR110701CE
REFRIGERATOR-FREEZER
Model No. NR-B32SX1
Model No. NR-B32SG1
Model No. NR-B32SW1
Product-Color X:Stainless
G:Inox-look
W:White
Destination E(Europe Continental) except France
F(France)
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 5
3 General/Introduction -------------------------------------------- 6
4 Technical Descriptions ----------------------------------------- 8
5 Location of Controls and Components ------------------12
6 Installation Instructions ---------------------------------------14
7 Operating Instructions-----------------------------------------16
8 Service Mode -----------------------------------------------------20
9 Troubleshooting Guide --------------------------------------- 24
10 Disassembly and Assembly Instructions--------------- 27
11 Measurements and Adjustments -------------------------- 71
12 Dimensions ------------------------------------------------------- 74
13 Schematic Diagram -------------------------------------------- 75
14 Exploded View and Replacement Parts List ----------- 76

2

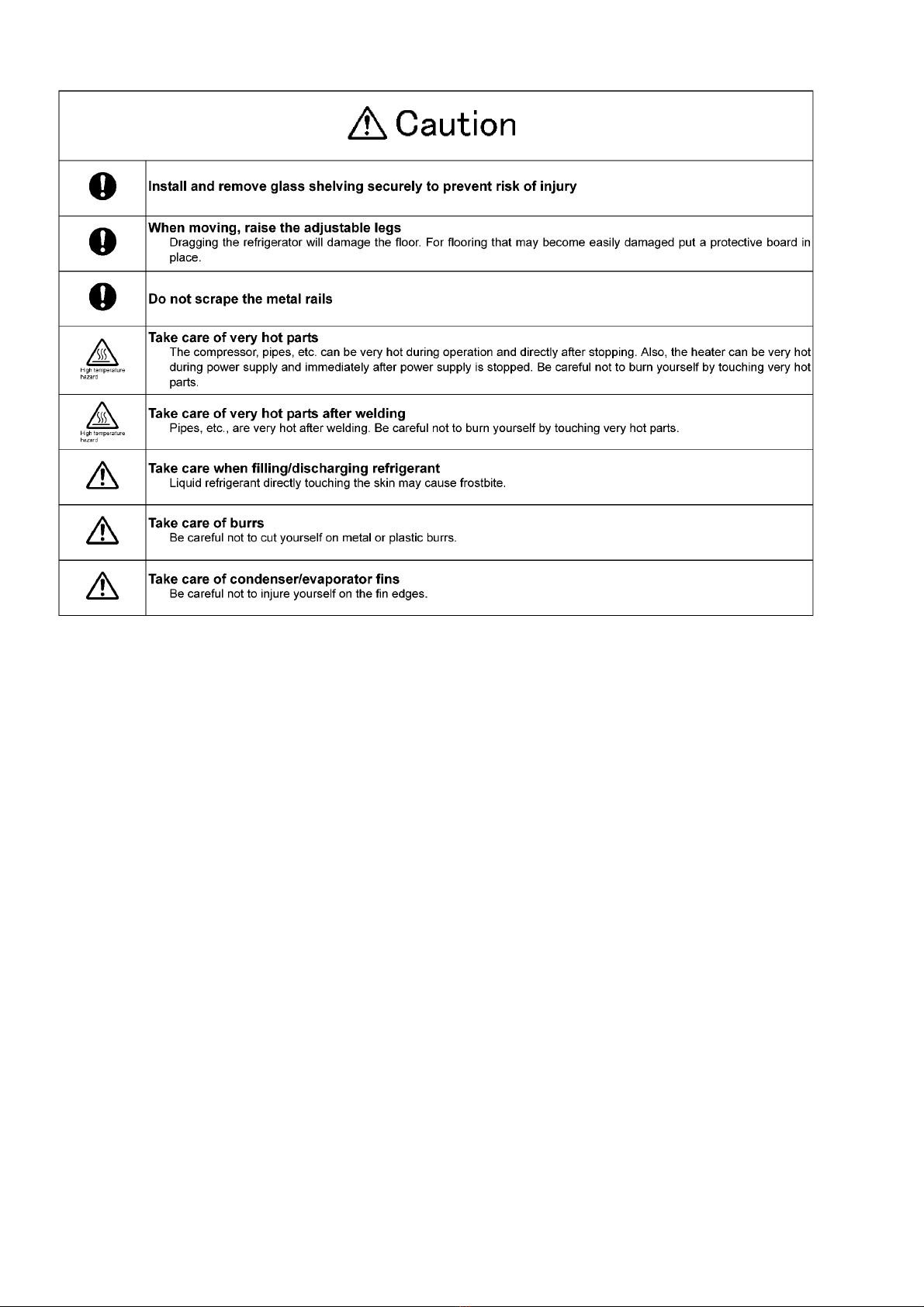

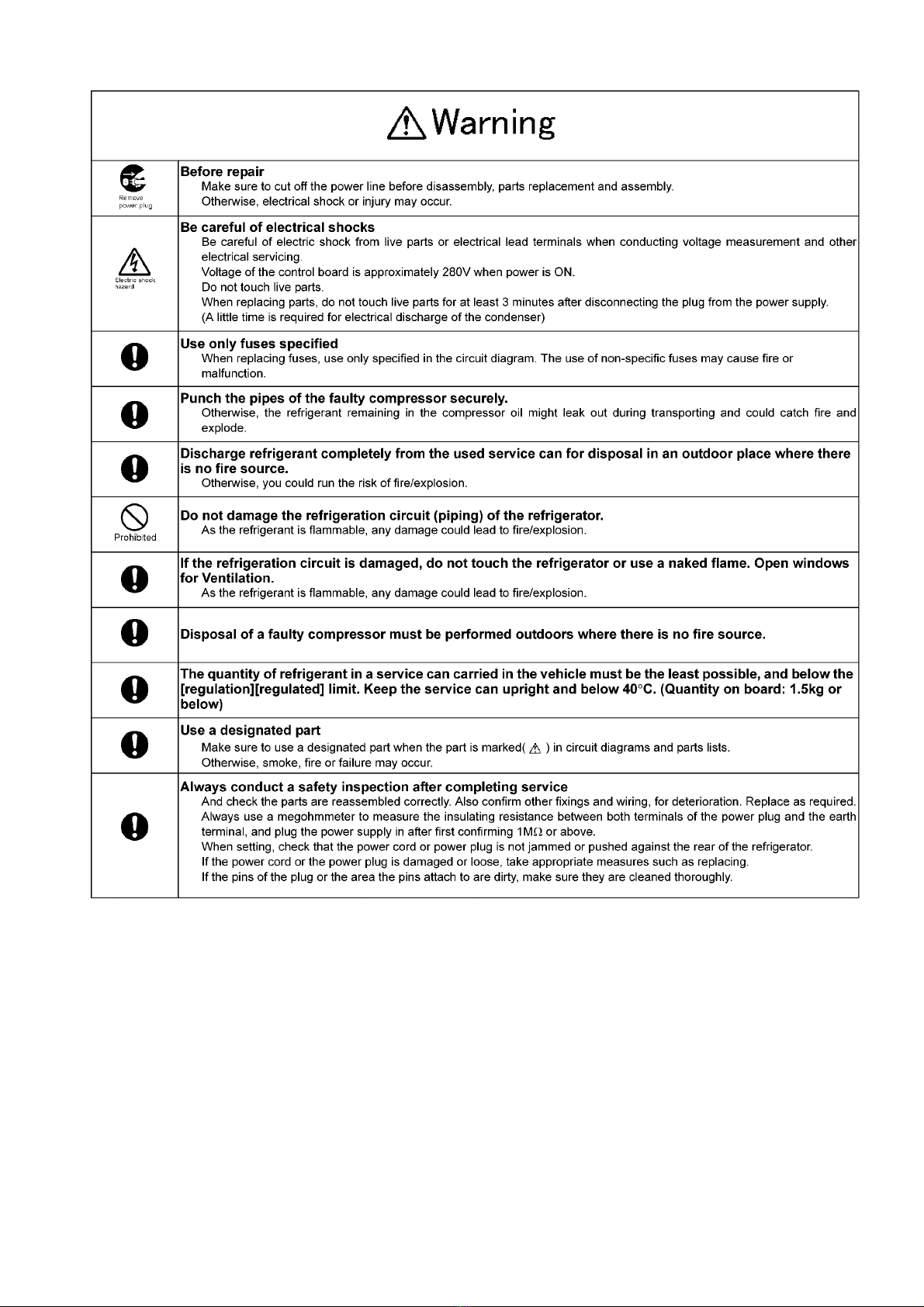

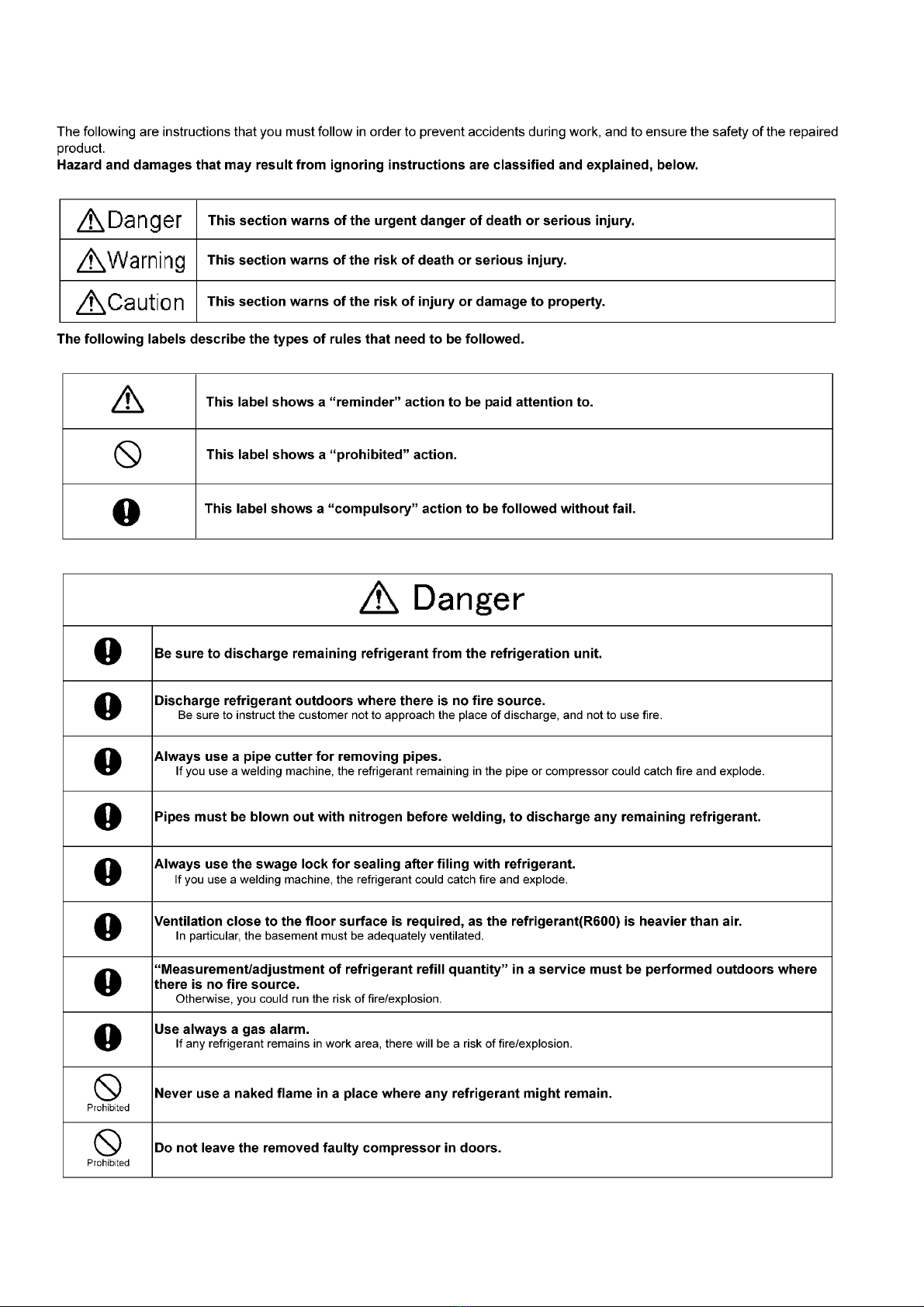

1 Safety Precautions

3

4

5

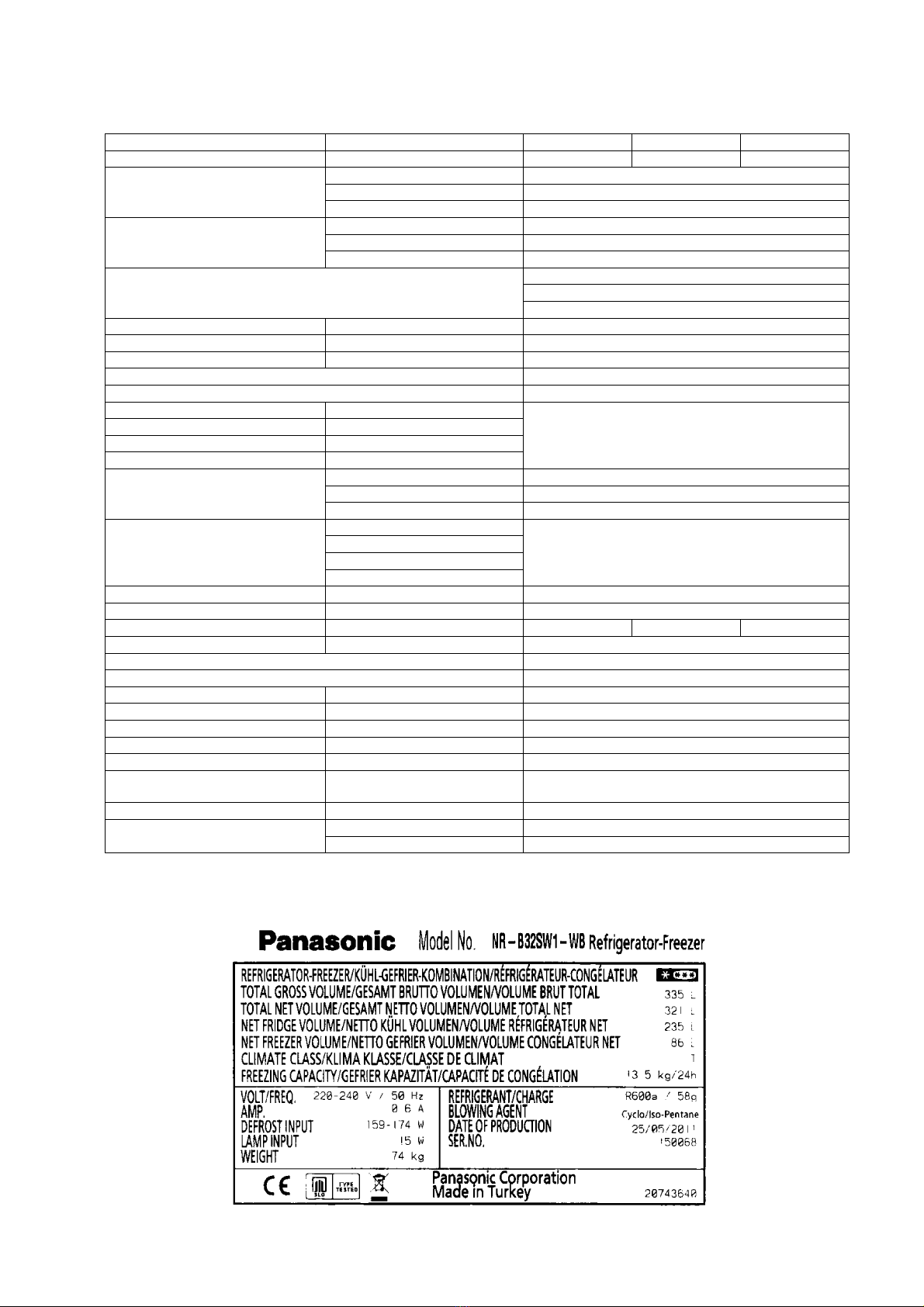

2 Specifications
Name Plate
Model NR-B32SX1 NR-B32SG1 NR-B32SW1
Product color stainless Inox-look white
Rating volume capacity Rating volume capacity 335L(Net:321)
Refrigerator compartment ( PC ) 235L
Freezer compartment ( FC ) 86L
External dimensions width/ depth/ height (mm) 600 x 652 x 1,866
PC: width/ depth/ height (mm) 600 x 652 x 1,077
FC: width/ depth/ height (mm) 600 x 652 x 747.5
Installaion size side : 20 mm or above
back : 40 mm or above
top : 150 mm or above
Power supply plug Rating Schuko: 250V 16A --- British: 250V 13A
Power supply code Length 2.1m (Total)
Interior lamp Rating 15W
IEC protection against electric shock classes Class I
Climate Class T
Refrigerator compartment sensor PCC B-value: B(25/100) 3560 K ± 1.0 %
Resistance at 25 C = 2093 Ohm
Freezer compartment sensor FCC
Ambient temperature sensor ATC
Defrost temperature sensor DFC
Compressor Type hermetic
Model HXK95AA
Rotation speed 3000 rpm
Overlord relay Model AE 18Fu x
Operating temperature
Return Temperature
Operating current (A)
Fan motor ( for Freezer compartment ) Model/Rating BG2012 55310 08051
Dumper Model/Rating NSBC000ZA1, 12VDC, 300p/s
Defrost heater Rating / Voltage 220V 159W 230V 174W 240V 189W
Thermal fuse Rating 250V 10A 77C
Oil charge 165cc(HXK95AA)
Ice making ability*1 2.65 kg/24h
Freezing ability*2 13kg/24h(25C)
Amp. Rating 0.6A
Values of the energy consumption*3 0.878kwh/24h
Energy efficiency grade 4 star
Refrigerant charge R600a,58gr
Measurement of exterior noise emit-
ted*4
46dbA
Form polyurethane Cyclo pentane
Weight ( Kg ) Without Packaged 74
With Packaged 79

6
3 General/Introduction
3.1. Flow of Refrigerant

7

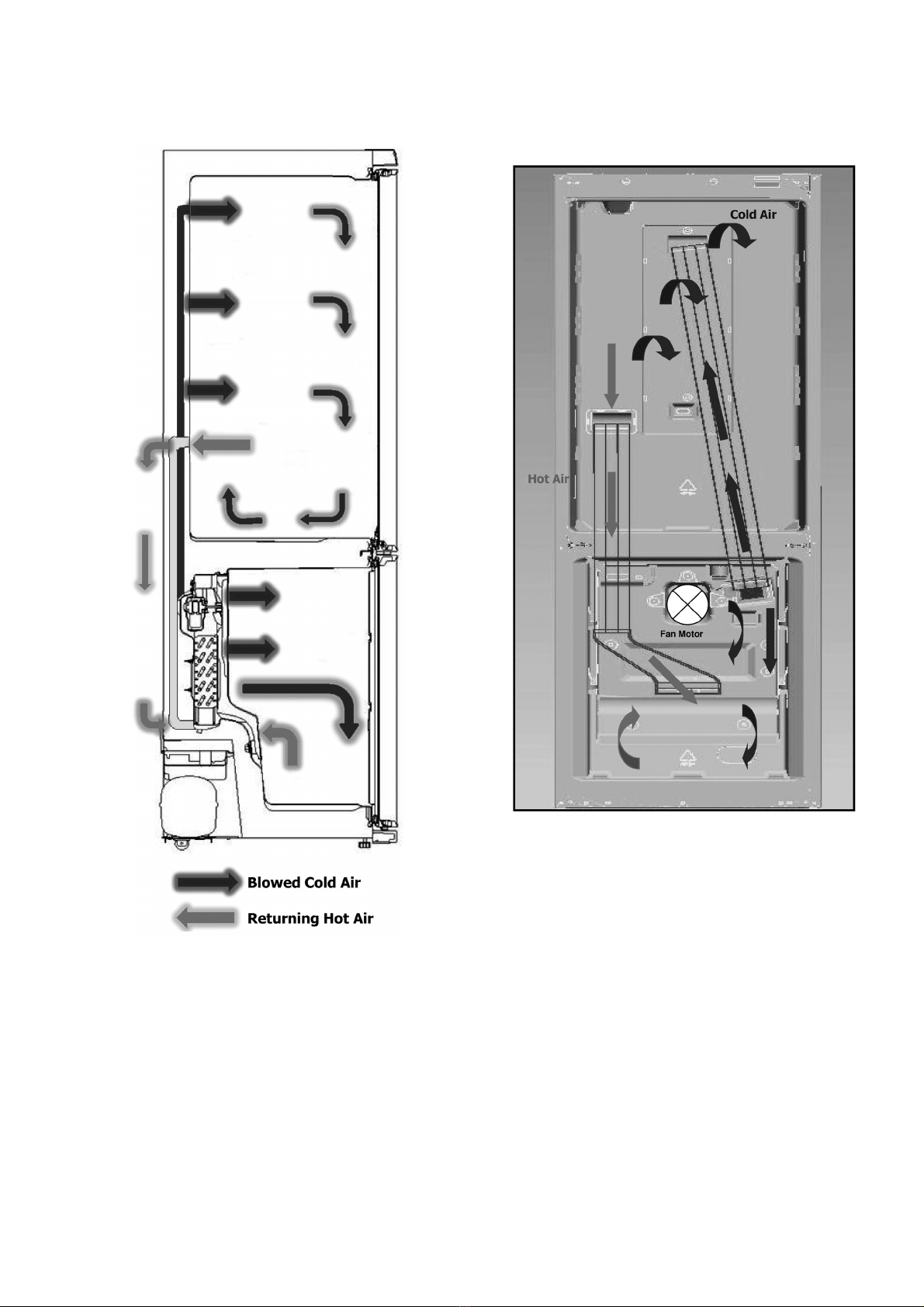

3.2. Flow of Air
3.2.1. Inside the Fridge 3.2.2. Flow of Air Through Air Ducts
(Front view)

8
4 Technical Descriptions
4.1. Setting the temperature
4.1.1. Freezer compartmen
At the time of purchase, the temperature is set to -18 C.
Press (left) once and then press it again within 1 second.
The temperature can be set.
Press (left) repeatedly until the desired temperature is set.
If no operation is performed for 1 second during the setting process, the indicators will flash and a beep will be heard indicating that
the temperature is now set.
Note : When Holiday Mode, Super Freeze Mode, Super Cool Mode, or Eco Mode ends or is cancelled, the unit returns to its previ-
ous settings.
* If AT sensor > 45C , -22 and -24 will not settable.
* If user sets the temperature to -22 or -24 and AT increases above 45C after this ;set value setting will be change to -20 automat-
icaly.
FREEZER SECTION
ADJUSTED SET
VALUES ON
DISPLAY
COMPRESSOR
ON VALUES
COMPRESSOR
OFF VALUES
ADJUSTED SET
VALUES ON
DISPLAY
COMPRESSOR
ON VALUES
COMPRESSOR
OFF VALUES
-16C-13C-17C-21C-18C-22C
-17C-14C-18C-22C-19C-23C
-18C-15C-19C-23C-20C-24C
-19C-16C-20C-24C-21C-25C
-20C-17C-21C
Temperature difference between compressor off and on action is 4C

9

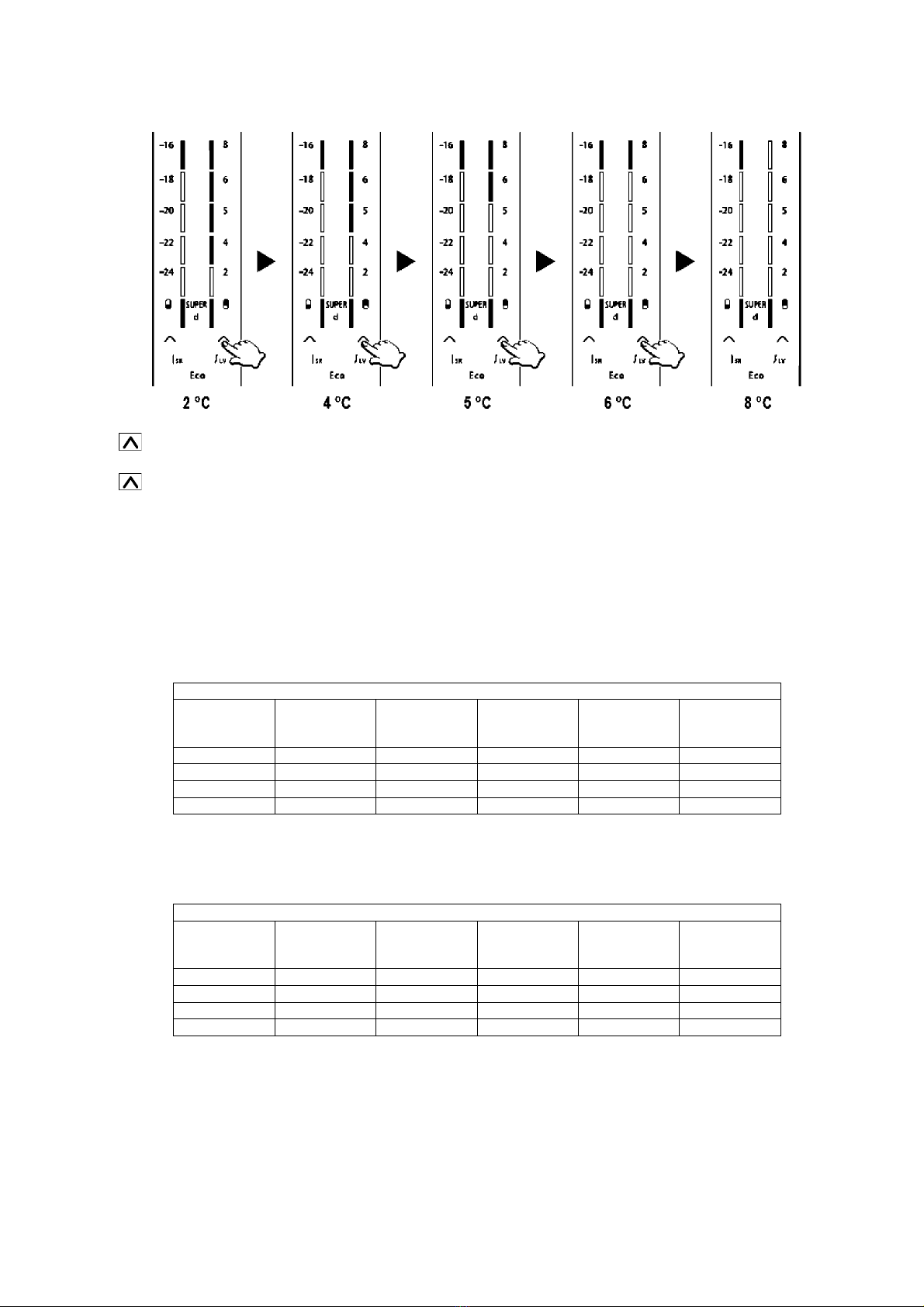

4.1.2. Fridge compartment
At the time of purchase, the temperature is set to 4 C.
Press (right) once and then press it again within 1 second.
The temperature can be set.
Press (right) repeatedly until the desired temperature is set.
If no operation is performed for 1 second during the setting process, the indicators will flash and a beep will be heard indicating that
the temperature is now set.
Note : When Holiday Mode, Super Freeze Mode, Super Cool Mode, or Eco Mode ends or is cancelled, the unit returns to its previ-
ous settings.
Fridge set values changes according to AT sensor.
a) If AT Sensor < 18 C;
Fan and compressor aren`t working together.
b) If 18 C < AT Sensor < 24 C
Fan and compressor aren`t working together.
FRIDGE SECTION
ADJUSTED SET
VALUES ON
DISPLAY
DAMPER ON
VALUES
DAMPER OFF
VALUES
ADJUSTED SET
VALUES ON
DISPLAY
DAMPER ON
VALUES
DAMPER OFF
VALUES
8 C 10 C8C4C6C4C
7 C9C7C3C5C3C
6 C8C6C2C4C2C
5 C7C5C
FRIDGE SECTION
ADJUSTED SET
VALUES ON
DISPLAY
DAMPER ON
VALUES
DAMPER OFF
VALUES
ADJUSTED SET
VALUES ON
DISPLAY
DAMPER ON
VALUES
DAMPER OFF
VALUES
8 C11C9C4C7C5C
7 C 10 C8C3C6C4C
6 C9C7C2C5C3C
5 C8C6C

10
c) If 24 C AT Sensor < 32 C
If 24C AT Sensor < 32C and freezer is set to -17C or colder and cooler is set to 4C or warmer, then fan and compressor
works together.
In other cases, Fan and compressor aren`t working together.
IMPORTANT FUNCTION:
If compressor works in together with fan for 1 hour and cooler compartment still can’t reach damper close value, damper-fan-
compressor will work separately until cooler compartment reaches damper close value. When it reaches to this value, they
return to working together again. (separate working is explained below)
d) If 32 C < AT Sensor < 43 C
Fan and compressor aren`t working together.
e) If AT Sensor > 43 C
Fan and compressor aren`t working together.
FRIDGE SECTION
ADJUSTED SET
VALUES ON
DISPLAY
DAMPER ON
VALUES
DAMPER OFF
VALUES
ADJUSTED SET
VALUES ON
DISPLAY
DAMPER ON
VALUES
DAMPER OFF
VALUES
8 C 12 C 10 C4C8C6C
7 C11C9C3C7C5C
6 C 10 C8C2C6C4C
5 C9C7C
FRIDGE SECTION
ADJUSTED SET
VALUES ON
DISPLAY
DAMPER ON
VALUES
DAMPER OFF
VALUES
ADJUSTED SET
VALUES ON
DISPLAY
DAMPER ON
VALUES
DAMPER OFF
VALUES
8 C 13 C11C4C9C7C
7 C 12 C 10 C3C8C6C
6 C11C9C2C7C5C
5 C 10 C8C
FRIDGE SECTION
ADJUSTED SET
VALUES ON
DISPLAY
DAMPER ON
VALUES
DAMPER OFF
VALUES
ADJUSTED SET
VALUES ON
DISPLAY
DAMPER ON
VALUES
DAMPER OFF
VALUES
8 C 14 C 12 C4C 10 C8C
7 C 13 C11C3C9C7C
6 C 12 C 10 C2C8C6C
5 C11C9C

11
4.2. Defrost Control
a) If AT < 13 C
Defrost cycle is fixed to 16 hours (running + stopping)
b) If 18 C < AT < 22 C
If doors aren’t opened during defrost cycle time; defrost cycle is max. 8 hours of compressor running accumulated time or 18
hours of compressor stopping accumulated time.
If doors are opened or previous defrosting is long, defrost cycle time is shortened according to special algorithm.
Minimum defrost cycle time can be 6 hours of compressor running accumulated time
c) If 22 C AT < 30 C
Defrost cycle is fixed to 48 hours (running + stopping)
If doors are opened or previous defrosting is long, defrost cycle time is shortened according to special algorithm.
Minimum defrost cycle time can be 24 hours total time
d) If AT 30 C ;
If door isn’t opened during defrost cycle time; defrost cycle is max. 18 hours of compressor running accumulated time or 28
hours of compressor stopping accumulated time.
Normally defrost function will be completed when defrost sensor reaches to 8C, however if defrost time exceeds 37min, com-
pletion temperature increases to 12C. Compressor will run 5 min. after defrost completion. Fan motor starts 3 min. after com-
pressor. Compressor will run 20 min. continuously after defrost.
4.3. Fan Control
a) If 24 C AT Sensor < 32 C and freezer is set to -17 C or colder and cooler is set to 4 C or warmer
Fan will work together with compressor except below condition :
If stopping time more than one hour and refrigerator temperature warmer than damper on set values ,fan will work untill refriger-
ator temperature reach damper off values.
Important Function:
If compressor works in together with fan for 1 hour and cooler compartment still can't reach damper close value, damper-fan-
compressor will work separately until cooler compartment reaches damper close value. When it reaches to this value, they
return to working together again.
b) For other conditions:
Fan and compressor doesn`t work together except the condition above. While compressor is working, evaporator fan is also
works.
If cooler compartment isn’t cold enough fan continues to work until fridge temperature decreases to [damper close set value].
If both fridge and freezer temperature is at damper close set value, fan stops.
4.3.1. Test Control at the plugging in of the appliance
If FCC sensor > -5C and DFC sensor > -5C;
Set defrost and drain heater ON for 5secs. then set them OFF
Set evap. fan motor ON for 5secs. then set it OFF
Set compressor ON for 5secs. then set it OFF
Other controls can be done via Service Mode

12
5 Location of Controls and Components
5.1. Display and Control Panel

13

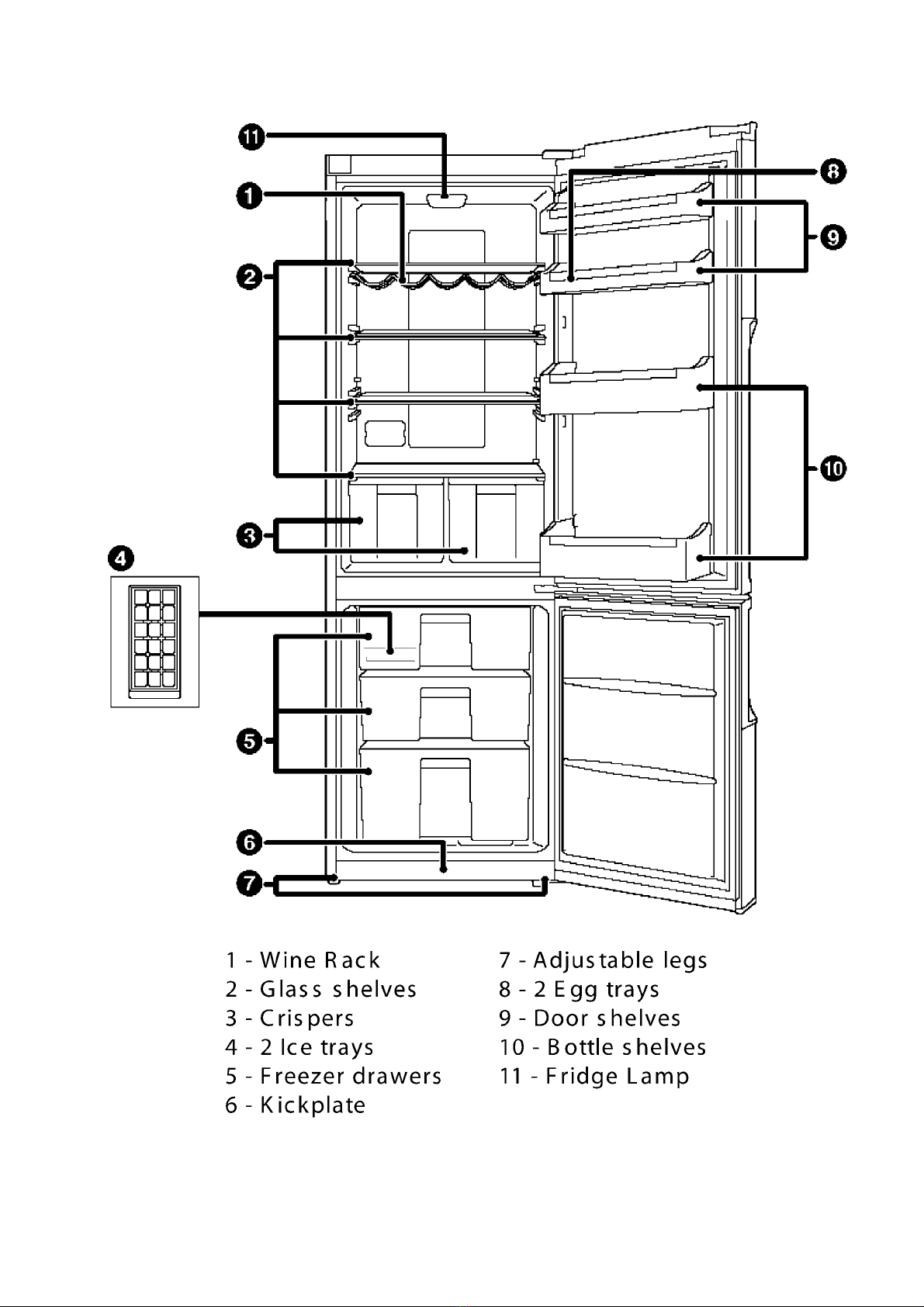

5.2. Components

14
6 Installation Instructions
This section explains how to install your appliance for the most energy-efficient, safe and quiet operation.
Dimensions
W600 x D652 x H1866 (mm)
Unpacking your appliance
Remove all packaging and tape.
Choosing the right location
Ventilation
As the appliance gives off heat during operation, it should be
installed in a well-ventilated, dry room with plenty of space above
and behind it, as shown in Figure 1.
If you can hear it vibrating, it needs more space.
Temperature
The room temperature affects the refrigerator's energyefficiency, i.e.
how much electricity it uses to chill and freeze foods.
For the best results, install your refrigerator:
• away from direct sunlight
• away from radiators, cookers or other heat sources
• where the room temperature corresponds to the climate classifica-
tion for which the appliance is designed. Refer to the Specifications
Section for your appliance’s climate classification.
Level
Install on a level floor that’s strong enough to support a fully loaded
refrigerator.
You can adjust the level of the refrigerator by screwing or unscrew-
ing the two adjustable front legs as shown in Figure 2.
This prevents vibration and noise.
If the appliance is to stand on a carpeted or vinyl floor, put a solid
board underneath it first. This will protect your floor against possible
color change due to heat given off by the appliance.
Refrigerator door
The refrigerator’s door hinges can be swapped over, from the right side to the left, so that the doors open in the
opposite direction. If this is more convenient in your home, please contact our service centre listed on the attached
sheet or access to our Web site (http://panasonic.net).
We could not be held responsible if you replace the hinges by yourself.
Parts for switching door opening direction are included in the unit packaging.

15

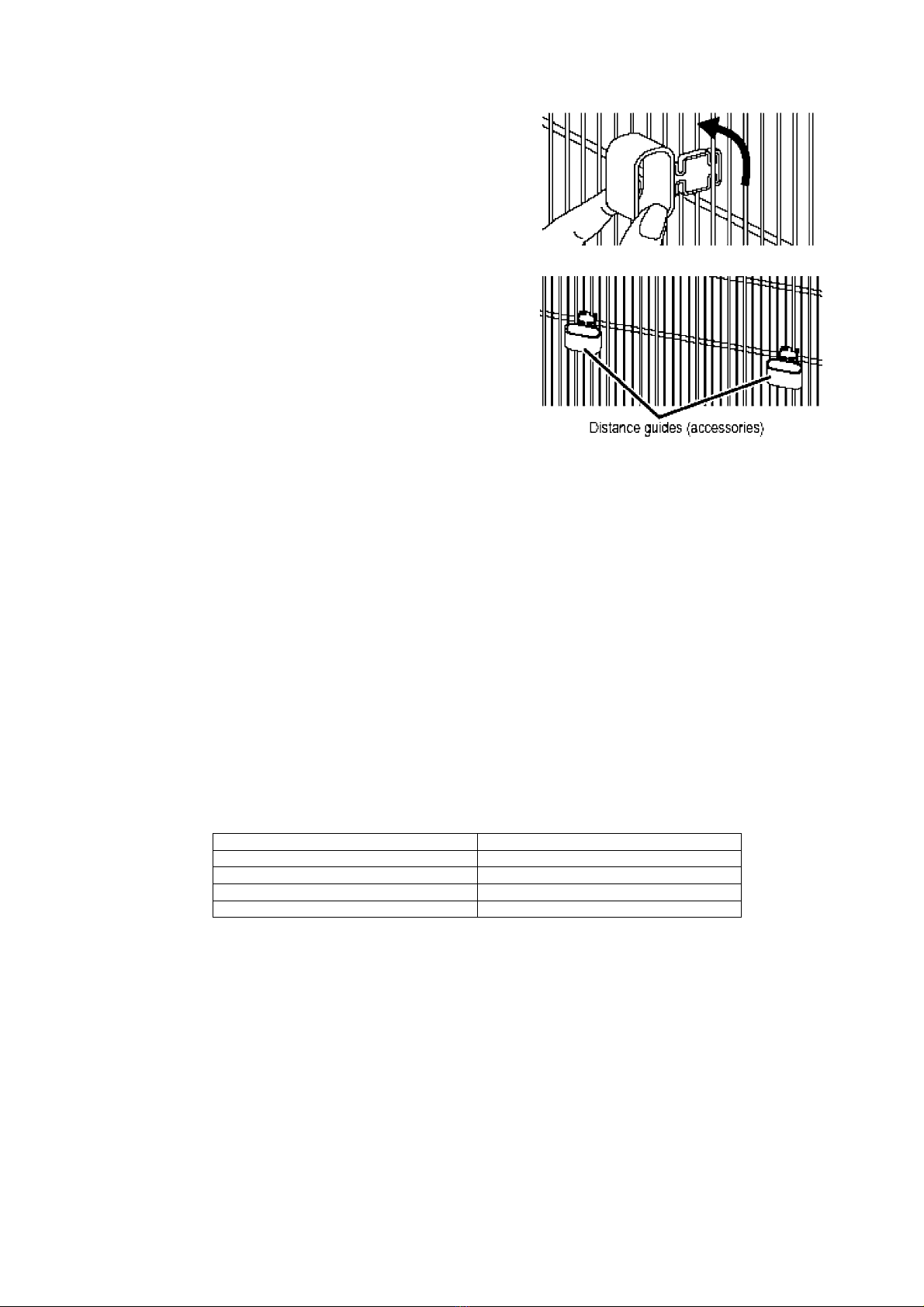

Installing the distance guides
To prevent the condenser (the black backside component with fins)
from touching the wall, put on two plastic distance guides in its
place rotating 90.
Cleaning
After installation, wipe the appliance clean with warm water.
Connecting the mains plug to the household mains socket
You can connect the mains plug immediately after installation.
After the appliance is plugged, all symbols will appear for a moment, and then the startup values will appear as -18 C on freezer setting indi-
cator and 4 C on fridge setting indicator.
All buttons on the control panel are touch-operated. (Only press to activate the button you want to operate.)
Notes:
• Cooling may take longer in the summer months or at other times when the room temperature is higher.
• If you need to unplug the refrigerator, wait at least 10 minutes before you plug it back in again. If not, you might damage the compressor.
Ambient room temperature
You'll find your refrigerator's climate classification on the rating plate in the left side of the fridge compartment. It shows the room temperature
the appliance is designed to work in.
Climate classification Permitted ambient temperature
SN (Extended Temperate) +10 C to 32 C
N(Temperate) +16 C to 32 C
ST (Subtropical) +16 C to 38 C
T(Tropical) +16 C to 43 C

16
7 Operating Instructions
7.1. Functions
7.1.1. Super Freeze Mode
7.1.2. Super Cool Mode
Features :
• In this mode, the freezer can be cooled rapidly, enabling the fresh foods, etc. which are
placed there to be frozen.
• Super Freeze Mode will automatically end after 24 hours or when the freezer sensor temper-
ature becomes lower than -32 C.
Settings :
1. Press (left) until and the lowest indicator light.
2. If no operation is performed for 1 second during the setting process, and the indica-
tor will flash and a beep will be heard indicating that Super Freeze Mode is set.
• and the indicator both light during this mode.
Notes:
• During this mode:
- By pressing (left), Super Freeze Mode will be cancelled and the desired tempera-
ture can be set.
- Eco Mode and Holiday Mode can be selected.
If either of these modes is selected, Super Freeze mode will be cancelled and the
selected mode will become active.
- The fridge temperature can be adjusted.
• The effect on the stored food can be reduced if setting Super Freeze Mode several hours
before storing the food in the freezer compartment.
• The following items are recommended in order to exert the maximum freezing capacity.
1. Set Super Freeze Mode 10 hours before storing the food.
2. If you wish to store a large amount of food, remove the two top drawers from the
freezer and place the food directly on the glass shelf or put it in the lowest drawer of
the freezer.
(A bigger freezing capacity can be exerted if placing the food directly on the top glass
shelf.)
• The maximum freezing capacity within 24 hours is written in the rating label.
Features :
• In this mode, fast food can be cooled before eating, a large amount of food can be cooled
and stored, and drinks can be cooled quickly.
• Super Cool Mode will automatically end after 8 hours or when the fridge sensor temperature
becomes lower than 0 C.
Settings :
1. Press (right) until and the lowest indicator light.
2. If no operation is performed for 1 second during the setting process, and the indica-
tor will flash and a beep will be heard indicating that Super Cool Mode is set.
• and the indicator both light during this mode.
Notes:
• During this mode:
- By pressing (right), Super Cool Mode will be cancelled and the desired temperature
can be set.
- Eco Mode and Holiday Mode can be selected.
If either of these modes is selected, Super Cool mode will be cancelled and the selected
modewill become active.
- The freezer temperature can be adjusted.

17
7.1.3. Eco Mode
7.1.4. Holiday Mode
Features :
• In this mode, the control unit operates the freezer and fridge economically.
Settings :
1. Press once and Eco mode indicator lights.
2. If no operation is performed for 1 second during the setting process, the Eco mode indica-
tor will flash and a beep will be heard indicating that Eco Mode is set.
3. On the control panel, 4 indicators, indicating -18 C, will light for the freezer and 3 indica-
tors, indicating 5 C, will light for the fridge.
• To end Eco mode, press .
The Eco mode indicator flashes and a beep will be heard indicating that Eco mode has been
ended.
Notes:
• During this mode:
- The temperature of the fridge and freezer can be adjusted. Eco mode will be cancelled
and the selected temperature will be set.
- Super Freeze Mode and Super Cool Mode can be selected.
If either mode is selected, Eco Mode will be cancelled and the selected mode will
become active.
- Holiday Mode can be selected.
If it is selected, Eco Mode will be cancelled and Holiday Mode will become active.
Features :
• Set this mode when the fridge is not going to be used for a prolonged period such as during
a long vacation.
• In this mode, the fridge temperature is automatically set to 12 C and the freezer temperature
is automatically set to -18 C. (Fridge temperature indicators turn off.)
Settings :
1. Press once and Holiday mode indicator lights.
2. If no operation is performed for 1 second during the setting process, the Holiday mode
indicator will flash and a beep will be heard indicating that Holiday Mode is set.
• To end Holiday mode, press .
The Holiday mode indicator flashes and a beep will be heard indicating that Holiday mode
has been ended.
Notes:
• Before using this mode, empty out the fridge, and close its door.
• When this mode is ended, the fridge will resume operation with its previous settings.
• No adjustment can be made until this mode is cancelled.

18
7.1.5. Bottle Mode
7.1.6. Alarm Mode
Features :
• Drinks can be cooled quickly in the freezer.
• This mode has a timer function, and can be set to beep when the timer reaches 5, 10, 15, 20,
25 or 30 minutes.
• Remove the bottles when the beep is heard. If bottles are left in the freezer for a long time,
their contents could freeze and the bottles might break.
Settings :
1. Press once and Bottle mode indicator lights.
2. Press again until the desired time is displayed.
The set time is shown as follows by the indicators.
First indicator lights : 5 min First and second indicators light : 10 min
First to third indicators light : 15 min First to fourth indicators light : 20 min
First to fifth indicators light : 25 min First to sixth indicators light : 30 min
One indicator represents five minutes.
3. If no operation is performed for 1 second (3 sec for the first press) during the setting pro-
cess, the Bottle mode indicator will flash and a beep will be heard indicating that Bottle
Mode is set.
4. The top lit indicator blinks for five minutes. Then it becomes unlit and the next highest
indicator starts blinking. This repeats until the last indicator has blinked for five minutes.
5. When the set time comes, a beep will be heard.
• To end Bottle mode, press .
The Bottle mode indicator flashes and a beep will be heard indicating that Bottle mode has
been ended.
Notes:
• When using this mode, check the temperature of the bottles regularly.
• When the bottles have cooled sufficiently, remove them from the freezer.
Features :
• An alarm will be heard:
- when any problem occurs in the refrigerator.
- when the voltage is low.
- when the fridge door is left ajar.
Settings :
• Press to stop the beep.

19
7.2. Demo Mode
This mode will be use for only sales points by salesman to show functions & modes to customer without operating components as a
compressor, fan, motor..Etc
7.2.1. Entering Demo mode:
Demo mode can only be activated within one minute of switching on/plugging in the product.
Then appliance will go on [demo function] and the [d] will light during the mode.
All functions can be adjusted to show customer how they are adjusted.
To show alarm function, these will be used:
1st pushing to Alarm Button: Alarm + SR lights
2nd pushing to Alarm Button: Alarm + LV lights
3rd pushing to Alarm Button: Nothing lights
7.2.2. Canceling Demo mode:
For cancelling; Same operation will be used. If user will push Bottle & (left) button at the same time, demo function will be can-
celled.
When appliance is Demo mode; if plug is removed or there is an electricity breakdown; demo mode will not continue when user plug
into or electricity breakdown finish.
• user will press Bottle & (left) button at the same time
OR
• user will press (right) button and door open close 3 times while pushing

20
8 Service Mode
8.1. Entering service mode:
Push (left) button continuously. During this time, open and close fridge door for 3 times.
Bars will show error codes (service mode reaction). Symbols will be OFF.
If there is no error , bars will show nothing except of SR symbol
And if error is disabled during service mode, error codes will be disabled in bars.
Service man has 4 functions to select. First 4 push of Bottle button will activate symbols. Service man will cancel mode selection if
he stops pushing button on the 5th push.
1. Push
Starting program
Economy symbol in display will blink during mode.
Freezer bars will light as components are checked.
1 bar will light when defrost heater is ON.(-16 bar)
2 bars will light when evaporator fan motor is ON.(-16 and -18 bars)
3 bars will light when compressor ON.(-16 , -18 and -20 bars)
As starting program finishes, first symbol will be OFF. Appliance will return to initial service mode reaction.
2. Push
Forced defrost and forced canceling of defrost
Holiday symbol will blink during mode. Defrosting mode will start and finish as it's explained in Defrost Control. Mode can be
canceled manually or automatically.
Manual canceling will be done by pushing (right) button. Holiday symbol will be OFF if defrost is canceled manually. Appli-
ance will return to initial service mode reaction.
If manual canceling of this function is not performed in 30 min, service mode will be canceled.
Appliance will check if defrost is finished in this 30min. It YES, appliance will go on from previous set values. But if defrost is not
finished , appliance will go on defrost till it finishes and then go on from previous set values.
3. Push
Forced opening and closing of damper motor
(SF) and its bar (only the lowest bar on the left side) will blink during mode.
As function is selected damper will be opened if it was closed; it will close if it was opened.
If service man does not reset the function, damper will return to initial condition (open or close) after 5 min. Appliance will return
to initial service mode reaction
Manual canceling will be done by pushing (right) button. Symbol will be OFF as damper motor return to initial condition.
Appliance will return to initial service mode reaction
