Panasonic WV-SF132 User manual

HD Dome Network Camera
WV-SF135
Dome Network Camera
WV-SF132
HD/1,280 x 960 H.264 Dome Network Camera with 2x Extra Zoom (WV-SF135)
VGA/640 x 480 H.264 Dome Network Camera (WV-SF132)
Key Features
• 720p HD images up to 30 fps (WV-SF135)
• 1.3 Megapixel high sensitivity MOS Sensor (WV-SF135)
• 0.32 Megapixel high sensitivity MOS Sensor (WV-SF132)
• Multiple H.264 (High profile) streams and JPEG streams ensure
simultaneous real time monitoring and high resolution recording by
“UniPhier®”, Panasonic’s proprietary System LSI platform.
•
Full frame (Up to 30 fps) transmission at 1,280 x 960 image size (WV-SF135)
• Full frame (Up to 30 fps) transmission at VGA (640 x 480) image size (WV-SF132)
• ABS (Adaptive Black Stretch) technologies deliver wider dynamic
range compared with conventional cameras.
• High sensitivity with Day & Night (Electrical) function:
0.8 lx (Color), 0.6 lx (B/W) at F2.2 (WV-SF135)
2.0 lx (Color), 1.3 lx (B/W) at F2.9 (WV-SF132)
• VIQS (Variable Image Quality on Specified area) technology allows
the designated area to retain higher image quality while the
excluded area will have a decreased image quality, which enables
to use lower image file size and bit rate.
•
Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions.
• Progressive scan ensures clear images with less motion blur and no
tearing even when the subject is moving.
• Superior color reproduction by primary (RGB) color filter
• Electronic sensitivity enhancement:
Auto (Up to 16x) / OFF (WV-SF135)
Auto (Up to 8x) / OFF (WV-SF132)
• 2x extra zoom at VGA resolution (WV-SF135)
• 2x, 4x digital zoom controlled by browser
• Selectable light control modes: Indoor scene (50 Hz) / Indoor scene
(60 Hz) / ELC (maximum exposure time)
Indoor scene (50 Hz/60Hz): Flicker caused by fluorescent lightning
will be automatically compensated.
ELC (maximum exposure time): The lightning control will be
automatically performed by adjusting shutter speed in the range of ELC.
• VMD (Video Motion Detection) with 4 programmable detection
areas, 15 steps sensitivity level and 10 steps detection size
• Face detection function detects the position of human face and the
information is sent by XML or video stream.
•
Meta data for VMD works with the WJ-ND400 playback VMD function.
• Privacy Zone can mask up to 2 private areas, such as house windows and entrances/exits.
• Camera title display: Up to 20 alphanumeric characters on the browser
• Alarm sources including VMD and Panasonic alarm command can
trigger actions such as FTP image transfer, E-mail notification,
Indication on browser, and Panasonic alarm protocol output.
• JPEG Image compression ratio can be changed by alarm so that
higher quality image can be provided.
•
Prioritized stream control: One of the video streams can be prioritized
when multiple recorders or client PCs are accessing the camera so
that the recorder or the client PC can maintain the frame rate.
• H.264 max. bit rate/client and Total bit rate control allows flexible
network traffic management. Frame rate priority mode controls bit
rate and compression ratio to provide the specified frame rate.
•
Internet mode: H.264 images can be transmitted over HTTP protocol.
• Multi-language: English / Italian / French / German / Spanish / Russian / Chinese / Japanese
• IPv4/IPv6 protocol supported
• Supports SSL, DDNS (viewnetcam, RFC2136)
• Still images (JPEG) can be viewed on mobile phones via Internet.
• Onvif compliant model
• Low profile design for discrete installation
• Wide coverage
WV-SF135 Horizontal: 104°, Vertical: 85°
WV-SF132 Horizontal: 68°, Vertical: 53°
(WV-SF135)
WV-SF135/WV-SF132 WV-SF135/WV-SF132
Front View
Standard Accessories
• Installation Guide ..........................1 pc.
• Important Safety Instructions ........1 pc.
• CD-ROM*1 .....................................1 pc.
• Code Label*2 .................................1 pc.
• Lens adjuster
.................................1 pc.
The followings are for installation.
• Installation Template Label ...........1 pc.
*1 The CD-ROM contains the operating instructions
and different kinds of tool software programs.
*2 This label may be required for network management.
The network administrator shall retain the code label.
Optional Accessories
Smoke Dome Cover
WV-CW6S

DISTRIBUTED BY:
Trademarks and registered trademarks
–
Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
– iPad, iPhone and iPod touch are registered trademarks of Apple Inc.
– ONVIF and the ONVIF logo are trademarks of ONVIF Inc.
– UniPhier is a registered trademark of Panasonic Corporation.
– "Super Dynamic", "SDII", "SDIII", "SD5", "SD5Link", "i-PRO" and "i-PRO SmartHD" logos are
trademarks or registered trademarks of Panasonic Corporation.
Important
–
Safety Precaution: carefully read the operating instructions and installation manual before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer products that
reside on the network.
• All TV pictures are simulated.
• Masses and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
• All product pictures are NTSC models.
http://panasonic.net/security/
http://www.facebook.com/PanasonicNetworkCamera
Printed in Japan (2A-078BL)
TV System NTSC PAL
Network Total Bit Rate
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
Supported Protocol Pv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,
FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP
FTP Client Alarm image transmission, FTP periodic transmission
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
Face Detection ON / OFF (with XML notification)
Cellular Phone Compatibility JPEG image, AUX control (by access level)
Mobile Terminal Compatibility iPad, iPhone, iPod touch
Alarm Alarm Source VMD, Command alarm
Alarm Actions E-mail notification,Indication on browser, FTP image transfer,
Panasonic protocol output
Alarm Log 1,000 logs
Schedule VMD
General Safety/EMC Standard
UL (UL60950-1), FCC (Part15 ClassA), CE, IEC60950-1
C-UL (CAN/CSA C22.2 No.60950-1), (EN55022 ClassB, EN55024)
DOC (ICES003 ClassA)
Power Source and PoE (IEEE802.3af compliant)
Power Consumption WV-SF135: PoE 48 V: 54 mA (Class1 device)
WV-SF132: PoE 48 V: 46 mA (Class1 device)
Ambient Operating Temperature 0 °C ~ +40 °C (32 °F ~ 104 °F)
Ambient Operating Humidity Less than 90 % (no condensation)
Dimensions ø100 mm x 47 mm (H) (ø3-15/16" x 1-27/32" (H))
Mass (approx.) 200 g (0.44 lbs.)
Finish Main Body: ABS resin, Sail White
Dome Section: Clear Polycarbonate Resin
TV System NTSC PAL
Camera Image Sensor WV-SF135: 1/3 type MOS image Sensor
WV-SF132: 1/5 type MOS image Sensor
Effective Pixels WV-SF135: Approx. 1.3 megapixels
WV-SF132: Approx. 0.32 megapixels
Scanning Mode Progressive scan
Scanning Area WV-SF135: 4.8 mm (H) x 3.6 mm (V) (3/16" (H) × 5/32" (V))
WV-SF132: 2.69 mm (H) x 2.01 mm (V) (1/8" (H) × 1/16" (V))
Minimum Illumination WV-SF135:
Color: 0.8 lx (F2.2, Auto slow shutter: Off (1/30 s), Gain: On (High))
0.05 lx (F2.2, Auto slow shutter: Max. 16/30 s, Gain: On (High))
BW: 0.6 lx (F2.2, Auto slow shutter: Off (1/30 s), Gain: On (High))
0.04 lx (F2.2, Auto slow shutter: Max. 16/30 s, Gain: On (High))
WV-SF132:
Color:
2.0 lx (F2.9, Auto slow shutter: Off (1/30 s), Gain: On (High))
0.3 lx (F2.9, Auto slow shutter: Max. 8/30 s, Gain: On (High))
BW: 1.3 lx (F2.9, Auto slow shutter: Off (1/30 s), Gain: On (High))
0.16 lx (F2.9, Auto slow shutter: Max. 8/30 s, Gain: On (High))
White Balance AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)
Light Control Mode Indoor scene (50 Hz / 60 Hz) / ELC
Shutter Speed 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500,
1/1,000, 1/2,000, 1/4,000, 1/8,000 (WV-SF132), 1/10,000 (WV-SF135)
Adaptive Black Stretch ON / OFF
AGC ON (LOW, MID, HIGH) / OFF
Electronic Sensitivity WV-SF135 : OFF (1/30) / AUTO (Max. 2x (2/30 s),
UP
4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s))
WV-SF132 : OFF (1/30) / AUTO (Max. 2x (2/30 s),
3x (3/30 s), 4x (4/30 s), 8x (8/30 s)
Day & Night (electrical) Auto / OFF
Digital Noise Reduction High / Low
Video Motion Detection ON / OFF, 4 areas available
Privacy Zone ON / OFF (up to 2 zones available)
VIQS ON / OFF
Camera Title (OSD)
Up to 20 characters (alphanumeric characters, marks), ON / OFF
Lens Vari Focal Length 1.95 mm
Zoom Ratio WV-SF135: 1x Extra Zoom: 2x (at VGA resolution)
WV-SF132: 1x
Angular Field of View WV-SF135: Horizontal: 104 °, Vertical: 85 °
WV-SF132: Horizontal: 68 °,Vertical: 53 °
Maximum Aperture Ratio 1 : 2.2 (WV-SF135) 1:2.9 (WV-SF132)
Focusing Range 0.5 m ~ ∞
Adjusting Angle
Ceiling Installation Horizontal : -20 ° to +20 ° Vertical: -20 ° to +90 °
Wall Installation Horizontal : -80 ° to +80 ° Vertical: -90 ° to +20 °
Browser Camera Control Brightness
GUI Display Mode
Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad
screens or 16 split screen (JPEG only). 20 characters camera title available.
Digital Zoom 1x, 2x, 4x controlled by browser GUI
Camera Title Up to 20 alphanumeric characters
Clock Display
Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)
One Shot Capture A still picture will be displayed on a newly opened window.
GUI/Setup Menu Language English, Italian, French, German, Spanish, Russian, Chinese, Japanese
System Log Up to 100
Supported OS *2 *3 Microsoft®Windows®7, Microsoft®Windows Vista®
Microsoft®Windows®XP SP3
Supported Browser Windows® Internet Explorer®9.0 (32 bit),
Windows® Internet Explorer®8.0 (32 bit),
Windows® Internet Explorer®7.0 (32 bit),
Microsoft® Internet Explorer®6.0 SP3
Network Network IF 10Base-T / 100Base-TX, RJ-45 connector
Aspect ratio: WV-SF135:
Resolution [4 : 3] H.264: 1,280 x 960 / VGA (640 x 480) / QVGA (320 x 240), up to 30 fps
JPEG: 1,280 x 960 / VGA (640 x 480) /QVGA (320 x 240), up to 30 fps
WV-SF132:
H.264: VGA (640 x 480) / QVGA (320 x 240), up to 30 fps
JPEG: VGA (640 x 480) / QVGA (320 x 240), up to 30 fps
Aspect ratio: WV-SF135:
[16 : 9] H.264: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
JPEG: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
WV-SF132:
H.264: 640 x 360 / 320 x 180, up to 30 fps
JPEG: 640 x 360 / 320 x 180, up to 30 fps
H.264 *1
Transmission Constant bitrate / Framerate priority / Best effort
Mode
Frame Rate
1 / 3 / 5 / 7.5 / 10 / 15 / 20 / 30 fps 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps
Bit Rate/ 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 /
Client 4,096 / 8,192* kbps *H.264 mode only (WV-SF135)
Image Quality LOW / NORMAL / FINE
Transmission UNICAST / MULTICAST
Type
JPEG *1 Image 0 SUPER FINE / 1 FINE / 2 / 3 / 4 / 5 NORMAL / 6 / 7 / 8 / 9
Quality LOW (10 steps: 0-9)
Refresh Interval 0.1 fps ~ 30 fps
Transmission PULL / PUSH
Type
*1 Transmission for 2 streams can be individually set in the same compression method.
*2 Refer to "Notes on Windows Vista®/ Windows®7" on the provided CD-ROM for further information
about system requirements for a PC and precautions when using Microsoft®Windows®7 or
Microsoft®Windows Vista®.
*3 When using IPv6 for communication, use Microsoft Windows 7 or Microsoft Windows Vista.

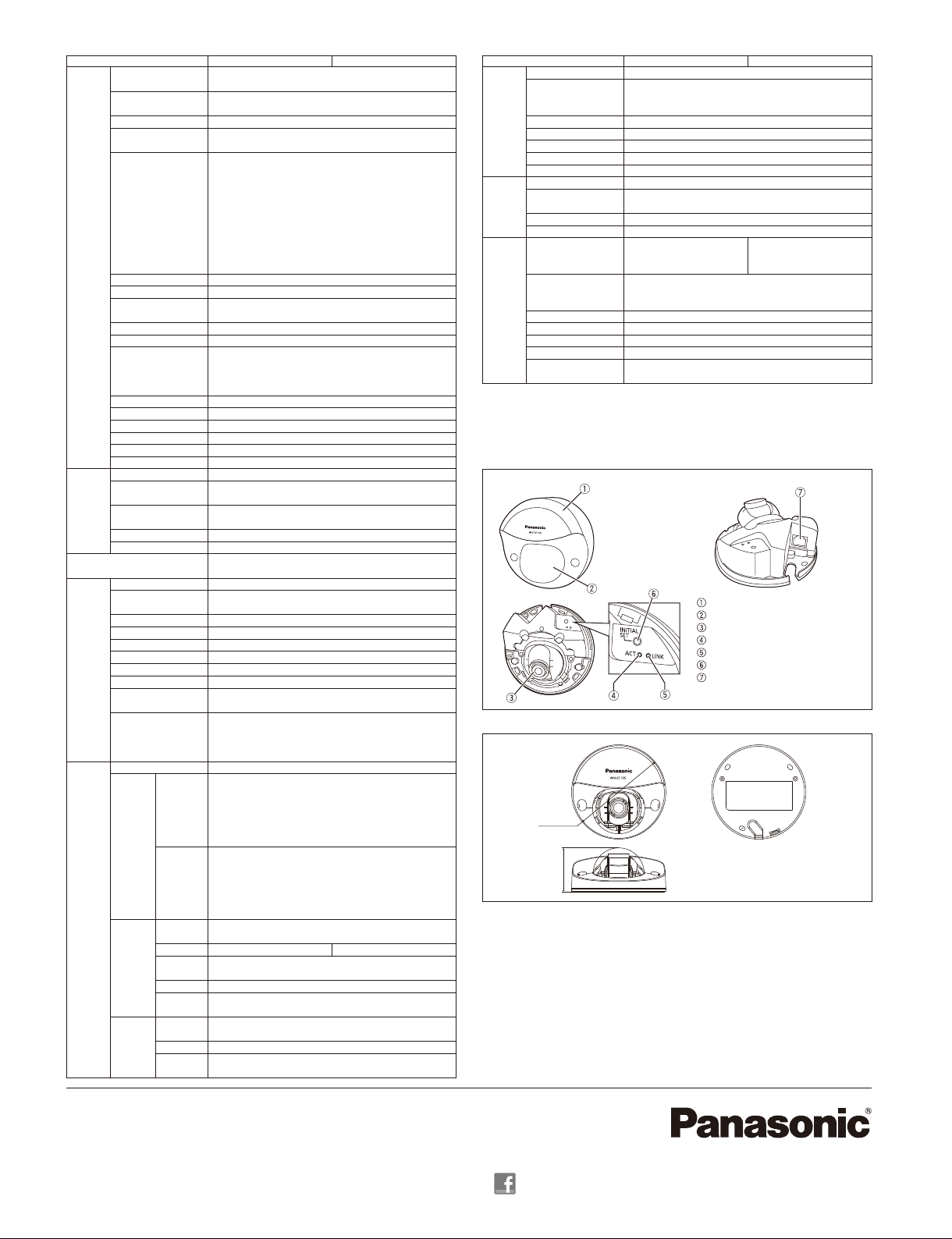

Specifications
Unit: mm (inches)
* These illustrations are WV-SF135.
Appearance
Part Names and Functions
Enclosure
Dome Cover
Lens
Access Indicator (lit when accessing)
Link Indicator (lit when linking)
Initial Set Button
Network Connector
Front View Rear View
ø 100
(3-15/16
")
47
( 1-27/32
")
