Panda PAN206ET User manual

1300W
Set the Program correctly
Program does not
work
Is the Program in the OFF position?
Is the Program in correctly set on cold
air?
program
Model:PAN206ET
Household Use Only
Panda Tumble Dryer
PAN206ET 13.2lbs
59.4lbs 23 ½ x 20 x 27 inch
120V/60Hz
inch

IMPORTANT SAFETY INSTRUCTIONS
WARNING – To reduce the risk of fire, electric shock, or injury to persons when
using your appliance, follow basic precautions, including the following:
1) Read all instructions before using the appliance.
2) Do not dry articles that have been previously cleaned in, washed in, soaked
in, or spotted
with gasoline, dry-cleaning solvents, or other flammable or explosive substanc-
es, as they give off vapours that could ignite or explode.
3) Do not allow children to play on or in the appliance. Close supervision of
children is necessary when the appliance is used near children.
4) Before the appliance is removed from service or discarded, remove the door
to the drying compartment.
5) Do not reach into the appliance if the drum is moving.
6) Do not install or store this appliance where it will be exposed to the weather.
7) Do not tamper with controls.
8) Do not repair or replace any part of the appliance or attempt any servicing
unless specifically recommended in the user-maintenance instructions or in
published user-repair instructions that you understand and have the skills to
carry out.
9) Do not use fabric softeners or products to eliminate static unless recommend-
ed by the manufacturer of the fabric softener or product.
10) Do not use heat to dry articles containing foam rubber or similarly textured
rubber-like materials.

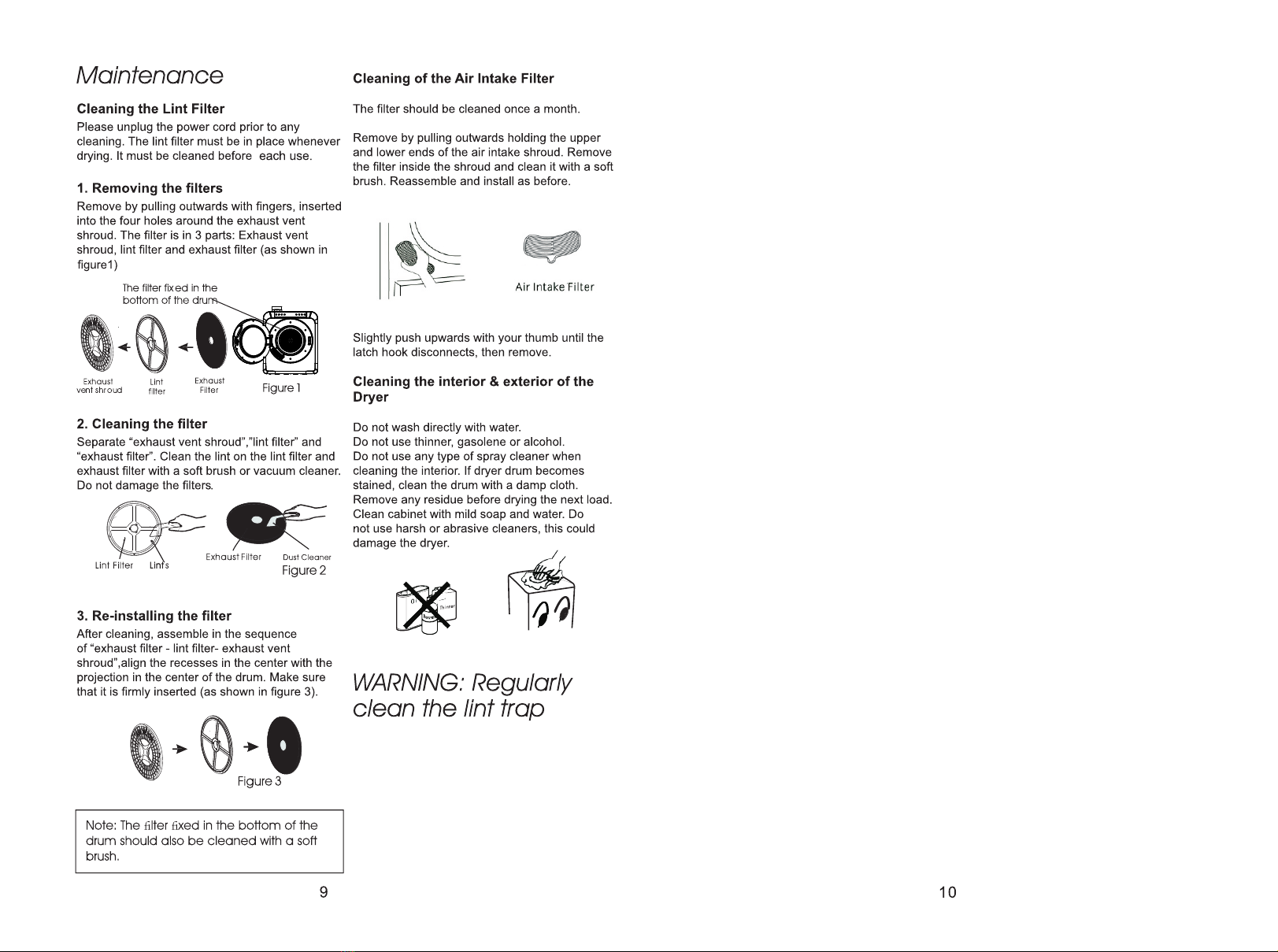

11) Clean lint screen before or after each load.
12) Keep area around the exhaust opening and adjacent surrounding areas free
from the accumulation of lint, dust, and dirt.
13) The interior of the appliance and exhaust duct should be cleaned periodically
by qualified service personnel.
14) Do not place items exposed to cooking oils in your dryer. Items contaminat-
ed with cooking oils may contribute to a chemical reaction that could cause a
load to catch fire.
15) To reduce the risk of fire due to contaminated loads, the final part of a tumble
dryer cycle occurs without heat (cool down period). Avoid stopping a tumble
dryer before the end of the drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
16) Do not install a clothes dryer with flexible plastic venting materials. If
flexible metal (foil type) duct is installed, it must be of a specific type identified
by the appliance manufacturer as suitable for use with clothes dryers. Flexible
venting materials are known to collapse, be easily crushed, and trap lint. These
conditions will obstruct clothes dryer airflow and increase the risk of fire.
17) To reduce the risk of severe injury or death, follow all installation instruc-
tions.
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or breakdown,
grounding will reduce the risk of electric shock by providing a path of least
resistance for electric current. This appliance is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
WARNING – Improper connection of the equipment-grounding conductor can
result in a risk of electric shock. Check with a qualified electrician or service
representative or personnel if you are in doubt as to whether the appliance is
properly grounded.
Do not modify the plug provided with the appliance: if it will not fit the outlet,
have a proper outlet installed by a qualified electrician.
2

Control Panel
ogram aase Guard Start/Pause
Cabinet
Bulky Smart Time
Temper ature
Airing
Med
High
CleaningSterilization Crease Guard Lock
Wrinkle Guard Preset PowerStart/Pause
9
10 8 7 6 5 11 234 1
110A
13.2lbs

R
5
emove all objects from pockets such
as lighters and matches.
Program Clothings type
Max dry time
Maxvolume ofdry
clothings
Bulky Jeans,Cotton clothes,Sheet
Smart
1hour
8.8-13.2 lbs
3.5 lbs
4.4 lbs
150min
47min
60min
Cotton clothes
Cotton clothes,Sheet
1. Power
2. Start/Pause
3. Preset: Press "Preset" repeatedly to choose preset time from 1H, 2H, 4H and 8H, then press "Start/Pause" to
start program, the preset time shown in display window will countdown by minute.
4. Wrinkle Guard: Press "Wrinkle Guard", the wrinkle guard indicator will light up and the dryer will reverse the
rotation direction at the end of this drying cycle to improve drying efficiency. Press and hold "Wrinkle Guard" and
"Preset" simultaneously for 3 seconds to lock the control panel while the dryer is operating. Press and hold both
buttons at the same time for 3 seconds to unlock the setting.
5.Time Display: Estimated time remaining.
6. Temperature Indicator
7. Temp: Press "Temp" to choose temperature among High (high temperature), Med (medium temperature) and
Air (air dry)
8. Time: Press "Time" repeatedly to choose drying time from 30 minutes, 1 hour, 1 hour and 30 minutes, 2 hours.
9. Smart: For lightweight items weight less than 3.5lbs. Default drying time is 47 minutes.
10. Bulky: For jackets, jeans, comforters and heavyweight items. Total loaded weight does not exceed 13lbs.
11. Close Door indicator: This indicator will light up when the front door is open.
Cleaning indicator: This indicator will light up to remind to clean the lint filter.
Wrinkle Guard indicator: This indicator shows "Wrinkle Guard" function is selected.
Lock indicator: This indicator shows the control panel has been locked.

Operating guide
In standby state,confirm the normal state
is ok
Open the door and put clothes in drum,
the clothes weight should not exceed
rated drying capacity for appropriate
Close the door and check if these is
clothes to be pinned by door
Select program, according to actual need
to choose the drying time / program
Push start/pause button on the door and
dryer start working
Dryer stop work after one or two minutes,
take out the dryed clothes
