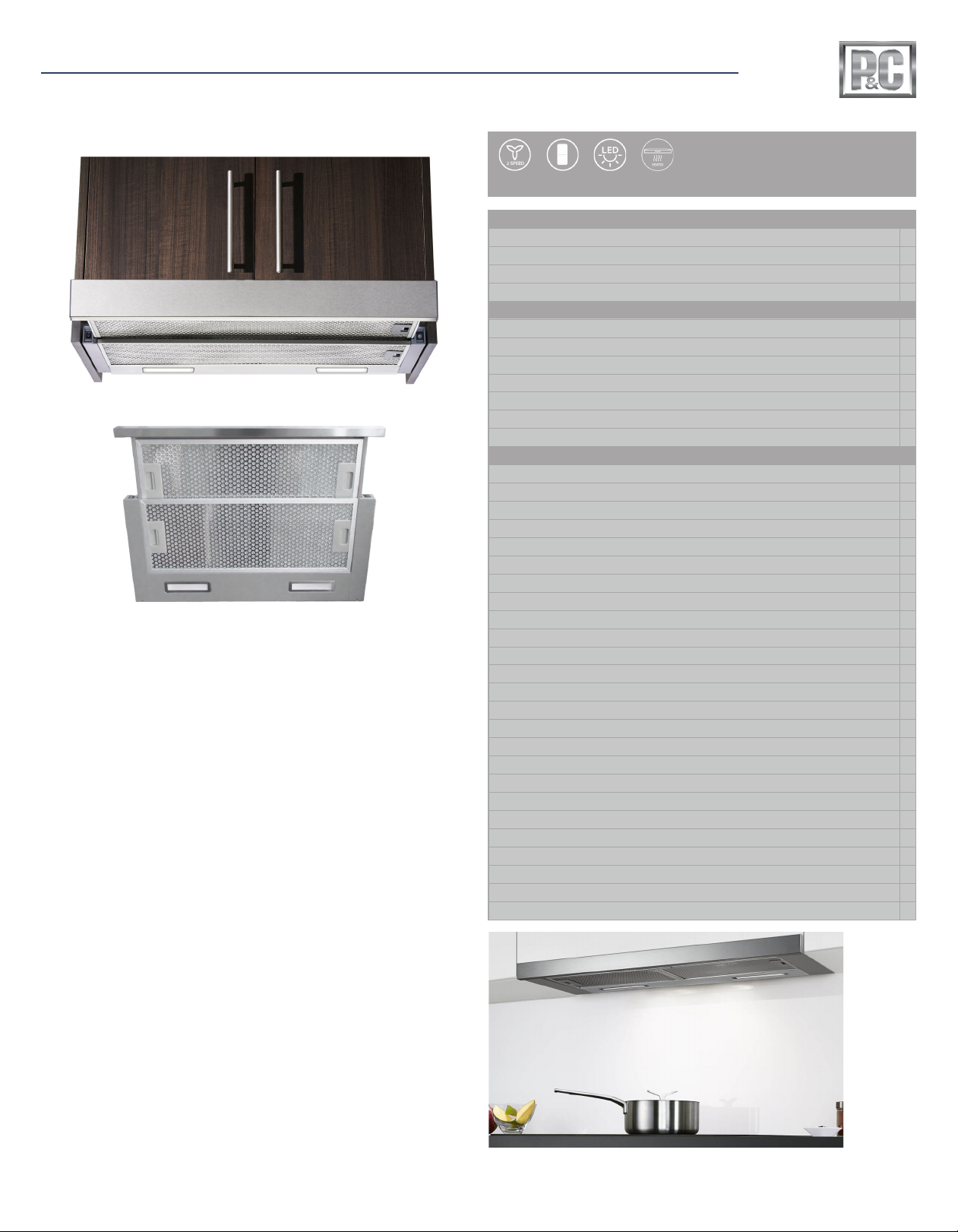

GLIDE-24-2
24” Built-In Glide-Out Range Hood
Features & Benefits
Under Cabinet Glide Out Hood
Two Speed Fan
Removable Honeycomb Filters
Rocker Switch Controls
LED Light Strips
Powder Coating Gray and Stainless Steel Finish
Hidden hood built over the cooktop, this discrete hood is only visible
when in use. It can be smoothly pulled out to activate the extractor
while cooking, and pushed back into place when idle, oering a classic
way to finish your kitchen.
High and low setting to allow proper ventilation of your kitchen as
needed.
Easy installation and detaching allows you to properly clean the filters
for optimum eciency.
Front-located on/o and high/low switches make it easy to manage the
light and fan.
Includes two LED strips to help illuminate your cooking surface, in-
crease visibility, and are more energy ecient.
Durable construction in an attractive style with a stainless steel handle
that can be replaced with matching cabinetry.
GENERAL PROPERTIES
Glide/Slide-Out Hood
Ducted Venting
Stainless steel handle (can be replaced)
LED lighting
Two-speed adjustment
Two dishwasher safe honeycomb filters
Rocker switch controls
Quiet (65dBa) 300 CFM motor
6” Duct adapter included
Product dimensions in inch (W/H/D)
2317/32“ / 85/16” / 11 1/16”
598mm / 211mm / 281mm
Cut Out dimensions in inch (W/H/D)
min. 235/8”-max. 24” / 85/16”/ min. 12“
min. 600mm - max. 610mm / 211mm / 305mm
Handle replacement dimensions in inch (W/H)
Weight
Electrical Requirements
Width: 2317/32” (598mm)
Net Weight: 7.1kg (15 lbs.)
Gross Weight: 8.2kg (18 lbs.)
Voltage (V): 110/120 V
Frequency (Hz): 60 Hz
*Supplied with a Canadian plug and 1m long cord.
Height: 121/32” (42mm)
TECHNICAL DETAILS
FEATURES
Two Fan
Speeds
Rocker
Switches
LED
Lighting
Vented

PRODUCT DIMENSIONS (INCH/MM)
RECOMMENDED CABINET MINIMUM CLEARANCE
CUT-OUT DIMENSIONS (INCH/MM)
Width: 2317/32” / Height: 85/16” / Depth: 111/16”
Width: 598mm / Height: 211mm / Depth: 281mm
Width: min.235/8” / Height: 85/16” / Depth: min. 12”
Width: min. 600mm / Height: 211mm / Depth: 305mm
Notes: Porter & Charles reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Warranties: Please see the Use & Care manual or Porter & Charles website for a statement of limited
warranty. For more information on our entire line of products, go to www.porterandcharles.ca or call 905.829.3980 © Porter & Charles. All rights reserved. 2
GLIDE-24-2
Installation Details
Cabinet Preparation for Hood Support
• The range hood should be mounted at a minimum distance of 24”
from an electric or induction cooktop, and a minimum distance of
30” above a gas cooktop for safety and optimum performance.
• To install the hood with a duct, you will need to provide a hole for
the duct.
• Please use the template provided to correctly place the hole.
• Use the diagram below for correct placement of ductwork and
electrical cut-out in cabinets.
For optimal performance, the distance from
the cooking surface to the bottom of the
range hood should be between 24” and
30”, unless otherwise noted. DO NOT install
a range hood less than 24” above cooking
surface.
*Minimum. 24” clearance space must be
present between an electric or induction
cook-top and the range hood, 30” min
clearance is required above gas cook-tops.
