Pandigital PANTV1512 User manual

Kitchen Technology Center
User Guide

Table of Contents
Welcome Message
Important Safety Precautions
Cleaning the Kitchen Technology Center
Safety Instructions
Important Information
Television Antenna Connection Protection
Introduction
What's In the Box
Installation
Attaching the TV Stand
Preparation For Under Cabinet Mounting
Setting Up the Kitchen Technology Center
Power Button
Side Control Buttons
Input Connectors
Using the KTC Remote Control
Installing Batteries on the Remote Control
Connecting Power to the TV
Connection Suggestions
If You Have Digital Cable without Cable Box or Antenna
Connecting DVD Player with Component YPbPr
Connecting DVD player with S-Video
Connecting DVD player with Composite
Connecting Cable or Satellite Boxes with HDMI
Connecting to a PC with VGA and 3.5 mm Minijack
Ready to Watch Some TV?
Tuner Setup
OSD (On Screen Display) Menu Controls
Via Remote Control
Via TV Side Panel Buttons
OSD Menu Options
Video Option
Audio Option
Time Option
Setup Option
Lock Option
TV Option
Detailed Explanations
Aspect Ratio Explained
Rating Explained
Shortcuts to Browsing Channels
Table of Contents
1
1
4
4
4
6
7
7
8
8
8
9
10
11
11
11
12
12
13
14
14
14
15
16
16
17
17
18
18
19
19
20
20
20
21
22
22
23
24
25
25
26
27

Preset Modes Explained
Using the KTC PanTouch and Remote Control
Using the Kitchen Technology Center's Screens
Displaying Cookbooks and Favorite Recipes
Display Photos and Slideshows
Starting and Customizing Slideshows
Connecting Speakers to the Photo Frame
Watching a Video
Photo Copy Method Options
Folder Menu and Options
Copying Photos from a Memory Card to Internal Memory
Deleting Photos from the Built-in Memory
Bluetooth Setting
Setting Viewing Options
Displaying a Clock with a Calendar and a Slideshow
Internet Photo
Copying Files from a Computer or Flash Drive
PanTouch Digital Picture Frame Setup Menu
Changing the Decorative Faceplates
Specification
Troubleshooting
Frequently Asked KTC Questions
Limited Warranty
FCC Statement
Connecting to Your PC via WiFi Pandigital DPF Manager
32
28
29
30
31
35
36
37
37
38
38
39
40
41
42
42
42
44
45
46
46
47
48
50
50
51

Welcome Message
Congratulations on yournew Kitchen Technology Center (KTC) High Definition LCDTelevision purchase.
Thank you foryour support. To ensure safety and many years of trouble free operation of your TV, please
read the manualcarefully before makingany adjustments, andkeep them ina safe placefor future
reference. We hope you enjoy your new Kitchen Technology Center.
We recommend you register your KTC HDTV with the enclosedregistration card andmail it in. For peace of
mind and toprotect your investmentbeyond the standardwarranty, offers a two year extendedwarranty
service for yourTV. This plan gives additional coverage once your standard warranty period runs out.
Important Safety Precautions
Always follow thesebasic safety precautions when using your Kitchen Technology Center (KTC)product.
This product hasbeen engineered and manufactured with the highest priority on safety. However,
improper use canresult in electricshock and / or fire. In order to prevent potential danger, please observe
the following instructionswhen installing, operating and cleaning the product. To ensure yoursafety and
prolong the servicelife of yourLiquid Crystal Television, please read the following precautions carefully
before using theproduct.
Electricity is usedto perform manyuseful functions, but it can also cause personal injuries and property
damage if improperly handled.
Warning: Do not expose this product to rain or moisture.
Warning: Do not remove the cover. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such as power-supply cord or plug
is damaged, liquidhas been spilledor objects havefallen into theapparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
The KTC is for indoor use only.
Unplug the KTC before performing care and maintenance.
Do not blockthe ventilation holeson the backof the KTC at any time.
Do not installnear any heatsources such asradiators, heat registers,stoves, or otherapparatus
(including amplifiers) thatproduce heat.
Keep your MultimediaKTC out of direct sunlight and heat sources.
Protect the power cord. Route power cords so that they are not likely to be walked on or pinched by
Items placed onor against them.Pay particular attentionto the pointwhere the cordattaches to the
KTC.
Only use theAC adapterincluded with theKTC. Using anyother power adapterwill void yourwarranty.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade and the third prong are provided for your safety. If the provided plugdoes not
fit into youroutlet, consult anelectrician for replacementof the obsoleteoutlet.
Protect the power cord from being walked on or pinched particularly at the plugs, convenience
receptacles, and the point where they exit from the apparatus
Only use attachments/accessoriesspecified by themanufacturer.
Use only withthe cart, stand,tripod, bracket, ortable specified bythe manufacturer,or sold withthe
apparatus. When acart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
Unplug the power cord from the outlet when the unit is not in use.
Cleaning the Kitchen Technology Center
1. The power cable has to be removed from the socket before cleaning the TV.
2. Do not usevolatile solvent (alcohol,rosin, and toluene)to clean theTV. These types of chemicals
might damage thehousing and the LCD glass.
Cleaning the bezeland remote control
1. Use a 100% cotton cloth or micro-fiber cloth for cleaning.
2. If the remotecontrol or bezelis dirty tothe point whereyou cannot simply dry wipe it, please lightly
dampen the wipingmaterial with clean water and wipe again. Wipe thedisplay with a dry micro-fiber
cloth or 100%cotton cloth afterwards.
Please Note:
Make sure youwring the waterout of the cloth beforecleaning the bezelor remote inorder to prevent
water from penetrating into theelectronics.
Cleaning the Screen
Treat the screen gently, it is made of glass and can break easily. To clean fingerprintsor dusts fromthe LCD
screen, we recommendusing a soft,non-abrasive cloth such as a camera lens cloth to clean the LCD
screen. If youuse a commercialLCD Cleaning Kit, do not apply the cleaning liquid directly to the LCD
screen. Clean the LCD screen with cleaning cloth moistened with the liquid.
5
4

Safety Instructions
This product isdesigned and manufacturedto operate withindefined design limits,and misuse may result in electric
shock or fire.To prevent the product from beingdamaged, the followingrules should beobserved for theinstallation, use
and maintenance ofthe product. Readthe following safetyinstructions before operatingthe display. Keep these
instructions in asafe place forfuture reference.
Important Information
Television Antenna Connection Protection
External Television Antenna Grounding
If an outsideantenna or cablesystem is tobe connected tothe LCD TV,make sure thatthe antenna orcable system is
electrically grounded toprovide some protectionagainst voltage surgesand static charges.Article 810 of the National
Electrical Code,ANSI/NFPSA 70,provides information withregard to propergrounding of the mast and supporting
structure, grounding ofthe lead-in wireto an antennadischarge unit, sizeof the grounding conductors, location of
antenna discharge unit,connection to groundingelectrodes, and requirementsof the groundingelectrode.
Lightning Protection
For added protectionof the LCDTV duringa lightning stormor when itis left unattendedor unused forlong periods of
time, unplug theLCD TV from the walloutlet and disconnect the antenna or cable system.
Power Lines
Do not locatethe antenna near overhead light or power circuits, or where it could fall into such power lines or circuits.
7
6
Only the markedpower source can be used forthe
product. Anypower source other than the specifiedone
may cause fireor electric shock.
Do not touchthe power cord during thunderstorms. To
avoid electric shock,avoid handling the power cord
during electrical storms.
Unplug the unitduring a lightning storm or whenit will not
be used fora long period of time. Thiswill protect the KTC
LCD TV fromdamage due to power surges.
Do not attemptto repair or service the productyourself.
Opening or removingthe back cover may expose youto
high voltages, therisk of electric shock, and other
hazards. If repairis required, please contact your dealer
and refer allservicing to qualified service personnel.
Keep the productaway from moisture. Do not exposethis
appliance to rainor moisture. If water penetrates intothe
product, unplug thepower cord and contact your dealer.
Continuous use inthis case may result in fireor electric
shock.
Do not usethe product if any abnormality occurs.If any
smoke or odorbecomes apparent, unplug the power cord
and contact yourdealer immediately. Do not try to repair
the product yourself.
Avoid using droppedor damaged appliances. If the
product is droppedand the housing is damaged, the
internal components mayfunction abnormally. Unplug
the power cordimmediately and contact your dealer for
repair. Continueduse of the product may causefire or
electric shock.
Do not installthe product in an area withheavy dust or
high humidity.Operating the product in environments
with heavy dustor high humidity may cause fireor
electric shock.
Hold the powerconnector when removing the power
cable. Pulling thepower cable itself may damage the
wires inside thecable and cause fire or electricshocks.
When the productwill not be used for anextended period
of time, unplugthe power connector.
Toavoid risk of electric shock, donot touch the connector
with wet hands.
Insert batteries inaccordance with instructions while
using the remotecontrol. Incorrect polarities may cause
damage and leakageof the batteries, operator injury and
contamination the remotecontrol.
If any ofthe following occurs please contact thedealer:
oThe power connectorfails or frays.
oLiquid sprays orany object drops into the
KTC LCD TV.
oThe Display isexposed to rain or other
moisture.
oThe Display isdropped or damaged in
any way.
oThe performance ofthe Display changes
substantially.
Operating environment: Temperature: 5 C~ 35 C,
Humidity: 10% to90% non-condensing, Altitude:
0~10,000 ft.
Toavoid the risk of electric shockor component damage,
switch off thepower before connecting other components
to the KTC(PANTV1512) LCD TV.
Unplug the powercord before cleaning the KTC LCDTV.
Please use theincluded custom bezel cleaning cloth for
cleaning the bezelof the KTC LCD TV only. Do notuse a
liquid or aspray cleaner for cleaning the product.Do not
use abrasive cleaners.
Always use theaccessories recommended by the
manufacturer to insurecompatibility.
When moving theKTC LCD TV from an area of low
temperature to anarea of high temperature,
condensation may formon the housing. Do not turnon the
KTC LCD TVimmediately after this to avoid causing fire,
electric shock orcomponent damage.
Do not placethe KTC LCD TV on anunstable cart, stand,
or table. Ifthe KTC LCD TV falls, itcan injure a person
and cause seriousdamage to the appliance. Use onlya
cart or standrecommended by the manufacturer or sold
with the KTCLCD TV.
Any heat sourceshould maintain a distance of atleast 5
feet away fromthe KTC LCD TV,i.e. radiator, heater,
oven, amplifier etc.Do not install the product tooclose to
anything that producessmoke or moisture. Operating the
product close tosmoke or moisture may cause fireor
electric shock.
Slots and openingsin the back and bottom ofthe cabinet
are provided forventilation. To ensure reliable operation
of the KTCLCD TV and to protect it from overheating, be
sure these openingsare not blocked or covered. Donot
place the KTCLCD TV in a bookcase or cabinet unless
proper ventilation isprovided.
Never push anyobject into the ventilation slots ofthe
KTC LCD TV. Do notplace any objects on the top of the
Product. It couldshort circuit parts causing a fireor
electric shock. Neverspill liquids on the KTC LCDTV.
Do not usethe KTC LCD TV in aportrait format (by
rotating 90 degrees)under high temperature environment
(25 C orhigher), since this would retard heatdissipation
and would eventuallydamage the TV.
The KTC LCDTV should be operated only from the type of
power source indicatedon the label. If you arenot sure of
the type ofpower supplied to your home, consultyour
dealer or localpower company.
The power cablemust be replaced when using different
voltage from thatspecified in the User Manual. Formore
information, contact yourdealer.
The KTC LCDTV is equipped with a three-pronged
grounded plug, aplug with a third (grounding) pin.This
plug will fitonly into a grounded power outletas a safety
feature. If youroutlet does not accommodate the three-
wire plug, havean electrician install the correct outlet,or
use an adapterto ground the appliance safely.Do not
defeat the safetypurpose of the grounded plug.
Do not overloadpower strips and extension cords.
Overloading can resultin fire or electric shock.
The wall socketshould be installed near the equipment
and should beeasily accessible.

Attaching the TV Stand
1. Please place the stand on a flat surface (i.e. Table).
2. Hold the TV directly 90 degrees above the stand.
3. Connect the TV to the stand by inserting the TV into the stand.
Introduction
Welcome to the Pandigital Internet Multimedia Kitchen TechnologyCenter! Now you can access your
favorite Recipes, Cookbooksand other RSSinformation from Internet, watch your favorite TV shows, or
display your digitalphotos directly fromyour memory card,no computer is necessary. Simply insert a
memory card intothe Kitchen Technology Center, and turn on the power.You'llbe treated toa slideshow of
your photos. It'sas easy as that. You can also display delicious recipes, individual photos, watch TV
programs, play video clips, and play background music with your slide show.
The Kitchen Technology Center includes these key features:
Displays TV programs, Videos from DVD, SatelliteSet-top box, or Cable box with HDTV tuner.
Displays digital recipecards, digital photos,plays music filesand digital videoswithout a computer;
simply insert a compatible memory card into the digital frame. Memory card is not included and
supported file types are described below.
Computer VGAmonitor display can be connected to your notebook
Displays Slideshows ofDigital Photos withbackground music.
TM TM TM
Compatible memory cardsinclude Secure Digital , MultiMedia Card , xD Card, Compact Flash
TM TM TM
Memory Stick , MemoryStick Pro , and Memory Stick Pro Duo .
Supported file types: JPEG images (up to 16 Mega Pixels), Most popular video format, and MP3 music
files.
Control the mainfunctions with PanTouch on theframe or with the included infrared remote control.
Bright TFT active matrix LCD screen.
USB2.0 high-speed connection to connect to your PC.
USB2.0 (Host) for connecting to your digital camera.
Built-In Flash Memory.
Tolearn more aboutyour new Kitchen Technology Center's featuresand take full advantage of them,
please take a few minutes to read this Guide.
What's In the Box
Kitchen Technology Center (KTCLCD TV Display)
TV Stand
AC Power Cord and Adapter
This User's Guide,Quick Start Guide and Warranty / Registration Card
Remote Control (AAA batteries included)
Video Cable (Yellow, Red, and White Connectors)
Wall Mount Kit
Mylar Decorative Sheets(White, Black, andSilver)
Installation
Please read theuser manual carefully before performing the installation. The power consumption of the
display is approximately50 watts. Please use the power cord designated for the product. When an
extension cord isrequired, use onewith the correct power rating. The cord must be grounded and the
grounding feature mustnot be defeated.The product should be installed on a flat surface to avoid tipping.
Space should bemaintained between the back of the product and the wall for proper ventilation. If you
would like tomount the TV onto the wall or kitchen under cabinet, please see page 10 for additional
information. Please ensurethe product is installed with the screen in landscape orientation. Any 90
clockwise or counterclockwise installation may induce poor ventilation and successive component damage.
9
8

Preparation For Under Cabinet Mounting
1. Place the KTC on a flat surface with cloth so the bezel does not get scratched. Unscrew the 3 screws
that lock the stand to the monitor.
2. Once the 3 screws are removed, the stand will come off.
3. The is ready for mounting.
4. If you would like to mount the under a kitchen cabinet, please use the bundled Wall Mount Kit and
refer to theInstallation and assembly instruction that came with Wall Mount Kit.
KTC
KTC
11
10
Setting Up the Kitchen Technology Center
The Kitchen Technology Center is easy to set up. Just follow these steps:
1. Plug the AC power adapter into the Kitchen Technology Center and into a wall outlet.
2. Press the POWER button or remote POWER button, then you can enjoy the KTC now.
Power Button
The power button is located in the middle of the speaker bar, on the bottom of the screen. The power button
also has anindicator light that turns red when the TV is in theoff state and turns bluewith the TV is on
The remote controlsensor is also located in the power button.
Side Control Buttons
The following descriptions are for side control buttons from top to bottom.
1. SOURCE This button displays all the different sources of the TV. The sequence is shown asfollows:
TV,AV, S-Video, Component, DPF(KTC), HDMI, and PC. Use CH(+)/CH(-) scroll up and down then
press ENTER to confirm.
2. VOL (+) This button increases the TV's volume. If the OSD menu is active, pressing this button will
move the selectionto the right.
3. VOL (-) This button decreases the TV's volume. If the OSD menu is active, pressing this button will
move the selectionto the left.
4. CH (+) This button changes the TV channel downward. If the OSD menu is active, this button functions
as up control for the menu.
5. CH (-) This button changes the TV channel upward. If the OSD menu is active, this button functions as
control for the menu.
6. MENU This button activates the On Screen Display (OSD) menu. If a sub-menu is active, pressing this
button will return selection to the previous menu level.
7. Enter Select or confirm an action.
8. Exit Exit the TV menu.
down

The following descriptions are for connections from left to right.
1. YPbPr This connection portis for DVD players, orsatellite / cable set-top boxes that use
component cables. Fromright to left, connect green, blue, andred for video, and thenconnect
white for left channel audio, and red for right channel audio.
2. TV This connection isfor digital oranalog cable withoutthe cable boxor over-the-air wave
antennas. The tuner is a hybrid tuner that tunes to both analog and digital channels. This
connection uses coaxialRF cable. For over-the airwave digital stations please check
http://www.antennaweb.org.
3. AV Composite connects to devices that use composite video cables such as VCR or camcorder
or video gameconsoles. The S-Video connector is associated withAV's video. Please connect
the video portionwith either theyellow connector orthe S-Video connector. Do NOT connect
both video connectors at the same time, because the audio connection is shared.
4. VGA - This connection port connects to a PC for video using VGAcable. Be sure to connect your
audio cable to the VGA Stereo input if you want sound out of VGA video source.
5. VGA STEREO INPUT - This connection port is for people who want to provide audio to the TV
when using aPC. The sources use 3.5mm mini-jack audio cable to provide audio for PCs with
VGA connection.
6. HDMI HDMI connects to devices that use HDMI cable, such as Blu-ray or HD DVD player, or HD
cable / satelliteset-top box. This connection port receives pure digital audio and high definition
signal through one single cable. This port also can accept a HDCP video device for video.
7. DC - This connection is forproviding electricity to the TV. This connection connects to an AC
power adapter which connects to the AC power source.
Please Note:
This TV features a power saving function which will turn off the TV automatically after5 minutes of
idling on a connection with no signal. This feature is present on all connection.
Using the KTC Remote Control
You can use all of the Kitchen Technology Center's (KTC) features with either the side buttons or using the
remote control.
The remote controlis basically divided into two areas. The top half of theremote controls the TV functions
and the bottomhalf controls thedigital photo frame functions.
-
-
-
-
Input Connectors
Installing Batteries on the Remote Control
Remove the batterycover and Inserttwo AAAbatteries into the remote control. Make sure thatyou match
the (+) and(-) symbols onthe batteries with the (+) and (-) symbols inside the battery compartment and re-
attach the battery cover.
1. POWER - Turns theTV on or off.
2. 0~9 Sets the channels.
3. Dash (-) Inserts the dash for selecting
digital channels directly.
4. MUTE Mutes the TV's audio.
-
-
-
5. CH(+)/ CH(-)/ VOL(-)/ VOL(+) Selects and
moves the item on screen. CH(+) / CH(-) also
functions as channel up and down. VOL(-)/
VOL(+) also functions as volume up and
down.
On KTC source CH(+) / CH(-) also functions
as photo Select and Unselect.
6. EXIT Exits the TV menu.
7. EXIT Exits the DPF menu or return to the
previous screen or cancel the current
operation.
8. / / / On DPF source, moves the item
or menu highlightup, down, to the left or to
the right.
9. ZOOM On DPF source, zoom the current
view of the photo. In the zooming state,
left/right and up/down keys are used for
panning and tilting of the photo
10. ROTATE On DPF source, rotate picture by
90 degrees
11. SLEEP Reserved (Not currently used)
12. FAV.CH Display your favorite channel list
13. CC Cycles between different closed
captioning modes.
14. MTS Selects stereo, mono, or second audio
programming.
15. SOURCE Display the different inputs of the
TV. Use CH(+)/CH(-) scroll up and down then
press ENTER to confirm.
16. RETURN Returns to the previous channel.
17. MENU Opens / Exits the TV menu.
18. ENTER OSD menu and changing channels
in conjunction withnumber buttons.
19. DISPLAY Indicate input information, such
as resolution, vertical refresh rate and
channels
20. SETUP Display the on-screen setup menu
screens, active in DPF Mode only
21. ENTER Select or confirman action, active
in DPF Mode only
22. SLIDE SHOW Slide show the stored photos,
active in DPF Mode only
23. FUNCTION KEY. F1 /F2 / F3 Reserved
(Not currently used)
24. S.MODE Change sound effect -
Standard/music/movie/speech/custom
25. P.MODE Change picture effect -
Custom/standard/vivid/mild
26. EPG Display Electronic Program Guide
27. ASPECT Selects different screen size.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
13
12

Please Note:
Only useAAA batteries.
Do not mix new and old batteries. This may result in cracking or leakage that may pose a fire risk or
lead to personalinjury.
Inserting the batteriesincorrectly may also result in cracking or leakage that may pose a fire risk or
lead to personalinjury.
Dispose the batteriesin accordance with local laws and regulations.
Keep the batteriesaway from children and pets.
If the remote control is not used for a long time, remove the batteries.
Keep the remotecontrol away from moisture, sunlight, and high temperatures.
Connecting Power to the TV
1. Obtain the AC adapter the AC power cable and connect them to each other.
2. Connect the AC adapter to the back of the TV.
Connection Suggestions
If You Have Digital Cable without Cable Box or Antenna
1. Make sure the power of KTC LCD HDTV is turned off.
2. Connect the Coaxial RF cable from your antenna or digital cable to the TV port on theback of your KTC
LCD HDTV.
3. Turn on KTC LCD HDTV.
4. Select TV (Air) for antenna or TV (Cable) fordigital cable from either your remote control's source
button or sourcebutton on theTV.
5. Use the On Screen Display to scan for channels.
Please Note :
Not all broadcastsare in HighDefinition (HD). Pleaserefer to yourlocal broadcasting stations for
more information.
The KTC LCD HDTV's tuner is designedfor HDTV therefore requires a stronger signal than normal Tvs.
If you cannot achieve thatsignal level with your antenna or cable, your KTC LCD HDTV might lose
picture or sound.
Connecting DVD Player with Component YPbPr
1. Make sure the power of KTC LCD HDTV and your DVD player is turned off.
2. Obtain a component cable. Connect the green color connector to both your DVD player and YPbPr's
green connector porton the backof your KTCLCD HDTV.
3. Connect the blue color connector to both your DVD player and YPbPr's blue connectorport on the back
of your KTCLCD HDTV.
4. Connect the red color connector to both your DVD player and YPbPr's red connectorport on the back
of your KTCLCD HDTV.
5. Obtain a RCAaudio cable. Connect the white color connector to both your DVD player and YPbPr's
white connector porton the backof your KTCLCD HDTV.
6. Connect the red color connector to both your DVD player and YPbPr's red connectorport on the back
Of your KTCLCD HDTV.
7. Turn on the KTC LCD HDTV and your DVD player.
8. Use the remote control's source button or the source button on the TV to switch toYPbPr.
Please Note :
Please reference theDVD player's manual as well, to make sure the DVD player is configured to output
correctly to theTV.
15
14

Connecting DVD player with S-Video
1. Make sure the power of KTC LCD HDTV and your DVD player is turned off.
2. Obtain an S-Video cable. Connect the S-Video connector to both your DVD player and AV's S-Video
connector port onthe back ofyour KTC LCDHDTV.
3. Obtain a RCAaudio cable. Connect the white color connector to both your DVD player and AV's white
connector port onthe back ofyour KTC LCDHDTV.
4. Connect the red color connector to both your DVD player and AV's red connector port on the back of
your KTC LCDHDTV.
5. Turn on the KTC LCD HDTV and your DVD player.
6. Use the remote control's source button or the source button on the TV to switch to S-Video.
Please Note :
Make sure theyellow connector inthe same group is not connected. You can only connect either the
S-Video port or the YellowVideo connector port. DO NOT CONNECT BOTH.
Please reference theDVD player's manual as well, to make sure the DVD player is configured to
output correctly tothe TV.
Connecting DVD player with Composite
1. Make sure the power of KTC LCD HDTV and your DVD player is turned off.
2. Obtain a Yellow Video cable. Connect the YellowVideo connector to both yourDVD player and AV's
YellowVideo connector port on the back of your KTC LCD HDTV.
3. Obtain a RCAaudio cable. Connect the white color connector to both your DVD player and AV's white
connector port onthe back ofyour KTC LCDHDTV.
4. Connect the red color connector to both your DVD player and AV's red connector port on the back of
your KTC LCDHDTV.
5. Turn on the KTC LCD HDTV and your DVD player.
6. Use the remote control's source button or the source button on the TV to switch toAV.
Please Note :
You can only connect either the S-Video port or the Yellow Connector port. DO NOT CONNECT BOTH.
Please reference theDVD player's manual as well, to make sure the DVD player is configured to
output correctly tothe TV.
Connecting Cable or Satellite boxes with HDMI
1. Make sure the power of KTC LCD HDTV and your set-top box is turned off.
2. Connect a HDMI cable to the HDMI output of your set-top box and the other end to the HDMI port on the
back of yourKTC LCD HDTV.
3. Turn on the KTC LCD HDTV andyour set-top box.
4. Use the remote control's source button or the source button on the TV to switch to HDMI.
Please Note :
Please reference theset-top box's manual, to make sure the set-top box is configured to output
correctly to theTV.
Connecting to a PC with VGA and 3.5 mm minijack
1. Make sure the power of KTC LCD HDTV and your PC is turned off.
2. Obtain a 15-pin D-Sub VGA cable; connect to the VGA output of your PC and the other end to the VGA
port on theback of yourKTC LCD HDTV.
3. Obtain a 3.5 mm Mini-jack, connect to the audio out of your PC and the other end to the VGA Stereo
Input port.
4. Turn on the power of the KTC LCD HDTV and your PC.
5. Use the remote control's source button or the source button on the TV to switch to VGA.
6. Change your PC resolution to 1280x768 at 60hz refresh rate.
7. Press MENU to use the OSD's SETUP option.
8. Under the SETUP option select PC function.
9. Under PC function use AUTO ADJUST to adjust the screen, AUTO COLOR to adjust the color and use
PREF. RESOLUTION to select 1280x768 at 60hz.
Please Note :
For the bestresults, please setyour PC resolution to 1280x768 at 60 Hz. This is because the TV
resolution is 1366x768 but PC resolution does not support this mode so we suggest use 1280x768 as
the closest resolution.Please refer tothe PC orgraphic card's manual for further instructions on how
to set your resolution and refresh rate.
Please refer toyour PC manualfor VGAoutput requirements of the VGA card. We suggestion the VGA
card must have a coilon the both sides of VGA connected heads.
The VGAport of the TV features a powersaving mode which will automatically turn off the TV,if there's
no signal providedfor more than 5 minutes.
17
16

Ready to Watch Some TV?
Starting up the KTC LCD HDTV
1. Make sure your power cable is connected and the standby red light in the front of the TV is litup.
2. Check all your connection cables on the back of your TV and also yourAV devices. Make
sure they are all connected securely.
3. Turn on your TV and otherAV devices if necessary.
4. Select the correct source according to the connecting pages.
Tuner Setup
After you haveconnected an antennaor cable (without a cable box) to your TV's tuner, you will need to go
through a setupprocess in orderto watch theTV. When you turn on the TV for the first time, follow through
the instructions belowto complete thesetup and your TV will be ready for viewing.
1. Locate your KTC remote control, and press MENU to start the setup. Use the or button to select
the dish iconlabeled TV and press ENTER.
2. Use the or button to select TUNER MODE and use the or button to select Cable or Air.
19
18
3. Use the or button to select AUTO SCAN and press ENTER . If you have Cable selected make sure
Cable System hasthe setting atAUTO. Use the or button to select START TO SCAN and press
ENTER. Once the scanfinishes you canbegin to watchTV.
Please Note :
Not all broadcastsare in HighDefinition (HD). Pleaserefer to your local broadcasting stations for
more information.
The KTC LCDHDTV's tuner isdesigned for HDTV therefore requires a stronger signal than normal
TVs. If you cannot achieve that signal level with your antenna or cable, your KTC LCD HDTV might
lose picture or sound.
OSD (On Screen Display) Menu Controls
Via Remote Control
In order toadjust most ofthe options insidethe On Screen Display (OSD), the picture below shows all the
buttons used on the remote control.
CH+ This button changes the channel
to a higher number and also functions
as up direction in the OSD.
CH- This button changes the channel
to a lower number and also functions as
down direction in the OSD.
VOL- This button decreases the
volume and also functions as left
direction in the OSD.
VOL+ This button increases the
volume and also functions as right
direction in the OSD.
ENTER This button changes the
channel in conjunction with the number
pad and also functions as Enter for
selecting options in the OSD.
This button opens the
OSD and alsoexits the OSD
by going to the previous
level of the OSD.
This button exits the
OSD entirely.

Via TV Side Panel Buttons
In order to provide more than one type of OSD control buttons, the side panel's buttons have also been
made functional for adjusting the OSD.
1. SOURCE - This button displaysall the different sources of the TV. The sequence is shown as follows:
TV,AV, S-Video, Component, DPF(KTC), HDMI, and PC. Use CH(+)/CH(-) scroll up and down then
press ENTER to confirm.
2. VOL(+) This button increasesthe TV's volume. If a OSD menu is active, pressing this button will
move the selectionto the right.
3. VOL(-) This button decreasesthe TV's volume. If a OSD menu is active, pressing this button will
move the selectionto the left.
4. CH (+) This button changes the TV channel downward. If the OSD menu is active, this button
functions as up control for the menu.
5. CH(-) This button changes the TV channel upward. If the OSD menu is active, this button functions as
control for the menu.
6. MENU This button activates the On Screen Display (OSD) menu. If a sub-menu is active, pressing
this button will return selection to the previous menu level.
7. Enter Select or confirm an action.
8. Exit Quit the TV menu.
OSD Menu Options
VIDEO - This main optionhas functions for changing the picture settings for all ports, such as tint, contrast,
sharpness, brightness, saturation,color temperature.
AUDIO This main optionhas functions forchanging sound settingsfor all ports,such as treble, bass, and
balance.
TIME This main optionhas time relatedfunctions such assleep timer,time zone.
SETUP This main optionhas functions forOSD language, closedcaption, PC setup,aspect and
transparency.
LOCK This main optionhas functions foronly composite andTV port. The purpose of this optionis to
block TV inappropriate for children.
TV This main optionhas functions forthe tuner port,such as tuner mode, auto scan, favorite, channel skip,
and DTV signal.
Video Option
This option allowsusers to adjust the TV's picture sharpness, color, tint, and other various functions.
-
-
-
-
down
-
-
-
-
-
-
-
-
21
20
1. Press MENU to open the OSD.
2. Press or to move to VIDEOand press the ENTER button on the remote.
3. Use or to select the option you want to adjust and use or to adjust them.
PICTURE MODE This function allows you to adjust the video through preset modes, standard,
custom, vivid, and mild.
CONTRAST This function adjuststhe white levels in a picture. The higher the contrast, the
less detail youwill see in bright white objects.
BRIGHTNESS - This function adjusts the black level in a picture. The higher the brightness,
the less detailyou will have in dark objects.
SHARPNESS This function adjusts the picture's sharpness. The higher the sharpness, the
more pixilation a picture will have.
TINT - This function adjusts your picture's overall color with everything looking green on one
end and everything looking red on the other.
SATURATION - This function adjusts how strong your picture's colors are going to be.
COLOR TEMPERATURE - This function adjusts thewhite color's overall balance of white
colors in apicture. The function changes thewhite color's overall balance in large increments.
i. NORMAL This option will produce a picture with normal white color.
ii. COOL This option will produce a picture with overall bluish color.
iii. WARM This option will produce a picture with overall reddish color.
1. Press MENU to open the OSD
2. Press or to move to AUDIO and press ENTER.
3. Use or to select the option youwant to adjust and use or to adjust them.
-
-
-
-
-
-
Audio Option
This option allowsusers to adjust the TV's sound functions.

SOUND MODE This function allows you to adjust audio preset modes custom standard,
speech, movie, andmusic.
BASS This function adjusts the level of low pitch sound in a TV.
TREBLE This function adjusts the level of a high pitch sound in a TV.
BALANCE This function adjusts the balance of sound level between the left and right speaker
of the TV.
Time Option
This option allowsusers to adjust the TV's time functions.
ENTER
1. Press MENU toopen the OSD
-
-
-
-
Setup Option
This option allows users to adjust various miscellaneous options such as OSD language, PC setup, or
closed captioning.
1. Press MENU toopen the OSD
2. Press or to move to TIME and press .
3. Use or to select the option you want to adjust and use or to adjust them.
SLEEP TIMER - This function allowsyou to adjust the number of minutes you want the TV to
sleep in. Itranges from 15 minutes to 240 minutes.
TIME ZONE This function adjusts the time zone you are in.
DAYLIGHT SAVING TIME This function turns daylight saving time on or off.
-
-
23
22
2. Press or to move to SETUP and press ENTER .
3. Use or to select the option you want to adjust and use or to adjust them.
MENU LANGUAGE -This function allows you to adjust the language of the OSD menu.
TRANSPARENCY This function adjusts the transparency of the OSD menu.
ASPECT This function adjusts the video format of the TV.
PC SETUP This function opens up signal synchronization options with the PC.
i. H-POS This will letyou move the PC image left or right.
ii. V-POS This will let you move the PC image up or down.
iii. CLOCK This will letyou adjust the quality of the image in large increments.
iv. PHASE This will letyou adjust the quality of the image in small increments.
v. AUTO ADJUST This will automaticallyadjust the imagequality and positionfor you.
CLOSED CAPTION This function adjusts words that are supplied by closed captioning.
i. CC MODE This turns on or off the closed captioning. There is also an extra CC on mute
option which allows closed captioning to be displayed when you mute the TV's volume.
ii. BASIC SELECTION This allows you to select between various CCservices and text
boxes. CC1 isthe standard for North America broadcasts. If you have TEXT1 ~ TEXT4
turned on, there will be a black box blocking the TV's video.
iii. ADVANCED SELECTION This allows you to select between various digital closed
caption services. North America broadcast usually uses service 1.
iv. OPTION This opens upadjustments for thetype of digitalcaption style you want.
1. MODE This either locksor opens upthe adjustments ofthe closed captioning.
2. FONT STYLE This allows you to select different font styles.
3. FONT SIZE This allows you to select the size of the captioning.
4. FONT EDGE STYLE This lets youadd 3D effects to the font.
5. FONT EDGE COLOR This lets you add color to the edge style.
6. FG COLOR This lets you add color to the foreground of the captioning.
7. BG COLOR This lets you add color to the background of the captioning.
8. FG OPACITY This adjusts the transparency level of the foreground.
9. BG OPACITY This adjusts the transparency level of the background.
RESTORE DEFAULT This function resets all options under SETUP.
Please Note:
The TV's native resolution is 1366x768 but please set to 1280x768. Make sure you use auto adjust to
sync to the PC's signal after connecting the TV to the PC.
All adjustments under option are only for digital channel closed captioning; under analog channels
these adjustments are not available.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Lock Option
This option allows users to turn on TV program filters for children. To use this option you will need to enter
in the passwordfirst. The default passwordis 0000 .
1. Press MENU toopen the OSD

2. Press or to move to PARENTAL and press ENTER.
3. Use or to select the option you want to adjust and use or to adjust them.
CHANGE PASSWORD This function changesthe password of the parental options.
SYSTEM LOCK This function enables the TV blocking options.
UNRATED LOCK This function locksor unlocks TV shows orMovies that are unrated.
US This function enters the ratings systems for both movies and TV shows.
.TV This blocks TV shows. You can select the level you want to block by choosing by TV
rating or choosingby content. Forfurther content explanation please refer to detailed
explanation section.
ii. MPAA This blocks movies. You can select the level you want to block by choosing the
movie ratings youwant to block.
RRT SETTING - This function sets the rating region table that defines the rating standard for a
particular geographic region and/or country. The menu may vary depending on the local
broadcasting system.
RESET Resets all options inside PARENTAL.
Please Note:
If RRT setting is grayed out that means your country / area does not support that type of setting.
TV Option
This option choosesvarious antenna andcable functions. Extrafunctions include limited range scanning,
and channel skipping.
1. Press MENU to open the OSD
2. Press or to move to TV and press ENTER.
3. Use or to select the option youwant to adjustand use or to adjust them.
TUNER MODE This selects the tuner mode of the TV from air (antenna) to cable.
AUTO SCAN This scans forthe channels forthe TV and also lets you choose the cable system of
your choice.
CHANNEL SKIP This allows you to skip the channels you do not want to watch.
DTV SIGNAL This measures adigital TV channel's broadcasting strength.
AUDIO LANGUAGE -This selects your language preference in a program.
Please Note:
The cable system should be left at AUTO unless you know which cable system your local cable
company uses.
If you did not scan for channels you will not be able to use channel skip or favorite.
Audio language is dependent on the TV channel's support, if you do not get the language of you
choice it is because the particular channel does not support that language.
-
-
-
-
i-
-
-
-
-
-
FAVORITE - This allows youto add or delete favorite channels from the list of scanned channels.
-
Detailed Explanations

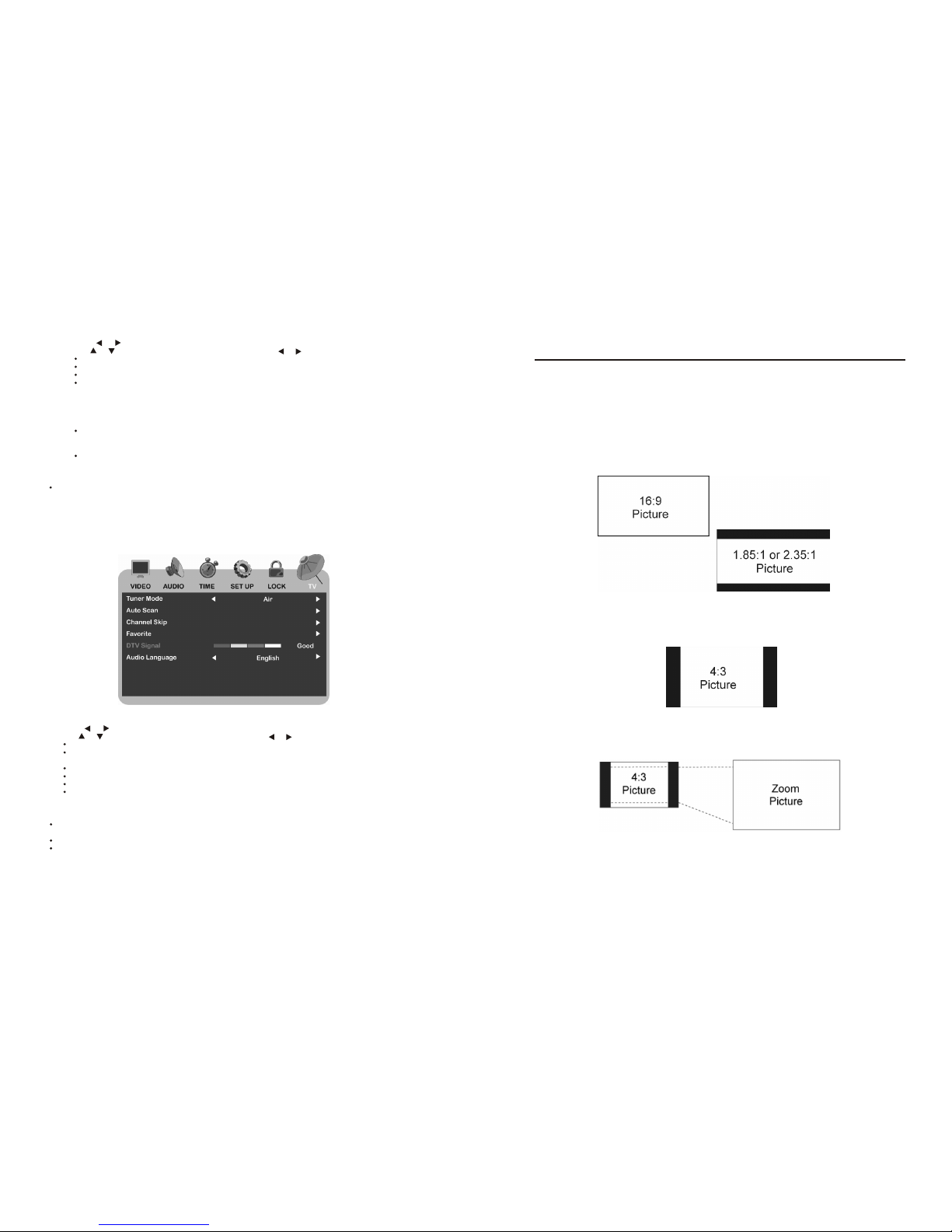

Aspect Ratio Explained
The KTC isa widescreen TV, but mostTV programs arestill broadcasting in a square format, therefore the
TV is offering two ways of viewing videos. There are mainly two typesof signal format, 16:9 (KTC's 16:9 is
named Normal) and 4:3.Simply use theASPECT button on the TV to cycle between bothmodes and other
extra modes.
1. Normal
This mode will stretch the picture to a widescreen ratio. If you have a perfect 16:9 ratio picture you will
not see anyblack bars. Ifyou are watching a widescreen movie in 1.85:1 or 2.35:1 ratio, you will still get
black bars on the top and bottom of the screen.
2. 4:3
Most analog TV channels have 4:3 signal formats. If the original 4:3 aspect ratio (1.33:1 source) is
preserved, black barsare added tothe left and right of the display image. This aspect keeps that
aspect ratio and shows you the black bars on the side.
3. Zoom
When watching a4:3 aspect ratioTV or movie, this mode zooms in to cut off most of the black bars on
the side while preserving the 16:9 ratio. Because of the zoom, the top and bottom are cut off as well.
4. Cinema
When watching amovie even withthis widescreen TV you will still get some black bars on the top and
bottom. This aspect ratio will zooms in to cut off most of the black bars on the top and bottom.
Because of the zoom, the left and right will suffer cut off as well.
25
24

Rating Explained
General Operation
Toblock channels you don't want your children to watch, you can filter them with the ratings function. MPAA
lets you controlratings for movies. For regular TV programs youcan use USTV settings. USTV settings lets
you filter whatcontent you want at each age level, TV-Y, to TV-MA(refer to definitions below). Below are
definitions for each setting.
USTV Rating
TV-Y (USTV) For All Children
This program isdesigned to be appropriate for all children. Whether animated or live-action, the themes
and elements in this program are specifically designed for a very young audience, including children from
ages 2-6. This program is not expected to frighten younger children.
TV-Y7 (USTV) Directed to Older Children
This program isdesigned for children age 7 and above. It may be more appropriate for childrenwho have
acquired the developmentalskills needed to distinguish between make-believe and reality. Themes and
elements in this program may include mild fantasy violence or comedic violence, or may frighten children
under the ageof 7. Therefore, parents may want to consider the suitability of this program for their very
young children. Note:For those programs where fantasy violence may be more intense ormore combative
than other programsin this category, such programswill be designatedTV-Y7-FV.
TV-G (USTV) General Audience
Most parents wouldfind this program suitable for all ages. Although this rating does not signify a program
designed specifically forchildren, most parents may let younger children watch this program unattended. It
contains little orno violence, no strong language and little or no sexual dialogue or situations.
TV-PG (USTV) Parental Guidance Suggested
This program containsmaterial that parents may find unsuitable for younger children. Many parents may
want to watchit with their younger children. The theme itselfmay call for parental guidance and/or the
program contains oneor more of the following: moderate violence (V), some sexual situations (S),
infrequent coarse language(L), or some suggestive dialogue (D).
TV-14 (USTV) Parents Strongly Cautioned
This program containssome material that many parents would find unsuitable for children less than 14
years of age.Parents are strongly urged to exercise greater care in monitoring this program and are
cautioned against lettingchildren under the age of 14 watches unattended. This program containsone or
more of thefollowing: intense violence (V), intense sexual situations (S), strong coarse language (L), or
intensely suggestive dialogue(D).
TV-MA (USTV) Mature Audience Only
This program isspecifically designed to be viewed by adults and therefore may be unsuitable for children
under 17. This program contains one or more of the following: graphic violence (V), explicit sexual activity
(S), or crude indecent language (L).
TV program description
FV - Fantasy Violence
V - Violence
S - Sexual Situations
L - Adult Language
D - Sexually Suggestive Dialog
MPAARating
G (MPAA)
General audiences. All agesadmitted.
PG (MPAA)
Parental guidance suggested. Some material may not be suitable for children.
PG-13 (MPAA)
Parents strongly cautioned. Some material may be inappropriate for children under 13.
R (MPAA)
Restricted. Under 17requires accompanying parent or adult guardian (age varies in some jurisdictions).
NC-17 (MPAA)
No one 17 and under admitted.
X (MPAA)
X is anolder rating that is unified with NC-17 but may be encoded in the data of older movies.
Shortcuts to Browsing Channels
Browsing through theentire channel list on the TV can be tedious. This TV features a favorite channel list,
where you can add in channels that you always want to watch.
TO ADD TOTHE FAVORITE LIST
1. Go to anychannel you wouldlike to include in your favorites list.
2. Press the VOL(+) button on the remote control. You will see a heart on the INFO banner denoting
that this channelis in the favorites list.
TO DELETE FROM THE FAVORITE LIST
1. Go to anychannel you wouldlike to removefrom your favorites list.
2. Press the button on theremote control. You will then see the heart disappear on the INFO
banner denoting thatthis channel is no longer in the favorites list.
BROWSING CHANNELS WITH THE FAVORITE LIST
1. Press the FAVORITE button, and the list of channels you have added will be in a box on the lower
left hand side of the TV screen.
2. Use the or buttons to select the channel you want to jump to and press ENTER to confirm.
3. You can also use the keypad numbers 1 and 2 as page up and page down if you have too many
channel numbers inthe list.
BROWSING CHANNELS WITHOUT THE FAVORITE LIST
1. You can also browse the channels without the favorite list by simply pressing the ENTER button.
2. A listof all thechannels scanned inby the TV will appear on the lower left hand side of the TV
screen.
VOL(-)
27
26

3. Use the or buttons to select the channelyou want to jump to and press ENTER to confirm.
4. You can also use the keypad numbers 1 and 2 as page up and page down if you have too many
channel numbers inthe list.
Preset Modes Explained
The TV features different preset modes of settings for audio and video. For people who like to optimize the
TV for whichever program it is playing but do not want to individually tweak every setting, the preset modes
are used.
For Video
To switch between the various modes, press the P.MODE button continuously.
1. CUSTOM - This mode savesthe user's tweaked settings. If you changed settingsunder the OSD
VIDEO main option,the settings would be saved under CUSTOM mode.
2. STANDARD This mode is mainly used for regular television viewing and video gaming.
3. VIVID This mode ismainly used for nature channels and sporting events.
Please Note:
Each preset modes can be used to your preference. The preset mode descriptions are merely usage
suggestions.
For Audio
To switch between the various modes, press the S.MODE button continuously.
1.
2.
3.
4.
5.
Please Note:
Each preset modes can be used to your preference. The preset mode descriptions are merely usage
Suggestions.
-
-
4. MILD - This mode ismainly used for movies.
STANDARD - This mode is mainly used for regular television viewing.
MUSIC - This mode ismainly used for music videos.
MOVIE - This mode is mainly used for movies, sporting events, and video gaming.
SPEECH - This mode ismainly used for news and commentary programs.
CUSTOM - This mode savesthe user's tweaked settings. If you changed settingsunder the OSD
AUDIO main option, the settings would be saved under CUSTOM mode.
29
28
Using the KTC PanTouch and Remote Control
You can use all of the KTC features with either the PanTouch buttons or using the remote control.
Use the PanTouch Buttons
This KTC comeswith PanTouch Technology, simply touching thetop right inside edges of the frame,
activates an icondriven menu thatgives you theflexibility of usingthe KTC withouthaving to use the
remote control. The features of the PanTouch is designed to provide the same functions as the remote
control except nowit is convenientlyhidden away inthe top rightinside edge ofthe screen, waitingto be
activated.
The touch sensorsare located inthe top rightcorner behind theMylar Decorative Sheetand they are
activated by touchingthe top right corner of the inside edge of the KTC. You do not have to press the icons;
just touch the edge of the KTC to activate the icon buttons.
The remote controlis disabled whenthe PanTouch Interface is active. If the PanTouch Interface is dormant
for approximately 3seconds, it automaticallyshuts off.

Using the Kitchen Technology Center's Screens
You access the Kitchen Technology Center's functions from either the PanTouch interface or remote control.
Toactivate from PanTouch interface, the PanTouch Point activation area is located at the upper right side
of the frame.
This user guideprimarily describes theuse of theremote control. Pleasesee the PanTouch Quick Guide
for instructions onusing the PanTouch interface.
The HOME Screen
The HOME Screen gives you the following choices listed below.
Recipe
Music
Video
File
Clock
Internet
Open the Thumbnails Screen to display still
photos and jpeg slideshows.
,
Open to list of cookbooks thumbnail screen and
recipe cards for browsing.
Play MP3 music files.
Play Video files.
View all of the files on the memory source.
Show the current date and time, use alarm and
schedule On/Off functions.
Connect to Picasa Web Album and one other
application to stream photos to your KTC
31
30
1. Press the Left and Right arrows on the Remote Control or the Kitchen TechnologyCenter to select
Photo, Recipe, Music,Video, File, Clock, or Network Photo; press ENTER to make a selection.
2. PHOTO function - bringsyou to thethumbnail screen listing all your photos on the selected
memory device.
3. RECEPIE function brings you to the cookbook thumbnail screen showing all the available
cookbooks and theFavorites Recipe Categories Hors Deouvers, Soups, Salads, Entrees, Dessert
and Others
4. MUSIC function gives you a list all of the music files on your selected memory device. You can
also launch your music files from this screen.
5. VIDEO function - gives you a list all of the supported video files on your selected memory device.
You can also launch your video files from here.
6. FILE function gives you alist all of the supported audio and video files on your selected memory
device. You can also launch your music and video files from here.
7. CLOCK function set the internalclock, calendar and ON/OFF schedules from here.
8. INTERNET function With a Wi-Fidongle (sold separately) this function allows you to connect to
Picasa's Web Album via an internet connection.
Select Media
This menu item,allows you toselect the any of the memory cards or internal memory as the source of your
photos, videos andmusic playback.
1. Insert a memorycard with your photos into the DPF.
2. From the HOME screen press the SETUP button on the remotecontrol, next choose the Select
Media option and press ENTER.
Using the touchinterface from theHOME screen, activate the user interface, touch the SETUP
icon, then choose MEDIASELECT.
3. Select the memory card that you inserted and press ENTER. The memory card you selected will
now be thesource of yourphoto, video and music playback.
Memory cards thatare not availableare greyed out.
Displaying Cookbooks and Favorite Recipes
The KTC comes with aBon Appetit virtual cookbook that stores a collection of recipecards. You can view
your cookbook recipecards and copyor move them from a cookbook intoone of the six favorite recipe
categories. You can also move recipe cards from one favorite category to another.
-
-
-
-
-
Please Note:
,

Copying Recipes to a Favorites Category
After you haveselected the recipe,you can copythem to oneof the favorite's category.
Using the Touch Interface - Activate the touch interface by touching the top right corner of the frame. Then
touch the COPY SEL icon. Next choose one of the favorite recipe categories and touch the SELECT icon.
Using the Remote- Press theSETUP button, select the COPY TO menu item and press ENTER. Then
select the recipe category to copy the recipe to.
When you copyor move arecipe you areonly creating alink to thatrecipe, no actual file is being
copied or moved.
Deleting a recipe from a Favorites Category
Please Note:
33
32
The Cookbook and Favorite Recipes Thumbnails Screen
1. From the Home screen, choose the RECIPIE function and press ENTER. Toreturn to the HOME
screen touch theHOME icon onthe KTC. On the remote control press EXIT button.
2. Use the Left(BACK) and Right (FWD) buttons on the Remote Control until the desired cookbook is
highlighted. The cookbook name is displayed at the upper left of the screen. Next press the ENTER
button to view that cookbook.
3. The favorites folders are also located on this screen and the folders are categorized as Hors D'oeuvres,
soups, salads, Entr es, Desserts andOthers (note: the category namesare not changeable).
4. Toview a favorite folder, select it from the thumbnail screen and press the ENTER button on the
remote or touch the VIEW icon from the touch userinterface.
e
Selecting Recipes
You can select any recipes from the cookbook or a favorites category
Using the Remote- Use the arrow keys to select the recipe andthen press the CH+ button to select it and
the CH- button to deselect a recipe.
Using the Touch Interface - Activate the touch interface by touching the top right corner of the frame. Then
touch the SELECT icon.
,

Todelete a recipecard(s) from afavorite's category.
Using the Remote- Press the SETUP button, select theDelete Photo menu item and press the ENTER
button.
Using the Touch Interface - Activate the touch interface by touching the top right corner of the frame.
Then touch theDELETE SEL icon, and then touch the YES icon to confirm the deletion.
Moving a recipe
Say, you like to move the Grapefruit and Avocado Salad with Ginger-Cassis Dressing recipe card from
the Hors D'oeuvrecategory to the Salads category.
Using the Touch Interface - Choose the MOVE SELECT icon, then select the category tomove the recipeto
and touch the select icon.
Display Photos and Slideshows
The Photo Thumbnails Screen
This screen givesyou the thumbnailview of all photos in the selected memory source. Use this screen to
move (up, down, left and right or page up or page down if continue scroll up or down to next thumbnail page)
to select asingle or multiplephotos to view. After selecting multiple photos you can view the selected
photos by touching the VIEW icon on the touch interface.
Toview all photosin a slideshow, you can either press the slideshow button on the remote control or on the
touch interface; touch the VIEW then PLAY icons.
Tocopy selected orall photos froma memory cardto built-in memory using the touch interface, touch the
COPY SELor COPY ALL icons respectively. Using the remote control, press the SETUP button, scroll to
Copy Photo andselect Copy Selector CopyAll options.
Displaying a Single Photo
You can choose a single photo to display, without a Slideshow:
1. From the Homescreen, choose Photos. To Go Back press the PanTouch HOME button.
Use the arrowkeys on the Remote Control to navigate to the desired photo. The photo nameis
displayed at theupper left of the screen. The page numberand total page number indicates which
thumbnail page you are on and how many screens of photos are in the current memory source.
2. Toview a single picture ( single picture mode), highlight a photo in the Thumbnail Screen and press
ENTER on theremote control or use the touch interface's VIEW button.
3. In single picture mode you can use the arrow keys to forward and reverse the pictures you are viewing
in single picture mode.
4. SLIDER function: slidingyour finger across the SLIDER BAR will also forward and reverse the photos
you are viewing in single picture mode.
5. Toreturn to the Thumbnail screen, press the EXITon the remote or the touch interface's BACK button.
35
34

Rotating a Photo
You can rotate a displayed photo by pressing the ROTATE button on theremote or the touch interface's
ROTATE icon. The photo will be rotated by 90 degrees clockwise in each press of the ROTATE button.
Enlarging a Photo
You can magnify (zoom and pan) a displayed photo by pressing the ZOOM button on the remote control.
The photo ismagnified in sizeeach time youpress the ZOOM button, until it returnsto the normal size.
While the photois in enlarged,you can usethe arrow buttonsto move panaround the photo.
Tozoom using thetouch interface, activate the touch user interface. From the HOME screen, select
PHOTO and touch the ENTER icon toselect it, then select theZOOM icon.
Starting and Customizing Slideshows
The Kitchen Technology Center can play all of the photos on the selected memory source in the slideshow
mode, or you can select specific photos for the customized slideshow. You can also add music that will play
during a slideshow.
Play a Slideshow of All Photos
Using the remote control -
With the Thumbnails Screen displayed, press the SLIDESHOW button on the Remote Control or the SETUP,
STARTSLIDESHOW and Slideshow All for the slideshow of all photos in the selected memory.
Using the Touch Interface -
With the Thumbnail Screen displayed, touch the PanTouch point to activate the sensor then touch the VIEW
icon to playa slideshow of all photos.
Tostop the slideshow and return to the Thumbnails screen, press the BACK button twice.
Play a Slideshow of Selected Photos Only
Use remote control to create a custom slideshow:
1. With the Thumbnails Screen displayed, use the arrow buttons to highlight a photo.
2. Press CH+ key to select the photo or CH- key to de-select it (these functional buttons only exist on your
remote).
37
36
3. Continue selecting or de-selecting photos in the same manner.
4. When all desiredphotos are selected, press SETUP on the RemoteControl to open a Setup Menu.
5. Select Start Slideshow and choose Slideshow Selected in the submenu to start the custom slideshow.
Use PanTouch to create a custom slideshow:
1. With the Thumbnails Screen displayed, use the arrow buttons to highlight a photo.
2. Press SELECT as choosing for the custom slideshow. Press UN-SELECT(same button) again to un-
select. A check mark is displayed at the PanTouch point of the selected photo.
3. Continue selecting orde-selecting photos in the same manner as paging down to next thumbnail pages.
4. When all desiredphotos are selected, press PL Y to start your custom slideshow.
Playing Music with the Slideshow
To play background music with the slideshow viewing, copy MP3 files onto the same memory card as your
photos. The music will play as the slideshow plays. See Copying Files from a Computer section for details
on copying files.You can also choose a music file to play without a slideshow. Just select it from the Music
screen.
Note: Music files must be standard MP3 format and because of music copyrights, they must be authorized
to be copy to KTC or from licensed music download services that can be played on KTC.
Tostop the music,press the SLIDE SETUP button and press MUSICOFF button. Press MUSIC ON button
again to turnon the music.
Control the Volume
Use the PanTouch or Remote Control to adjust the volume on the Kitchen TechnologyCenter when playing
MP3 files.
Press the VOL+ and VOL- buttons to adjust the volume up and down.
Connecting Speakers to the Photo Frame
The Kitchen TechnologyCenter has built-in speakers, but you can also connect to external speakers or to
an external amplifierdepending on the model of your KTC. Some models comes with external audio jack. If
your KTC has audio jack,you can plug speakers into the audio jack located on the right side of Kitchen
TechnologyCenter (Cable notincluded).
Watching a Video
You can watch video files on your Kitchen Technology Center. It supports the Motion JPEG(AVI) video or
MP4 formats used by most digital cameras or video camcorders.
To watch a video stored on a memory card.
Using the remote control:
1. Insert a memory card with video files on it. Press the EXIT button on remote controluntil you reach
Home screen.
2. Press the SETUP button and go downto Select Media Menu. Choose the desired Media available.
3. Go back to Home screen to select Video.
4. Use theArrow keys to choose Video and press SELECT. Ascreen listing all of the video files opens.
5. Use theArrow buttons to choose the desired file and press ENTER to play the video.
6. Adjust the volume by using VOL+/VOL- buttons on the Remote Control.
Using the Touch Interface:
1. Insert a memory card with video files on it. Press the PanTouch point to activate the sensor and the
BACK button until you reach Home screen.
A
