PARADISE GRILLS GS-SB1 User manual

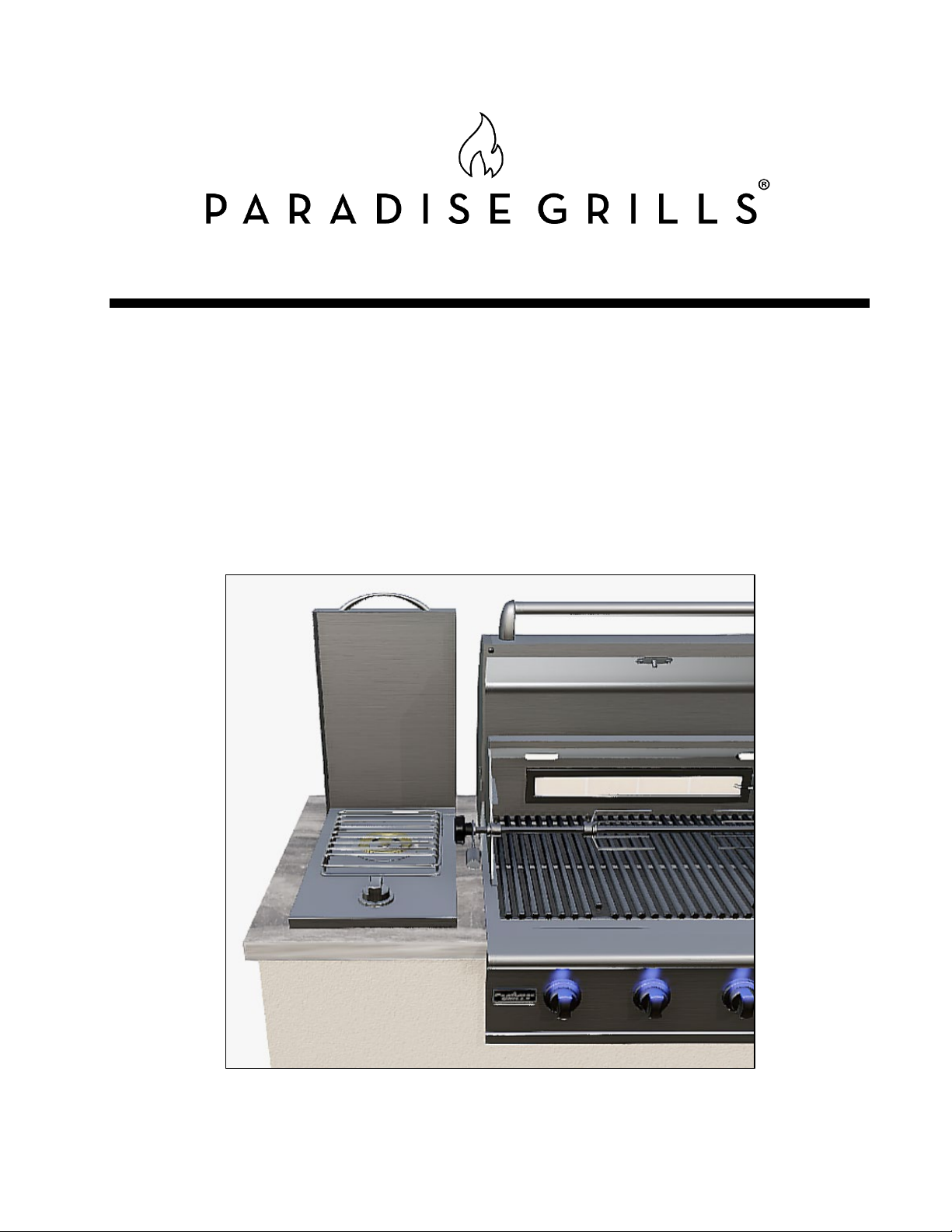

GS-SB1 Single Side Burner
Operator Manual

GS-SB1 Single Side Burner Operator Manual
June 2023
The content of this manual is the property of Paradise Grills International, Inc. All rights reserved.
Any reproduction, in whole or in part, is strictly prohibited without express written consent of
Paradise Grills International, Inc.
Paradise Grills International, Inc.
640 Ocoee Business Pkwy, Suite #80
Ocoee, FL 34761
800-604-2023
www.paradisegrills.com
[email protected]
ATTENTION INSTALLER:
PLEASE LEAVE THESE INSTRUCTIONS WITH THE CONSUMER.
ATTENTION CONSUMER:
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. You are responsible for
checking updates and revisions available online at http://www.paradisegrillsdirect.com/owners/
Serial number ______________________________________
(See information label on burner assembly for serial number)
Purchase date ______________________________________
DANGER
WARNING
If you smell gas:
•Shut off gas to the appliance.
•Extinguish any open flame.
•Open lid.
•If odor continues, keep away from
the appliance and immediately
call your gas supplier or your fire
department.
•For outdoor use only.
•Do not store or use gasoline or
other flammable liquids or vapors
in the vicinity of this or any other
appliance.
•An LP cylinder not connected for
use shall not be stored in the
vicinity of this or any other
appliance.

GS-SB1 Single Side Burner Operator Manual Contents •i
Contents
Safety Considerations 3
Safety Symbols...........................................................................................................3
Operational Warnings................................................................................................3
Gas Safety...................................................................................................................5
Natural Gas Supply Requirements.............................................................5
LP Cylinder Requirements...........................................................................6
Filling and Refilling LP Gas Cylinders........................................................6
Leak Testing ..................................................................................................8
Transporting and Storing LP Gas Cylinder ...............................................8
Specifications 9

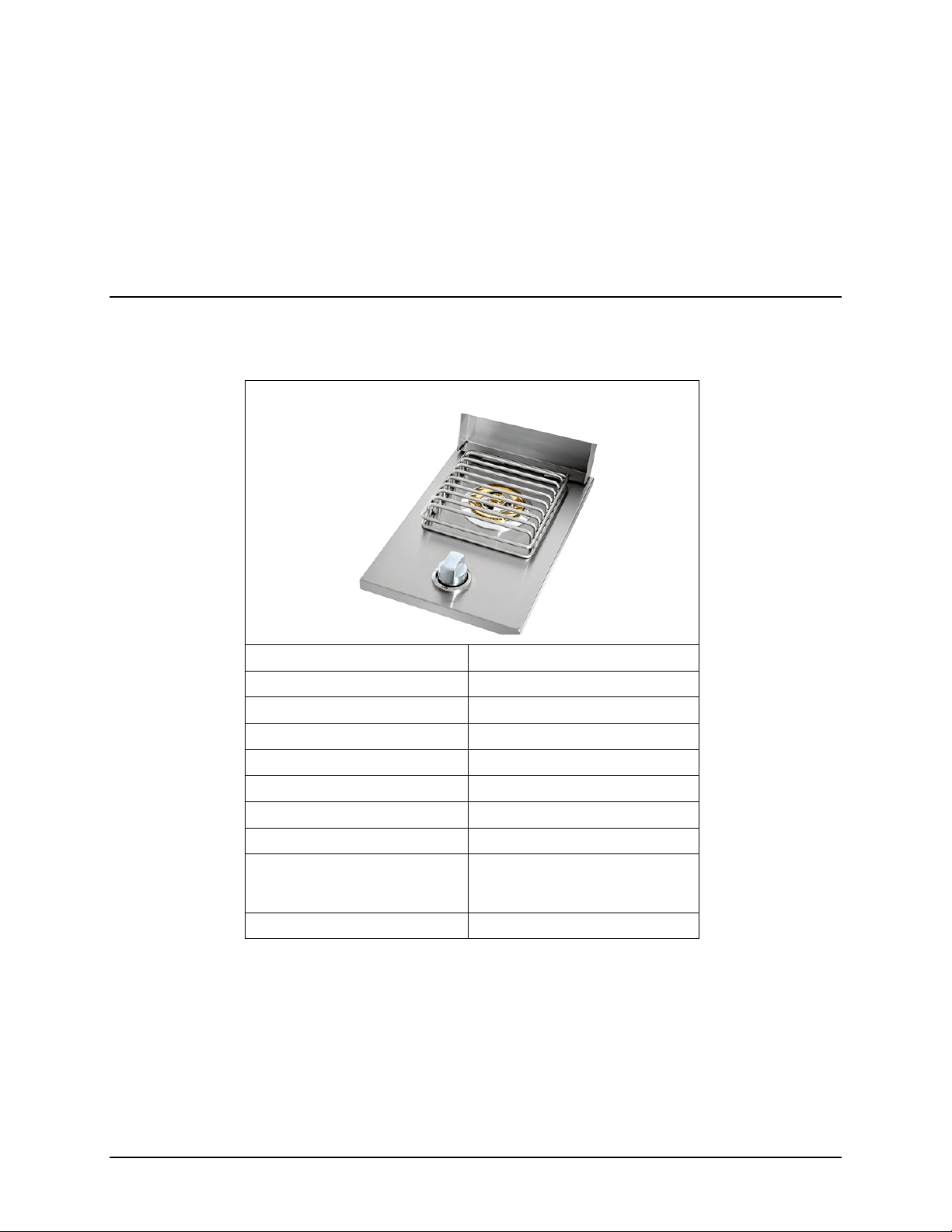

Single Side Burner Specifications ...........................................................................9
Customer Required Items.......................................................................................10
LP Gas Cylinder ..........................................................................................10
LP Cylinder Mount ......................................................................................10
Gas Regulator..............................................................................................11
Installation ....................................................................................................11
Outdoor Rated Electric Cord .....................................................................12
Safety Equipment........................................................................................12
Covers...........................................................................................................12
Grill Island Preparation 13

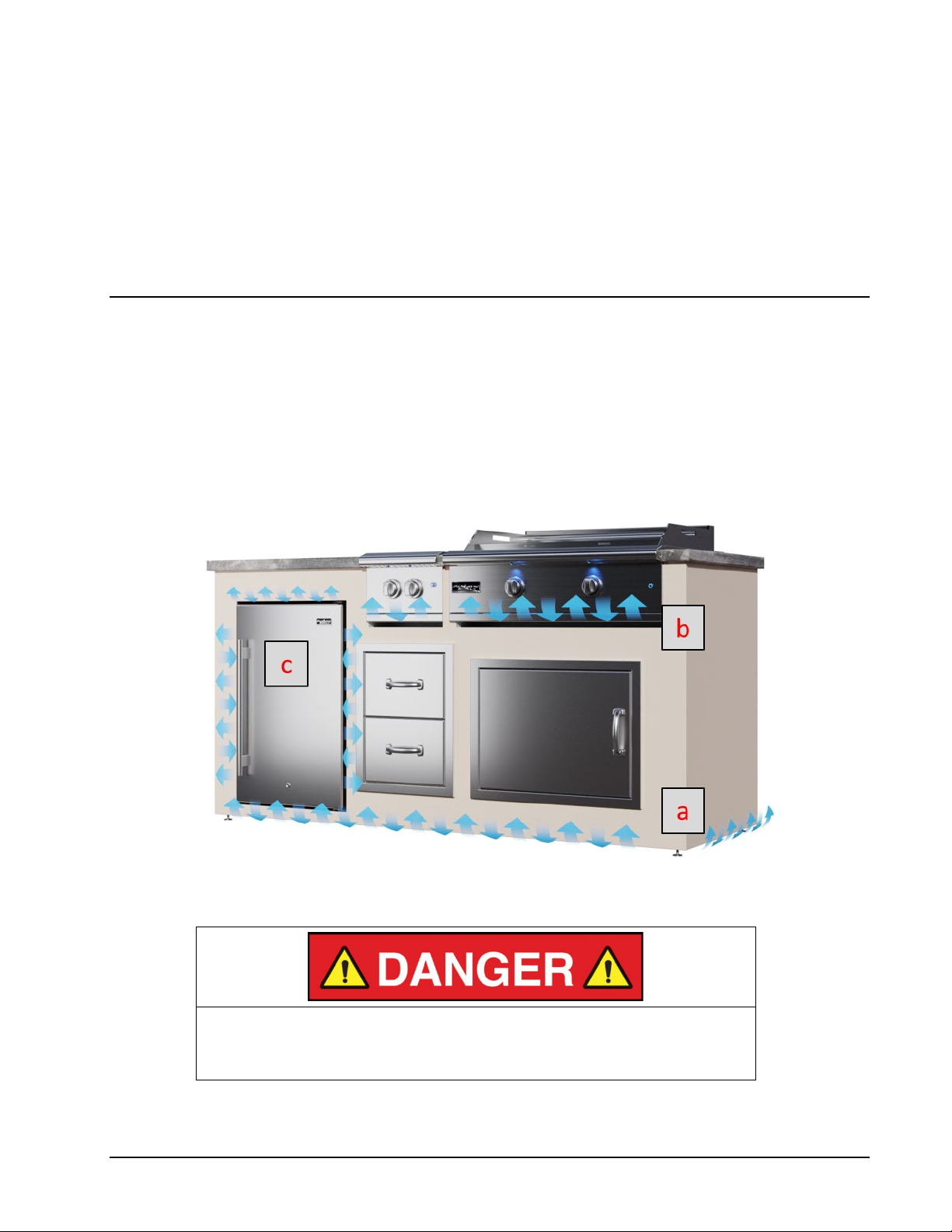

Paradise Grills Island Ventilation...........................................................................13
Single Burner Location............................................................................................14
Clearances ................................................................................................................15
Custom Island Construction ...................................................................................15
Planning Considerations ............................................................................15
Custom-built Island Ventilation .................................................................17
Custom-built Island Cut-outs.....................................................................17

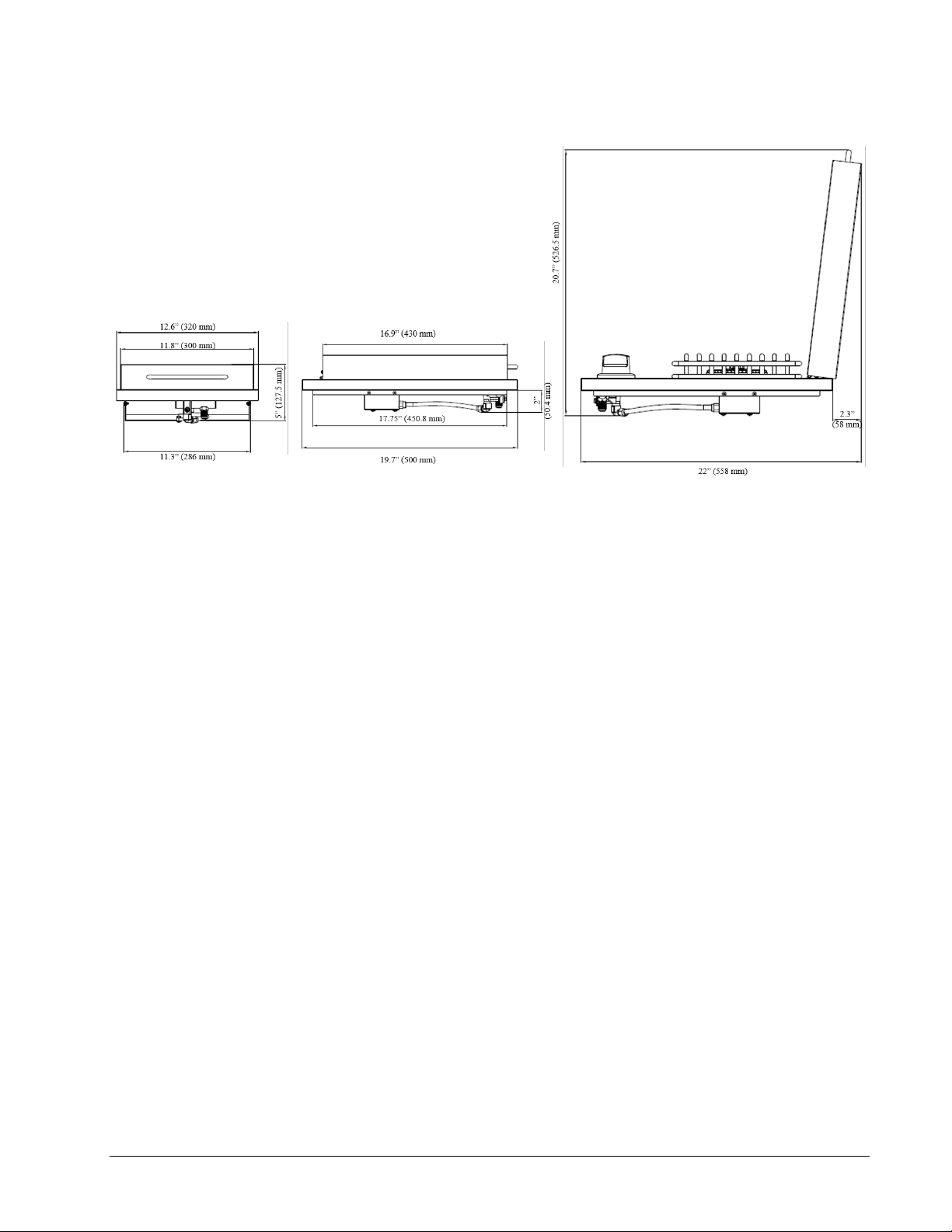

Single Side Burner Dimensions ................................................................18
Single Side Burner Assembly 19
Damage Upon Delivery ...........................................................................................19
Install the Single Side Burner.................................................................................19
Gas Specifications ...................................................................................................21
Connection ................................................................................................................22
Natural Gas ..................................................................................................22
LP Gas..........................................................................................................23
Leak Test...................................................................................................................25

ii •Contents GS-SB1 Single Side Burner Operator Manual
Operating the Single Burner 27
Warnings and Cautions...........................................................................................27
Lighting the Burner unit ...........................................................................................28
Cleaning and Maintenance 30
Maintain your Single Burner ...................................................................................30
Stainless Steel Maintenance ..................................................................................30
Corrosive Environmental Conditions.....................................................................31
Clean the Single Burner..........................................................................................31
Preventive Maintenance..........................................................................................32
Ventilation.....................................................................................................32
Burner Inspection ........................................................................................32
Spiders and Other Insects .........................................................................32
Troubleshooting 33
Adjust the Burner Orifice.........................................................................................33
Convert to Another Gas Type ................................................................................34
Single Side Burner Diagram 37
Limited Manufacturer’s Warranty 38
Limited Warranty ......................................................................................................38
Warranty Claim Submission ...................................................................................40

GS-SB1 Single Side Burner Operator Manual Safety Considerations •3
Safety Considerations
Safety Symbols
Throughout this manual, important safety information will be highlighted and marked as CAUTION,
DANGER, or WARNING.
A potentially hazardous situation or
unsafe practice which, if not avoided,
may result in minor or moderate injury,
or property damage.
A potentially hazardous situation which,
if not avoided, could result in death or
serious injury, or property damage.
An imminently hazardous situation
which, if not avoided, will result in death
or serious injury, or property damage.
Operational Warnings
All users must read this entire manual before attempting to operate the burner unit. Follow these safety
precautions every time the burner unit is used:
IF YOU SMELL GAS:
1. Immediately shut off the gas supply to the appliance at its
source.
2. Immediately extinguish any open flames.
3. Remove burner unit hood and open all access doors and
drawers to release any accumulated gas vapor.
4. If a gas odor persists, keep away from your appliance and
contact your gas supplier or fire department immediately.

4•Safety Considerations GS-SB1 Single Side Burner Operator Manual
IF THE BURNER GOES OUT:
Gas will continue to flow out of the burner and could accidently ignite
with risk of injury. If during operation the flames go out and you smell
gas or cannot see the flame:
1. Immediately turn all burner controls OFF.
2. Open all access doors and drawers.
3. Wait 15 minutes and repeat the lighting procedure.
Appliance is EXTREMELY HOT during and after use. Failure to follow
these warnings can cause burns to human skin, personal injury, death,
and property damage. Never leave appliance unattended while in use.
This appliance is for outdoor use only! Do not operate in a building,
garage, an any other enclosed area. Doing so could result in carbon
monoxide buildup which could result in injury or death.
Do not store or use gasoline or other flammable liquids or vapor in the
vicinity of this or any other appliances.
Do not store an LP (liquid propane) cylinder that is not connected for
use in the vicinity of this or any other appliances.
EXPLOSION HAZARD – Do not use the burner unit as storage area
for flammable materials. Keep area clear and free from combustible
materials, gasoline, and other flammable vapors and liquids. Failure to
do so can result in death, explosion, or fire.
All appliance surfaces will get hot during use. Use extreme caution
when operating the appliance. Do not touch hot surfaces.
CALIFORNIA PROPOSITION 65
•Combustible by-products produced when using this appliance
contains chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
•This product contains chemicals, including lead and lead
compounds, known to the State of California to cause cancer,
birth defects or other reproductive harm.
•For more information see www.P65Warnings.ca.gov.
Read this manual thoroughly before using this equipment to reduce risk
of fire, burn hazard, or other injury.
Wear grill gloves or oven mitts while using this appliance.
Keep children and pets away from the appliance at all times. Do not
allow children to operate the appliance.
This accessory is for single family/residential use only, and not intended
for commercial use.

GS-SB1 Single Side Burner Operator Manual Safety Considerations •5
Keeping an ABC fire extinguisher on hand during any cooking operation
is highly recommended.
Gas Safety
Improper installation, adjustment, alteration, maintenance, or use can
cause personal injury, death, and property damage.
Liquefied propane (LP) gas, also commonly called Propane, is a fuel gas which contains a flammable mixture
of hydrocarbon gases, most commonly propane, butane, and propylene. Always exercise great caution and
strictly follow all safety measures when using LP gas.
The installation must conform with local codes, or, in the absence of local codes, with one of the following,
as applicable:
•National Fuel Gas Code, ANSI Z223.1/NFPA 54
•Natural Gas and Propane Installation Code, CSA B149.1
•Propane Storage and Handling Code, CSA B149.2
Natural Gas Supply Requirements
•A licensed plumber must install the required NG plumbing to supply your burner unit
•Check the burner unit’s rating plate (Figure 16) to ensure it specifies natural gas (NG) as the proper
gas supply type
•Use the supplied NG regulator, and NG flex line to connect the burner unit to the NG supply
•Use only pipe sealants that are specifically approved for use with NG
•A proper gas shutoff valve must be installed in a readily accessible location in the vicinity of the
burner unit
•To ensure safe and satisfactory performance, the gas supply line must be sized to accommodate the
total BTU requirements of all the gas-fired equipment that will be connected to that line
•Do not use piping with less than 1/2” inside diameter or 1” outside diameter to connect this burner
unit to NG supply line
•Do not use any tape, pipe dope, or threading compound on any flare threads; doing so may cause a
clog in the regulator and prevent your burner unit from safe and proper operation
•Any pressure testing must be performed only by a qualified gas technician.
•Before and during pressure testing, the burner unit and its individual shutoff valve must be
disconnected from the gas supply piping system, and the burner unit must be isolated from the gas
supply piping system by completely closing its individual manual shutoff valve

6•Safety Considerations GS-SB1 Single Side Burner Operator Manual
LP Cylinder Requirements
The LP-gas supply cylinder must be constructed and marked in accordance with the Specifications for LP-gas
Cylinders of the U.S. Department of Transportation (DOT)designed for use with a Type 1 system, must be no
larger than 20 lb. capacity with 11” water column, and have:
•A shutoff valve, terminating in an LP gas supply tank valve outlet that is compatible with a Type 1
tank connection
•A safety relief device having direct communication with the vapor space of the cylinder
•UL listed Overfill Protection Device (OPD) with a unique triangular hand wheel (Figure 1)
•A collar to protect the cylinder threads on the customer supplied tank
•A QCC–1 fitting connection compatible with connection to outdoor cooking appliances
Figure 1 LP Cylinder Valve
Filling and Refilling LP Gas Cylinders
Never use a dented, rusty or damaged LP gas cylinder. Never attempt
to repair an LP cylinder. The only way to safely resolve a damaged LP
cylinder is to have it replaced by a qualified gas service technician or
gas supply company.
All purging and refilling of LP gas cylinders must be performed by
qualified personnel in the LP gas industry. Never store a spare LP gas
cylinder under or near this appliance.
Never fill the LP gas cylinder beyond 80 percent full. Failure to follow
these instructions may result in explosion, personal injury, or death.
If a gas leak cannot be stopped by closing the LP cylinder valve,
immediately leave the area and call the fire department.
To replace an LP gas cylinder:
1. Turn all burner knobs to OFF and close the LP cylinder valve
2. Disconnect the regulator hose from the LP cylinder
3. Remove cylinder from the enclosure; have it replaced or filled at your local qualified LP gas dealer

GS-SB1 Single Side Burner Operator Manual Safety Considerations •7
4. Connect the regulator valve
a. Hold the regulator so it is aligned with the cylinder valve
b. Thread the coupling nut onto the valve and tighten clockwise until there is resistance
c. Tighten another half to three-quarters turn by hand to ensure the regulator is seated in the
valve – do not use tools
d. Do not use the regulator if the tank connection cannot be completed
5. Open the LP cylinder valve
6. If you smell gas or hear a hiss of gas escaping from the tank or regulator, close the cylinder valve
immediately and then:
a. If the leak stops, remove the regulator from the tank and reattempt the connection
b. If the leak persists, turn off the tank valve and remove the regulator
c. If the leak cannot be stopped by closing the tank valve, leave the area and call the fire
department immediately
7. Leak check the connections as described in the Leak Testing section below
Do not subject your LP gas cylinder to excessive heat, and always
store the cylinder in an upright position.
Never store a spare LP cylinder indoors or within the burner unit
enclosure.
When attaching components, ensure all connections are secured and
fully tightened to prevent leakage.
Turn off the gas supply – Natural Gas or LP Gas – when burner unit is
not in use.

8•Safety Considerations GS-SB1 Single Side Burner Operator Manual
Leak Testing
Test all gas piping and connections for leaks after installation or service, for both NG and LP gas systems.
Never use an open flame to check for leaks.
Do not smoke or allow other sources of ignition in the area while doing
a leak test.
Do not attempt to repair an LP cylinder valve if it is damaged. Return
the cylinder to a qualified LP tank supplier for replacement.
Always conduct the leak test outdoors in a well-ventilated area.
With all burners off, open the gas source valve and spray a soap/water solution on all joints. Growing
bubbles indicate leaking gas. Correct any leaks immediately. See Leak Test on page 25 for more detail.
Transporting and Storing LP Gas Cylinder
Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
Do not store any LP gas cylinder (that is not connected for use) in the
vicinity of this or any other appliance.
Follow these precautions when transporting or storing an LP gas cylinder:
•Transport only one cylinder at a time
•Ensure the cylinder is secured in an upright position with the control valve turned off and the dust
cover in place
•Store cylinders outdoors in a protected, cool, and dry location out of reach of children
•Do not store cylinders in a building, garage, or any other enclosed area
•The gas supply must be turned off at the LP Gas supply cylinder when this outdoor cooking gas
appliance is not in use

GS-SB1 Single Side Burner Operator Manual Specifications •9
Specifications
Single Side Burner Specifications
THIS MANUAL APPLIES TO THE FOLLOWING MODEL:
GS-SB1 N/P SINGLE SIDE BURNER
Accessory Dimensions 12 5/8”W x 25”D x 12 3/8” H
Total BTU Output 12,000 BTU
Number of Burners 1
Orifice Size (mm) LP 1.05 mm
Orifice Size (mm) NG 1.6 mm
Drip Tray Stainless Steel
Burner Aluminum and Brass
Ignitor Piezo Ignition System
Warranty
(See page 38 for details)
Limited Lifetime Warranty on
stainless steel housing; 5 years on
burners; 1 year on all other parts
Gas Type Available in LP or NG

10 •Specifications GS-SB1 Single Side Burner Operator Manual
Customer Required Items
LP Gas Cylinder
The LP cylinder used with your burner unit must meet the following requirements:
•Use LP cylinders only with these required measurements: 12" (30.5 cm) (diameter) x 18" (45.7
cm) (tall) with 20 lb. (9 kg) capacity maximum
•LP cylinders must be constructed and marked in accordance with specifications for LP cylinders
of the U.S. Department of Transportation (DOT) or National Standards of Canada CSA-B339
Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods. See the LP cylinder
collar for marking
Figure 2 LP Gas Cylinder Requirements
•LP cylinder valve must have:
oType 1 outlet compatible with regulator or burner unit
oSafety relief valve
•UL listed Overfill Protection Device (OPD), identified by a unique triangular hand wheel (Figure
2, right). Use only LP cylinders equipped with this type of valve
•LP cylinder must be upright for vapor withdrawal and include collar to protect LP cylinder valve.
Always keep LP cylinders in upright position during use, transit or storage
LP Cylinder Mount
You must equip your grill island with an appropriate mounting base or bracket to hold a 20 lb. LP
cylinder upright, such as the examples shown in Figure 3:
Figure 3 Example LP Cylinder Mounts

GS-SB1 Single Side Burner Operator Manual Specifications •11
Gas Regulator
Check the burner unit’s rating plate (Figure 16) to ensure your gas supply is correct for the burner unit
you purchased.
Gas Line Length
All gas supply lines should be as short as safely possible. Gas supply lines lose pressure over distance and
with each elbow or “T” Adapter fitting added, which causes pressure drops that negatively impact
performance.
LP Gas
For each burner unit configured for LP gas supply, customer must purchase and install an LP gas
regulator set for 11” water column pressure.
A single or double side burner must be connected to a separate regulated supply line and LP tank.
Natural Gas
Use NG flex line between the gas supply and the manufacturer supplied
regulator (right) set for 4” water column pressure.
If installed with a NG grill, the NG burner unit may be connected to the
grill’s regulated supply line via a “T” adapter, or connected to its own
separate NG supply line.
Installation
Operating a gas cooking appliance without a proper regulator is
dangerous and may cause serious bodily injury, death and/or property
damage, and voids all warranties. Gas appliances are convertible
to/from NG or LP gas supply by a licensed professional.
Customer must hire a licensed technician to ensure safe and proper
installation of all gas regulators, gas supply hoses, gas conversions,
electrical connections and lines, and plumbing connections.
Be sure the installer shows you where your gas supply shut-off is located. All gas lines must have a shut-
off that is readily and easily accessible.
STATE OF MASSACHUSETTS – Massachusetts requires all gas be installed by a plumber or gas fitter
carrying the appropriate Massachusetts license. All permanently-installed natural gas or propane

12 •Specifications GS-SB1 Single Side Burner Operator Manual
installations require a "T" handle type manual gas valve be installed in the gas supply line to this
appliance. This does not apply to portable propane installations using a 20 lb. cylinder.
Delivery company employees are not licensed electricians or plumbers and shall NOT install or
connect any gas regulators or supply lines, electrical connections or lines, or plumbing.
Outdoor Rated Electric Cord
Your Paradise Grills Outdoor Kitchen’s base burner unit is pre-wired with a Ground Fault Circuit
Interrupter (GFCI) electrical outlet installed. This electrical box has a hanging plug pigtail for connection
to an existing GFCI electrical outlet for power supply. The customer must supply an outdoor-rated
extension cord long enough to reach your chosen electrical outlet.
Use only a 12-gauge extension cord with a grounded, 3-prong plug. Outdoor extension cords should be
used with outdoor products and are surface marked with suffix letter “W” and with a tag stating
“Suitable for use with outdoor appliances.” The maximum length allowed for the extension cord is 25
feet. Do not use damaged extension cords. Examine extension cord before each use and replace if
damaged. Keep cord away from heat and sharp edges.
Safety Equipment
It is highly recommended to keep the following items close at hand whenever the burner unit is in use:
•ABC fire extinguisher, baking soda, sand, and/or kosher salt in case of a fire
•Insulated gloves
•Long handled utensils
Covers
Covers are highly recommended. Protect your investment with our custom fit Single Burner cover, sold
separately.

GS-SB1 Single Side Burner Operator Manual Grill Island Preparation •13
Grill Island Preparation
Paradise Grills Island Ventilation
Grill islands and Island Bars manufactured by Paradise Grills are portable and must be adequately vented as
shown in Figure 4:
a. Use the provided adjustable footers to ensure the island’s entire bottom edge, on all sides, is always
at least 1” above the ground
b. Open gap spacing under the burner unit head (and side burners, if installed)
c. Open gap spacing around the refrigerator (if applicable).
Figure 4 Paradise Grills Island Venting Example
The island’s entire bottom edge, on all sides, must always be maintained at
least 1” above the ground to allow for sufficient ventilation. Failure to do so
can cause gas to accumulate and may result in an explosion.

14 •Grill Island Preparation GS-SB1 Single Side Burner Operator Manual
Paradise Grills manufactured Islands use adjustable footers to allow sufficient airflow for effective
ventilation (Figure 5).
Figure 5 Air Gap Footers
Single Burner Location
Consider important factors such as wind exposure and foot traffic patterns when choosing a location for the
burner unit. Locate the burner unit outdoors in a well-ventilated area on a level, stable surface and with safe
clearance from combustible construction (see Clearances below). Ensure your burner unit is positioned
safely away from anything that can catch fire.
Position a freestanding burner unit so the prevailing wind blows into the front control panel (at your back
when cooking) to allow for proper front to rear airflow. A built-in burner unit enclosure in areas with
prevailing winds should be protected by a wind barrier, wind deflector, or wind guard. Winds directly hitting
the back of the burner unit may cause unsafe and improper operation.
•This burner unit is designed for outdoor use only.
•DO NOT use this burner unit inside a building, garage, or
enclosed area.
•DO NOT use this burner unit in or on a recreational vehicle,
trailer, boat, or any other moving installation.
As with any gas cooking appliance, harmful carbon monoxide is produced during the combustion process
that should not be allowed to accumulate in a confined or enclosed space. Because hot air rises above the
burner unit while in operation, covered locations should be avoided.
•Do not locate the burner unit under an overhang or awning
•Do not place this burner unit under or near windows or vents that can be opened into your home
•Always use CAUTION when using the burner unit near glass, vinyl siding or other temperature-
sensitive construction materials
oConsider increasing the clearance around the burner unit to avoid damage to such materials
oCheck with the manufacturer of the construction materials for guidance

GS-SB1 Single Side Burner Operator Manual Grill Island Preparation •15
Clearances
Your burner unit must be installed to ensure sufficient clearance from any combustible materials. The
customer is responsible for compliance with all city local codes and product placement.
Ensure your Single Burner is located at least 14” on the sides and 16” in the back from any combustible
material such as wood, gyprock, paper and plants. Do not store combustible materials, gasoline or
flammable liquids or vapors anywhere in the vicinity of the Single Burner.
Custom Island Construction
This Single Burner is for outdoor use only! Do not operate in a
building, garage, or any other enclosed area. Doing so could result in
carbon monoxide buildup which could result in injury or death.
Do not install or operate the Single Burner in or on a recreational
vehicle, trailer, boat, marine craft, or other moving conveyance.
Paradise Grills makes no warranties or representations as to the safe and proper design, construction,
ventilation, or installation of a custom-built grill island.
The following planning considerations are provided as general information only. You must consult with a
licensed contractor to ensure safe and proper design, construction, ventilation, and installation in
accordance with all applicable codes.
Because the amount of venting required varies on a case-by-case basis, consult with a licensed contractor
and local codes for adequate ventilation requirements. Keep all enclosure ventilation openings free and
clear from any debris or obstructions.
Planning Considerations
Building permit: Check with city and fire departments for local building codes. A permit may be required for
a custom-built grill island.
Materials: All custom-built grill islands must be constructed using only non-combustible materials. If any
combustible materials are used, an insulated jacket must be added between the burner unit and the island.
Adequate ventilation: Ensure there is adequate ventilation, for both the burner unit and LP gas cylinder, to
allow proper combustion and to prevent gas build up.
Compartments: A heat shield is required beneath the burner unit head. A plenum wall is required to create
a separate compartment for the LP gas cylinder. If multiple LP appliances are in use, each LP cylinder
requires its own vented compartment.

16 •Grill Island Preparation GS-SB1 Single Side Burner Operator Manual
Firm level surface: Use your burner unit only on a firm level surface. This burner unit is not designed for use
in or on a recreational vehicle, and should not be installed or used on a boat, marine craft, or other moving
conveyance.
Propane tank mount: Your island must be equipped with a propane tank mounting bracket for a 20 lb.
cylinder. See Customer Required Items.
Gas supply line: Pay careful attention to the gas line location. It should be routed away from sources of
heat, sharp edges and rough surfaces, and should make as few bends as possible.
Gas supply access: When your Single Burner is installed, you should have clear access to the gas supply line
including the gas piping or hose, gas regulator, gas cylinder and any shutoff valves. A safety shutoff valve is
required at the gas supply connection point.
Partial enclosures: Many backyards have areas that are partially closed off, such as balconies and pergolas.
In some cases, it is hard to decide whether these partially enclosed areas should be classified as indoor
areas, particularly in terms of permanent (non-closable) ventilation. If you are in doubt, consult your local
codes or a licensed contractor for guidance.
Measure: Always have equipment measured by a Contractor before building. Measure to ensure the
opening is not bigger than the outside frame of the burner unit (Figure 6); the burner unit edges must rest
on the lip of the frame.
Figure 6 Burner Unit fits in Island Frame

GS-SB1 Single Side Burner Operator Manual Grill Island Preparation •17
Custom-built Island Ventilation
Every component within the grill island must be vented – refrigerator, LP
gas cylinder, etc. Vent locations must be determined by a licensed
professional according to the design and configuration of your custom-
built island. Figure 7 illustrates examples of possible venting locations
for custom-built grill islands.
Figure 7 Example Vent Locations
Custom-built Island Cut-outs
Ensure any island cut-out opening is no larger than the outside frame of the appliance being installed. The
appliance should rest on the lip of the frame.
Figure 8 illustrates sample cut-out sizes for a grill island. Here are some other considerations:
•Ensure your grill island cavity is adequately vented. Consult your local licensed professional and local
codes for adequacy requirements
•Ensure your outdoor kitchen is constructed out of non-combustible materials
•If your outdoor kitchen is constructed of any combustible materials, an insulated jacket is REQUIRED
•Cutout dimensions do not allow for lid clearance or other measurement requirements. See Single
Side Burner Dimensions for specifics
•Please allow for a tolerance of +/- 1/8"; we recommend having your appliances in hand to measure
before making final cutouts in your custom-built grill island
Figure 8 Example Island Cut-outs for Paradise Grills Appliances

18 •Grill Island Preparation GS-SB1 Single Side Burner Operator Manual
Single Side Burner Dimensions
Figure 9 GS-SB1 Dimensions
