HD78/F
Event-Driven Indoor Security
IP Camera/Detector
with HD Audio
Installation Manual
**Compatible with Insite GOLD
and SWAN Server**
Introduction

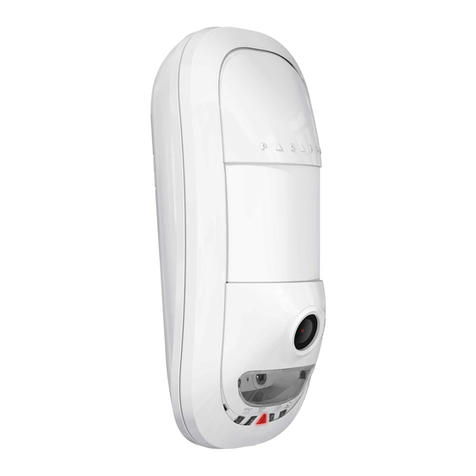

The HD78/F Event-Driven Indoor Security IP Camera combined
with its Security Detector provide video/audio solution for security
systems. It provides day/night vision at 720P and Hi-Fi audio
recording, with over 40 minutes of internal event-recording
capacity.
Installing the HD78
WIRING: For bus wire, it is recommended to use 18 gauge wire
if distance from the power supply is over 150ft (50m), or wire is
feeding more than one camera. Due to battery backup opera-
tion conditions, Camera feeding wire (bus) should not have
more than 1.0V drop,each camera represents 0.3A max cur-
rent, wire resistance calculator can be found on the web.
Resistance per:
100ft 22 gauge wire = 1.6 Ohm, 18 gauge 0.64 Ohm. Voltage
drop formula: V = 2R x 0.3N
(R = Wire resistance, N = Number of cameras fed by the wire,
use lower gauge wire if necessary).
Bracket Mount
HD78F - Connect Via Wi-Fi with Insite App
HD78 - Bus Wiring and / or Ethernet (HD78)
Wiring Using a CAT5e Cable
NOTE: Due to the wire size of CAT5 22 gauge wire the maxi-
mum length when using CAT5 for powering the HD78 is 150ft.
Wire the HD78/F camera with a single CAT5e or higher cable
including two twisted pairs for the 4-wire bus and two twisted pairs
for the Ethernet lines. The maximum CAT5e cable length is 50
meters.
Programming
1. HD78F Connect Power, Open Tamper
2. Phone: Activate hotspot on your
Android device, launch the Insite App.
3. Go to menu, select installation.
4. Follow screen instructions.
Unscrew and
remove cover
Lock
Mount back on wall
or bracket
Drill Out
Holes
Terminal
Block
Anti-Tamper
Spacer
1
4
5
2
3
Recommended Wiring
Assignment Ethernet Connector
Bus Label Wire Color
Ethernet
Wire
Assignment
Wire Color
R+ Brown 1 Green Striped
B- Blue 2 Green
G Blue striped 3 Orange Striped
Y Brown striped 4
RX- Orange 5
RX+ Orange striped 6 Orange
TX- Green 7
TX+ Green striped 8
4-Wire
Spectra/EVO
bus
Ethernet
CAT5e with 4 Twisted Pairs
Router or Switch
R+
Y
G
12345678
B-
4-Wire
R+ B- G Y RX-RX+TX-TX+

HD78F-EI03 03/2017
paradox.com
LED Status Indicators
Other than PIR detection, LEDs are active when lock mechanism
is open.
*VOD On/Off LED is controlled by the Master ONLY, using
the Insite GOLD application. PIR Detector Beam Patterns
Top View
Camera View
Technical Specifications
Side View
Camera View
LED Functionality LED Display
TX
Digiplex/Spectra Data TX Flashing green: Data
transmission
Off: No data
transmission
RX
Digiplex/Spectra Data RX Flashing green: Data
reception
Off: No data reception
Firmware upgrade in
progress.
Flashing purple
VOD* Blue on
Power-up Flashing blue
Locate mode Flashing blue
No connection to panel bus Flashing red
Bus low power Flashing red
PIR detection Red on for 3 seconds
Active Wi-Fi Green on
LAN 10/100Mb link Green on: LAN active
12.0m
(40’)
12.0m
(40’)
7.0m
(23’)
7.0m
(23’)
3.5m
(11’)
1.2m
(4’)
1.2m
(4’)
03.5m
(11’)
100°
110°
Image Resolution 1280 x 720
Image Sensor Type 1.4 megapixels, CMOS sensor,
7V/LUX.Sec
Streaming Video 720p H.264 10 FPS
HD Audio 16 bit, 24 KHz sampling rate, 32 Kb/s
mono
Pre-event
recording
3 seconds (day color mode)
Internal storage 4 GB
Detection Speed 0.2 m/s to 2.5 m/s (0.6 ft/s to 11.5 ft/s)
Voltage Input Nominal: 12VDC, range 9-16VDC
Current
Consumption Max
350mA - IR illumination ON
250mA - IR illumination OFF
100mA - System lost AC /
Battery operation
PIR Type Quad PIR, auto pulse, dual edge, digital
detector
Dimensions /
Weight
H x W x D: 15 x 7.1 x 6cm (6 x 2.8 x
2.4in) / 163g (5.75oz)
Operating
Temperature
-20° C to +40° C (-4° F to 104° F)
Compliance EN 50131-2-2 Grade 2 Environmental
Class II
Installation Height 2.1m - 2.7m (7ft - 9ft)
Installation options Wall or corner, swivel bracket optional
Compatibility SP5500, SP6000 and SP7000
2.1m
(6.8’)
1.7m
(5.6’)
4.0m
(12’)
8.0m
(26’)
12.0m
(40’)
Warranty
For complete warranty information on this product, please refer to the Limited Warranty Statement is found on the website:
www.paradox.com/terms or contact your local distributor. Specifications may change without prior notice.
Patents
US, Canadian and international patents may apply. Paradox is a trademark or registered trademark of Paradox Security Systems (Bahamas) Ltd.
