Parkes Dynamic Retrofits AUDI Carplay User manual

Instruction Manual
AUDI Carplay
Apple Carplay
Android auto

Carplay introduction
Input Voltage 12~16V DC
Rated Current 2A
Rated Power 24W
Material Housing aluminum
Connection USB
Control iDrive control, voice control
Working Temperature -20 ~ 80 degree
* Use the OEM Microphone. Don't replace the OEM screen and head unit
* Sound outputs via AUX in Carplay system. For the car without AUX, connect
AMI- to- AUX cable to AMI port to get sound
*Support Wireless/Wired Carplay connection
*Support Wireless/Wired Android auto connection
*Support USB HD playback function
*Keep the OEM system function, back camera view, parking sensor, etc
RF CABLE
TOGLE SWITCH
LVDS HDMI IN USB / VIDEO CAN
RF cable Wifi antenna connector
TOGGLE SWITCH Refer DIP code setting to set for different car model
LVDS Connect with LVDS cable labelled 'LVDS-CPCAR1702C-All'
HDMI IN HDMI input, support up to 720P
USB/VIDEO USB
CAN Original car knob control, voice control
Features
Panel description
Specifications
InputsUSB/HDMI input

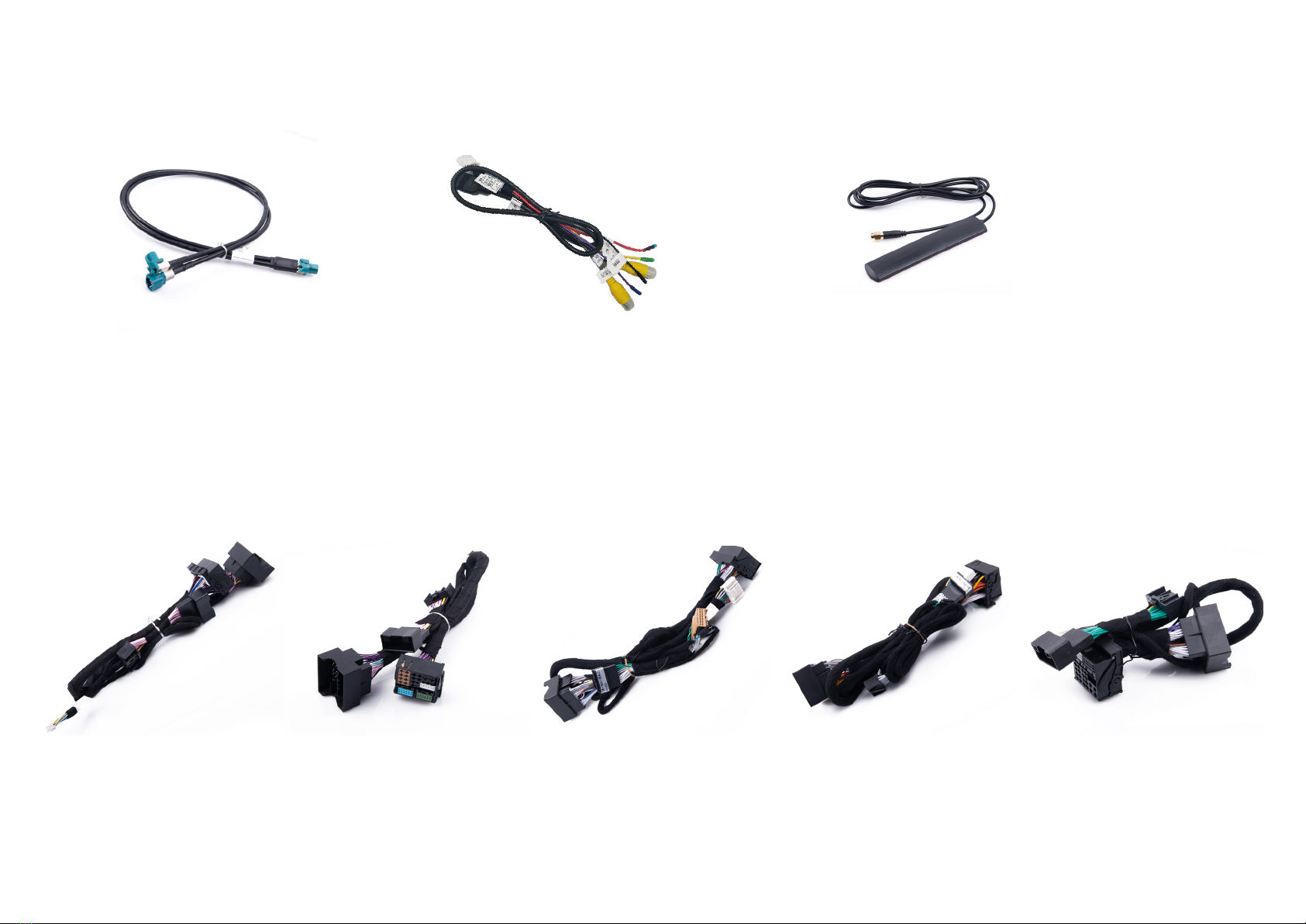

Accessories
Main Harness
CAN-GPXI1701-A6
Main Harness
CAN-GPXI1701-A7C
Main Harness
CAN-GPXI1701-Q3S
Main Harness
CAN-GPXI1701-A8
Main Harness
CAN-GPXI1701-Q5U
Main harness for different car models
LVDS-CPCAR1702C-All AV-USB-GP68 Antenna

※Move optical cable to the
Provide quadlock harness
LVDS HDMI IN
RF CABLE
TOGLE SWITCH
USB / VIDEO CAN
HDMI IN
<Only Supports 720P>
Connection Diagram
12V Power ACC OUT
12V Power OUT
For Reverse Cam Power
Reverse Detect 12V IN
REVERSE 12V IN
Ground
GROUND
12V OUT REVERSE CAM
12V ACC OUT
REVERSE CAM
REVERSE CAM
FRONT CAM
FRONT CAM
AV Cable
LVDS-CPCAR1702C-All
Audi 3G MMI
Head Unit
Apple Car Play
Google Android
We recommend using for each phone manufacturer genuine cable.
Do not use “Adapter Type and Multi cable”
Audi A6,A7 Connector of Climate controller
OEM
Lvds Cable
Audi A8 Connector of Climate controller
Audi Q3 Connector of Climate controller Audi A4,A5 Q5 Connector of Climate controller
Apple iPhone

DIP Switch Setting
OFF
ON
OFF:ON:
7 8

Bluetooth
Pair
Allow
Use Carplay
①②③
④⑤⑥
Wireless Carplay Connection
1.Turn on WIFI (Fig.1)
2.Turn on Bluetooth (Fig.2), and connect Carplay's bluetooth (Fig.3/4)
3.After the bluetooth connection is completed, the following prompts will pop up, click 'Allow-Use carplay' (Fig.5/6)

4.After the connection is successful, the Carplay icon will display on the main menu of the screen(Fig.7). And it will enter
Carplay automatically(Fig.8)
⑦⑧
Wired Android auto connection
1.Download Android auto APP on your Android phone(Fig.1).
2.Click 'WireAuto' icon(Fig.2), the prompt 'Please connect your Android device' will pop up(Fig.3).
3.Plug your phone to USB port. then it will enter Android auto automatically(Fig.4).
① ②
③
④⑤

Wireless Android auto connection
1.Turn on WIFI (Fig.1)
2.Turn on Bluetooth (Fig.2)
3.Search the Android phone's bluetooth on the screen in Carplay system(Fig.3/4/5)
4.Pair the bluetooth with your phone.(Fig.6)
5.After connecting the bluetooth, it will pop up the following prompts(Fig.7/8)
6.Then it will enter Android auto automatically(Fig.9)

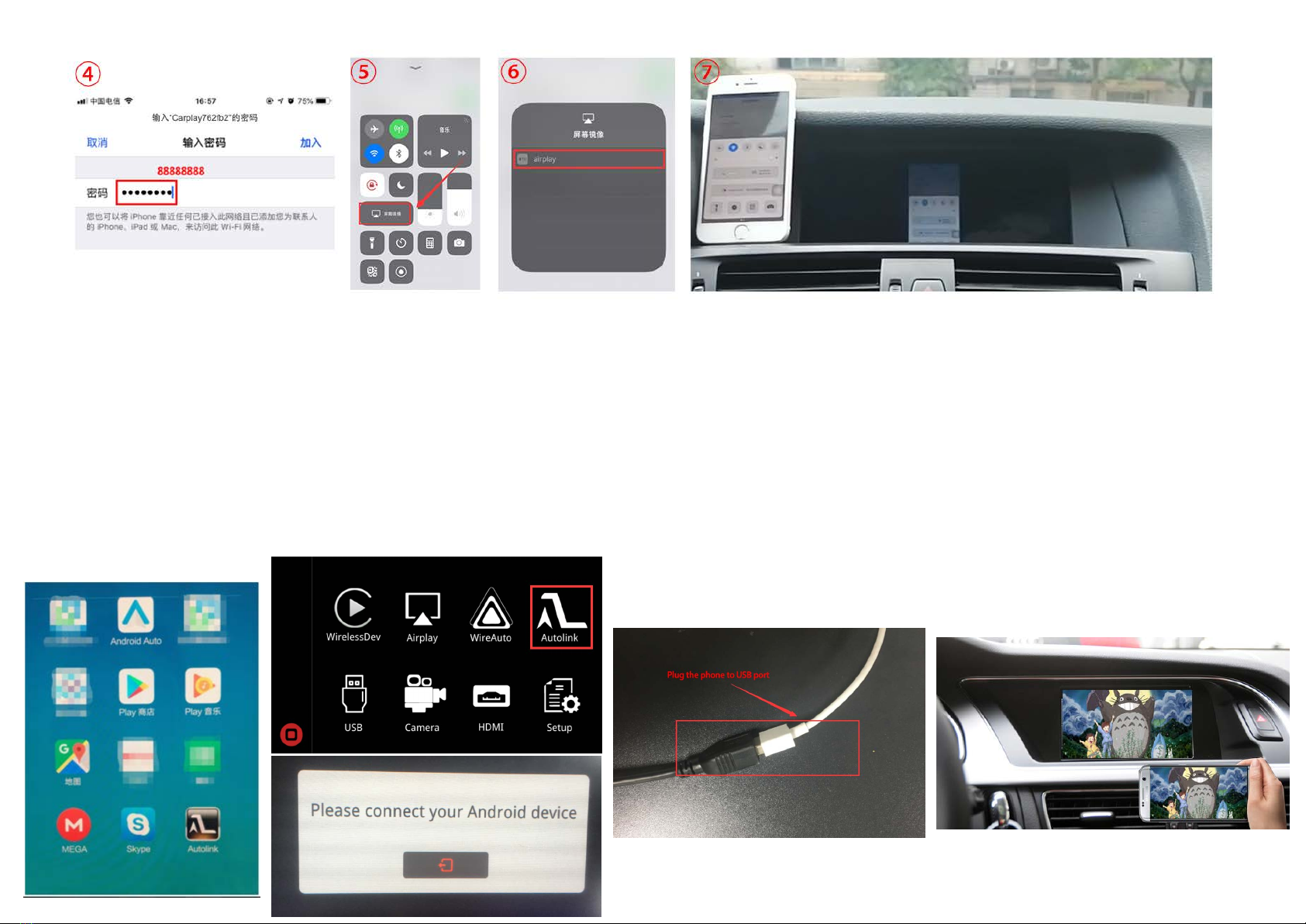

Wireless Airplay connection
1.Click 'Airplay' icon first (Fig.1), the pairing information with the phone will be displayed (Fig.2)
2.Search wifi signal of Airplay and conenct (Fig.3/4)
3.Turn on Airplay (Fig5/6)
4.After connecting Airplay, it will show like Fig.7
Note: If you have connected Carplay before, you need to disconnect Carplay first!

Wired Autolink connection
1.Download Android auto APP on your Android phone(Fig.1).
2.Click 'Autolink' icon(Fig.2), the prompt 'Please connect your Android device' will pop up(Fig.3).
3.Plug your phone to USB port(Fig.4). then it will enter Android auto automatically(Fig.5).
①②
③
④⑤

Activation by original buttons
Audi A6 3G MMI Controller
Audi A4 3G MMI Controller
Audi A6 3G MMI Steering Wheel Buttons
14
Apple Car Play
1
2
3
Button Function Operation Remarks
NAV
Changing
Modes
Press the button 3 seconds Order : OEM → Car Play
Press the button short time Return to the OEM mode in any modes.
Dial
Move the
pointer Turn the dial
Apple Car Play Function
Google Android Auto
Touch Pad
Move the
pointer Up,Down Touch the pad Google Android Auto
Back
Go back Press the button
Apple Car Play Function
Google Android Auto
"Siri"
"Google Assistant" Press the button 3 seconds
Apple Car Play Function
Google Android Auto
1
2
3
4
Voice
12
3

FAQ
1.Q: How to set language?
A: Please set language as the following picture shows. There are 6 languages in all now.
We also offer language customization for free. For detailed information, contact with the seller.
2.Q: I don't have sound on Carplay system, how to solve ?
A: 1) if your car has AUX function, set on OEM system
2) No AUX on your car, you need to buy AMI-to-AUX cable to get sound.

3.Q: How to switch OEM system to Carplay system?
A: Long press button Car/Media/Info/Menu to switch, different cars are matched by different buttons, usually
the MENU button.
4.Q: I can't connect wireless Carplay automatically, what can I do?
A:you can do as following solutions.
1) Please confirm if you turn on wifi and connect carplay's bluetooth.
2) If your car has OEM bluetooth, please delete the connection record, then reconnect carplay's bluetooth.
3) Please confirm the wifi antenna is away from metal.
4) Please confirm all siri permissions are allowed(Fig.2).
5) Reset the connection records on the phone and car (Fig.1) simultaneously, then reconnect.
5.Q: How to connect reverse camera?
A: 1) If your car has OEM camera, set as following picture shows(Fig.3).
①
②
③

2) For adding camera [Method1]:
1.Connect the reverse camera to CVBS OUT labeled 'Reverse camera'.
2.Connect the cable labeled '12V reverse camera' to camera power.
3.Set and connect as the following picture shows.
For adding camera [Method2]:
1.Connect the reverse camera to CVBS OUT labeled 'Reverse camera'.
2.Connect the cable labeled '12V reverse camera(Yellow)' and 'Back(Purple)' to camera power.
3.Set and connect as the following picture shows.

6.Q: can I connect wireless Android auto with my huawei mate 20?
A: Huawei doesn't support wireless connection. The following phone models support wireless Android auto.
7.Q:when I call others, they can hear what they say, how to fix it?
A: 1) Adjust 'Microphone volume' to 12, 'Microphone PGA' to 24
2) Adjust 'Microphone OP' from 0 until the sound is loud enough, Keeping the OP value is as small as possible
3) Fine-tune the 'Microphone PGA' at this time. After adjusting, restart this deivice
4) Adjust 'AEC quality' to 2
5) Finally fine-tune the 'Microphone delay', starting from 0 alternately, until there is no echo
Note: If the sound is distorted, please adjust 'Microphone OP'
