Parkside PEK 2.7 C2 Technical specifications

INSPECTION CAMERA WITH DISPLAY
PEK 2.7 C2
INSPECTION CAMERA
WITH DISPLAY
Assembly, operating and safety instructions
NÄYTÖLLINEN
TARKASTUSKAMERA
Asennus‑, käyttö‑ ja turvallisuusohjeet
INSPEKTIONSKAMERA
MED DISPLAY
Monterings‑, bruks‑ och
säkerhetsanvisningar
KAMERA INSPEKCYJNA Z
WYŚWIETLACZEM
Wskazówki montażu, obsługi i
bezpieczeństwa
PATIKROS KAMERA SU
EKRANU
Montavimo, naudojimo ir saugos
instrukcijos
INSPEKTIONSKAMERA MIT
DISPLAY
Montage‑, Bedienungs‑ und
Sicherheitshinweise
IAN 312150

GB Assembly, operating and safety instructions Page 5
FI Asennus‑, käyttö‑ ja turvallisuusohjeet Sivu 23
SE Monterings‑, bruks‑ och säkerhetsanvisningar Sidan 41
PL Wskazówki montażu, obsługi i bezpieczeństwa Strona 59
LT Montavimo, naudojimo ir saugos instrukcijos Psl 77
DE/AT/CH Montage‑, Bedienungs‑ und Sicherheitshinweise Seite 95

A114
13
2
10
9 7 58 6 4
11
3
12

14
12
B
C

20 21
17
15
11
18
1619
5/10 5/10
D

22
23
E
24

5GB
Introduction ..................................Page 6
Intended use....................................Page 6
Trademark notices ...............................Page 6
Warnings and symbols used ...............Page 7
Safety instructions...........................Page 8
Safety instructions for batteries .....................Page 11
Scope of delivery................................Page 12
Description of parts..........................Page 12
Technical data ................................Page 13
Setup ..........................................Page 14
Operation.....................................Page 15
Storage when not in use....................Page 18
Cleaning ......................................Page 19
Troubleshooting..............................Page 19
Disposal.......................................Page 20
Warranty .....................................Page 21

6 GB
INSPECTION CAMERA WITH DISPLAY
Introduction
We congratulate you on the purchase of your new product. You have
chosen a high quality product. The instructions for use are part of the
product. They contain important information concerning safety, use
and disposal. Before using the product, please familiarise yourself
with all of the safety information and instructions for use. Only use the
product as described and for the specified applications. If you pass the
product on to anyone else, please ensure that you also pass on all the
documentation with it.
Intended use
This product is under IT related category and intended for optical
examination, inspection. The product contains a built-in camera for
image recording.
The integrated light is a special purpose light. The light only serves
to illuminate the work area. The light is not intended for household
lighting.
This product may only be used privately and not for industrial or
commercial purposes.
This product may not be used in tropical climates. Any other use is
considered improper.
Any claims resulting from improper use or due to unauthorized
modification of the product will be considered unwarranted. Any
such use is at your own risk.
Trademark notices
The Parkside trademark and trade name is the property of their
respective owners.
USB®is a registered trademark of USB Implementers Forum, Inc.
Any other names and products may be trademarks or registered
trademarks of their respective owners.

7GB
Warnings and symbols used
The following warnings are used in this user manual and on the
packaging:
DANGER! This symbol with the signal word “DANGER”
indicates a hazard with a high level of risk which, if not
avoided, will result in serious injury or death.
WARNING! This symbol with the signal word
“WARNING” indicates a hazard with a medium level of risk
which, if not avoided, could result in serious injury.
CAUTION! This symbol with the signal word “CAUTION”
indicates a hazard with a low level of risk which, if not
avoided, could result in minor or moderate injury.
ATTENTION! This symbol with the signal word
“ATTENTION” indicates a possible property damage.
NOTE: This symbol with the signal word “Note” provides
additional useful information.
Direct current
Warning against optical radiation
This symbol means that the operating instructions must be
observed when using the product.

8 GB
Safety instructions
Before using the product, please familiarize yourself with all of the
safety instructions and instructions for use! When passing this product
on to others, please also include all the documents!
DANGER! DANGER TO LIFE AND RISK OF
ACCIDENT FOR INFANTS AND CHILDREN!
m DANGER! RISK OF SUFFOCATION
Never leave children unsupervised with the packaging material. The
packaging material poses a suffocation hazard. Children frequently
underestimate the dangers. The packaging material is not a toy.
This product may be used by children age 8 years and up, as
well as by persons with reduced physical, sensory or mental
capacities or lacking experience and / or knowledge, so long
as they are supervised or instructed in the safe use of the product
and understand the associated risks. Do not allow children to play
with the product. Cleaning and user maintenance should not be
performed by children without supervision. The product is not a toy.
m DANGER! Some of the provided parts can be swallowed. If a part
is swallowed, seek immediate medical attention.

9GB
m WARNING! RISK OF INJURY
Handling the product improperly may results in injury.
Avoid injury to eyes and skin when in the vicinity of optical
radiation.
Do not look directly into the light source or with optical
devices!
Do not use the gooseneck near live parts. Keep this in mind as well
when inspecting the inside of machines.
Do not use the gooseneck near moving parts. Keep this in mind as
well when inspecting the inside of machines.
Secure switched-off cables and devices against accidental restart.
Do not operate the product in potentially explosive environments in
which substances such as flammable liquids, fumes are present.
The product is not a medical device. Do not use the product on
persons or animals.
m WARNING! HEALTH HAZARD
Drains and waste pipes may contain matter or chemicals which may be
poisonous, infectious or corrosive.
Always take precautions appropriate to the area you wish to
inspect.
Wear appropriate personal protective equipment such as protective
gloves, safety goggles and a mask, respirator or face shield.
After use, rinse the product’s gooseneck thoroughly under running
water.

10 GB
m ATTENTION! RISK OF PROPERTY DAMAGE
Check the product before every use! Discontinue use if any damage
to the product is detected!
The product shall never be subjected to extreme temperature
fluctuations as this could result in condensation and electrical
short circuits. If the product is subjected to extreme temperature
fluctuations, however, wait (approx. 2 hours) until the product has
reached ambient temperature before use.
Do not operate the product near heat sources, e.g. radiators or
other devices emitting heat!
The product shall not be subjected to excessive shocks and
vibrations.
Do not use the product in the immediate vicinity of magnetic fields
(such as speakers).
Do not expose the product to strong artificial light.
Do not bend the gooseneck excessively – observe the minimum
bending radius of 45 mm.
Only the camera head and the gooseneck may be immersed in
liquids. Do not immerse these parts deeper than 100 cm. The fluid
must not conduct electricity. The parts may only be immersed in
neutral liquids. Use in acids, alkalis or solvents can destroy the
product.
Keep the main unit dry.
The OWIM GmbH & Co KG is not responsible for unauthorized
modifications of this product.
The user of the product is fully responsible for unauthorized
modifications of the product, as well as replacement of such
products.
It is necessary to repair the product if it has been damaged in any
way, for example, if the housing is damaged, if liquid or objects
have penetrated the product or if the product has been exposed to
rain or moisture.

11GB
Repair work is also required if the product is not working properly
or has been dropped.
If smoke is produced, or there are any unusual sounds or smells,
turn the product off immediately. In such cases, the product should
not be used until they have been inspected by authorized service
personnel. Only have the product repaired by qualified personnel.
Never open the housing of the product.
Safety instructions for batteries
m DANGER TO LIFE! Keep batteries out of reach of children. If
accidentally swallowed seek immediate medical attention.
m DANGER OF EXPLOSION! Never recharge non-rechargeable
batteries. Do not short-circuit batteries and / or open them.
Overheating, fire or bursting can be the result.
Never throw batteries into fire or water.
Do not exert mechanical loads to batteries.
Risk of leakage of batteries
Avoid extreme environmental conditions and temperatures, which
could affect batteries, e.g. radiators / direct sunlight.
If batteries have leaked, avoid contact with skin, eyes and mucous
membranes with the chemicals! Flush immediately the affected
areas with fresh water and seek medical attention!
In the event of a leakage of batteries, immediately remove them
from the product to prevent damage.
Only use the same type of batteries. Do not mix used and new
batteries.

12 GB
Remove batteries if the product will not be used for a longer period.
Risk of damage of the product
Only use the specified type of battery!
Insert batteries according to polarity marks (+) and (–) on the
battery and the product.
Clean the contacts on the battery and in the battery compartment
before inserting!
Remove exhausted batteries from the product immediately.
Scope of delivery
After unpacking the product, check if the delivery is complete and if all
parts are in good condition. Remove all packing materials before use.
Please contact customer service if parts are missing or damaged.
1x Main unit
1x Flexible gooseneck with camera head and LED light
1x Adaptor – Single hook
1x Adaptor – Double hook
1x Adaptor – Mirror
1x Adaptor – Magnet
1x Carry case
1x USB cable (USB type A to Micro-USB)
1x User manual
4x Battery (AA / LR6)
Description of parts
Before reading, unfold the page containing the illustrations and
familiarize yourself with all functions of the product.
1Camera
2Micro USB port (with cover)

13GB
3Handle
4USB cable (USB type A to Micro-USB)
5Battery (AA / LR6) (4x)
6Adaptor – Magnets
7Adaptor – Mirror
8Adaptor – Single hook
9Adaptor – Double hook
10
Carry case

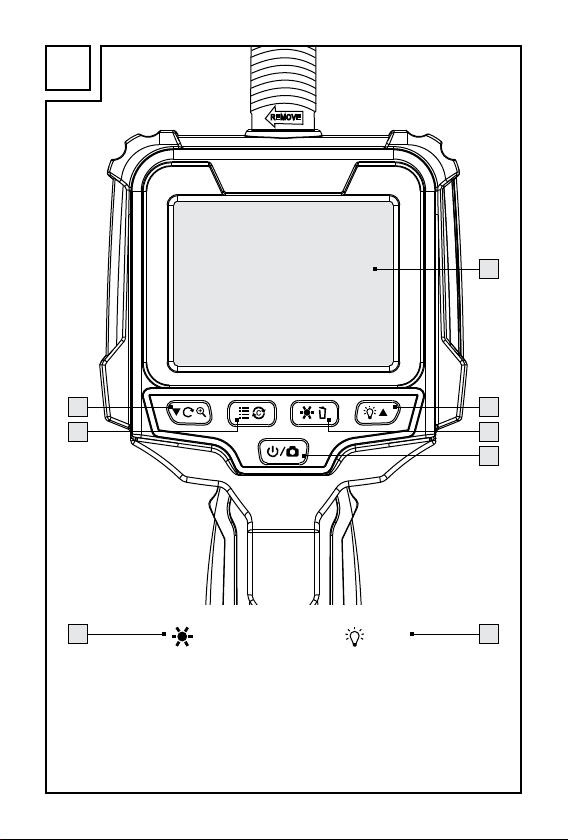

11
Display
12
Connection port
13
Camera head with LED
14
Flexible gooseneck
15
button (LED brightness)
16
button (Display brightness / Delete image button)
17
button (ON/OFF / Snap shot button)
18
button (Rotate image / Zoom button)
19
button (Playback / Monochrome button)
20
Display illumination level indicator
21
LED brightness level indicator

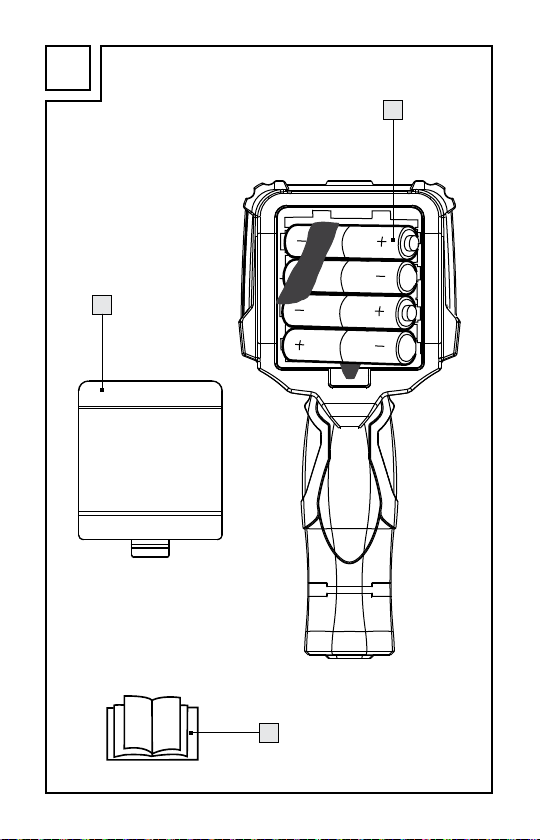

22
Battery compartment cover
23
Battery compartment
24
User manual
Technical data
Model: HG04801
Supply voltage: 6 V
(Battery: 4 x 1.5 V AA / LR6)
Operation time: approx. 350 minutes
(with new batteries)
Protection class: IP67 (Protection against dust and short
time immersion in water – only for
camera head and gooseneck)
Minimum bending radius: 45 mm

14 GB
Camera diameter: 8 mm
Display (diagonal, resolution): 2.7”, 960 x 240 pixel
Flexible gooseneck length: approx. 120 cm
Picture file (resolution, format): 640 x 480 pixel, jpg
Storage capacity: 120 pictures
Operating temperature: 5 to 35 °C
Storage temperature: 0 to 45 °C
Humidity: 10 to 70 % RH
Dimension (L x W x H): approx. 235 x 90 x 42 mm
Weight: approx. 480 g
Setup
Follow the instructions below to configure the product for initial use:
Step Fig.
Open the battery compartment
23
, located at the back of
the main unit 1.
E
Insert the 4 batteries 5(1.5 V , type AA / LR6) into
the battery compartment
23
. Insert the batteries with
correct polarity (observe the markings in the battery
compartment and on the batteries).
Close the battery compartment
23
with the battery
compartment
22
.
Connect the flexible gooseneck
14
with the connection
port
12
.C
Screw the outer thread of the connection port
12
onto the
flexible gooseneck
14
.

15GB
Operation
Switching on and off
Press the button
17
for approx. 2 seconds.
The display
11
switches on.
The camera head’s LED
13
lights up.
NOTE: The product will be automatically switch off if no button is
pressed for approx. 20 minutes.
Setting the LED’s brightness
Shortly press the button
15
.
The brightness of the camera head’s LED
13
can be set to
10 different brightness levels.
The LED’s
13
brightness can be increased only.
When the highest brightness level has been reached, the LED
13
goes off.
The brightness setting is indicated on the display
11
by the LED
brightness level indicator
21
.
Setting the display brightness
Shortly press the button
16
.
The display
11
can be set to 10 different brightness levels.
The monitor brightness can be increased only.
When the highest brightness level has been reached, the lowest
brightness is used.
The display brightness setting is indicated on the display
11
by the
display illumination level indicator
20
.
Image rotation
Shortly press the button
18
.
At some inspection locations (e.g. curved pipes) it is hard to obtain
a clear view. In such situations, change the display’s
11
orientation:

16 GB
18
Function
Press 1x Picture is rotated by 180° (reversed)
Press 2x Picture is reversed and mirrored.
Press 3x Picture is mirrored.
Press 4x Original position.
NOTE: After the product has been shut down and turned on again,
the picture will be shown in its original position.
Zooming
Press the button
18
for approx. 2 seconds.
The product features a 3-level zoom function:
18
Function
Press 1x Picture is magnified 2 times
Press 2x Picture is magnified 3 times.
Press 3x Picture is magnified 4 times.
Press 4x Picture is displayed in its original size.
NOTE: After the camera has been shut down and turned on again,
the picture will be shown in its original size again.
Changing the colour mode
Press the button
19
for approx. 2 seconds.
The display’s colour mode toggles between colour and black-white
mode.
NOTE: The colour mode can only be changed during live display.
Image recording and playback function
Shortly press the button
17
.
The product is equipped with built-in memory that can store up to
120 pictures.

17GB
Memory full: The following symbol is displayed:
Freeing up memory: Delete pictures that are not needed anymore.
Picture playback
Button Function
15
Previous picture.
18
Next picture.
19
Toggle between current camera picture and picture
playback.
Deleting pictures
Delete current picture/all pictures: During picture playback, press
the button
16
.
A dialogue is shown. Press one of the following buttons:
19 17 16
Back Delete all pictures Delete picture
c

18 GB
USB output for data transfer
This product is equipped with USB port 2(at its side) so that you can
display or save images to a computer:
Turn the product off.
Lift up the cover of the USB port 2.
Connect the Micro-USB plug of the USB cable 4to the USB port
2.
Connect the other end of the USB cable 4to a computer.
Switch on the computer.
The product turns on automatically when the computer is on.
NOTE: To save power, the display
11
switches off, when the USB
cable 4is connected to a computer.
Accessories (Fig. B)
The product includes 4 accessories that can be attached to the camera
head
13
:
Adaptor Use
Magnets 6Retrieving objects (e.g. rings).
Single hook 8
Double hook 9
Mirror 7Examining inaccessible areas.
Attaching accessories:
– Select the needed accessory.
– Put the accessory onto the camera head
13
.
– Lock the selected accessories’ bracket firmly onto the camera
head
13
.
Storage when not in use
Before storage: Remove batteries from the product.
