PARRY GGP6.4 User manual

INSTRUCTION REF: IN205
ISSUE NO. 3
DATE 07.03.12
Page 1 of 18
www.parry.co.uk
1
GAS GRIDDLE INSTRUCTIONS
MODEL: PGF GRIDDLES
GGP6.4, 6.6, 6.8, 6.10
VALIDATE WARRANTY
SAFETY INSTRUCTIONS
INSTALLATION INSTRUCTIONS
OPERATION INSTRUCTIONS
MAINTENANCE INSTRUCTIONS
CONVERSION INSTRUCTIONS
SERVICE INSTRUCTIONS
TECHNICAL DETAILS
PARTS LIST
WARRANTY INFORMATION
Customer Information
MODEL NUMBER:
______________________
SERIAL NUMBER:
______________________
PURCHASE DATE:
______________________
DISTRIBUTOR:
______________________

INSTRUCTION REF: IN205
ISSUE NO. 3
DATE 07.03.12
Page 2 of 18
www.parry.co.uk
2
SAFETY INSTRUCTIONS
IMPORTANT, PLEASE READ INSTRUCTIONS FULLY BEFORE USE
THIS APPLIANCE IS ONLY FOR PROFESSIONAL USE AND MUST ONLY BE
USED BY QUALIFIED PEOPLE.
Attention should be drawn to the fact that parts of this unit by necessity, will get
VERY HOT, and will cause burns if touched accidentally. Therefore it is the
responsibility of the supervisor or equivalent to provide SUITABLE PROTECTIVE
CLOTHING for the user.
THIS APPLIANCE MUST BE FITTED AND TESTED BY A REGISTERED
FITTER BEFORE USE.
The unit should be installed in compliance with the INSTALLATION
INSTRUCTIONS and the NATIONAL REGULATIONS in force at the time.
Particular attention should be paid to the Gas Safety (Installation and Use)
Regulations and the Health and Safety at Work Act.
Each appliance requires a flow of fresh air for combustion. Under no
circumstances should air vents on the appliances, or air vents installed by the
fitter in the room of the appliance to supply combustion air, be altered or omitted
in any way.
To prevent shocks, all appliances whether gas or electric, must be earthed.
ANY GAS CONVERSIONS NEEDED TO BE MADE TO THE PRODUCT MUST
BE CARRIED OUT BY A GAS SAFE REGISTERED ENGINEER
To avoid scratching the highly polished exterior surface of this equipment whilst
in transit, the protective film on the exterior surfaces has NOT been removed.
It is IMPORTANT that this protective film is peeled off before the equipment is
used.

INSTRUCTION REF: IN205
ISSUE NO. 3
DATE 07.03.12
Page 3 of 18
www.parry.co.uk
3
INSTALLATION INSTRUCTIONS
IMPORTANT
PLEASE READ INSTRUCTIONS FULLY BEFORE USE
THIS APPLIANCE MUST BE FITTED AND TESTED BY A REGISTERED
FITTER IN ACCORDANCE WITH CURRENT REGULATIONS
EACH APPLIANCE REQUIRES A FLOW OF FRESH AIR FOR COMBUSTION,
UNDER NO CIRCUMSTANCES SHOULD AIR VENTS ON THE APPLIANCES,
OR AIR VENTS INSTALLED BY THE FITTER IN THE ROOM OF THE
APPLIANCES TO SUPPLY COMBUSTION AIR, BE ALTERED OR OMITTED
IN ANY WAY.
1. All appliances are supplied for use on L.P.G gas (conversion to NAT is
possible with conversion kit available). Working pressures and heat inputs
are listed in the Technical Details.
2. Appliances must not be installed on or against any combustible surface.
Clearances are appliances must be:
CEILING/SHELF 900mm
REAR 150mm
SIDES 150mm
3. During installation provision must be made for combustion air supply to the
appliance, which enters the appliance through the base and rear of the
appliance, this should not be blocked at any time. SEE TECHNICAL
DETAILS.
4. Appliances are designed to be installed, on Parry Catering Equipment for
stability, if they are fitted on any other surface they should be suitably
secured, to prevent excessive movement.
5. Connection to the appliance is by ½” BSPT at the left hand side of the
appliance.

INSTRUCTION REF: IN205
ISSUE NO. 3
DATE 07.03.12
Page 4 of 18
www.parry.co.uk
4
6. Pressure test point is located underneath the appliance –it is located on the
tap rail.
7. Low rate is factory set for LPG gas, and only require adjustment when
converting from LPG to NAT Gases.
8. Remove all protective film before use.
9. Ensure whoever is operating the appliance is fully conversant with its
operation and aware of dangers involved in incorrect operation and cleaning,
especially the danger of burns and scolds from the cooking medium and hot
surfaces of working areas.
The appliance must be placed in a well ventilated location,
underneath a suction fan with a suction capacity of at least 1500m3/h
The griddle must be secured by placing four M10 sized screws with
at least 15mm of thread available.
In the shape of a rectangle, holes should be drilled on the work
surface for the location of where the feet will sit
Screws will be placed through the work surface so the feet of the
appliance can sit directly on top of the screws so appliance can not
move
Sizes required : GGP6.4 295mm x 332mm
Sizes required : GGP6.6 295mm x 532mm
Sizes required : GGP6.8 295mm x 732mm
Sizes required : GGP6.10 295mm x 932mm

INSTRUCTION REF: IN205
ISSUE NO. 3
DATE 07.03.12
Page 5 of 18
www.parry.co.uk
5
OPERATING INSTRUCTIONS
FOR FITTING INSTRUCTIONS SEE INSTALLATION SECTION.
ALL GRIDDLES ARE FITTED WITH FLAME FAILURE DEVICE FOR SAFETY
AND SPARK IGNITION FOR EASE OF LIGHTING
TO LIGHT BURNER:
1. Turn knob to *position
2. Push knob in and ignite gas by pressing ignition button to left of the on/off
knob.
3. Keep ON/OFF knob pressed in for 15-20 seconds. Check gas is lit by looking
through the gap between plate and the front panel of the appliance.
4. Release ON/OFF knob, gas should stay lit, if gas goes out repeat (2) the
burner is now on. If the unit fails to light within 1 minute abort the lighting
process for at least 2 minutes to allow gas to disperse.
5. Turn knob anti-clockwise to obtain main gas . The lowest setting has been
set at the factory and sealed. This must not be adjusted by user.
6. To turn burner off, turn knob in a clockwise direction all the way round to •
7. We advise that the appliance should not be left unattended when switched on.
8. The appliances are designed for professional use by qualified people only.
9. There are no user serviceable parts.
10.Clean outer casing with warm soapy water. Do not use scouring pads.
It is recommended that Griddles be run on full gas after ignition for 10 minutes,
then adjust as necessary to obtain correct cooking temperature.
To remove any residue uses a scraper several times a day after cooking. Scaling
will result if this is not done. Empty the fat drawer and clean every day.

INSTRUCTION REF: IN205
ISSUE NO. 3
DATE 07.03.12
Page 6 of 18
www.parry.co.uk
6
MAINTENANCE INSTRUCTIONS
MAINTENANCE AND SERVICE MUST ONLY BE UNDERTAKEN BY
REGISTERED FITTERS.
Parry advise that regular annual maintenance should be conducted by a Gas
Safe registered engineer. This is essential to maintain safety and prolong life of
the appliance.
PLEASE NOTE THE LOW RATE ADJUSTER ON THE UNIT HAS BEEN
FACTORY SET AND SHOULD NOT BE ADJUSTED UNLESS BY A
QUALIFIED ENGINEER IN WHICH CASE THE LOW RATE ADJUSTER
SHOULD BE RE-SEALED.
CLEANING
1. Always clean the griddle plate and fat drawer after use
2. Turn off the griddle and let cool down
3. Thoroughly clean the plate and fat drawer.

INSTRUCTION REF: IN205
ISSUE NO. 3
DATE 07.03.12
Page 7 of 18
www.parry.co.uk
7
CONVERSION INSTRUCTIONS
Close the gas supply valve.
Disconnect the inlet gas supply.
To replace burner, push it a bit to the back of the equipment and this
loosens the burner from the aluminium part. Replace the old burner with a
new one or replace the injector in case of a change of gas type. To loosen
the injector one must use an adequate nut driver. Attention: Keep in mind
the relation between the diameter of the injector’s hole and the type of
gas.
To replace the thermocouple and the electrode it is necessary to take out
the front panel. To do so, loosen the screws that attach the side panels’
corners. This way the whole assembly; front panel and corners will come
out together.
The thermocouple and the electrode are attached to the aluminium part,
which is attached to the burner support. In order to take out the aluminium
part, it’s necessary to unscrew the pipe that links the tap to the burner and
the 2 screws that hold the burner frontal support.
The minimum setting is regulated with the burner on turned to the
minimum setting.
Remove the black knob from the gas tap and regulate the frontal screw
which is located below the shaft of the tap.
Adjust the flame to a desired low setting that will have enough heat to
keep the thermocouple hot and keep the flame burning.
Wait for a couple of minutes to make sure that the flame doesn’t go out.

INSTRUCTION REF: IN205
ISSUE NO. 3
DATE 07.03.12
Page 8 of 18
www.parry.co.uk
8
SERVICING INSTRUCTIONS
In order to clean or replace the burner, loosen the nut that connects the
(8mm) gas pipe to the aluminium part;
Loosen the nut that connects the thermocouple to the aluminium part and
disconnect the piezo ignitor;
In case there a tap malfunction, you should replace and there should be
no attempt to oil it.
YOU MUST CLEAN THE COMPONENTS OF THE UNIT AT LEAST ONCE
A YEAR

INSTRUCTION REF: IN205
ISSUE NO. 3
DATE 07.03.12
Page 9 of 18
www.parry.co.uk
9
TECHNICAL DETAILS GGP6.4
Total Unit
GAS
OPERATING PRESSURE
TOTAL HEAT INPUT
NATURAL G20
20mb/8” W.G.
3.100 KW = 10578 Btu/h
BUTANE G30
29mb/11.2” W.G.
3.100 KW = 10578 Btu/h
PROPANE G31
37mb/14.8” W.G.
3.100 KW = 10578 Btu/h
G25
25mb/10” W.G.
2.900 KW = 9895 Btu/h
GAS RATE
M³/HR
FT³/HR
LB/HR
KG/HR
NATURAL G20
0.330 M³/HR
11.654 FT³/HR
BUTANE G30
0.101 M³/HR
3.564 FT³/HR
0.518 LB/HR
0.235 KG/HR
PROPANE G31
0.133 M³/HR
4.714 FT³/HR
0.518 LB/HR
0.235 KG/HR
G25 @ 25mb
0.350 M³/HR
12.360 FT³/HR
INJECTORS
Natural G20 = INJECT 125
Butane G30 = INJECT 93
Propane G31 = INJECT 93
G25 @ 25mb = INJECT 125

INSTRUCTION REF: IN205
ISSUE NO. 3
DATE 07.03.12
Page 10 of 18
www.parry.co.uk
10
TECHNICAL DETAILS GGP6.6
Total Unit
GAS
OPERATING PRESSURE
TOTAL HEAT INPUT
NATURAL G20
20mb/8” W.G.
5.500 KW = 18767 Btu/h
BUTANE G30
29mb/11.2” W.G.
5.500 KW = 18767 Btu/h
PROPANE G31
37mb/14.8” W.G.
5.500 KW = 18767 Btu/h
G25
25mb/10” W.G.
5.000 KW = 17061 Btu/h
GAS RATE
M³/HR
FT³/HR
LB/HR
KG/HR
NATURAL G20
0.582 M³/HR
20.553 FT³/HR
BUTANE G30
0.184 M³/HR
6.505 FT³/HR
0.957 LB/HR
0.434 KG/HR
PROPANE G31
0.243 M³/HR
8.565 FT³/HR
0.941 LB/HR
0.427 KG/HR
G25 @ 25mb
0.615 M³/HR
21.719 FT³/HR
INJECTORS
Natural G20 = INJECT 115
Butane G30 = INJECT 85
Propane G31 = INJECT 85
G25 @ 25mb = INJECT 115

INSTRUCTION REF: IN205
ISSUE NO. 3
DATE 07.03.12
Page 11 of 18
www.parry.co.uk
11
TECHNICAL DETAILS GGP6.8
Total Unit
GAS
OPERATING PRESSURE
TOTAL HEAT INPUT
NATURAL G20
20mb/8” W.G.
8.250 KW = 28150 Btu/h
BUTANE G30
29mb/11.2” W.G.
8.250 KW = 28150 Btu/h
PROPANE G31
37mb/14.8” W.G.
8.250 KW = 28150 Btu/h
G25
25mb/10” W.G.
7.500 KW = 25591 Btu/h
GAS RATE
M³/HR
FT³/HR
LB/HR
KG/HR
NATURAL G20
0.872 M³/HR
30.794 FT³/HR
BUTANE G30
0.276 M³/HR
9.747 FT³/HR
1.433 LB/HR
0.650 KG/HR
PROPANE G31
0.364 M³/HR
12.864 FT³/HR
1.413 LB/HR
0.641 KG/HR
G25 @ 25mb
0.922 M³/HR
32.560 FT³/HR
INJECTORS
Natural G20 = INJECT 115
Butane G30 = INJECT 85
Propane G31 = INJECT 85
G25 @ 25mb = INJECT 115

INSTRUCTION REF: IN205
ISSUE NO. 3
DATE 07.03.12
Page 12 of 18
www.parry.co.uk
12
TECHNICAL DETAILS GGP6.10
Total Unit
GAS
OPERATING PRESSURE
TOTAL HEAT INPUT
NATURAL G20
20mb/8” W.G.
9.300 KW = 31733 Btu/h
BUTANE G30
29mb/11.2” W.G.
9.300 KW = 31733 Btu/h
PROPANE G31
37mb/14.8” W.G.
9.300 KW = 31733 Btu/h
G25
25mb/10” W.G.
8.700 KW = 29686 Btu/h
GAS RATE
M³/HR
FT³/HR
LB/HR
KG/HR
NATURAL G20
0.990 M³/HR
34.962 FT³/HR
BUTANE G30
0.303 M³/HR
10.692 FT³/HR
1.554 LB/HR
0.705 KG/HR
PROPANE G31
0.399 M³/HR
14.142 FT³/HR
1.554 LB/HR
0.705 KG/HR
G25 @ 25mb
1.050 M³/HR
37.080 FT³/HR
INJECTORS
Natural G20 = INJECT 125
Butane G30 = INJECT 93
Propane G31 = INJECT 93
G25 @ 25mb = INJECT 125

INSTRUCTION REF: IN205
ISSUE NO. 3
DATE 07.03.12
Page 13 of 18
www.parry.co.uk
13
GAS GRIDDLES
GGP6.4, 6.6, 6.8, 6.10
ID
PART Nº
PARTS DESCRIPTION
1
7.0.301.0060
GRILL PLATE GGP6.4
1
7.0.302.0060
GRILL PLATE GGP6.6
1
7.0.303.0060
GRILL PLATE GGP6.8
1
7.0.304.0060
GRILL PLATE GGP6.10
2
4.0.301.0010
SLEEVE ø19x1.5x33 mm GL500
3
4.0.301.0011
SLEEVE DRIVE ø19x1.5x33 mm GL500
4
7.0.301.0001
LEFT PANEL GL500
5
7.0.301.0002
RIGHT PANEL GL500
6
7.0.301.0012
FRONT PANEL GGP6.4
6
7.0.302.0012
FRONT PANEL GGP6.6
6
7.0.303.0012
FRONT PANEL GGP6.8
6
7.0.304.0012
FRONT PANEL GGP6.10
7
7.0.301.0006
REAR PANEL GGP6.4
7
7.0.302.0006
REAR PANEL GGP6.6
7
7.0.303.0006
REAR PANEL GGP6.8
7
7.0.304.0006
REAR PANEL GGP6.10
8
4.0.201.0001
COURNER GL
9
4.0.301.0028
IGNITOR FASTON 2.8x0.5
10
7.0.301.0020
FRONT BURNER SUPPORT SBF
11
4.0.100.0010
TAP HANDLE STICHER
12
7.0.301.0021
REAR BURNER SUPPORT SBF
13
4.0.301.0031
INJECTOR SUPPORT
14
7.0.301.0030
STRUCTURE REINFORCEMENT GL500.4
14
7.0.302.0030
STRUCTURE REINFORCEMENT GL500.6
14
7.0.303.0030
STRUCTURE REINFORCEMENT GL500.8
14
7.0.304.0030
STRUCTURE REINFORCEMENT GL500.10
15
7.0.120.0030
DISTRIBUTION PIPE SUPPORT
16
4.0.301.0030
BURNER SBF 300MM
17
4.0.301.0001
HANDLE FOR GAS TAP GL

INSTRUCTION REF: IN205
ISSUE NO. 3
DATE 07.03.12
Page 14 of 18
www.parry.co.uk
14
18
7.0.301.0070
DISTRIBUTION TUBE GGP6.4
18
7.0.302.0070
DISTRIBUTION TUBE GGP6.6
18
7.0.303.0070
DISTRIBUTION TUBE GGP6.8
18
7.0.304.0070
DISTRIBUTION TUBE GGP6.10
19
4.0.000.0878
ADHERENT RUBBER FOR FEET
20
7.0.100.0050
DISTRIBUTION TUBE FASTENER
21
4.0.100.0035
GAS TAP FASTENER
22
4.0.301.0025
TAP WITH SECURITY VALVE
23
4.0.301.0032
BURNER SUPPORT SBF
24
4.0.301.0034
IGNITION PILOT SBF
25
4.0.301.0012
PLATE REAR SUPPORT ø15x34.5mm GL500
26
4.0.301.0033
GAS TERMOCOUPLE 250MM FASTON 8X1
27
4.0.301.0045
GAS INJECTOR M6x0.75 - 1.25 (GGP6.4, GGP6.10)
27
4.0.301.0044
GAS INJECTOR M6x0.75 - 1.15 (GGP6.6, GGP6.8)
28
4.0.301.0043
GAS INJECTOR M6x0.75 - 0.93 (GGP6.4, GGP6.10)
28
4.0.301.0042
GAS INJECTOR M6x0.75 - 0.85 (GGP6.6, GGP6.8)
29
4.0.301.0035
SBF IGNITION PILOT FIXING SPRING
30
7.0.301.0027
DRAIN TRAY GL500.4
30
7.0.302.0027
DRAIN TRAY GL500.6
30
7.0.303.0027
DRAIN TRAY GL500.8
30
7.0.304.0027
DRAIN TRAY GL500.10
31
4.0.065.0004
HANDLE WITH THREAD M6
32
4.0.066.0087
GAS GRILL PLATE FEET
33
4.0.301.0036
CONNECTION TUBE TAP/INJECTOR (G1/4F-M12x1)

INSTRUCTION REF: IN205
ISSUE NO. 3
DATE 07.03.12
Page 15 of 18
www.parry.co.uk
15

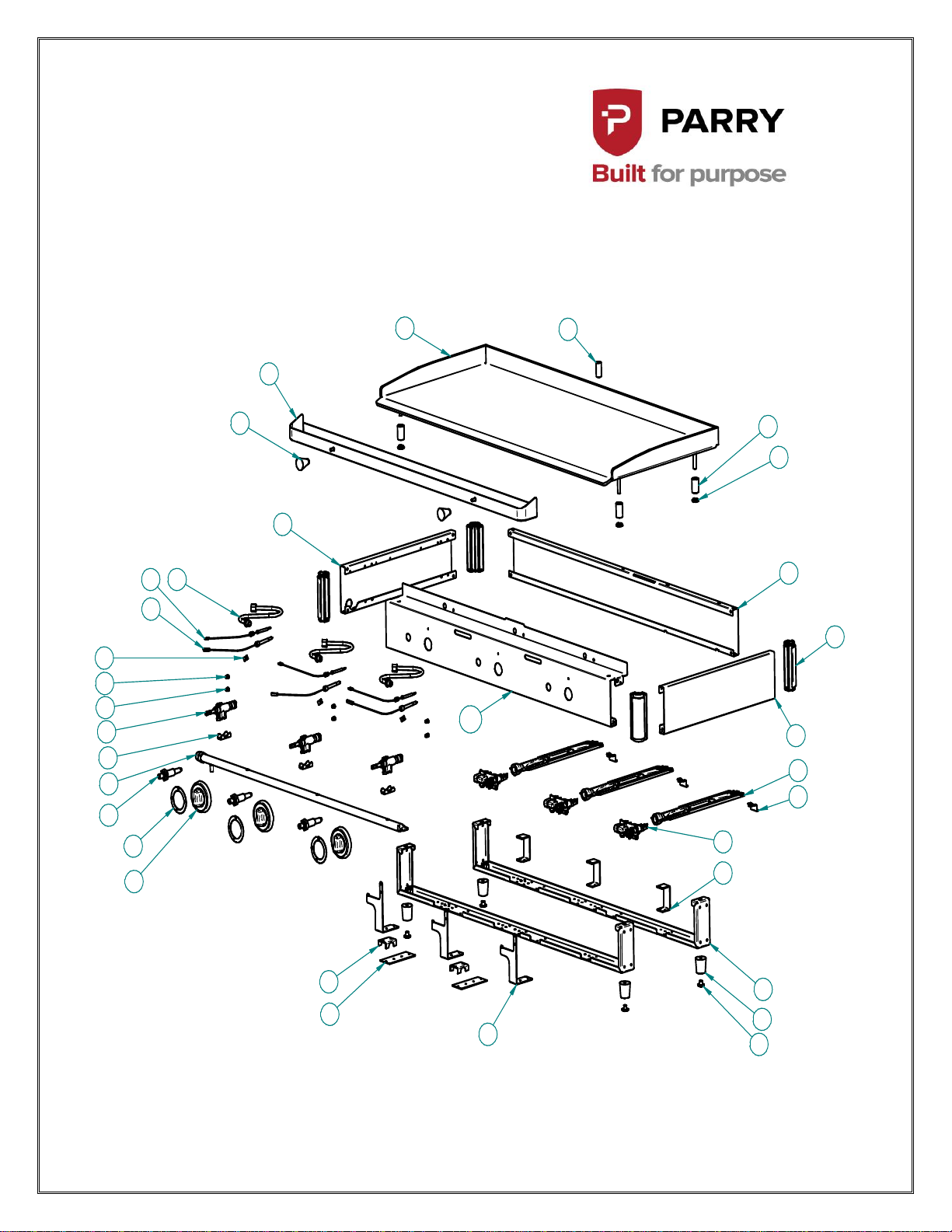

19
8
7
30
14
1
18
17
2
3
25
22
9
16
13
23
26
24
29
33
28
27
4
5
10
12
31
32
11
21
20
15
6

INSTRUCTION REF: IN205
ISSUE NO. 3
DATE 07.03.12
Page 16 of 18
www.parry.co.uk
16
WARRANTY POLICY
The manufacturers warranty is only valid in the UK mainland & Northern
Ireland, Western Isles, Inner Hebrides and Islands are parts only warranty.
All service calls will be carried out between the hours of 8.00am –5.00pm
Monday to Friday only.
We accept no responsibility for delays in replacing or repairing the
equipment due to circumstances beyond our control.
Your warranty can be immediately invalid if the installation of the
equipment has not been installed in accordance with the manufactures
instruction. (See installation details). Also the miss-use, alteration or
unauthorised repairs of the equipment will invalidate the warranty.
During the warranty period it is at Parrys discretion to repair or replace the
equipment.
Warranty only applies if the equipment has been used in a professional
manor following the manufactures instructions and maintenance guide
lines.
The warranty covers defects in the material and components failure only
we are not liable for trading loss, loss of perishable items, water damage,
loss due to injury or fire damage.
WARRANTY REQUEST
Please ensure you have referred to the manufacturers’ instruction before
placing a warranty call. Or contact our warranty department on 01332
875665 for technical assistance. Please ensure you obtain the model
number before calling.
Please ensure you have read the section not covered under warranty to
avoid any unnecessary warranty charges.
If the problem with the machine can not be resolved please contact the
company that supplied you the machine.
(SERVICE CALLS CAN NOT BE PLACED DIRECT WITH PARRY)

INSTRUCTION REF: IN205
ISSUE NO. 3
DATE 07.03.12
Page 17 of 18
www.parry.co.uk
17
NOT COVERED UNDER WARRANTY
Fault due to poor maintenance.
Resetting of equipment or circuit breakers.
Abuse of the equipment
Foil should never be used on racks
Blockages eg, drains, condensers, pumps etc
Lime scale related issues
Installed incorrectly
Access arranged for service call and engineer refused access or customer
not there.
No faults with the machine.
Setting up of equipment eg, dishwasher detergents, levelling and setting
up of doors on a 6 burner cooker.
Excessive carbon build up on griddle plates.
Over use of lava rock on the chargrills recommended use by Parry 2kg
only.
Faulty electrics –eg, customers plug socket, plug, wiring, junction box
fault, wrong fuse.
Any damages caused by the customer.
Lamps, glass, door gaskets, Perspex, baskets, knobs all perishable items
are not covered.

INSTRUCTION REF: IN205
ISSUE NO. 3
DATE 07.03.12
Page 18 of 18
www.parry.co.uk
18
All of the above are not covered under our warranty policy. Any costs incurred
because of the above will be forwarded to the parties responsible for placing the
call.
Failure to pay any warranty charges will result in the customers warranty been
put on hold until the bill has been settled.
Any issues regarding the raised charges should be put in writing to our warranty
department for further investigation.
Parry Group Ltd
Town End Road
Draycott
Derby
England
DE72 3PT
