Paso Sound Products WPSS150M User manual

Manual
OM 237
REV. 1.0
TO RE DU CE THE RIS K OF FIR E OR
ELECTRIC SHOCK. DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
Operation Manual
WPSS150M
Portable Sound System

-2-
WPSS150M Operation Manual
Congratulations and thank you for the purchase of this all-in-one portable sound system. To
ensure a trouble-free operation, please read the manual thoroughly to fully understand its
controls and functions.
WPSS150M can be installed with up to 4 receiver modules, among which one can be
transmitter module. The wireless receiver/transmitter module can be in either UHF or VHF
band and is a PLL synthesized type with 100 preset frequencies.
Conguration :
All versions of WPSS150M series come equipped with the following :
1. AC power cord.
2. 1~4 or no wireless receiver/transmitter module(s).
3. 1~4 transmitters, either handheld or bodypack transmitter (except version with no
module installed).
Optional accessories :
1. Weather proof dust cover.
2. Tripod stand
3. Companion powered speaker .(WPSS150S)
4. Companion passive speaker.(PASS100)
5. Wired microphone.
Remarks:
Remark: Manufacturer reserves the rights to change the above combinations without
prior notice.

-3-

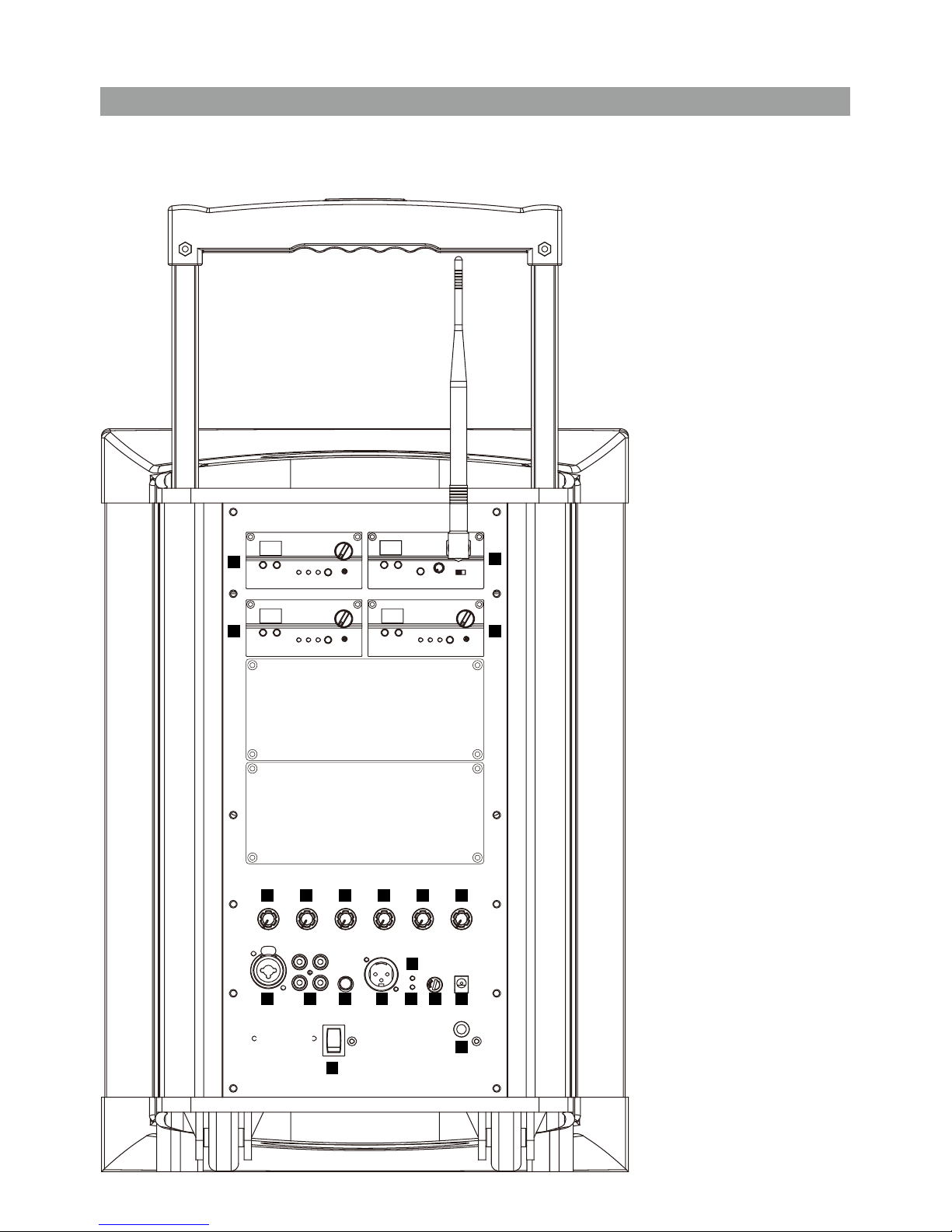

WPSS150M (Master, Basic conguration)
1. MIC IN.
2. LINE-IN VOL.
3. DVD CONTROL
4. BASS
5. TREBLE
6. MASTER VOL.
7. MIC IN
8. LINE IN / OUT
9. VOICE PRIORITY
10. ACTIVE OUT (MASTER OUT)
11. BATTERY LOW LED
12. CHARGING INDICATOR
13. FUSE
14. 24~32V DC-IN
15. POWER
16. EXT.SP
A,B&D. Receiver modules
C. Transmitter module
1
10
11
12 13 14
15
16
23456
A
B
C
D
87 9

-4-
WPSS150M (Master, CD/USB player & Digital Recorder player version)
1. LCD DISPLAY
2. PLAY/PAUSE
3. STOP
4. SKIP
5. EJECT
6. CD SELECTOR
7. USB SELECTOR
8. FOLDER SKIP
9. IR LED
10. USB INPUT
11. POWER/VOL.
a. POWER
b. LCD DISPLAY
c. EAR
d. USB
e. SD CARD SLOT
f. LINE▲▼
g. EQ
h. REPEAT
i. REWIND
j. FORWARD
k. REC
l. STOP
m. MODE.
n. PLAY ll
o. MIC VOL
p. MIC IN
q. VOL
1
ae
b
h
n
c
i
m
d
k
o
f j
p
g
l
q
10
11
2 3 4 5
6 87 9

-5-
11
A
15
13
17
19
12
B
16
14
18
20

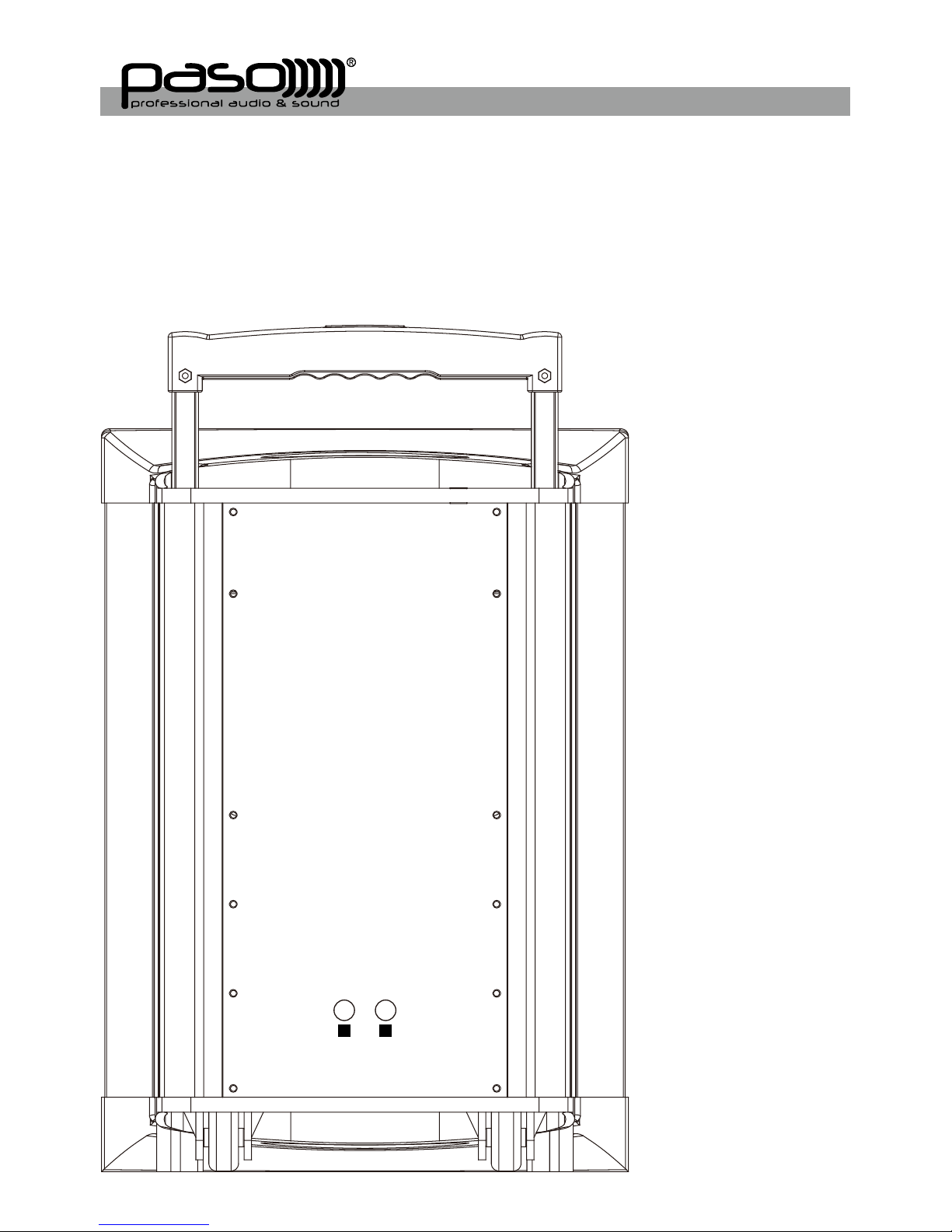

WPSS150S (LIMITED AVAILABILITY)
The WPSS150S is an active (powered) speaker unit with built-in switching power supply
as well as rechargeable batteries, complete with similar charging circuit as that of the
WPSS150M Master unit.
It is an extended and indispensable member of the WPSS150S Audio Link system.
11. SPEAKER OUT (SWITCHED)
12. SPEAKER OUT
13. 24-32V DC INPUT
14. FUSE
15. BATTERY LOW INDICATOR
16. BATTERY STATUS INDICATOR
17. CHARGING INDICATOR
18. SLAVE IN
19. SLAVE OUT
20. SLAVE VOL.
A. Slot for receiver module
B. slot for receiver/transmitter module

-6-
PASS100 Speaker
The PASS100 Speaker is a passive companion speaker for the WPSS150M series.
It is for connection to the switched or unswitched speaker outs of the WPSS150M (Master)
or the PASS100 Slave units.
22 23
22. SPEAKER IN
23. SPEAKER OUT

-7-
Operating procedures
After unpacking the unit for the rst time, please charge the unit for about 4-5 hours before
any operation. This is absolutely necessary as the built-in rechargeable battery might have
been discharged naturally due to long shipment and storage time, even though it has been
fully charged in the factory prior to shipment.
To operate this portable sound unit, switch on the main POWER switch, the GREEN LED
above it will glow. However, if the RED LED also glows at the same time, it means the
battery is getting weak and a recharge of the battery is necessary.
The main POWER switch does NOT switch on the Wireless receiver module and Tape/CD
Player/Digital Recorder as each of them has dedicated Power / Volume control switch on
its panel. To operate each of them, you must switch them on accordingly.
Operating the dynamic wired microphone.
To use a cable microphone, simply plug it into any MIC IN socket. The mic sockett accepts
both phone and Cannon jack. Rotate the dedicated volume control knob and master
volume control, amplied sound could be heard from the speaker when voice is spoken
into the cable microphone.
When a full range high delity sound is emphasized, the mode selector (3) should be put to
MUSIC. For vocal frequencies where better clarity and projection is emphasized, put the
mode selector to SPEECH and this will produce more mid-range frequency.
Operating the Wireless Microphone System.
To operate the wireless system, just switch on the power/volume control on the module
panel and the matching transmitter. Please have the channel setting on both the transmitter
and receiver module be the same before operation. Please as well make sure that master
volume control is set to minimum level before turning the unit on, especially working on
a wireless version! Set the Master volume control to the mid position. Rotate the volume
control knob on receiver panel clockwise to the desired levels. When voice is spoken into
the microphone, amplied sound should be heard over the built-in speaker.

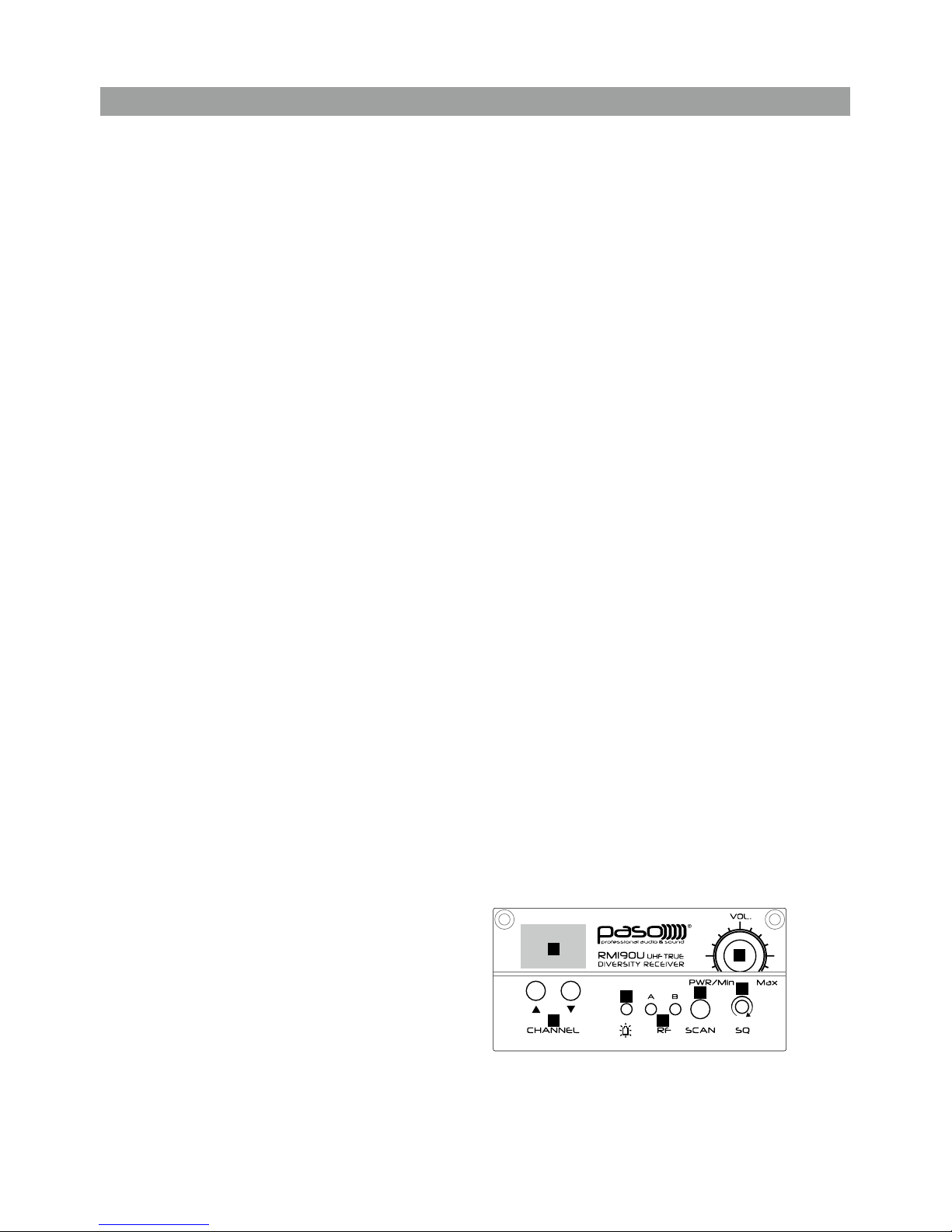

RM190U receiver module
1. Channel Indicator
2. Power switch/volume control
3. Channel Selector
4. Transmitter battery weak indicator
5. Diversity A/B Indicator
6. SCAN
7. Squelch control
12
3
4
5
67

-8-
First turn on the Power of the main unit. Then turn on the individual power of the RM190U
receiver module. Select a desired channel by pressing the ▲ or ▼ button and the
corresponding channel on the Transmitter.
When transmitter is turned on, either A or B diversity indicator will flash to indicate that
signal has been received. Turning the volume control in clockwise direction can increase
the audio output. Once the power volume on the transmitter is too low, the LED indicator (4)
on this panel grow will grow to remind.
Frequency scanning
It is the automatic scan function key. To perform the scan function, the transmitter must be
switched off. Once the key is being pressed, the unit will do an auto scan and the next
clean channel will be displayed. Change the transmitter channel setting to this setting for
an interference- free operation.
Squelch(SQ) setting
When a channel is in use and undesired interference signal is received, turn the SQ
in clockwise direction to make the receiver less sensitive and thus less susceptible to
interference. If this still does not solve the problem, it means this frequency is not applicable
at current position. Please switch over to the next channel.
TM190 Transmitter module
1. Channel indicator
2. Antenna socket(TNC type)
3. Channel selectors: Press ▲(up)▼(down) to increase/decrease channel number. Please
select a non-interfering frequency channel to those used in the receiver modules.
4. Power on/off
5. Audio sensitivity: Clockwise to increase its sensitivity level and anticlockwise to reduce.
6. Output power switch. L for LOW output power and H for high output power. LOW output
power will reduce the RF transmission distance and HIGH output power will extend the
possible RF transmission distance.
However, if TM190 is installed in portable ampliers, HIGH output power will reduce
more operation time than LOW output power since it requires more power for longer RF
transmission.
12
3
4
5
6

-9-
Operation of system with CD / USB Player.
This operation is valid for version of WPSS150M with built-in "CD / USB Player" To operate,
push the Power/Vol button to turn on the player. The LCD panel on the player will be lighted
up and normal operation is ready. To insert a CD, just push it into the CD slot and the
mechanism will suck it in automatically.
Rotate the volume control knob to adjust the volume of the player. For Bass and Treble
setting, adjust the individual Bass and Treble controls.
For more details, please refer to the instruction on "CD / USB Player" controls and
functions.
Operation of system with Digital Recorder.
This operation is valid for version of WPSS150M with built-in "Digital Recorder".
To operate, first turn on the Master power switch and then press the designated power
button of this module. The LCD display will be lighted up and Volume setting can be
done by rotating the knob. For Bass and Treble setting, adjust the designated controls
respectively.
For more details, please refer to the instruction of "Digital Recorder" controls and functions.
Operation of system with Tape Deck.
This operation is valid for version of WPSS150M with built-in "Tape Deck".
Rotate the volume control knob of the TAPE / CD control to adjust the volume of the Tape
deck. For Bass and Treble setting, adjust the designated controls respectively.
For more details, please refer to the instruction of "Tape Deck" Controls and functions.
Voice Priority (Ducking) operation
Voice Priority operation is only necessary when Cassette tape or CD is playing.
When the Voice Priority switch (9) is put to ON position, the ducking function will be
activated. While the music is playing, a voice input from either a Wired or Wireless
Microphone will temporary override and turn down the volume of the background music
and voice could be heard clearly.
Background music will return to its original setting when no audio input is entering the
microphone for a certain time. However, if the microphone is not switch off, the reentering
of music into the microphone will also activate the voice priority function. So, Voice
priority is best operated using microphones with on / off switch.
However, in an aerobic operation, Voice Priority should NOT be activated !

-10-

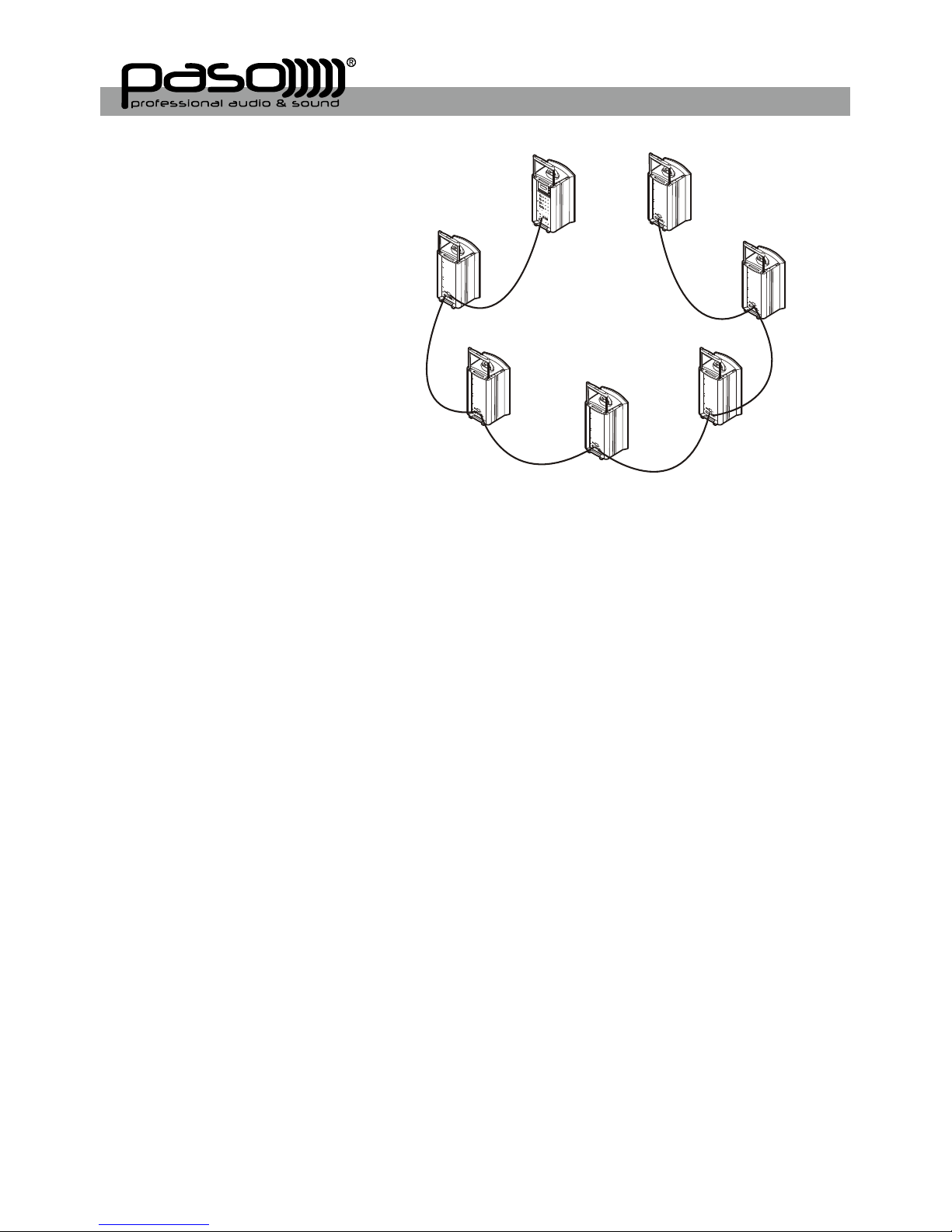

Wired Audio Link
The WPSS150M could be operated as MASTER only. The WPSS150S can only be
operated
as SLAVE.
In order to operate Audio Link, you must have a WPSS150M unit that operates as a
MASTER. Only one unit is allowed to act as MASTER and the other(s) MUST operate as
SLAVE(s). A MASTER unit is capable of connecting up to about 20 SLAVE units.
To operate Audio Link, connect the Active Out (10) of the MASTER to the Audio Link IN (18)
of the 1st SLAVE unit. The Out (19) of this SLAVE should be connected to the IN jack (18)
of the 2nd SLAVE unit. Similar connection shall continue as such for the following SLAVE
units.
Volume Control (6) for MASTER or (20) for SLAVE.
When used on the MASTER, it controls the MASTER as well as all the SLAVE units.
When used on the SLAVE unit, it only controls that particular SLAVE unit volume.
Maximum number of SLAVE units to be connected with a MASTER is about 20.
Wireless Audio Link
Different from Wired Audio Link, with new SLAVE's capability of installation of receiver
and transmitter modules it eliminates all cable connection and largely extends the number
limit of SLAVEs.
One Master + several SLAVEs (with receiver and transmitter modules built in) : For crowds
of over 3000.
MASTER
SLAVE
SLAVE
SLAVE
SLAVE
SLAVE
SLAVE
Wir ed Audio Lin k Connectio n

-11-

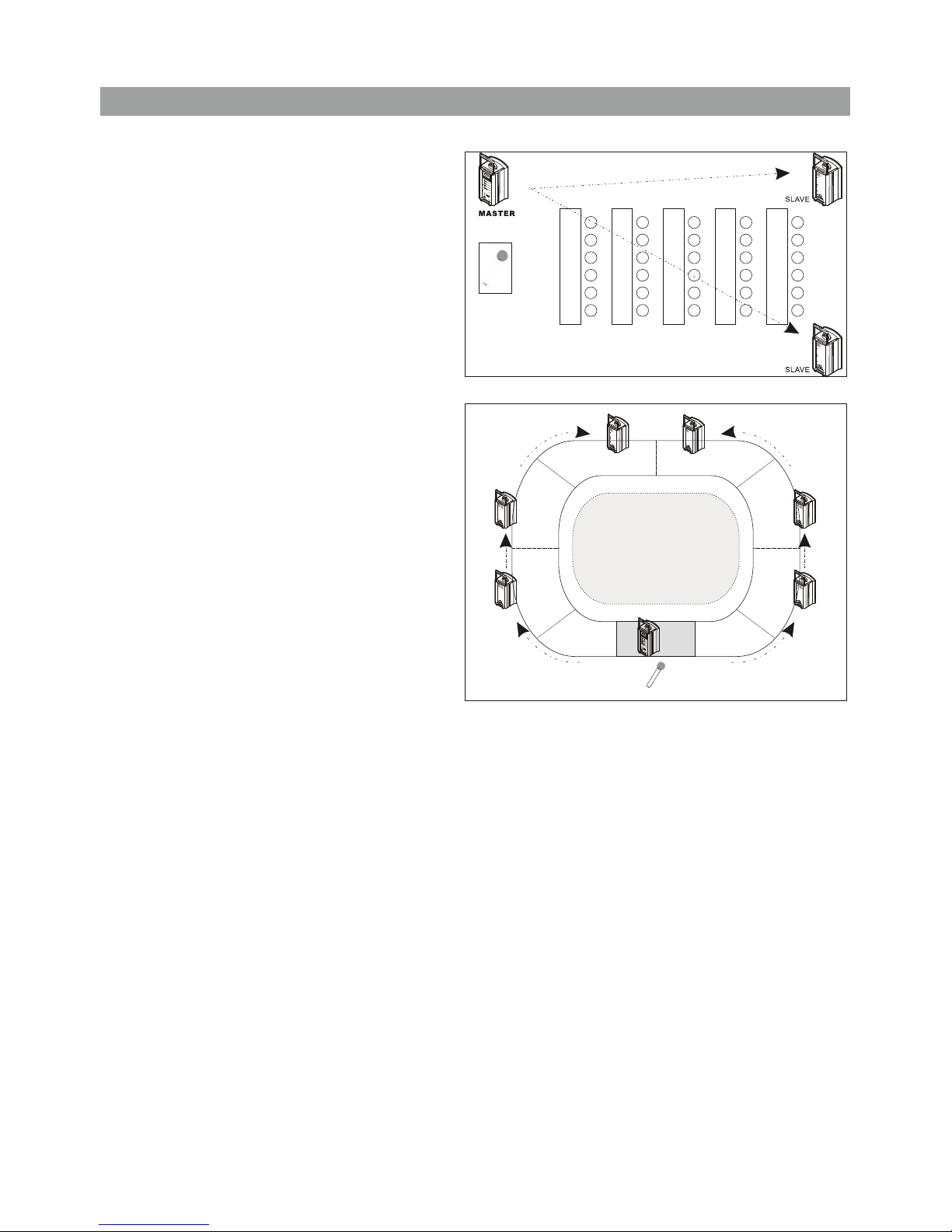

Application: For crowds of 1000 to 2000,
ex.speeches or forums.
Conguration: One Master + several
SLAVEs (with receiver module built in)
Application: For crowds of over ex.stadiums.
Conguration: One Master + several
SLAVEs (with receiver and transmitter
module built in)
T:Transmitter R: Receiver Channel:1,2,3,...
T1 matches R1, T2 matches R2, T3
matches R3, T4...
R1
T2
T1
R2
R2
PLATFORM
section 1
section 2
section 2 section 4
section 5
section 6
T6
R2
T2
R1
T7
R6
R7 R4
T3
R2
T4
R3
T1
Battery Charging
Internally, the WPSS150M contains 2 pcs of 12V / 5AH maintenance free lead acid
battery, which has no memory effect.
When the batteries are weak, the power indicator (11) LED will keep lighted still. To
charge the batteries, simply plug in the AC power supply, the charging process will start
automatically. While charging, the charging indicator (12) will ash GREEN.
When batteries are fully charged, the charging indicator (12) will keep lighted GREEN.
External speaker (16)
For audio output connection to another speaker system.

-12-

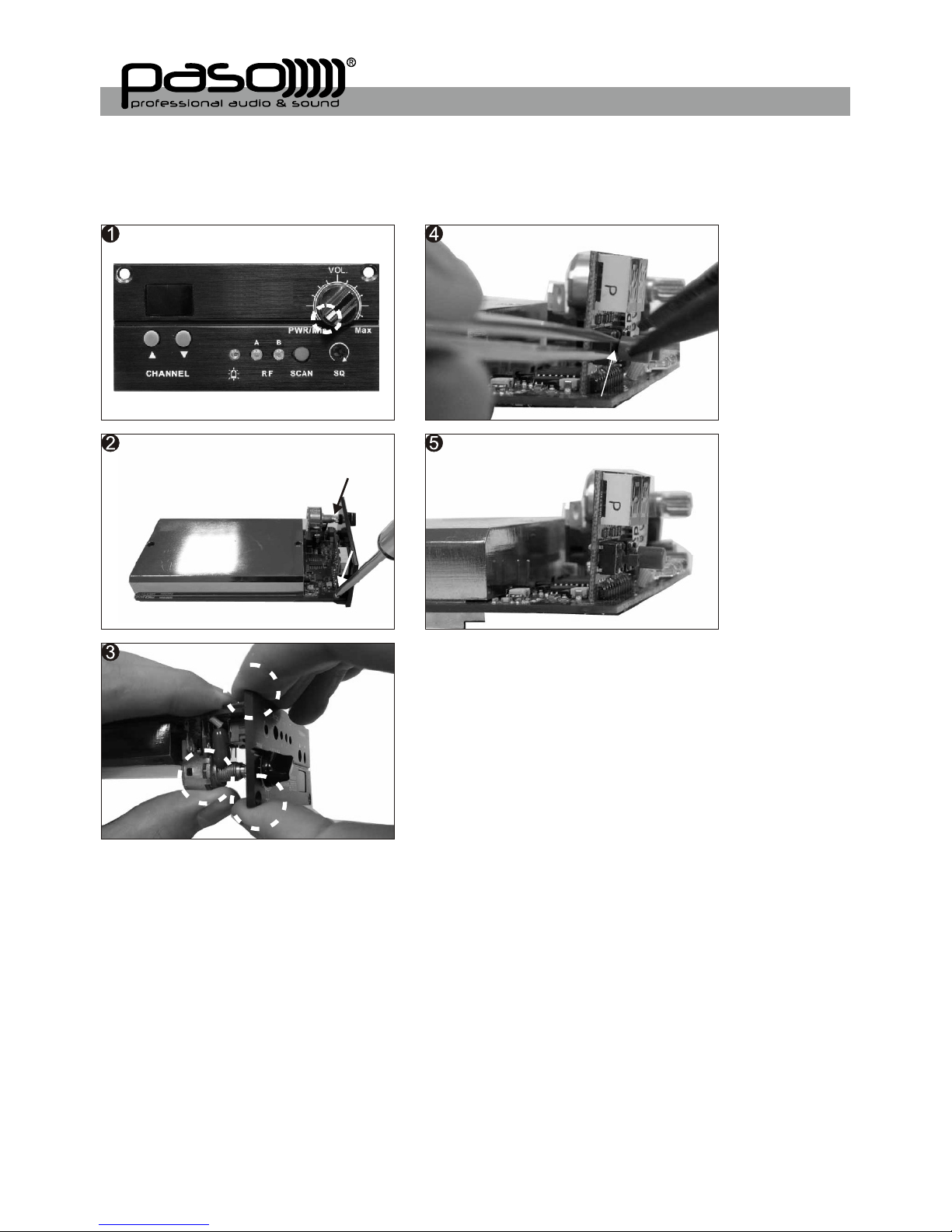

Replacement of the covers of receiver module
To identify different matches of receiver and transmitter, there are 4 extra sets of button
covers with different colors available for replacement.
STEP 1: Adjust the PWR/VOL knob to OFF position. After the
replacement is completed, just put it back accordingly.
STEP 2: Screw off the panel.
STEP 3: Separate the panel and the board as demonstrated.
STEP 4: Use clamps to hold the button and remove the cover.
STEP 5: Repeat STEP 4 to remove the other 2 covers. When
the replacement is complete, please assemble the module
reversely.
REMARK:
This procedure is strongly recommended to be operated by
technician of importer or dealer.

-13-
STEP 1: Adjust the PWR/VOL knob to OFF position. After the
replacement is completed, just put it back accordingly.
STEP 2: Screw off the panel.
STEP 3: Separate the panel and the board as demonstrated.
STEP 4: Use clamps to hold the button and remove the cover.
STEP 5: Repeat STEP 4 to remove the other 2 covers. When
the replacement is complete, please assemble the module
reversely.
REMARK:
This procedure is strongly recommended to be operated by
technician of importer or dealer.
Operating the CD / USB Player
Front remotable is a unique feature of WPSS150M. User can easily control this CD player
by clicking its remote from both front and rear WPSS150M.
To begin operation switch on the CD Power after the main power of WPSS150M has been
turned on.
Keys Functions
PLAY/PAUSE When this key is pushed during CD stop, play will start after track
search.
When this key is pushed during CD is playing, it will be changed to
pause.
When this key is pushed during CD is pausing, it will be changed to
play.
STOP When CD is not stop, if this key is pushed then CD will stop.
CD When press this key will change to cd-mp3 mode.
USB When press this key will changed to USB mode.
SKIP+UP/CUE In stop mode:
Change the starting play track (le) during stop mode, cyclic to the
rst track, if it is in the last track.
In program entry mode:
Change to the next track(le) for program select .
In play mode, pause mode, program play mode, random play mode:
Single pressed, skip the playing track (le) to next track(le) for normal
play/pause mode, to next program index track(le) for program play/
pause mode, to next random track(le) for random play /pause mode.
Continue pressed , fast forward during play/pause when pressed more
than 0.7sec.
SKIP-DONW/REV In stop mode:
Change the starting play track (le) during stop mode, cyclic to the
last track, if it is in the rst track.
In program Entry mode:
Change to the previous track (le) for program select.
In play mode, pause mode, program play mode:
Single pressed, skip the playing track (le) to precious track (le) for
normal play/pause mode, to previous program index track (le) for
program play/pause mode.
Continue pressed, fast reverse during play/pause when pressed more
than 0.7sec.
FOLDER-UP In stop mode:
Skip the starting play folder to next folder during stop mode, cyclic to
the rst folder if it is in the last folder.
In program entry mode:
Change the le for program select to next folder’s rst le, cyclic to the
rst folder if it is in the last folder.
In normal play mode:
Skip the playing le to the next folder’s rst le.

-14-
FOLDER-DOWN In stop mode:
Skip the starting play folder to previous folder during stop mode, cyclic
to the last folder if it is in the rst folder.
In program entry mode:
Change the le for program select to previous folder’s rst le, cyclic
to the last folder if it is in the rst folder.
In normal play mode:
Skip the playing le to the previous folder’s rst le.
PLAY MODE In mp3 mode and in USB mode .
If this key is pushed, PLAY mode is changed cyclically shown below.
PLAY ALL RANDOM→REPEAT TRACK→REPEAT FOLDER→
REPEAT ALL→RANDOM REPEAT→PLAY ALL
IN CD mode If this key is pushed, PLAY mode is changed cyclically
shown below.
PLAY ALL RANDOM→REPEAT TRACK→REPEAT ALL→
RANDOM REPEAT→PLAY ALL.
EJECT When this key is pushed, door is moved out.
PROG Set to programming mode.
When programming mode, “stop” key is pushed then program is all
cleared.
MUTE When this key is pushed during CD is playing, the set will mute the
output. Pushing again can recovery the output.
POWER Power SW of the set.
ESP In CDDA mode, Press ”ESP” key, The ESP display lighted and the set
is in electronic anti-shock state. The electronic anti-shock time is about
40 seconds. Press “ESP” key again, cancel the ESP function.
FIND In MP3 mode : Press this key once FILE search mode changed .
Press this key twice ALBUM search mode changed. Long press this
key to display the track. Press twice to display ID3 TAG.
0~10 You can use these keys to select the track you want directly.
VOL.- When this key is pushed, the volume will decrease by 1dB per step,
the min. volume is 0dB.
VOL.+ When this key is pushed, the volume will increase by 1dB per step, the
max. volume is 30dB.
Caution: This player does not accept 8-cm diameter CD. User is advised to have the USB 2.0
formatted in “ FAT “ or “ FAT 32 “. The built-in USB 2.0 player can not be able to read the
MP3 les stored in your USB if it is not formatted by either “ FAT “ or “ FAT-32 “. To avoid
damage to the USB, remember to detach it only after switching off the player.

-15-
UHF handheld transmitter MW295
Parts and functions
1. Microphone capsule module
2. Battery status LED
3. ON/OFF switch
4. LCD
5. Battery compartment
6. Rotating protective cap for controls (also serves as color identication cap)
7. Lock / Unlock
8. Set
9. Up
10. Down
11. Charging port
Battery installation
MW295 microphone requires 2 AA-size batteries to operate. Please insert the batteries
according to the correct polarity. Many batteries are known to have leakage problem of
conductive and corrosive liquid. Please observe the rule to remove the batteries if they are
not to be used for a longer period.
Making changes to various settings in MW295
1.Making changes to Channel:
Use UP or DOWN button to go to the CHANNEL/ FREQUENCY page. The cursor will ash
to allow changes to be made. Pressing UP or DOWN button will increase or decrease the
channel number. The corresponding frequency will change accordingly. When a desired
channel is selected, it will be automatically saved and stored in the memory.
2. Making changes to Battery selection:
Use UP or DOWN button to go to the Battery selection page.
Press UP or DOWN button to move the cursor to either NiMH (rechargeable battery) or
AKLN (Alkaline battery) position.
When the desired battery has been selected, it will be automatically saved and stored in
the memory.
Remark : NiMH battery must be selected when rechargeable battery is being used. Never
select AKLN (Alkaline) when transmitter is intended for charging as Alkaline battery can not
be charged ! Wrong selection of battery will result in
battery sensing electronics to display wrong and misleading status information.
1 2 3 4 5 6 7 8
10 11 9

-16-

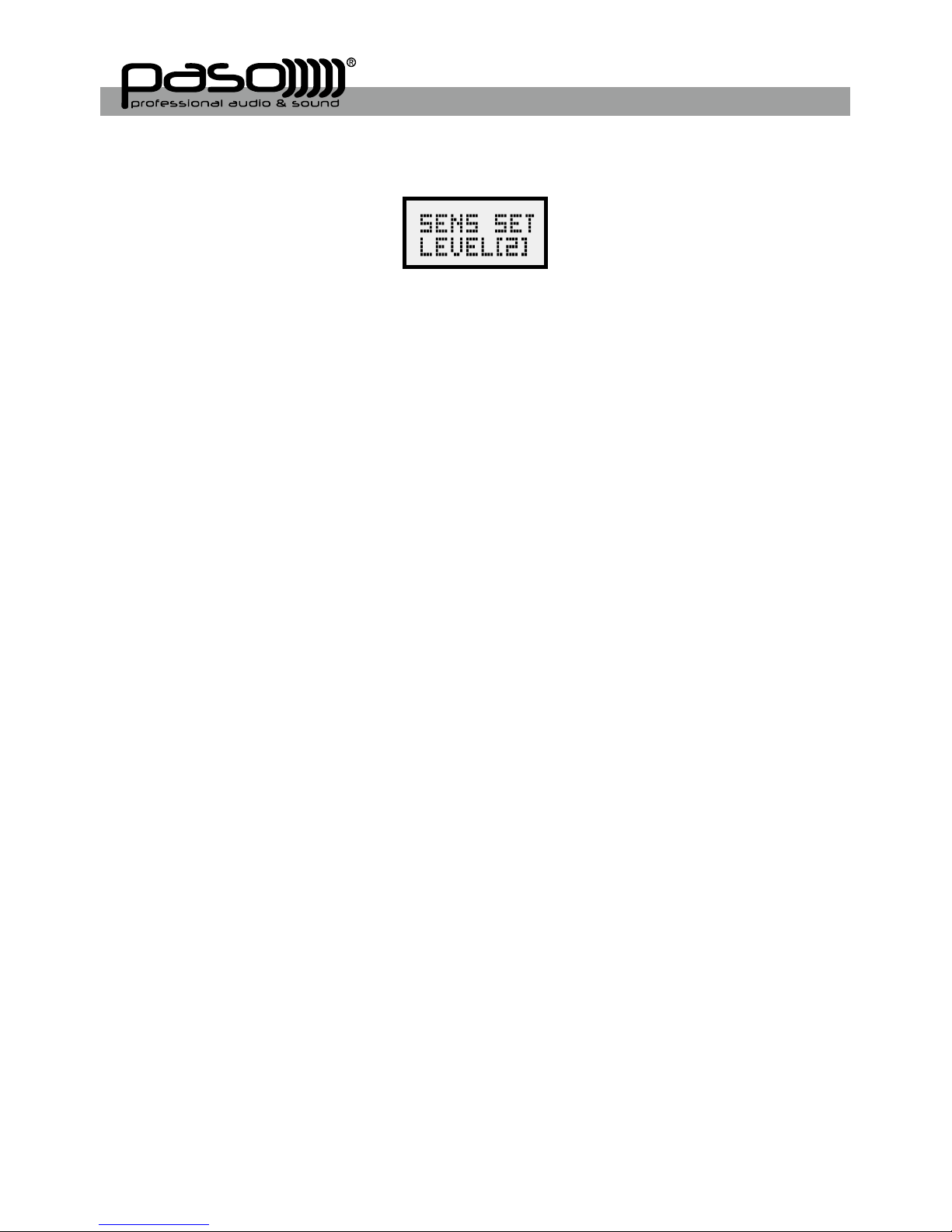

3. Making changes to Sensitivity Level:
Use UP or DOWN button to go to the SENS SET page.
Press UP or DOWN button to increase or decrease the Sensitivity Level of the transmitter.
The MAX level is 4 and the MIN level is 1.
When a desired sensitivity level has been selected for your application, it will be
automatically saved and stored in the Memory.
Remark : When selecting Sensitivity level, please bear in mind that Level 1 is for close
proximity singing purposes whereas Level 4 is for use of transmitter on tripod mount for
speech purposes. When Level 4 setting is used for close proximity singing, high SPL input
will result in undesirable distortion in the output.
After performing setting changes, you could turn the protective cover 180° in either
direction to block the buttons from being accidentally adjusted.

-17-
UHF beltpack transmitter MW293
Parts and functions
1. Antenna
2. Battery weak / audio mute indicator
3. Audio mute switch
4. Mini-XLR connector
5. Power ON / OFF switch
6. LCD display
7. Charging port
8. Cover release button
9. Charging contacts
10. Lavalier microphone
11. SET
12. UP
13. DOWN
14. Gain control (GT, hign impedance)
15. Gain control (MT, low impedance)
Battery installation
MW293 microphone requires 2 AA-size batteries to operate. Please insert the batteries
according to the correct polarity. Many batteries are known to have leakage problem of
conductive and corrosive liquid. Please observe the rule to remove the batteries if they are
not to be used for a longer period.
Making changes to various settings in MW293
1.Making changes to CHANNEL / FREQUENCY:
Use UP or DOWN button to go to the CHANNEL /FREQUENCY page.
The cursor will ash to allow changes to be made. Pressing UP or DOWN button will
increase or decrease the channel number. The corresponding frequency will change
accordingly. When a desired channel(frequency) is being selected, it will be automatically
saved and stored in the memory.
Remark : When changing transmitter frequencies, user should take care not to cause
interference to other channels / users.
1
2 3 4
567
8
10
11
12 13
14 15
9

-18-

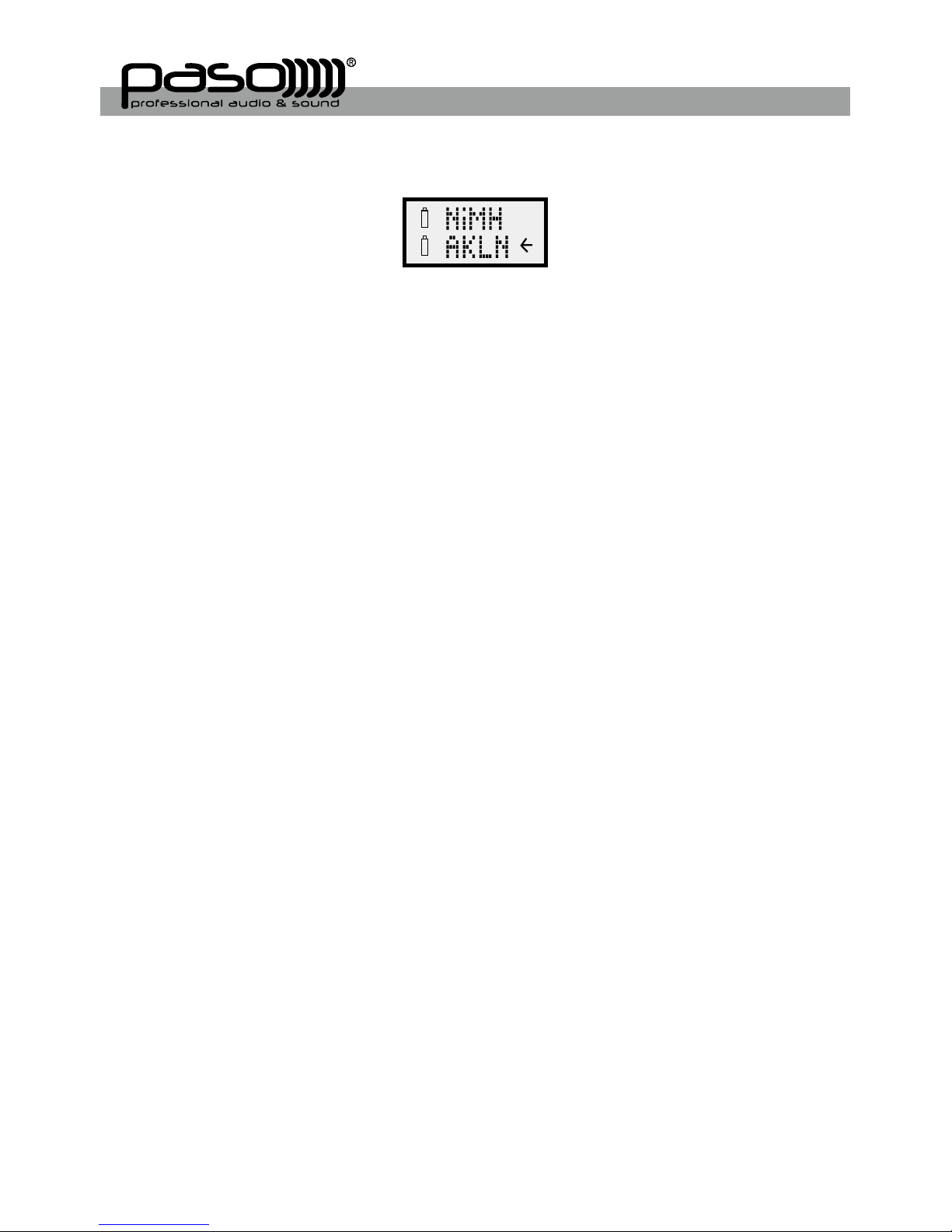

2.Making changes to Battery selection:
Use UP or DOWN button to go to the Battery selection page.
Press SET for about 2 seconds to activate the cursor. Press UP or DOWN button to move
the cursor to either NiMH (rechargeable battery) or AKLN (Alkaline battery) position.
When the desired option has been selected, press SET for about 2 seconds to save and
store the data in the memory.
Remark : "NiMH" must be selected when rechargeable battery is being used. Never select
"AKLN" (Alkaline) when transmitter is intended for charging as Alkaline battery can not be
charged ! Wrong selection of battery will cause battery sensing electronics to display wrong
information and mislead charging status.
3.Input Level Gain Control Adjustment
Low impedance (Lo-Z) " MT" & high impedance (Hi-Z) " GT" gain controls are situated
inside the transmitter. Gain controls are adjustment ports that enable you to use
microphones of differing output levels and Guitar or instruments with Hi-Z output. To
adjust microphone (Lo-Z) input levels, turn the "MT" control and to adjust the Guitar or
instrument (Hi-Z) input, adjust the "GT" gain control to set the transmitter's desired audio
input level.
FCC Caution
To assure continued compliance, any changes or modications not expressly approved
by the party responsible for compliance could avoid the user's authority to operate this
equipment. (Example - use only shielded interface cables when connecting to computer or
peripheral devices.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1)This device may not cause harmful interference, and
(2)this device must accept any interference received, including interference that may cause
undesired operation.

-19-
Maintenance-free Lead Acid battery
Guidelines for maintenance-free Batteries:
1. Battery should operate at temperatures between 15°C ~ 50°C. To ensure a longer life
span, it should be kept between 5°C ~ 35°C. For optimum result, 20°C ~ 25°C will be ideal.
When temperature falls 15 degrees below zero, battery will undergo some changes in its
chemical contents and therefore cannot be recharged. Operating the battery at higher
temperature will result in higher capacity but shorter lifespan, whereas lower temperatures
operation has a longer lifespan but less capacity.
2. If the battery is not recharged 72 hrs after it is completely used, it will be permanently
damaged.
3. When the battery is being charged, the internal gases will be electrolyzed into water
at the negative charge, maintaining the battery’s storage abilities with no water added.
However, erosion at the charged ends of the battery will cause poor performance.
4. The battery’s cycle lifespan (no. of charge and discharge cycle) is determined by the
degree at which power is dissipated., especially the degree of discharged each time it is
used and the recovery charging method. For normal use, the battery can be used for longer
hours when less power is dissipated each time and vice versa. At 25°C, maintenance-free
batteries could be charged 150 ~ 200 times at 100% discharge each time.
5. Decrease in capacity, internal short circuit, deformation in appearance, erosion of
charged ends and decrease in open circuit voltage are symbols indicating battery is
approaching the end of its life cycle.
6. When two batteries are used in parallel connection, the resistance of the cables should
be kept equal.
Properties of the Lead Acid Battery:
1. Has no memory effect. Can be charged at anytime, even when the recharge indication
light is not on.
2. Performance and efciency are affected by changes in the environment, especially
temperature and humidity. (Best operated between 20°C ~ 25°C)
3. Battery discharge naturally according to a certain pattern even not in use. For best
performance and a prolonged lifespan, it should be recharged every month even when not
in use.
4. Under normal circumstances, battery could last for about a year.
5. When the battery’s life expires, possible indicators include internal short-circuit, decrease
in capacity, deformation in appearance, erosion of charged ends and decrease in operating
voltage.
User’s Precautions:
1. For rst-time use, charge the battery for 10 hrs until it is fully charged.
2. To maintain performance and lifespan, if product has not been used for 3 months after
the initial shipment, please fully charge the battery.
3. Before each use, it’s advisable to charge the battery to its full capacity.
4. The average lifespan of the battery is one year. The user is advised to change the
battery after one year of use.
5. The current consumption is in direct ratio with load current. The more current
consumption, the less the operation time.

Web site: http://www.pasosound.com E-mail: [email protected]
475 0F Drive- Charleston, South Carolina 29406 / TEL: [phone] FAX: [phone]
Printed in ROC 2010
Printed in USA 2010
REPLACEMENT PARTS
Please provide complete information when you request
replacement parts from either the Factory ora Paso Authorized
Distributor. Be certain to include the Part Number and Description
as it appears on the parts list, the Model Number of the unit and if
possible the Serial Number and the date of purchase of the unit.
Replacement parts inventory is maintained specically to repair
Paso products. Part sales for other reasons or applications will be
declined.
ORDERING FROM THE FACTORY
Print all information ona purchase order form and mail to:
PASO SOUND PRODUCTS, INC.
4750 Goer Drive-Building F
CHARLESTON, SC 29406
Be sure to include the following:
-Paso part number
-Part description
-Quantity required
-Model number of the unit
-Serial number of the unit
-Your payment or your authorization for COD shipment for parts
not covered by the Warranty or if your company hasa current
account with the factory
RETAIN ORIGINAL PARTS (IN WARRANTY) UNTIL YOU
RECEIVE REPLACEMENTS. DEFECTIVE PARTS THAT
SHOULD BE RETURNED TO THE FACTORY WILL BE LISTED
ON YOUR PACKING SLIP.
For your convenience replacement parts are also available through
Paso Authorized Distributors and Dealers nation wide. Obtain a
location list directly from the Factory or your regional Paso
Representative.
TECHNICAL CONSULTATION
-Need help with your installation ?
-Need help with the operation of the unit ?
-Need help witha repair ?
Call or write for assistance. You will nd our Technical Dept. eager
to help or assist you with any technical problem you may have
encountered except “`Customizing'' fora unique application.
The effectiveness of our consultation service depends on
the accuracy of the information you furnish.
Be sure to tell us:
-The Model and Serial number of the unit
-The date of purchase
-An exact description of the difculty
-All trouble-shooting done in attempting to correct the problem
Call our toll-free phone number:
1-800 231 3034
REPAIR SERVICE
Repair service for out of warranty Paso products may be
obtained form your local Paso distributor or any other
qualied repair station.
In warranty repairs must be returned to the Factory.
Prior authorization must be obtained from the Factory.
Products received without authorization will be refused by
our Receiving Department.
IN WARRANTY REPAIR SERVICE
Call or write the Factory to obtain an authorization to
return
the product for repairs.
Pack the equipment in the original carton or ina strong
carton with at least THREE INCHES of resilient packing
material on all sides, top and bottom. Seal the carton with
reinforced tape and mark it FRAGILE on at least two
sides. Remember, the Carrier will not accept liability for
shipping damages if the unit is improperly packed.
EQUIPMENT RECEIVED IN DAMAGED CONDITION
DUE TO POOR PACKING WILL BE REFUSED AND
THE WARRANTY COVERAGE IS AUTOMATICALLY
VOIDED.
The Paso Sound Limited Warranty provides:
The examination of the returned product must disclose in
our judgement,a manufacturing defect. The warranty
does not extend to any product that has been subject to
misuse, neglect, accident, improper installation or where
the serial number of the product has been removed or
defaced.
Ship via insured prepaid United Parcel Service or Parcel
Post to:
PASO SOUND PRODUCTS, INC.
4750 Goer Drive-Building F
CHARLESTON, SC 29406
ATTN. SERVICE DEPARTMENT
The equipment will be returned freight prepaid after
repairs.
Be sure to include the following:
-Your name and address
-Date of purchase and copy of invoice
-A brief description of the difculty
-A return address shipping label
-
OUT OF WARRANTY REPAIR SERVICE
Follow return instructions as per in warranty repair
service. Prior to performing all necessary repairs, you will
be advised of the charges and at that timea written
authorization by you will be required including
authorization to return the equipment COD for the service
and shipping charges. This will avoid unnecessary delays
CUSTOMER SERVICE
