Paugge ENT-EXT20B User manual

Paugge
HDMI 18Gbps Extender with one-way IR (50M)
ENT-EXT20B
VER 1.0

Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction.........................................................................................
1
2. Features...............................................................................................
1
3. Package Contents..............................................................................
2
4. Specifications......................................................................................
2
5. Operation Controls and Functions.....................................................
3
5.1 Transmitter Panel...........................................................................
3
5.2 Receiver Panel. .............................................................................
4
5.3 IR Pin Definition..............................................................................
5
6. Application Example.......................................................................... 7

1/7
1. Introduction
Paugge HDMI 18Gbps Extender can extend high definition video / audio
signal and one-way IR, and the distance is up to 164ft / 50 meters between
trans- mitter and receiver over a single Cat5e/6 cable. It supports resolution
up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. In addition, the extender is
equi- pped with one-way IR pass-through which allows for source control
and one HDMI loop output.
The extender includes two units: transmitter unit and receiver unit. The trans-
mitter unit is responsible for capturing HDMI input signal and carries the signal
via one cost effective Cat6 cable, and emitting IR control signals. The receiver
unit is responsible for receiving the HDMI signal and transmitting IR control
signal.
The extender offers the most convenient solution for HDMI extension over a
single Cat5e/6 with long distance capability, and is the perfect solution for
any application.
2. Features
☆ HDMI 2.0b, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
☆ Supports 18Gbps bandwidth
☆ Supports input and output video resolution up to 4k2k@60Hz 4:4:4, extends
distance up to 164ft / 50 meters
☆ Supports one HDMI loop output
☆ Supports one-way IR pass-through
☆ Supports HDR function
☆ Supports PoC (Power over Cable) function, it means that eithertransmitter
or receiver is powered supply by 12V/1A power adapter, the other doesn’t
need power supply.)
☆ Supports automatic copy EDID function
☆ Compact design for easy and flexible installation.

2/7
3. Package Contents
① 1× HDMI 18Gbps Extender (Transmitter)
② 1× HDMI 18Gbps Extender ( Receiver)
③ 1× IR Blaster cable (1.5 meters)
④ 1× 20~60KHz IR Receiver cable (1.5 meters)
⑤ 1× 12V/1A Locking Power adapter
⑥ 4× Mounting Ears
⑦ 1× User Manual
4. Specifications
Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 / HDCP 1.4
Video Bandwidth
18Gbps
Video Resolution
Up to 4K60Hz 4:4:4
Color Space
RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4
Color Depth
8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr
4:2:2/4:2:0)
8-bit (4K60Hz 4:4:4 )
HDMI Audio Formats
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby
TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS
HD Master, DTS HD-HRA, DTS-X
ESD Protection
Human body model — ±8kV (Air-gap discharge) &
±4kV (Contact discharge)
Connections
Transmitter
Inputs: 1x HDMI Type A [19-pin female]
1x SERVICE [Micro USB, Update port]
Outputs: 1x HDMI Type A [19-pin female]
1x IR OUT [3.5mm Stereo Mini-jack]
1x CAT OUT [RJ45, 8-pin female]
Receiver
Inputs: 1x IR IN [3.5mm Stereo Mini-jack]
1x CAT IN [RJ45, 8-pin female]
1x SERVICE [Micro USB, Update port]
Outputs: 1x HDMI Type A [19-pin female]

3/7
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
Transmitter / Receiver:
61mm [W] x 88mm [D] x 18mm [H]
Weight
Transmitter: 160g, Receiver: 155g
Power Supply
Input: AC 100 - 240V 50/60Hz
Output: DC 12V/1A
Power Consumption
3.84 W
Operating
Temperature
32 - 104°F / 0 - 40°C
Storage Temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)
Resolution / Distance
4K60 - Feet / Meters
4K30 / 1080P - Feet / Meters
CAT5e
164ft / 50M
164ft / 50M
CAT6/6a/7
197ft / 60M
230ft / 70M
HDMI IN/OUT
10ft / 3M
30ft / 10M
The use of “Premium High Speed HDMI” cable is highly recommended.
5. Operation Controls and Functions
5.1 Transmitter Panel
HDMI OUT HDMI IN CAT OUT SERVICE IR OUT DC 12V
4 3 5 6 7 8
1
2

4/7
Number
Name
Function description
1HDMI OUT
HDMI loop output port, connect to HDMI display device
such as TV or Projector with an HDMI cable.
2HDMI IN
HDMI input port, connect to HDMI source device such
as DVD or PS4 player with an HDMI cable.
3CAT OUT Connect to CAT IN port on the receiving end with a
CAT6 cable.
4
Power Indicator
Lamp (Green)
The lamp will illuminate when the transmitter is powered
on.
5
Data signal
Indicator Lamp
(Orange)
The lamp will illuminate when the transmitter and the
receiver have signal transmission.
6SERVICE port For firmware updated use.
7IR OUT Connect to wideband IR Blaster cable. The IR signal is
from the IR IN port of the receiver.
8 DC 12V
Plug DC 12V/1A power supply into the unit and connect
the adapter to an AC outlet.
(Note: The extender supports PoC function, it means
that either transmitter or receiver is powered supply by
12V/1A power adapter, the other doesn’tneed
power supply.)
5.2 Receiver Panel
HDMI OUT
CAT IN SERVICE IR IN DC 12V
3 2 4 5
6
7
1

5/7
Number
Name
Function description
1HDMI OUT
HDMI output port, connect to HDMI display device such
as TV or Projector with an HDMI cable.
2CAT IN
Connect to CAT OUT port on the transmitter end
with a CAT6 cable.
3
Power Indicator
Lamp (Green)
The lamp will illuminate when the receiver is powered
on.
4
Data signal
Indicator Lamp
(Orange)
The lamp will illuminate when the transmitter and the
receiver have signal transmission.
5
SERVICE port
For firmware updated use.
6IR IN Connect to wideband IR Receiver cable. The IR
signal
will send to the IR OUT port of the transmitter.
7 DC 12V
Plug DC 12V/1A power supply into the unit and connect
the adapter to an AC outlet.
(Note: The extender supports PoC function, it means
that either transmitter or receiver is powered
supply by
12V/1A power adapter, the other doesn’t need power
supply.)

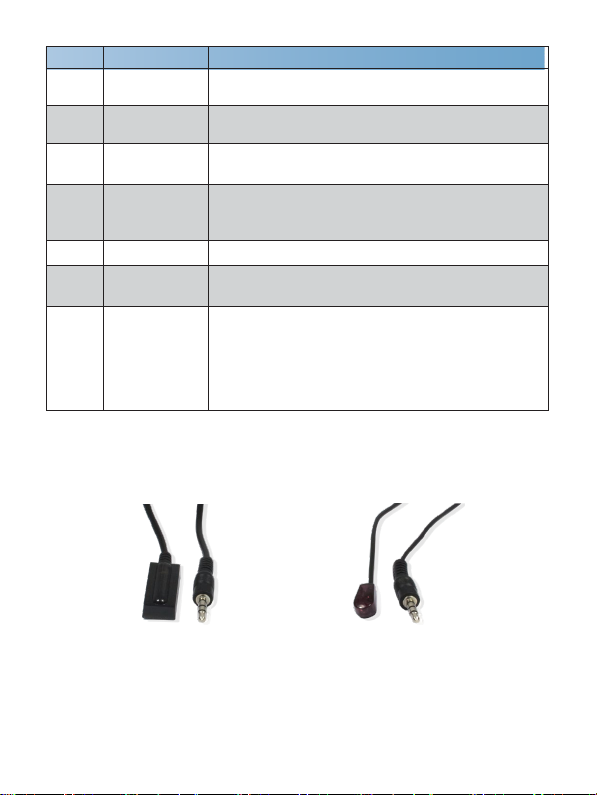

5.3 IR Pin Definition
IR Receiver and Blaster pin’s definition as below:
IR RECEIVER IR BLASTER

6/7
IR Blaster Signal
Power
NC
IR Signal
Power
Grounding
The following is IR system diagram about IR cable use method.
DVD
IR blaster cable
CAT 5e/6 cable
IR receiver cable
Note: IR remote sends signal distance for 0~5
meters / 0~8 meters, and angle is plus-minus
45 degrees / vertical direction .
TV
DVD remote
IR Receiver
IR Blaster
HDMI Extender 50m
Receiver
CAT I N SERV I CE I R IN DC 12V
L
HDMI OUT
HDMI I N
CAT O UT SERVICE I R OUT DC 12V
L
HDMI OUT

7/7
CAT IN
6. Application Example
HDMI OUT HDMI IN CAT OUT SERVICE IR OUT DC 12V
Transmitter
LAN
Power Supply
UHDTV
DVD or Blu-ray Player
Cat 5e/6
IR blaster
HDMI OUT SERVICE IR IN DC 12V
Receiver
UHDTV IR Extender
