1. Preface
1.1. Purpose
This document is a user’s manual for the
SeeGull MX Scanning Receiver. It
describes the main features and options
available for the SeeGull MX and provides
instructions related to setup, operation, and
maintenance of the scanners. This
document may be supplemented by other
documentation for the SeeGull MX or
related PCTEL products and applications.
1.2. Applicability
The SeeGull MX Scanning Receiver
conducts drive test and site-specific
measurements of mobile networks around
the world to optimize wireless network
performance, survey tower sites, monitor
base stations, demodulate RF signals and
analyze wireless market data.
The SeeGull MX Scanning Receiver is a
software-defined receiver, capable of
supporting multiple protocols and up to 8
frequency ranges. It can be configured for
TD-LTE, LTE FDD, UMTS
[WCDMA/HSPA(+)], CDMA, EV-DO and
GSM technologies. The following bands are
supported for LTE FDD with a subset of
these bands supported for UMTS
[WCDMA/HSPA(+)], CDMA, EV-DO and
GSM:
E-UTRA 12 (Lower 700 MHz A/B/C)
E-UTRA 17 (Lower 700 MHz B/C)
E-UTRA 13 (Upper 700 MHz C)
E-UTRA 18 (Lower 800 MHz Japan)
E-UTRA 19 (Upper 800 MHz Japan)
E-UTRA 20 (800 MHz EU)
E-UTRA 5 (850 MHz)
E-UTRA 26 (Upper Ext 850 MHz)
E-UTRA 27 (Lower Ext 850 MHz)
E-UTRA 8 (900 MHz UMTS)
E-UTRA 11 (1500 MHz Japan)
E-UTRA 21 (1510 MHz Japan)
E-UTRA 9 (1700 MHz Japan)
E-UTRA 3 (1800 MHz)
E-UTRA 2 (1900 MHz)
E-UTRA 25 (1990 MHz [Ext. 1900])
E-UTRA 4 (2100 MHz AWS)
E-UTRA 1 (2100 MHz UMTS)
E-UTRA 7 (2600 MHz IMT)
The following bands are supported for TD-
LTE:
E-UTRA 38 (IMT Extension 2.5G)
E-UTRA 39 (1.8 TDD)
E-UTRA 40 (2.3 TDD)
E-UTRA L41 (Lower 41 2.5G)
E-UTRA U41 (Upper 41 2.5G)
For more information about the SeeGull MX,
please contact your sales or marketing
representative (contact information provided
in Section 8.1).
Features
Fast scanning speeds
High dynamic range
Low false detection rate
Scans multiple bands without
performance degradation
Concurrent measurements in:
oLTE/WCDMA/GSM
oLTE/CDMA/EV-DO
Built-in GPS
LTE FDD Measurement Averaging
LTE FDD and TD-LTE MIMO
LTE FDD eMBMS
Blind Scan for all technologies
LTE, UMTS (WCDMA/HSPA(+),
GSM Layer 3,
Outdoor and Indoor Modes
USB Interface
Plug-and-play capabilities
Compatibility with industry-leading
drive test, data analysis, and RF
planning tools

SeeGull®MX Hardware Reference Manual
PCTEL, Inc. Page 2 Rev. K
Modular architecture for easy
upgrades
Ignition sense
Sleek, durable design
Supported Measurements
LTE (FDD and TDD)
Maximum # of Channels: 24
Top N and Top N Reference Signal
Scan
P-SCH/S-SCH RP, RQ, CINR, Time
Offset
RSRP, RSRQ, CINR, Cyclic Prefix
Time Offset
Multi-Path Delay Spread
Averaging Modes (LTE FDD only)
Sub-band
Antenna Path (2 x 1 or 2 x 2) for
RSRP, RSRQ, CINR, Time Offset
and Multi-Path Delay Spread
TD-LTE Specific
Uplink/Downlink Configuration #
DwPTS Symbol
The following parameters are available
for LTE MIMO only
Top N 2x2 MIMO Specific
Parameters including Condition
Number (CN), Estimated Channel
Quality Indicator (ECQI) and
Estimated Throughput (ETPUT) for
four LTE Transmission Modes
The following parameters are available
for LTE eMBMS only
eMBMS Area ID
eMBMS Cluster ID
eMBMS Frame Configuration
GSM
BSIC Decoding Scan
RSSI Channel Scan
C/I (Co-Channel Interference)
UMTS [WCDMA/HSPA(+)]
Maximum # of Channels: 24
Top N Scan
P-SCH/S-SCH Scan
Ec
Ec/Io and Aggregate Ec/Io
Signal to Interference Ratio (SIR)
Rake Finger Count
Time Offset
Multi-Path Delay Spread
Eps/Io and Ess/Io
RSSI Channel Scan
CDMA
Maximum # of Channels: 24
Top N Scan
Ec
Ec/Io and Aggregate Ec/Io
Pilot Delay and Delay Spread
RSSI Channel Scan
EV-DO
Maximum # of Channels: 24
Top N Scan
Ec
Ec/Io and Aggregate Ec/Io
Pilot Delay and Delay Spread
RSSI Channel Scan
MULTI-TECHNOLOGY
Aggregate Power measurement
(RSSI, EPS or Spectrum Analysis)
Delay and Signal Strength of
neighboring cells
Peak Preamble Power measurement
RSSI Channel Scans
Spectrum Analyzer measurements
High Performance GPS Receiver
For more information please visit
www.pctel.com.

SeeGull®MX Hardware Reference Manual
PCTEL, Inc. Page 3 Rev. K
1.3. Notices
WARNING: These devices have no
protection against lightning. Please turn off
the scanning receiver during a thunderstorm
and, if applicable, take antennas inside the
vehicle before a thunderstorm approaches.
The scanning receiver itself is not intended
for “in weather” outdoor use.
NOTICE: There are no user serviceable
parts inside the SeeGull MX Scanning
Receivers.
1.4. Compliance
CE Safety Compliance
PCTEL SeeGull MX Scanning Receivers
are compliant to EN 60950-1 Information
Technology Equipment-Safety- Part 1:
General Requirements.
EMC Compliance
PCTEL SeeGull MX Scanning Receivers
are compliant to EN 301 489-1
Electromagnetic compatibility and Radio
spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio
equipment and services; Part 1: Common
Technical Requirements.
RoHS Compliance
PCTEL SeeGull MX Scanning Receivers
delivered to participating European nations
are compliant to EU Directive 2002/95/EC
(RoHS).
PCTEL SeeGull MX Scanning Receivers
are compliant to "Administrative Measure on
the Control of Pollution Caused by
Electronic Information Products" ("China
RoHS").
ISO Compliance
RF Solutions Quality Management System
has been certified to be compliant with ISO
9001:2008.

SeeGull®MX Hardware Reference Manual
PCTEL, Inc. Page 4 Rev. K
2. Overview and System
Requirements
This section describes the SeeGull MX
Scanning Receiver, including the applicable
system configuration and software
requirements.
2.1. General Description

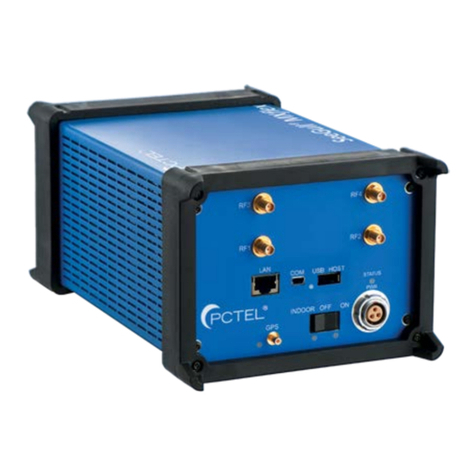

The SeeGull MX Scanning Receiver (Figure
1) is a tool for signal strength and
modulation measurement, engineered for
the rigors of mobile network testing during
planning, installation, and maintenance of
wireless networks. It supports up to six
protocols with either 4 or 8 band-designated
receive antenna (RX) ports.
Figure 1. SeeGull MX Scanning Receiver
The USB communication link allows the
host to control the operation of the scanner
and to receive measurement results. (Refer
to Section 4 for more details).
Initial Inspection
Upon receipt of the scanning receiver,
inspect the shipping container and verify
that the contents are complete and match
the packing list. The receiver should look
similar to the picture in Figure 1. If the
contents are incomplete or the SeeGull MX
Scanning Receiver appears damaged,
please call the Technical Support line at
[phone].
2.2. Measurement Options
Optional multi-technology measurements
available for the SeeGull MX are described
below. These options can be installed at the
time of purchase or later on as a field
upgradeable option. Please contact your
PCTEL sales or marketing representative
for pricing and delivery information.
Enhanced Power Scan (EPSTM) Option
(OP514)
EPS Mode provides customizable power
measurements, improving flexibility and
precision over RSSI and Spectrum Analyzer
measurements for highly-tuned analysis of
individual parts of the RF signal. EPS
features include:
Absolute Time Stamp
Auto and Immediate Measurement
Modes
Ability to set both Time and Frequency
parameters
Measure Frequency Spans from 7.5 kHz
to 20 MHz user selectable in multiples of
2.5 kHz
Measures Time Periods from 1 chip (50
µs) to 20,000 chips (1sec)
Spectrum Analyzer Option (OP513)
The built-in Spectrum Analyzer feature
provides an effective means to detect and
troubleshoot frequency-related problems.
The Spectrum Analyzer shows a wealth of
information about the signal spectrum that is
not obtainable from the standard channel
power measurement.

SeeGull®MX Hardware Reference Manual
PCTEL, Inc. Page 5 Rev. K
The Spectrum Analyzer measures and
reports power spectral density using
frequency domain techniques (a segmented
FFT approach that ensures various
resolution bandwidths and fast update
rates), whereas RSSI measurements use
analog and digital filters to select the right
frequency band and subsequently measure
total power.
One advantage of this approach is that the
Spectrum Analyzer can analyze the fast-
changing spectrum of an unstable
transmitter. The RSSI measurement in this
case will most often show a normal smooth
picture, as it averages a limited set of data
over time. The Spectrum Analyzer,
however, if used with an appropriate
resolution bandwidth, will reveal erratic
signal behavior due to its fast update rate
and unaveraged data.
The user may set the resolution bandwidth
to 5, 10, 20, 40 or 80 kHz. Output data may
be set to an average of 1, 2, 4, 8, or 16
sweeps.
LTE eMBMS (OP245)
LTE eMBMS monitoring is available for FD-
LTE. These measurements verify the
correct setup by comparing collected data
on eMBMS subframes to Layer 3
messages. It verifies there are no
overlapping Area IDs and detects
synchronization problems. We provide a
custom measurement, Cluster ID, to
determine out of network interfering PCIs or
unsynchronized cell. It also verifies proper
operation and coverage for each MBSFN
CINR, RSRP, RSRQ etc.
Period, offset, # of subframes
Blind Scan Options
(OP521 All Blind Scan Technologies)
(OP521-GSM)
(OP521-WCDMA)
(OP521-FD-LTE)
(OP521-TD-LTE)
(OP521-CDMA)
(OP521-EVDO)
Blind Scan is available for LTE FDD, TD-
LTE, UMTS [WCDMA/HSPA(+)], GSM,
CDMA and EV-DO technologies. This
feature scans the selected band and
provides the active channel numbers. Blind
Scan is useful for conducting a full band
network search where prior knowledge
about active channels is incomplete or
unknown. It is also beneficial for network
benchmarking to obtain a first-glance view
of the RF infrastructure density and
configuration.
LTE Power Analysis (OP516)
LTE Power Analysis is available for TD-LTE
and provides power of the resource block
and slot of the TD-LTE frame. This enables
users to identify interference that is time
(slots) or frequency (RBs)-selective, to
obtain a snapshot of overall traffic levels,
and to determine whether base station is
properly using the available resources.
Layer 3 Options
(OP522 All Layer 3 Options)
(OP522-GSM)
(OP522-TD-LTE)
(OP522-FD-LTE)
(OP522-WCDMA)

SeeGull®MX Hardware Reference Manual
PCTEL, Inc. Page 6 Rev. K
Layer 3 decoding is available for GSM, LTE
FDD, TD-LTE, and UMTS
[WCDMA/HSPA(+)] technologies. This
option, provides decoding for:
GSM BCCH (Broadcast Control
Channel) messages
UMTS [WCDMA/HSPA(+)] BCH
(Broadcast Control Channel) Type 3
messages
LTE BCCH (Broadcast Control
Channel)
In the GSM BCCH, types 1, 2, 3, 4, 9, and
type 13 messages are supported. In the
UMTS [WCDMA/HSPA(+)] BCH, the Master
Information Block (MIB) and the System
Information Blocks (SIBs) 1, 2, 3, 5, 7, 11
and 19 are supported. In the GSM BCCH
and the UMTS [WCDMA/HSPA(+)] BCH,
these messages contain the Cell Identity
and Local Area Identification information
broadcast by the network infrastructure.
This information includes the:
MCC (Mobile Country Code),
MNC (Mobile Network Code),
LAC (Location Area Code)
RAC (Routing Area Code)
These messages also contain significant
information on the configuration, activity and
performance of the network. This includes
information concerning:
Neighbor list
Mobility management (handovers,
etc.)
Group and broadcast call control
GPRS mobility management,
transparent transport and session
management
Radio resource management
SMS messages
Location services
Uplink Interference parameters
(UMTS [WCDMA/HSPA(+)] only).
LTE BCCH layer 3 messages convey
system information about the cell. These
messages contain the cell identity, channel
bandwidth, mobility management
(handovers), neighbor lists, barred cells,
intra-frequency selection, public safety
messages, etc. It supports decoding of the
MIB and SIBs 1-13.
The SeeGull MX supports scanning of
numerous GSM BCCH, UMTS
[WCDMA/HSPA(+)] BCH, and LTE BCCH
channels during the same test.
LTE (FDD and TDD) 2x2 MIMO Option
(OP530)
MIMO testing is available for 2x2 LTE FDD
and TD-LTE. This enables users to
determine the maximum throughput
capability of the RF environment and the
degree of correlation between the 2 base
station transmit antennas for the purpose of
optimizing throughput. Note, MIMO
hardware and 2 of the same bands are
required for MIMO testing with the SeeGull
MX.
Clarify Options
(OP421 SeeGull EX/MX WCDMA Clarify
Option (Single Band))
(OP422 SeeGull EX/MX WCDMA Clarify
Option (Dual Band))
(OP426 SeeGull EX/MX GSM Clarify
Option (Single Band))
(OP427 SeeGull EX/MX GSM Clarify
Option (Dual Band))

SeeGull®MX Hardware Reference Manual
PCTEL, Inc. Page 7 Rev. K
The Clarify options allow the SeeGull MX to
collect GSM and WCDMA data for use with
Clarify Analyzer for detection and location of
interference sources.
2.3. System Requirements
This section describes the system
requirements for the SeeGull MX Scanning
Receiver.
Typical System
Various hardware and software components
may be used in the scanning system along
with the SeeGull MX Scanning Receiver.
However, a typical configuration will include
a host PC running the user’s application
software with a USB cable connection to the
scanner.
Antenna Requirements
Use a 50 Ohm impedance antenna with an
SMA male connector at the end of the
cable. Refer to PCTEL’s product offering
matrix in Section 9 for part number
information.
Power Source Requirements
The SeeGull MX Scanning Receiver uses
10 to 16 VDC using the cigarette lighter
cable or the 12 foot battery/fuse box cable
(measured at the battery connector) and
draws 6.0 amps (nominal) @ 12 VDC. The
maximum current rating is 10 amps. The
scanner can be powered by a vehicle
battery, a 12-volt battery, or an AC/DC
adapter. The power source must be capable
of supplying the receiver with the voltage
and current levels as above. PCTEL
HIGHLY recommends that the power supply
voltage not exceed the working range of the
SeeGull MX Scanning Receiver. Applying
excessive voltage to the receiver will void
the unit’s warranty.
The scanning receiver must be powered
through the power cable provided by
PCTEL. The power cable is equipped with
an additional tab to sense the voltage drain
of the vehicle’s battery or if the vehicle’s
ignition is turned off. This feature is called
Ignition Sense Feature and is very useful
to prevent the vehicle’s battery from
discharging if the scanner is left on when
the vehicle is turned off. In order to prevent
the scanner from draining the vehicle’s
battery, the ignition sense wire turns off the
scanner when it senses the vehicle ignition
has been off for 30 minutes or the available
power drops below the usable voltage. The
wire connects to any fuse socket on the
vehicle that has power when the vehicle’s
ignition is turned on. Note, for ignition
sense to operate, the application
software must support this feature. If
the application does not support ignition
sense, the connection of the ignition
sense wire is not required.
Use of another power cord will void any
warranties and may result in an unsafe
condition. Refer to Section 7.1 for further
details on power cord troubleshooting.
Software Requirements
Option 1:
SeeHawk
PCTEL’s SeeHawk (Figure 2), a data
collection software package, allows for
control of PCTEL’s receivers and data
acquisition without the need for users to
Note: Outdoor antennas, including those
used by other devices, should be placed a
minimum of 6 in. (15 cm) apart, with a
recommended distance of 34 in. (86 cm).
Refer to the Instructional Guide: SeeGull
Antennas for MIMO and MISO Antenna
Schemes for further details.

SeeGull®MX Hardware Reference Manual
PCTEL, Inc. Page 8 Rev. K
develop their own software. Contact your
PCTEL sales representative for more
information.
Option 2:
Windows Based Control
For users planning to develop proprietary
software to control the SeeGull MX
Scanning Receiver using the Windows OS,
PCTEL can provide the SeeGull MX
Scanning Receiver Applications
Programmers Interface (API) and Reference
or ASN.1 Reference documents.
Figure 2. Display from SeeHawk, SeeGull’s Optional Drive Test Software Suite

SeeGull®MX Hardware Reference Manual
PCTEL, Inc. Page 9 Rev. K
3. Installation
This section describes how to set up the
SeeGull MX Scanning Receiver.
3.1. Integration
There are four (4) mounting holes (4-40
screw) on the chassis of the unit that are used
for mounting in the user’s enclosure/rack.
Avoid obstructing airways when mounting this
unit in a system enclosure, rack, or case.
Unobstructed convection airflow is
recommended.
Figure 3. SeeGull MX Scanning Receiver Base
Dimensions
Airway intakes are located on the right, and
airway exhaust is located on the left, as
shown in Figure 4 and Figure 5.
Figure 4. SeeGull MX Scanning Receiver Air
Intake (Right Side View)
Figure 5. SeeGull MX Scanning Receiver Air
Exhaust (Left Side View)
3.2. Setup
Follow the steps below to connect the unit
to the host PC and power source before
collecting data. See Figure 7 for the
locations of connections and switches on
the front of the SeeGull MX.
1. Connect the antennas to the SMA
RF connectors on the unit. The
antenna ports RF1 to RF4 (or RF1
to RF6 or RF8 for MIMO-enabled
units) on the label (in Figure 6)
show the frequencies supported
on each RF port. The frequency
range of the antenna must include
the frequency band of the RF port
to which it is connected. For
example, the “RF4” box on the
label in Figure 6 lists 850 and L
700 ABC bands (where “L” stands
for Lower). Connect PCTEL’s 698-
3000 or 3800 MHz antennas to
this port (for outdoor use).
Note: Do not obstruct air intakes or exhaust
on unit. Do not place the unit intakes next to
the exhaust of another heat source.
1.000”5.625”
7.850”
4.344”
5.406”
0.252”
Front
Rear

SeeGull®MX Hardware Reference Manual
PCTEL, Inc. Page 10 Rev. K
Figure 6. Label Identifying Antenna Locations
2. Connect the GPS antenna (or input) to
the GPS SMA connector (4). An SMA
to SMB adapter is shipped in a bag
labeled OP225 with the SeeGull MX to
allow the OP034H SMB connector on
the GPS antenna to mate with the
SeeGull MX GPS port.
3. Connect the USB data connector (2)
to a PC USB port with the USB cable.
4. Connect the power cable to the
scanner’s power connector (6) and to
the vehicle’s cigarette lighter
adapter. Make sure to line up the
red dots on the cable and the
power connector.
5. Optionally, connect the ignition
sense wire, a wire on the power
cable which can be used to sense
power to your ignition. Refer
Section 2.3 for further details of
the ignitions sense feature. The
scanner will operate normally
whether or not the ignition sense
wire is used.
6. Turn the SeeGull MX scanner on
by moving the Indoor/Outdoor
switch (5) from the OFF position to
the INDOOR or ON position. ON
mode is used for normal outdoor
operation. INDOOR mode reduces
the fan noise emanating from the
scanner for indoor operation.
Future plans include reducing
power consumption for indoor
mode.
Note: Refer to the Instructional
Guide: SeeGull Antennas for MIMO
and MISO Antenna Schemes for
further detail on connecting the
proper antenna type to the correct
antenna port.
Note: The GPS LED colors indicate
the following states:
Green: GPS module locked to GPS
signal
Amber: GPS module unlocked
Flashing Amber: Lost GPS lock
within past 5 seconds
Red: System Error
Purple: GPS not trained (may take
up to 20 minutes and will only
occur after a software upgrade
from early software versions)

SeeGull®MX Hardware Reference Manual
PCTEL, Inc. Page 11 Rev. K
Figure 7. Connections and Switches for SeeGull MX
Figure 8. Connections and Switches for SeeGull MX
Setup with 8 MIMO ports
7. During power-up, the status LED
(3) is amber for up to several
minutes. After initialization is
complete the status LED turns
green. If the LED turns dark red,
the unit has failed the power-up
test. Please contact Technical
Support.
8. Install and start your PC drive test
program. If you are using
SeeHawk, refer to the SeeHawk
User Manual for specific
instructions.
9. The system is ready for use.
Afterwards, please turn the
Indoor/Outdoor switch (5) to OFF
and disconnect all cables.
2. USB data
connector
6. Power
connector
5. Indoor /
Outdoor switch
3. Status
Indicator
1. SMA
Connectors to
RF antennas
4. SMA Connector
to GPS antenna
(use SMA to SMB
adapter)
1. SMA
Connectors to
RF antennas

SeeGull®MX Hardware Reference Manual
PCTEL, Inc. Page 12 Rev. K
4. Operation
This section discusses calibration, software
upgrades, and integration of the SeeGull MX
Scanning Receiver into the user’s test
system.
4.1. Calibration
SeeGull MX Scanning Receivers are
calibrated at the factory. Recalibration is
recommended every two years in order to
maintain specified accuracy levels. The date
of the last calibration is listed on a label
attached to the SeeGull MX. Please refer to
the Calibration Notice in Section 8.3 for more
information. Re-calibration is available as an
optional service from PCTEL.
4.2. Software Upgrades
The SeeGull MX Scanning Receiver stores
the application program in internal, non-
volatile memory, enabling software-based
upgrades to the scanner. Upgrades may be
needed to incorporate new features or bug
fixes. Please note that some upgrades can
only be performed at PCTEL’s factory.
4.3. Controlling the Scanner and
Acquiring Data
Once the SeeGull MX has been set up (see
Section 3), software such as PCTEL’s
SeeHawk may be used to control the scanner
and acquire data.
A unit is controlled and the measurement data
are received, via the USB communication link.
If the user incorporates the scanner into a
test system that runs on Windows Vista,
Windows XP, or Windows 7 use
PCTEL’s Application Programming
Interface (API).
If the user has a system that runs on
an operating system other than
Windows, use the description of the
USB interface and messages found in
the SeeGull MX Product Reference.
Note: PCTEL recommends having the
SeeGull MX Scanning Receiver
recalibrated every 2 years.

SeeGull®MX Hardware Reference Manual
PCTEL, Inc. Page 13 Rev. K
5. RF Antenna Information
This section discusses antennas that are
used with the SeeGull Scanning Receiver
system.
5.1. Antenna Verification
Verify that all the necessary antennas are
included in the shipment and that each is
marked. Each antenna comes in a bag
labeled by the antenna’s model and its
corresponding frequency range, while the
antenna itself is labeled by frequency range
only.
5.2. Cellular Antennas
PCTEL offers several antennas that are
industry superior antennas supporting low dB
loss cable, extended temperature ranges and
a frequency range wide enough to cover
PCTEL’s SeeGull MX Scanning Receiver.
Figure 9. OP178H and OP278H
The OP178H is a high performance multi-
mode antenna that replaces the OP078H and
OP216 antennas. It supports a wide
frequency range from 698 MHz to 3.0 GHz. It
provides a gain
1
of 3 dBi across the entire
spectrum. These antennas come standard
with a magnetic mounting base and a
male SMA2connector for the RF, as
shown in Figure 9.
The OP278H supports a wide frequency
range from 698 MHz to 3.8 GHz. The
antenna gain is shown in Figure 10. The
antenna comes standard with a magnetic
mounting base and a male SMA2
connector for the RF, as shown in Figure
9.
The OP279H, as shown in Figure 11, has
a built-in High Performance GPS base
and a high performance multi-mode
antenna that replaces the OP079H and
OP217H antennas. It supports a wide
frequency range from 698 MHz to 3.0
GHz. It provides a gain1of 3 dBi across
the entire spectrum. The antenna comes
standard with a male SMA2connector for
the RF and an SMB (push-on/pull-off)
adapter for the GPS.
The OP379H shown in Figure 11 supports
a wide frequency range from 698 MHz to
3.8 GHz. The antenna gain is shown in
Figure 10. These antennas come
standard with a male SMA2connector for
the RF and an SMB (push-on/pull-off)
adapter for the GPS.
1
dBi gain includes both base and cable losses.
Gain measured on a 3x3 foot ground plane.
2
Torque specification for SMA connector is 3-5
in-lb (0.3 –0.6 N-m)

SeeGull®MX Hardware Reference Manual
PCTEL, Inc. Page 14 Rev. K
Figure 10. OP278H and OP379H Gain
Figure 11. OP279H and OP379H
Note: The SeeGull MX Receiver typically
requires multiple antennas.
5.3. GPS Antenna Information
In addition to the built-in GPS antennas
described in the previous section, PCTEL
offers a separate GPS antenna, as shown in
Figure 12. The OP034H is a High Gain GPS
standalone antenna which comes standard
with a magnetic mounting base and an SMB
connector, as well as an SMA to SMB adapter
to connect the GPS plug to the scanning
receiver.
Figure 12. OP034H
OP034H

SeeGull®MX Hardware Reference Manual
PCTEL, Inc. Page 15 Rev. K
6. Indoor Kit Information
Deployment of wireless data services is
resulting in further increases in indoor traffic
and coverage requirements. The
measurement, enhancement and optimization
of indoor coverage are now an increasingly
important aspect of wireless engineering.
The PCTEL SeeHawk Indoor Kit comprises a
complete set of accessories that enable the
indoor use of the PCTEL SeeGull scanning
receivers. The Indoor Kit provides a cost
effective solution for evaluating existing in-
building coverage and for planning, deploying
and testing indoor coverage systems.
The PCTEL Indoor Kit provides the right
solution for indoor walk testing that enables
wireless engineers to address the three key
steps of indoor coverage assessment and
planning:
Evaluating Indoor Coverage from
Outside Networks
Planning New In-Building Networks
Coverage Validation for New or
Existing In-Building Networks
6.1. Indoor Kits
The indoor kit for the SeeGull MX consists of
a backpack (shown in Figure 13) and related
accessories for convenient indoor
measurements using the SeeGull scanning
receiver for indoor measurements. Battery life
is approximately 4 hours. The OP431 Walk Kit
consists of
Backpack
Battery pack
MX USB data cable
MX power cord
AC power cord
EU adapter for AC power cord
Figure 13. MX Indoor Kit
6.2. RF Indoor Antenna Information
PCTEL offers wideband rubber duck style
antennas for indoor use. There are three
models depending on the frequency
required.
OP228: Indoor Ant. 700-1050
MHZ, 1550-2300 MHZ
OP229: Indoor Ant., 2300-2700
MHZ
OP241: Indoor Ant., 698-2700
MHZ

SeeGull®MX Hardware Reference Manual
PCTEL, Inc. Page 16 Rev. K
7. Troubleshooting
This section includes suggested procedures
for addressing potential user-serviceable
problems with SeeGull MX operation.
7.1. No Power: Receiver LED not
Illuminated
When the scanning receiver is turned on and
receiving power, the Status Indicator LED
located on the face of the scanner lights up. If
the scanner is not receiving power, follow
these steps:
1. Check the connection to the power
source.
2. If the connection is secure, check the
fuse, which is located in the cigarette lighter
end of the power cord. Remove the cigarette
lighter plug end from the power source. Refer
to Figure 14 for an illustration of the power
plug.
Note: Check The Fuse in the Cigarette
Lighter Plug Before Sending the Scanner
for Service
The fuse can be “blown” by a surge in the
portable or mobile battery system. A
temporarily shorted wire can also cause other
problems.
The fuse is the first line of defense should any
short circuit, large spike, or other problems
occur within the power wiring circuitry. If the
fuse is not operating normally, it will open up,
thereby disconnecting the input power from
the SeeGull MX Scanning Receiver. When
the fuse “blows”, there will be no power to the
receiver.
3. Loosen the fuse-holding finger nut by
turning it counter-clockwise until the plug
comes apart. The fuse is inside the power
plug housing and can be removed.
Figure 14. SeeGull MX Scanning Receiver Power
4. Replace the fuse with an identical 12-
amp fast blow fuse.
Note: Only use a 12-amp fast blow fuse;
any other fuse value may cause severe
problems with the unit and void the
warranty. In order not to violate the safety
approval of the receiver, the fuse must be
safety approved.
5. Insert the new fuse in the housing and
re-assemble the plug by turning the
knurled finger nut in a clockwise direction.
Tighten this nut as tight as you can with
your fingers.
Note: Do Not Use Tools to Tighten
7.2. Received Signal Strength
Appears Low
A received signal strength that appears to
be lower than expected is likely caused by
one of the following problems:
1. an incorrect antenna is being used
2. an antenna is not properly
connected
3. the antenna or antenna cable is
damaged.
Check that the antenna is properly
connected to the scanner, and that the
antenna is of the correct frequency.
Pressure Clips
Positive Connection
Fuse Holding Nut
(Turn Counter-Clockwise to Open)

SeeGull®MX Hardware Reference Manual
PCTEL, Inc. Page 17 Rev. K
8. Support
This section provides support information,
including PCTEL contacts, warranty
information, calibration notice, and technical
specifications.
8.1. Contact Information
For more information, visit
http://rfsolutions.pctel.com.
Phone Numbers
Departments
Contact
Information
CUSTOMER SUPPORT /
RMA REQUESTS
[phone]
QUALITY MANAGER
[phone]
SALES
[phone]
Table 1: Phone Numbers
Email Addresses
Departments
Contact Information
PRODUCT FEEDBACK
[e-mail]
CUSTOMER SUPPORT /
RMA REQUESTS
[e-mail]
QUALITY MANAGER
[e-mail]
SALES
[e-mail]
Table 2: Email Addresses
8.2. Warranty Information
WARRANTY
PCTEL warrants that the SeeGull MX will
be free from defects in material and
workmanship for a period of three (3)
years from the date of shipment under
normal use and operation. PCTEL’s sole
and exclusive obligation under the
foregoing warranty shall be, at its option,
to repair or replace any defective Product
which fails during the warranty period,
provided that PCTEL receives written
notice of the defect during the warranty
period. The expense of removal and
reinstallation of any item(s) of equipment
is not included in this warranty. This
warranty shall only apply to the Product
purchased or licensed and shall not apply
to any other equipment and its removal
and reinstallation. THE FOREGOING
WARRANTY IS EXCLUSIVE AND IN
LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING
THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE. Repair or
replacement in the manner provided
above shall be the sole and exclusive
remedy of Buyer for breach of warranty
and shall constitute fulfillment of all
liabilities of PCTEL with respect to the
quality and performance of the Products.
PCTEL shall have no obligation to make
repairs or replacement necessitated by
catastrophe, fault, negligence, misuse,
abuse or accident of Buyer or other users.
IN NO EVENT SHALL PCTEL BE LIABLE
FOR ANY SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES TO
BUYER OR ANY THIRD PARTY
ARISING OUT OF THESE TERMS AND
CONDITIONS OR ANY DEFECTIVE
PRODUCT WHETHER THE DEFECT IS
WARRANTED AGAINST OR NOT,
WHETHER THE CLAIM IS BASED UPON
