1 Preface
1.1 Purpose
This document contains the installation procedure for the PCTEL MX WinUSB
Driver.
.
1.2 References
The following documents complement the information contained within this document
and should be consulted as required:
1. PCTEL, RF Solutions’ Terms & Conditions of Sale
1.3 License Agreement
Please refer to Software License Agreement for the terms of the license agreement
covering the use of the PCTEL MX WinUSB Driver.

PCTEL SeeGull MX Driver Installation
Procedure
2 PCTEL Proprietary Information Rev. B
2 Installation
This section describes the required steps to install the PCTEL MX WinUSB Driver
which is a generic USB driver developed and provided by Microsoft. For more
information, please refer to the Microsoft website: http://msdn.microsoft.com/en-
us/library/ff540196(VS.85).aspx
2.1 Install PCTEL MX WinUSB Driver
The following steps describe how to install the PCTEL MX WinUSB Driver:
1. Log in as Administrator.
2. Insert the PCTEL MX WinUSB driver CD into the PC’s CD ROM drive.

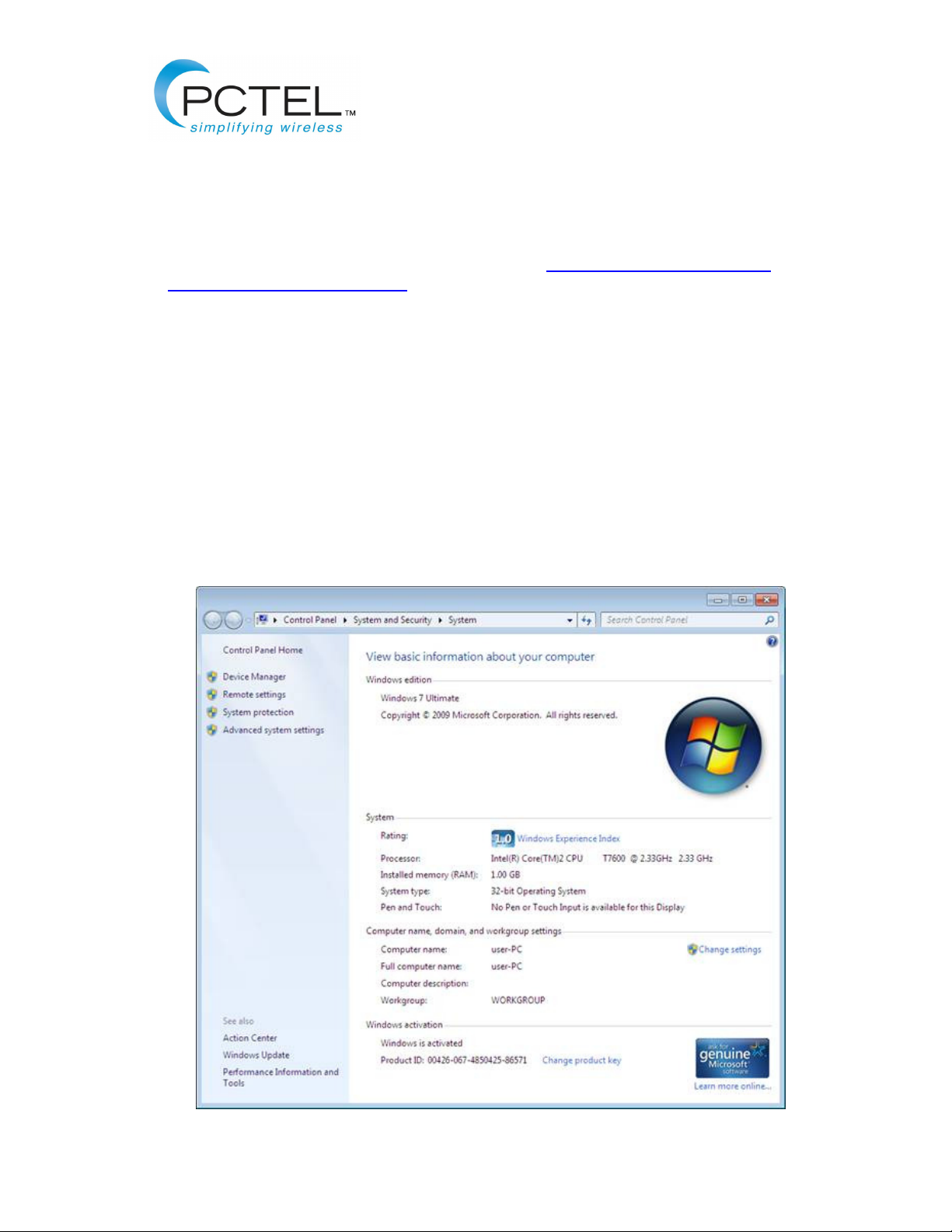

3. Determine the System type is 32 bit or 64 bit by right mouse clicking on the My
Computer, and select Properties to bring up the System Panel. The System type shows
the operating system is either 32 or 64 bit.

PCTEL SeeGull MX Driver Installation
Procedure
3 PCTEL Proprietary Information Rev. B
4. Run DPInst.exe from the PCTEL MX WinUSB Driver folder.
Note: For 32 bit Operating System run DPInst.exe from “install x86” folder and for 64 bit
Operating System run DPInst.exe from “install x64” folder.
5. The PCTEL USB Device Installer window should appear as shown below:
Figure 1 – PCTEL USB Device Installer Welcome Window
6. Click on the Next button to continue with the installation procedure.
7. For Windows 7 & Vista the security window may appear as below:

PCTEL SeeGull MX Driver Installation
Procedure
4 PCTEL Proprietary Information Rev. B
.

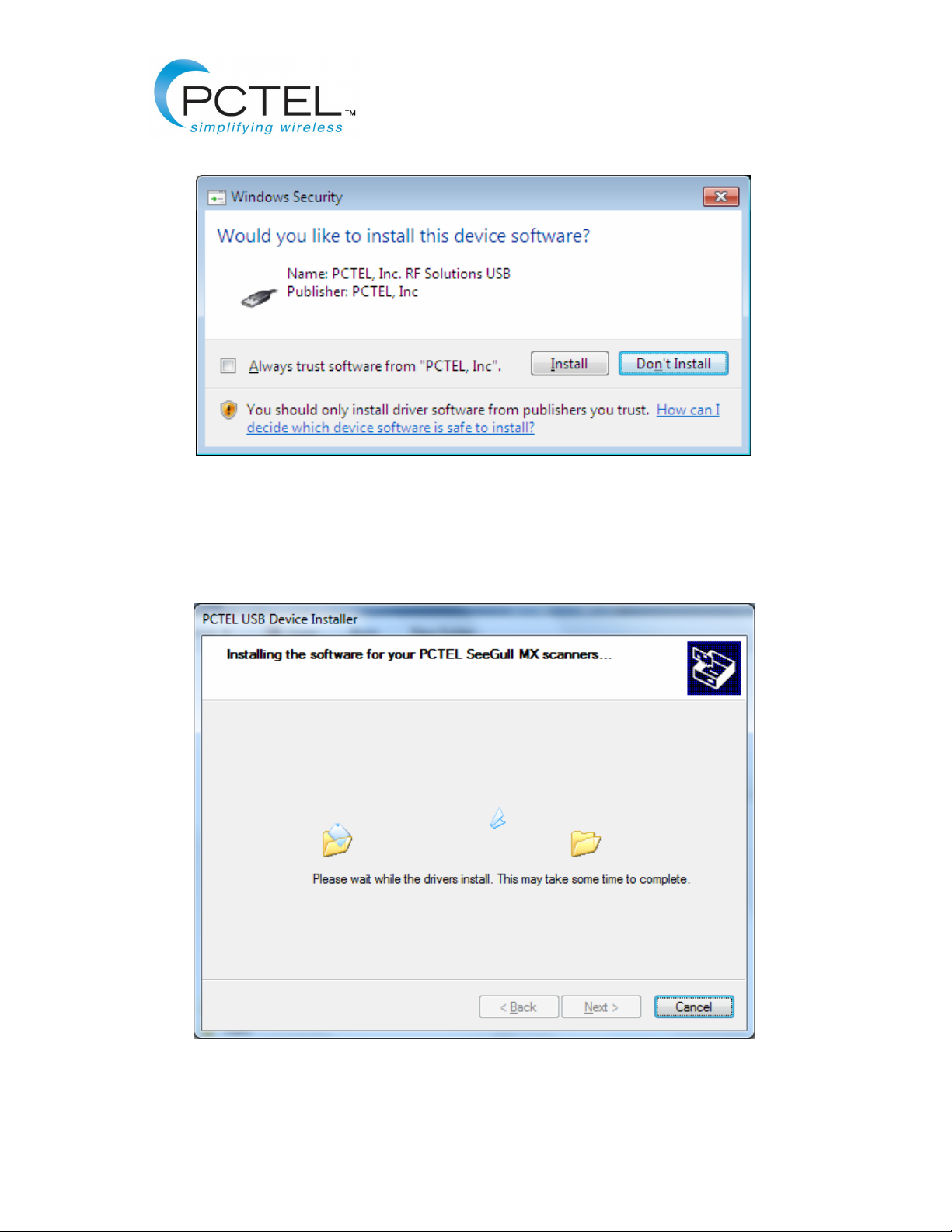

Figure 2 - Windows Security Window (only for Windows 7 & Vista)
8. Click Install to continue with the installation. During the installation process, the following
window may appear:
Figure 3 – Installation Progress Window
9. Once the installation procedure has completed successfully the following window will
display:

PCTEL SeeGull MX Driver Installation
Procedure
5 PCTEL Proprietary Information Rev. B

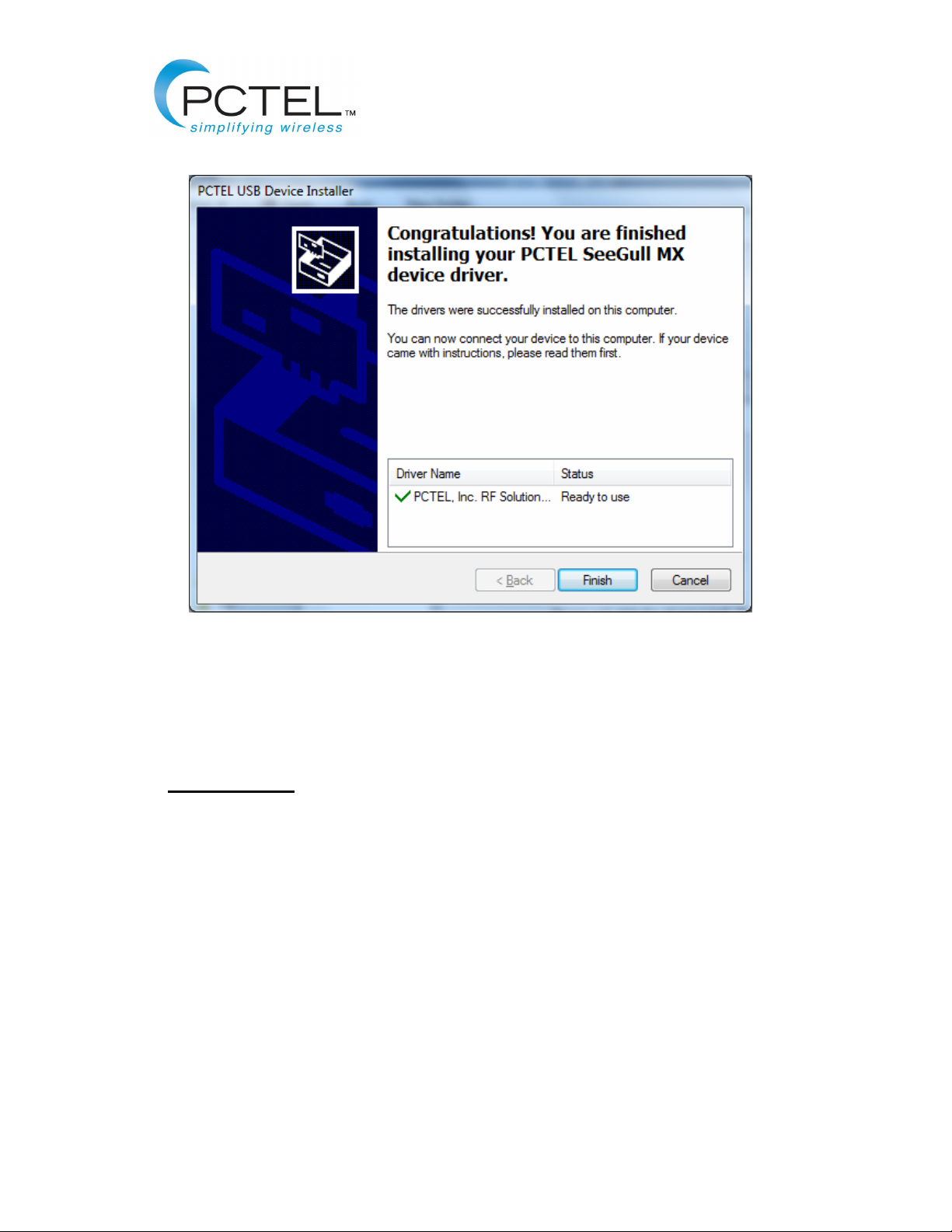

Figure 4 - Installation Completed Window
10. Click Finish to complete the Driver Installation.
11. Connect a PCTEL MX Scanner.
12. For Windows 7 and Vista users, proceed to step 18.
For Windows XP, the following Found New Hardware Wizard window will appear:

PCTEL SeeGull MX Driver Installation
Procedure
6 PCTEL Proprietary Information Rev. B
Figure 5 – Found New Hardware Welcome Window for XP
13. Select No, not this time and click Next. The following window will appear:
Figure 6 – Location for Driver Software Window
14. Select Install the software automatically (Recommended) and Click Next.

PCTEL SeeGull MX Driver Installation
Procedure
7 PCTEL Proprietary Information Rev. B
15. WinUSB driver software will install automatically and after the installation is complete, the
following will display:
Figure 7 – Complete Found New Hardware Wizard Window
16. Click Finish to complete the installation.
17. For Windows 7 and Vista, the operating system will automatically detect and install
driver software for the scanner. If you click on the device installation completed message
at the right bottom corner of the screen, the following screen will appear:
Figure 8 – PCTEL MX Scanner Ready-to-Use Window.
Note: If Windows require restart, the following window will appear. Close the window and
restart the PC.

PCTEL SeeGull MX Driver Installation
Procedure
8 PCTEL Proprietary Information Rev. B
Figure 9 – Restart Window
18. Device Manager will show PCTEL MX Scanner under PCTEL Devices as shown below:
Figure 10 – Device Manager Window
This completes the PCTEL MX WinUSB Device Driver Install Procedure.

PCTEL SeeGull MX Driver Installation
Procedure
9 PCTEL Proprietary Information Rev. B
2.2 Uninstall of the PCTEL MX WinUSB Driver
This section describes the procedure to uninstall the PCTEL MX WinUSB Driver:
1. Open Control Panel.
2. For XP open Add or Remove Programs and for Windows 7 or Vista open Uninstall a
program under Programs.
3. Select Windows Driver Package – PCTEL, Inc. RF Solutions (WinUSB) PCTEL
Devices (07/31/2009 01.00.00.00) and select Remove or Uninstall/Change.
Figure 11 – Uninstall or Change a Program Window

PCTEL SeeGull MX Driver Installation
Procedure
10 PCTEL Proprietary Information Rev. B
4. Click Yes to continue uninstall the driver.
Figure 12 – Uninstall Confirmation Window
This completes the PCTEL MX WinUSB Device Driver Uninstall Procedure.
