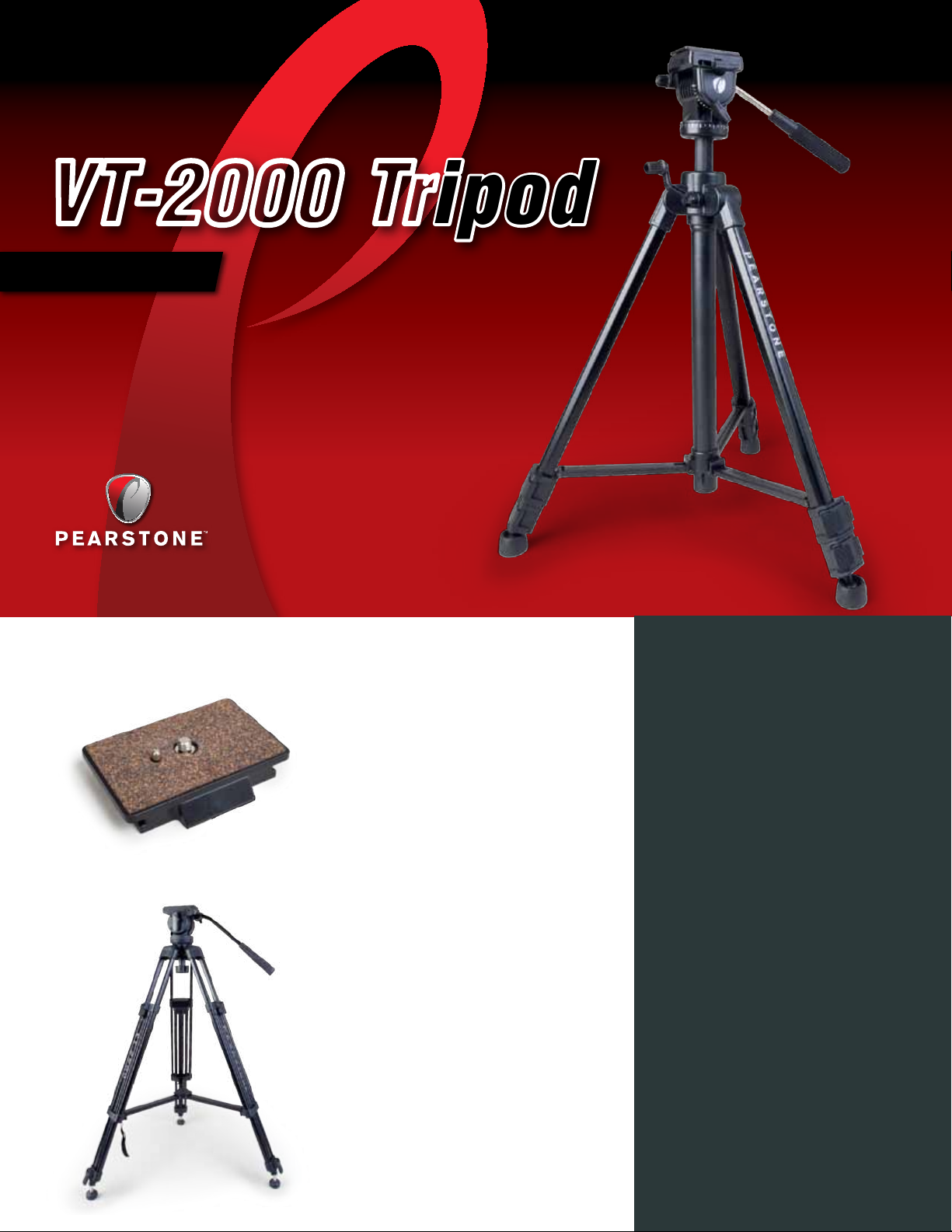

Pearstone VT-2000 User manual

VT-2000 TripodVT-2000 Tripod
User Manual
Limited One-Year Warranty
Pearstone provides a limited warranty that this
product is free from defects in materials and
workmanship to the original purchaser under
normal use for a period of one (1) year from the
original purchase date. Pearstone’s responsibility
with respect to this limited warranty shall be
limited solely to repair or replacement, at its
option, of any product which fails during normal
consumer use. This warranty does not extend to
damage or failure which results from misuse,
neglect, accident, alteration, abuse, improper
installation or maintenance. EXCEPT AS
PROVIDED HEREIN, PEARSTONE MAKES
NEITHER ANY EXPRESS WARRANTIES NOR
ANY IMPLIED WARRANTIES, INCLUDING BUT
NOT LIMITED TO ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. To obtain a replacement
during the time of this warranty please return the
defective item with proof of purchase along with
an RMA number to the place of purchase. This
warranty gives you specific legal rights, and you
may also have other rights which vary from state
to state.
QR-2000
Quick-Release Plate for VT-2000 Tripod
Pearstone offers a spare or replacement quick-release
plate for the VT-2000 tripod head. Having a
quick-release plate attached to the camera’s base at all
times allows you to attach or remove the camera from
the tripod without having to waste time fumbling with
the threaded mount. Your VT-2000 Tripod includes
one quick-release plate, but you may want to have
spares for other cameras. The Pearstone QR-2000 has
a 1/4˝-20 mounting stud and a retractable register pin
for correct camera positioning. The anti-skid
mounting surface stabilizes the camera.
VT-2500B
2-Way Pan Head Tripod
Pearstone also offers the VT-2500B tripod. This
lightweight video tripod system features a two-way
fluid head and a passive counterbalance
quick-release mounting plate. A 50mm leveling ball
and a built-in spirit level allow for rapid setups.
There are separate pan and tilt locks. Non-slip flip
locks on the legs are quick and easy to use and
clamp efficiently. The legs end in ground spikes for
outdoor use with retractable rubber feet for delicate
floor surfaces. The mid-level spreader stabilizes the
tripod on uneven surfaces and folds into the legs for
transport. Sturdy, anodized aluminum construction
travels easily at seven lb in its carry bag, yet will
support cameras up to 15 lb.
www.pearstone.com
© Copyright 2010 Pearstone

Step 1: Assess Shooting Area
To set up your tripod, begin by removing the tripod
from the box and/or carry case. Assess your shooting
area to determine a stable area to set up your camera.
Step 2: Extend Legs
Always extend the legs from the top flip-locks first. Pull
each flip-lock and extend the leg to its desired height.
Match the length of the legs and relock the flip-locks.
Step 3: Spread the Tripod
Plant the front leg of the tripod. Lift the back two legs
and pull back to spread the tripod to the full extension
of the mid-level spreader. Check the float level to verify
that the tripod is level. Readjust the legs if necessary.
Step 4: Raise Center Column
If you need to raise the center column, unlock the
center column by turning the locking knob
counterclockwise. Use the hand crank to raise or lower
the head platform. Never raise or lower the head by
pushing or pulling the head.
Step 5: Set the Tilt
Release the tilt lock. Using the pan/tilt bar, set the tilt
so that the head is flat and ready for mounting your
camera. Retighten the tilt lock.
Step 6: Set the Pan Angle
Release the pan lock. Using the pan/tilt bar, rotate the
head to set the head in the direction you will be
shooting. Retighten the pan lock.
Setting Up Your Tripod
Step 8: Mount Camera to Plate
Attach the mounting plate to your camera. Be certain
that the retractable alignment pin sets into its pocket
on the camera. Screw the threaded stud on the plate
into the bottom of the camera.
Step 7: Remove the Mounting Plate
Rotate the mounting plate lock so that the flat side is
against the mounting plate. The mounting plate will
pop free.
Step 9: Mount Camera to Tripod
Make certain that your tripod legs are locked and the
tripod is stable and ready for mounting your camera.
From the right side of the tripod, slide the mounting
plate down and left onto the tripod head. Push down
until the mounting plate clicks.

Step 10: Start Shooting
If you do not need to pan or tilt during your shot, keep
the pan and tilt knobs locked.
Step 11: Pan
Release the pan lock knob. Using the pan/tilt bar, move
the tripod left or right to pan.
Step 12: Tilt
Release the tilt lock knob. Using the pan/tilt bar, move
the tripod up or down to tilt.
Setting Up Your Tripod
pan lock
tilt lock
Step 1: Unmount Camera
Rotate the mounting plate lock forward until the
mounting plate pops free. Lift the camera up and out
until it is free of the tripod.
Step 2: Lower Center Column (if raised)
Release the center column lock knob. Using the hand
crank, lower the center column all the way down.
Secure the lock knob and fold the hand crank down.
Step 3: Collapse the Tripod
Push the legs together, collapsing the mid-level
spreader.
Step 4: Shorten Legs
Release the flip-locks and slide each leg section to its
closed position. Secure the flip-locks. Release the pan
and tilt locks and fold the pan/tilt bar to the legs.
Step 5: Store in Carry Case
Store your tripod in its carry case until the next shoot.
You can leave the mounting plate attached to your
camera for quick mounting.
center column
lock knob
All images are for illustrative purposes only.
Your tripod may look slightly different.
Tearing Down
Your Tripod

Thank you for choosing the
Pearstone VT-2000 Tripod.
All Pearstone tripods are designed
to balance features professionals
want with the affordability they
need, yet be durable enough to
provide many years of trouble-free
service and enjoyment.
Please carefully read these
instructions for setting up and
breaking down your tripod.
Key Features
• Two-way pan head for smooth motion
• Gear-driven center column
with friction control
• Auto-lock, quick-release mounting
• Three-section legs break down
to a compact 26.5˝ (67.3 cm)
• Separate pan and tilt locks
• Bubble level for accurate setup
• Mid-level spreader for stability on uneven surfaces
• Full 360° pan range
• 15 lb (6.8 kg) load capacity
• 64.3˝ (163 cm) to 25˝ (63.5 cm) height range
• 26.5˝ (67.3 cm) folded length
• Carry case with shoulder strap
• 4.5 lb (2 kg) weight
Safety
• Never set up or pull down a tripod
while a camera is mounted
• Do not move the tripod or adjust the legs
while a camera is mounted
• Do not exceed the maximum weight capacity
of the tripod
• Never leave a camera unattended on the tripod
• The camera should be securely fastened to the
quick-release mounting plate before mounting
onto the tripod
• Never mount a camera to the tripod
until all tripod legs are locked and stabilized
• Never raise or lower the center column by
pushing or pulling the head
• Do not stand on, rest on, or hang anything from
the mid-level spreader
• Do not attempt to remove the mid-level spreader
• Do not lift or move the tripod by the head
• Keep hands clear of the inside of the legs,
to avoid trapping fingers
• The safe operation of the tripod is the
responsibility of the user
Quick-Release
Mounting Plate
Tilt/Pan Bar
Mounting Plate
Capture Release
Mounting
Plate
Bubble Level
Tilt
Lock Knob
Pan
Lock Knob
Hand
Crank
Mid-Level Spreader
Tripod Leg
Foot
Center Column
Leg Flip-Locks
